SX8800 Pro - SSD XPG - Free user manual and instructions

Product Type	Solid State Drive (SSD)
Brand	XPG
Model	SX8800 Pro
Form Factor	M.2 2280
Interface	PCIe Gen 3.0 x4, NVMe 1.3
Capacity	256GB / 512GB / 1TB / 2TB
Sequential Read (Max)	Up to 3,500 MB/s
Sequential Write (Max)	Up to 3,000 MB/s
NAND Flash Type	3D NAND TLC
Controller	Silicon Motion SM2262EN
DRAM Cache	Yes
Dimensions (L x W x H)	80 x 22 x 2.15 mm (M.2 2280)
Weight	Approx. 8 g
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Power Consumption (Active)	3.5 W (typical)
Power Consumption (Idle)	0.3 W (typical)
MTBF	2,000,000 hours
Warranty	5 years limited
Features	LDPC ECC, SLC Caching, TRIM, SMART, End-to-End Data Protection
Operating System Compatibility	Windows, Linux, macOS
Product Code	AGAMMIXSX8800PRO-xxxx (varies by capacity)

Frequently Asked Questions - SX8800 Pro XPG

What is the form factor of the XPG SX8800 Pro SSD?

The XPG SX8800 Pro SSD uses the M.2 2280 form factor, which is compatible with most modern laptops and desktops with an M.2 slot.

Is the SX8800 Pro compatible with PS5?

Yes, the SX8800 Pro is compatible with PS5 as it meets the required PCIe Gen3 x4 interface and form factor. However, ensure your PS5 supports M.2 SSDs and check the official compatibility list.

What are the sequential read and write speeds?

The sequential read speed is up to 3,500 MB/s and sequential write speed is up to 3,000 MB/s, depending on capacity and system configuration.

Does the SX8800 Pro have DRAM cache?

Yes, it features a DRAM cache for improved random performance and consistent sustained write speeds.

How do I install the SSD?

Installation is straightforward: insert the M.2 SSD into the slot at a 30-degree angle, then secure it with a screw. Refer to your motherboard or laptop manual for specific instructions. Always disconnect power before installation.

What is the warranty period?

The XPG SX8800 Pro comes with a 5-year limited warranty from the date of purchase, covering defects in materials and workmanship.

Can I use it with an external enclosure?

Yes, you can use the SX8800 Pro in an external M.2 NVMe enclosure via USB-C or Thunderbolt. Ensure the enclosure supports PCIe Gen3 x4 speeds for optimal performance.

What NAND technology is used?

The SSD uses 3D NAND TLC (Triple-Level Cell) technology, which balances performance, endurance, and cost.

Is the SX8800 Pro compatible with my laptop?

It depends on your laptop's M.2 slot. Check if your laptop supports NVMe and has an M.2 2280 slot. Many modern laptops are compatible, but verify your device specifications.

Does the drive support TRIM?

Yes, the SX8800 Pro supports the TRIM command, which helps maintain performance over time by cleaning unused data blocks.

USER MANUAL SX8800 Pro XPG

Chinese traditional 03 Portuguese 27
Chinese simple 07 Russian 31
English 11 Romanian 35
German 15 Spanish 39
Japanese 19 Turkish 43
Korean 23

INSTALLING AN M.2 SSD ON A LAPTOP PC

Chinese traditional 47 Portuguese 71
Chinese simple 51 Russian 75
English 55 Romanian 79
German 59 Spanish 83
Japanese 63 Turkish 87
Korean 67

HOW TO INSTALL AN M.2 SSD ON PLAYSTATION 5

Chinese traditional 91 Portuguese 127
Chinese simple 97 Russian 133
English 103 Romanian 139
German 109 Spanish 145
Japanese 115 Turkish 151
Korean 121

如何在桌機安裝

M.2 固態硬碟

更換前準備步驟

1. 準備工具

2. 備份資料

1. 將主機機殼卸下

3. 對準M.2插槽、插上固態硬碟

4. 拴上螺絲固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新裝上機殼

更换前准备步骤

1. 准备工具

2.备份数据

1. 将机箱侧板卸下

3.对准M.2插槽、插上固态硬盘

4.拧上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5.重新装上机箱侧板

BEFORE INSTALLATION

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and XPG M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm

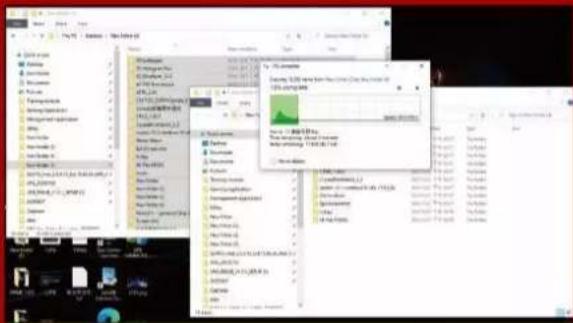

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

*The location of the power switch may vary by PC, please check your user manual.

INSTALLATION

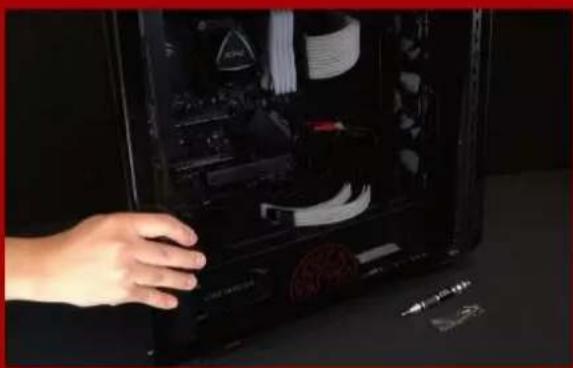

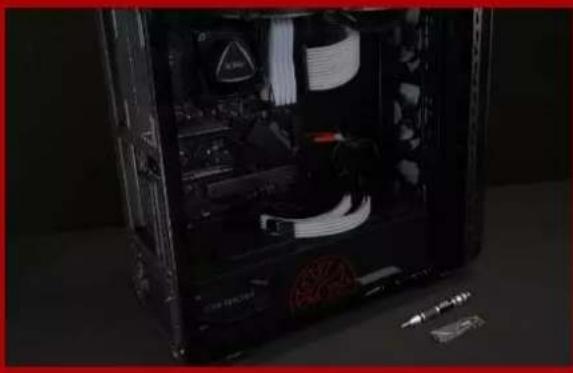

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

2. LOCATE THE M.2 PCIE SLOT AND CONFIRM THERE ARE SCREWS

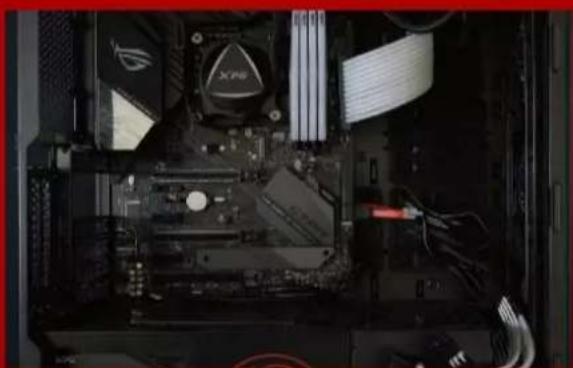

Locate the M.2 PCIe slot, ensure the SSD will fit, and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.
**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the PC is shipped from the factory.

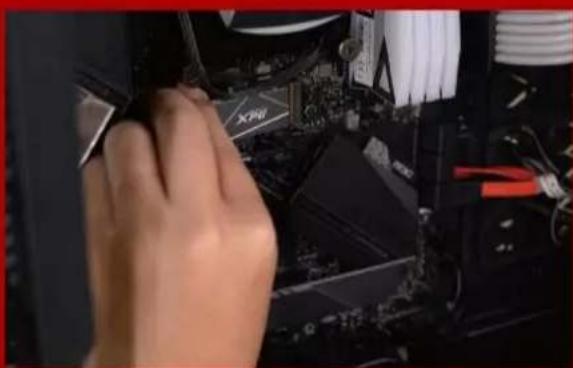

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

* The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM

DESKTOP-PC INSTALLIEREN

VOR DER INSTALLATION

1. ALLES NÖ TIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

1. PC-GEHÄ USE ENTFERNEN

2. M.2-PCIE-STECKPLATZ AUSFINDIG MACHEN UND SICHERSTELLEN, DASS SCHRAUBENVORHANDENSIND

5. GEHÄ USE WIEDER ZUSAMMENBAUEN

交換前の準備

1. 準備するもの

2. データのバックアップ

1. パソコン本体のケースを取り外す

3. M.2スロットにSSDを差し込む

4. SSDをねじで 固 定する

5. ケースを元の位置に取り付ける

1.필요한 도구 준비

2.데이터 백업

1.PC케이스 제거

4. 나사를 조여서 SSD 고정

5.케이스 재조립

1. REÚ NA AS COISAS QUE VOCÊ PRECISA

PC, chaves de fenda Phillips e SSD XPG M.2

2. FAÇ A BACKUP DE SEUS DADOS

1. REMOVA O GABINETE DO PC

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓ LIDO

4. APERTE OS PARAFUSOS PARA PRENDER O SSD

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

4.ОТКЛЮЧИТЕ ШНУР ПИТАНИЯ БАТАРЕЮ

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

Î NAINTE DE INSTALARE

1. ADUNATI LUCRURILE DE CARE VEȚI AVEA NEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

4. DECONECTATI ALIMENTAREA CU ENERGIE ŞI CABLUL DE ALIMENTARE

1. SCOATEȚI CARCASA PC-ULUI

2. LOCALIZATI FANTA M.2 PCIE ŞI CONFIRMAȚI CĂ EXISTĂ ŞURUBURI

3.ALINIATI FANTA M.2 ŞI INTRODUCETI UNITATEA SOLID STATE

4. STRÂ NGETI ŞURUBURILE PENTRU À FIXA SSD

5.REASAMBLATICARCASA

6.CONECTATICABLULDE ALIMENTARE ŞI PORNITI PC-UL PENTRUAFINALIZA INSTALAREA

INSTALARUNAUNIDAD

DEESTADOSÓLIDOM.2

ENUNEQUIPODE

SOBREMESA

1. REUNIR LOS ELEMENTOS QUE NECESITARÁ

1. QUITAR LA CARCASA DELEQUIPO

3. ALINEARLARANURAM.2EINSERTA LA UNIDAD DE ESTADO SÓLIDO

5. VOLVER A MONTAR LA CARCASA

KURULUM

1. İHTIYACINIZ OLACAK ŞEYLERI TOPLAYIN

PC, Phillips tornavidalar ve XPG M.2 SSD

2. VERILERINIZI YEDEKLEYIN

4. GÜ Ç ANAHTARINI KAPATIN VE GÜ Ç KABLOSUNU Ç IKARIN

1. PC KASASINI Ç IKARIN

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

5. DAVAYA BENZEYEN

1. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在筆電安裝

M.2固態硬碟

更換前準備步驟

1. 準備工具

2. 備份資料

4.將電源線及電池拔除

1. 將主機背板卸下

3.對準M.2插槽、插上固態硬碟

4.拴上螺絲以固定固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新蓋上背板

2.备份数据

4. 将电源线及电池拔除

1. 将电脑背板卸下

3. 对准M.2插槽、插上固态硬盘

4.拴上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5.重新盖上背板

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and XPG M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

4. UNPLUG POWER CORD AND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your user manual.

INSTALLATION

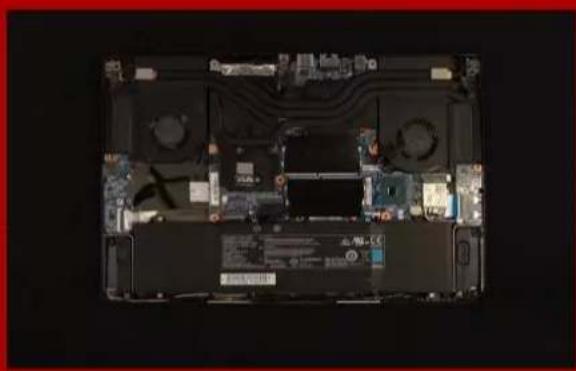

1. REMOVE YOUR PC'S BACK PLATE

Use your standard Phillips screwdriver to remove the screws from the back plate.

*If you are unsure how to do this, refer to your user manual

2. LOCATE THE M.2 PCIe SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the laptop is shipped from the factory.

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

4. FASTEN THE SCREWS TO SECURE THE SSD

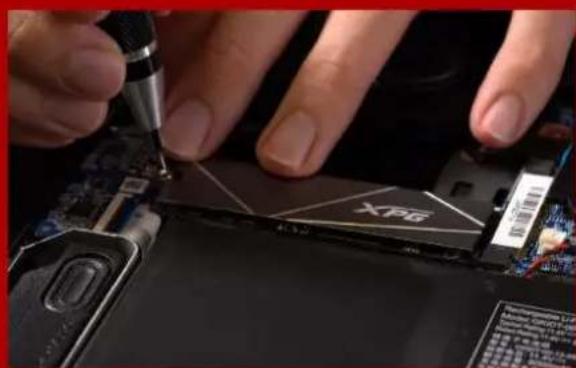

Use your small Phillips screwdriver to secure the SSD into place.

*Do not overtighten the screws

5. SECURE THE BACK PLATE INTO PLACE

*Do not overtighten the screws as it may cause damage

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM LAPTOP-PC INSTALLIEREN

VOR DER INSTALLATION

1. ALLES NÖ TIGE ZUSAMMENTRAGEN

2.IHRE DATEN SICHERN

3.IHREN PC ABSCHALTEN

4.NETZKABEL UND AKKU TRENNEN

1. RÜ CKPLATTE IHRES PCS ENTFERNEN

2.M.2-PCIE-STECKPLATZ AUSFINDIG MACHENUND SICHERSTELLEN, DASS SCHRAUBEN VORHANDEN SIND

5.RÜCKPLATTE WIEDER EINSETZEN

2. データのバックアップ

4. 電源ーブルとバッテリーを取り外す

1. パソコンのバックパネルを取り外す

3. M.2スロットにSSDを差し込む

4. SSDをねじで固定する

2.데이터 백업

4.전원 코드와 배터리 분리

1.PC뒤판 제거

4.나사를 조여서SSD고정

5.뒤판 제자리에 고정

1. REÚ NA AS COISAS QUE VOCÊ PRECISA

PC, chaves de fenda Phillips e SSD XPG M.2

2. FAÇ A BACKUP DE SEUS DADOS

1. REMOVA A PLACA TRASEIRA DO SEU PC

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓ LIDO

4.APERTE OS PARAFUSOS PARA PRENDER O SSD

5. PRENDA A PLACA TRASEIRA NO LUGAR

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

2. FACETI O COPIE DE REZERVĂ A DATELOR

4. DECONECTATI CABLUL DE ALIMENTARE ŞI BATERIA

1. SCOATEȚI PLACA DIN SPATE A PC-ULUI

3. ALINIATI FANTA M.2 Ş INTRODUCETI UNITATEA SOLID STATE

4. STRÂ NGETI ŞURUBURILE PENTRU À FIXA SSD

5. FIXAREA PLĂCII DIN SPATE ÎN POZIȚIE

6.CONECTATI CABLUL DE ALIMENTARE ŞI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓ LIDO M.2 EN UN EQUIPO PORTÁTIL

1. RETIRAR LA PLACA POSTERIOR DE SU PC

2. LOCALIZAR LA RANURA PCIE M.2 Y CONFIRMAR QUE TIENE TORNILLOS

3.ALINEAR LA RANURA M.2 E INSERTAR LA UNIDAD DE ESTADO SÓ LIDO

5. ASEGURAR LA PLACA POSTERIOR EN SU LUGAR

6. ENCHUFAR EL CABLE DE ALIMENTACIÓ N Y ENCENDER EL EQUIPO PARA COMPLETAR LA INSTALACIÓ N

2. VERILERINIZI YEDEKLEYIN

3. PC'NIZI KAPATIN

4. GÜ Ç KABLOSUNU VE PILI Ç IKARIN

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

5. ARKA PLAKAYI YERINE SABITLEYIN

4. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在PS5主機安裝

M.2固態硬碟

安裝前準備步驟

需要的工具有：

1. 將PS5主機關機。

3.移除所有主機上的線材跟裝置。

安裝固態硬碟步驟

2.用左手緊握PS5主機的左上角。

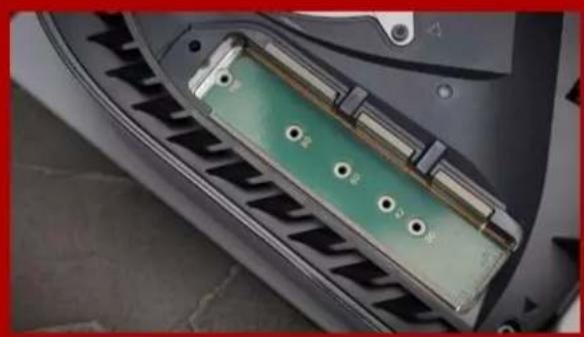

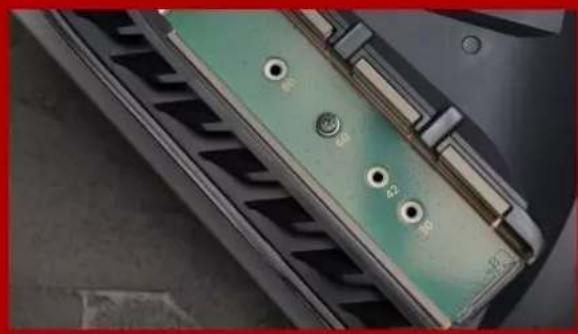

1. 接著會看到綠色底的固態硬碟擴充插槽。

1. 再將螺絲旋緊，固定固態硬碟。

1. 重新蓋上擴充插上蓋。

1. 重新連接電線並啟動您的PS5主機。

13. 按照重新格式化說明操作。

14. 您已完成！

安装前准备步骤

需要的工具有：

-XPG M.2固态硬盘

-十字型螺丝刀

-PS5主机

1. 将PS5主机关机。

1. 移除所有主机上的线材跟装置。

安装固态硬盘步骤

1. 用左手紧握PS5主机的左上角。

1. 用右手拉动，然后向左滑动背板以拆除机壳上盖。

1. 松开螺丝以拆除固态硬盘扩充槽的盖子。

1. 接着会看到绿色底的固态硬盘扩充插槽。

1. 再将螺丝旋紧，固定固态硬盘。

1. 重新盖上扩充插上盖。

1. 重新连接电线并启动您的PS5主机。

13. 按照重新格式化说明操作。

BEFORE INSTALLATION

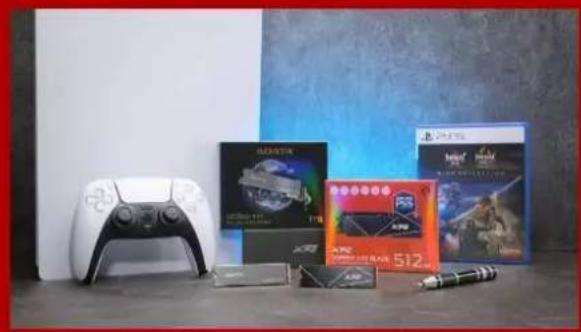

WHAT YOU'LL NEED :

• XPG M.2 SSD
• Phillips head screwdriver
• PS5

1. ENSURE YOU HAVE THE LATESTPS5 SOFTWARE UPDATES.

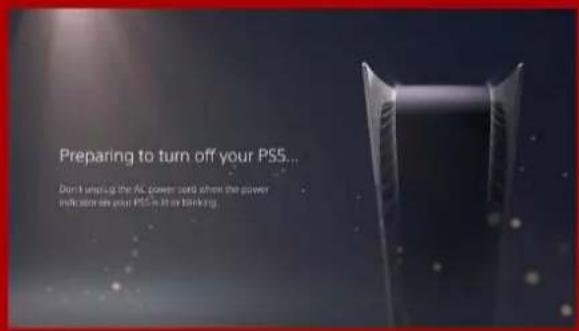

1. TURN OFF YOUR PS5.

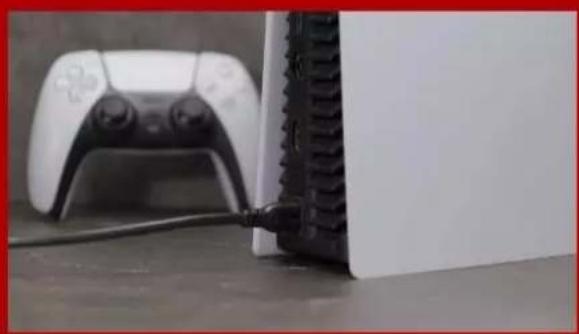

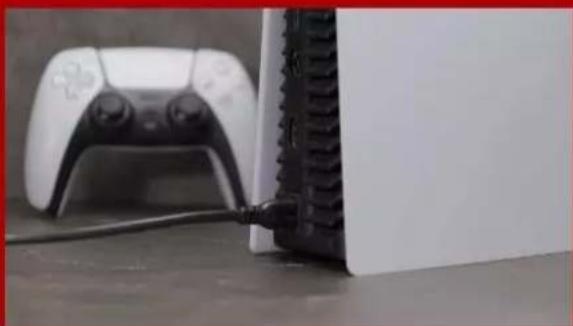

1. DISCONNECT ALL CABLES AND DEVICES.

INSTALLATION

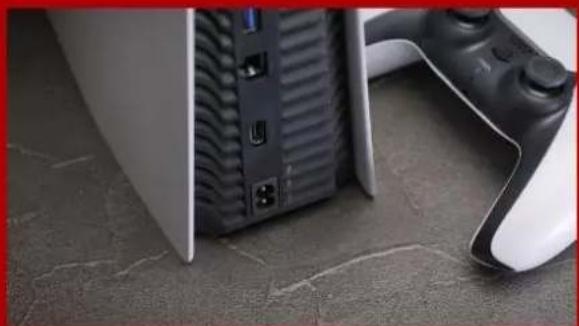

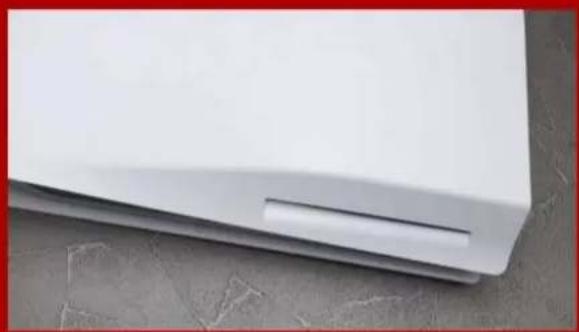

1. LAY THE PS5 FLAT WITH THE LOGO SIDE FACING DOWNWARDS.

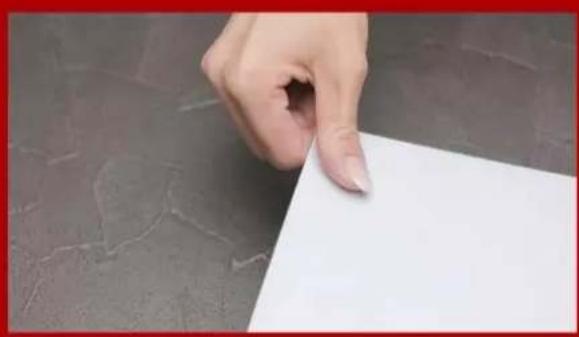

1. FIRMLY GRAB THE UPPER LEFT HAND CORNER OF THE PS5 WITH YOUR LEFT HAND.

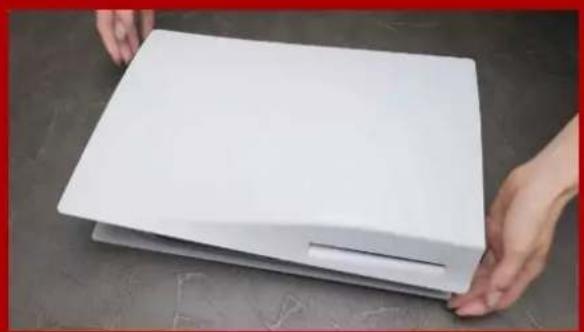

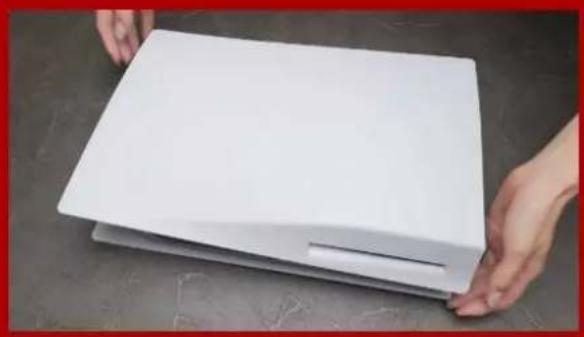

3.WITH YOUR RIGHT HAND, PULL AND THEN SLIDE THE BACKING PLATE TO THE LEFT TO REMOVE.

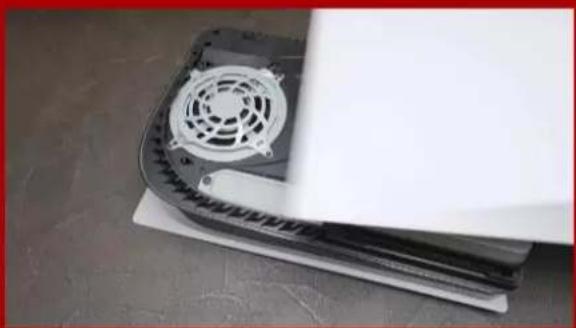

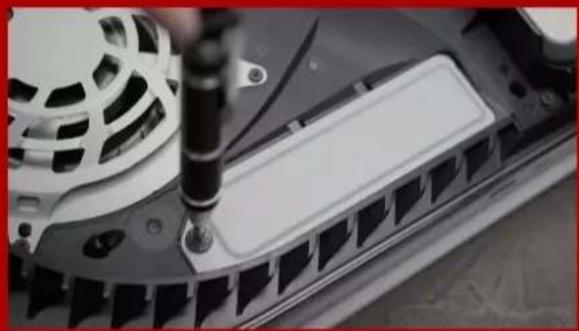

1. LOOSEN THE SCREW TO REMOVE THE EXPANSION SLOT COVER.

1. REMOVE THE SINGLE SCREW AND THE WASHER-LIKE STANDOFF UNDERNEATH.

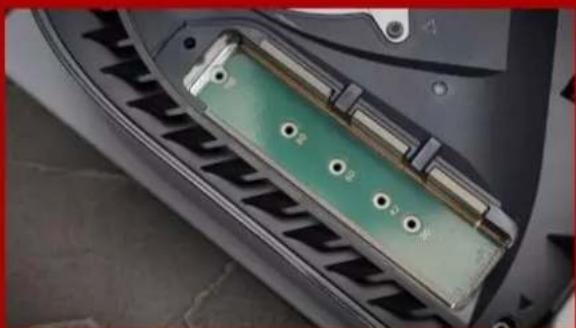

1. PLACE THE STANDOFF IN THE HOLE THAT CORRESPONDS TO THE M.2 FORM FACTOR.

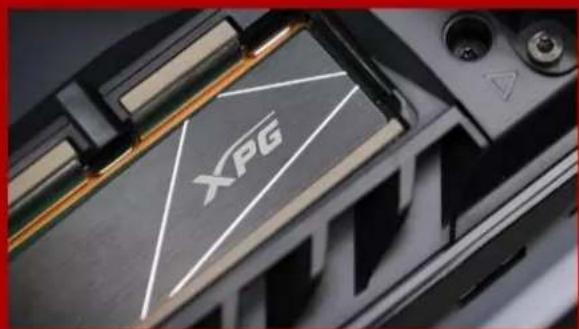

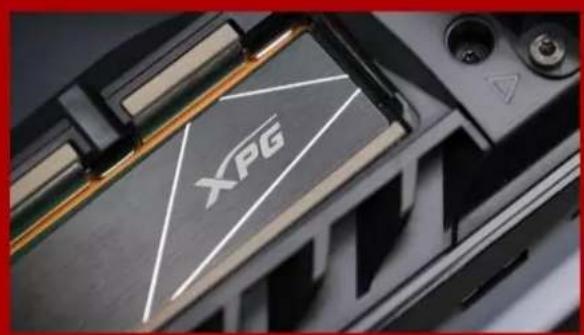

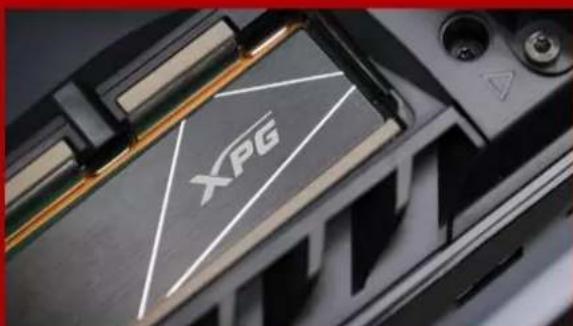

1. CLICK THE GOLD CONNECTOR OF THE SSD INTO THE MATCHING INPUT NOTCH.

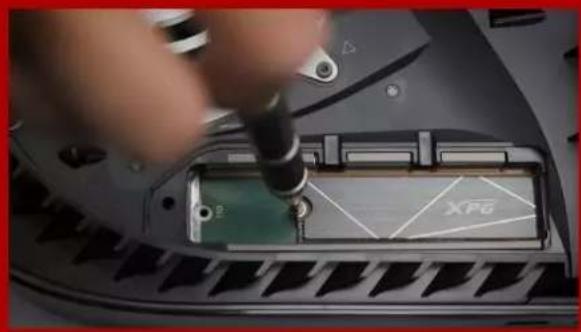

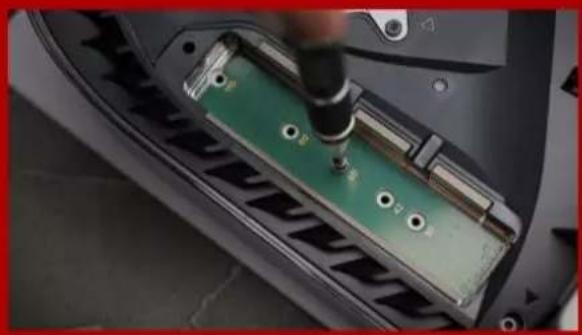

1. FASTEN THE SSD WITH THE SCREW.

10.REINSTALL THE EXPANSION SLOT COVER.

1. REINSTALL THE BACKING PLATE BY SLIDING IT BACK AND PUSHING DOWNWARDS.

1. RE-ATTACH CABLES AND TURN ON YOUR PS5.

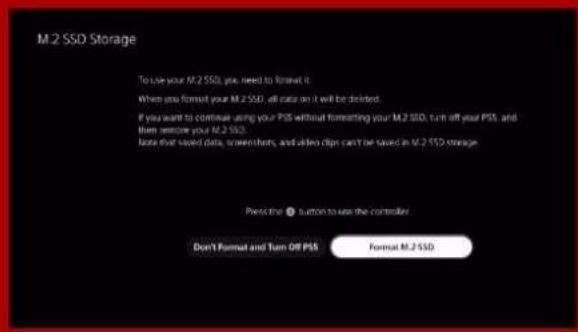

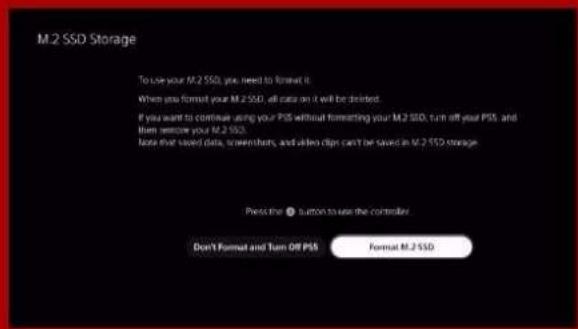

13. FOLLOW THE REFORMATTING INSTRUCTIONS.

14. YOU'RE DONE! YOU CAN NOW STORE GAMES AND APPS ONTO THE ADATA LEGEND 840.

INSTALLATION EINER M.2 SSD AUF PLAYSTATION®5

VOR DER INSTALLATION

WAS SIE BENÖ TIGEN:

1. STELLEN SIE SICHER, DASS SIE DIE NEUESTEN PS5-SOFTWARE-UPDATES INSTALLLIERT HABEN.

1. SCHALTEN SIE IHRE PS5 AUS.

1. TRENNEN SIE ALLE KABEL UND GERÄ TE AB.

INSTALLATION

1. LEGEN SIE DIE PS5 FLACH HIN, SO DASS DAS LOGO NACH UNTEN ZEIGT.

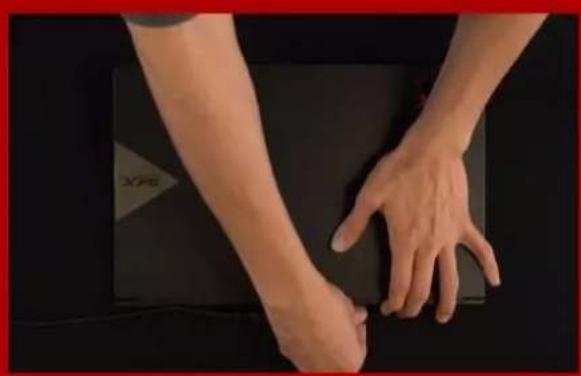

1. GREIFEN SIE MIT IHRER LINKEN HAND FEST IN DIE LINKE OBERE ECKE DER PS5.

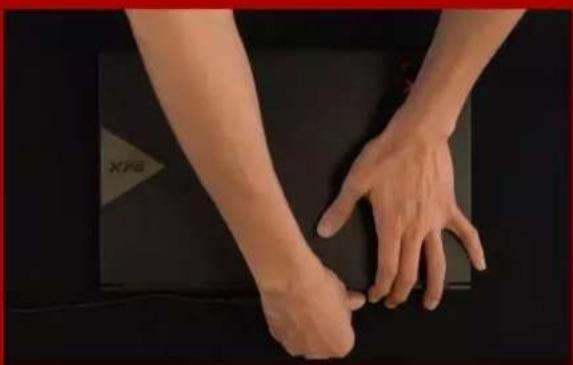

1. ZIEHEN SIE MIT DER RECHTEN HAND AN DER TRÄ GERPLATTE UND SCHIEBEN SIE DIESE NACH LINKS, UM SIE ZU ENTFERNEN.

1. SETZEN SIE DEN ABSTANDHALTER IN DAS LOCH IM M.2-FORMFAKTOR.

1. SETZEN SIE DEN GOLDENEN STECKER DER SSD IN DIE ENTSPRECHENDE AUSSPARUNG AM EINGANG EIN

1. BEFESTIGEN SIE DIE SSD MITHILFE DER SCHRAUBE.

設置前の準備

必要なもの：

- XPG M.2 SSD

- プラスドライバー

- PS5

1. PS5の電源を切ります。

1. SSDをネジで固定します。

1. 拡張スロットカバーを元に戻します。

1. 再フォーマットの指示に従ってください。

설치하기 전에

준비물:

1. PS5를 꿈니다.

5.이제 녹색 확장 슬롯이 보입니다

1. 나사를 조여서 SSD를 고정합니다

1. CERTIFIQUE-SE DE TER AS ATUALIZAÇÃO ES DE SOFTWARE DO PS5 MAIS RECENTES.

1. DESLIGUE SEU PS5.

1. DESCONECTE TODOS OS CABOS E DISPOSITIVOS.

1. COLOQUE O PS5 NA HORIZONTAL COM O LADO DO LOGOTIPO VOLTADO PARA BAIXO.

1. SEGURE FIRMEMENTE O CANTO SUPERIOR ESQUERDO DO PS5 COM A MÃ O ESQUERDA.

1. COM A MÃ O DIREITA, PUXE E DESLIZE A PLACA TRASEIRA PARA A ESQUERDA PARA RETIRA-LA.

1. AFROUXE O PARAFUSO PARA RETIRAR A TAMPA DO SLOT DE EXPANSÃ O.

1. VOCÊ DEVERÁ VER AGORA O SLOT DE EXPANSÃ O VERDE.

1. REMOVA O Ú NICO PARAFUSO E O ESPAÇ ADOR EM FORMA DE ARRUELA EMBAIXO.

1. COLOQUE O ESPAÇ ADOR NO ORIFÍ CIO QUE CORRESPONDE AO FATOR DE FORMA M.2.

1. CLIQUE NO CONECTOR DOURADO DO SSD NO ENTALHE DE ENTRADA CORRESPONDENTE.

1. FIXE O SSD COM O PARAFUSO.

1. RECOLOQUE A TAMPA DO SLOT DE EXPANSÃ O.

1. RECOLOQUE A PLACA TRASEIRA DESLIZANDO-A PARA TRÁ S E EMPURRANDO PARA BAIXO.

1. RECONECTE OS CABOS E LIGUE SEU PS5.

1. SIGA AS INSTRUÇ Ô ES DE REFORMATAÇ Â O.

1. PRONTO! AGORA VOCÊ PODE ARMAZENAR JOGOS E APLICATIVOS NO SSD.

1. ВЫКЛЮЧИТЕ PS5.

1. ОТСОЕДИНИТЕ ВСЕ КАБЕЛИ И УСТРОЙСТВА.

УСТАНОВКА

1. ВОЗЬМИТЕСЬ ЗА ВЕРХНИЙ ЛЕВЫЙ УГОЛ PS5 ЛЕВОЙ РУКОЙ.

1. ПОДКЛЮЧИТЕ КАБЕЛИ И ВКЛЮЧИТЕ PS5.

DE CE AVETI NEVOIE:

1. ASIGURATI-VĂ CĂ AVETI CELE MAI RECENTE ACTUALIZĂRI DE SOFTWARE PS5.

1. OPRITI PS5.

1. DECONECTAȚI TOATE CABLURILE ȘI DISPOZITIVELE.

INSTALARE

1. AŞEZATI PS5 LA ORIZONTALĂ, CU PARTEA CU SIGLA ORIENTATĂ ÎN JOS.

1. PRINDEȚI FERM COLȚUL DIN STĂ NGA SUS AL PS5 CĂ MĂ NA STĂNGĂ.

1. CU MÂNA DREAPTĂ, TRAGEȚI ȘI APOI GLISAȚI PLACA DE SUPPORT SPRE STĂ NGA PENTRU A O SCOATE.

1. SLĂBIȚI ȘURUBUL PENTRU A SCOATE CAPACUL FANTEI DE EXPANSIUNE.

1. ACUM AR TREBUI SĂ VEDEȚI SLOTUL DE EXPANSIUNE VERDE.

1. ÎNDEPĂRTAȚI UN SINGUR ȘURUB ȘI DISTANȚIERUL DE TIP ȘAIBĂ DE DEDESUBT.

1. AŞEZATI DISTANTIERUL ÎN ORIFICIUL CARE CORESPUNDE FORMEI M.2.

1. FACETI CLIC PE CONECTORUL AURIU AL SSD- ULUI ÎN CRESTĂTURA DE INTRARE CORESPUNZĂTOARE.

1. FIXATI SSD-UL CU AJUTORUL ŞURUBULUI.

1. REINSTALATI CAPACUL FANTEI DE EXPANSIUNE.

1. RECONECTAȚI CABLURILE ȘI PÓRNITI PS5.

1. URMAȚI INSTRUCTIUNILE DE REFORMATARE.

1. AȚI TERMINAT! ACUM PUTETI STOCA JOCURI ȘI APLICATII PE SSD.

LO QUE VAS A NECESITAR:

• SSD M.2 DE XPG
• Destornillador Phillips
• PS5

1. APAGA TU PS5.

1. DESCONECTE TODOS LOS CABLES Y DISPOSITIVOS.

INSTALACIÓ N

1. APOYA EL PS5 EN POSICIÓ N HORIZONTAL CON EL LOGOTIPO HACIA ABAJO.

1. AGARRE FIRMEMENTE LA ESQUINA SUPERIOR IZQUIERDA DEL PS5 CON LA MANO IZQUIERDA.

1. TIRE DE LA PLACA DE APOYO CON LA MANO DERECHA Y DESLÍ CELA HACIA LA IZQUIERDA PARA EXTRAERLA.

1. AFLOJE EL TORNILLO PARA RETIRAR LA TAPA DE LA RANURA DE EXPANSIÓ N.

1. AHORA VERÁ S LA RANURA DE EXPANSIÓ N DE COLOR VERDE.

1. SUJETE EL SSD CON EL TORNILLO.

1. REINSTALE LA TAPA DE LA RANURA DE EXPANSIÓ N.

1. REINSTALE LA PLACA DE APOYO DESLIZÁ NDOLA HACIA ATRÁ S Y EMPUJÁ NDOLA HACIA ABAJO.

1. VUELVE A CONECTAR LOS CABLES Y ENCIENDE TU PS5.

1. SIGA LAS INSTRUCCIONES DE REFORMATEO.

KURULUMDAN Ö NCE

GEREKENLER:

1. EN SON PS5 YAZILIM GÜ NCELLEMELERINE SAHIP OLDUĞUNUZDAN EMIN OLUN.

1. PS5'INIZI KAPATIN.

1. TÜ M KABLOLARI VE CIHAZLARI Ç IKARIN.

KURULUM

1. PS5'I LOGOLU TARAFI AŞAĞI BAKACAK ŞEKILDE DÜZ BIR ŞEKİLDE YATIRIN.

1. SOL ELINIZLE PS5'IN SOL ÜST KÖŞESINI SIKICA TUTUN.

1. SAĞ ELINIZLE DESTEK PLAKASINI Ç EKIP Ç IKARMAK İÇ IN SOLA KAYDIRIN.

1. GENİŞLETME YUVASI KAPAĞINI ÇIKARMAK IÇIN VIDAYI GEVŞETIN.

1. ARTIK YEŞIL GENİŞLETME YUVASINI GÖ RMELISINIZ.

1. TEK VIDAYI VE ALTINDAKI RONDELA BENZERI AYIRICIYI Ç IKARIN.

1. AYIRICIYI M.2 FORM FAKTÖRÜNE KARŞILIK GELEN DELIĞE YERLEŞTIRIN.

1. SSD'NIN ALTIN KONEKTÖRÜNÜ EŞLEŞEN GIRİŞ ÇENTIĞINE TIKLAYIN.

1. SSD'YI VIDAYLA SABITLEYIN.

1. GENİŞLETME YUVASI KAPAĞINI YENIDEN TAKIN.

1. DESTEK PLAKASINI GERIYE DOĞRU KAYDIRIP AŞAĞI DOĞRU ITEREK YENIDEN TAKIN.

1. KABLOLARI YENIDEN TAKIN VE PS5'INIZI AÇ IN.

1. YENIDEN BIÇ IMLENDIRME TALIMATLARINI IZLEYIN.

1. TAMAMLADINIZ! ARTIK OYUNLARI VE UYGULAMALARI SSD'DE DEPOLAYABILIRSINIZ.
