Product Type	Watch and Jewellery Set
Brand	Auriol
Model Number	HG08172A
Colour	Gold case, Grey strap
Movement Type	Quartz
Battery	1 x 1.5 V button cell (SR626SW)
Water Resistance	5 bar (50 m) according to DIN 8310
Dial	Analog with hour, minute, second hands
Strap	Grey strap
Clasp Type	Buckle
Functions	Time display, second hand
Scope of Delivery	Watch, pre-installed battery, instruction set
Warranty	3 years from date of purchase
Service (UK)	Tel: [phone], Email: [e-mail]
Care Instructions	Clean with a soft, dry cloth
Disposal	Batteries separately; product recyclable
Battery Replacement	Have changed by a specialist shop
Water Resistance Check	Annually recommended

Frequently Asked Questions - HG08172A AURIOL

How do I set the time on my Auriol HG08172A watch?

To set the time, pull the crown out to the 1st position. Turn the crown to set the hour and minute hands. When the crown is pushed back to the normal position, the second hand begins to run.

How do I change the battery?

Have the battery changed by a specialist shop. The watch uses a 1.5 V button cell (type SR626SW).

Is my watch water resistant?

Yes, the HG08172A is water resistant to 5 bar (50 m) according to DIN 8310. Note that water tightness is not permanent and should be checked annually.

How can I shorten the watch strap?

The HG08172A does not have removable segments (those are for models B and C). If you have a different model, refer to the manual for segment removal or pin exchange instructions.

What type of battery does the watch use?

It uses a 1.5 V button cell, type SR626SW.

How do I clean the watch?

Clean the outside only with a soft, dry cloth.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects.

How do I make a warranty claim?

Keep the original sales receipt. Contact the service department by phone or email, and return the defective product with the proof of purchase and defect description.

How should I dispose of the watch or its battery?

Do not dispose of in household waste. Batteries must be recycled separately. The product and packaging are recyclable; follow local regulations.

What is included in the box?

The box includes the watch, a pre-installed battery, and a set of instructions. For models B and C, spare links and a repair set are also included.

USER MANUAL HG08172A AURIOL

WATCH AND JEWELLERY SET

GB

WATCH AND JEWELLERY SET

Operation and safety notes

HU

KARÓRA-ÉKSZER KÉSZLET

Operation and Safety Notes Page 5

HU

Technical line drawing of a mechanical gear assembly with rotational motion arrow (no text or symbols)

E
HG08172B

Introduction Page 6

Preparations for use Page 6

Changing the battery.... Page 6

Display.... Page 7

Technical Data Page 8

Scope of delivery Page 8

Setting the time.... Page 9

Watertightness Page 9

Shortening the watch strap

Model No. HG08172B Page 10

Removing Segments (Fig. C) Page 10

How to exchange the pin inside

the slider (Fig. D, E, F) Page 11

Shortening the watch strap (HG08172C) (Fig. G)... Page 11

Cleaning and maintenance Page 11

Disposal.... Page 12

Warranty and service.... Page 13

Warranty Page 13

Warranty claim procedure.... Page 15

Service Page 15

WATCH AND JEWELLERY SET

●Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

●Preparations for use

●Changing the battery

Note: Have batteries changed in a specialist shop.

P Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 1st position
6 Segment (for model HG08172B, C)

7 Repair set (for model HG08172B)
8 Slider (for model HG08172B)
9 Spare pin (for model HG08172B)
10 Bottom cover (for model HG08172B)
11 Fastener (for Model HG08172C only)

●Technical Data

Battery: 1 x 1.5 V = Button cell (Type SR626SW)

Model number:

HG08172A: Gold, Grey strap

HG08172B: Silver, Silver band

HG08172C: Gold, Gold band

HG08172D: Rose gold, Black strap

HG08172E: Silver, Silver strap

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch

1 Battery (pre-installed)

1 Set of instructions for use

2 Spare changeable links (HG08172B/C)

1 Repair set (HG08172B)

- Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

●Watertightness

This watch is watertight to 3 bar (HG08172D) and 5 bar (HG08172A/B/C/E) in accordance with DIN 8310. Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

●Shortening the watch strap Model No. HG08172B

Note: The watch strap can be shortened by removing segments 6 (2 spare units are included). To this purpose you should use the repair set 7 supplied.

●Removing Segments (Fig. C)

Note: The segments which can be removed are marked with an arrow (see Fig. C). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 7. Use a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 7.
■ Remove the pins of the segment that you wish to remove (as described above) and take out the segment 6.

Note: If you would like to take out more than one consecutive segment 6, it is sufficient to remove the two outer pins.

■ Connect the watch strap together again by joining the loose segments 6 with a pin. Press this pin against the direction of the arrow into the adjacent segments 6.

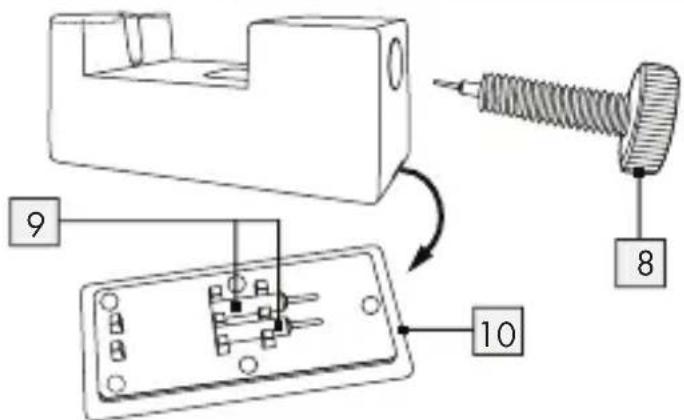

● How to exchange the pin inside the slider (Fig. D, E, F)

Take out the slide open the bottom cover 10 with the spare pin 9 inside.

- You will need pliers to carefully remove the old pin from the slider.

- Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.

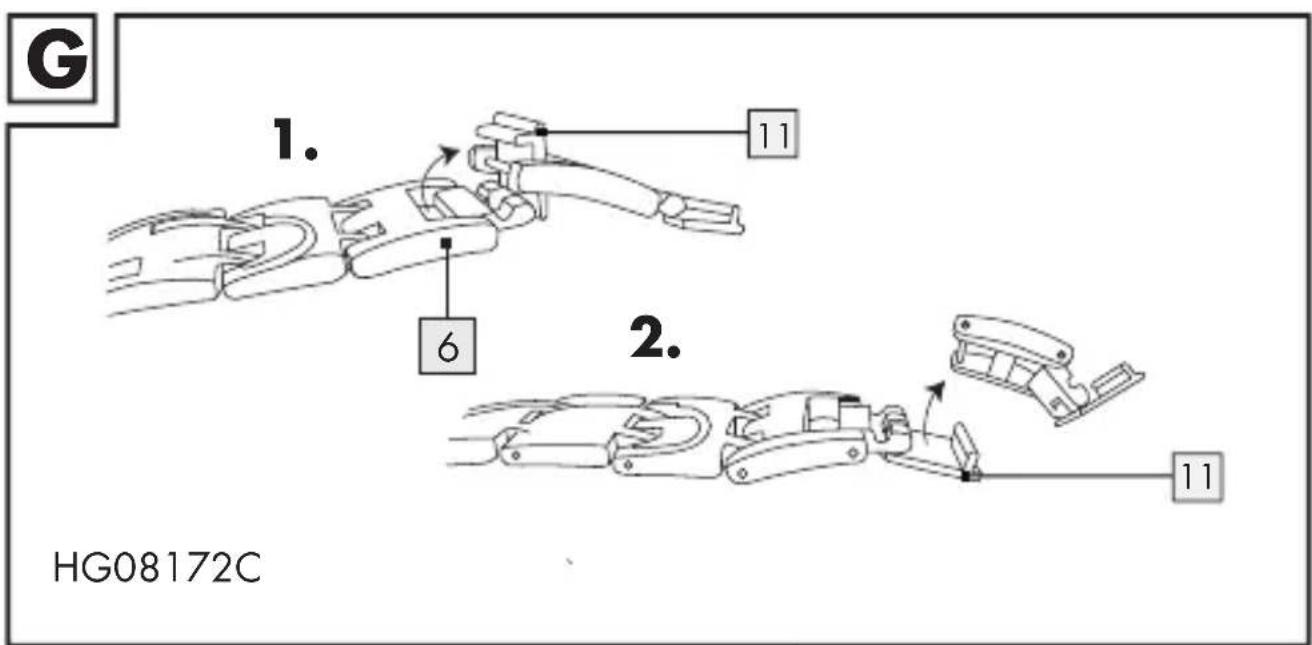

● Shortening the watch strap (HG08172C) (Fig. G)

■ To shorten the watch strap, 2 removable segments are included.
- Open the fastener of the watch strap and fastener 11 of the removable segment.

■ Remove 1 or segments and re-close the fastener of the watch strap.

●Cleaning and maintenance

- Clean the product on the outside only with a soft, dry cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 – 7: plastics / 20 – 22: paper and fibreboard / 80 – 98: composite materials

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

●Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

●Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]
