Product Type	Milk Frother and Heater
Brand	Fakir
Model	Milky Art
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	400 W
Capacity (Heating Max)	240 mL
Capacity (Foaming Max)	115 mL
Number of Functions	4
Functions	Hot and Intense Milk Foam, Hot and Less Intense Milk Foam, Hot Milk, Cold and Soft Milk Foam
Control Type	One-button multi-function (press to cycle through functions)
Material (Body)	Plastic
Material (Inner)	Stainless steel
Safety Features	Auto shut-off, overheating protection, non-slip base
Cleaning (Main Body)	Wipe with a soft damp cloth; do not immerse in water
Cleaning (Cover and Scrambler)	Rinse under running water with mild detergent; dry thoroughly
Dishwasher Safe	Only cover and silicone ring are dishwasher safe; main body and scrambler are not
Included Accessories	Power base, scrambler, transparent cover, silicone ring, user manual, warranty certificate
Warranty (Useful Life)	7 years
Certification	CE

Frequently Asked Questions - Milky Art FAKIR

How do I make hot and intense milk foam?

Press the On/Off button once. The red indicator light will flash and a beep sounds. The appliance runs for 80-120 seconds and turns off automatically with three beeps. The foam is ideal for Macchiato.

What is the maximum amount of milk I can use for foaming?

For foaming functions (hot or cold), the maximum milk capacity is 115 mL (first max line). Using more than 115 mL may cause overflow.

Why does the appliance stop soon after starting?

This may happen if the appliance is restarted without a cooling period. After use, wait 2 minutes for the thermostat to reset, or rinse the inner container with cold water and dry it.

Can I use plant-based milk (soy, almond, etc.)?

Yes, but the foam quality may vary. For best results, use milk with a fat content above 3%. Plant-based milks with lower fat may produce less foam.

How should I clean the milk frother?

Unplug the appliance. Wipe the main body with a soft, damp cloth and mild detergent. Do not immerse in water. The cover and silicone ring can be rinsed under running water. The scrambler should be washed by hand with warm water; it is not dishwasher safe.

Is the scrambler dishwasher safe?

No, the scrambler is not dishwasher safe. Wash it by hand with warm water and dry thoroughly. Only the cover and silicone ring can be placed in the dishwasher.

What do the different indicator lights mean?

The appliance has four indicator lights: red for Hot and Intense Foam, orange for Hot and Less Intense Foam, yellow for Hot Milk, and blue for Cold and Soft Foam. Each light corresponds to the selected function.

Can I make hot chocolate with this appliance?

Yes. Add hot chocolate powder to milk or water, then select the Hot Milk function. The appliance will heat the mixture and produce a small amount of foam. Your hot chocolate is ready when the cycle ends.

How should I store the milk frother?

Always unplug and let the appliance cool down completely before storing. Keep it in a dry place away from heat sources and children. Do not wrap the cord around the appliance.

What should I do if milk overflows during operation?

Overflow usually occurs if the milk amount exceeds the maximum line for the selected function. Make sure to fill between the Min (80 mL) and Max (115 mL for foaming, 240 mL for heating) lines. If overflow happens, unplug and clean immediately.

USER MANUAL Milky Art FAKIR

Black Fakir brand blender with visible branding and control knob (no text or symbols on body)

MILKY ART

EN Milk Frother and Heater

Circular object with a red highlight on its surface, no visible text or symbols

Circular dark object with a red highlight, possibly a lens or abstract light source (no text or symbols visible)

Circular dark object with a red highlight on its surface, possibly a lens or abstract light source (no text or symbols visible)

Close-up of a dark circular object with a bright blue spot, possibly a lens or light source (no text or symbols visible)

On the Operating Instructions....18

Meanings of the Symbols 18

Liability 18

EC Conformity Declaration....18

Intended Use 19

Unauthorized Use....19

Security Warnings 19

Box contents....22

Technical Specifications 22

Description of Components 23

First Use 24

Description of Indicator Lights 24

Description of Maximum And Minimum Lines Inside the Appliance 25

Usage 26

Hot and Intense Milk Foam Preparation: 26

Hot and Less Intense Milk Foam Preparation: 26

Hot Milk Preparation: 26

Cold and Soft Milk Foam Preparation: 26

Tips....27

Cleaning and Maintenance....27

Problem – Cause – Probable Solution ....28

Recycling 29

Shipping....29

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We wish you the best yield from Fakir Milky Art Milk Frother and Heater produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

On the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!!

This sign indicates dangers that can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir does not assume any responsibility.

EC Conformity Declaration

This device fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Voltage Directives. The appliance bears the CE mark on the rating plate.

Fakir reserves the right to change the design and equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

This appliance shall not be used by individuals (including children) who have limited physical, cognitive or mental capacity or insufficient experience and/or information unless they are instructed in the ways to use the appliance by their legal guardian and being supervised. The children should be supervised to avoid them from playing with the appliance.

This appliance can be operated by children of 8 years and above, people with limited physical, auditory and cognitive skills or people with lack of experience and knowledge as long as they are under supervision or they are provided instructions regarding the operation of the appliance.

Keep small items of packaging and plastic bags away from children. There is a risk of choke!

In case they are not older than 8 years old or unsupervised, children should not clean or maintain the appliance.

Keep the appliance and its cable from the reach of children aged <8. The children should be supervised to avoid them from playing with the appliance. The electrical appliances are not toys for children! Therefore keep the appliance away from the children. The children may not be aware of the dangers related to the utilization of the appliance. Do not let the power cord dangle from the appliance.

Security Warnings

When using an electrical device, the following precautions should always be taken. In order to prevent fire, electric shock and personal injuries;

DO NOT use the milk frother and heater if the power cord or plug is

damaged.

• The manufacturer is not responsible for damage caused by improper operating.
• Improper or false use can damage the appliance or give harm to the user.
• Before connecting this appliance to the mains, make sure that your local voltage complies with the technical data of the appliance. Otherwise the appliance may overheat and be damaged.

- Use your appliance only with the original parts supplied with it.

- In order to prevent overloading, DO NOT operate another high power device at the same outlet.

- DO NOT use an extension cord with this product unless necessary. If an extension cord is being used, please be sure to use an extension cord that has the same or higher power than this product.

- Do not let the main cord of the appliance to dangle.

- If the appliance will be used near children, strict observance is required.

- Before storing your appliance, wait for it to cool down.

- Do not submerge the appliance or the network cable in water or any other liquid.

- Do not use the appliance near the sink or in sink.

- Do not place the appliance on a polished wooden surface, it may damage the wood.

- DO NOT place your appliance or it's parts near open flame sources, stoves, or other heating devices.

- Use the appliance on a flat surface.

- Do not use the appliance with wet hands or pull the plug with wet hands.

- Do not use the appliance outdoors.

- Do not touch the hot surfaces of the appliance.

- Do not attempt to insert any objects or fingers into your appliance.

- Unplug the appliance after each use or when the appliance is not in use, before replacing accessories or cleaning the device.

- Do not touch metal or moving parts while the appliance is

operating. Injury risk

• Unplug the appliance before use and before cleaning. Allow the parts to cool down before installing or removing the parts or before cleaning the appliance.
• There are no parts inside the appliance that can be maintained by the user. Do not attempt to repair, disassemble or modify.
• The appliance's cover must be closed when operating.
• Your appliance is not intended for commercial or industrial use; only for household use.
• Keep the user manual for future reference.

WARNING!!

Do not operate your appliance without milk.

WARNING!!

When filling milk into your appliance, pay attention to the maximum and minimum lines inside the appliance.

WARNING!!

Warnings about hot surfaces

Unpacking

Unpack the appliance and before starting to use it check for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

• Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.
  -Do not punch a hole or a tear on the section where the on/off button is.

WARNING!!

Never use a defective appliance.

WARNING!!

Keep small items of packaging and plastic bags away from children. There is a risk of choke!

Box contents

1) Appliance
2) Power Base
3) User manual
4) Warranty Certificate

Technical Specifications

220-240 V
50/60 Hz
400W
Class I, IPX0
Useful life: 7 years

NOTE!

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

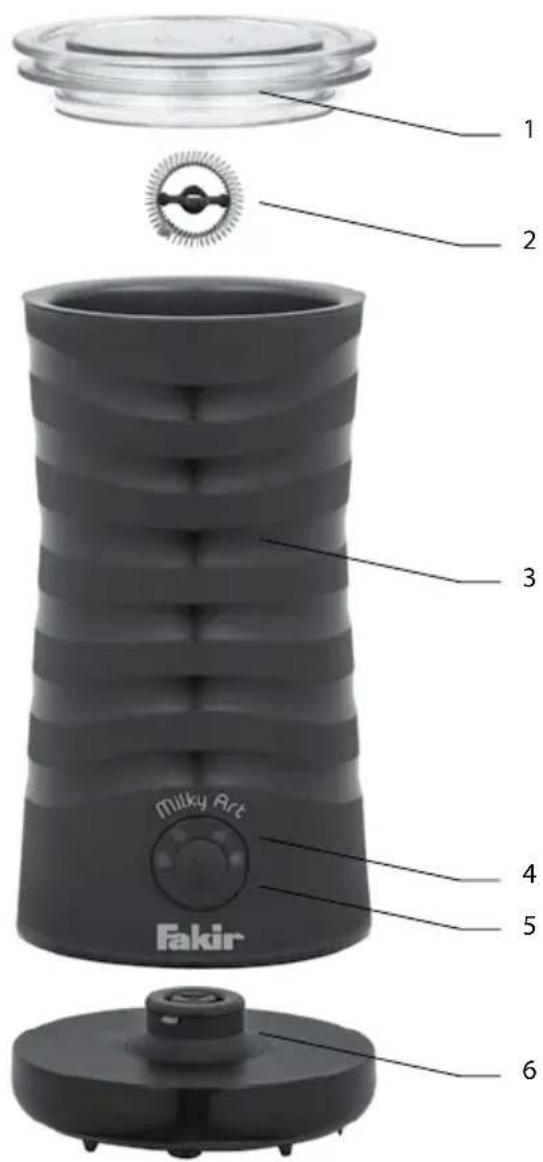

Description of Components

1) Transparent Cover
2) Scrambler
3) Appliance Body
4) Indicator Lights
5) On-Off Button
6) Power Base

EN

First Use

Make sure you understand all the parts and features of your Milky Art Milk Frother and Heater appliance. Always remove packaging materials and labels before first use. Make sure that your appliance is not packaged as missing.

Before using your appliance, clean it by following the steps indicated in Cleaning and Maintenance part.

First Use

Make sure you understand all the parts and features of your Milky Art Milk Frother and Heater appliance.

Description of Indicator Lights

Circular object with a red highlight on its surface, possibly a lens or button (no text or symbols visible)

By pressing the on and off button once, you can operate the "Hot and Intense Milk Foam" function with the 🎨 symbol.

Circular dark object with a red highlight, possibly a lens or abstract light source (no text or symbols visible)

By pressing the on and off button twice, you can operate the "Hot and Less Intense Milk Foam" function with the 🎨 symbol.

Close-up of a dark circular object with a red highlight, possibly a lens or abstract light source (no text or symbols visible)

By pressing the on and off button three times, you can operate the "Hot Milk" function with the 🎨 symbol.

Close-up of a dark, reflective spherical object with a bright blue spot (no text or symbols visible)

By pressing the on and off button four times, you can operate the “Cold and Soft Milk Foam” function with the symbol.

Description of Maximum And Minimum Lines Inside the Appliance

Second Max sign: You can use it for 240 mL milk heating function. When milk is added to this line, only the hot milk preparation function can be used.

First Max Sign: It is the indicator for the 115 mL milk capacity. You can operate the heating and foaming functions by adding 115 mL of milk. However, the capacity of 115 mL is the maximum capacity for the milk foaming function.

Min Sign: It is the indicator for the 80 mL milk capacity. You can operate the heating and foaming functions by adding 80 mL of milk.

WARNING!!

When using the foaming function, the maximum amount of milk in the appliance must be greater than 115 mL. Otherwise, it causes overflows in the appliance. The amount of milk to be added to the appliance depends on the function selected, it is explained above.

Scrambler Function		Maximum Capacity	Operation Time
	Hot and Intense Milk Foam Preparation	115 mL 80-120 Seconds
	Hot and Less Intense Milk Foam Preparation	115 mL 80-120 Seconds
	Hot Milk Preparation 240 mL 120 – 160 Seconds
	Cold and Soft Milk Foam Preparation	115 mL 60±5 Seconds

ATTENTION!

When installing the appliance, make sure its cover is closed.

EN

Usage

• Install the scrambler so that it corresponds to the channel inside the main body.
• Place the appliance on a flat and sturdy surface.
• Pour milk into your appliance according to the signs inside the main body. (please pay attention to the above tables and explanations for the amount of milk to be added.).
• Operate your appliance according to the function you want to use following the steps below.

Hot and Intense Milk Foam Preparation:

When you press the On and Off Button once, the selected function starts with the light and a beep. After approximately 80-120 seconds of operation, the appliance turns off automatically with three beeps. Obtained milk foam is ideal for Macchiato.

Hot and Less Intense Milk Foam Preparation:

When you press the On and Off Button twice, the selected function starts with the light and a beep. After approximately 80-120 seconds of operation, the appliance turns off automatically with three beeps. Obtained milk foam is ideal for Cappuccino.

Hot Milk Preparation:

When you press the On and Off Button twice, the selected function starts with the light and a beep. After approximately 120-160 seconds of operation, the appliance turns off automatically with three beeps. Obtained milk foam is ideal for Latte.

You do not need to remove the scrambler when you use it in the milk heating function of your appliance. When you use the milk heating function with the scrambler, a small amount of non-dense foam is obtained on the heated milk.

You can prepare hot chocolate using the hot milk preparation function of the appliance. Add hot chocolate preparation powder into milk or water according to your preference, operate your appliance in the hot milk preparation function. Your hot chocolate will be ready when the heating operation of your appliance is completed.

You can also prepare hot chocolate-based foods with special instant powder baby food mixtures by using this function.

Cold and Soft Milk Foam Preparation:

When you press the On and Off Button four times, the selected function starts with the

light and four beeps. After approximately 55-65 seconds of operation, the appliance turns off automatically with three beeps. Obtained cold milk foam is ideal for cold Macchiato.

WARNING!!

Milk foam can be obtained through this appliance with cold milk, but you need to add the milk cold. Your appliance does not reduce the temperature of the milk you have added.

WARNING!!

The milk foam volume to be obtained may vary depending on the type and temperature of the milk used.

WARNING!!

do not insert metal objects inside of your appliance. You can take the milk foams via using wooden or soft plastic spoon.

Tips

• For the best results, use milk with a fat content more than 3%.
• Your appliance warms milk at 60 +/- 5 degrees, milk heated at this temperature is the ideal temperature for coffee.
• After foaming or heating, wait for 2 minutes for the thermostat to be reset and the scrambler is ready for use again. To shorten this time, rinse with cold water after each use and then dry it. Make sure that the power connections of your appliance do not come into contact with water. Be sure to fully dry the appliance before using it again.
• For best results, it is recommended to use the milk at 5-10 °C.

Cleaning and Maintenance

Unplug the appliance. Never immerse the appliance main body and energy plate in water. We recommend that you clean the appliance main body after each use. You can wipe the inside of the appliance with a non-abrasive detergent and a soft cleaning cloth moistened with warm water. Then dry again with a non-abrasive, soft cloth. You can clean the outside of your appliance with a non-abrasive detergent and a mild cleaning cloth moistened with warm water.

WARNING!!

The main body of the appliance is not suitable for washing in the dishwasher.

WARNING!!

Never use metal objects or materials with corrosive effects when cleaning the inside of your appliance.

To wash the cover of your appliance, remove the silicone ring located at the bottom of the cover. Rinse the cover under running water with non-abrasive detergent and a soft cloth.

You can also clean the silicone ring under running water. Dry washed materials with a dry, soft cloth.

You can wash the scrambler with warm water without using any detergents. Never wash the scrambler in the dishwasher. Dry washed scrambler with a dry, soft cloth.

Problem – Cause – Probable Solution

Problem Cause Solution
The indicator lights are not on, the appliance is not working.	The plug may be inserted improperly.Your appliance may not be fully assembled in the energy base.	Re-plug the appliance Place the appliance properly on the energy base.
The indicator lights are on but the appliance stops shortly after operating.	The appliance may have been restarted without resting.	Check the temperature of your appliance, if it is hot, rinse with cold water to reduce the temperature.
The appliance (appliance engine) is not working.	The appliance may not work regularly because it is not cleaned.	Clean the appliance after each use by taking into account the instructions in the cleaning and maintenance section.
Appliance causes to overflow the milk.	Milk may be added to the appliance above the capacity.	Add the specified amount of milk into the appliance.

Recycling

If your appliance comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

Electrical waste must not be disposed of together with household waste. Dispose of the device according to the environmental regulations applicable in your country.

The packaging of the appliance consists of recycling-capable materials. Throw out them in suitable recycling bins.

This device complies with AEEE Regulation.

Shipping

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance. Keep the original package.

NOT / NOTES

Circular object with a red highlight on its surface, possibly a lens or button (no text or symbols visible)

Dark circular object with a red highlight, possibly a lens or abstract light source (no text or symbols visible)

Close-up of a dark circular object with a red highlight, possibly a lens or abstract light source (no text or symbols visible)

Close-up of a dark, circular object with a bright blue spot on its surface (no text or symbols visible)

Circular object with a red highlight on its surface, no visible text or symbols

Circular dark object with a small red highlight, possibly a lens or abstract light source (no text or symbols visible)

Circular dark object with a red highlight, possibly a lens or button (no text or symbols visible)

Close-up of a dark circular object with a bright blue spot, possibly a lens or button (no text or symbols visible)

Circular object with a red highlight on its surface, no visible text or symbols

Circular dark object with a red highlight, possibly a lens or abstract light source (no text or symbols visible)

Circular object with a red highlight on its surface, possibly a lens or button (no text or symbols visible)

Close-up of a dark, glossy spherical object with a bright blue spot at the center (no visible text or symbols)

Fakir customer service/

Kundenservice:

Rights to make changes are reserved.

Subject to revision

92 08 994 - 9911
