Lucca Q - Blender FAKIR - Free user manual and instructions

Brand	Fakir
Model	Lucca Q
Product Type	Blender Set (hand blender with attachments)
Power Consumption	1000 W
Voltage	220-240 V / 50-60 Hz
Protection Class	II
Lifetime	7 years
Intended Use	Household use only
Included Attachments	Stainless steel blender, chopper attachment with bowl, beater attachment with mixing bowl
Main Body Material	Plastic
Blender Material	Stainless steel
Chopper Bowl Capacity	Approximately 500 ml (estimated)
Mixing Bowl Capacity	Approximately 1 L (estimated)
Maximum Continuous Operation	10 seconds (then allow motor to cool)
Safety Features	Sharp blade warning, child safety, do not immerse in water
Cleaning	Wipe main body with damp cloth; attachments hand washable
Dishwasher Safe Parts	Not specified; likely hand wash only
Weight	Approximately 1.5 kg (estimated)
Warranty	Not specified; contact Fakir customer service
Color	White/Black (typical, not specified)

Frequently Asked Questions - Lucca Q FAKIR

What is the power of the Fakir Lucca Q blender?

The blender has a power consumption of 1000 W and operates at 220-240 V / 50-60 Hz.

Can I use the blender continuously for more than 10 seconds?

No, the appliance is designed for intermittent use. Do not operate continuously for more than 10 seconds; allow the motor to cool down between uses.

Is the Fakir Lucca Q dishwasher safe?

The manual does not specify dishwasher safety. It is recommended to hand wash the attachments and wipe the main body with a damp cloth.

What attachments are included with the Lucca Q?

The set includes a stainless steel blender, a chopper attachment with bowl and blade, and a beater attachment with mixing bowl.

Can I chop hard foods like coffee beans?

No, do not use hard foods such as coffee beans. The chopper is intended for softer foods like meat, vegetables, and dried fruits.

How do I clean the main body?

Unplug the appliance and clean the main housing with a damp cloth. Never immerse it in water.

Is the blender safe for children to use?

The appliance can be used by children aged 8 and above under supervision. Children under 8 should not operate or clean it. Keep away from children under 3.

What is the intended use of the Lucca Q?

It is designed for household use only, not for commercial or industrial purposes.

Can I blend hot liquids?

Allow cooked foods to cool before chopping. The manual warns not to operate without water, but does not specify hot liquids. Caution is advised.

Where can I get replacement parts or service?

Contact Fakir customer service at Technik Service Profi GmbH ([e-mail]) for authorized service. Use only original Fakir parts.

USER MANUAL Lucca Q FAKIR

Fakir customer service/

Technik Service Profi GmbH
Ahlener Sir. 4-8
D-31275 Germany
Tel.: [phone]
Fax: [phone] / 58 87 23
[e-mail]

Product photo of a kitchen blender with whisk, stand mixer, and beaker (no visible text or labels)

Information About the Operating Instructions.... 12

Liability....12

Notices in the Operating Instructions 12

CE Declaration of Conformity.... 13

Intended Use 13

Unauthorized Use....13

Safety is Important.... 14

Important Safeguards.... 14

Unpacking.... 15

Technical Specifications.... 15

Product Description 15

Using with the blender attachment 16

Using with the beater attachment.... 16

Using with the chopper attachment 16

Usage Guide....17

Cleaning and Maintenance.... 18

Waste Disposal.... 18

Dispatch....18

Thank you for purchasing Fakir LUCCA Q Blender Set. It was developed and manufactured to work reliably for many years.

Information About the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time. Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir will accept no liability for damages resulting from failure to comply with the operating instructions.

Fakir cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the Operating Instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2014/30/EU “Electromagnetic Compatibility” and 2014/35/EU “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate.

Intended Use

This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by our Authorized Services.

Unauthorized Use

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
• Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance...
• Keep packaging films away from children - danger of suf-location!

WARNING!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should not play with this appliance

Cleaning and maintenance shall not be carried out by children without supervision.

Keep the packing materials away from the children. Choking risk!

Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.

This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.

Children shall be supervised to ensure that they do not play with the appliance.

This appliance shall not be used for play.

Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.

Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.

The appliance shall not be used without supervision.

Safety is Important

WARNING!

For yours and other safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too.

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user. Fakir Elektrikli Ev Aletleri DIŞ Tic A.Ş. will Not be responsible of any problem if any repair or maintenance made by other than Fakir Services.

Important Safeguards

• When use electrical appliances, basic safety precautions should always be followed, including the following:
• Unplug the appliance when not in use and before fitting or removing the parts.
• Before operating your appliance, make sure the power rating of your appliance does in fact match that of your electrical system
• Keep the power cord plug and body away from heated surfaces.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized Fakir Service facility for examination, repair or adjustment.
• Do not operate the appliance in the presence of explosive and flammable fumes or liquids.
• This appliance is designed for intermittent use. Do not operate continuously for more than 10 seconds after that time allow motor to cool.
• The blades are very sharp. Handle the blades with care.
• This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Prevent children to reach the appliance.
• Do not allow children to use or play with the appliance.
• Do not use this appliance near water contained in basins like bathtubs, washbasins, etc.
• Do not use any abrasive substance for cleaning the appliance.
• Do not abuse the electrical cord. Never disconnect from outlet by pulling the power cord. Always use the body of the plug for disconnecting the appliance.
• Never leave the appliance unattended when the appliance plugged in.
• Hold the stick mixer firmly and up right while using it.
  • After finished the using unplug the appliance.

Please read all instructions and safety guards carefully.

Please keep this instruction manual for further usage.

Unpacking

Unpack the device and check the content of the packaging for completeness. Should you note any damage incurred during transit, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

Keep the packaging for storage and future transports (e.g. for moves, service).

Technical Specifications

Power consumption: 1000 W

Voltage: 220-240V/50-60Hz

Protection class: II

Life time: 7 years

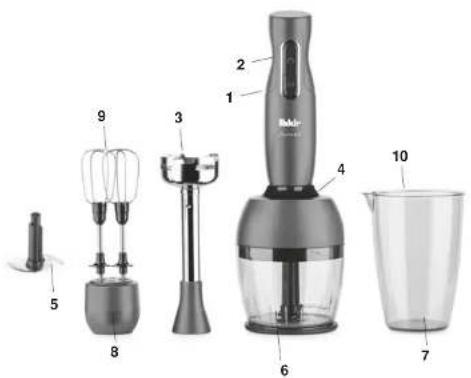

Product Description

1- Main Body
2- Start / stop control
3- Stainless steel blender
4- Chopper cover
5- Chopper blade
6- Chopper bowl
7- Antislip rubber ring
8- Beaters body
9- Beaters
10- Mixing bowl

- Clean the attachment before using for the first time.

Using with the blender attachment

• Fit the blender attachment in to the main housing and turn it to screw it fully into position.
• Place the attachment in the food to be beaten and press the start / stop control and the operating safety button at the same time.
  • After the usage, unplug the appliance and turn the attachment anticlockwise to unscrew it.

CAUTION!

Don't operate food without water!

Using with the beater attachment

• You could use this attachment to mince meat or chop greens, vegetables, cheese, dried fruits etc.
• Align the opening on the chopper blade with the rod in the centre of the bowl and fit it in as far as it will go.
• Add the food to be chopped in to the chopper.
• Fit the main housing into the chopper cover by screwing on it.
• Plug in and press the start-stop control
• Do not use hard foods such as coffee beans.
• When mincing meat ensure all bones or parts have been removed.
• Allow cooked foods to cool down before chopping.
  * After finished the usage of the attachment, unplug the appliance.

CAUTION!

Blender and chopper blades are sharp and can be harmful. You must be careful while using.

Using with the chopper attachment

• You could use this attachment to beat and mix.
• Fit stainless steel mixer legs to the mount, pushing them gently until fully in place.
• Fit into the main housing and turn assembly to screw it in as far as it will go.

• Plug in after fitting the attachments to be used. Once connected, press the start-stop control.

• Make sure that the attachment can rotate freely in the recipient.
  • After finished the usage of the attachment, unplug the appliance.

Usage Guide
Food Amount Preparation			Approx.Time
Dry 200 g Appricots	Pieces 10	sc.
Meat 100	g Dice approx. 2 cm 10 sc.
Almonds	150 g Whole 10 sc.
H. Boiled Egg	2 Eggs Cut up 3-5 sc.
Onion 100	g Quartered 3-6 sc.
Parsley 1	Bunch Stalk free 3-5 sc.
Carrots 1	50 g Chopped 5-10 sc.
Dry 1 Piece Bread	Chopped 10 sc.
Butter and Honey mixture.	300 g Butter + 400 g Honey the	butter taken from 3 sc.the freezer(should be kept infreezer min. 4hours and cut inpieces of size approx.10-15 mm. x 35-40mm.).Honey taken from refrigerator (shouldbe kept min. 1 day)

NOTE!

These times are guidelines and depend on the quality of the food and fineness required.

Cleaning and Maintenance

• Ensure that the appliance is unplugged before cleaning.
• Clean the main housing with a damp cloth and dry thoroughly. Never immerse it to water for cleaning.

Waste Disposal

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials.

Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

This appliance is compatible with 2012/19/EU WEEE directive.

Dispatch:

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.
