Product Type	Blender Set
Brand	Fakir
Model	Mr. Chef Quadro
Power	1000 W
Voltage	220-240 V
Frequency	50/60 Hz
Protection Class	II
Useful Life	7 years
Motor Unit Material	Plastic
Blade Material	Stainless Steel
Attachments Included	Hand blender, whisk, chopper with shredding and slicing discs, beaker, processor bowl
Chopper Max Capacity	800 g
Speed Settings	On/Off, Turbo
Safety Features	Safety lock button
Maximum Operation Time	1 minute (hand blender), 2 minutes (whisk)
Cleaning Instructions	Motor unit wipe with damp cloth; other parts dishwasher safe
Warranty	24 months (domestic use)

Frequently Asked Questions - Mr. Chef Quadro FAKIR

What is the maximum capacity of the chopper?

The chopper can handle up to 800 g of food at once. Do not process meat.

How long can I use the hand blender continuously?

Do not use the hand blender for more than 1 minute continuously. For whisk, max 2 minutes.

Can I wash the motor unit in water?

No, the motor unit must never be immersed in water. Clean it with a damp cloth only.

What attachments are included?

The set includes a hand blender, whisk, chopper with shredding and slicing discs, beaker, and processor bowl.

How do I lock the attachments?

Attachments are locked by turning until they click into place. The motor unit has a safety lock button that must be pressed.

What is the voltage requirement?

The appliance operates at 220-240 V, 50/60 Hz.

Is the blade dishwasher safe?

The chopping blade and other parts except the motor unit and whisk gearbox can be cleaned in the dishwasher. However, rinse after processing salty foods.

What safety precautions should I take?

Always unplug before cleaning. Keep hands away from sharp blades. Do not let children use unattended.

What should I do if the appliance does not turn on?

Check if it's plugged in, turned on, and the socket has power. If cord is damaged, contact Fakir authorized service.

How long is the warranty?

The warranty is 24 months for domestic use (12 months for industrial use). Proof of purchase required.

USER MANUAL Mr. Chef Quadro FAKIR

Product display of kitchen appliances including a blender, brush holder, and electric shaver (no visible text or labels)

MR.CHEF QUADRO

DE Stabmixer-Set

EN Blender set

TR Blender seti

RU Блендерный набор

AR طاقم菀ر الخلاط

Benutzerhandbuch

User Manual

Kullanım Kılavuzu

Three-panel illustration showing hands using a tool to press or adjust a bottle, with no visible text or symbols.

ACHTUNG!

Three-panel sequence showing hands using a whisk to lift a small bowl, with no visible text or symbols.

Three-step black-and-white photo sequence showing a kitchen mixer with lid, side view, and side view of the blender (no text or symbols)

On the Operating Instructions....18

Meanings of the Symbols 18

Liability 18

EC Conformity Declaration....18

Intended Use 19

Unauthorized Use....19

Safety is Important 21

Safety Warnings 21

Unpacking....23

Instructions For Use ....23

Parts Description 24

Technical Information....25

Usage of the Hand Blender 25

Usage of the Whisk Attachment....25

Cleaning and Maintenance of the Appliance 26

Usage the chopper with shredder disc / grating blade....26

Cleaning and Maintenance....27

Issue Probable Cause/Solution....29

Recycling 29

Dispatch....29

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir Mr. Chef Quadro Blender Set produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

On the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!

Indicates notices which if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir does not assume any responsibility.

EC Conformity Declaration

This appliance fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Voltage Directives. The appliance bears the CE mark on the rating plate. Use of accessories not supplied by Fakir reserves the right to change the design and equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

• This appliance is not suitable for people who are not mentally stable or who do not have enough information to use such appliances. Please do not let these people use the appliance.
• This electric appliance is not a toy. So please never let children play with the appliance and be more careful when there are children.
• Keep small items of packaging and plastic bags away from children. Otherwise they may harm themselves by swallowing them, especially packaging bags may cause danger of suffocation.

WARNING!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with this appliance
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep the packing materials away from the children. Choking risk!
  • Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
• This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
  • Children shall be supervised to ensure that they do not play with the appliance.
  • This appliance shall not be used for play.
• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

Safety is Important

• Read these operating instructions carefully before using the appliance for your safety and others'. Keep this manual in a safe place for future use.
• When using an electrical device, the following precautions should always be taken. In order to prevent fire, electric shock and personal injuries;
• Before using the appliance, make sure your mains voltage is compatible with the appliance voltage.
• This device is not a toy. So please never let your children play with the appliance and be more careful when there are children.
• Before the first use, check the appliance for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

Safety Warnings

• Following simple safety measures must be taken while using this electrical appliance;
• Please read the user manual before you use the appliance.
• Ensure that your mains voltage match the appliance voltage by checking the type label.
• If the cable, plug or another part of the appliance is damaged, do not use it. If the cable, plug or another part of the appliance is damaged, in order to avoid any damage, it must be replaced at a Fakir Authorized Service
• Close supervision is necessary for all devices used by children or nearby children
• Use of accessories not supplied by Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. may result in fire, electric shock, or personal injury.
• Never clean the appliance with cleaners, steel woolpads, or other abrasive materials.
• Do not touch the moving parts where the attachments are placed.
• Make sure that the appliance is switched off before connecting or

disconnecting it from the power supply.

• Always handle with care when using the appliance.
- Do not try to unplug the appliance by pulling on the power cord. Keep the power cord away from heat and prevent it from hanging from the corners of the table / kitchen counter.

- Do not ever use the appliance outdoors.

- Keep the motor unit from water or environments with excessive humidity.

• Always operate the appliance only with dry hands.

- Never try to attach the beaters or dough hooks to the main body while the appliance is still connected to the power supply. The appliance plug must be unplugged before placing the attachments.

- Do not try to clean the beaters or dough hooks under running water while they are still connected to the appliance. Before washing the attachments, always remove them from the appliance.

- When using the appliance, make sure that the beaters or dough hooks do not touch its cable.

- If the power cord is damaged during use, unplug the appliance from the power supply immediately. Never touch the power cord before disconnecting from the power supply.

- Disconnect the appliance from the power supply when not in use, before placing, removing parts or before cleaning.

- All repairs for the device must be carried out by an authorized Fakir Authorized Service.

KEEP THIS USER MANUAL FOR FUTURE REFERENCE.

ATTENTION!

Please read the safety rules and operation instructions written in the user manual. Keep this user manual for future use.

Unpacking

Before first use, unpack the appliance end its accessories, check for damages and defects. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

- Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.

-Do not punch a hole or a tear on the section where the on/off button is.

WARNING!

Never use a defective appliance.

Instructions For Use

• This appliance has been designed for household use only.
• Use the appliance for no longer than 1 minute. Do not operate hard food for no longer than 10 seconds.
• Always unplug the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Care shall be take when handling the sharp cutting blades, emptying the bowl and during cleaning
• Switch off the appliance and unplug from supply before changing accessories or approaching parts which move in use.
• This device must not be used by small children or people with low physical, mental, cerebral abilities or who are lack of experience and knowledge without the observation of a person liable for their safety. Avoid small children to access to the device.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use this appliance near water contained in basins like bathtubs, washbasins, etc.
• Do not use any strong, abrasive cleaning agents to clean your appliance.
• You can use a mildly damp cloth to clean the outer surface of your appliance.
• Do not unplug the appliance by pulling on the cord. Unplug the appliance always by holding its plug.
• Do not twist the power cable or store it with its cable twisted.
• Turn off and unplug the appliance after each operation.

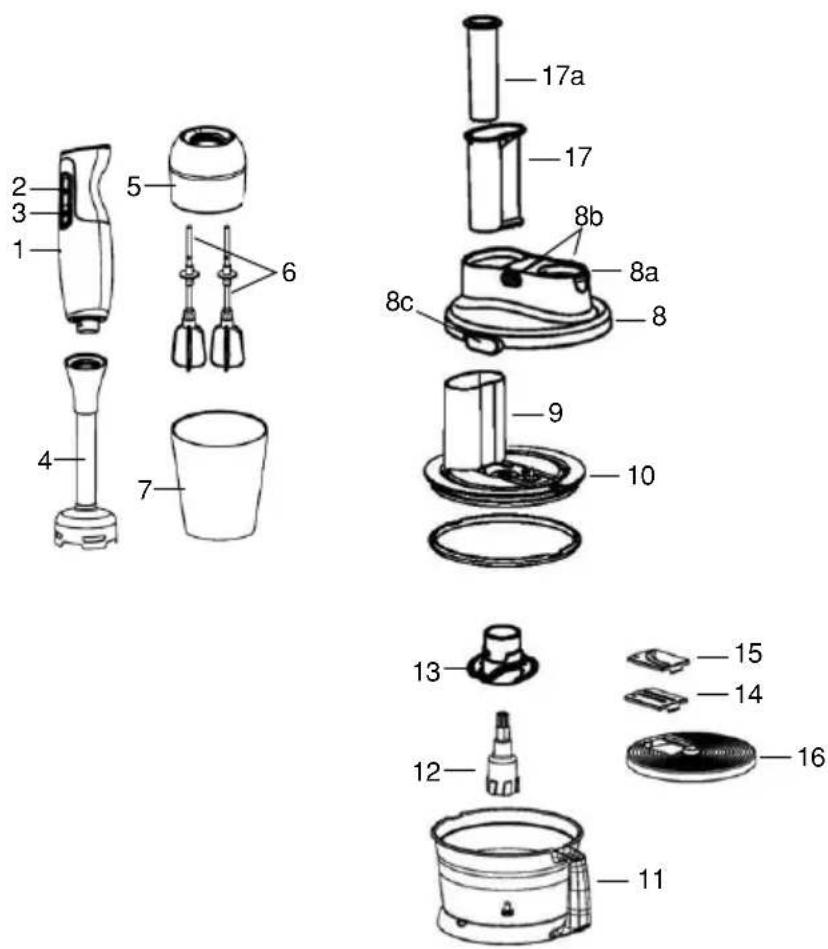

Parts Description

1-Motor Body Unit
2-On / Off Button
3-Turbo Button
4-Stainless Steel Blending Attachment 5- Beater Body
6-Beater wires
7- Beaker
8- Upper cover
8a-Motor unit unlocking button
8b-Locking buttons
8c-Locking latch
9-Security lid
10-Anti spill ring
11-Processor bowl
12-Spindle
13-Chopping blade
14-Blade holder
15-Slicing blade
16-Shredding blade
17 &17a-Pushers

Technical Information

Power :1000Watt motor

Voltaj : 220-240V\~50/60 Hz

Protection class : II

Useful life : 7 years

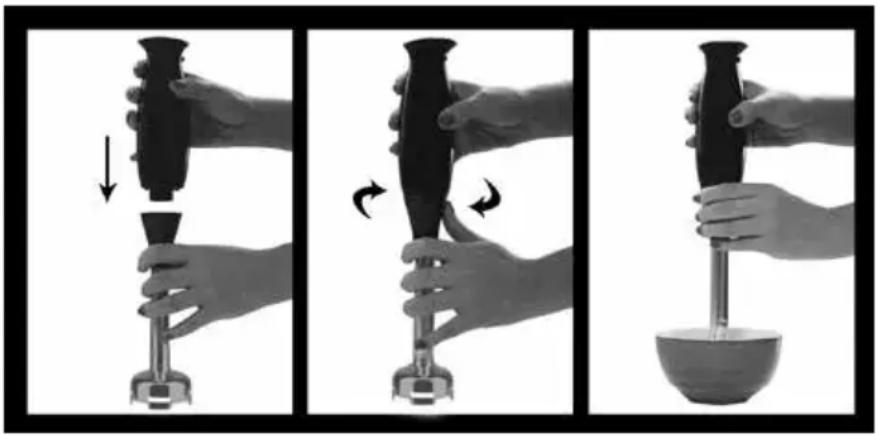

Usage of the Hand Blender

Hand blenders are used to prepare foods such as sauce, soup, mayonnaise or baby food. Turn the stainless steel blender stick on the motor unit until it locks. Place the hand blender in the vessel. Press the safety operating button and on/off button to operate it. Never use the hand blender for no longer than 1 minute.

Three-panel illustration showing hands using a tool to press or adjust a bottle, with no visible text or symbols.

ATTENTION!

The blender quadro blade is very sharp. Be careful when using. Do not use the appliance without water in the food. Make sure you add water in the food you want to mix.

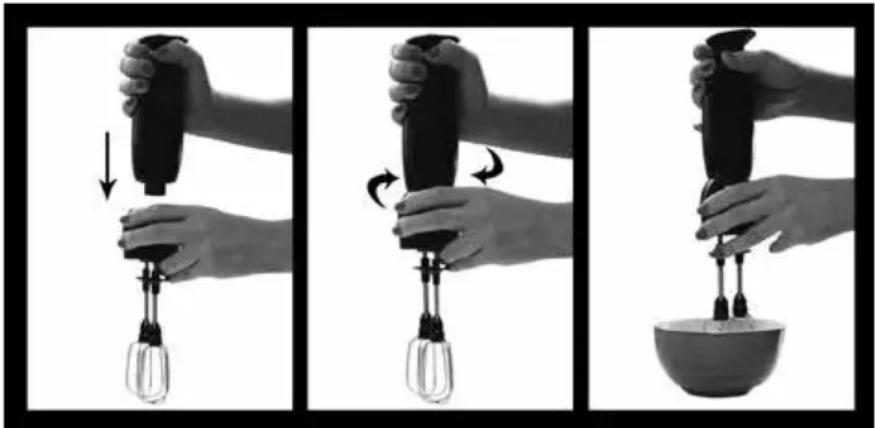

Usage of the Whisk Attachment

Scrambler apparatus is used for scrambling cream, whipped cream, egg white and for the preparation of food such as instant dessert.

Place the whisk into the whisk holder, and then turn the gearbox on the motor unit until it locks.

Place the whisk in a vessel or in the measurement cup. Press the safety operating button and on/off button to operate it

Do not use the appliance for more than 2 minutes with the whisk apparatus.

After using the appliance, remove it from its place and remove the whisk from the cover.

Three-panel sequence showing hands using a whisk to lift a small bowl, with no visible text or symbols.

Cleaning and Maintenance of the Appliance

• Before cleaning the appliance, switch the appliance off and unplug it.
• Wash the beaters and dough hooks in warm soapy water and dry thoroughly.
• You can wipe the exterior motor unit with a damp cloth. Do not immerse the motor unit in water. Never clean the appliance with cleaners, steel woolpads, or other abrasive materials.
• Do not immerse the skin in water or any liquid.

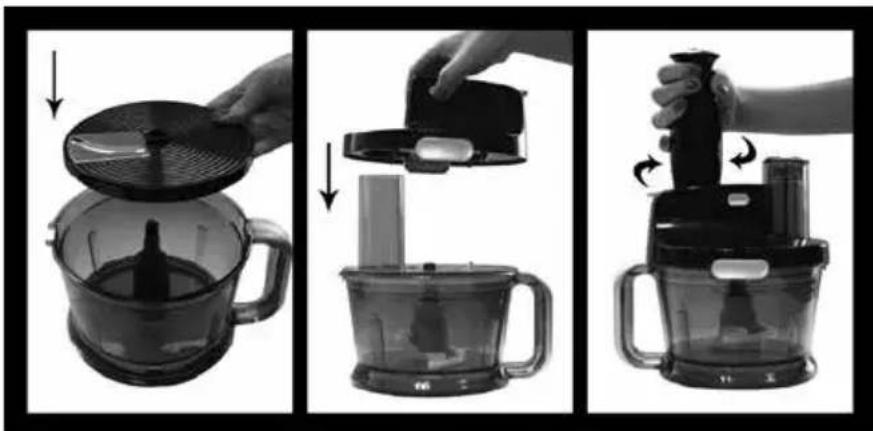

Usage the chopper with shredder disc / grating blade

It is suitable for preparing a max. of 800g of foodstuffs at once (no meat).

Slicing blade: It is suitable to use for carrots, cucumbers or potatoes, , etc

Grating blade: It is suitable for grating carrots, gruerecheese, celery, etc

Place the slicing or grating blade in the plastic blade holder, then place the disc over the spindle in the middle of the vessel. Place the robot cover and place the motor main unit on the mini robot cover. Make sure that the main body of the motor is firmly placed on the mini robot and locked.

Plug the appliance into the socket by pressing the safety button and turn the on / off button on.

Put the foodstuffs into the feeder tube and guide them using the pudher.

WARNING!

Never use your hands and fingers to put food into the vessel.

Three-step black-and-white photo sequence showing a food prep setup: mixing a blender, adding a brush, and using a blender (no text or symbols visible)

Usage of the Chopper: Suitable for preparing a max. of 800gr foodstuff at once (no meat). Place the material to be shredded into the vessel and place the lid and make sure that the motor main unit is firmly seated on the robot. Plug the appliance into the socket by pressing the safety button and turn the on / Off button

Cleaning and Maintenance

Do not wash the motor main body where the motor parts are located, scrambler head and chamber lid under water. You can clean these 3 parts with a soft, damp cloth.

Never contact the motor part with water. All other parts can be cleaned in the dish washer. However, after processing very salty food,

you should raise the blades under water. Also, be careful not to use an overdose of cleaner or decalcify in your dishwasher.

Some foods can change the colour of the container because of their colour. In this case, it is advised to wipe the container with olive oil and then put the container into the dishwasher.

Chopper
Material	Maximum Quantities	Speed	Necessary Tool	Time (Approx.)
Butter and Honey mixture	450 g butter - 600 g honey	on-turbo	chopping blade	3 secs
Onions / Garlic	500 g on-turbo		chopping blade	3-6 secs
Parsley 100 g	on-turbo		chopping blade	5-10 secs
Raw meat (fat free)	400 g turbo		chopping blade	10 sec
Nut 300 g	on-turbo		chopping blade	5-10 secs
Fruits 700 g	turbo		chopping blade	10 sec
Biscuit 300 g	on-turbo		chopping blade	5-10 secs
Carrot 400 g	on-turbo		chopping blade	5-10 secs
Shredding and Slicing
Material	Maximum Quantities	Speed	Necessary Tool	Time (Approx.)
Carrot 400 g	on-turbo		Shredding disc	5-10 secs
Radish 400 g	turbo		Shredding disc	5-10 secs
Potatoes 400 g	on-turbo Slicing disc. 5-10 secs
Pumpkin 800 g	on-turbo Slicing disc. 5-10 secs
Cucumber 800 g	on Slicing disc. 5-10 secs

Issue Probable Cause/Solution

Your appliance is processed via Quality Control against any malfunction.

However if it is not operational due to any reason, ensure that you have tried the solutions specified in the table below before contacting Fakir Authorized Service.

Fault Possible Cause Solution
Appliance Does Not Operate	Appliance is unplugged.Appliance is not turned onThere's no power in the socket.Power cord is damaged	Plug the applianceTurn on the applianceTry another outletTake appliance to be repaired

Recycling

If your device comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

According to the applicable laws in your country, leave the appliance to the waste bins identified specially for such devices.

Electrical waste must not be disposed of together with household waste.

Dispose the device to the waste baskets designated for electrical waste.

The packaging of the appliance consists of recycling-capable materials. Throw out them in suitable recycling bins.

This appliance is compatible with WEEE directive.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

We offer a warranty under the following conditions for this appliance:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.
2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).
   Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.
3. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.
4. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.
5. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase.
6. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.
7. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.
8. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Three-panel sequence showing hands holding a black object with a downward arrow, then to press another (no text or symbols)

DİKKAT!

Three-panel sequence showing hands using a whisk to lift a small bowl, with no visible text or symbols.

Three-step black-and-white photo sequence showing a food blender being added to a blender, then to a blender with a brush (no text or symbols visible)

Three-panel sequence showing hands holding a black object with directional arrows indicating motion (no text or symbols)

ОСТОРОЖНО!

Three-panel sequence showing hands using a whisk to lift a small bowl, with no visible text or symbols.

Three-step black-and-white photo sequence showing a blender being placed into a side, with no visible text or symbols.

Three-panel sequence showing hands holding a black object with directional arrows indicating motion (no text or symbols)

Three-panel illustration showing hands using a whisk to lift a small bowl, with arrows indicating motion (no text or symbols)

Three-step black-and-white photo sequence showing a kitchen mixer, a blender, and a hand using a brush (no text or symbols visible)

Rights to make changes are reserved.

Subject to revision
