GKM 900 2in1 - Multifunction tool GUDE - Free user manual and instructions

Product Type	Multifunction Tool (Grinder and Belt Sander)
Model	GKM 900 2in1
Brand	Güde
Power Input	900 W
No-Load Speed	2950 min⁻¹
Grinding Wheel Diameter	200 mm
Belt Size	50 x 914 mm
Belt Speed	~15 m/s
Dimensions (L x W x H)	440 x 220 x 350 mm
Weight	18 kg
Voltage / Frequency	230 V / 50 Hz
Protection Class	II (Double Insulated)
Main Functions	Grinding, Sharpening, Sanding, Polishing
Safety Features	Spark shields, eye shields, overload protection, emergency stop
Work Table Adjustment	Tiltable up to 45° with scale
Tool Rest	Adjustable, for precise grinding
Dust Extraction Port	35 mm diameter
Included Accessories	Grinding wheel, belt, tool rest, wrench
Maintenance	Regular cleaning, check belt tension, replace worn parts
Repairability	Spare parts available through Güde service

Frequently Asked Questions - GKM 900 2in1 GUDE

How do I change the sanding belt on the Güde GKM 900 2in1?

First unplug the tool. Release tension by moving the lever. Slide off the old belt and replace with a new one of size 50x914 mm. Re-tension by moving lever back.

What safety precautions should I take when using the tool?

Always wear safety goggles and hearing protection. Ensure spark shields are in place. Never wear loose clothing. Keep work area clean and free of flammable materials.

Can I use the grinder for sharpening drill bits?

Yes, the tool is suitable for sharpening drill bits, chisels, and other metal tools. Use the adjustable tool rest to set the correct angle.

What is the maximum workpiece size for the belt sander?

There is no strict limit, but for best results, keep the workpiece smaller than the belt width (50 mm) to prevent uneven wear.

How often should I replace the grinding wheel?

Replace when the wheel becomes worn down to less than 180 mm diameter or if it shows cracks, chips, or excessive vibration.

Does the tool have overload protection?

Yes, the motor is equipped with thermal overload protection. If it shuts off, allow it to cool for a few minutes before restarting.

Can I use the belt sander for wood?

Yes, with an appropriate sanding belt grit. However, avoid sanding materials that could clog the belt or produce hazardous dust.

How do I adjust the work table tilt?

Loosen the locking knob, tilt the table to the desired angle (up to 45°), then retighten. Use the scale for precise angle settings.

What is the warranty period for Güde GKM 900 2in1?

Güde typically offers a 2-year warranty covering manufacturing defects. Register your product online to extend coverage.

Where can I find replacement parts?

Contact Güde customer service or visit their website. Authorized dealers stock common parts like belts, wheels, and spark shields.

USER MANUAL GKM 900 2in1 GUDE

GKM 900

95189

Please read the instructions carefully before starting the machine.

SLOVENSKY

DE Montage

GB Assembly

SK Montáž

1

6-7

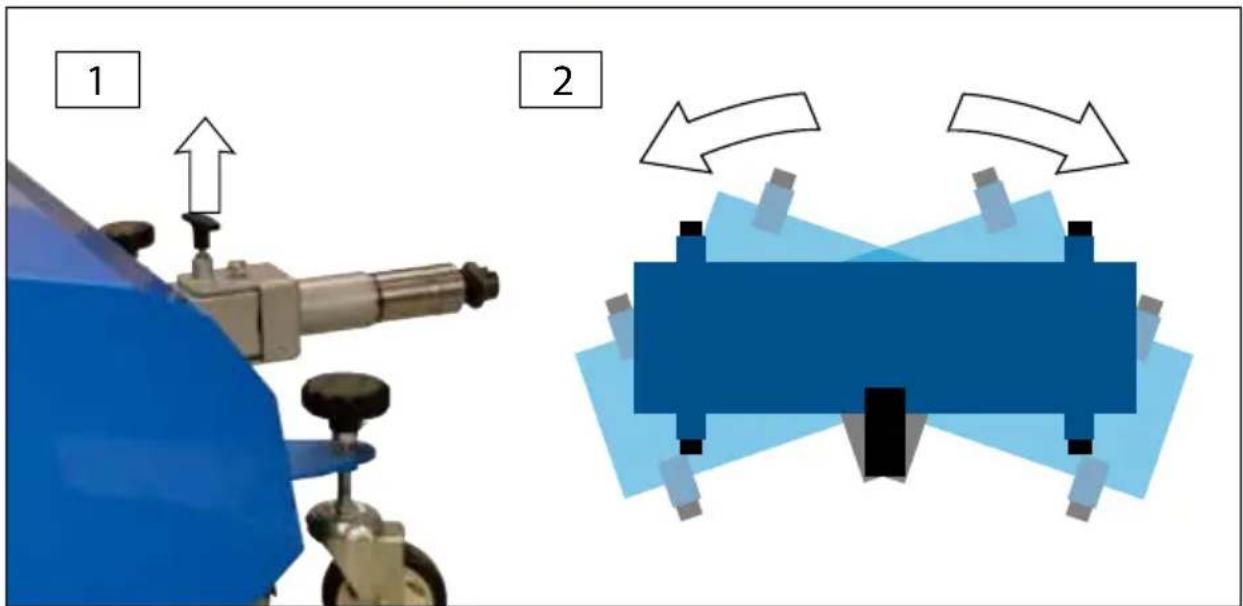

DE Betrieb

GB Operation

SK Prevádzka

2

8-9

1	DE Montage GB Assembly SK Montáž

DE Montage

GB Assembly

SK Montáž

5

6

7

DE Betrieb

GB Operation

SK Montáž

Technische Daten

Artikel-Nr. 95189

Operating width....950 mm

Sweeper width: 900mm

Sweeper - ∅ 320 mm

Dimensions L x W x H 1040X950X360mm

Weight....50 kg

Read and understand the operating instructions before using the appliance. Do it yourself with the controls and the proper use of the device.

Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. In case of any doubts about connection and operation refer please to our customer center

Caution!

Always keep in mind the respective manual of the attachment (snow plow, choppers, etc.) and the manual of Single-axle tractor GME 6,5 PS

Specified Conditions Of Use

The device is designed for use in / around house, yard, garden, agriculture and forestry, and for ground maintenance.

Respecting technical data and safety precautions.

Use the appliance only outside, never use it onlined and bad ventilated areas.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Residual risks

Danger of injury!

Please note the operation instructions of attachments

In spite of compliance with all relevant design regulations, dangers may still present themselves when the machine is operated, e.g. work piece parts being thrown off, parts of damaged tools being thrown off, noise emissions, dust emissions.

Safety instructions

Danger of injury!

Never put parts of your body and clothes near rotating parts.

⚠ Warning, hot surfaces

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Read carefully the operating and maintenance instructions. Familiarise thoroughly with the controls and proper use of the appliance. You need to know how the appliance works and how controls can immediately be switched off.

LNever let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

Keep all persons, especially small children, and pets out of reach of the place of your work.

Being careful prevents slipping or falling, especially when reversing.

Check the ground on which the appliance is going to be used and remove any items that might be caught or thrown off by the appliance.

Wear gloves, protective glasses, closefitting winter clothes and solid shoes with a rough sole when working and providing maintenance.

Do not adjust the appliance when the engine is running (except for settings directly recommended by the manufacturer).

Snow should be removed only after adjusting the machine to the outdoor temperature.

There is a risk of items being thrown off at eyes when working with power appliances.

Protective glasses or a shield should always be used when operating, adjusting or repairing the appliance.

Do not put your hands and legs near the rotating parts. Keep a safe distance from the eject hole.

Be extremely careful when running over or removing snow off brash entrances, footpaths and paths. Be prepared for unexpected risks or moving vehicles.

When you hit a foreign item, switch the engine off, disconnect the cable from the spark plug and check thoroughly the machine for any damage and remove it if necessary – the machine can be put into operation again and worked with now..

If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately. Generally, vibrations are a warning against operating failure.

Switch the engine off every time you stop operating the appliance, clean the working screw/rotor can/eject tube and when executing repairs, adjusting and inspecting the appliance.

When cleaning, repairing and checking the appliance, make sure that the working screw/rotor and all moving parts are stopped.

Never use the appliance inside rooms; to be used outdoors only.

Do not overload the appliance.

Disconnect the working screw/rotor drive when the machine is to be transported or when not being used.

Use only extensions and accessories approved by the machine manufacturer (e.g. wheel weights, counterweight, cabins, etc.).

The machine must only be used when appropriate visibility or good lighting is provided. Stand fast on the ground and hold the handle tight by hands at all times. Walk, never run.

Do not allow anybody to stand on the appliance.

Switch the engine off and unplug it if you are not working with the appliance or when leaving the appliance or adjusting, maintaining or repairing it.

The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.

Put the appliance out of operation and store it in a closed room only after the engine has cooled down.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Do not change the controlled engine setting and do not rev the engine up.

Machine-specific safety instructions Mechanical residual risks

The sweeper has been designed for common use in treating surfaces and winter use (Use as designated). Any other use is in conflict with the designation. The manufacturer is not responsible for indirect damages; the risk is bore by the user. Appropriate use includes complying with the specified conditions for operation, maintenance and treatment. Any optional changes of the sweeper exclude the manufacturer's warranty for damages. The sweeper is not suitable for sweeping flammable, explosive, poisonous, carcinogenic and other deleterious substances and materials. Do not sweep flammable or hot items such as cigarettes, matches, etc. If glass, metal or other materials are taken from the collection container, protective gloves must necessarily be worn to prevent injuries. Insufficient lighting represents a high safety risk. Sufficient lighting must always be provided when working with the appliance.

Threat from vibrations

A longer time of working with the machine may lead to bodily harm by vibrations. Take regular breaks.

Other risks

Thrown-off items or liquids

Thrown-off stones or soil may lead to injuries. Make sure there are no children or persons or animals in the area of your work and wear personal protection equipment.

(minimum distance: 4 metres)

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification

Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age

The product has been designed to be used by persons over 18 years of age.

If the product is to be used by children below the age of 8 or persons with reduced physical, sensory or mental skills or with a lack of experience and knowledge, they must be supervised or instructed in the safe use of the appliance and understand the resulting risks. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

Training

Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Switch the engine off and remove the socket plug before any work on the engine.

Wait until all rotating parts have stopped

and the appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times.

Apply environment-friendly oil to all moving parts. Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Symbols

Read the Operating Instructions

Wear hearing protection and protective glasses!

Solid shoes to be worn!

Wear protective gloves!

Caution!

Keep bystanders in safe distance from the appliance

Warning against bounced subjects

Warning of foot injuries

Warning against hand injuries

Do not touch the rotating parts of the machine. Wait until all parts of the machine have stopped.

Respect for loose parts (people, animals, houses, cars)

Switch the engine off and remove the socket plug before any work on the engine.

Protect against humidity

This side up

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference.

Serial No.

Art. No

Year of production

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Inspection and maintenance plan

regular servicing period Before	any startup	after 1 month	after 3 month	after 6 month	after 12 month	at the end of the season
		25 Hours of operation	50 Hours of operation	100 Hours of operation	300 Hours of operation
clean the Sweeper	Whenever the machine is put into operation
clean the case	Whenever the machine is put into operation

Provide appropriate servicing upon the earlier of the following in the given month or after the specified hours of operation have expired.

Technické údaje

Obj. č....95189

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

# 95189 / GKM 900-2 in 1

2006/95/EC 2004/108/

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

☐ 89/686/EEC (PPE) 1935/2004/EC

2006/42/EC 2010/26/EC

Annex IV

Notified Body

Name:

Adress: No:

Type Ex. Cert.-No.:

97/68/EC_2010/26/EC

Emission No.: e11*97/68SA*2010/26*1339*01

2000/14/EC_2005/88/EC
