Product Type	Rotary Tiller / Power Hoe
Model	GGF 620
Article Number	95183
Operating Width	455/575 mm
Maximum Cutting Depth	200 mm
Knife Diameter	300 mm
Number of Blades	4 or 6
Knife Speed	320 min⁻¹
Dimensions (L x W x H)	1700 x 620 x 1330 mm
Weight	29.5 kg
Power Source	Petrol engine (4-stroke)
Engine Power	Approx. 6.5 PS (associated tractor)
Starting System	Recoil starter
Transmission	Gear selector with forward/reverse
Fuel Type	Unleaded petrol
Recommended Oil	Engine oil (e.g., SAE 10W-30)
Safety Features	Engine stop, protective guards, emergency procedure
Maintenance	Regular lubrication, knife cleaning, periodic inspection per plan
Intended Use	Outdoor garden/agricultural tillage, snow removal with attachment
Warranty	12 months commercial, 24 months private
Included Items	Machine, handle, knives, assembly tools

Frequently Asked Questions - GGF 620 GUDE

What type of engine oil should I use for the GGF 620?

Use a high-quality 4-stroke engine oil, typically SAE 10W-30. Check the oil level before each use and add if necessary. The engine must be filled with oil before first operation.

How do I change the blades on the GGF 620?

Before changing blades, switch off the engine and disconnect the spark plug. Wear protective gloves. Remove the retaining bolts and replace with new blades. Ensure blades are properly secured. Refer to the manual for specific torque.

What is the cutting depth of the GGF 620?

The maximum cutting depth is 200 mm. The operating width is adjustable between 455 mm and 575 mm depending on the number of blades installed (4 or 6).

What safety precautions should I take when operating the GGF 620?

Always wear protective glasses, hearing protection, solid shoes, and gloves. Keep children and pets at least 4 meters away. Never put hands or feet near rotating parts. Switch off the engine before any maintenance or cleaning.

How do I start the engine on the GGF 620?

Ensure the gear lever is in neutral. Set the throttle to the start position. Pull the recoil starter firmly. If cold, use the choke. Refer to the engine manual for details. Always start the engine outdoors.

What fuel does the GGF 620 require?

Use unleaded petrol with an octane rating of at least 91. Do not use old or contaminated fuel. Store the machine with an empty tank if not used for a long time.

What is the warranty period for the GGF 620?

The warranty is 12 months for commercial use and 24 months for private use, starting from the purchase date. Proof of purchase is required. Damages from misuse or unauthorized modifications are not covered.

How often should I lubricate the machine?

According to the maintenance plan: lubricate the eccentric after 25 hours of operation, lubricate the knife monthly, and clean the knife every startup. Also clean the case each startup. Perform a full inspection every 12 months or 300 hours.

Can the GGF 620 be used for snow removal?

Yes, with the appropriate snow plow attachment. Always refer to the attachment manual. The machine must be adjusted for outdoor temperature. Ensure the knives are not engaged during snow removal.

What should I do if the machine vibrates abnormally?

Immediately switch off the engine and disconnect the spark plug. Inspect for loose parts, damaged blades, or foreign objects. Tighten any loose components and replace damaged parts before resuming operation.

USER MANUAL GGF 620 GUDE

Blue agricultural machine with black blades and a metallic cylindrical component (no visible text or symbols)

GGF 620

95183

Please read the instructions carefully before starting the machine.

SLOVENSKY

TechnicalData | Specified Conditions Of Use | Delivereditems | Residualrisks |

Safety instructions | Requirements for operating staff | Emergency procedure |

Maintenance Symbols | Guarantee | Service | Inspection and mainten ance plan |

Failure removal

13

Slovensky

Technické údaje | POUŽÍVANIE PODL'A URČENIA | POPIS ZARIADENIA |

ZVYŠKOVÉ RIZIKÁ | BEZPEČNOSTNÉ POKYNY | POŽIADAVKY NA PERSONÁL OBSLUHY |

SPRÁVANIE V PRÍPADE NUDZE | ÚDRŽBA | SYMBOLY | ZÁRUKA | SERVIS

PLÁN PREHLIADOK A ÚDRŽBY | ODSTRAŇOVANIE PORÚCH

18

EG-Konformitätserklärung | EC-Declaration of Conformity | Vyhlásenie o zhode EÚ 23

4

LIEFERUMFANG | DELIVERED ITEMS | ROZSAH DODÁVKY

1x

Blue industrial fan or turbine component with black blades and central hub (no visible text or symbols)

2x

Black X-shaped mechanical component with four arms and central hub (no text or symbols)

1x

Pure mechanical part diagram with no text, numbers, or symbols

DE Montage

GB Assembly

SK Montáž

1

2-6

DE Betrieb

GB Operation

SK Prevádzka

2

7

DE Montage

GB Assembly

SK Montáž

1

Exploded view diagram of a blue industrial machine component showing internal parts and assembly (no text or labels)

Blue agricultural machine with black blades and a green checkmark above it (no text or symbols on the machine itself)

DE Montage

GB Assembly

SK Montáž

2

A

Mechanical assembly diagram of a blue agricultural power saw, showing blade and gear components with no visible text or symbols

Blue agricultural machine with black components and a green checkmark above it (no text or symbols on the machine itself)

DE Montage

GB Assembly

SK Montáž

3

A+B+C

+

2

Blue agricultural tiller machine with black blades and a green checkmark indicating inspection (no text or symbols on the device itself)

DE Montage

GB Assembly

SK Montáž

4

A

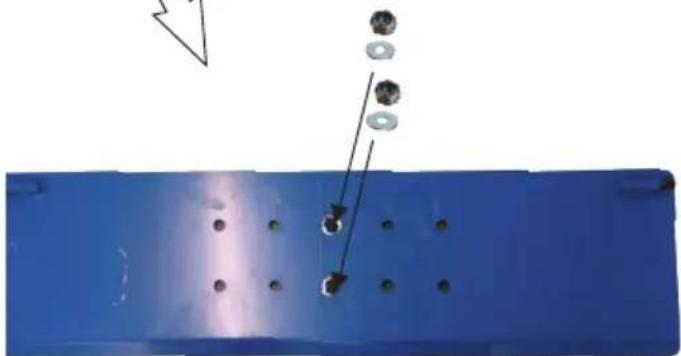

Blue metal plate with bolt holes and a magnified view showing internal structure (no text or symbols)

Green checkmark symbol on white background (no text or symbols)

Blue rectangular object with evenly spaced circular holes, no visible text or symbols

Blue metal plate with bolt holes and four inset circular components, no visible text or symbols

DE Montage

GB Assembly

SK Montáž

A

+ +

Blue agricultural machine with black blades and a green checkmark above it (no text or symbols on the machine itself)


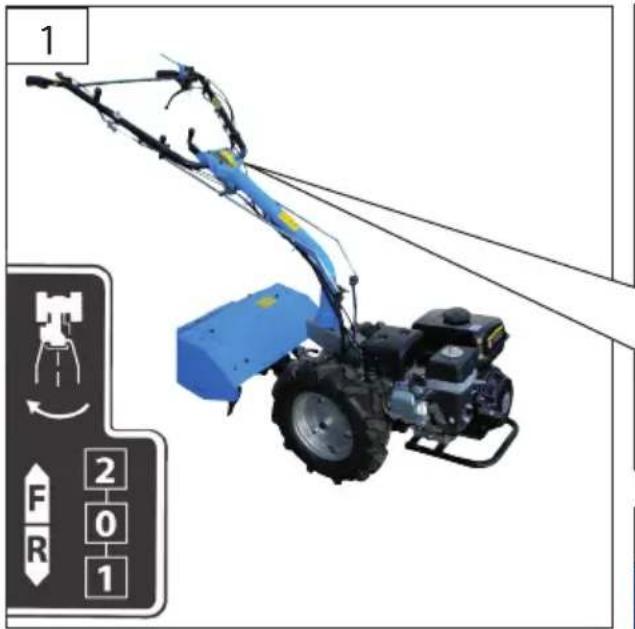

    G["DE"] --> H["Gangwahlhebel bzw. Vorwärts-/Rückwärtsgangwahl"]
    I["GB"] --> J["Gear selector lever and forward/Reverse selection"]
    K["SK"] --> L["Radiaca páka, resp. volba stupňa rýchlosti pre jazdu dopredu/dozadu"]

Close-up of a robotic arm spraying liquid onto a blue surface, with a white droplet symbol below (no text or symbols present)

Close-up of a blue agricultural machine with mechanical components and directional arrows indicating movement (no text or symbols)

Technische Daten

Artikel-Nr. 95183

Operating width....455/575 mm

Maximum cutting depth 200 mm

Knife ∅ 300 mm

Number of plough 4/6

Knife speed ....320 min-1

Dimensions L x W x H 1700 x 620 x 1330

Weight....29,5 kg

Read and understand the operating instructions before

using the appliance. Do it yourself

with the controls and the proper use of the device.

Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Caution!

Always keep in mind the respective manual of the attachment (snow plow, choppers, etc.) and the manual of Single-axle tractor GME 6,5 PS

The running direction of the knife runs counter to the running direction of the drive wheels.

For finer grind!

Specified Conditions Of Use

The device is designed for use in / around house, yard, garden, agriculture and forestry, and for ground maintenance.

Respecting technical data and safety precautions.

Use the appliance only outside, never use it confined and bad ventilated areas.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Please be aware that the blade may bury in the ground and the machine may only move forward with difficulties in loose and sandy soils. In such a case, please work with less pressure on the handle.

Residual risks

Danger of injury!

Please note the operation instructions of attachments

In spite of compliance with all relevant design regulations, dangers may still present themselves when the machine is operated, e.g. work piece parts being thrown off, parts of damaged tools being thrown off, noise emissions, dust emissions.

Safety instructions

Danger of injury!

Never put parts of your body and clothes near rotating parts.

Warning, hot surfaces

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Read carefully the operating and maintenance instructions. Familiarise thoroughly with the controls and proper use of the appliance. You need to know how the appliance works and how controls can immediately be switched off.

L Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

Keep all persons, especially small children, and pets out of reach of the place of your work.

Being careful prevents slipping or falling, especially when reversing.

Check the ground on which the appliance is going to be used and remove any items that might be caught

or thrown off by the appliance.

Wear gloves, protective glasses, closefitting winter clothes and solid shoes with a rough sole when working and providing maintenance.

Do not adjust the appliance when the engine is running (except for settings directly recommended by the manufacturer).

Snow should be removed only after adjusting the machine to the outdoor temperature.

There is a risk of items being thrown off at eyes when working with power appliances.

Protective glasses or a shield should always be used when operating, adjusting or repairing the appliance.

Do not put your hands and legs near the rotating parts. Keep a safe distance from the eject hole.

Be extremely careful when running over or removing snow off brash entrances, footpaths and paths. Be prepared for unexpected risks or moving vehicles.

When you hit a foreign item, switch the engine off, disconnect the cable from the spark plug and check thoroughly the machine for any damage and remove it if necessary – the machine can be put into operation again and worked with now..

If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately. Generally, vibrations are a warning against operating failure.

Switch the engine off every time you stop operating the appliance, clean the working screw/rotor can/eject tube and when executing repairs, adjusting and inspecting the appliance.

When cleaning, repairing and checking the appliance, make sure that the working screw/rotor and all moving parts are stopped.

Never use the appliance inside rooms; to be used outdoors only.

Do not overload the appliance.

Disconnect the working screw/rotor drive when the machine is to be transported or when not being used.

Use only extensions and accessories approved by the machine manufacturer (e.g. wheel weights, counterweight, cabins, etc.).

The machine must only be used when appropriate visibility or good lighting is provided. Stand fast on the ground and hold the handle tight by hands at all times. Walk, never run.

Do not allow anybody to stand on the appliance.

Switch the engine off and unplug it if you are not working with the appliance or when leaving the

appliance or adjusting, maintaining or repairing it.

The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.

Put the appliance out of operation and store it in a closed room only after the engine has cooled down.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Do not change the controlled engine setting and do not rev the engine up.

Machine-specific safety instructions Mechanical residual risks

Knife movement

Do not connect the drive for the extension devices before you are ready; by this, you will prevent unintentional and dangerous start of the knives.

⚠️ Danger! If you should move the knives with the drive not being connected, immediately stop using the machine and contact an authorised service centre.

Cutting and shearing

Rotating knives may lead to serious injuries, even separate parts of your body. Protective gloves to be worn at all times. Never touch the knives when in operation.

Getting caught and winding-up

Knives may catch cords, wires or parts of clothes. Remove any undesirable items from the land. Keep an appropriate distance from fences. Wear close-fitting clothes.

Threat from vibrations

A longer time of working with the machine may lead to bodily harm by vibrations. Take regular breaks.

Other risks

Thrown-off items or liquids

Thrown-off stones or soil may lead to injuries.

Make sure there are no children or persons or animals in the area of your work and wear personal protection equipment. (minimum distance: 4 metres)

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification

Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age

The product has been designed to be used by persons over 18 years of age.

If the product is to be used by children below the age of 8 or persons with reduced physical, sensory or mental skills or with a lack of experience and knowledge, they must be supervised or instructed in the safe use of the appliance and understand the resulting risks. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

Training

Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times.

Apply environment-friendly oil to all moving parts. Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Symbols

Read the Operating Instructions

Wear hearing protection and protective glasses!

Solid shoes to be worn!

Wear protective gloves!

manual note

Stop the engine and disconnect the spark plug before any cleaning, servicing or repair.

Keep distance of persons

Do not work without protective equipment! Put the protective equipment into the protective position before starting the machine.

Maintenance

Keep a sufficient distance from the cutter when the engine is running.

Do not touch the rotating parts of the machine. Wait until all parts of the machine have stopped.

Keep a sufficient distance from the machine when the engine is running.

Respect for loose parts (people, animals, houses, cars)

Switch the engine off and remove the socket plug before any work on the engine.

Protect against humidity

This side up

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference.

Serial No.

Art. No

Year of production

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Inspection and maintenance plan

regular servicing period Before	any startup	after 1 month	after 3 month	after 6 month	after 12 month	at the end of the season
		25 Hours of operation	50 Hours of operation	100 Hours of operation	300 Hours of operation
Check if any parts are not loose	√
Lubricate Eccentric	√
Lubricate the knife	√
clean the knife	Whenever the machine is put into operation
clean the case	Whenever the machine is put into operation

Provide appropriate servicing upon the earlier of the following in the given month or after the specified hours of operation have expired.

Technické údaje

Obj. č....95183

EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

CE

Güde GmbH & Co. KG

Birkichstraße 6

74549 Wolpertshausen

Germany

Wolpertshausen, 2013-03-19

Joachim Bürkle,

GÜDE GmbH & Co. KG,

Birkichstrasse 6, 74549 Wolpertshausen,

Germany
