MGR-10M - Contact Grill MPM - Free user manual and instructions

Product Type	Contact Grill
Brand	MPM
Model	MGR-10M
Dimensions (approx.)	30 x 25 x 10 cm
Weight (approx.)	2.5 kg
Power Consumption	2000 W
Cooking Surface Material	Non-stick coating
Temperature Control	Adjustable thermostat with settings
Indicator Lights	Power and ready lights
Cooking Area Size	Approx. 23 x 18 cm
Drip Tray	Removable, dishwasher safe
Handle Type	Cool-touch handle
Auto Shut-Off	Yes, after 30 minutes of inactivity
Overheat Protection	Built-in thermal fuse
Cleaning and Care	Wipe with damp cloth; non-stick surface safe for gentle cleaning
Removable Plates	No (fixed non-stick plates)
Cord Length	Approx. 0.9 m
Warranty	2 years
Spare Parts Availability	Contact manufacturer or authorized dealers
User Manual Language	Multiple languages available (downloadable PDF)

Frequently Asked Questions - MGR-10M MPM

What is the power consumption of the MPM MGR-10M contact grill?

The MPM MGR-10M contact grill has a power consumption of 2000 W, ensuring fast and even cooking.

Can I adjust the temperature on this grill?

Yes, the grill features an adjustable thermostat with multiple settings, allowing you to cook a variety of foods at the desired temperature.

How do I clean the MPM MGR-10M contact grill?

After unplugging and cooling, wipe the non-stick cooking plates with a damp cloth. The drip tray is removable and can be washed in the dishwasher.

Does the grill have an automatic shut-off feature?

Yes, the grill is equipped with an auto shut-off function that turns off the appliance after 30 minutes of inactivity for safety.

What is the size of the cooking surface?

The cooking surface is approximately 23 x 18 cm, suitable for grilling sandwiches, meats, and vegetables.

Are the grilling plates removable?

No, the plates are fixed but feature a non-stick coating for easy cleaning. The drip tray is removable.

Does the grill have indicator lights?

Yes, there are indicator lights for power and ready status, so you know when the grill has reached the set temperature.

What safety features does the MPM MGR-10M have?

It includes cool-touch handles, overheat protection, and an automatic shut-off to prevent accidents.

How long is the power cord?

The power cord is approximately 0.9 meters long, suitable for countertop use.

Where can I find the spare parts for this grill?

Spare parts can be ordered from MPM's official website or through authorized dealers. Contact customer support for specific requests.

USER MANUAL MGR-10M MPM

Modern stainless steel grating machine with a flat blade and black grater, no visible text or symbols on the device itself.

Exterior view of a dual-chamber electric heater (no text or symbols visible)

Before use thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!
Do not use this appliance for other than intended use.
Do not immerse the appliance, its cord and plug in water or any other fluids.
Do not leave the appliance without supervision in course of its operation.
▶ Always pull out the plug from the socket unless the appliance is used or before its cleaning.
Do not use the appliance in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.
To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc.
Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.
When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The appliance should be connected into the socket with grounding pin.

Place the appliance on a dry, flat and stable surface.

Place the press grill on a heat-resistant surface. Do not place the press grill on surfaces made or finished with plastic, vinyl, paint/varnish or other flammable materials.

Do not move the press grill when hot or in operation.

Before cleaning the press grill after use, wait for it to cool down, unplug the power cord from the mains and empty the fat drip pan.

The press grill is suitable for indoor use only.

Do not use the appliance outdoors.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

The device is intended for domestic use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

- Ensure that children do not play with the appliance.

Store the appliance and its cord out of reach of children under 8 years of age.

NOTE! Hot surface!

The temperature of surfaces may be higher when the appliance is in use.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.
Do not remove the plug from the mains by pulling by the cord.
Do not plug the power cord with wet hands.
In order to ensure your children's safety, please keep all pack aging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

WARNING! Oils and fats may burn when overheated.

Please be careful!

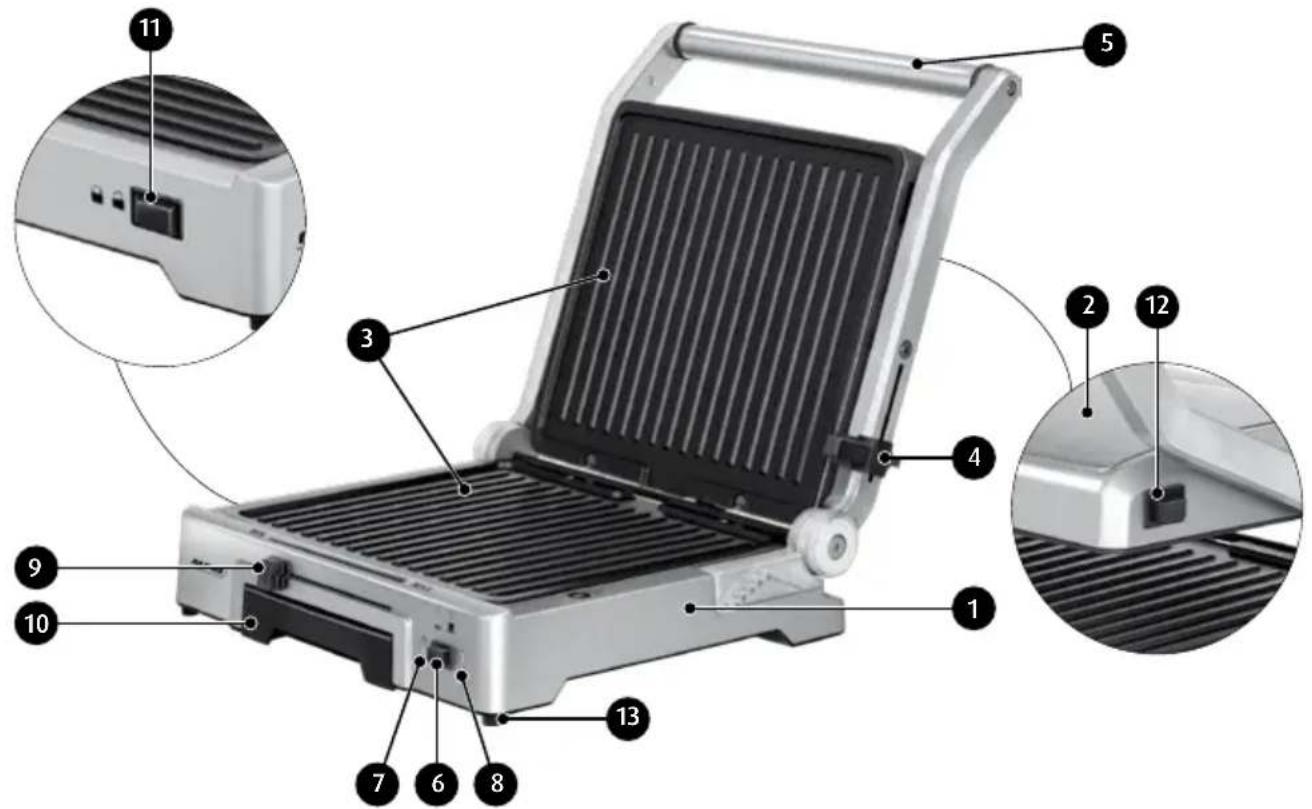

PRESS GRILL OVERVIEW

1. Grill base
2. Top lid
3. Non-stick heating plates
4. Top lid slider latch
5. Top lid handle
6. Switch on/off
7. Operation status indicator light

8. Thermostat indicator lamp

9. Thermostat slider

10. Fat drip pan
11. Button of freeing the lower heating plate
12. Button of freeing the upper heating plate
13. Anti-slip feet

Depending on the recipe and/or the grilled food product and/or its size or quantity, the press grill can be used in two configurations:

With the hot plates closed: the top and down sides of food products are grilled at the same time; the food products are processed fast and with a well-controlled, nearly uniform doneness on both sides.
With the hot plates open: this configuration is the next best thing to natural grilling on an open flame; the grilling surface is two times bigger than when the hot plates are closed.

BEFORE FIRST USE

1. Unpack the press grill and remove all plastic bags, labelling stickers, filling materials and transport locks.
2. Verify that the power ratings on the rating plate of the press grill match your power mains system.
3. Slide the top lid slider latch ④ open to the 'OPEN' mark and lift the top lid ② open. The top lid can be locked closed with the top lid slider latch at the 'LOCK' mark. Check if the heating plates ③ are correctly mounted in the device.

WARNING! Never start the appliance without properly installed heating plates.

1. Clean the hot plates ③ and the fat drip pan ⑩ thoroughly with a wet cloth and wipe them dry.
2. Before grilling for the first time, the hot plates must be properly conditioned by running them hot. Place the press grill on a firm, dry, level and smooth surface, plug the power cord to the mains, and set the thermostat slider ⑨ to 'MAX and turn on grill it on with the switch ⑥. Leave it running for 5 minutes. Next, unplug the press grill from the mains and wait until it cools down completely. The hot plates may smoke slightly during this process. This is natural and will no recur during further use.
3. Wipe the hot plates with a damp cloth and wipe them dry.

USING THE PRESS GRILL WITH CLOSED HOT PLATES

CAUTION! Before starting the press grill, make sure it is dry and that the room is well ventilated.

1. Place the press grill on a firm, dry, level and smooth surface.
2. Make sure that the fat container 10 is installed in the device.
3. Unlock the top lid slider latch ④ and lift the top lid upright.

CAUTION! Lift the top lid ② by the handle ⑤ only.

1. Spread some cooking fat on the heating plates ③. Close the top lid.
2. Plug in the press grill to the mains and turn on the device with the switch ⑥. The indicator lamp ⑦ will go on. Set the desired grilling temperature with the thermostat slider ⑨. The "MIN" (about 150°C) setting is for slow grilling of heat-sensitive food products. The "MAX" (about 230°C) setting is for grilling meat. The thermostat indicator lamp ⑧ will go on once the set temperature is reached.
3. Lift the top lid, place the food products on the bottom hot plate, and close the top lid while gently pressing it down. When placing products, be careful not to block fat channels. If the food products to be grilled are fragile, lock the top lid ajar by moving the top lid slider latch ④ between to the mark "LOW" (narrow ajar) or "HIGH" (wide ajar). The grilling time will depend on the type of the food products to be processed. The press grill can be used to process meat, fish, shish kebabs, vegetables, etc.
4. The thermostat indicator lamp ⑧ will go on and off during use. This means that the press grill is maintaining the set temperature.
5. Hot steam may burst when opening and closing the top lid to check the doneness. This is a normal effect of processing food with heat. Adjust the grilling temperature with the thermostat knob according to the desired grilling effect.
6. The fat melted out of the food will flow for the fat drip pan 10. Empty the fat drip pan frequently to prevent overflow and spills.

CAUTION! Risk of burns! The fat flowing out to the fat drip pan is hot!

1. Remove the processed food from the press grill with grilling tongs or utensils made of wood. Do not use metal utensils, they might damage the non-stick coating of the hot plates.

2. When done grilling, you can either put another serving in the press grill, or turn off the press grill: slide the thermostat slider to "MIN", turn off switch ⑥ and unplug the power cord from the mains.

3. Leave the press grill to cool down and clean it as explained in Section "CLEANING AND MAINTENANCE".

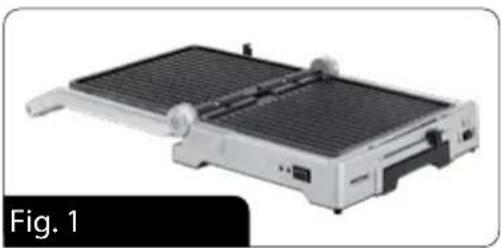

USING THE GRILL WITH OPEN HOT PLATES

CAUTION! Before starting the press grill, make sure it is dry and that the room is well ventilated.

1. Place the press grill on a firm, dry, level and smooth surface.

2. Make sure that the fat container 10 is installed in the device.

3. Slide the slider ④ to the "BBQ MODE" (Barbecue) position and hold, while lifting the top plate ② all the way to the back until the handle ⑤ is resting on the surface. Both heating plates are now facing up (Fig. 1).

Exterior view of a dual-panel solar heating device (no text or symbols visible)

CAUTION! Do not open the press grill completely when hot.

1. Spread some cooking fat on the heating plates ③.
2. Plug in the press grill to the mains and turn on the device with the switch ⑥. The indicator lamp ⑦ will go on. Set the desired grilling temperature with the thermostat slider ⑨. The "MIN" (about 150^ ) setting is for slow grilling of heat-sensitive food products. The "MAX" (about 230^ ) setting is for grilling meat. The thermostat indicator lamp ⑧ will go on once the set temperature is reached.
3. Place the food to be grilled on both hot plates. The grilling type will depend on what food products you want to process. Flip the food over after some time to have it done even. Adjust the grilling temperature with the thermostat slider according to the desired grilling effect. When placing products, be careful not to block fat channels.
4. The thermostat indicator lamp ⑧ will go on and off during use. This means that the press grill is maintaining the set temperature. The thermostat indicator lamp will do this more frequently, since the hot plates are open wide, cool down faster and must be reheated more often.
5. The fat melted out of the food will flow for the fat drip pan 10. Empty the fat drip pan frequently to prevent overflow and spills.

CAUTION! Risk of burns! The fat flowing out to the fat drip pan is hot!

CAUTION! The grilling process produces hot steam. Risk of burns.

1. Remove the processed food from the press grill with grilling tongs or utensils made of wood. Do not use metal utensils, they might damage the non-stick coating of the hot plates.
2. When done grilling, you can either put another serving in the press grill, or turn off the press grill: slide the thermostat slider to "MIN", turn off switch ⑥ and unplug the power cord from the mains.
3. Leave the press grill to cool down and clean it as explained in Section "CLEANING AND MAINTENANCE".

CAUTION! Do not close the top lid until the press grill cools down completely. Risk of burns!

CLEANING AND MAINTENANCE

1. Before attempting to clean the press grill (and when done grilling), turn off switch ⑥, unplug it from the mains and wait until it cools down.

CAUTION! Do not submerge the press grill in water or other liquids! Do not wipe the hot plates with rough scourers or sponges as you may damage the hot plates.

1. Clean the hot plates of fat with paper tower. Remove the hot plates and wash them with warm water and a detergent. Thoroughly flush clean with water and dry. To remove the hot plates, press down the button 11 with one hand and take out the bottom hot plate with the other. Use the button 12 to remove the top hot plate likewise. Both hot plates are identical and interchangeable. Install each hot plate by engaging the two grooves in the hot plate with the two tabs in the hot plate seat; next, press down the hot plate until it is latched in place.
2. The surface where the heating plates are mounted inside the device can be wiped with a paper towel.
3. Wash the fat drip pan with lukewarm water and a mild dishwashing detergent, rinse them clean, and leave to dry.
4. Clean the outer surfaces of the press grill with a damp cloth and wipe them dry.
5. You can wash in dishwashers the hotplates 3 and fat container 10.

TECHNICAL SPECIFICATIONS

See the product's nameplate for technical specifications.

Length of the network cable: 0.75 m

CE

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Marking on the product indicates that after the service–life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

Exterior view of a portable electronic device with grid and scroll panels (no visible text or symbols)

Exterior view of a portable electronic device with two panels and ventilation slots (no text or symbols visible)

Exterior view of a portable electronic device with heat sinks and control panel (no visible text or symbols)

Exterior view of a solar heating device with cooling fins and heat sinks (no text or symbols visible)

Legible signature of the buyer

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with a cat silhouette and bulb (no text or symbols)

MPM agd S.A.
