Product Type	Portable Bluetooth Speaker
Brand	Imperial
Model	BAS 4
Dimensions (W x H x D)	80 x 83 x 39 mm
Weight	145 g
Speaker Configuration	2" tweeter-subwoofer combination
Speaker Power	4 W @ 4 Ω
Bluetooth Version	4.0 + EDR
Playback Modes	Bluetooth, FM radio, TF card, AUX
Max TF Card Capacity	32 GB (micro SD)
Supported Audio Formats	MP3, WMA, WAV, FLAC, APE
Battery Type	Internal rechargeable Li-ion, 1000 mAh
Input Power	DC 5V / 1A via micro USB
Charging Cable	USB to micro USB (included)
AUX Cable	Micro USB to 3.5 mm (included)
Auto Power-Off	After 10 minutes of inactivity (no music or Bluetooth connection)
Hands-Free Function	Yes (built-in microphone)
Cleaning Instructions	Wipe with a dry cloth only
Safety	Do not expose to rain or moisture; never open casing; disconnect during thunderstorms
Spare Parts	Order directly from manufacturer
Disposal	Do not dispose as household waste; recycle at designated collection points
Technical Support	Tel: [phone] (Mon-Fri 8:00-16:45); Email: [e-mail]

Frequently Asked Questions - BAS 4 Imperial

How do I turn on the Imperial BAS 4?

Press and hold the On/Off button (button 1) for 2 seconds to switch on. The speaker will start in the previous mode.

How do I pair the speaker via Bluetooth?

Fully charge the battery. Press button 1 to turn on, then short press button 1 to switch to Bluetooth mode (voice says 'Bluetooth mode'). The blue LED flashes. On your device, select 'BAS 4' from the Bluetooth list. Enter PIN '0000' if prompted. Once paired, the blue LED stays on.

How do I reset the Bluetooth connection?

Press and hold button 1 for about 8 seconds. The Bluetooth connection will be terminated and the speaker enters pairing mode again.

Can I use a TF card with the speaker?

Yes. Insert a micro SD card (up to 32 GB) into the TF card slot (7). Press button 1 to turn on, then short press to switch to TF mode (voice says 'TF mode'). Music playback starts automatically.

How do I listen to FM radio?

Turn on the speaker and switch to FM mode (short press button 1 until 'FM mode' is announced). Press button 3 (play/pause) to start a station scan. Use buttons 2 (forward) and 4 (rewind) to switch between stations.

How do I use AUX mode?

Switch to AUX mode. Connect your external device (e.g., MP3 player) using the included micro USB to 3.5 mm AUX cable. Volume is controlled via the speaker's knob; other controls are on the external device.

What do the LED indicator colors mean?

Blue flashing: pairing mode or muted/paused. Blue solid: connected and playing. Red on while charging: charging in progress. Red off: fully charged.

How do I charge the speaker?

Use the included USB to micro USB cable. Connect to a USB port (e.g., laptop) or a 5V/1A power adapter (not included). The red LED is on during charging and turns off when fully charged.

The speaker turns off automatically, why?

The speaker has an intelligent power-saving mode. It will automatically turn off if no music is played or no Bluetooth device is connected for 10 minutes. When the battery is low, you'll hear a beep and volume decreases before it shuts off.

How should I clean the speaker?

Clean the device only with a dry cloth. Do not use liquids or abrasive cleaners.

USER MANUAL BAS 4 Imperial

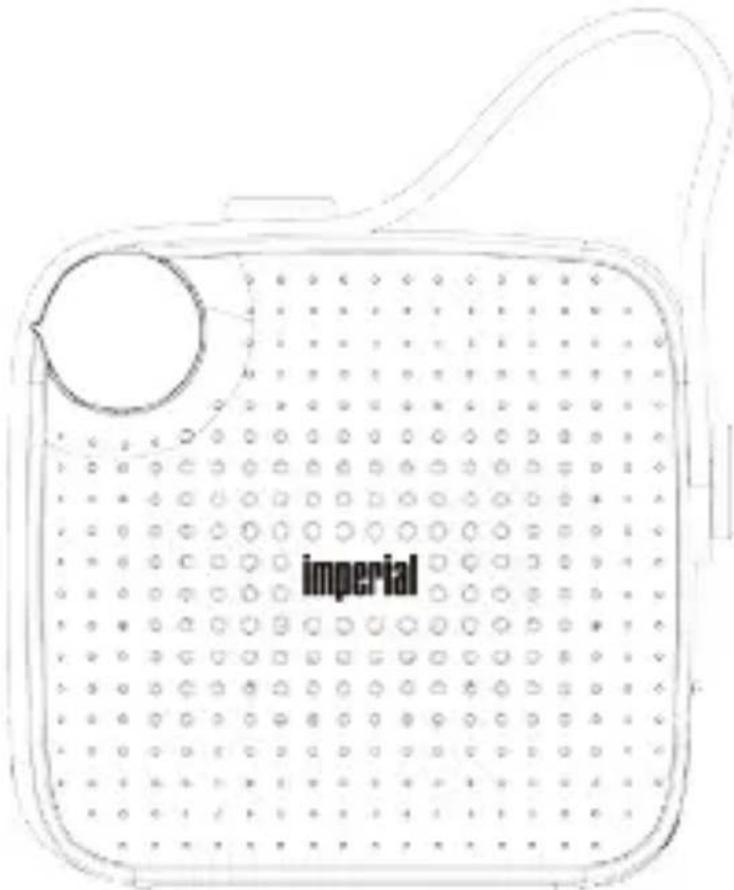

White portable radio with a circular button and dotted pattern, attached to a brown leather strap (no visible text or symbols on the device body)

IMPERIAL BAS 4

Sicherheitshinweise

AUX Kabel (Micro USB - 3.5 mm)

Ladekabel (USB - Micro USB)

Bluetooth Version: 4.0 + EDR

Wiedergabemodi: Bluetooth/FM/SD Karte/AUX

- In the event of a malfunction, disconnect the speaker from the USB power source.

- Do not expose the device to rain or moisture.

- Never open the casing.

- Only connect the device to a properly installed mains socket via a charger.

- Disconnect the power supply unit from the mains socket when not using the device for an extended period. When disconnecting the power supply unit, only pull at the adapter, not the cord.

- In the event of a thunderstorm, unplug the device's power supply unit from the mains socket.

- If foreign bodies or liquids enter the device, immediately disconnect it from the USB power source. Have the device inspected by qualified personnel before using it again.

- Please ensure that the power source is easily accessible.

- Do not bend or squeeze the cable connections.

- If the power cord is damaged, you will have to get the device repaired by a professional before using it again.

- Do not allow children to use the device unattended.

• Always leave the maintenance work to qualified personnel. Otherwise, you are putting yourself and others at risk.

- In the event of a malfunction, disconnect the device from the power source.

- Spare parts must be ordered directly from the manufacturer.

- Modifications to the device will result in the expiration of the manufacturer's responsibility.

- Remove the protective foils.

- This device should only be cleaned with a dry cloth.

Risk of distraction

In certain situations, the use of this device may affect your

concentration.

(e.g. when driving, using the road or operating machinery).

Please read the legal regulations that restrict or prohibit the use of headphones.

Please do not use the device if it hinders the ability to hear other environmental sounds.

Charging the device

Only use the included charging cable to charge the device and only charge the device via a USB connection.

Protection against RF energy

The device generates an electromagnetic field. It complies with the limit values for protection against RF energy.

Please take note of any signs in your environment which prohibit or restrict the operation of electronic devices. This may apply, for example, in hospitals, petrol stations, at fuel pumps or at airports. In the event of warning signs, please switch the device off immediately.

Scope of delivery

Before using the device for the first time, please check that all of the delivery contents has been supplied.

The following components are included in the delivery contents:

IMPERIAL BAS 4

AUX cable (Micro USB - 3.5 mm)

Charging cable (USB - Micro USB)

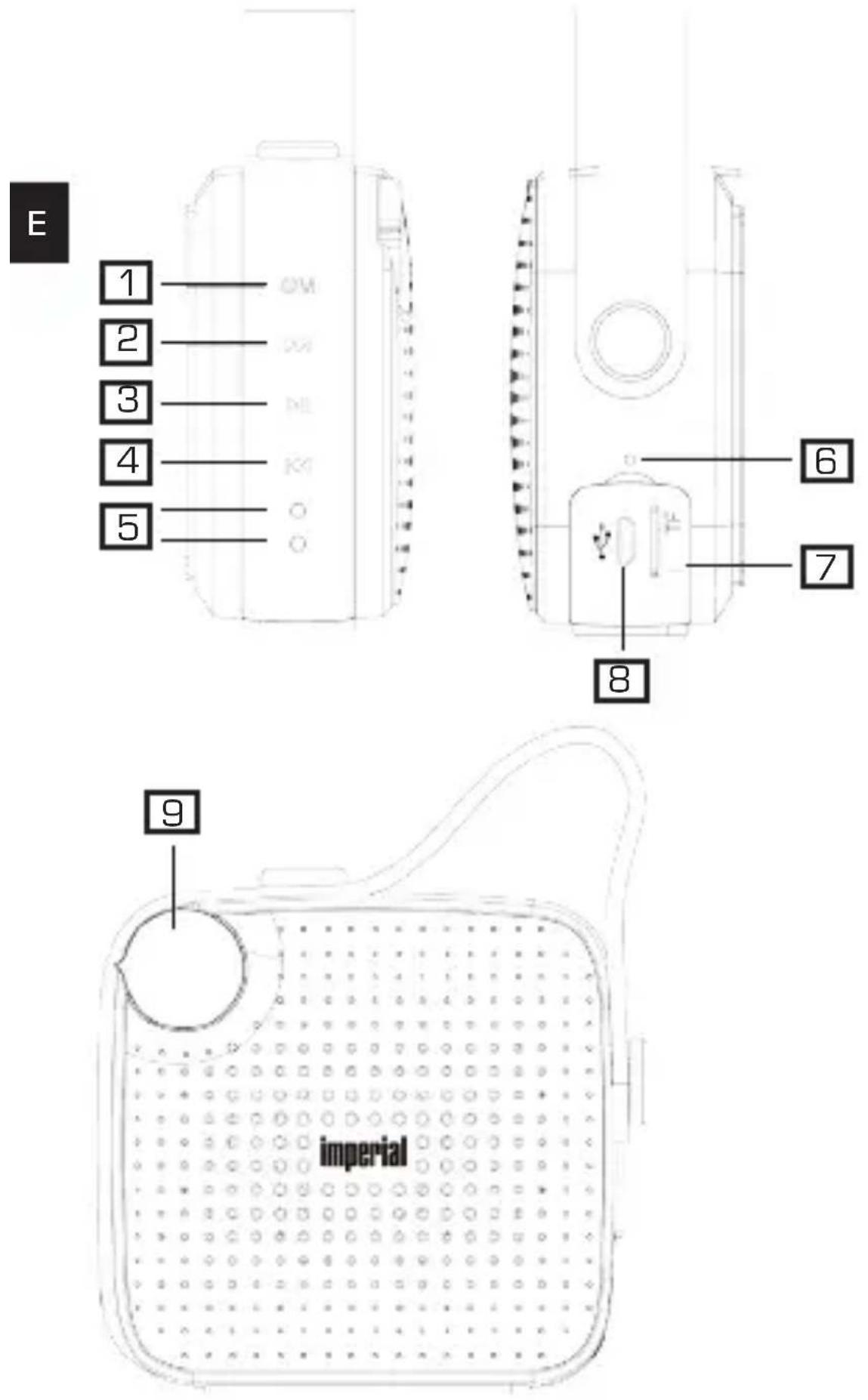

Pictures and functions

Pictures and functions

1. On/Off & „M“/Reset:

• press 2 seconds to switch on (previous mode)
• press 8 seconds to reset Bluetooth mode
• press short to switch between modes (Bluetooth, TF card, FM radio, AUX)

2. Forward

- BT and SD mode: press short to fast forward to next track

- FM Mode: press short to switch to next channel

- AUX mode: no function

3. Pause/Play/Accept & End/Mute

• BT & SD mode: press short to start/pause play-back
• BT mode: hold to end connection
• BT mode: press short to accept/end call (when smart phone is connected)
• FM mode: press short to mute
• FM Mode: hold for station scan

4. Rewind

• BT and SD mode: press short to rewind to previous track
• FM mode: press short to switch to previous channel

- AUX mode: no function

5. LED indicator light

• Flashes blue when speaker is switched on

• Bluetooth pairing mode: blue light flashes, blue light is permanently on when paired successfully

• Play: blue light is permanently on

• Pause/mute: blue light flashes
• FM mode station scan: blue light flashes
• The red light is on when charged in any mode, if fully charged, the red light is off

6. Microphone

- The microphone for hands-free mode is located here

7. TF card reader

- if the speaker should be used in TF card mode, a TF card (micro SD, max 32 GB) has to be inserted here

8. Micro USB port

- port may be used to charge internal battery (via included USB - micro USB cable) via USB port (laptop) or external power adapter (e.g. DC5V/1000mAh phone charger, not included)

- may be used to transfer music files from external device to TF card (if inserted) via included USB - micro USB cable

- if speaker is operated in AUX mode, the external source may be connected here via the included micro USB - 3.5mm AUX cable

9. Volume control

- turn clockwise to increase volume and vice versa to decrease volume

Intelligent power saving mode

1. Speaker will automatically switch off if no music is played or no Bluetooth connection is established in 10 minutes.
2. When the battery is low, a „beep“ sound will be heard and the volume will turn down automatically. The speaker continues to play until it switches off due to low battery. Now, the speaker needs to be recharged to continue using it.

Establish Bluetooth connection

1. Fully charge the speaker's battery.

2. Press button 1 to switch on speaker and short press 1 to switch to Bluetooth mode („Bluetooth mode“ is said).

3. The speaker is in pairing mode, blue LED (5) flashes.

4. Turn on Bluetooth mode on the device which is about to be connected (e.g. smart phone). and pick „BAS 4“ from the list of devices available. For further information see the device's user manual if necessary.

5. Make sure that the distance between speaker and devices doesn't exceed 10 metres in order to avoid connection problems.

6. Enter password „0000“ if necessary.

7. When successfully paired, the blue indicator LED (5) is constantly shining blue.

8. Now you can play back music from the external device. Play back can be either controlled via the external device or via BAS 4 (forward/rewind, play/pause, volume control). If a smart phone is connected via Bluetooth, the BAS 4 may also be used as hands-free device.

9. If switched on again, the speaker will reconnect to the last device paired to before switching it off.

10. In order to reset the Bluetooth connection, press and hold button 1 for about 8 seconds. The Bluetooth connection is terminated and the speaker will go back to pairing mode.

TF card operation

1. Fully charge the speaker's battery.
2. Insert a TF card into the BAS 4's card slot (7)
3. Press button 1 to switch on speaker and short press 1 to switch to TF mode („TF mode“ is said).
4. Play back music from the inserted TF card by using the BAS 4's control buttons.

FM radio mode

1. Fully charge the speaker's battery.

2. Press button 1 to switch on speaker and short press 1 to switch to FM radio mode („FM mode“ is said).

3. Press button 3 to start a station scan. As soon as the scan is finished, FM radio play back will start with the first station to be found.

4. Use buttons 2 and 4 to switch between the radio stations.

AUX mode

1. Fully charge the speaker's battery.
2. Press button 1 to switch on speaker and short press 1 to switch to AUX mode („AUX mode“ is said).
3. Connect an external device (e.g. MP3 player) by using the provided micro USB - 3.5mm AUX cable and start to play back music.
4. The play back volume may be controlled via the BAS 4's volume control knob (9), other play back options need to be controlled via the external device.

Technical data

Device name: IMPERIAL BAS 4

Speaker properties: 2" tweeter-subwoofer combination

Speaker power: 4W @ 4Ω

Bluetooth version: 4.0 + EDR

Speaker modes: Bluetooth/FM/TF card/AUX

Max. TF card size: 32GB

Music data supported: MP3, WMA, WAV, FLAC, APE

Battery: internal 1000mAh Li-ion battery

Input power: DC5V/1A (via micro USB port)

Dimensions: 80 x 83 x 39mm

Weight: 145g

Disposal note

The packaging for your device consists entirely of recyclable materials. Please dispose of these appropriately in accordance with the „Dual System“.

At the end of its service life, this product must not be disposed of as normal household waste but must be disposed of at a recycling collection point for electric and electronic equipment.

The symbol 📄 on the product, instruction manual or packaging indicates this.

The materials are recyclable according to their labeling. The reuse and recycling of old materials and devices makes an important contribution to protecting the environment.

Please ask your municipal administration for the location of a suitable disposal point.

Please ensure that electronic waste and empty batteries are disposed of properly and are not disposed of as household waste

Technical support and contact details

Our product meets legal requirements and was manufactured under constant quality control. The technical specifications are the most recent at the time of printing and may be subject to change.

Our service area provides professional specialists to answer queries.

Here you can ask any questions you have regarding IMPE-RIAL products and receive tips for locating a possible fault.

Our technicians are available Monday - Friday 8:00 to 16:45 at the following telephone number: +49 (0)2676 / 95 20 101 or via e-mail at: [e-mail]

If the Service Hotline is unable to help you, send your device, preferably in its original packaging, or at least packed securely for transport, to the following address:

TELESTAR - DIGITAL GmbH

Service Center

Your device bears the CE marking and complies with all relevant EU standards.

TELESTAR DIGITAL GmbH hereby declares that this IMPERIAL BAS 4 complies with the essential requirements and

other relevant provisions of EMC Directive

The declaration of conformity for this product can be found at:

© TELESTAR-DIGITAL GmbH, errors and specifications subject to change without notice, June 2018
