Product Name	Imperial BAS 5
Product Type	Portable Bluetooth Speaker with Hands-free
Dimensions (W x H x D)	230 x 82 x 58 mm
Weight	480 g
Speaker Configuration	1.75" Tweeter + Subwoofer, 2x4W Stereo @ 4Ω
Bluetooth Version	4.0 + EDR
Supported Modes	Bluetooth, TF Card, AUX
TF Card Compatibility	Micro SD (max 32 GB), supports MP3, WMA, WAV, FLAC, APE
Power Input	DC 5V/1A via Micro USB
Battery Type	Internal 1000 mAh Li-ion
Operating Range	Up to 10 meters (Bluetooth)
Controls	On/Off, Mode, Forward/Rewind, Play/Pause, Volume Touch, Hands-free Call Control
Charging Indicator	Red LED on while charging, off when fully charged
Status Indicator	Blue LED: flashes in pairing, solid when connected/playing, flashes when paused/muted
Auto Power Off	After 10 minutes of inactivity or no Bluetooth connection
Included Accessories	AUX cable (3.5 mm), Charging cable (USB - Micro USB)
Care Instructions	Clean with a dry cloth only
Safety Precautions	Do not expose to moisture or open casing; disconnect during thunderstorms; keep away from children
Spare Parts & Repairs	Order directly from manufacturer; repairs only by qualified personnel
Manual Pages	24

Frequently Asked Questions - BAS 5 Imperial

How do I pair my Imperial BAS 5 with a smartphone?

Turn on the speaker by pressing and holding button 1 for 2 seconds. Short press button 1 to switch to Bluetooth mode (you will hear 'Bluetooth mode'). The blue LED will flash, indicating pairing mode. On your smartphone, enable Bluetooth and select 'BAS 5' from the list. If prompted, enter the password '0000'. When paired successfully, the blue LED will stay solid.

Why is the speaker not connecting to Bluetooth?

Ensure the speaker is in Bluetooth mode (blue LED flashing). Make sure the distance between devices is within 10 meters and that no other devices are interfering. If problems persist, reset the Bluetooth connection by pressing and holding button 1 for 8 seconds. The speaker will enter pairing mode again.

How do I use a TF card with the BAS 5?

Fully charge the speaker. Insert a micro SD card (max 32 GB) into the TF card slot (7). Press button 1 to turn on the speaker and short press to switch to TF mode (you will hear 'TF mode'). Music playback will start automatically. Use the buttons to control playback.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging via the Micro USB port. However, the user manual recommends disconnecting the device from the USB power source during a malfunction. For best battery life, allow the battery to fully charge before use.

How do I clean the Imperial BAS 5 speaker?

Clean the speaker only with a dry cloth. Do not use water, solvents, or abrasive cleaners. Avoid getting moisture into any openings.

What should I do if the speaker gets wet or liquid enters?

Immediately disconnect the speaker from the USB power source. Do not attempt to use it. Have the device inspected by qualified personnel before using it again. Do not expose the speaker to rain or moisture in the future.

How do I reset the Bluetooth connection on the BAS 5?

Press and hold button 1 for approximately 8 seconds. The blue LED will start flashing, indicating that the Bluetooth connection has been terminated and the speaker is back in pairing mode.

Why does my speaker turn off automatically?

The BAS 5 has an intelligent power-saving mode. If no music is played and no Bluetooth device is connected for 10 minutes, the speaker will automatically switch off to save battery. Also, when the battery is low, you will hear a 'beep' and the volume will decrease until it shuts down.

Can I use the BAS 5 as a hands-free device?

Yes, when a smartphone is connected via Bluetooth, you can use the BAS 5 as a hands-free device. Press the play/pause button briefly to accept or end a call. Press and hold the same button to reject a call.

What is the maximum TF card capacity supported?

The Imperial BAS 5 supports TF cards (micro SD) up to a maximum capacity of 32 GB. It can play music files in MP3, WMA, WAV, FLAC, and APE formats.

USER MANUAL BAS 5 Imperial

Wooden portable electronic device with mesh back panel and logo (no visible text or symbols on body)

IMPERIAL BAS 5

Sicherheitshinweise

Pure electrical circuit lines without any symbols

AUX Kabel (3.5 mm)

Pure electrical connector diagram without any text, numbers, or symbols

Ladekabel (USB - Micro USB)

Bluetooth Version: 4.0 + EDR

Wiedergabemodi: Bluetooth/SD Karte/AUX

• In the event of a malfunction, disconnect the speaker from the USB power source.
• Do not expose the device to rain or moisture.
• Never open the casing.
• Only connect the device to a properly installed mains socket via a charger.
• Disconnect the power supply unit from the mains socket when not using the device for an extended period. When disconnecting the power supply unit, only pull at the adapter, not the cord.
• In the event of a thunderstorm, unplug the device's power supply unit from the mains socket.
• If foreign bodies or liquids enter the device, immediately disconnect it from the USB power source. Have the device inspected by qualified personnel before using it again.
• Please ensure that the power source is easily accessible.
• Do not bend or squeeze the cable connections.
• If the power cord is damaged, you will have to get the device repaired by a professional before using it again.
• Do not allow children to use the device unattended.
  • Always leave the maintenance work to qualified personnel. Otherwise, you are putting yourself and others at risk.
• In the event of a malfunction, disconnect the device from the power source.
• Spare parts must be ordered directly from the manufacturer.
• Modifications to the device will result in the expiration of the manufacturer's responsibility.
• Remove the protective foils.
• This device should only be cleaned with a dry cloth.

Risk of distraction

In certain situations, the use of this device may affect your concentration.

(e.g. when driving, using the road or operating machinery).

Please read the legal regulations that restrict or prohibit the use of headphones.

Please do not use the device if it hinders the ability to hear other environmental sounds.

Charging the device

Only use the included charging cable to charge the device and only charge the device via a USB connection.

Protection against RF energy

The device generates an electromagnetic field. It complies with the limit values for protection against RF energy.

Please take note of any signs in your environment which prohibit or restrict the operation of electronic devices. This may apply, for example, in hospitals, petrol stations, at fuel pumps or at airports. In the event of warning signs, please switch the device off immediately.

Scope of delivery

Before using the device for the first time, please check that all of the delivery contents has been supplied.

The following components are included in the delivery contents:

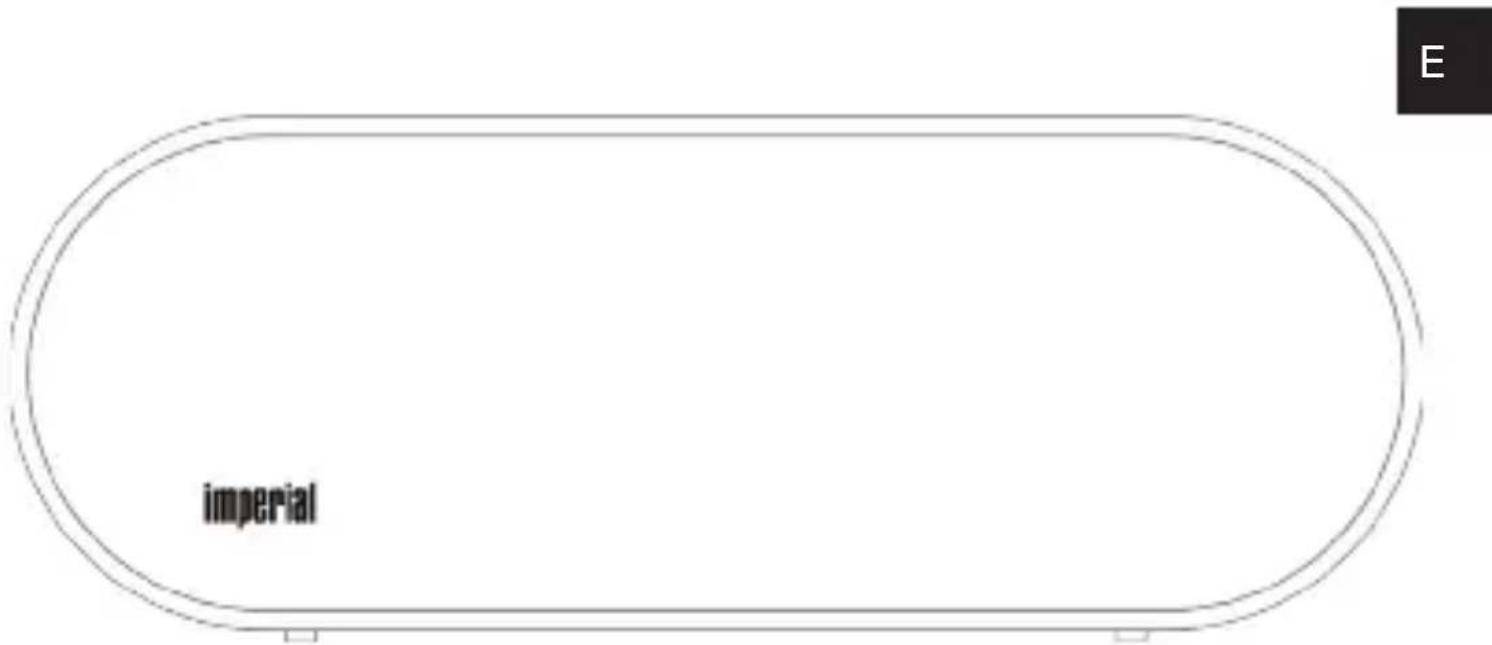

IMPERIAL BAS 5

AUX cable (3.5 mm)

Pure electrical connector diagram without any text, numbers, or symbols

Charging cable (USB - Micro USB)

Pictures and functions

Pictures and functions

1. On/Off & „M“/Reset:

• press 2 seconds to switch on (previous mode)
• press 8 seconds to reset Bluetooth mode
• press short to switch between modes (Bluetooth, TF card, AUX)

2. Forward

• BT and SD mode: press short to fast forward to next track
• AUX mode: no function

3. Pause/Play/Accept & End/Mute

• BT & SD mode: press short to start/pause play-back
• BT mode handsfree: hold to end connection
• BT mode handsfree: press short to accept/end call (when smart phone is connected)

4. Rewind

• BT and SD mode: press short to rewind to previous track
• AUX mode: no function

5. LED indicator light

• Flashes blue when speaker is switched on

• Bluetooth pairing mode: blue light flashes, blue light is permanently on when paired successfully

• Play: blue light is permanently on

• Pause/mute: blue light flashes
• The red light is on when charged in any mode, if fully charged, the red light is off

6. Microphone

- The microphone for hands-free mode is located here

7. TF card reader

- if the speaker should be used in TF card mode, a TF card (micro SD, max 32 GB) has to be inserted

here

8. Micro USB port

• port may be used to charge internal battery (via included USB - micro USB cable) via USB port (laptop) or external power adapter (e.g. DC5V/1000mAh phone charger, not included)
• may be used to transfer music files from external device to TF card (if inserted) via included USB - micro USB cable

9. Volume control

- touch clockwise to increase volume and vice versa to decrease volume

10. AUX In

- if speaker is operated in AUX mode, the external source may be connected here via the included 3.5mm AUX cable

Intelligent power saving mode

1. Speaker will automatically switch off if no music is played or no Bluetooth connection is established in 10 minutes.
2. When the battery is low, a „beep“ sound will be heard and the volume will turn down automatically. The speaker continues to play until it switches off due to low battery. Now, the speaker needs to be recharged to continue using it.

Establish Bluetooth connection

1. Fully charge the speaker's battery.
2. Press button 1 to switch on speaker and short press 1 to switch to Bluetooth mode („Bluetooth mode“ is said).
3. The speaker is in pairing mode, blue LED (5) flashes.

4. Turn on Bluetooth mode on the device which is about to be connected (e.g. smart phone). and pick „BAS 5“ from the list of devices available. For further information see the device's user manual if necessary.

5. Make sure that the distance between speaker and devices doesn't exceed 10 metres in order to avoid connection problems.

6. Enter password „0000“ if necessary.
7. When successfully paired, the blue indicator LED (5) is constantly shining blue.
8. Now you can play back music from the external device. Play back can be either controlled via the external device or via BAS 5 (forward/rewind, play/pause, volume control). If a smart phone is connected via Bluetooth, the BAS 5 may also be used as hands-free device.
9. If switched on again, the speaker will reconnect to the last device paired to before switching it off.
10. In order to reset the Bluetooth connection, press and hold button 1 for about 8 seconds. The Bluetooth connection is terminated and the speaker will go back to pairing mode.

TF card operation

1. Fully charge the speaker's battery.
2. Insert a TF card into the BAS 5's card slot (7)
3. Press button 1 to switch on speaker and short press 1 to switch to TF mode („TF mode“ is said).
4. Play back music from the inserted TF card by using the BAS 5's control sensors.

AUX mode

1. Fully charge the speaker's battery.
2. Press button 1 to switch on speaker and short press 1 to switch to AUX mode („AUX mode“ is said).
3. Connect an external device (e.g. MP3 player) by using the provided micro 3.5mm AUX cable and start to play back music.
4. The play back volume may be controlled via the BAS 5's volume control sensor (9), other play back options need

to be controlled via the external device.

Technical data

Device name: IMPERIAL BAS 5

Speaker properties: 1.75" tweeter + subwoofer

Speaker power: 2x4W Stereo @ 4Ω

Bluetooth version: 4.0 + EDR

Speaker modes: Bluetooth/TF card/AUX

Max. TF card size: 32GB

Music data supported: MP3, WMA, WAV, FLAC, APE

Battery: internal 1000mAh Li-ion battery

Input power: DC5V/1A (via micro USB port)

Dimensions: 230 x 82 x 58mm

Weight: 480g

Disposal note

The packaging for your device consists entirely of recyclable materials. Please dispose of these appropriately in accordance with the „Dual System“.

At the end of its service life, this product must not be disposed of as normal household waste but must be disposed of at a recycling collection point for electric and electronic equipment.

The symbol 📄 on the product, instruction manual or packaging indicates this.

The materials are recyclable according to their labeling. The reuse and recycling of old materials and devices makes an important contribution to protecting the environment.

Please ask your municipal administration for the location of a suitable disposal point.

Please ensure that electronic waste and empty batteries are disposed of properly and are not disposed of as household waste

Technical support and contact details

Our product meets legal requirements and was manufactured under constant quality control. The technical specifications are the most recent at the time of printing and may be subject to change.

Our service area provides professional specialists to answer queries.

Here you can ask any questions you have regarding IMPE-RIAL products and receive tips for locating a possible fault.

Our technicians are available Monday - Friday 8:00 to 16:45 at the following telephone number: +49 (0)2676 / 95 20 101 or via e-mail at: [e-mail]

If the Service Hotline is unable to help you, send your device, preferably in its original packaging, or at least packed securely for transport, to the following address:

TELESTAR - DIGITAL GmbH

Service Center

Your device bears the CE marking and complies with all relevant EU standards.

TELESTAR DIGITAL GmbH hereby declares that this IMPERIAL BAS 5 complies with the essential requirements and

other relevant provisions of EMC Directive

The declaration of conformity for this product can be found at:

© TELESTAR-DIGITAL GmbH, errors and specifications subject to change without notice, June 2018
