Product Type	Solo Microwave Oven
Brand	Gorenje
Model	MO20MGW
Dimensions (H x W x D)	25.9 x 45.6 x 36.5 cm
Net Weight	10.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1050 W
Microwave Output Power	700 W
Capacity	20 L
Control Type	Mechanical knobs and timer
Functions	Microwave, Defrost, Auto cook programs, Timer
Interior Light	Yes
Turntable	Yes, glass
Door Type	Side opening with handle
Cleaning and Maintenance	Wipe interior with damp cloth; do not use abrasive cleaners
Safety Features	Child lock, automatic door interlock, overheat protection
Spare Parts Availability	Available through authorized Gorenje service centers
Repairability	Repairable by qualified technicians; spare parts list in manual
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - MO20MGW GORENJE

How do I install the MO20MGW microwave?

Place the microwave on a flat, stable surface with at least 10 cm clearance above and 5 cm on each side for ventilation. Do not block the vents. Plug into a grounded outlet.

Can I use metal containers in this microwave?

No, do not use metal containers, foil, or utensils with metal parts, as they can cause arcing and damage the oven. Use microwave-safe glass, ceramic, or plastic.

How do I clean the microwave?

Unplug the microwave and wipe the interior with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or scouring pads. The turntable can be washed in warm soapy water.

What is the child lock feature and how do I set it?

The child lock prevents accidental operation. To activate, press and hold the Stop button for 3 seconds until a beep sounds. Repeat to deactivate.

How do I defrost food using the MO20MGW?

Use the defrost function by selecting the defrost mode and entering the weight of the food. The oven will automatically set power and time. Stir or turn food halfway through for even thawing.

Why does my microwave make noise during operation?

Normal operating sounds include the hum of the magnetron, fan, and turntable motor. If you hear grinding or rattling, check the turntable support and ensure the microwave is level.

What should I do if the microwave does not start?

First, check that the power cord is securely plugged in and the door is fully closed. If it still does not start, try a different outlet. If the problem persists, contact Gorenje service.

Can I use the microwave without the turntable?

No, the turntable must be in place for even cooking. If it is missing or broken, replace it with a genuine Gorenje turntable available from service centers.

How do I set the timer for simple heating?

Turn the power level knob to desired setting (e.g., HIGH), then rotate the timer knob to the desired cooking time (max 35 minutes). The microwave will start automatically.

Where can I find replacement parts for my Gorenje MO20MGW?

Replacement parts such as turntable, glass plate, and fuses can be ordered from authorized Gorenje service centers. Use the part numbers listed in the manual.

USER MANUAL MO20MGW GORENJE

White portable microwave oven with control knobs and a display screen (no visible text or symbols on the device body)

MO 20 MGW

1 - Sigurnosni sistem za zatvaranje vrata
2 - Otvori za zračenje
3 - Ležajni obruč
4 - Stakleni pladanj
5 - Nadzorna ploča

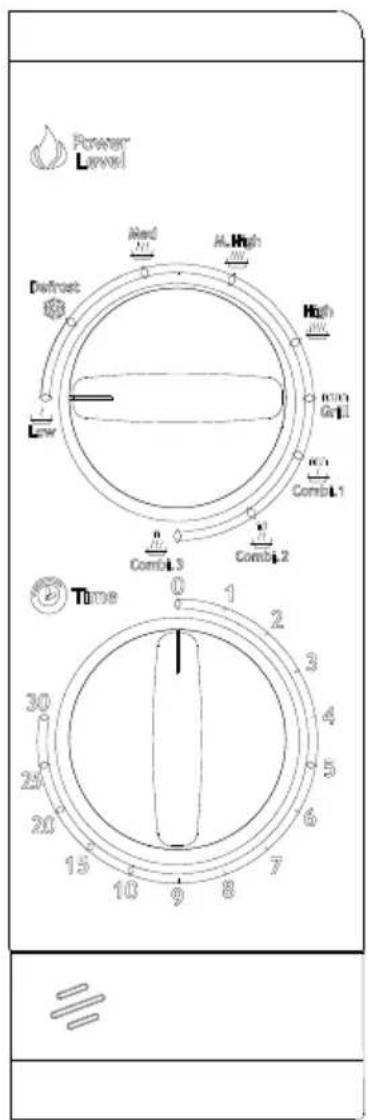

Nadzorna ploča

KONTROLNA PLOČA

Kontrolna ploča ima tri gumba. Prvi služi za izbor vremena kuhanja, s drugim birate jačinu ili kombinaciju kuhanja, a trećim se otvaraju vrata mikrovalne pećnice.

KONTROLNA TABLA

Before operating this oven, please read these instructions completely.

SPECIFICATIONS

Power consumption: 230 V \~ 50 Hz, 1200W

Output: 700W

Grill Heater: 900W

Operating Frequency: 2450 MHz

Outside Dimensions: 452 mm (L) x 262 mm (H) x 335 mm (W)

Oven Cavity Dimensions: 315 mm (L) x 198 mm (H) x 297 mm (W)

Oven Capacity: 20litres

Uncrated Weight: Approx. 12 kg

Noise level: Lc < 58 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks.

Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT THE NEAREST AUTHORIZED SERVICE AGENT.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity

7. If any of the above are visible, DO NOT use the oven.

8. This Microwave Oven weighs 12,5 kg and must be placed on a horizontal surface strong enough to support this weight.

9. The oven must be placed away from high temperature and steam.
10. DO NOT place anything on top of the oven.

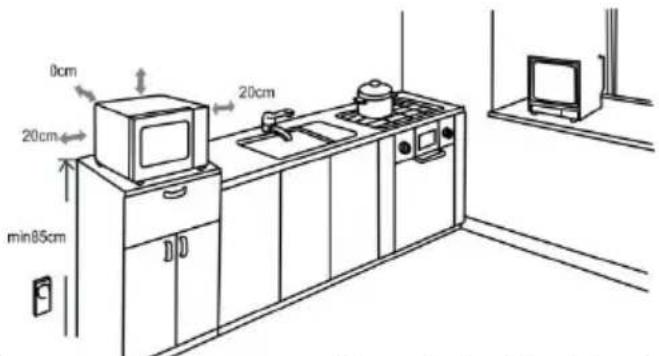

11. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from rear wall to ensure the correct ventilation.
12. DO NOT remove the turn -table drive shaft.
13. As with any appliance, close supervision is necessary when used by children.

This oven requires 1.2 KVA for its input, consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V 8 Amp Fuse.

IMPORTANT INSTRUCTIONS

WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or excessive microwave energy:

Never touch the surfaces of heating or cooking appliances.

They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy&High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

1. Read all instructions before using microwave oven.
2. Some products such as whole eggs and sealed containers - (for example, closed glass jars and sealed baby bottles with teat) - may explode and should not be heated in microwave oven, Refer to cookbook for more details.
3. Use this microwave oven only for its intended use as described in this manual.
4. Do not operate this microwave oven, if it is not working properly or if it has been damaged or dropped.
5. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing bag in oven.
c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not let the cord hang over the edge of the table or worktop.

3. Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
4. Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
5. Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other non-food items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not use the oven for home canning, Microwave ovens are not designed to permit proper canning. Improperly canned food may spoil and be dangerous to consume.
6. Do not cook eggs in the shell, as they will burst. Occasionally a poached egg may burst during cooking. Be sure to cook covered and let stand one minute after cooking before removing the cover.
7. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chichen livers, etc without first being pierced several times with a fork.
8. Do not insert any object into the openings on the outer case.

9. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.

10. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Living ware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

• Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.
• Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly.
  When heating or cooking foods with a high fat or sugar content do not use plastic containers.
• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

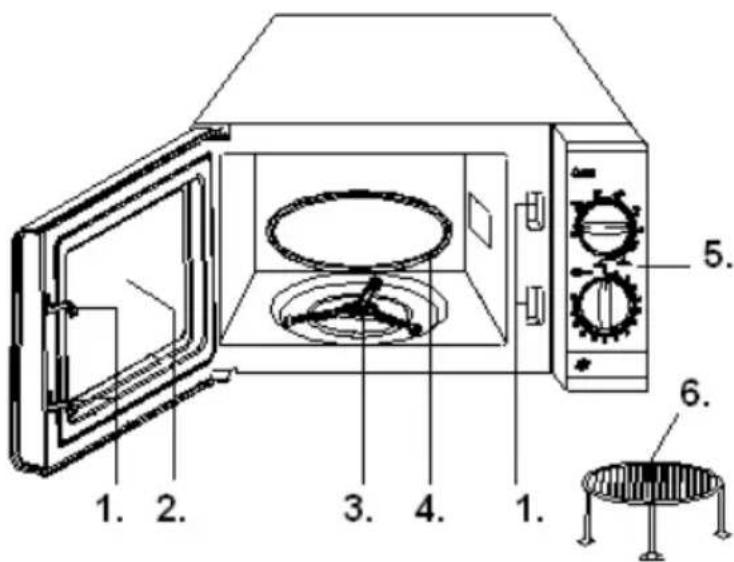

CONTROL PANEL

1 - Door Safety lock system
2 - Oven window
3 - Roller Ring
4 - Glass Tray
5 - Control Panel
6 - Grill rack

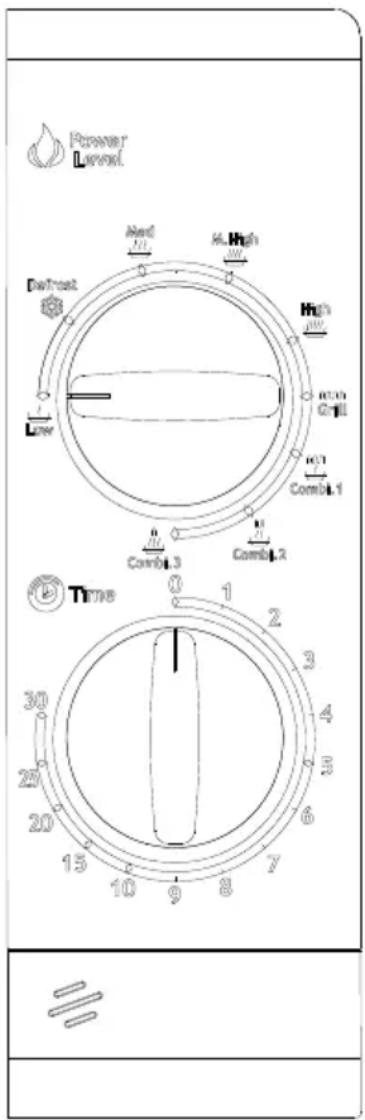

CONTROL PANEL

The control panel consists of two function operators. One is a timer knob, and another a power knob.

POWER / ACTION SELECTOR

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

TIMER KNOB

Offers visual timing settings at easy turno f your thumb to selector a desired cooking time up to 30 minutes per cooking sessions.

Microwave Cooking

For pure microwave cooking, there are five power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

	Power output	Description
1	18% of total	Low
2	36	Defrost
3	58	Med
4	81	M. High
5	100	High

Grill

With the knob turning clockwise passing the highest microwave power level, the oven come to the grill cooking function which is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for cooking hot sandwiches and au grain dishes.

Combination Cooking

By its name, this cooking operation combines microwave power with that of grill cooking. The operation is categorized into three levels with different combination power settings as you can see from the following table. These are particularly suitable for certain foods and culinary operations. As well as for keeping the much desired crispness of certain foods.

The following table shows 3 different power settings for combination programs.

Program	Microwave cooking time	Grill cooking time	Suitable for
Combi.1	30%	70%	Fish, potatoes, au grain
Combi.2	49%	51%	Pudding, omelets, baked potatoes
Combi.3	67%	33%	Poultry

OPERATION

To set a cooking program

1. Place food in oven and close the door.
2. Turn Power/Action Selector to select a power level or cooking function.
3. Use Timer knob to set a cooking time

NOTE: As soon as the timer is turned, oven starts cooking.

When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION: ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

QUICK LOOK UP GUIDE

1. Place the food in the oven. Select the power level by rotating the Cooking Power Control knob.

2. Select the cooking time by rotating the Timer knob.

If you want to defrost some food

1. Turn the cooking power control knob to" *".
2. Turn the timer knob to select the appropriate time.

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the color.

You can use your microwave oven to:

• Defrost
• Instant reheat
• Cook

Cooking Principle

1. The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.

3. Cooking times vary according to the receptacle used and the properties of the food.

4. Quantity and density.

5. Water Content
6. Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre
• The same temperature throughout the food

1. First place a bowl of water on the turntable.
2. Set the power level to high by turning Cooking Power Control knob.
3. Set the time to 4-5 minutes by turning the Timer knob. The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum is used, the water takes longer to boil.

WHAT TO DO IF YOU ARE IN DOUBT OR IF YOU HAVE A PROBLEM

If you experience any of the problems listed below, please try the solutions offered.

- This is normal:

Condensation in the oven Air flow around the door and outer casing Light reflected around the door and outer casing Steam escaping from around the door or vents.

- The oven does not start when you turn the timer knob

Is the door completely closed? The food is not cooked at all

Have you set the timer correctly.

Is the door closed

Have you overloaded the electric circuit and caused a fuse to blow or a circuit breaker to be triggered

• The food is either overcooked or under-cooked Was the appropriate cooking time set for the food Was an appropriate power level chosen
• Sparking and crackling occur inside the oven (arcing) Have you used a dish with metal trimmings Have you left a fork or other metal utensil inside the oven Is aluminium foil too close to the inside walls.
• The oven causes interference with radios or televisions Slight interference may be observed on televisions or radios when the oven is operating. This is normal, and to solve the problem, install the oven away from televisions, radios and aerials.

POWER LEVELS
High	100%
Medium High	85%
Medium	66%
Medium Low	48%
Low	17%
Defrost	40%

COOKING/REHEATING

The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended.

First place the food in the centre of the turntable. Close the door.

1. Set the power level to high by turning Cooking Power Control knob. (Maximum power: 700 Watt)

2. Set the time by turning Timer knob. Result: The oven light comes on and the turntable starts rotating.

You can change the power level during cooking, by turning the cooking power control knob.

STOPPING THE COOKING

1. To stop temporarily; Open the door. Result: Cooking stops. To resume cooking close the door.

2. To stop completely: turn the Timer knob to "0".

ADJUSTING THE COOKING TIME

1. Adjust the remaining cooking time by rotating the Timer knob.

MANUAL DEFROSTING OF FOOD

The defrost feature enables you to defrost meat, poultry and fish first place the frozen food in the centre of the turntable and close the door.

1. Turn the Cooking Power Control knob to defrost.

2. Turn the Timer knob to select the appropriate time. Result: Defrosting begins.

COOK-WARE GUIDE

COOK-WARE	MICROWAVE SAFE	COMMENTS
Aluminium Foil	Safe with care, see comments	Can be used in small quantities to protect area's of food against over cooking. Arcing can occur if too much foil is used or if foil is to close to oven walls
Browning Plate	Yes	Do not preheat for more than 8 minutes
China and Earthenware	Yes	Usually suitable unless decorated with a metal trim
Disposable Polyester and cardboard dishes	Yes	Some frozen foods are packed in these containers
Fast Food Packaging	Yes	Can be used to warm food, but overheating may cause the polystyrene to melt
Polystyrene Cups
Paper bags/Newspaper	NO	May catch fire May cause arcing
Recycled paper or metal trims	NO
Glassware Oven to table ware	Yes	Can be used unless decorated with metal trim
Fine Glassware	Yes	Delicate glass may crack if heated suddenly
Glass Jars	Yes	Must remove the lid, suitable for warming only
Metal dishes Freezer Bag Ties	NO	May cause arcing or fire May cause arcing or fire
Paper Plates, Cups, Napkins, Kitchen paper Recycled paper	Safe with care, see comments NO	For short cooking times and warming. Also to be used to absorb excess moisture May cause arcing
Plastic Containers	Yes	Heat resistant plastic the most suitable. Other plastics may warp or discolour. DO NOT USE MELAMINE. Can be used to retain moisture, should not touch the food, and care should be taken when removing. Only if boilable or oven proof, should not be airtight always prick bag with a fork.
Cling Film	Yes
Freezer Bags	Safe with care, see comments
Wax or Grease PROOF Paper	Yes	Can be used to prevent spattering and to retain moisture.

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
• Turntable and roller rings

Always ensure that the door seals are clean and the door closes

1. Clean the outside surfaces with soft cloth and warm soapy water.
2. Remove any splashes or stains on the inside surfaces and roller ring with a soapy cloth, rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turn table and heat for ten minutes at maximum power.
4. Wash, the dishwasher safe glass turntable, whenever necessary

DO NOT SPILL WATER IN THE VENTS. NEVER USE ANY ABRASIVE PRODUCTS OR CHEMICAL SOLVENTS. TAKE PARTICULAR CARE WHEN CLEANING, DOOR SEALS TO ENSURE THAT NO PARTICLES ACCUMULATE, PREVENTING THE DOOR FROM CLOSING PROPERLY.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

Additional recommendations for cooking with microwave and useful advices can be found on web side:

http://www.gorenje.com

gorenje

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

VEZÉRLŐ PANEL

INSTRUCTIUNI GENERALE PENTRU SIGURANTA DVS.
