Brand	SMEG
Model	LBI127
Type	Built-in washing machine
Maximum washing capacity	7 kg (cotton), variable according to program
Maximum spin speed	1400 rpm
Minimum niche dimensions	H 820 mm, W 600 mm, D 584 mm
Power supply	220-240 V ~ 50 Hz
Programs	Cotton, Synthetics, Delicates, Wool, Quick, Night purge, Rinse and spin, Drain and spin, Softener, Hand wash, Shirts/Work, Jeans, Sport, Mixed fabrics, Eco 40-60
Options	Pre-wash, Intensive, Anti-crease, Extra rinse, Quick
Installation type	Built-in with removable furniture panel
Admissible plinth height	100 mm (example), adjustable
Panel opening direction	Reversible (left or right)
Panel closure	Push-pull or magnetic (selectable)
Hinge adjustment	Yes, possibility to correct tilt and centering
Maintenance	Drain pump cleaning via removable plinth
Safety	Complies with standards, installation by qualified technician mandatory

Frequently Asked Questions - LBI127 SMEG

How to install the furniture panel on the Smeg LBI127?

Use the supplied template to drill the holes for the hinges and the closure hook. Attach the hinges to the panel, then install the hook (or magnetic plate) on the opposite side. Finally, attach the panel to the washing machine following the instructions in the manual.

How to adjust the hinges if the panel is tilted or off-center?

After fixing the panel, you can correct its position by adjusting the movable part of the hinges (figure 9 of the manual). This allows you to adjust tilt and centering.

What are the available washing programs?

The washing machine offers many programs: Cotton, Synthetics, Delicates, Wool, Quick, Night purge, Rinse and spin, Drain and spin, Softener, Hand wash, Shirts/Work, Jeans, Sport, Mixed fabrics, Eco 40-60. Each program has specific temperatures and spin speeds.

What is the maximum washing capacity?

The maximum capacity is 7 kg for Cotton programs. For other programs such as Synthetics (3.5 kg) or Delicates (2 kg), the load is reduced. Refer to the program table for details.

How to clean the drain pump?

The plinth of modular furniture must be removable to allow access to the drain pump. Remove the plinth, then clean the pump according to the instructions in the maintenance manual.

How to level the washing machine?

Turn the adjustable feet (front and rear) to level the appliance horizontally, then lock them with the locknut. Leave a gap of at least 2 mm between the side panels and adjacent furniture to avoid vibrations.

What washing options are available?

The available options include: Pre-wash, Intensive, Anti-crease, Extra rinse and Quick. Some options cannot be selected simultaneously (refer to the manual).

How to reverse the panel opening direction?

To change the opening from left to right, remove the push-pull closure (or magnet) and the stop, then install them on the opposite side. Make sure to plug all holes to avoid any electrical risk.

What to do if the washing machine vibrates too much during spin?

Check that the appliance is level and that the feet are properly adjusted and locked. Also ensure it is not in contact with adjacent furniture (gap of at least 2 mm) and that the floor is stable.

What detergents to use?

Use detergents suitable for the chosen program. The detergent drawer has three compartments: pre-wash, wash and softener. Follow the recommended dosages on the product packaging.

USER MANUAL LBI127 SMEG

MANUEL D'INSTRUCTIONS FR

Achtung!

Line drawing of a washing machine and its mechanical lever mechanism (no text or symbols)

Illustration of a washing machine with a close-up inset showing mechanical components (no text or symbols)

Line drawing of a faucet with a valve and handle (no text or symbols)

Line drawing of a mechanical component with a handle and curved base (no text or symbols)

Diagram of a device with a downward arrow indicating a component or process (no text or symbols present)

Illustration of a hand holding a bowl with liquid inside, no text or symbols present

5.4 REINIGUNG DER LAUGENPUMPE

Simple line drawing of a container with an arrow indicating direction, and a magnified inset showing a cutting tool (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (A), showing internal structure without any text or symbols.

Diagram of a faucet with a valve and handle, mounted on a wall (no text or symbols)

ASSEMBLY INSTRUCTIONS FOR BUILT-IN WASHING MA- CHINES

IMPORTANT - This machine complies with current safety regulations governing electrical appliances and, to ensure user safety, it must be installed by a qualified technician as required by current legislation

Size of cabinet

The minimum dimensions of the cabinet are: height 820 mm, width 600 mm, depth 584 mm (fig. 1).

Applying the panel

The panel may be attached to the left- or right-hand side of the washing machine (fig. 2)

The machine is supplied fitted for a left-hand side panel attachment as the right-hand side is fitted with the push-pull lock (upper part) and the rubber pad (lower part).

Should you wish to use the magnetic lock instead of the push-pull lock, remove the push-pull lock support and fit the supplied magnetic lock support.

Important! Before fitting the panel (removing all the hinge and locking elements from the front) make sure the washing machine is totally disconnected from the mains power supply.

Warning - To fix the panel on the right-hand side (direction of opening opposite to that of the door) dismount the push-pull lock (or the magnet lock) from the front of the machine and the rubber pad (fig. 3-A) and fit them on the opposite side (fig. 3-B).

All the elements applied to the front of the washing machine must be remounted correctly (no holes must remain open) in order to make it impossible to touch live components inside the machine.

Our company declines all liability for failure to observe the above safety requirement.

Using the tem- plate

1) Measure the height of the kitchen baseboard: the height of the wooden panel is obtained by first establishing the height of the kitchen baseboard.

E.g.: for a 100 mm high baseboard, the maximum height of the panel is 720 mm. If the height of the baseboard must be increased, the height of the wooden panel must be reduced.

	Place the template of the inner side of the panel and match the height of the baseboard with the lower edge of the panel (fig. 4) using the graduated scale. Make sure the template is horizontally centred with reference to the vertical lines marked at the ends.After placing the template in the correct position, trace the positions of the following holes, pushing in with the tip of your pencil:holes for the hinges and hinge screws (fig. 4)holes for fixing the metal plate (if the magnetic lock is used), or the hook for the push-pull lock (fig. 4, A - B)
Applying the panel elements and fixing the panel	1) Drill the holes for the hinges (fig. 5), the hook for the push-pull lock (fig. 5), or the metal plate if you decide to use the magnetic lock (fig. 6), and the holes for fixing the hinges (fig. 6).2) The 13 mm depth of the 2 mm holes, for fixing the hinges and a metal plate for the magnet lock, only applies to the solid wood panel. For the chipboard panel, simply drill the upper coating – fig. 6.3) Screw the two hinges to the panel (fig. 7)4) Mount the hook for the push-pull lock or the metal plate for the magnet lock on the side opposite the hinges (fig. 7).5) Fix the panel to the washing machine following the instructions shown in fig. 8.

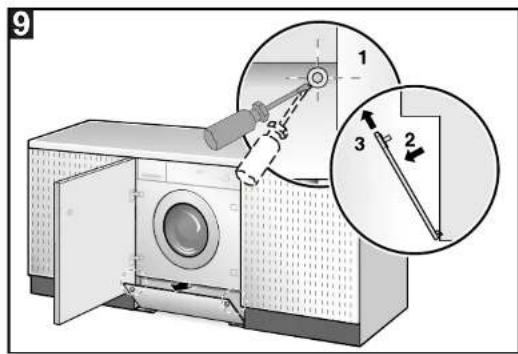

Adjusting the hinges	If, after applying the panel to the washing machine, it is slightly inclined or off-centre with respect to the front of the machine, correct its position by adjusting the mobile part of the hinges (fig. 9).
Positioning the washing machine in the cabinet	Position the washing machine in the cabinet and, if necessary, adjust the feet to level it and lock them with the relative locknut. On appliances with adjustable rear feet, refer to the operator's manual.To prevent the vibrations generated by the washing machine from being transmitted to the cabinet, make sure the sides and top do not touch the cabinet.There must be a gap of at least 2 mm. The back of the machine must also remain detached from the rear panel.If the cabinet is 870 mm high, the washing machine heightening kit on sale from the Spare Parts Service, must be used.To comply with safety legislation, any gaps between the floor and the bottom of the baseplate and between the floor and the sides of the machine when it is positioned at the end of a line of furniture must be completely closed.The cover must be installed in such a way as to make it

impossible to touch live components and a tool must be required to remove it.

Our company declines all liability for failure to observe the above safety requirement.

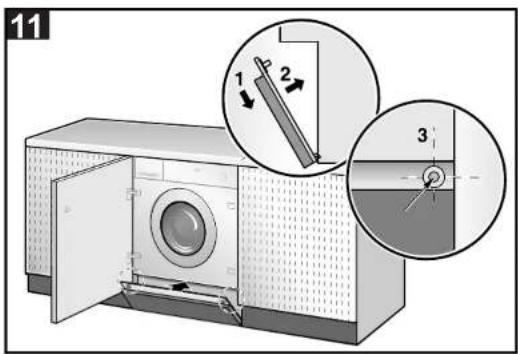

Applying the baseboard

It must be possible to remove the continuous kitchen baseboard to allow the drain pump to be cleaned if necessary.

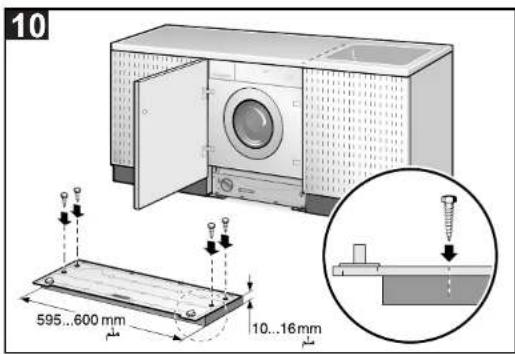

In some cases, the baseboard is not continuous but limited to the width of the washing machine. In this case, the kitchen baseboard can be fixed to the washing machine baseboard with 4 screws, respecting the 4 reference marks (see fig. 9-10-11).

When applying the kitchen baseboard, the washing machine baseboard may not be removed or adapted as, for reasons of safety, it must remain as it is, in one piece and fixed to the washing machine.

GUIDA PROGRAMMI

Programs

Temp. (°C)

Max. Spin (rpm)

Max. washing load (kg)

Detergent drawer compartments

Options

Wash program description

Prewash

Wash

Softner

Prewash

Intensive

Easy iron

Extra rinse

Rapid

1

10

85

1

2

6

7

8

Cotton and colours

Delicate colours with light dirt

/ 20"

Max

7

√

√

√

√

√

√

√

√

Cold wash or 20°C, rinses and final spin at the selected speed

Delicate colours with normal dirt

30" / 40"

Max

7

√

√

√

√

-

√

√

√

Wash at 30" or 40°C, rinses and final spin at the selected speed

Tough colours with normal dirt

60°

Max

7

√

√

√

√

-

√

√

√

Wash at 60°C, rinses and final spin at the selected speed

Tough colours with heavy dirt

90°

Max

7

√

√

√

√

√

√

√

√

Wash at 90°C, rinses and final spin at the selected speed

Eco 40-60

Normally soiled cotton laundry declared washable at 60°C or 45°C together

-

Max 7

√

√

√

√

-

√

√

√

Wash, rinses and final spin at the selected speed

Synthetics

Items for refreshing

/ 20"

1000

3.5

√

√

√

√

√

-

√

√

Cold wash or 20°C, rinses and final spin at the selected speed

Items with light dirt

30" / 40"

1000

3.5

√

√

√

√

√

-

√

√

Wash at 30" or 40°C, rinses and final spin at the selected speed

Items with normal dirt

60°

1000

3.5

√

√

√

√

√

-

√

√

Wash at 60°C, rinses and final spin at the selected speed

Delicator/Silk

Items for refreshing

/ 20"

600

2

-

√

√

-

√

-

√

-

Cold wash or 20°C, rinses and final spin at the selected speed

Items with light dirt

30" / 40"

600

2

-

√

√

-

√

-

√

-

Wash at 30" or 40°C, rinses and final spin at the selected speed

Wool

Items for refreshing

/ 20"

800

2

-

√

√

-

-

-

-

-

Cold wash or 20°C, rinses and final spin at the selected speed

Items with light dirt

30" / 40"

800

2

-

√

√

-

-

-

-

-

Wash at 30" or 40°C, rinses and final spin at the selected speed

Rinse and spin

+ + +

-

Max

7

-

-

√

-

-

√

-

√

Rinse and pump-out only, or pump-out and final spin at the selected speed

Pump-out and spin

+ + +

-

Max

7

-

-

-

-

-

√

-

√

Pump-out only, or pump-out and final spin at the selected speed

Rapid

Light cotton or delicate fabrics for refreshing

/ 20" / 30°

800

2

-

√

√

-

-

-

-

-

Cold wash or 20°C / 30°C, rinses and final spin at the selected speed

Night Wash

Very delicates items with light dirt

/ 20"

1000

3

√

√

√

√

√

√

-

√

Silent cold wash or 20°C (buzzer off), rinses and final spin at the selected speed

Items with light dirt

30" / 40"

1000

3

√

√

√

√

√

√

-

√

Silent wash at 30*40°C (buzzer off), rinses and final spin at the selected speed

Items with normal dirt

60°

1000

3

√

√

√

√

√

√

-

√

Silent wash at 60°C (buzzer off), rinses and final spin at the selected speed

Softner

-

1000

3.5

-

-

√

-

-

√

-

-

Rinse and pump-out only, or pump-out and final spin at the selected speed

Hand wash

Items for refreshing

800

2

-

√

√

-

-

-

-

-

Cold wash, rinses and final spin at the selected speed

Shirl/Work

Items for refreshing

/ 20"

800

2

-

√

√

-

√

-

√

√

Cold wash or 20°C, rinses and final spin at the selected speed

Items with light dirt

30" / 40"

800

2

-

√

√

-

√

-

√

√

Wash at 30" or 40°C, rinses and final spin at the selected speed

Jeans

Items for refreshing

/ 20"

800

2

-

√

√

-

√

-

√

√

Cold wash or 20°C, rinses and final spin at the selected speed

Items with light dirt

30" / 40"

800

2

-

√

√

-

√

-

√

√

Wash at 30"or 40°C, rinses and final spin at the selected speed

Sport

Items for refreshing

/ 20"

800

2

-

√

√

-

√

-

√

√

Cold wash or 20°C, rinses and final spin at the selected speed

Items with light dirt

30" / 40"

800

2

-

√

√

-

√

-

√

√

Wash at 30"ors 40°C, rinses and final spin at the selected speed

Mixed Mix

Cotton and synthetics for refreshing

/ 20"

Max

3

√

√

√

√

√

√

√

√

Cold wash or 20°C, rinses and final spin at the selected speed

Cotton and synthetics with light dirt

30" / 40"

Max

3

√

√

√

√

√

√

√

√

Wash at 30" or 40°C, rinses and final spin at the selected speed

√.Option available

: Options which cannot be selected simultaneously

Code 19392029001
