Product Type	Bathroom Scale with Body Analysis
Brand	Blaupunkt
Model	BSM411
Capacity	150 kg (330 lb / 23.6 st)
Graduation	0.1 kg
Power Supply	1 x CR2032 3V battery
Display	LCD with segments for weight, body fat, hydration, muscle, bone, obesity, calories, user number, sex, age, height
Memory Profiles	12 user profiles
User Settings	Profile number, sex, height (100-250 cm), age (10-100 years)
Units	kg, lb, st (switchable)
Measurements	Weight, body fat %, hydration %, muscle mass %, bone mass %, obesity level, daily calorie recommendation
Auto Calibration	Yes (automatic upon stepping on)
Auto Off	Yes, after measurement cycle
Overload Indication	Err display when overloaded (>150 kg)
Low Battery Indication	Lo display
Platform Material	Glass (assumed from typical design)
Cleaning	Wipe with damp cloth, do not immerse
Safety	Not for use with pacemakers; avoid wet surface; keep away from strong electromagnetic fields
Compliance	CE (EMC Directive)

Frequently Asked Questions - BSM411 BLAUPUNKT

How do I set up a user profile?

Press the SET button to enter settings. Use the ▲ and ▼ buttons to select profile number, sex, height, and age. Press SET to confirm each step. The scale will then display 0.0 and turn off automatically.

How do I change the weight unit from kg to lb or st?

Start the scale and press the unit change button (usually marked with kg/lb/st) to cycle through the options.

What does the error code 'Err' mean?

Err indicates the scale has been overloaded. The maximum capacity is 150 kg. Remove the excess weight immediately to avoid damage.

What does 'Lo' on the display mean?

Lo means the battery is low. Replace the CR2032 battery with a new one, observing correct polarity.

How do I clean the scale?

Wipe the platform with a damp cloth and then dry thoroughly. Do not submerge the scale in water or any liquid.

Can I use this scale if I have a pacemaker?

No, the scale is not intended for people with pacemakers or other medical implants. It uses a weak electrical current for body composition analysis which may interfere with such devices.

What is the maximum weight this scale can measure?

The maximum capacity is 150 kg (330 lb or 23.6 st). Exceeding this will show an 'Err' error.

How do I view the last measurement for a profile?

Press SET to start the scale, select your user profile with ▲/▼, then press the ▲ button to retrieve the last measurements. The scale will display weight, body fat, hydration, etc. automatically three times before turning off.

What does 'ErrL' or 'ErrH' mean?

ErrL means the body fat percentage is too low, and ErrH means it is too high. These indicate that the measurement is outside the normal range for the scale's algorithm.

How do I replace the battery?

Open the battery cover on the bottom of the device. Remove the old battery and insert a new CR2032 battery with the correct polarity (+ side up). Close the cover.

USER MANUAL BSM411 BLAUPUNKT

Enjoy it.

IMPORTANT NOTES

- Before operating the appliance, please read the instruction manual and follow the instructions provided. The manufacturer is not liable for any damages resulting from use of the appliance contrary to its intended use or inappropriate use. Keep the instruction manual for future reference.

- The appliance is intended for home use only. Do not use for other purposes contrary to its intended use. Do not use for medical or commercial purposes.

- This appliance may be used by children of at least 8 years of age and by persons with reduced physical, mental abilities and persons with no experience or knowledge of the equipment, if supervised or instructed on its safe use so that the risks associated with it were understandable. Children should not play with the appliance nor clean or carry out maintenance of the appliance unattended.

• The scale is a precision device. Do not drop, hit or shake it.

- If the scale is not used for a long time, remove the batteries.

- Batteries that are flat or out of use for a long time may leak.

- The appliance is not intended for people with a pacemaker or other medical implants. Tissue measurement is not recommended for pregnant women and people during dialysis.

- Before stepping on the scale, make sure the platform is dry.

• The scale can be slippery if its surface is wet.

- The scale must not be used near strong electromagnetic fields.

CE

Device is compliant with EU directives:

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data:

Capacity up to 150kg, graduation 0,1kg

Power supply: 3V CR2032 battery

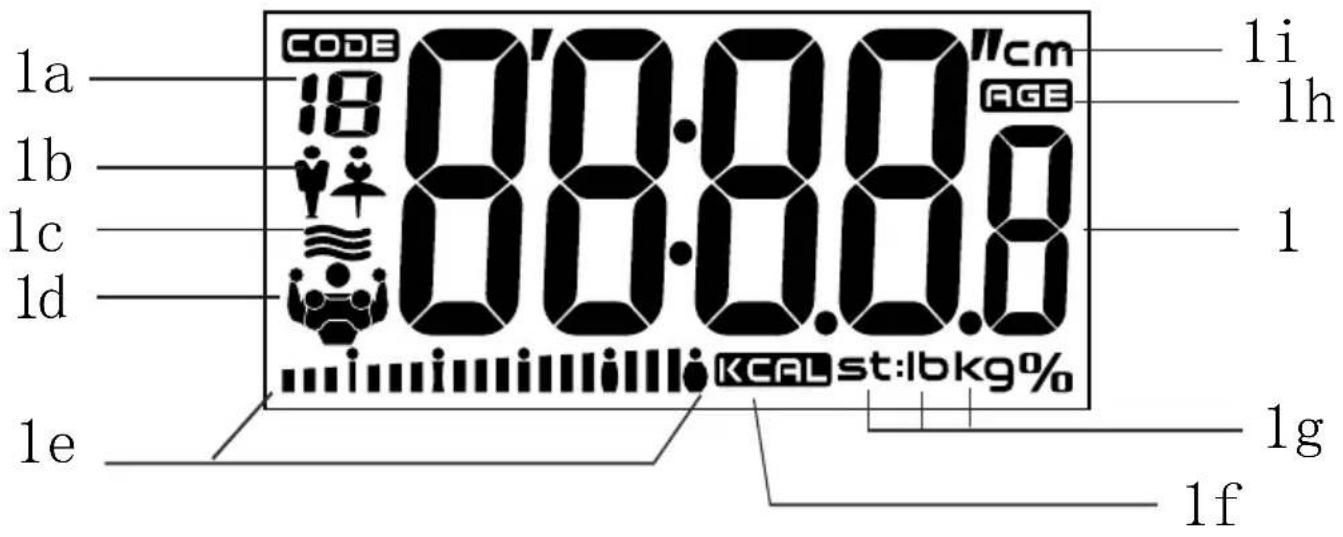

1. Display

1a. User number

1b. Sex

1c. Hydration

1d. Fat % / Muscle % / Bones %

1e. Obesity rate

1f. Calories units

1g Weight units

1h. Age

1i. Height units

1. Scale platform

2. Buttons (SET,

REPLACING THE BATTERIES

1. Open the battery cover on the bottom of the device. Remove the used battery.
2. Insert a new battery paying attention to the proper polarity.

WEIGHT MEASUREMENT

Make sure the batteries are operational and inserted into the device. Place the scale on a flat, hard surface.

Step on the scale. It will start automatically and calibrate, then it will indicate the result of the measurement. Wait for the result to stabilize, it will pulse for some time, then the scale will turn off automatically.

USER PROFILE SETTING

The scale has a memory for 12 user profiles. The range of height is from 100 to 250 cm, age from 10 to

100 years.

The parameter selection process starts by pressing the SET button. The parameter value is changed by

▲▼buttons. Confirm and move to the next one by pressing the SET button:

1. Profile number selection
2. Sex selection
3. Height
4. Age

When the last parameter has been confirmed, the scale will display 0.0 and then will automatically turn off.

If the scale is on and displays 0.0, press the SET button for 3 seconds to enter settings.

WEIGHT MEASUREMENT WITH ANALYSIS

Start the scale by pressing the SET button. Select the user profile with ▲, ▼ buttons. Tread on the scale, the scale will display 0.0. Step on the scale. Wait for the ▼ measurement. When the measurement is complete, the scale will display the results three times: weight, % body fat along with the obesity scale, % hydration,% muscle tissue,% bone tissue, the recommended daily amount of calories.. Next, the scale will turn off automatically.

DISPLAYING THE LAST MEASUREMENT FOR A PROFILE

Start the scale by pressing the SET button. Select the user profile with ▲, ▼ buttons. Step on the scale or wait 6 seconds, the scale will display 0.0. Press the button to retrieve last measurements. To skip pages faster, use the ▲ buttons. The scale turns off automatically after displaying the measurements three times.

CHANGING THE UNITS

To change units from metric (kg) to imperial (lb, st) or vice versa, start the scale and find the units change button. Press the button to change units.

ERROR MESSAGES

Err – The scale has been overloaded.

Lo - Low battery, replace the batteries.

C - The scale requires recalibration, restart the scale.

ErrL - % of fat too low.

ErrH - % of fat to high.

If an error is displayed and the scale does not turn off automatically after a longer time, remove the batteries for more than 5 seconds.

CLEANING AND MAINTENANCE

Wipe the weighing platform with a damp cloth. Then wipe dry. Do not submerge in water or other liquids.

Device is compliant with EU directives: - Electromagnetic compatibility (EMC) Device marked CE mark on rating label
