Product Type	Digital Bathroom Scale
Brand	Blaupunkt
Model	BSM401
Capacity	150 kg (330 lb)
Graduation	0.1 kg
Power Supply	1x CR2032 3V battery
Display	LCD digital display
User Profiles	12 user memory
Measurements	Weight, body fat %, hydration %, muscle %, bone mass %, obesity rate, daily calorie requirement
Units	kg, lb, st (selectable)
Height Range	100-250 cm
Age Range	10-100 years
Auto Power Off	Yes
Overload Indicator	"Err" message
Low Battery Indicator	"Lo" message
Platform Material	Safe tempered glass
Cleaning	Wipe with damp cloth, do not submerge
Safety	Not for use with pacemakers; avoid strong electromagnetic fields
Compliance	CE marked, EU EMC directive
Included Items	Scale, CR2032 battery, user manual

Frequently Asked Questions - BSM401 BLAUPUNKT

How do I replace the battery in my Blaupunkt BSM401 scale?

Open the battery cover on the bottom of the scale, remove the old CR2032 battery, and insert a new one with correct polarity (positive side up). Close the cover securely.

How do I set up a user profile?

Press SET to enter settings. Use ▲▼ buttons to select profile number, sex, height (100-250 cm), and age (10-100 years). Press SET to confirm each step. The scale will display '0.0' and turn off automatically when done.

What do the error messages 'Err', 'Lo', and 'C' mean?

'Err' means the scale is overloaded (exceeds 150 kg). 'Lo' indicates low battery; replace the CR2032 battery. 'C' means recalibration is needed; restart the scale.

How can I change the weight unit from kg to lb or st?

Start the scale and press the unit change button (usually marked with 'kg/lb/st'). Each press cycles through the available units. The display will show the selected unit.

Can the scale be used by people with pacemakers?

No, this scale is not intended for people with pacemakers or other medical implants, as the tissue measurement function may interfere with such devices.

How do I view the last measurement for a user profile?

Press SET to start, select your user profile with ▲▼, then wait until '0.0' appears. Press the ▲ button to retrieve the last stored measurements. The scale will cycle through weight, fat, hydration, etc.

What is the correct way to clean the scale?

Wipe the platform with a damp cloth and then dry it thoroughly. Never submerge the scale in water or other liquids.

Why does the scale show 'ErrL' or 'ErrH' during fat measurement?

'ErrL' means the measured body fat percentage is too low, and 'ErrH' means it is too high. This can happen if the value is outside the measurable range. Ensure proper barefoot contact with the electrodes.

How many user profiles can the scale store?

The scale can store up to 12 user profiles, each with individualized settings for sex, height, and age.

What does the scale measure besides weight?

It measures body fat percentage, hydration (water) percentage, muscle percentage, bone mass percentage, obesity rate, and daily calorie requirement based on your profile.

USER MANUAL BSM401 BLAUPUNKT

Digital fitness meter with digital display showing 688 degrees, no visible text or symbols on the device itself.

Enjoy it.

IMPORTANT NOTES

- Before operating the appliance, please read the instruction manual and follow the instructions provided. The manufacturer is not liable for any damages resulting from use of the appliance contrary to its intended use or inappropriate use. Keep the instruction manual for future reference.

- The appliance is intended for home use only. Do not use for other purposes contrary to its intended use. Do not use for medical or commercial purposes.

- This appliance may be used by children of at least 8 years of age and by persons with reduced physical, mental abilities and persons with no experience or knowledge of the equipment, if supervised or instructed on its safe use so that the risks associated with it were understandable. Children should not play with the appliance nor clean or carry out maintenance of the appliance unattended.

• The scale is a precision device. Do not drop, hit or shake it.

- If the scale is not used for a long time, remove the batteries.

- Batteries that are flat or out of use for a long time may leak.

- The appliance is not intended for people with a pacemaker or other medical implants. Tissue measurement is not recommended for pregnant women and people during dialysis.

- Before stepping on the scale, make sure the platform is dry.

• The scale can be slippery if its surface is wet.

- The scale must not be used near strong electromagnetic fields.

CE

Device is compliant with EU directives:

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data:

Capacity up to 150kg, graduation 0,1kg

Power supply: 3V CR2032 battery

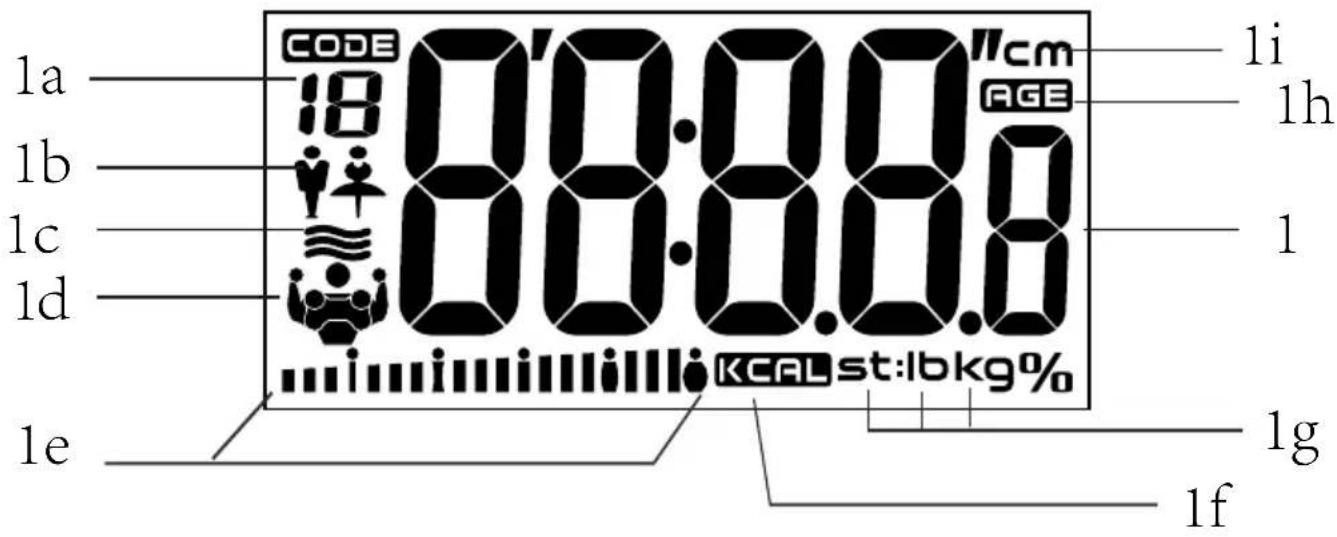

1. Display

1a. User number

1b. Sex

1c. Hydration

1d. Fat % / Muscle % / Bones %

1e. Obesity rate

1f. Calories units

1g Weight units

1h. Age

1i. Height units

1. Scale platform

2. Buttons (SET,

REPLACING THE BATTERIES

1. Open the battery cover on the bottom of the device. Remove the used battery.
2. Insert a new battery paying attention to the proper polarity.

WEIGHT MEASUREMENT

Make sure the batteries are operational and inserted into the device. Place the scale on a flat, hard surface.

Step on the scale. It will start automatically and calibrate, then it will indicate the result of the measurement. Wait for the result to stabilize, it will pulse for some time, then the scale will turn off automatically.

USER PROFILE SETTING

The scale has a memory for 12 user profiles. The range of height is from 100 to 250 cm, age from 10 to

100 years.

The parameter selection process starts by pressing the SET button. The parameter value is changed by

▲▼buttons. Confirm and move to the next one by pressing the SET button:

1. Profile number selection
2. Sex selection
3. Height
4. Age

When the last parameter has been confirmed, the scale will display 0.0 and then will automatically turn off.

If the scale is on and displays 0.0, press the SET button for 3 seconds to enter settings.

WEIGHT MEASUREMENT WITH ANALYSIS

Start the scale by pressing the SET button. Select the user profile with ▲, ▼ buttons. Tread on the scale, the scale will display 0.0. Step on the scale. Wait for the ▼ measurement. When the measurement is complete, the scale will display the results three times: weight, % body fat along with the obesity scale, % hydration,% muscle tissue,% bone tissue, the recommended daily amount of calories.. Next, the scale will turn off automatically.

DISPLAYING THE LAST MEASUREMENT FOR A PROFILE

Start the scale by pressing the SET button. Select the user profile with ▲, ▼ buttons. Step on the scale or wait 6 seconds, the scale will display 0.0. Press the button to retrieve last measurements. To skip pages faster, use the ▲ buttons. The scale turns off automatically after displaying the measurements three times.

CHANGING THE UNITS

To change units from metric (kg) to imperial (lb, st) or vice versa, start the scale and find the units change button. Press the button to change units.

ERROR MESSAGES

Err – The scale has been overloaded.

Lo - Low battery, replace the batteries.

C - The scale requires recalibration, restart the scale.

ErrL - % of fat too low.

ErrH - % of fat to high.

If an error is displayed and the scale does not turn off automatically after a longer time, remove the batteries for more than 5 seconds.

CLEANING AND MAINTENANCE

Wipe the weighing platform with a damp cloth. Then wipe dry. Do not submerge in water or other liquids.

Device is compliant with EU directives: - Electromagnetic compatibility (EMC) Device marked CE mark on rating label
