Product Type	Wine Cellar
Brand	Bomann
Model	KSG 239.1
Dimensions (H x W x D)	173.0 x 60.0 x 60.0 cm
Net Weight	Approx. 65.0 kg
Power Supply	220-240 V~ / 50 Hz
Power Consumption	230 W
Current	1.7 A
Climate Class	3 (ambient temperature up to 32°C)
Refrigerant	R600a (Isobutane)
Temperature Range	Approx. 0°C to +10°C (adjustable via power levels 1-5)
Number of Grid Shelves	5 (included)
Maximum Shelf Load	50 kg per shelf
Door Lock	Yes (child safety lock with 2 keys)
Interior Light	Yes (LED, switched via On/Off switch)
Circulation Fan	Yes
Defrost Type	Automatic
Noise Level	Less than 70 dB
Castors	Yes (facilitate transport)
Spacers Included	2
Usage	Commercial use for cooling and storing drinks
Not for Built-in Installation	Yes
Maintenance Cleaning	Warm water and mild detergent; do not use abrasive cleaners
Security Features	Keep ventilation openings clear; do not damage refrigerant circuit; no electrical devices inside

Frequently Asked Questions - KSG 239.1 BOMANN

How do I adjust the temperature?

Turn the temperature control clockwise from setting [0] (off) to power levels [1-5]. Level 1-2 (warmest, +8°C to +10°C), level 3 (optimal, +5°C to +7°C), level 4-5 (coldest, 0°C to +4°C). A medium setting is recommended.

How should I clean the wine cellar?

First unplug the unit. Clean interior and exterior with warm water and mild detergent. Do not use abrasive cleaners or steam cleaners. Dry thoroughly before restarting. Annually clean dust from condenser (metal grille) with a soft brush or vacuum.

What should I do if the door does not close properly?

Check that the appliance is level and the door seal is intact. Ensure nothing blocks the door. Adjust the feet to level the unit if needed.

Is the interior light replaceable?

The light is an LED and cannot be replaced by the user. If defective, contact an authorized technician. Do not remove the LED cover.

What does climate class 3 mean?

Climate class 3 means the appliance is designed to operate at an ambient temperature up to +32°C and humidity of 65%. Ensure installation in a suitable environment.

Why is the appliance making noise?

Normal sounds include mumbling (compressor), liquid sounds (refrigerant circulation), and click sounds (thermostat). Disturbing noises may come from vibrating shelves or cooling coils; ensure the unit is level and shelves are secure.

How do I defrost the wine cellar?

The appliance has automatic defrost. Water drains through a channel to a drip tray on the compressor where it evaporates. Keep the water discharge opening clean. Never use metal objects to remove ice.

Can I store both red and white wine?

Yes. The temperature range allows storing different wines. For optimal results, set a medium temperature around +5°C to +7°C. Adjust according to your wine preferences.

Is this wine cellar for home use?

The manual states it is intended for commercial use and not for private households. However, it can be used for cooling and storing drinks in a commercial setting.

How do I lock the door?

Use the supplied keys to lock the door. This is a child safety lock. Keep the keys in a safe place inaccessible to children.

USER MANUAL KSG 239.1 BOMANN

Front view of a white stainless steel refrigerator with closed doors and visible shelves (no text or symbols)

Original Instruction Manual

DEUTSCH

Inhalt

Special safety Information for this Unit......Page 14

Transport and Packaging......Page 15

Appliance Equipment......Page 15

Installation......Page 16

Startup / Operation......Page 16

Cleaning and Maintenance......Page 18

Troubleshooting......Page 19

Technical Data......Page 19

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

i NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for commercial use and for the envisaged purpose. This appliance is not fit for private use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This appliance is intended for commercial use only.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.

• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Transport the appliance, if possible, only in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

i NOTE:

The appliance has castors which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler, and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

CAUTION: Transport protection!

Remove the Styrofoam part between appliance back and condenser (metal grille).

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Appliance Equipment

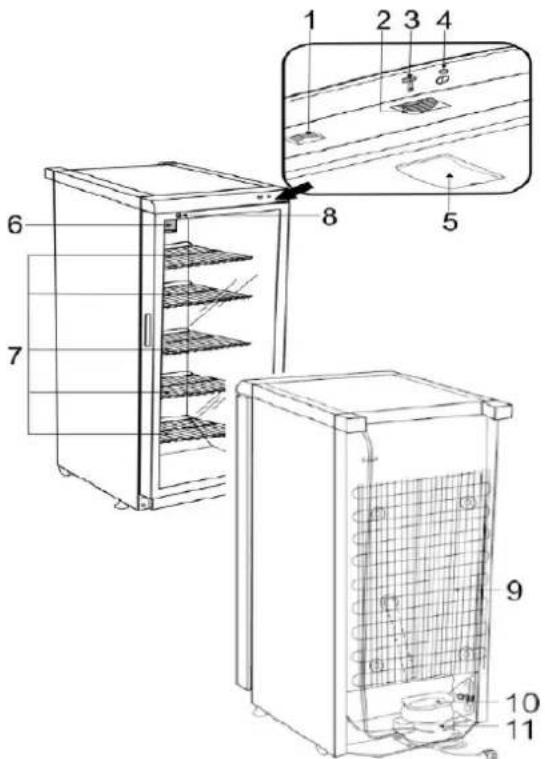

Appliance overview

1 On/Off switch 5 Interior light
interior light
6 Circulation fan
2 Temperature control 7 Grid shelves
3 Control indication 8 Door lock
thermostat position
9 Condenser
4 Control lamp 10 Water collecting tray
power supply
11 Compressor

Delivery scope

5x Grid shelf, 2x key for door lock, 2x spacers

Installation

Conditions for the installation location

• Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.
• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;
• Place the appliance so that the appliance door can open without being impeded.
• Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.
• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Fitting the spacers

Insert the supplied spacers (1) into the holder (2) on the back of the unit.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for about four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance

- Connect the appliance to the power supply. The control lamp lights up.

- Operate the temperature control. See also the section "Settings".

Settings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-5] regulate the different values of the internal temperature.

Setting 0: Off state

Power level 1 + 2 :

lowest level → warmest internal temperature

Temperature range approx. +8°C \~ +10°C

Power level 3 :

medium level → optimal operating temperature

Temperature range approx. +5°C \~ +7°C

Power level 4 + 5*:

highest level → coldest internal temperature

Temperature range approx. 0^ +4^

*Beware of high setting because the maximum level may already means "freezing point".

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

During initial operation, adjust the coldest possible temperature, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

i NOTE:

In generally a medium power level works best for an optimized food storage. A high power level also increases the energy consumption.

Interior light

The light is switched on or off via the on/off switch.

Storing

The appliance is exclusively suitable for cooling and storing drinks.

Several storage levels for inserting the grid shelves, allows individual storage. Depending on requirements, the shelves can be (partially and depending on model) adjusted in height or removed to optimize the storage space. Note the maximum loading of each shelf is 50 kg.

Capacity / loading:

Store large bottles horizontally, with the opening facing forward on the grid shelves.

i NOTE:

For the most efficient use of energy, place all shelves in their original position.

Door lock

The appliance has a child safety lock by the lockable door. If necessary, lock the door and keep the keys in a safe place, which is inaccessible to children.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance turn the temperature control to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply. The control lamp disappears.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odor.

Tips for Energy saving

• Disconnect the appliance from the power supply if it isn't in use.
• Do not install the appliance near stoves, heaters, or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• Switch on the lighting only if necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories, and the door seal regularly with warm water and mild detergent.
• Remove the appliance content and storage it at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.
• Depending on model: Wipe at least once a year the dust that has accumulated on the appliance back and condenser (metal grille). To do this, use a soft brush or a vacuum cleaner.

Defrosting

CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

The appliance has an automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make

sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

Changing the bulb

CAUTION:

Do NOT remove the cover of the LED light.

The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

Before you contact an authorized specialist

Problem	Cause / Action
Unit is not working properly or at all	Check the power supply / temperature setting / ambient temperature.Unblock the ventilation openings, install the appliance freely.
Loading is too warm	Check the temperature setting / ambient temperature. Open the door only as long as necessary.
Loud noise during operation	Check the appliance position.See the section “Operating noise”.
Water on the unit bottom	Check the temperature setting / water discharge channel or opening.
Light does not work	Check the power supply.See “Changing the bulb”.

OTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Climate class*: 3

This appliance is intended to be used at ambient temperature of no more than +32°C and a humidity of 65%.

*32°C+/-2°C for devices of climate class 0,1,2,3,4,6 or 8; 43°C+/-2°C for devices of climate class 5 or 7

Sound pressure level: ....less than 70 dB

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Connection power: 230 W

Power current: 1.7 A

Dimension H x W x D / Weight......

Appliance size: 173.0 x 60.0 x 60.0 cm

Net weight: ....approx. 65.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH
