Brand	Livarno Lux
Model	IAN 279115
Product Type	LED Ceiling Light / LED Pendant Lamp
Operating Voltage	230-240 V ~ 50 Hz
Rated Power	20 W
Light Source	LED module (non-replaceable)
Protection Class	II
IP Rating	IP20
Suitable For	Indoor dry enclosed spaces
Mounting Type	Ceiling mount
Dimming	Yes (wall switch or built-in dimmer on select models)
Material	Plastic and metal
Color Temperature	3000 K (warm white)
Luminous Flux	2000 lm
Warranty	36 months
Scope of Delivery	1 light, 2 screw anchors, 2 screws, assembly instructions
Safety Class	II
Non-Dimmable Models	14117008L, 14116802L
Dimmable Models	14117108L, 14116902L
Installation	Requires qualified electrician
Maintenance	Clean with dry lint-free cloth only
Disposal	Separate collection for WEEE
Certification	CE

Frequently Asked Questions - IAN 279115 Livarno Lux

How do I install the Livarno Lux IAN 279115 light?

Installation must be performed by a qualified electrician. First, turn off the circuit breaker. Use the mounting bracket to mark drill holes, drill 6mm holes, insert anchors, and secure the bracket. Connect the mains cable to the light's connection cable using the provided terminal block, ensuring correct polarity (L, N). Secure the light to the bracket and restore power.

Can I replace the LED module if it fails?

No, the LED module is permanent and non-replaceable. If the light fails, the entire unit must be replaced. This is noted in the manual to ensure safety.

Is this light suitable for use in a bathroom?

No, this light is only suitable for indoor use in dry, enclosed spaces. It is not rated for damp or wet locations like bathrooms. Avoid exposure to moisture.

How does the dimming function work?

For dimmable models (14117108L, 14116902L), use the built-in touch dimmer switch or the wall switch. The wall switch cycles through brightness levels. The touch dimmer allows variable brightness by pressing and holding until desired level. Switch off and on to reset to maximum.

What should I do if the light flickers?

Flickering may be due to incompatible dimmer or loose connections. Ensure the circuit breaker is off, check all wiring connections for tightness. If using a third-party dimmer, it may not be compatible; use only the included dimmer (if applicable) or wall switch.

What is the warranty period?

The Livarno Lux IAN 279115 comes with a 36-month warranty from the date of purchase covering defects in material and manufacture. Consumables like LEDs are excluded.

How should I clean the light?

Disconnect power and allow the light to cool. Clean only with a dry, lint-free cloth. Do not use solvents, benzene, or abrasive cleaners as they may damage the surface.

Can I install this light on a sloped ceiling?

The manual does not specify sloped ceiling installation. It is designed for standard flat ceiling mounting. For sloped ceilings, consult a qualified electrician.

Can I use a standard in-wall dimmer switch?

Only models with a built-in dimmer (14117108L, 14116902L) support dimming via the included touch switch. Using an external dimmer may cause malfunction. Non-dimmable models should be used only with a standard on/off wall switch.

What is the power consumption of this light?

The rated power is 20 W. Actual power consumption may vary slightly depending on usage. At nominal conditions, it consumes 20 watts per hour.

USER MANUAL IAN 279115 Livarno Lux

Assembly, operating and safety instructions

RO

PLAFONIERĂ CU LED-URI LUSTRĂ SUSPENDATĂ, CU LED-URI

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

RO

GB Assembly, operating and safety instructions Page 5

14117108L

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 6

Scope of delivery....Page 6

Parts Description......Page 7

Technical Data Page 7

Safety Page 7

Safety Notices....Page 7

Preparation......Page 8

Required tools and material Page 8

Mounting the light Page 8

Initial use Page 8

Maintenance and Cleaning......Page 9

Disposal Page 9

Information......Page 9

Warranty Page 9

Declaration of conformity....Page 9

Manufacturer / Service Page 9

List of pictograms used:
	Please read the operating instructions! Co Risk of electric shock!
	Watt (effective power)		This light is only suitable for indoor use in dry and enclosed spaces.
	Hertz (mains frequency) For your safety
	Volt (AC) Warning - Hot surfaces!
	Safety class II		Dispose of the packaging and device in an environmentally-friendly manner!
	Observe warnings and safety notices!

LED Ceiling Light / LED Pendant lamp

●Introduction

Congratulations on the purchase of your new appliance. You have selected a high quality product. Please be sure to care-

fully read all the instructions for use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or are unsure about operating the product, please contact your distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. The light can be mounted onto any normally inflammable surface.

This product is only intended for private household use and not for commercial purposes.

- Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 LED ceiling light (model 14117008L/14116802L) or LED pendant lamp (14117108L/14116902L)

2 Screw anchors

2 Screws

1 Instructions for assembly and use

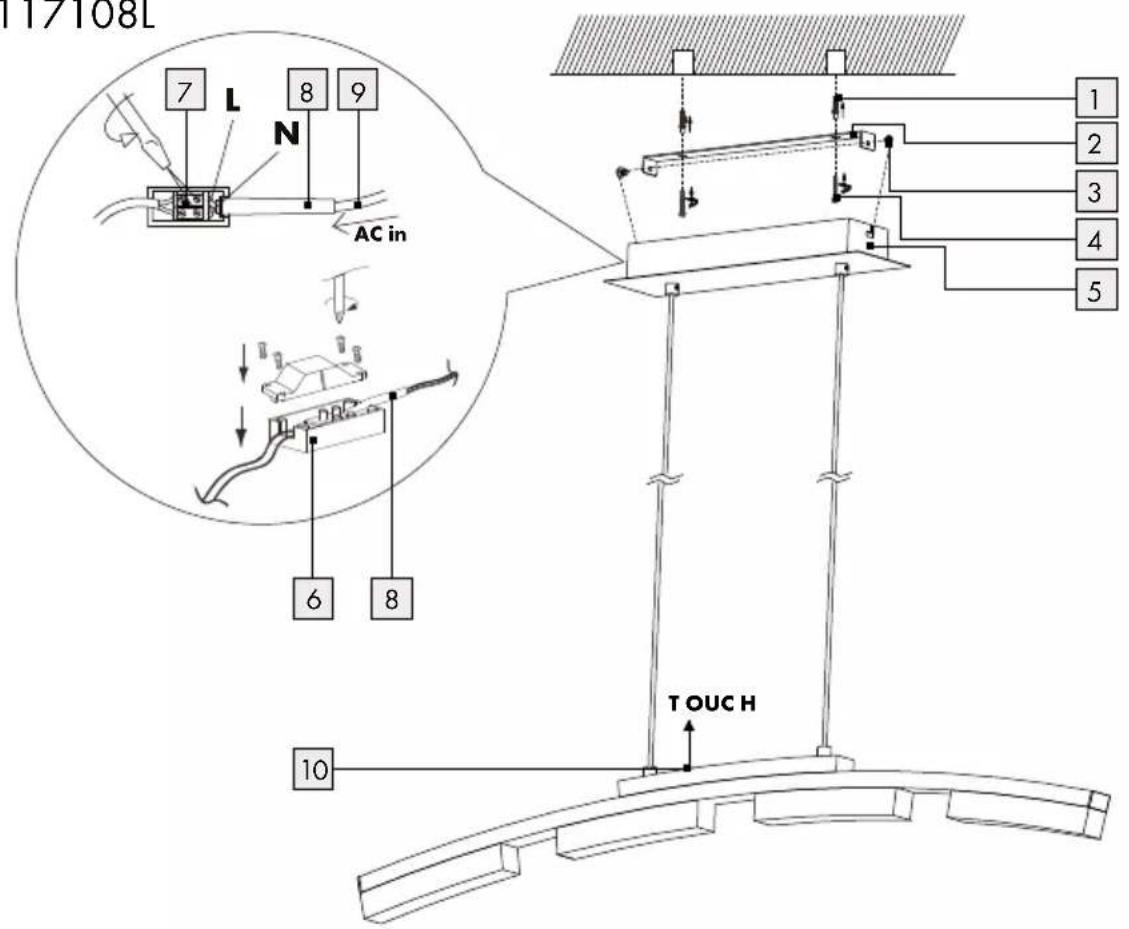

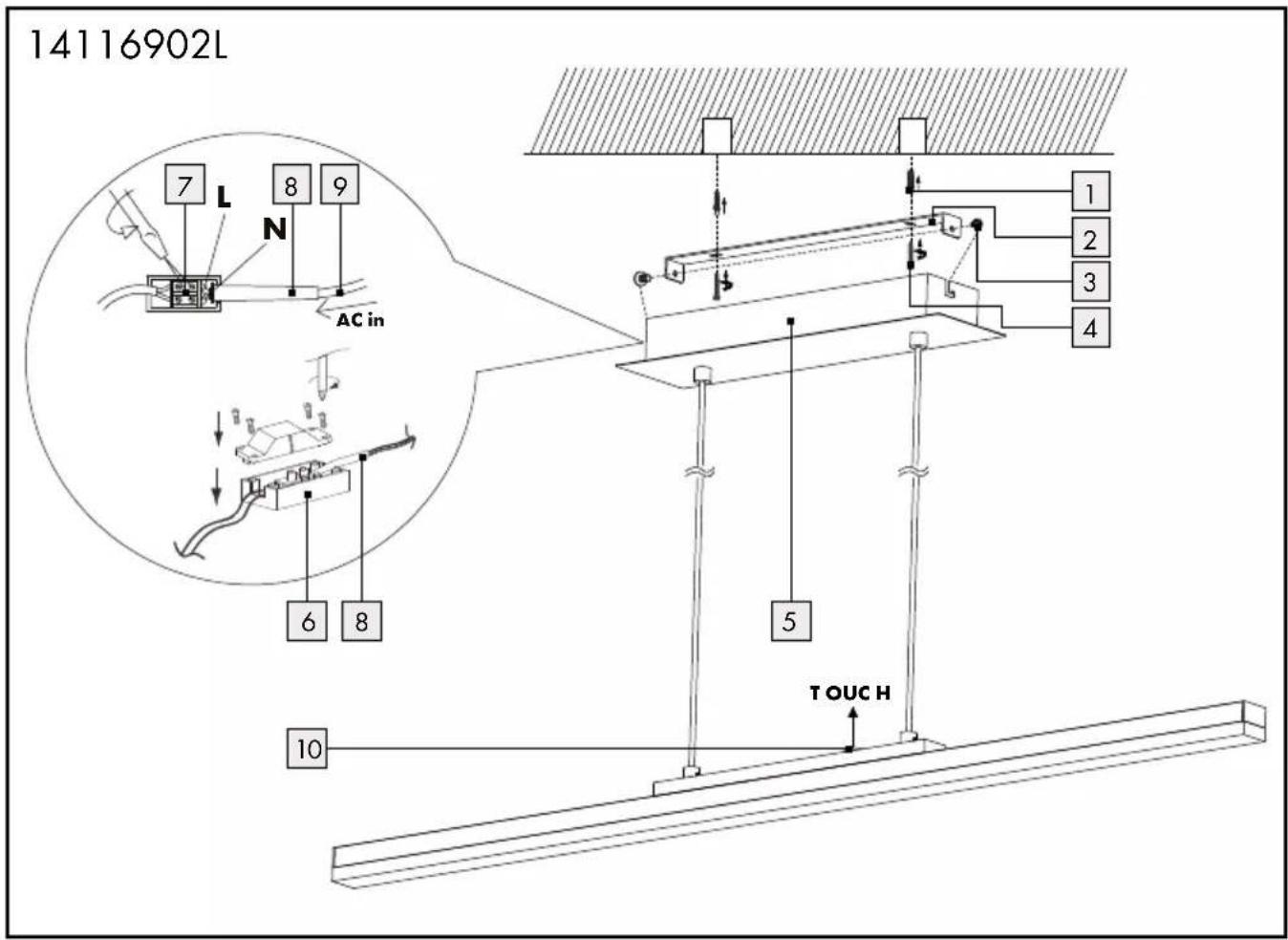

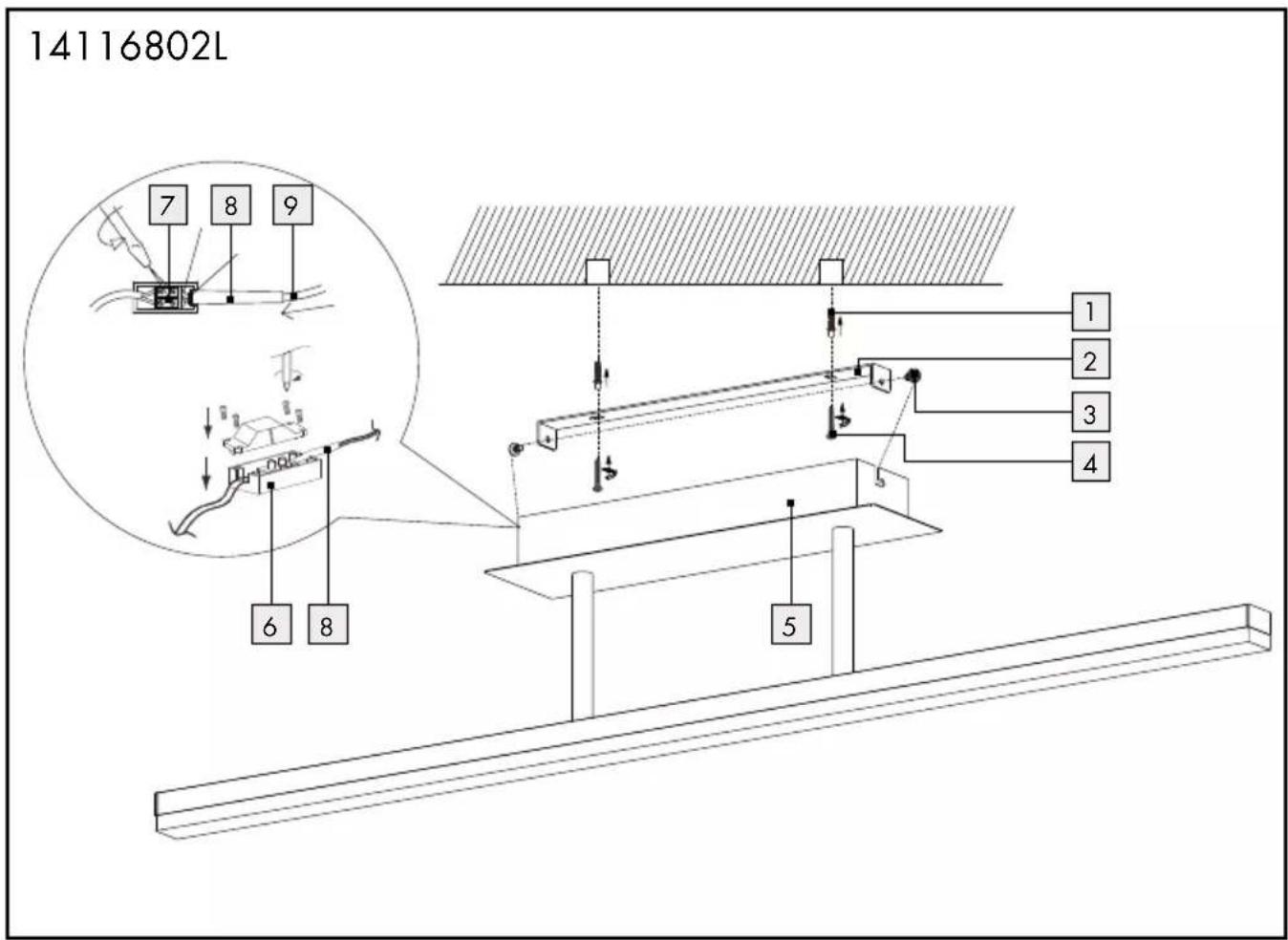

PartsDescription

1 Wall plug
2 Mounting bracket
3 Screws (connection housing)
4 Screws (mounting bracket)
5 Connection housing
6 Junction box
7 Lustre terminal
8 Protective tube
9 Mains connection cord (external)
10 Dimmer switch (model 14117108L / 14116902L)

●TechnicalData

Item no.: 14117008L or 14116802L or

14117108L or 14116902L

Operating voltage: 230-240V \~ 50Hz

Rated lamp power: LED 20 W

Illuminant: LED module (permanent)

Protection class: II/

- Safety

SafetyNotices

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions! Only use the included parts, using other parts will void the warranty.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

Do not leave the light or packaging material lying unattended. Plastic film/bags, plastic parts etc. are dangerous for children to play with.

Avoid the risk of fatal injury from electric shock

■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the light if any defects have been identified.
Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
Prior to installation, verify the available mains voltage corresponds with the operating voltage required for the light (230 - 240 V-50 Hz).
- Be sure not to damage any wires during installation.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.

Model 14116902L/14117108L:

The length of the pendant light is not adjustable.

Prevent fire and injury hazards

To prevent burns, be sure the light is switched off and cooled down before touching it.
Do not attach the light to a damp or conductive substrate.
Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).

This light is only suitable for indoor use in dry and enclosed spaces.

The illuminant in this light is not replaceable; if the illuminant reaches the end of its life, replace the entire light.

For your safety

• Install the light so it is protected from moisture, dirt and extreme heating.
  Always be attentive! Always pay attention to what you are doing and use common sense. Never use the light if you are having difficulty concentrating or do not feel well.
  Familiarise yourself with all instructions and diagrams in this manual as well as with the light itself before use.

● Preparation

• Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil / marking tool
• Voltage tester
• Screwdriver
• Electric drill
• Drill (approx ∅ 6 mm)
• Side cutting pliers
• Ladder

- Mounting the light

CAUTION! RISK OF ELECTRIC SHOCK!

Prior to installation, remove the fuse or switch off the circuit breaker in the fuse box (Position 0).

Remove the screws visible at the side of the connection housing 5 and remove the mounting bracket 2 at the back.
☐ Use the slotted holes on the mounting bracket 2 to mark the bores.

Now drill the fixing holes (approx. 6 mm, depth approx. 40 mm). Be sure not to damage the supply line.
☐ Insert the plugs into the bores.
Fasten the mounting bracket with the provided screws 4.
Open the junction box.
☐ Feed the mains cable (extern Ⓟ) through the protective tube 8.
Now use the lustre terminal to connect the connection cable for the light to the mains connection cable (external) 9.

Note: Be sure to connect the individual leads on the mains connection cable (external) correctly: live wire, black or brown = symbol L, neutral wire, blue = symbol N, protection class II/☐.

Be sure the protective tube is seated correctly at the junction box 6.
Close the junction box.
Now use the screws to fasten the light to the mounting bracket 2.

Your light is now ready to use.

☐ Reinsert the fuse or switch the circuit breaker back on.

- Initialuse

Model 14117008L/14116802L:

☐ Use the wall switch to switch the light on or off.
☐ Use the wall switch to dim the light to the respective levels.

Model 14117108L/14116902L:

☐ Use the wall switch to switch on the light.

Note: The light will automatically be set to the brightest setting when switching the light on.

☐ The dimmer switch 10 is variable. Press and hold the dimmer switch 10 until the light is at the desired brightness.
☐ The dimmer switch 10 will only reduce the brightness. Switch the light off and back on to reset the dimmer.
☐ Press the dimmer switch 10 once to switch the light off.

Attention! The light is still in standby mode. Press the wall switch to switch the light all the way off.

☐ With the light in stand-by mode it can be switched on by pressing the dimmer switch 10 once.

● Maintenance and Cleaning

CAUTION! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Allow the light to cool down completely.

Only use a dry, lint-free cloth for cleaning. Do not use solvents, benzene or similar substances. They could damage the light.
☐ Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box.

●Disposal

The package and packaging materials consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with a line through it means that in the European Union the product has to be disposed of

in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this manner must not be disposed of along with normal household waste, but must be taken instead to a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

- Information

Warranty

A 36 month warranty is extended for this appliance at the time of purchase. The appliance has been manufactured with care under strict quality control. During the warranty period any defects in material or manufacture will be replaced free of charge. In the event of a defect during the warranty period, please send the appliance to the service address listed, indicating the following item number: 14117008L/14116802L/14117108L/14116902L.

Expendable parts (such as bulbs) and damage caused by improper handling, failure to observe the instructions for use or modification by unauthorised persons are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer / Service

Please have your receipt and item number (e.g. EAN 12345) ready as your proof of purchase when enquiring about your product.
