Vegas - Binoculars Levenhuk - Free user manual and instructions

Product Type	Binoculars
Brand	Levenhuk
Model Series	Vegas
Waterproof	Yes, resists water, moisture and snow
Eyecups	Twist-up, adjustable for use with or without eyeglasses
Focusing System	Central focusing wheel with diopter adjustment on right eyepiece
Interpupillary Distance Adjustment	Adjustable by moving barrels closer or apart
Diopter Setting	Adjustable scale on right eyepiece, set to 0 for initial adjustment
Cleaning Method	Blow dust, use soft cotton cloth, photographic lens cleaning fluid; never disassemble
Safety Warning	Never look directly at the Sun through binoculars to prevent permanent eye damage
Warranty Duration	3 years from date of retail purchase for binoculars
Warranty Coverage	Defects in materials and workmanship; repair or replacement at Levenhuk's option
Return Authorization	RA number required; contact local Levenhuk branch
Intended Use	Outdoor observation, weather-resistant
Accessories	Cleaning tools available (Levenhuk series)

Frequently Asked Questions - Vegas Levenhuk

How do I adjust the interpupillary distance on my Levenhuk Vegas binoculars?

Hold the binoculars in normal viewing position, grasp each barrel firmly, and move them closer together or further apart until you see a single circular field. Reset to this position before each use.

How do I set the diopter adjustment?

Set the diopter scale on the right eyepiece to '0'. Focus with the central wheel using your left eye (right barrel covered), then adjust the right eyepiece until sharp with left eye covered. Note the diopter setting for future use.

Can I use these binoculars in the rain?

Yes, the Levenhuk Vegas binoculars are waterproof and can be used in any weather conditions as they resist water, moisture, and snow.

How do I clean the lenses?

Blow away dust or use a soft lens brush. For dirt or fingerprints, gently rub with a soft cotton cloth in a circular motion. Use photographic lens cleaning fluid on the cloth, never directly on the lens. Do not disassemble.

What is the warranty period?

Levenhuk binoculars have a 3-year warranty from the date of retail purchase against defects in materials and workmanship. Accessories are warranted for 6 months.

What should I do if I need warranty service?

Return the product to Levenhuk with proof of purchase and a Return Authorization (RA) number obtained from your local Levenhuk branch. You are responsible for shipping costs.

Can I use the binoculars with eyeglasses?

Yes, the twist-up eyecups can be adjusted to any length. For eyeglasses, keep the eyecups retracted (down) to bring your eyes closer to the lens.

How do I focus the binoculars?

After setting the diopter for your vision, use the central focusing wheel to achieve sharp focus for both eyes. The diopter adjustment ensures consistent focus across different users.

Is it safe to look at the Sun through these binoculars?

No, never look directly at the Sun through any binoculars, as it can cause permanent eye damage and even blindness.

What cleaning tools does Levenhuk recommend?

Levenhuk offers a series of cleaning tools including a duster for optics, designed to keep optics clean and durable. Use soft cloths and lens cleaning fluid as described.

USER MANUAL Vegas Levenhuk

Levenhuk Vegas Binoculars

User Manual

Návod k použití

Bedienungsanleitung

Instrukcja obstugi

Blue binoculars with 'levenhuk' branding visible on the right (no other text or symbols)

Radost zaostřit

Never look directly at the Sun through these binoculars, as this may cause permanent eye damage and even blindness.

Waterproof binoculars

Waterproof binoculars may be used in any weather conditions as they resist water, moisture and snow.

How to adjust interpupillary distance

The distance between the eyes is called “interpupillary distance”. It varies from person to person. To achieve perfect alignment of lens to your eyes, follow these simple steps:

• Hold your binoculars in the normal viewing position.
• Grasp each barrel firmly. Move the barrels closer together or further apart until you see a single circular field. Always reset your binoculars to this position before using. Most binoculars have a graduated area at the top of the centre hinge for reference in subsequent use in setting interpupillary distance.

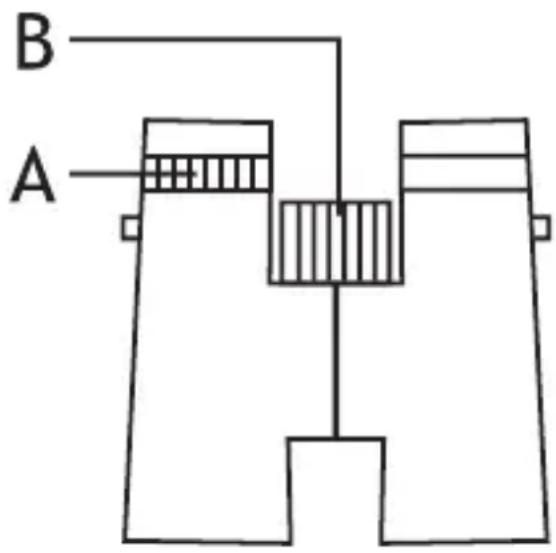

Diopter setting and central focusing

• Adjust the diopter scale on the right eyepiece to “0”. Look through the binoculars at an object about 50 meters away.
• Shut the right barrel of the binoculars from the front end and turn the central focusing wheel (B) until you get the sharp image in the left eyepiece.
• Keep both eyes open during this procedure.

EN

- Now shut the left barrel and turn the right eyepiece until the image becomes sharp again.

- Now the binoculars are correctly adjusted according to your vision. You can vary the focus using the centre focusing wheel and both eyes will always remain in focus. Make note of the diopter adjustment on the right side, for future use.

Twist-up eyecups

Unlike the regular fold-down eyecups, twist-up eyecups may be used by anyone, as they can be easily adjusted for observations with or without eyeglasses. The eyecups can be fixed at any length. By rotating the oculars, you can extend them if you are not wearing eyeglasses, which will bring your eyes closer to the lens, thus providing an improved field of view.

Cleaning

1. Blow away any dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or fingerprints, clean the lens with a soft cotton cloth gently rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface or coating and eventually cause permanent damage to the binoculars.
3. To thoroughly clean your binoculars you may use a photographic type lens cleaning fluid. Always apply the fluid to the cleaning cloth, never directly onto the lens.

Important! Never try to disassemble the binoculars and clean it from inside.

International Warranty

All Levenhuk telescopes, cameras for telescopes, microscopes and binoculars are warranted to be free of defects in materials and workmanship for three years from date of retail purchase. All Levenhuk accessories are warranted to be free of defects in materials and workmanship for six months from date of retail purchase. All Levenhuk accessories are warranted to be free of defects in materials and workmanship for six months from date of retail purchase.

Levenhuk will repair or replace such product or part thereof which, upon inspection by Levenhuk, is found to be defective in materials or workmanship. As a condition to the obligation of Levenhuk to repair or replace such product, the product must be returned to Levenhuk together with proof of purchase satisfactory to Levenhuk.

A Return Authorization (RA) Number must be obtained in advance of return. Contact the local Levenhuk branch to receive the RA number to be displayed on the outside of your shipping container. All returns must be accompanied by a written statement setting forth the name, address and telephone number of the owner, including a description of any claimed defects. Parts or products for which replacement is made will become the property of Levenhuk.

The customer will be responsible for all costs of transportation and insurance to and from Levenhuk or its authorized dealers and will be required to prepay such costs.

Levenhuk will use reasonable efforts to repair or replace any product covered by this warranty within thirty days of receipt. If a repair or replacement will require more than thirty days, Levenhuk will notify the customer accordingly. Levenhuk reserves the right to replace any product that has been discontinued from its product line with a new product of comparable value and function.

This warranty does not apply to any defects or damages resulting from alteration, modification, neglect, misuse, usage of improper power sources, damage in transportation, abuse, or any cause other than normal use, or to malfunction or deterioration due to normal wear.

Levenhuk disclaims all warranties, express or implied, whether of merchantability or fitness for a particular use, except as expressly set forth herein. The sole obligation of Levenhuk under this limited warranty will be to repair or replace the covered product, in accordance with the terms set forth herein. Levenhuk disclaims liability for any loss of profits, loss of information, or for any general, special, direct, indirect or consequential damages which may result from breach of any warranty, or arising out of the use or inability to use any Levenhuk product.

Any warranties which are implied and which cannot be disclaimed will be limited in duration to a term of three years for telescopes, cameras for telescopes, microscopes and binoculars or six months for accessories from the date of retail purchase.

Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state or province to province.

Levenhuk reserves the right to modify or discontinue any product without prior notice.

EN

NOTE: This warranty is valid to USA and Canadian customers who have purchased this product from an authorized Levenhuk dealer in the USA or Canada. Warranty outside the USA or Canada is valid only to customers who purchased from an authorized Levenhuk dealer in the specific country or international distributor. Please contact them for any warranty service.

If warranty problems arise, or if you need assistance in using your product, contact the local Levenhuk branch:

Levenhuk Worldwide:

USA: www.levenhuk.com

Canada: www.levenhuk.ca

Czech Republic: www.levenhuk.cz

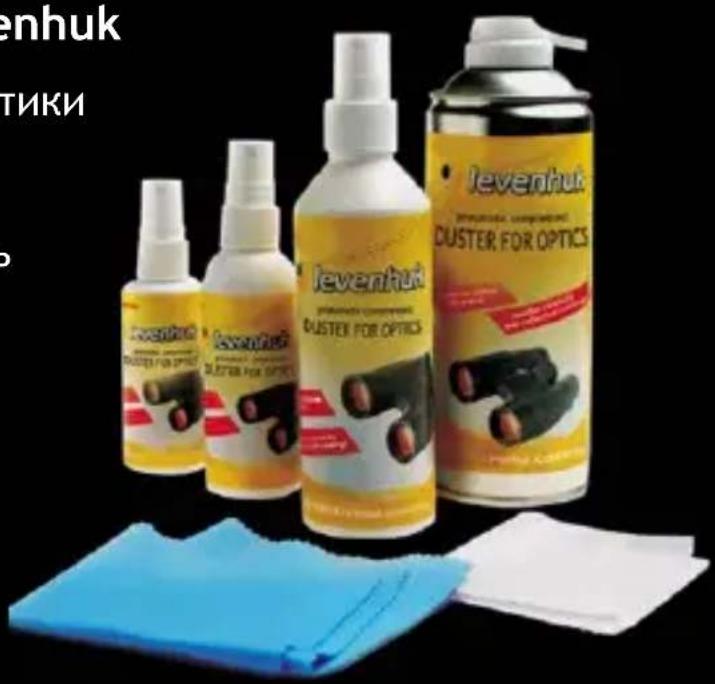

Levenhuk optics cleaning tools

The Levenhuk series of cleaning tools is all you need to keep your optics clean and durable and to maintain its excellent quality.

Developed and manufactured for Levenhuk, Inc., IL 60139 USA.

Levenhuk® is a registered trademark of Levenhuk, Inc.

Copyright © 2006-2013 Levenhuk, Inc.

All rights reserved.

20130628
