USER MANUAL INL3149WU INFOCUS

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emit heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
   Physical damage/abuse would be (but not limited to):

☐ Unit has been dropped.
☐ Power supply cord or plug has been damaged.
☐ Liquid has been spilled on to the projector.
☐ Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.

Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call InFocus before you send the unit for repair.

1. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

2. See projector enclosure for safety related markings.

3. The unit should only be repaired by appropriate service personnel.

Intended Use Statement

• Operation Temperature:
- For 0 - 2500 ft, 5°C \~ 40°C
- For 2500 - 5000 ft, 5°C \~ 35°C
- For 5000 - 10000 ft, 5°C \~ 30°C

• Maximum Humidity:

- Operating: 10%\~80% RH (Max.), Non-condensing

- Storage: 5%\~95% RH, Non-condensing

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminants that can affect the operation or performance of the projector.

Use of this product in adverse conditions will void the product warranty.

Safety Information

Please read, understand, and follow all safety information contained in these instructions prior to the use of this projector. Retain these instructions for future reference.

Explanation of Signal Word Consequences

⚠ Warning: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or property damage.

Caution: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury and/or property damage.

⚠ Warning: Hazardous voltage

Warning:

To reduce the risk associated with hazardous voltage:

• Do not modify this product in any way.
• Do not attempt to service this projector.
• There are no user-serviceable parts. Service to be performed only by a InFocus authorized service provider using InFocus approved system components.

To reduce the risk associated with fire and explosion:

- Do not immerse the projector in any liquid or allow to get wet.

To reduce the risks associated with choking:

- Keep all small parts like the remote control battery away from young children and pets.

To reduce the risk associated with hazardous voltage, impact, tripping, and intense visible light:

- Do not use this projector around unsupervised children.

Caution:

To reduce the risks associated with hearing loss:

• Be sure to read earphone manufacturer's instructions with respect to volume level.
• User is responsible to set a safe volume level.
  • Use with two AAA batteries.
• Orient the battery's plus (+) and minus (-) terminals of the batteries according to the markings found on the remote control.
• Do not leave the batteries in the remote for an extended period of time.
• Do not heat or expose the batteries to fire.
• Do not disassemble, short, or recharge the batteries.
• Do not carry batteries loose in your pocket or purse.
• Avoid eye and skin contact in the event a battery leaks.

To reduce the risk associated with explosion, and/or chemicals from a leaking batteries:

To reduce the risk associated with environmental contamination:

- Dispose of all system components in accordance with applicable government regulations.

To reduce the risks associated with Laser light:

- Do not stare directly into the projector lens.

To reduce the risks associated with tripping and falling:

- Position the power cord and data cables so that they are not a tripping hazard.

IMPORTANT! Do not expose the projector to direct sunlight in a closed space such as a vehicle.

SAVE THESE INSTRUCTIONS

Safety Labels

Model No. 381100R1 Rating: DC 5V-22 Silver WAA X2 FC CE ReHS Power/Indicators & Computer/DC 270 MADE IN CHINA

Trademarks

InFocus and the InFocus logo are trademarks of InFocus Corporation.

Adobe and the Adobe logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Microsoft, PowerPoint, and Excel are registered trademarks of Microsoft Corporation.

All other trademarks or registered trademarks are property of their respective companies.

Regulatory Notices

FCC STATEMENT - CLASS B

This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class “B” computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Industry Canada regulatory information

Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The user is cautioned that this device should be used only as specified within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC equipment provided that the following conditions are met. If the cables include a EMI ferrite core, attach the ferrite core end of the cable to the projector. Use the cables which are included with the projector or specified.

Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Complies with IDA Standards DA103121

CE Statement

Electromagnetic Compatibility Statement: Meets 2014/30/EU Directive

Low Voltage Directive: Meets 2014/35/EU Directive

WEEE Statement

The following information is only for EU-member States:

The mark shown below is in compliance with Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Do not stare into beam, RG2

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

TABLE OF CONTENTS

INTRODUCTION 7

Package Overview....7

Standard accessories....7

Product Overview 8

Connections....9

Keypad 10

Remote control 11

SETUP AND INSTALLATION.... 12

Installing the projector 12

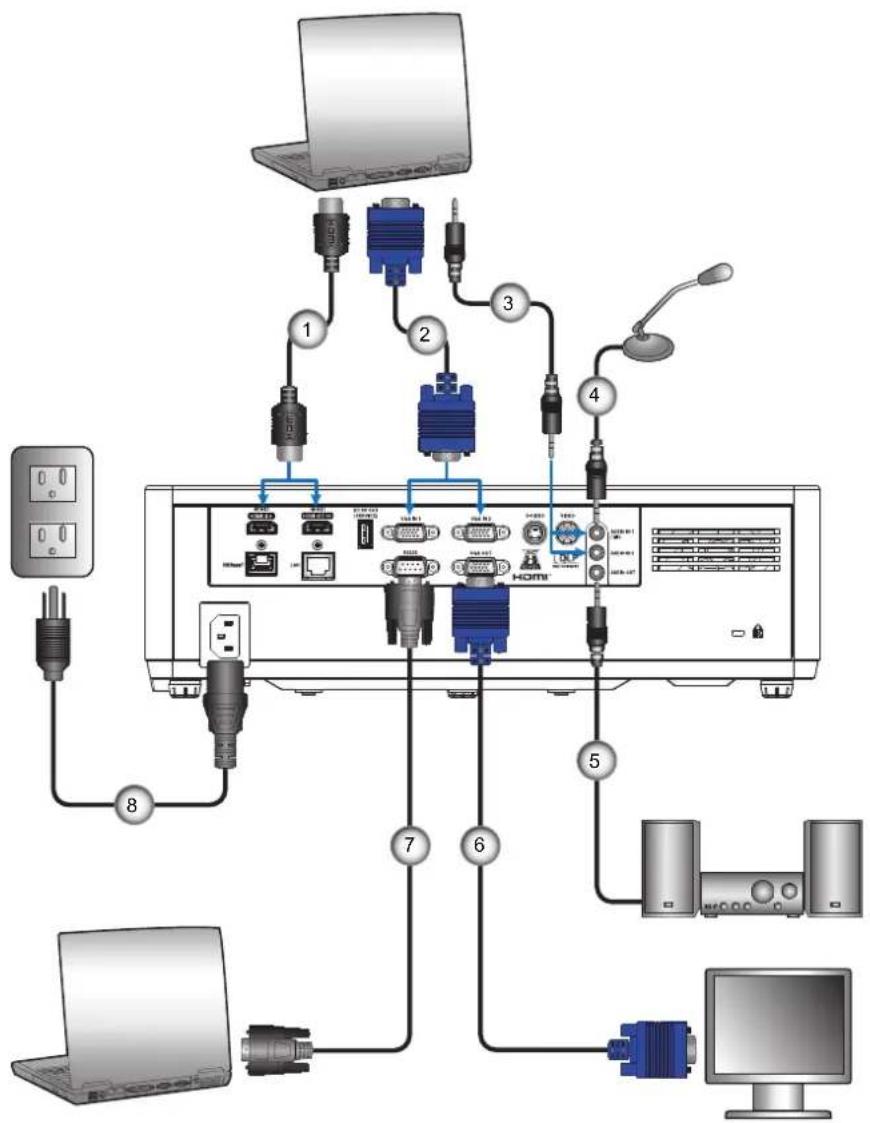

Connecting to a computer 14

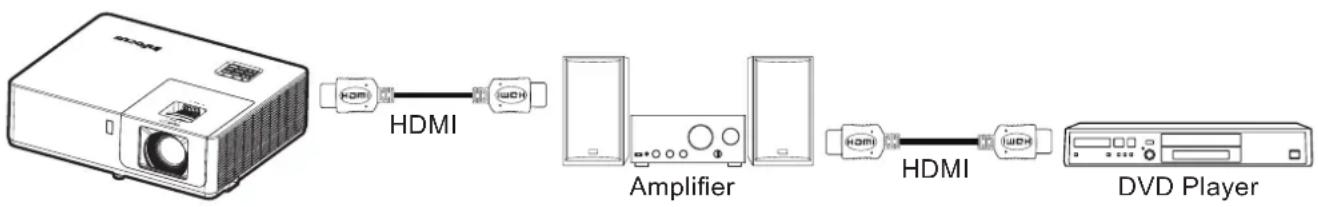

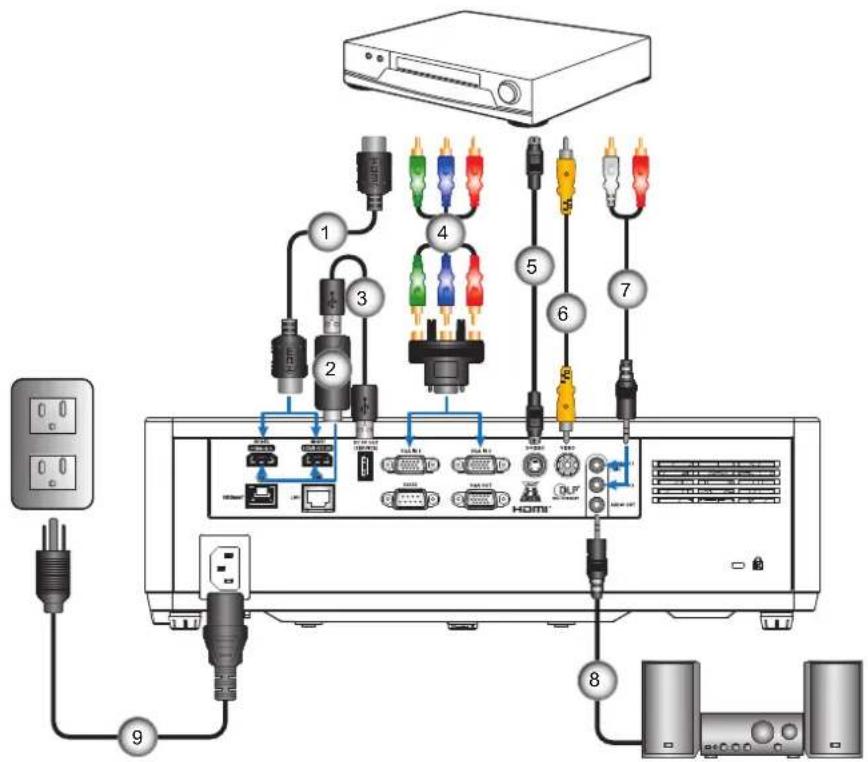

Connecting to a DVD player.... 15

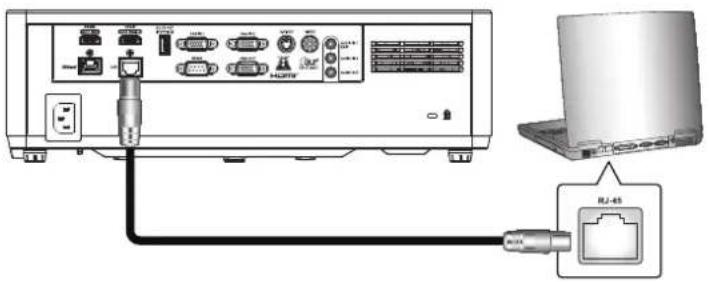

Connecting to HDBaseT and Network.... 16

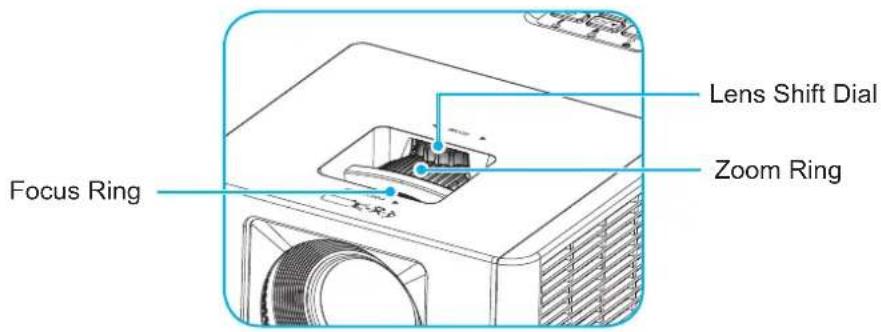

Adjusting the projector image 17

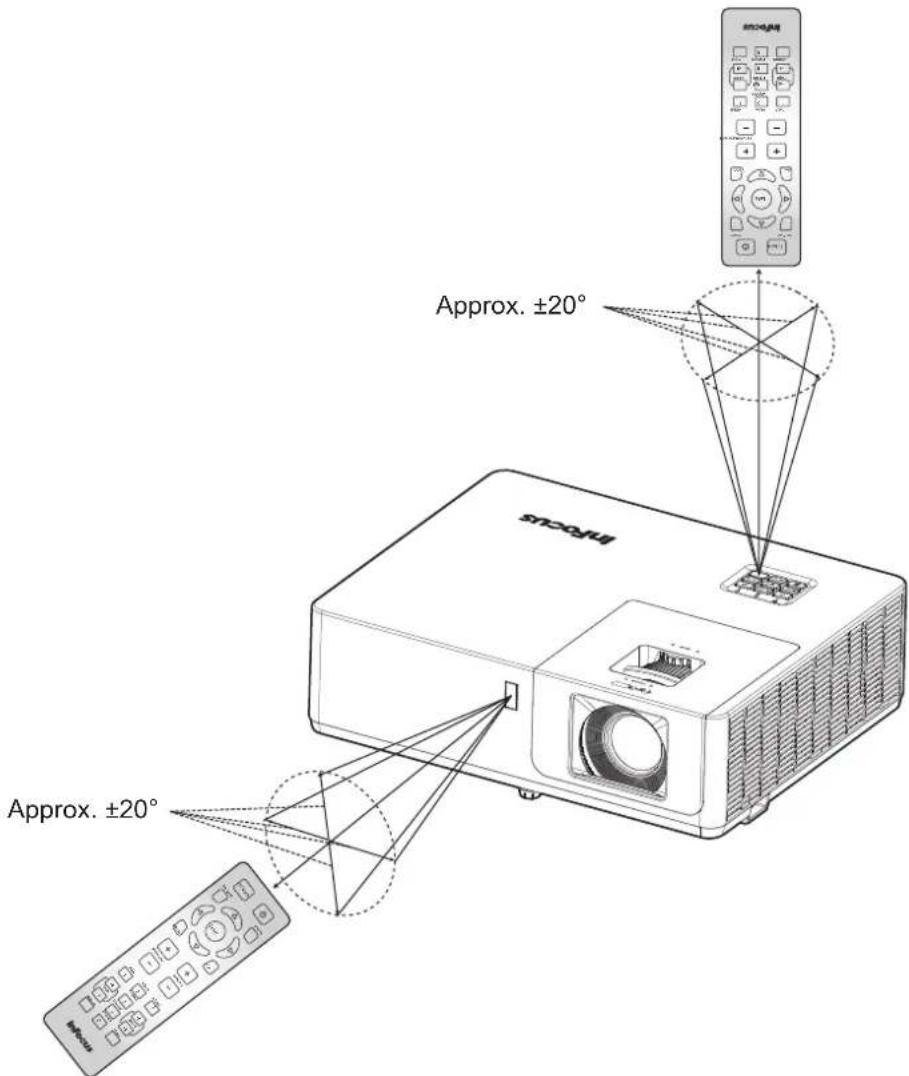

Remote setup 18

USING THE PROJECTOR 20

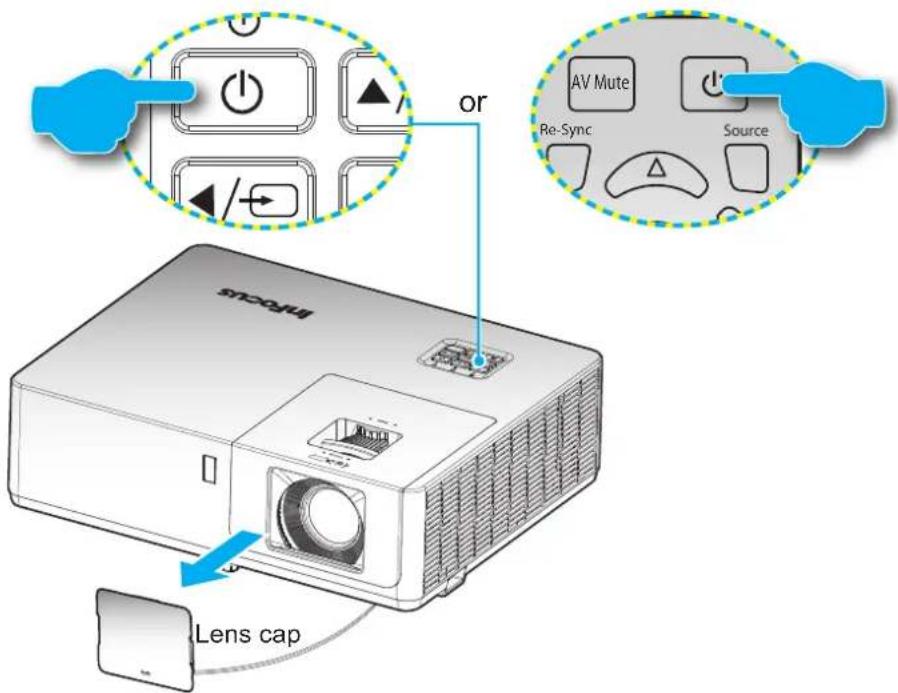

Powering on / off the projector.... 20

Selecting an input source 21

Menu navigation and features 22

OSD Menu tree....23

Display image settings menu.... 30

Display 3D menu 32

Display aspect ratio menu 33

Display edge mask menu 36

Display zoom menu 36

Display image shift menu 36

Display keystone menu 36

Audio mute menu 37

Audio volume menu....37

Audio input menu.... 37

Audio audio/mic input function menu.... 37

Setup projection menu.... 38

Setup screen type menu.... 38

Setup power settings menu 38

Setup security menu 38

Setup HDMI CEC menu 39

Setup HDBaseT control settings menu 39

Setup options menu....40

Setup reset OSD menu 40

Network LAN menu 41

Network control menu....42

Setup network control settings menu 43

Info menu 47

ADDITIONAL INFORMATION...... 48

Compatible resolutions....48

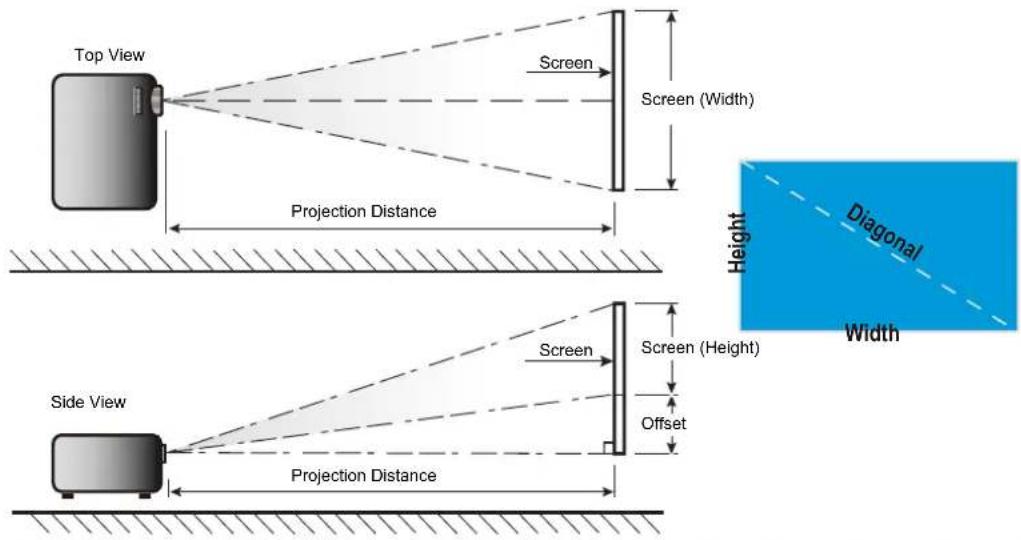

Image size and projection distance 51

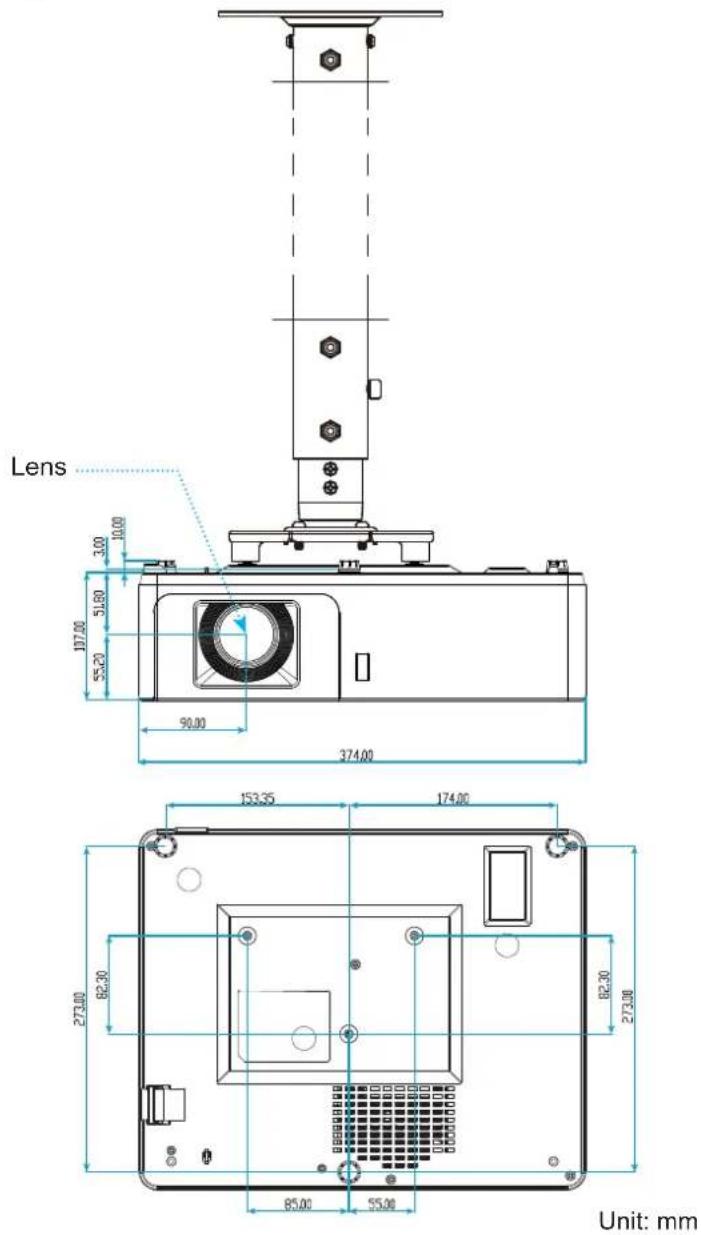

Projector dimensions and ceiling mount installation.... 53

RS232 Commands and Protocol Function List.... 54

Troubleshooting....58

Warning indicators....60

Specifications 61

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

Illustration of a projector with a camera lens and label 'Projector Remote' (no other text or symbols)

InPower Control Power cord Docum

Coiled cable with two connectors, labeled 'cation' at bottom (no other text or symbols)

Warranty Card Basic User Manual Quick Start Guide

Coiled HDMI cable with two connectors, labeled 'HDMI cable' below (no other text or symbols)

CD user manual

Lens cap

INTRODUCTION

Product Overview

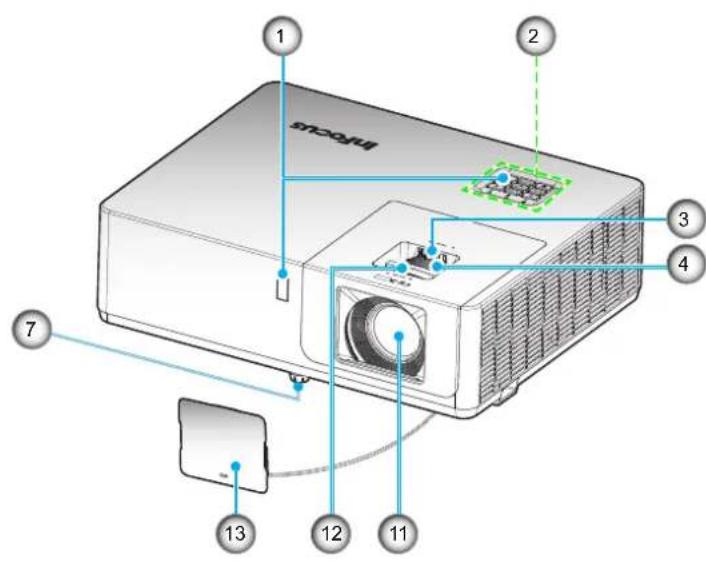

STOCKH 1 2 3 4 7 13 12 11

Diagram of a server rack with numbered ports and labeled connectors

Note:

• Do not block projector intake and exhaust vents.
- When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

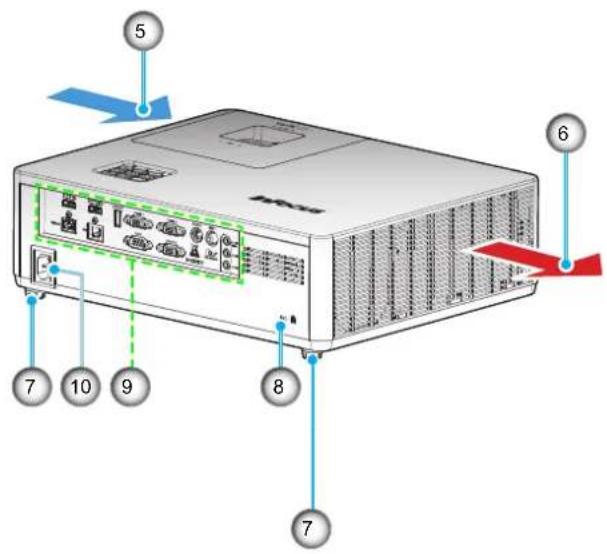

No Item No Item
1. IR Receivers 8. KensingtonTM Lock Port
2. Keypad		9.	Input / Output
3. Lens Shift Dial 10. Power Socket
4. Zoom Ring 11. Lens
5. Ventilation (inlet)		12. Focus Ring
6. Ventilation (outlet)		13	Lens Cap

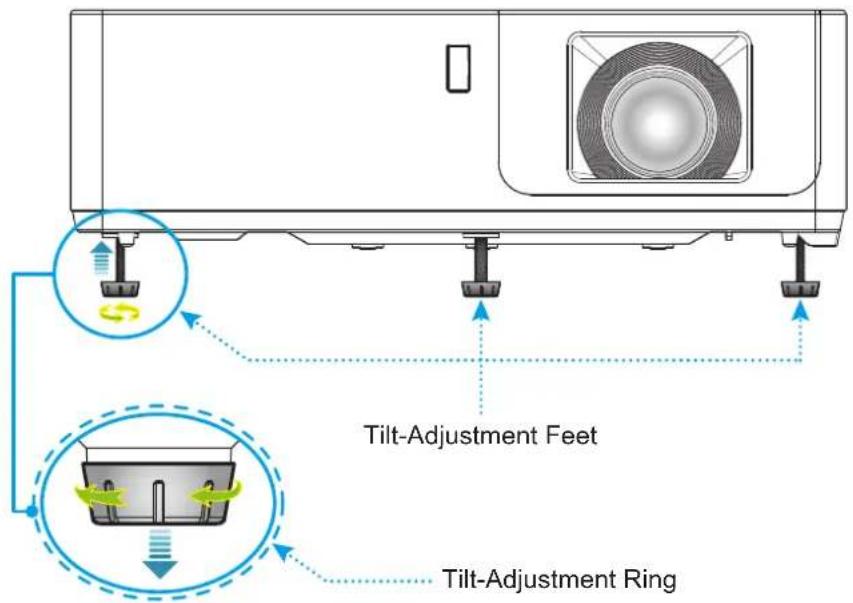

7. Tilt-Adjustment Feet

INTRODUCTION

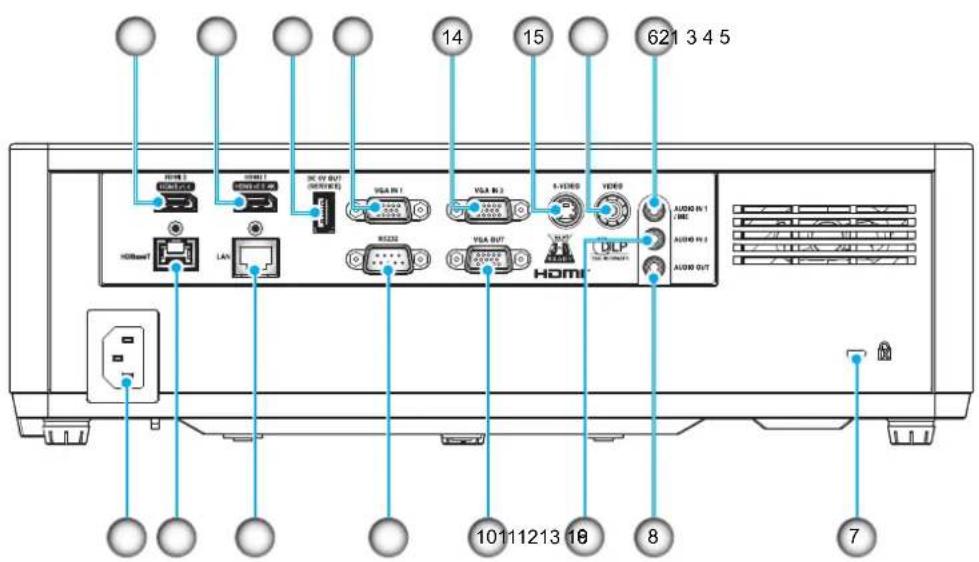

Connections

14 15 621 3 4 5 HDMI VISA IN 1 VISA IN 2 S-VEREX VEREX AUDIO IV 1 LINE AUDIO IV 2 AUDIO OUT 10111213 10 8 7

No Item No Item

1. HDMI 2 (v1.4) Connector 9. Audio In 2 Connector
2. HDMI 1 (v2.0)(4K) Connector	10. VGA Out Connector
3. USB Power Out (5V 1-5A) Connector	11. RS232 Connector
4. VGA In 1 Connector	12. RJ-45 Connector
5. Composite Connector	13. Power Socket
6. Audio In 1 / Microphone Connector	14. VGA In 2 Connector
7. KensingtonTM Lock Port	15. S-Video Connector
8. Audio Out Connector 16. HDBaseT Connector

INTRODUCTION

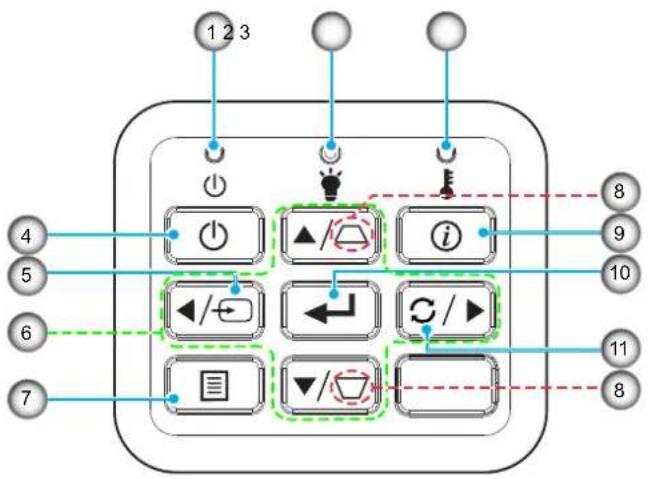

Keypad

No Item No Item

1.	Power LED
2.	Lamp LED
3.	Temp LED 9. Information
4.	Power 10. Enter
5.	Source 11. Re-Sync
6.	Four directional select keys

1. Menu
2. Keystone Correction

INTRODUCTION

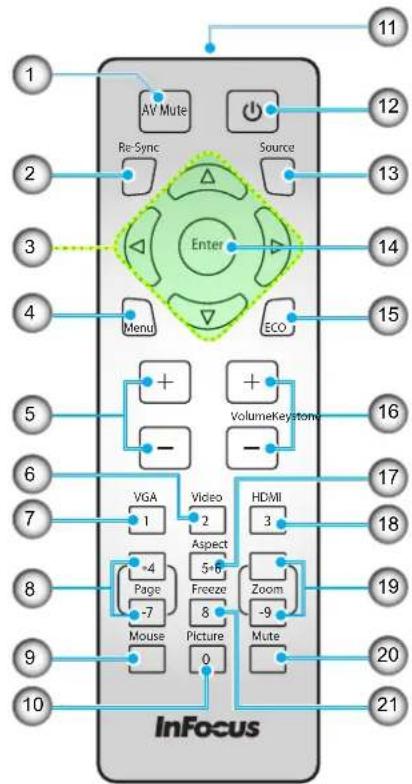

Remote control

1 AV Mute Re-Sync Source Enter Menu ECO 5 + - VolumeKeystone 6 VGA 1 Video 2 HDMI 3 7 +4 Page -7 Aspect 5-6 Freeze 8 Zoom -9 Mouse Picture 0 Mute 9 InFocus 11 12 13 14 15 16 17 18 19 20 21

No Item No Item
1. AV Mute 12. Power
2.	Re-Sync	13.	Source
3. Four Directional Select Keys 14. Enter
4. Menu 15. ECO
5. Keystone +/- 16. Volume +/-
6.	VideoNote:Press once to select Video, twice to select S-Video.	17. Aspect
7.	VGANote:Press once to select VGA IN 1, twice to select VGA IN 2.	18. HDMINote:Press once to select HDMI 1, twice to select HDMI 2.
8. Page +/- (not supported)		19. Zoom +/-
9. Mouse (not supported)		20. Mute
10. Picture		21. Freeze
11.	IR LED

Note: Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

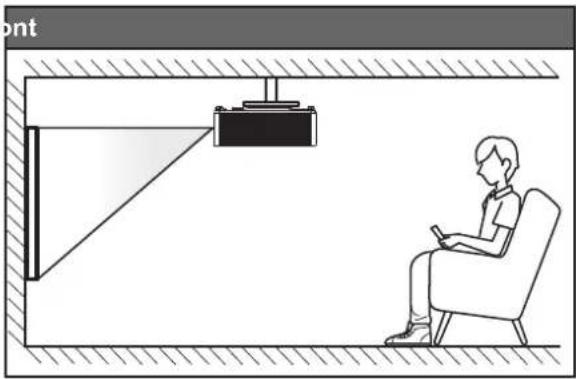

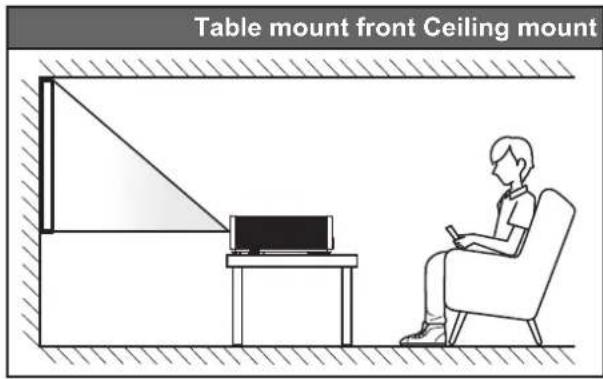

Table mount front Ceiling mount

Illustration of a person sitting in a chair facing a projector screen, no text or symbols present

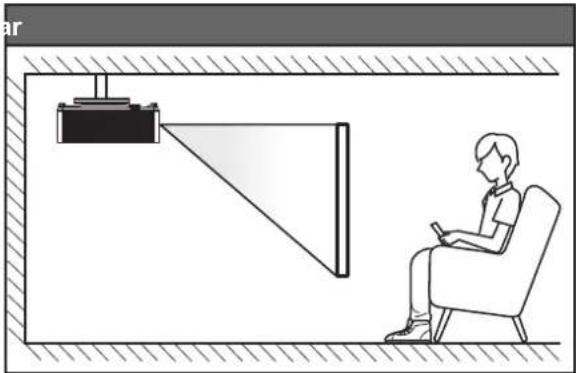

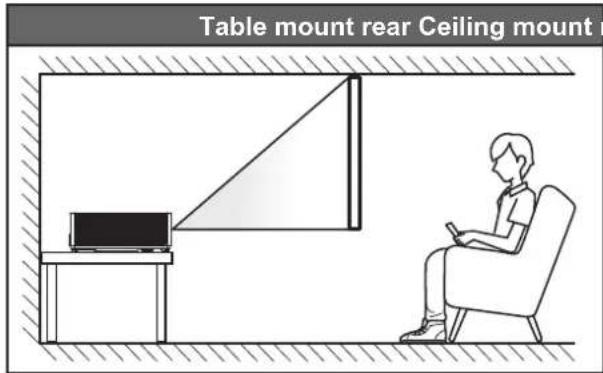

Table mount rear Ceiling mount

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

Projector should be placed flat on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages 51-52.
• How to determine screen size for a given distance, please refer to distance table on pages 51-52.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other than table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector light source or the projector itself. For non-standard installation advice please contact InFocus.

SETUP AND INSTALLATION

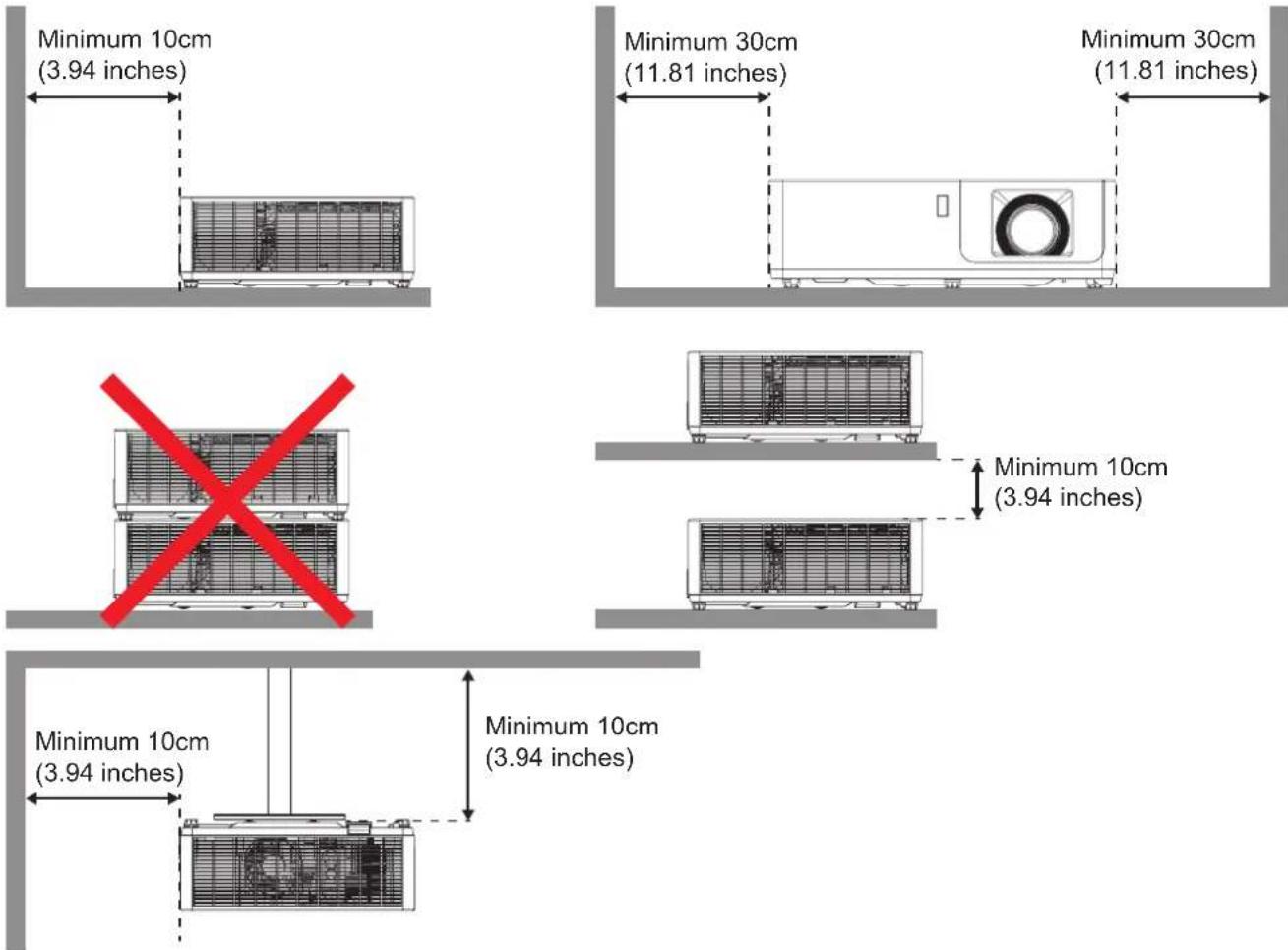

Projector installation notice

- Place the projector in a horizontal position.

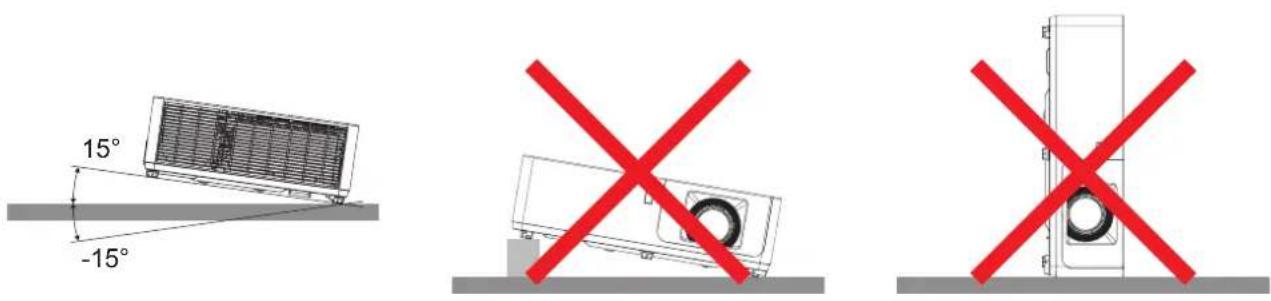

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise laser life could decrease dramatically, and may lead to other unpredictable damage.

- Allow at least 30cm clearance around the intake and exhaust vents.

- Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is within the acceptable operation temperature range.

SETUP AND INSTALLATION

Connecting to a computer

No Item No Item

1.	HDMI Cable
2.	VGA In Cable
3.	Audio In Cable 7. RS232 Cable
4.	Microphone Cable 8. Power Cord

5.	Audio Out Cable
6.	VGA Out Cable

SETUP AND INSTALLATION

Connecting to a DVD player

Diagram of a computer setup with labeled components including connectors, audio equipment, and a monitor connected to the front panel.

No Item No Item

1. HDMI Cable 6. Video Cable
2. HDMI Dongle 7. Audio In Cable
3. USB Power Cable 8. Audio Out Cable
4. RCA Component Cable 9. Power Cord
5. S-Video Cable

SETUP AND INSTALLATION

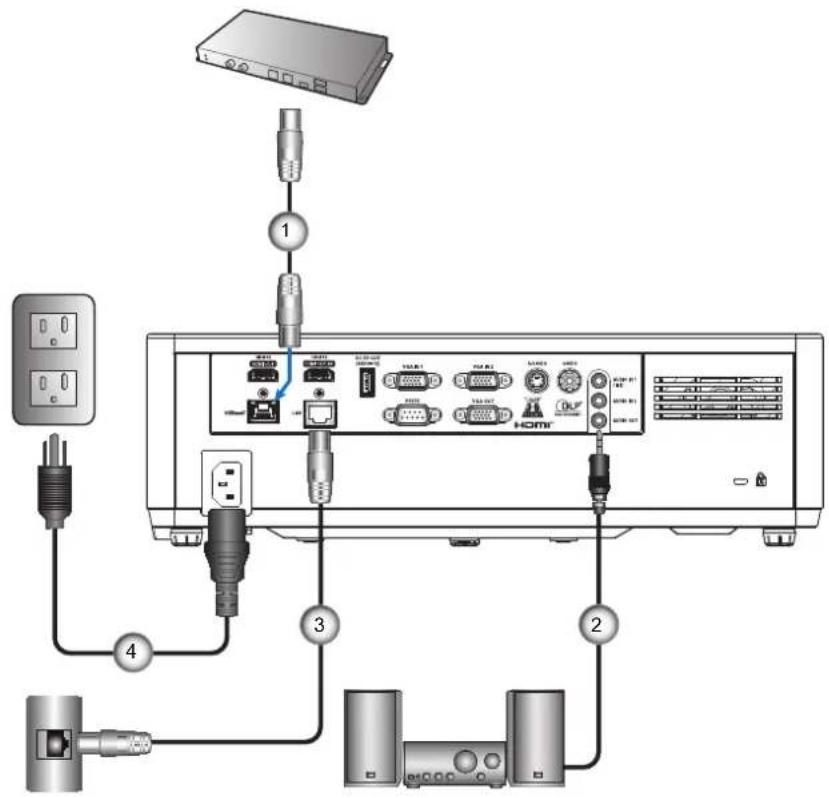

Connecting to HDBaseT and Network

Diagram of a home audio equipment setup showing connections between devices, connectors, and audio equipment with labeled ports and cables.

No Item No Item

1.	RJ-45 Cable (Cat5 Cable)
2.	Audio Out Cable

3.	RJ-45 Cable
4.	Power Cord

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Tilt-Adjustment Feet Tilt-Adjustment Ring

Zoom, lens shift, and focus

• To adjust the image size, turn the zoom ring clockwise or counterclockwise to increase or decrease the projected image size.
• To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the position of the projected image vertically.
• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

Lens Shift Dial Zoom Ring Focus Ring

Note: Ensure that the projection screen is within the required distance from the projector. Please refer to "Image size and projection distance" for more information.

SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries

Two AAA size batteries are required. (Not included)

1. Push the clip to release the battery cover.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

Diagram of a remote control panel with arrows indicating movement or force (no text or symbols)

1. Close the battery cover and press it down until it clicks into place.

Line drawing of a mechanical component with a scroll wheel and adjustment knob (no text or symbols)

Note: Do not mix different types of batteries or new and old batteries.

CAUTION

To ensure safe operation, please observe the following precautions:

• Use AAA/R03 type batteries.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.

- If the batteries have leaked in the remote control, carefully wipe the case clean and install new batteries.

- There is a risk of explosion if the batteries are replaced with the wrong type.

- Dispose of used batteries according to the instructions.

- Remove the batteries from the remote control when not using for extended periods.

• The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

SETUP AND INSTALLATION

Effective range

Infra-Red (IR) remote control sensor is located on the top and front of the projector. Ensure to hold the remote control at an angle within 40 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 5 meters (16.4 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being illuminated by sunlight or fluorescent lamps directly.
- Keep the remote control more than 2 meters away from fluorescent lamps or it may not function.
- When you aim at the screen the effective distance is 5 meters or less from the remote to the screen then back to the projector. The range will be different based on the reflectivity of the screen.

Approx. ±20° Approx. ±20°

USING THE PROJECTOR

Powering on / off the projector

or AV Mute Re-Sync Source Lens cap

Powering on

1. Remove the lens cap.
2. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red.
3. Turn on the projector by pressing the button on the projector keypad or remote control.
4. A start up screen will display in approximately 10 seconds and the Power LED will turn blue.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Powering off

1. Turn off the projector by pressing the button on the projector keypad or remote control.
2. The following message will be displayed:

Power Off Power Off? Press power key again.

1. Press the button again to confirm, otherwise the message will disappear after 10 seconds. When you press the button for the second time, the projector will shut down.
2. When the Power turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the button again to turn on the projector.
3. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.

USING THE PROJECTOR

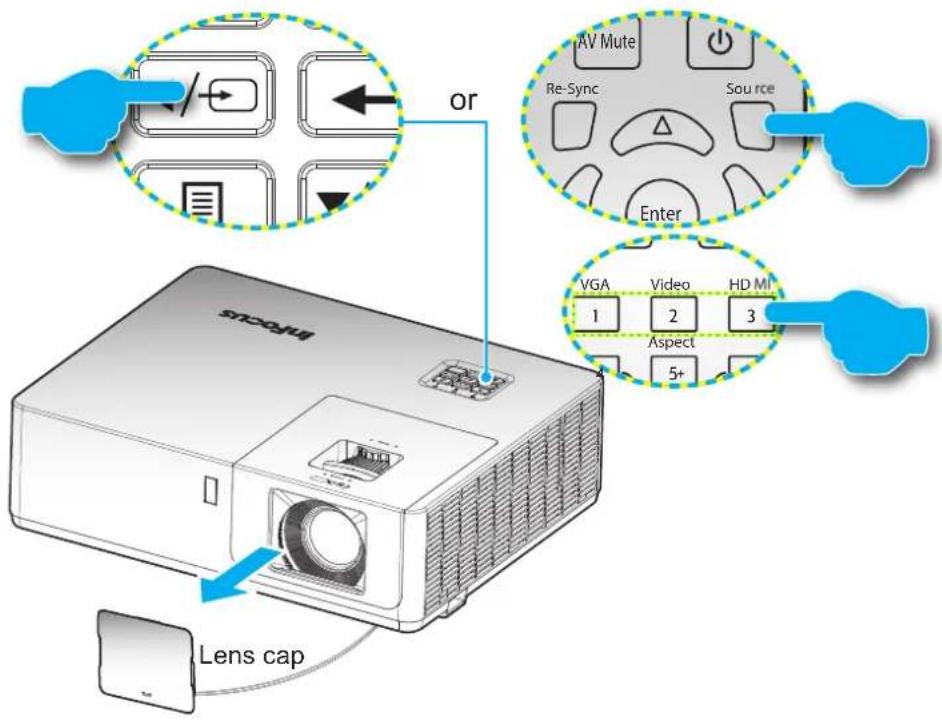

Selecting an input source

Turn on the connected source such as a computer, Blu-Ray player, HDBaseT etc. Press the Button on the keypad, the Source button on the remote control, or the green source buttons on the remote to select an input.

AV Mute Re-Sync Source Enter VGA 1 Video 2 3 Aspect 5+ Lens cap

USING THE PROJECTOR

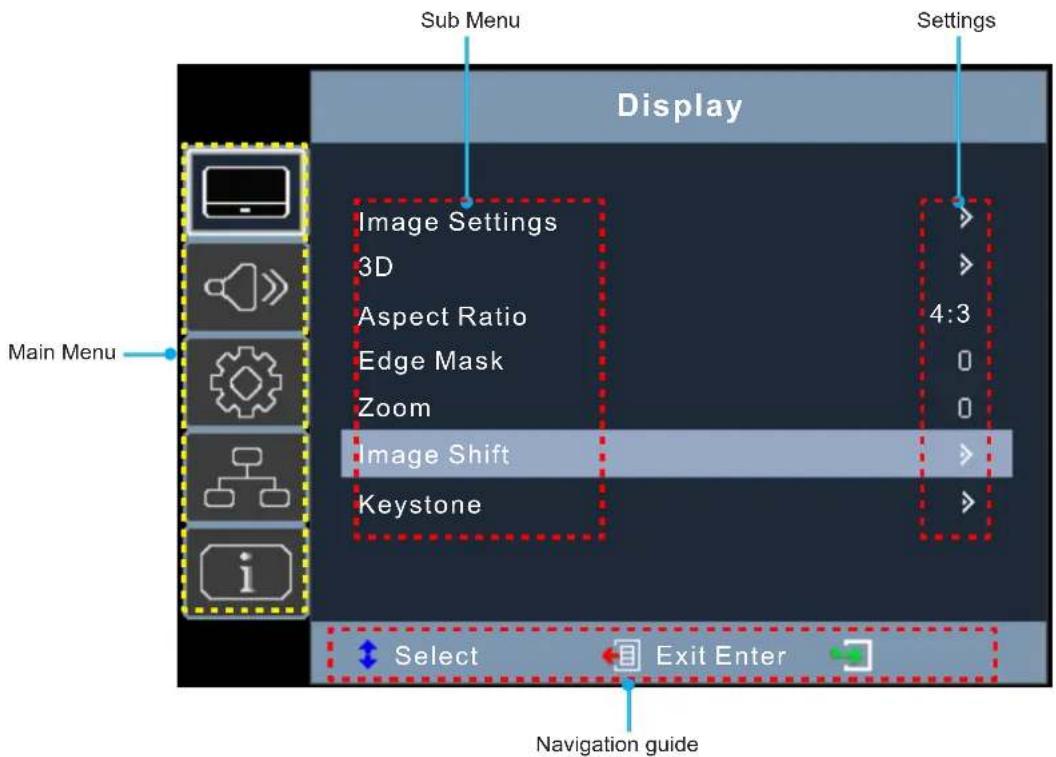

Menu navigation and features

The projector has multilingual on screen display menus that allow you to make image adjustments and change a variety of settings.

1. To open the OSD menu, press the ☐ button on the projector keypad or the Menu button on the remote control.
2. When OSD is displayed, use ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press the ← button on the projector keypad or the Enter button on the remote control to enter the sub menu.
3. Use ◀▶ keys to select the desired item in the sub menu and then press the ← or Enter button to view further settings. Adjust the settings by using ◀▶ keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press press the or Enter button to confirm, and the screen will return to the main menu.
6. To exit, press the ☐ or Menu button again. The OSD menu will close and the projector will automatically save the new settings.

Sub Menu Display Main Menu Image Settings 3D Aspect Ratio Edge Mask Zoom Image Shift Keystone Settings 4:3 Select Exit Enter Navigation guide

USING THE PROJECTOR

OSD Menu tree

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings	Display Mode			Presentation
				Bright
				HDR SIM.
				Cinema
				Game
				sRGB
				DICOM SIM.
				User
				3D
	Wall Color			Off [Default]
				Blackboard
				Light Yellow
				Light Green
				Light Blue
				Pink
				Gray
	Brightness			-50 ~ 50
	Contrast -50 ~ 50
	Sharpness 1 ~ 15
	Color -50 ~ 50
	Tint -50 ~ 50
	Gamma			Film
				Video
				Graphics
				Standard(2.2)
				1.8
				2.0
				2.4
				2.6
	Color Settings	BrilliantColorTM		1 ~ 10
		Color Temperature		Warm
				Standard
				Cool
				Cold

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings	Color Settings		Color Matching	Color	Red [Default]
					Green
					Blue
					Cyan
					Yellow
					Magenta
					White(*)
				Hue / R(*) -50 ~ 50
				Saturation / G(*) -50 ~ 50
				Gain / B(*) -50 ~ 50
				Reset
				Exit
			RGB Gain/Bias	Red Gain -50 ~ 50
				Green Gain -50 ~ 50
				Blue Gain -50 ~ 50
				Red Bias -50 ~ 50
				Green Bias -50 ~ 50
				Blue Bias -50 ~ 50
				Reset
				Exit
			Color Space	Non-HDMI	Auto [Default]
					RGB
					YUV
			Color Space	HDMI	Auto [Default]
					RGB(0~255)
					RGB(16~235)
					YUV
	Signal (VGA only)		Automatic		Off
					On [Default]
			Frequency		-10 ~ 10 (depends on signal) [Default: 0]
			Phase		0~31 (depends on signal)
			H. Position		-5 ~ 5 (depends on signal) [Default: 0]
			V. Position		-5 ~ 5 (depends on signal) [Default: 0]
	Brightness Mode				DynamicBlack
					Power (Power = 100% [Default]/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/ 50%)
	Reset

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display	3D	3D Mode			Off [Default]
					DLP-Link
		3D → 2D			3D [Default]
					L
					R
		3D Format			Auto [Default]
					SBS
					Top and Bottom
					Frame Sequential
		3D Sync Invert			On
					Off [Default]
	Aspect Ratio				4:3
					16:9 (1080p model)
					16:10 (WUXGA model)
					LBX
					Native
					Auto [Default]
	Edge Mask 0 ~ 10 [Default: 0]
	Zoom -5 ~ 25 [Default: 0]
	Image Shift	H.			-100 ~ 100 [Default: 0]
		V.			-100 ~ 100 [Default: 0]
	Keystone	Four Corners
		H Keystone -30 ~ 30
		V Keystone -30 ~ 30
		Auto Keystone			Off
					On [Default]
		Reset
Audio	Mute				Off [Default]
					On
	Volume 0 ~ 10 [Default: 5]
	Audio Input	HDMI1			Audio 1
					Audio 2
					Default [Default]
		HDMI2			Audio 1
					Audio 2
					Default [Default]
		VGA IN 1			Audio 1 [Default]
					Audio 2
		VGA IN 2			Audio 1
					Audio 2 [Default]
		S-VIDEO			Audio 1 [Default]
					Audio 2

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Audio	Audio Input	VIDEO			Audio 1 [Default]
					Audio 2
		HDBaseT			Audio 1
					Audio 2
					Default [Default]
	Audio/Mic Input Function				Audio Input [Default]
					Mic
Setup	Projection				Front [Default]
					Rear [IMAGE]
					Ceiling-front [IMAGE]
					Ceiling-rear [IMAGE]
	Screen Type				16:9
					16:10 [Default]
	Power Settings	Direct Power On			Off [Default]
					On
		Signal Power On			Off [Default]
					On
		Auto Power Off (min.)			0 ~ 180 (5 min increments) [Default: 20]
		Power Mode (Standby)			Active
					Eco. [Default]
		USB Power (Standby)			Off [Default]
					On
	Security	Security			Off [Default]
					On
		Security Timer	Month 0 ~ 12 [Default: 0]
			Day 0 ~ 30 [Default: 0]
			Hour 0 ~ 24 [Default: 0]
		Change Password			[Default: 1234]
	HDMI CEC HDM	CEC			Off [Default]
					On
	HDBaseT Control	Ethernet			Off [Default]
					On
		RS232			Off [Default]
					On
		HDBaseT Mode			HDBaseT [Default]
					Auto

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup Options		Language		English [Default]
				Deutsch
				Français
				Italiano
				Español
				Português
				Polski
				Nederlands
				Svenska
				Norsk
				Suomi
				ελληνικά
				繁體中文
				简体中文
				日本語
				한국어
				Русский
				Magyar
				Čeština
				عربي
				ไทย
				Türkçe
				فارسى
				Tiếng Việt
				Bahasa Indonesia
				Română
				Slovenčina
		Closed Caption		CC1
				CC2
				Off [Default]
		Menu Settings	Menu Location
				Top-Left ■
				Top-Right ■
				Center [default]
				Bottom-Left ■
				Bottom-Right ■
			Menu Timer
				Off
				5 sec
				10 sec [Default]
		Auto Source
				Off [Default]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Options	Input Source			HDMI 1
					HDMI 2
					VGA IN 1 [Default]
					VGA IN 2
					Video
					S-Video
					HDBaseT
		High Altitude			Off [Default]
					On
		Logo			Default [Default]
					Neutral
		Background Color			Black [Default]
					Blue
					Red
					Green
					Gray
					Logo
	Reset Reset to	Default
Network	LAN	Network Status			Disconnect
					ConnectNote: By default the network status is displayed only.
		MAC Address			AA : BB : CC : DD : EE : FFNote: By default the network status is displayed only.
		DHCP			Off [Default]
					On
		IP Address 192.1	68.0.100 [Default]
		Subnet Mask 255	255.255.0 [Default]
		Gateway 192.168	0.254 [Default]
		DNS 192.168.0.51	[Default]
		Reset
	Control HTTP				Off

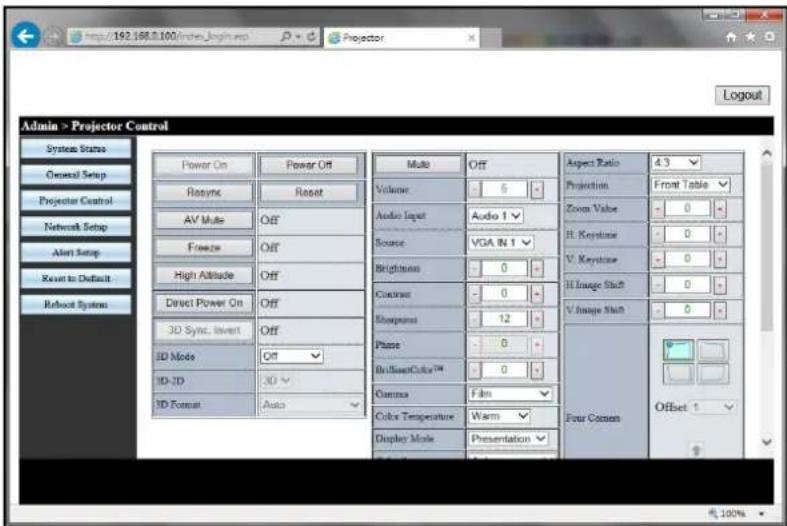

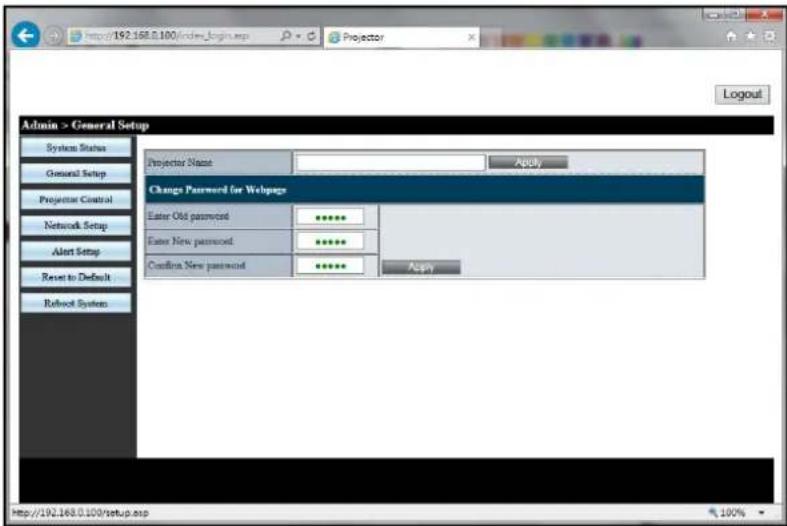

					On [Default]Note: Webpage control.

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Info	Serial Number
	Source
	Resolution
	Refresh Rate
	Display Mode
	Power Mode (Standby)
	Light Source Hours
	Network Status
	IP Address
	Brightness Mode
	FW Version	System
		LAN
		MCU

Note: Functions vary depending on model definition.

USING THE PROJECTOR

Display menu

Display image settings menu

Display Mode

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing in front of public in connection to the PC.
• Bright: Maximum brightness from any source.
- HDR SIM.: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut. This mode can be selected to enhance non-HDR content with simulated High Dynamic Range (HDR).
• Cinema: Provides the best colors for watching movies.
• Game: Select this mode to increase brightness and decrease response time for enjoying video games.

- sRGB: Standardized accurate color.

• DICOM SIM.: For viewing monochrome medical images such as X-rays, MRIs, etc.

- User: Saved user's settings.

• 3D: To experience 3D you need DLP-Link 3D glasses and video source capable of sending 3D content.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the Sharpness of a Video or S-Video source.

Color

Adjust a Video or S-Video source from black and white to fully saturated color.

Tint

Adjust the color balance of a Video or S-Video source between red and green.

Gamma

Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

• Film: For home theater.
• Video: For video or TV source.
• Graphics: For PC / Photo source.
- Standard (2.2): For standardized setting.

• 1.8 / 2.0 / 2.4 / 2.6: For specific PC / Photo sources.

USING THE PROJECTOR

Note:

• These options are only available if the 3D mode function is disabled, the Wall Color setting is not set to Blackboard, and the Display Mode setting is not set to DICOM SIM. or HDR SIM..
• In 3D mode, user can only select 3D for Gamma setting.
• If the Wall Color setting is set to Blackboard, user can only select Blackboard for Gamma setting.
• If the Display Mode setting is set to DICOM SIM., user can only select DICOM SIM. for Gamma setting.
• If the Display Mode setting is set to HDR SIM., user can only select HDR SIM. for Gamma setting.

Color Settings

Configure the color settings.

- BrilliantColor ^TM : This function utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors.

• Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.
• Color Matching: Select the following options:

– Color: Select the color to adjust: red, green, blue, cyan, yellow, magenta, or white.

• Hue / R(red)*: Adjust the hue (color) of the color selected in the Color setting. Note: *If the selected color is White, you will adjust the red level.
• Saturation / G(green)*: Adjust the saturation (offset) of the color selected in the Color setting. Note: *If the selected color is White you will adjust the green level.
• Gain / B(blue)*: Adjust the gain (level) of the color selected in the Color setting. Note: *If the selected color is White you will adjust the blue level.

- Reset: Return the factory default settings for color matching.

- Exit: Exit the "Color Matching" menu.

• RGB Gain/Bias: This function adjusts the gain and bias of individual colors.

• Reset: Return the factory default settings for RGB gain/bias.
• Exit: Exit the "RGB Gain/Bias" menu.

• Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: AUTO, RGB, or YUV.

• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB (0-255), RGB (16-235), and YUV.

Signal

Adjust the signal synchronization settings for VGA/Component sources.

• Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
- Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
• Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.
• H. Position: Adjust the horizontal position of the image.
• V. Position: Adjust the vertical position of the image.

USING THE PROJECTOR

Brightness Mode

Adjust the brightness mode settings.

• DynamicBlack: Automatically adjusts the brightness based on the source signal for optimum contrast performance.
• Power: Select the power percentage to adjust the overall brightness.

Reset

Return the factory default settings for color settings.

Display 3D menu

Note:

• This projector is a 3D ready projector with DLP-Link 3D solution.
• Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
• Supports Frame Sequential (page flip), Side-by-Side (SDS) and Top Bottom 3D video formats.
• To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not supported.
• To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K (3840x2160) resolution is not supported in 3D mode.
- 3D from a Blu-Ray 3D is detected and displayed automatically.

3D Mode

Use this option to disable the 3D function or select the appropriate the 3D function.

• Off: Select "Off" to turn off 3D mode.
  • DLP-Link: Select to use optimized settings for DLP 3D Glasses.

Note: If 2D and 3D sources are both connected, turn off 3D when selecting the 2D source.

3D → 2D

Use this option to specify how the 3D content should appear on the screen.

• 3D: Display 3D signal.
• L (Left): Display the left frame of 3D content.
• R (Right): Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identification signal is detected, the 3D format is selected automatically.
• SBS: Display 3D signal in "Side-by-Side" format.
- Top and Bottom: Display 3D signal in "Top and Bottom" format.
• Frame Sequential: Display 3D signal in "Frame Sequential" format.

3D Sync Invert

Select whether the right or left eye of the glasses synchronizes first.

USING THE PROJECTOR

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• 16:10 (for WUXGA model only): This format is for 16:10 input sources, like widescreen laptops.
- LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1 aspect ratio in full resolution.
• Native: This format displays the original image without any scaling.
• Auto: Automatically selects the appropriate display format.

Note:

• Detailed information about LBX mode:

Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying the image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.

- When using an external anamorphic lens, the LBX mode allows you to watch 2.35:1 content, including Anamorphic DVD and HDTV film sources. In this case there are no black bars, light source power and vertical resolution are fully utilized.

1080p scaling table:

16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode - 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If auto format is selected, the screen type will automatically become16:9 (1920x1080).- If source is 4:3, the screen type will be scaled to 1440 x1080.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.

USING THE PROJECTOR

1080p auto mapping rule:

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1080
4:3	640 480 1440	1080
	800 600 1440	1080
	1024 768 1440	1080
	1280 1024 1440	1080
	1400 1050 1440	1080
	1600 1200 1440	1080
Wide Laptop	1280 720 1920	1080
	1280 768 1800	1080
	1280 800 1728	1080
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

WUXGA scaling table for 1920 x 1200 DMD (screen type 16:10):

Note:

• Supported screen type 16:10 (1920 x 1200), 16:9 (1920x1080).
- When screen type is 16:9, the 16x10 format becomes unavailable.
- When screen type is 16:10, the 16x9 format becomes unavailable.
When Auto is selected the aspect ratio is automatically selected based on the video source.

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1600x1200.
16x9	Scale to 1920x1080.
16x10	Scale to 1920x1200.
LBX	Scale to 1920x1440, then get the central 1920x1200 image to display.
Native mode	- 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If this format is selected, the screen type will automatically become 16:10 (1920x1200).- If source is 4:3, the screen type will be scaled to 1600x1200.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200.

USING THE PROJECTOR

WUXGA auto mapping rule (screen type 16:10):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1200
4:3	640 480 1600	1200
	800 600 1600	1200
	1024 768 1600	1200
	1280 1024 1600	1200
	1400 1050 1600	1200
	1600 1200 1600	1200
Wide Laptop	1280 720 1920	1080
	1280 768 1920	1152
	1280 800 1920	1200
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

WUXGA scaling table (screen type 16:9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9	Scale to 1920x1080.
LBX	Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode	- 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If this format is selected, the screen type will automatically become 16:9 (1920x1080).- If source is 4:3, the screen type will be scaled to 1440x1080.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.

WUXGA auto mapping rule (screen type 16:9):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution		1920 1080
4:3	640 480 1440	1080
	800 600 1440	1080
	1024 768 1440	1080
	1280 1024 1440	1080
	1400 1050 1440	1080
	1600 1200 1440	1080
Wide Laptop	1280 720 1920	1080
	1280 768 1800	1080
	1280 800 1728	1080
SDTV	720 576 1350	1080
	720 480 1620	1080

USING THE PROJECTOR

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1080
HDTV	1280 720 1920 1080
	1920 1080 1920 1080

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Note: This function is grayed out if the input source is VIDEO or S-VIDEO and the resolution is 1080P or WUXGA.

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Note: Pan functions are not supported.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H.) or vertically (V.).

Display keystone menu

Four Corners

Allow the image to be shaped to fit an area defined by changing the x,y position of the four corners.

H Keystone

Adjust horizontal image distortion making the image more square. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length.

V Keystone

Adjust vertical image distortion making the image more square. Vertical keystone is used to correct a keystoned image shape in which the top and bottom borders of the image are unequal in length.

Auto Keystone

Correct keystone digitally to fit the projected image on the area on which you are projecting.

Note:

• The image size will reduce slightly when adjusting the horizontal and vertical keystone.
- When Auto Keystone is enabled the Four Corner Adjustment function will be disabled.

Reset

Return the factory default settings for keystone settings.

USING THE PROJECTOR

Audio menu

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

• On: Choose "On" to turn mute on.
• Off: Choose "Off" to turn mute off.

Note:

• “Mute” function affects both internal and external speaker volume.
• When "Mute" is On, you will see the associated icon on top-right side of the screen.

Audio volume menu

Volume

Adjust the speaker or microphone volume level.

Audio input menu

Audio Input

Select the audio input port for the video sources as follows:

• HDMI1: Audio 1, Audio 2, or Default.
• HDMI2: Audio 1, Audio 2, or Default.
• VGA IN 1: Audio 1 and Audio 2.
• VGA IN 2: Audio 1 and Audio 2.
• S-VIDEO: Audio 1 and Audio 2.
• VIDEO: Audio 1 and Audio 2.
- HDBaseT: Audio 1, Audio 2, or Default.

Audio audio/mic input function menu

Audio/Mic Input Function

Configure the audio input source setting.

• Audio Input: Audio In 1 configured for line level audio sources.
• Mic: Audio In 1 configured for microphone. Condenser microphone is recommended.

USING THE PROJECTOR

Setup menu

Setup projection menu

Projection

Select the preferred projection orientation: Front, Rear, Ceiling-front, Ceiling-rear.

Setup screen type menu

Screen Type (for WUXGA model only)

Choose the screen type from 16:9 and 16:10.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the remote control.

Note: Only supported on HDMI 1, HDMI 2 and VGA In 1 Connector.

Auto Power Off (min.)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Power Mode (Standby)

Set the power mode setting.

• Active: Select for normal standby (<2W).

Note: LAN and VGA out functions are On.

- Eco.: Reduce power dissipation (<0.5W).

Note: LAN and VGA out functions are not available.

USB Power (Standby)

Enable or disable the USB power function when the projector is in standby mode.

Note: This function is grayed out if the "Power Mode (Standby)" is set to "Eco.".

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose "On" to use security verification when turning on the projector.
• Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Opens the Month/Day/Hour function to set the number of hours the projector can be used. Once the set time is elapsed the password will be required to use the projector.

USING THE PROJECTOR

Change Password

Sets or modifies the security password.

Note: Password default value is "1234" (first time).

Setup HDMI CEC menu

Note:

- When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector's OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical configuration, your DVD player may be connected to the projector through an amplifier or home theater system.

HDMI CEC

Default is Off. Select "On" to enable HDMI CEC function.

Setup HDBaseT control settings menu

Ethernet

Enable or disable the Ethernet feature.

• On: Choose "On" to enable HDBaseT port connection and disable LAN port connection.
• Off: Choose "Off" to use LAN port connection.

RS232

Enable or disable the RS232 feature.

• On: Choose "On" to enable HDBaseT port connection and disable RS232 port connection.
  • Off: Choose "Off" to use RS232 port connection.

HDBaseT Mode

Set the HDBaseT mode setting:

• Auto: The HDBaseT Rx of projector will automatically switch between HDBaseT mode/Lower power mode/Fallback mode when it detects a signal from the HDBaseT port.
• HDBaseT: The source must be selected manually.

USING THE PROJECTOR

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Finnish, Greek, traditional Chinese, simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.

Closed Caption

Closed Caption is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. The available options include "Off", "CC1", and "CC2".

Menu Settings

Set the menu location on the screen and configure menu timer settings.

• Menu Location: Select the menu location on the display screen.
• Menu Timer: Set the duration the OSD menu stays visible on the screen.

Auto Source

Choose this option to let the projector automatically find an available input source.

• Off: The projector will only search the current input selection. Press the Source button on the keypad or on the remote to display a list of sources.
• On: The projector automatically finds an available input source. Press the Source button on the keypad or on the remote to automatically detect the next source.

Input Source

Select the input source between HDMI1, HDMI2, VGA IN 1, VGA IN 2, Video, S-Video, and HDBaseT.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

• Default: The default startup screen.
  • Neutral: Logo is not displayed on startup screen.

Background Color

Use this function to display a black, blue, red, green, gray color, or logo screen when no signal is available.

Setup reset OSD menu

Reset to Default

Return all settings to factory default except for the network settings.

USING THE PROJECTOR

Network menu

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• Off: To assign IP, subnet mask, gateway, and DNS configuration manually.
• On: Projector will obtain an IP address automatically from your network.

Note: The entered values will be applied when exiting the menu.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

How to use web browser to control your projector

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector's IP address ("Network > LAN > IP Address").
3. Enter the user name and password, and click "Login". The projector's configuration web interface opens.

Note:

• The default user name and password is "admin".
  • The steps in this section are based on the Windows 7 operating system.

USING THE PROJECTOR

Making a direct connection from your computer to the projector\*

1. Turn "Off" the DHCP option on the projector.

2. Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network > LAN").

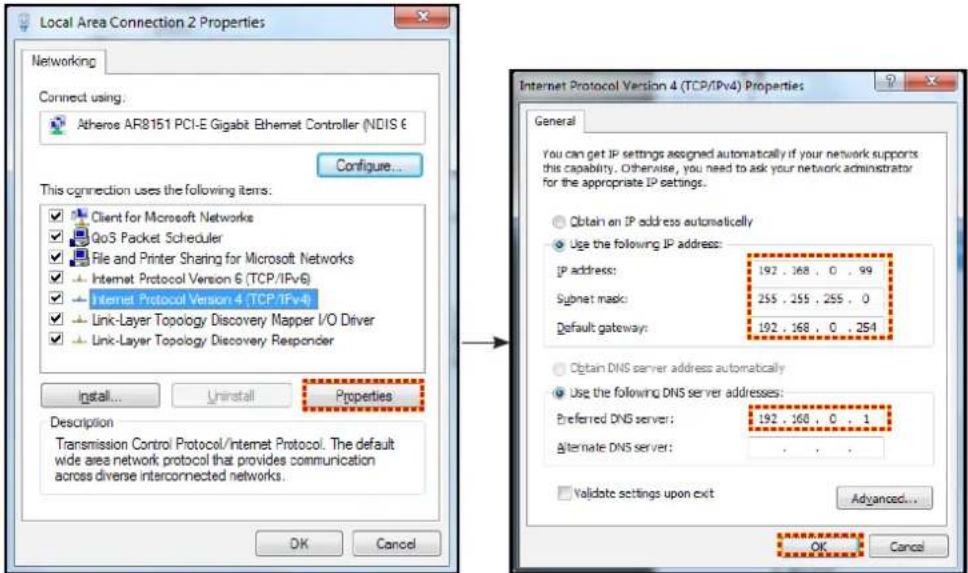

3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

Local Area Connection 2 Properties Networking Connect using: Atheros AR8151 PCI-E Gigabit Ethernet Controller (NDIS €) Configure... This connection uses the following items: Client for Microsoft Networks GoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv8) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 0 . 99 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 0 . 254 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 192 . 168 . 0 . 1 Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel Internet Protocol Version 4 (TCP/IPv4) Properties

1. Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3. Then press "Enter" key.

Reset

Reset all values for LAN parameters.

Network control menu

HTTP

Use this function to select the network function (port:80).

• On: Enables projector network control using the internal interface.
• Off: Disables projector network control using the internal interface. Telnet control is still available.

USING THE PROJECTOR

Setup network control settings menu

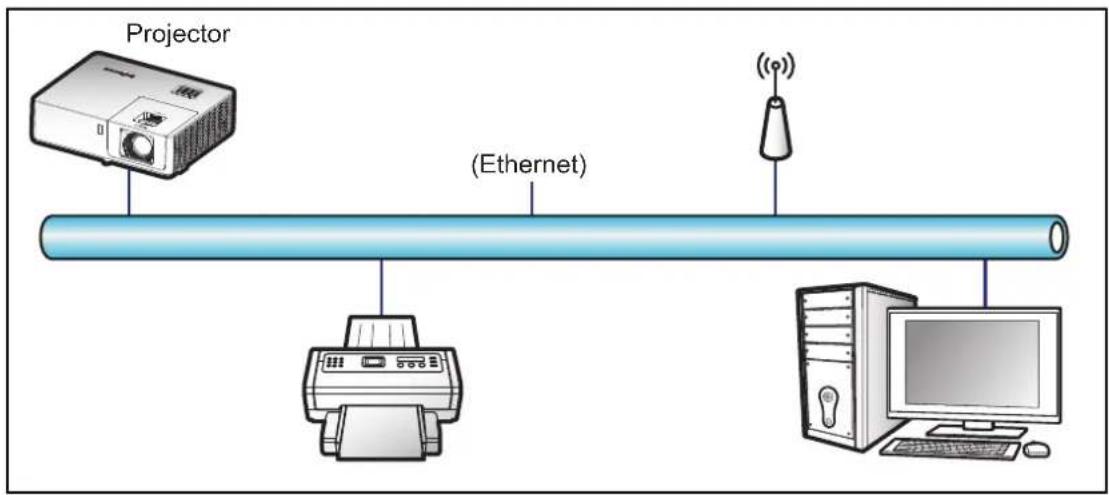

LAN RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Projector (Ethernet)

Wired LAN terminal functionalities

The projector can be controlled via the LAN/RJ45 port. An interface can be accessed using your browser or telnet commands. Power on/off, sources, image settings are some of the available functions.

LAN RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

Diagram showing connection between a laptop and an Ethernet port, with labeled ports and cables.

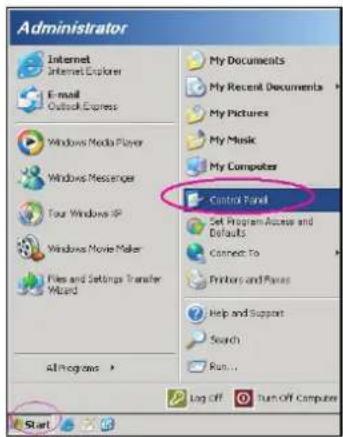

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

Administrator Internet Internet Explorer E-mail Outlook Express My Documents My Recent Documents My Pictures My Music My Computer Windows Media Player Windows Messenger Control Panel Your Windows XP Windows Movie Maker Set Program Access and Defaults Connect To Enterors and Planes Help and Support Search Run... All Programs > Log off Run Off Computer Start

USING THE PROJECTOR

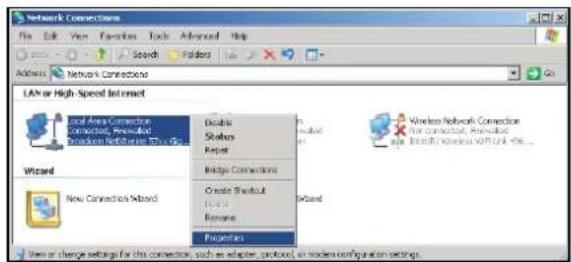

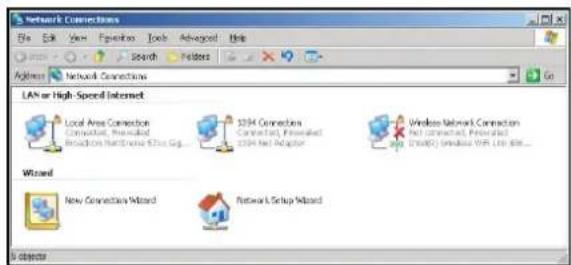

1. Right-click on the Local Area Connection, and select Property.

Network Connections File Edit View Insert Tools Advanced Help Search Fields Address Network Connections LAN or High-Speed Internet Local Area Connection Connectors, Memulated Broadcom Net/Serial E71e Seg... 2004 Connections Connection, Memulated 2004 Net Indicator Windows Network Connection Net connected, Memulated Play (Add) Window Web Help... Wizard New Connection Wizard Network Setup Wizard Object

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

Network Connections File Edit View Favorites Tools Advanced Help Search Folders Address Network Connections LAN or High-Speed Internet Local Area Connection Solution, Proposed Provision Network Service Disable Status Reset Bridge Connections Create Shortcut Remove Properties Wizard New Connection Wizard Wireless Network Connection for Connection, Proposed with (R) Wireless Soft Link... Wizard Properties

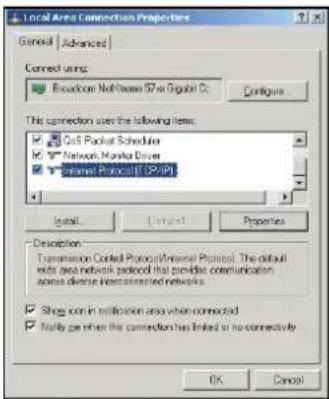

1. Click "Properties".

Local Area Connection Properties General | Advanced | Connect using: Broadcom NetView S7w Gigabit Co. Contigui This connection uses the following items: □ Cas Packet Scheduler □ Network Manager Driver □ Internet Protocol (IP/JP) Install Delete Properties Description: Transmission Control Protocol/Internet Protocol. The default width area network protocol that provides communication across diverse interconnected networks. □ Show con in implementation area when connected □ Notify go when this connection has limited or no connectivity OK Cancel

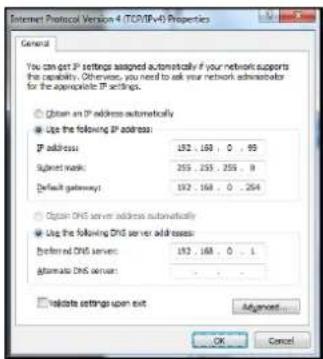

1. Type in the IP address and Subnet mask, then press "OK".

Internet Protocol Version 4 (TCP/IP+4) Properties General You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 0 . 95 Submit mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 0 . 254 Obtain DNS server address automatically Use the following DNS server address: Recommended DNS server: 192 . 168 . 0 . 1 Alternate DNS server: - - - Validate settings upon exit Adjacent... OK Cancel

1. Press the "Menu" button on the projector.
2. Open on projector Network > LAN.

3. Enter the following connection parameters:

4. DHCP: Off

5. IP Address: 192.168.0.100
6. Subnet Mask: 255.255.255.0

USING THE PROJECTOR

• Gateway: 192.168.0.254

• DNS: 192.168.0.51

• Press "Enter" to confirm settings.

• Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
• In the Address bar, input the projector's IP address: 192.168.0.100.

1. Press "Enter".

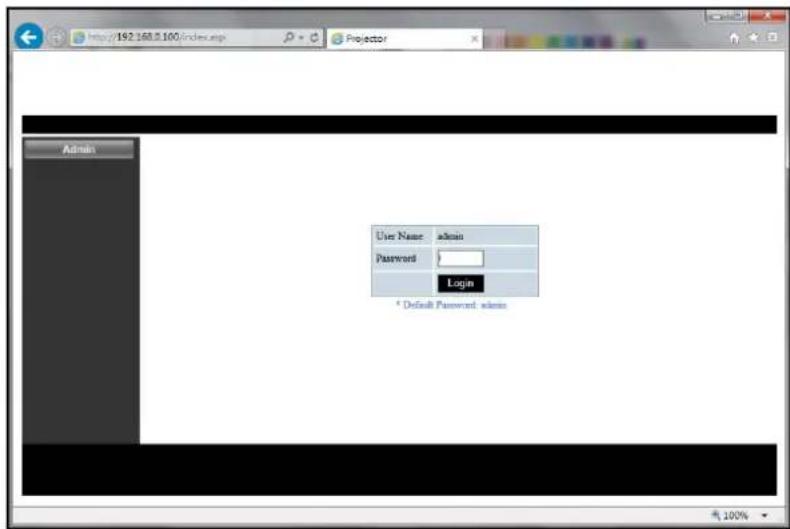

2. The Login page will be displayed. The default password is admin.

http://192.168.2.100/index.aspx Projector Admin User Name: admin Password: Login * Default Password: admin 100%

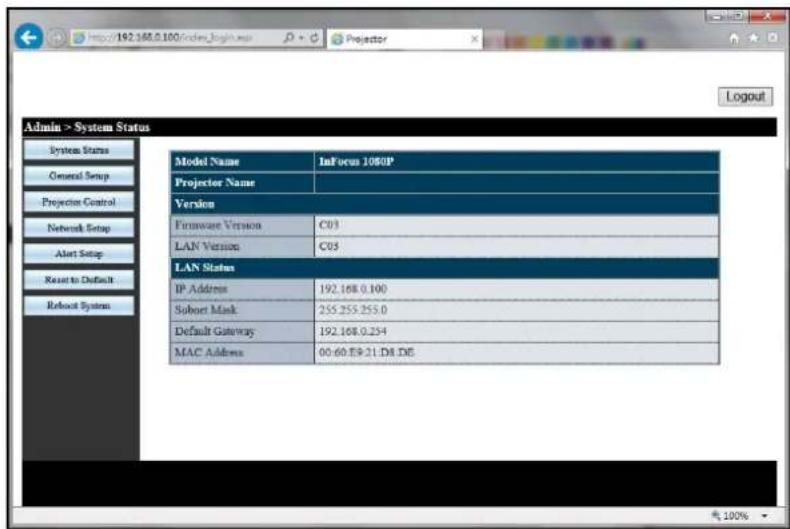

1. The System Status page will be displayed after log in. All network features are accessible from the buttons on the left. Reset to Default resets all projector settings. Reboot system reboots the network interface, not the projector.

Admin > System Status System Status General Setup Projector Control Network Setup Alert Setup Reset to Default Reboot System Model Name InFocus 1000P Projector Name Version Firmware Version C03 LAN Version C05 LAN Status IP Address 192.168.0.100 Subort Mask 255.255.255.0 Default Gateway 192.168.0.254 MAC Address 00:60.E9:21.D8.D8 Logout

USING THE PROJECTOR

1. The General Setup page allows changing the Projector Name and the admin password.

Admin > General Setup System Status General Setup Projector Control Network Setup Alert Setup Reset to Default Robust System Projector Name Apply Change Password for Webpage Enter Old password ****** Enter New password ****** Confirm New password ****** Apply http://192.168.0.100/setup.aspx 100%

1. On the Projector Control page, you can perform many common network control functions such as changing the source and adjusting volume.

Admin > Projector Control System Status General Setup Projector Control Network Setup Alert Setup Reset to Default Reboot System Power On Power Off RetSync Reset AV Mule Off Freeze Off High Altitude Off Direct Power On Off 3D Sync Invert Off ID Mode Off ID-3D 3D 3D Format Auto Multi Off Volume 6 Audio Input Audio 1 Source VGA IN 1 Brightness 0 Contrast 0 Sharpness 12 Phase 0 BrilliantColor™ 0 Gamma Film Color Temperature Warm Display Mode Presentation Aspect Ratio 4.3 Projection Front Table Zoom Value 0 H. Keystone 0 V. Keystone 0 H. Image Shift 0 V. Image Shift 0 Four Columns Offset 1 100%

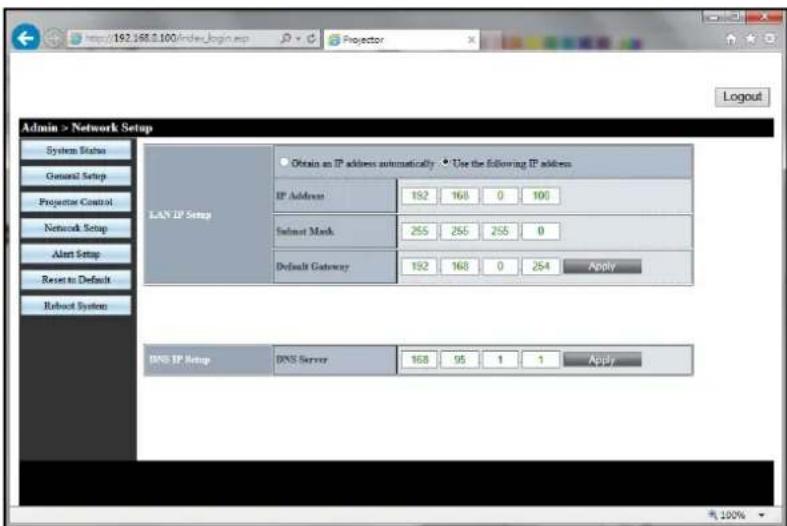

1. Network settings can be configured on the Network Setup page. If the IP address is changed the new IP address will have to be put in the url window of the browser to access Projector Control.

http://192.168.0.100/index_login.asp Projector Login Admin > Network Setup System Status General Setup Projector Control Network Setup Alert Setup Reset to Default Robust System LAN IP Setup Obtain an IP address automatically Use the following IP address IP Address 152 168 0 100 Submit Mask 255 255 255 0 Default Gateway 152 168 0 254 Apply DNS IP Setup DNS Server 168 95 1 1 Apply 100%

USING THE PROJECTOR

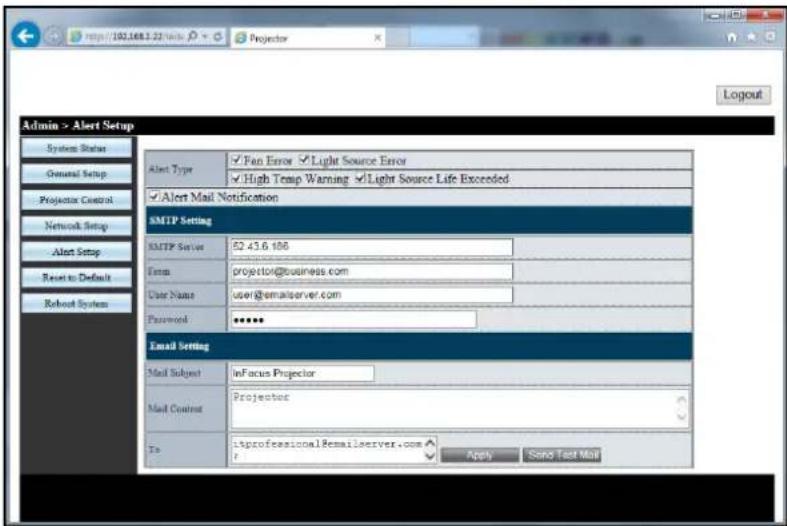

1. Alert setup will send an email if there is a fault with the projector. Click the check boxes to enable notification and select which faults you want to have reported.

Admin > Alert Setup System Status General Setup Projector Control Network Setup Alert Setup Reset to Default Robust System Alert Type ✓ Fan Error ✓ Light Source Error ✓ High Temp Warning ✓ Light Source Life Exceeded ✓ Alert Mail Notification SMTP Setting SMTP Server E2 43.6 100 Term [e-mail] User Name [e-mail] Password ****** Email Setting Mail Subject InFocus Projector Mail Content Projector To [e-mail] Apply Send Text Mail

Info menu

Info menu

View the projector information as listed below:

• Serial Number
• Source
• Resolution
• Refresh Rate
• Display Mode
  • Power Mode (Standby)
  • Light Source Hours
  • Network Status
• IP Address
• Brightness Mode
• Firmware Version

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

Digital (HDMI 1.4)
Digital native resolution: 1920 x 1080 @ 60Hz (INL3148HD) and 1920 x 1200 @ 60Hz (INL3149WU)
Established Timing	Standard Timing	Descriptor timing-B0(Detail timing)	Supported Video Mode	Descriptor timing-B1(Detail timing)
720 x 400 @ 70Hz	1280 x 720 @ 60Hz 1080p:	640 x 480p @ 60Hz 4:3	1920 x 1080p @ 60Hz
640 x 480 @ 60Hz	1280 x 800 @ 60Hz	1920x1080@60Hz	720 x 480i @ 60Hz	16:9 1366 x 768 @ 60Hz
640 x 480 @ 67Hz	1280 x 1024 @ 60Hz WUXGA:	720 x 480p @ 60Hz 4:3	1920 x 1080 @ 120Hz
640 x 480 @ 72Hz	640 x 480 @ 120Hz	1920x1200@60Hz-RB	720 x 480p @ 60Hz	16:9 1920 x 1200 @ 60Hz-RB (INL3148HD)
640 x 480 @ 75Hz	800 x 600 @ 120Hz	720 x 576i @ 50Hz	16:9
800 x 600 @ 56Hz	1024 x 768 @ 120Hz	720 x 576p @ 50Hz	4:3
800 x 600 @ 60Hz	1280 x 800 @ 120Hz	720 x 576p @ 50Hz	16:9
800 x 600 @ 72Hz	1280 x 720p @ 60Hz	16:9
800 x 600 @ 75Hz	1280 x 720p @ 50Hz	16:9
832 x 624 @ 75Hz	1920 x 1080i @ 60Hz	16:9
1024 x 768 @ 60Hz	1920 x 1080i @ 50Hz	16:9
1024 x 768 @ 70Hz	1920 x 1080p @ 60Hz	16:9
1024 x 768 @ 75Hz	1920 x 1080p @ 50Hz	16:9
1280 x 1024 @ 75Hz			1920 x 1080p @ 24Hz	16:9
1152 x 870 @ 75Hz			3840 x 2160 @ 24Hz
			3840 x 2160 @ 25Hz
			3840 x 2160 @ 30Hz
			4096 x 2160 @ 24Hz

Digital (HDMI 2.0)
Digital native resolution: 1920 x 1080 @ 60Hz (INL3148HD) and 1920 x 1200 @ 60Hz (INL3149WU)
Established Timing	Standard Timing	Descriptor timing -B0 (Detail timing)	Supported Video Mode	Descriptor timing -B1 (Detail timing)
720 x 400 @ 70Hz	1280 x 720 @ 60Hz	1080p:	640 x 480p @ 60Hz 4:3	1366 x 768 @ 60Hz
640 x 480 @ 60Hz	1280 x 800 @ 60Hz	1920 x 1080 @ 60Hz	720 x 480i @ 60Hz 16:9	1920 x 1080 @ 120Hz
640 x 480 @ 67Hz	1280 x 1024 @ 60Hz	WUXGA:	720 x 480p @ 60Hz 4:3
640 x 480 @ 72Hz	640 x 480 @ 120Hz	1920 x 1200 @ 60Hz-RB	720 x 480p @ 60Hz 16:9
640 x 480 @ 75Hz	800 x 600 @ 120Hz		720 x 576i @ 50Hz 16:9
800 x 600 @ 56Hz	1024 x 768 @ 120Hz		720 x 576p @ 50Hz 4:3
800 x 600 @ 60Hz	1280 x 800 @ 120Hz		720 x 576p @ 50Hz 16:9
800 x 600 @ 72Hz			1280 x 720p @ 60Hz 16:9
800 x 600 @ 75Hz			1280 x 720p @ 50Hz 16:9
832 x 624 @ 75Hz			1920 x 1080i @ 60Hz 16:9
1024 x 768 @ 60Hz			1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 70Hz			1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 75Hz			1920 x 1080p @ 50Hz 16:9
1280 x 1024 @ 75Hz			1920 x 1080p @ 24Hz 16:9

ADDITIONAL INFORMATION

Digital (HDMI 2.0)
Digital native resolution: 1920 x 1080 @ 60Hz (INL3148HD) and 1920 x 1200 @ 60Hz (INL3149WU)
Established Timing Standard Timing	Descriptor timing -B0 (Detail timing)	Supported Video Mode	Descriptor timing -B1 (Detail timing)
1152 x 870 @ 75Hz 3840 x 2160 @ 24Hz
		3840 x 2160 @ 25Hz
		3840 x 2160 @ 30Hz
		4096 x 2160 @ 24Hz
		3840 x 2160 @ 50Hz
		3840 x 2160 @ 60Hz
		4096 x 2160 @ 50Hz
		4096 x 2160 @ 60Hz
		4096 x 2160 @ 25Hz
		4096 x 2160 @ 30Hz

Note: Functions vary depending on model definition.

Analog compatibility

Analog
Analog native resolution: 1920 x 1080 @ 60Hz (INL3148HD) and 1920 x 1200 @ 60Hz (INL3149WU)
B0/Established Timing	B0/Standard Timing B0/Detail Timing B1/Video	Mode B1/Detail Timing
720 x 400 @ 70Hz 1280	x 720 @ 60Hz 1080p: 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1280	x 800 @ 60Hz 1920 x 1080 @ 60Hz 1280 x 800 @	120Hz	(RB)
640 x 480 @ 67Hz 1280	x 1024 @ 60Hz WUXGA: 1900 x 1200 @ 60Hz		(RB) (INL3148HD)
640 x 480 @ 72Hz 640 x 480 @ 120Hz 1920 x 1200 @ 60Hz-RB
640 x 480 @ 75Hz 800 x 600 @120Hz
800 x 600 @ 56Hz 1024 x 768 @ 120Hz
800 x 600 @ 60Hz
800 x 600 @ 72Hz
800 x 600 @ 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz
1024 x 768 @ 70Hz
1024 x 768 @ 75Hz
1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz

Note: Functions vary depending on model definition.

ADDITIONAL INFORMATION

True 3D video compatibility

Input resolutions	HDMI 1.4a3D Input	Input timing
		1280 x 720P @ 50Hz Top-and-Bottom
		1280 x 720P @ 60Hz Top-and-Bottom
		1280 x 720P @ 50Hz Frame packing
		1280 x 720P @ 60Hz Frame packing
		1920 x 1080i @ 50Hz Side-by-Side(Half)
		1920 x 1080i @ 60Hz Side-by-Side(Half)
		1920 x 1080P @ 24Hz Top-and-Bottom
		1920 x 1080P @ 24Hz Frame packing
	HDMI 1.3	1920 x 1080i @ 50Hz	Side-by-Side(Half) SBS mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @ 60Hz
		1920 x 1080i @ 50Hz	Top-and-Bottom TAB mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @60Hz
		480i HQFS 3D format is Frame sequential

Note:

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.
• 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will run in 120Hz.
- Functions vary depending on model definition.

ADDITIONAL INFORMATION

Image size and projection distance

1080p series

Projection image size is from 20" to 300" (0.5m to 7.6m).

Top View Screen Screen (Width) Projection Distance Side View Screen Screen (Height) Offset Projection Distance Height Diagonal Width

16:9 diagonal screen inches	Screen size Projection distance Offset (inches) (meters) (feet) (meters) (cm) (inches)
	Height Width Height Width				Wide Tele Wide Tele
20	9.81	17.43	0.25	0.44	2.03	3.25	0.62	0.99	0.75~4.48	0.29~1.76
40	19.61	34.86	0.50	0.89	4.07	6.51	1.24	1.98	1.49~8.97	0.59~3.53
60	29.42	52.29	0.75	1.33	6.10	9.76	1.86	2.98	2.24~13.45	0.88~5.29
70	34.32	61.01	0.87	1.55	7.12	11.39	2.17	3.47	2.62~15.69	1.03~6.18
80	39.22	69.73	1.00	1.77	8.13	13.02	2.48	3.97	2.99~17.93	1.18~7.06
90	44.12	78.44	1.12	1.99	9.15	14.64	2.79	4.46	3.36~20.17	1.32~7.94
100	49.03	87.16	1.25	2.21	10.17	16.27	3.10	4.96	3.74~22.41	1.47~8.82
120	58.83	104.59	1.49	2.66	12.20	19.52	3.72	5.95	4.48~26.90	1.76~10.59
150	73.54	130.74	1.87	3.32	15.25	24.40	4.65	7.44	5.60~33.62	2.21~13.24
200	98.05	174.32	2.49	4.43	20.34	32.54	6.20	9.92	7.47~44.83	2.94~17.65
250	122.57	217.89	3.11	5.53	25.42	40.67	7.75	12.40	9.34~56.04	3.68~22.06
300	147.08	261.47	3.74	6.64	30.51	48.81	9.30	14.88	11.21~67.24	4.41~26.47

Zoom Ratio: 1.6x

cm (min)	Offset
	inches (min)	cm (max)	inches (max)
0.75	0.29	4.48	1.76
1.49	0.59	8.97	3.53
2.24	0.88	13.45	5.29
2.62	1.03	15.69	6.18
2.99	1.18	17.93	7.06
3.36	1.32	20.17	7.94
3.74	1.47	22.41	8.82
4.48	1.76	26.90	10.59
5.60	2.21	33.62	13.24
7.47	2.94	44.83	17.65
9.34	3.68	56.04	22.06
11.21	4.41	67.24	26.47

ADDITIONAL INFORMATION

WUXGA series

Projection image size is from 21" to 302" (0.5m to 7.7m).

Top View Screen Screen (Width) Projection Distance Side View Screen Screen (Height) Offset Projection Distance Height Diagonal Width

16:9 diagonal screen inches	Screen size Projection distance Offset (inches) (meters) (feet) (meters) (cm) (inches)
	Height Width Height Width				Wide Tele Wide Tele
21	11.13	17.81	0.28	0.45	2.08	3.32	0.63	1.01	-1.41~1.98	-0.56~0.78
40	21.20	33.92	0.54	0.86	3.96	6.33	1.21	1.93	-2.69~3.77	-1.06~1.48
60	31.80	50.88	0.81	1.29	5.94	9.50	1.81	2.89	-4.04~5.65	-1.59~2.23
70	37.10	59.36	0.94	1.51	6.93	11.08	2.11	3.38	-4.71~6.60	-1.85~2.60
80	42.40	67.84	1.08	1.72	7.91	12.66	2.41	3.86	-5.38~7.54	-2.12~2.97
90	47.70	76.32	1.21	1.94	8.90	14.25	2.71	4.34	-6.06~8.48	-2.38~3.34
100	53.00	84.80	1.35	2.15	9.89	15.83	3.02	4.82	-6.73~9.42	-2.65~3.71
120	63.60	101.76	1.62	2.58	11.87	19.00	3.62	5.79	-8.08~11.31	-3.18~4.45
150	79.50	127.20	2.02	3.23	14.84	23.74	4.52	7.24	-10.10~14.14	-3.97~5.56
200	106.00	169.60	2.69	4.31	19.79	31.66	6.03	9.65	-13.46~18.85	-5.30~7.42
250	132.50	212.00	3.37	5.38	24.73	39.57	7.54	12.06	-16.83~23.56	-6.62~9.27
300	159.00	254.40	4.04	6.46	29.68	47.49	9.05	14.47	-20.19~28.27	-7.95~11.13
302	160.06	256.10	4.07	6.50	29.88	47.80	9.11	14.57	-20.33~28.46	-8.00~11.20

Zoom Ratio: 1.6x

cm (min)	Offset
	inches (min)	cm (max)	inches (max)
-1.41	-0.56	1.98	0.78
-2.69	-1.06	3.77	1.48
-4.04	-1.59	5.65	2.23
-4.71	-1.85	6.60	2.60
-5.38	-2.12	7.54	2.97
-6.06	-2.38	8.48	3.34
-6.73	-2.65	9.42	3.71
-8.08	-3.18	11.31	4.45
-10.10	-3.97	14.14	5.56
-13.46	-5.30	18.85	7.42
-16.83	-6.62	23.56	9.27
-20.19	-7.95	28.27	11.13
-20.33	-8.00	28.46	11.20

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

To prevent damage to your projector, please use only approved InFocus ceiling mounts: https://www.infocus.com/accessories/mounts

If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

• Screw type: M6*10
  • Minimum screw length: 10mm

Lens 3.00 10.00 51.60 107.00 55.20 90.00 374.00 153.35 174.00 273.00 82.30 82.30 273.00 85.00 55.00 Unit: mm

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

- If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

- Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

- Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

RS232 Commands and Protocol Function List

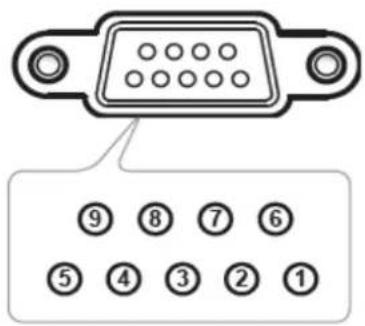

RS232 Pin Assignments

⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

Pin no.	Descriptor timing -B0 (Detail timing)
1 N/A
2 RXD
3 TXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A
9 N/A

RS232 Protocol Function List

Baud Rate: 19200

Parity Bit: None

Data Bit: 8

Stop Bit: 1

Laser on delay = 20s

Power Down delay = 5s (INL3148HD)

Power Down delay = 125s (INL3149WU)

Source change delay = 8s

Intercommand delay minimum = 500ms

Intercharacter delay minimum = 2ms

Power return code (ok)
Status ? (PWR?) (0-1,n) n=0,1
ON (PWR1)
OFF (PWR0)
ON & return (PWR1!) (0-1,1)
OFF & return (PWR0!) (0-1,0)
Blank Key (AV Mute)	return code (ok)
Status ? (BLK?) (0-1,n) n=0,1
ON (BLK1)
OFF (BLK0)

ADDITIONAL INFORMATION

Blank Key (AV Mute) return code (ok)
ON & return (BLK1!) (0-1,1)
OFF & return (BLK0!) (0-1,0)
Source return code (ok)
Status ? (SRC?) (0-22,n) n=0-22
Computer1 (VGA IN 1) (SRC0)
Computer2 (VGA IN 2) (SRC1)
VIDEO (SRC11)
S-VIDEO (SRC12)
HDMI1 (SRC4)
HDMI2 (SRC5)
HDBaseT (SRC17)
Computer1 (VGA IN 1) & return (SRC0!)	(0-22,0)
Computer2 (VGA IN 2) & return (SRC1!)	(0-22,1)
VIDEO & return	(SRC11!)	(0-22,11)
S-VIDEO & return	(SRC12!) (0-22,12)
HDMI1 & return (SRC4!)	(0-22,4)
HDMI2 & return (SRC5!)	(0-22,5)
HDBaseT & return	(SRC17!) (0-22,17)
Aspect		return code (ok)
Status ? (ARZ?)	(0-6,n) n=0,1,2,3,4,6
Auto	(ARZ0)
Native	(ARZ1)
4 X 3	(ARZ2)
16 X 9	(ARZ3)
Letterbox	(ARZ4)
16 X 10	(ARZ6)
Auto & return	(ARZ0!) (0-6,0)
Native & return	(ARZ1!) (0-6,1)
4 X 3 & return	(ARZ2!) (0-6,2)
16 X 9 & return	(ARZ3!) (0-6,3)
Letterbox & return	(ARZ4!) (0-6,4)
16 X 10 & return	(ARZ6!) (0-6,6)
Volume		return code (ok)
Status ? (VOL?)	(0-10,nn) n=0~10
volume +	(VOL+)
volume -	(VOL-)
Set volume	(VOLnn) n=0 ~ 10
volume + & return	(VOL+!)	(0-10,nn) n=0~10
volume - & return	(VOL-!)	(0-10,nn) n=0~10
Set volume & return	(VOLnn!) n=0 ~ 10	(0-10,nn) n=0~10
Mute		return code (ok)
Status ? (MTE?)	(0-1,n) n=0,1
ON	(MTE1)
OFF	(MTE0)
ON & return	(MTE1!)	(0-1,1)
OFF & return	(MTE0!)	(0-1,0)
Firmwave Version		return code (ok)
Status ?	(FVS?)	(nnnn) n=x.x.xx

ADDITIONAL INFORMATION

Total Hours (Light Source Hours) return code (ok)

Status ? (LMT?) (0-65535,n) n=lamp hours

Ceiling Set return code (ok)

Status ? (CEL?) (0-3,n) n=0,1,2,3

Front table (CEL0)

Front ceiling (CEL1)

Rear table (CEL2)

Rear ceiling (CEL3)

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

No image appears on screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Ensure the "Mute" or "AV Mute" features are not turned on.

? Image is out of focus

• Turn the focus ring clockwise or counterclockwise until the image is sharp and legible. (Please see page 17).
  • Make sure the projection screen is between the required distances from the projector. (Please refer to pages 51-52).

The image is stretched when displaying 16:9 DVD title

- When playing anamorphic sources or 16:9 sources the projector will display the best image in 16:9 format.

- When playing a Letterbox (LBX) formatted source change the Aspect Ratio to LBX.

- If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.

- Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

• Turn the zoom ring clockwise or counterclockwise to increase or decrease the projected image size. (Please see page 17).
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the different settings.

? Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
• Adjust the vertical keystone until the sides are parallel.

? Image is reversed

- Select "Setup → Projection" from the OSD and adjust the projection orientation.

ADDITIONAL INFORMATION

Other problems

The projector stops responding to all controls

• If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

Remote control problems

If the remote control does not work

- Check the operating angle of the remote control is within ± 20^ to the IR receiver on the projector. - Make sure there are not any obstructions between the remote control and the projector. Move to within 5m (16.4 ft) of the projector.

• Make sure there are no fluorescent light sources shining on the IR recievers.
• Make sure batteries are inserted correctly.
• Replace batteries if they are exhausted.

ADDITIONAL INFORMATION

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

- "Lamp" LED indicator is lit red and if "Power" indicator flashes red.

- "Temp" LED indicator is lit red and if "Power" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.

- "Temp" LED indicator flashes red and if "Power" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up or flash please contact your nearest service center for assistance.

LED lightning messages

Message	Power LED Temp LED Laser LED
	(Red) (Blue) (Red) (Red)
Standby state (Input power cord)	Steady light
Power on (Warming)		Flashing(0.5 sec off / 0.5 sec on)
Power on and Lamp lighting Steady light
Power off (Cooling)		Flashing(0.5 sec off / 0.5 sec on). Back to red steady light when cooling fan turns off.
Error (Laser failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light

- Power off:

Power Off Power Off? Press power key again.

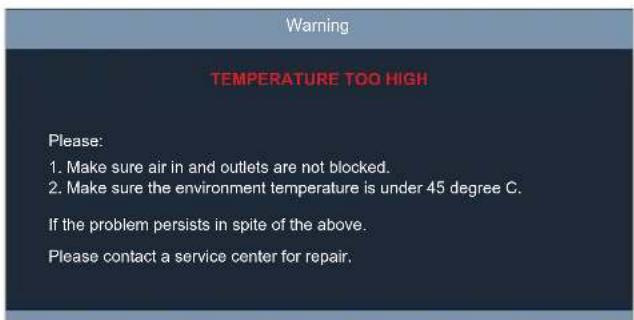

• Temperature warning:

Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above. Please contact a service center for repair.

ADDITIONAL INFORMATION

Specifications

Optical Description
Maximum resolution 1920x1200@60Hz(RB)
Native resolution	• 1080p• WUXGA
Lens Manual zoom, focus and vertical shift
Image size (diagonal)	• 1080p: 20" ~ 300" (51cm ~ 762cm)• WUXGA: 21" ~ 302" (53cm ~ 767cm)
Projection distance	• 1080p: 1.0m ~ 9.3m (20" ~300')• WUXGA: 1.0m ~ 9.1m (21" ~302')

Electrical Description
Inputs	HDMI 1.4bHDMI 2.0VGA InComposite (RCA connector (Y))VGA In (2)Audio In 3.5mmAudio In 3.5mm, with MicrophoneUSB Type-A for power USB 5V/1.5AS-Video
Outputs	VGA OutAudio Out 3.5mm
Control	RS232RJ-45RJ-45 for HDBaseT
Color reproduction 1073.4 Million color
Scan rate	Horizontal scan rate: 15.375~91.146 KHzVertical scan rate: 24 ~ 120 Hz
Built-in speaker 10W
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current 3.7A

Mechanical Description
Installation orientation Front, Rear, Ceiling-top, Rear-top
Dimensions 374mm (W) x 302mm (D) x 117mm( H) (with feet)
Weight	5.5 ±0.5kg
Environmental conditions	Operating in 5 ~ 40°C, 10% to 85% humidity (non-condensing)

Note: All specifications are subject to change without notice.
