Product Type	Air Cushioned Bike Saddle
Brand	Crivit
Model	IAN 22558
Intended Use	Private use on bicycles; not for commercial use
Inflation System	Air pump button for adjustable hardness: Soft (3 pumps), Medium (8 pumps), Hard (15 pumps)
Deflation	Press the air valve
Mounting Compatibility	Compatible with plug seat posts and patent seat posts
Fastening Torque	24 Nm on both sides for plug seat post
Tools Required	13 mm open-end wrench
Safety Features	Quick release must be closed; check tightness before each use; avoid sharp objects
Maintenance	Clean with damp cloth and dry; store in clean dry place at room temperature
Environmental Protection	Dispose in environmentally friendly manner; recycle packaging
Warranty	3 years from date of purchase
Spare Parts	Available at www.delta-sport.com (category Service - Lidl Spare Parts Service)
Customer Service (UK)	Tel: [phone] (£0.10/min); Email: [e-mail]
Customer Service (Cyprus)	Tel: [phone]; Email: [e-mail]

Frequently Asked Questions - IAN 22558 CRIVIT

How do I install the bike saddle on my bike?

The saddle can be mounted on a plug seat post or patent seat post. For plug seat posts, fasten the saddle with the pre-mounted block and tighten the fastening screw to 24 Nm on both sides. For patent seat posts, remove the fastening screws, distance piece, block, and screw, then mount directly. Always adjust the saddle horizontally and observe minimum insertion depth.

How do I inflate the air cushion?

Push the inflation button repeatedly to achieve desired hardness. Standard values: Soft = 3 pumps, Medium = 8 pumps, Hard = 15 pumps. Note that the cushion will deflate over time and may need re-inflating.

How do I deflate the air cushion?

Press the air valve (2) to release air until desired softness is achieved.

What tools are needed for assembly?

You need a 13 mm open-end wrench to tighten the fastening screws.

Is this saddle compatible with my bike?

The saddle fits standard bicycle seat posts. It works with both plug seat posts and patent seat posts. Check your bike's seat post type and ensure the saddle clamp matches.

How do I adjust the saddle height?

Loosen the seat post clamp, adjust to your desired height (observe the minimum insertion mark), then tighten the clamp securely. Do not adjust while riding.

How should I clean and maintain the saddle?

Clean with a damp cloth and wipe dry. Store in a clean, dry place at room temperature. Avoid contact with sharp objects and extreme weather like direct sun, cold, or wetness.

What is the warranty period and how do I claim?

The product comes with a 3-year warranty from date of purchase covering material and workmanship. To claim, contact the service hotline (UK: 0871 5000 720, Cyprus: 8009 4409) or email [e-mail] / [e-mail]. Keep your receipt.

Where can I buy spare parts?

Spare parts are available at www.delta-sport.com under the category 'Service - Lidl Spare Parts Service'.

Can I use this saddle on an exercise bike?

The saddle is designed for bicycles for private use. It may fit exercise bikes with standard seat posts, but ensure compatibility with the seat clamp and post size.

USER MANUAL IAN 22558 CRIVIT

Air Cushioned Bike sAddle

GB CY

Air Cushioned Bike sAddle

Assembly instructions

RO

ŞA CU PERNA 'DE AER

Safety instructions 4 - 5

Risk of injury 4 - 5

Avoidance of material damage 5

Assembly 6 - 7

Inflating 8

Deflating 9

Care, storage 9

Disposal 9

3-year warranty 10 - 11

Congratulations on purchasing this

high-quality product. Be sure to familiarise yourself with the assembly instructions prior to use. Please take the time to carefully read through the following assembly instructions and safety notes. Only use the product as described and for the intended use. Please retain these instructions for future reference and ensure that they are passed on to any third party.

intended use

The item is a seat for bicycles for private use and is not intended for commercial use.

⚠️ Safety instructions

Risk of injury!

- Assemble the item correctly and ensure that it cannot slip when riding. Do not adjust the item while riding.

- Quick releases must lie on the dropouts in a closed state. Adjust the quick release so that you feel some resistance when it is in a 90° position and pull it tight. If necessary, consult your specialist dealer.

- Check the item before each use for damage and wear-and-tear. Check that all screws are tight before each use and if necessary, tighten screw connections again. The item may only be used if it is in flawless condition!

- If using a child seat, ensure that all spring washers under the saddle are covered in order to prevent the pinching of fingers.

- Every type of tear or scratch in the areas of the saddle subject to high stress (screw connections) is an indication that the life-span of that part has expired and the part must be replaced.

Avoidance of material damage

• Ensure that the item does not come in contact with sharp objects.
• Protect the item from extreme weather influences such as cold, wetness and direct exposure to the sun.

Assembly

Always adjust the saddle to the appropriate height for you. Observe the marking on the seat post, which marks the minimum insertion depth. The item's fastening screw must be tightened with 24 Newton metres on both sides in order to be securely fastened to the plug seat post.

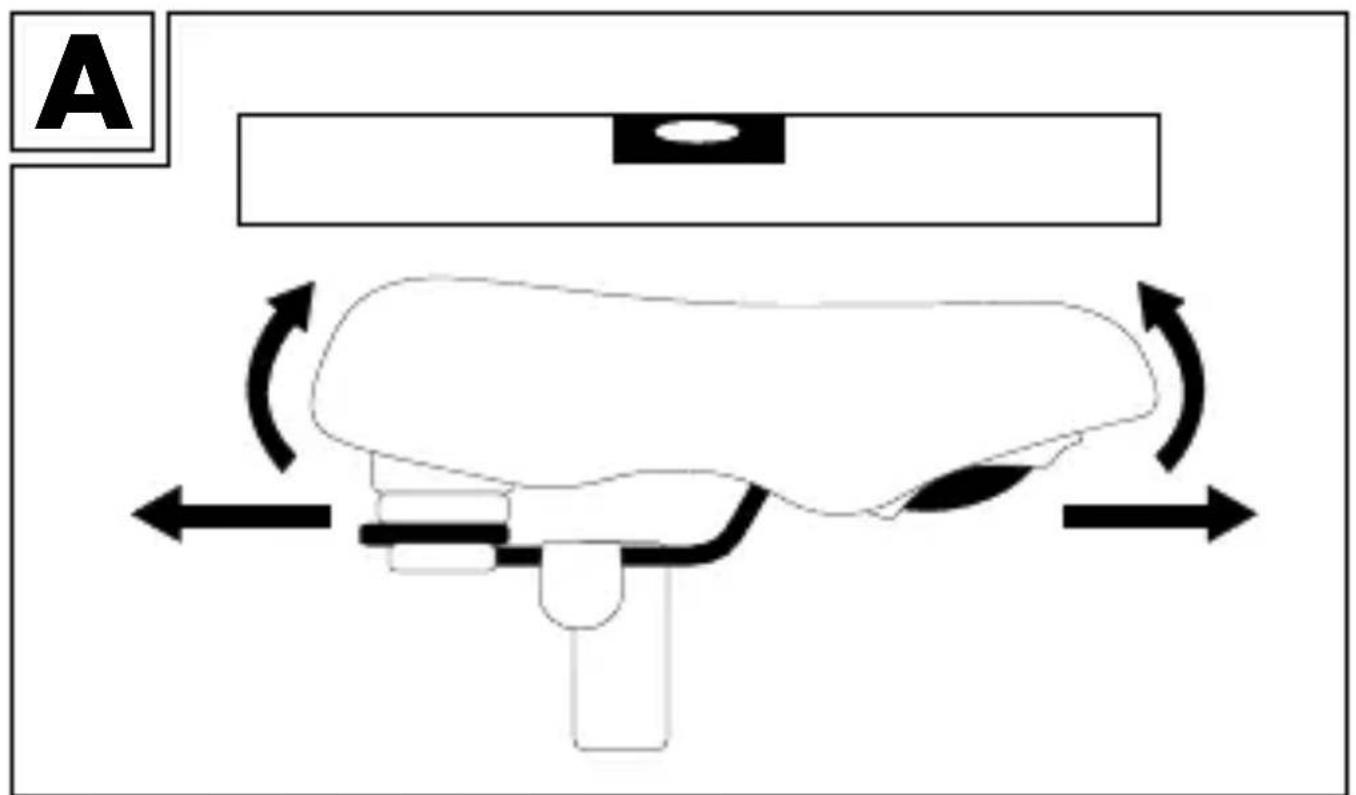

(Fig. A) Adjust the item horizontally.

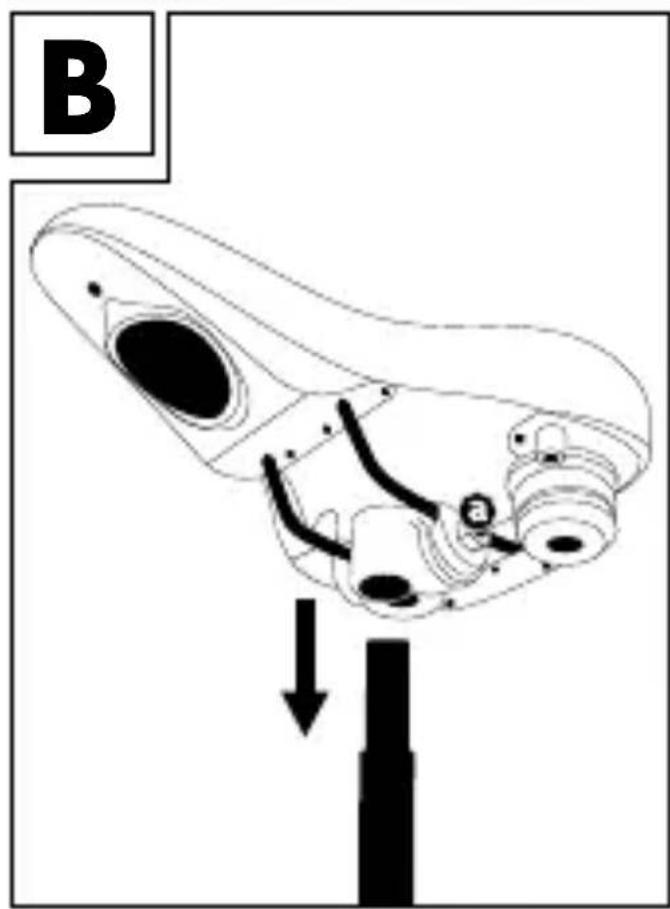

(Fig. B) For plug seat posts: Fasten the saddle with the pre-mounted block to the plug seat post.

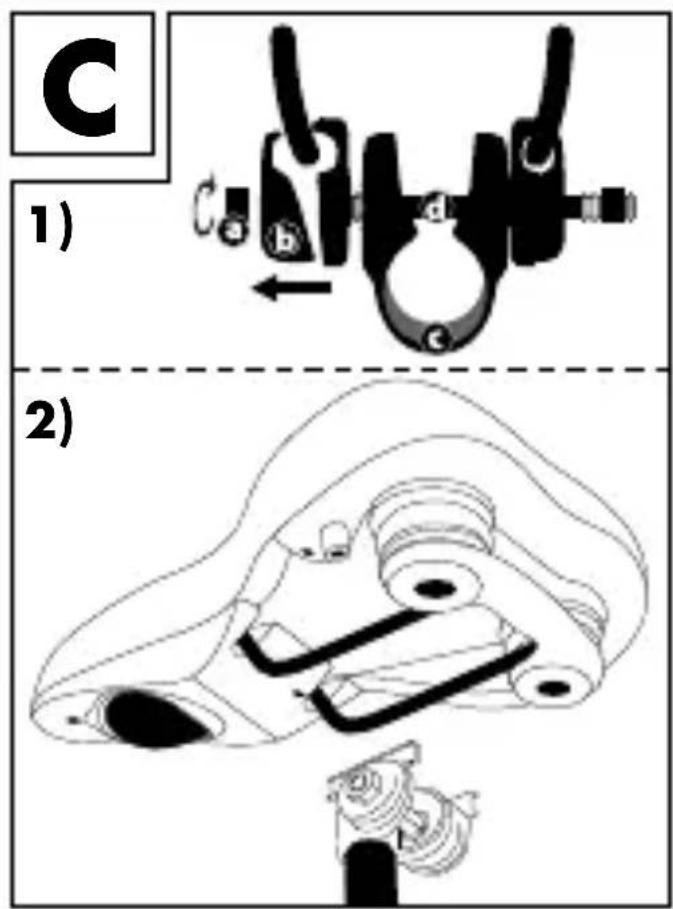

(Fig. C)

1. Remove the fastening screws (a) on both sides with 13' open-end wrench. Remove the distance piece (b), the screw (d), as well as the block (c).
2. Subsequently, mount the saddle directly to the patent saddle post.

Diagram of a mechanical device with internal components and a downward arrow, labeled 'B' in the top-left corner (no text or symbols on the diagram itself)

a - Fastening screw

b - Distance piece

c - Block

d - Screw

Inflating

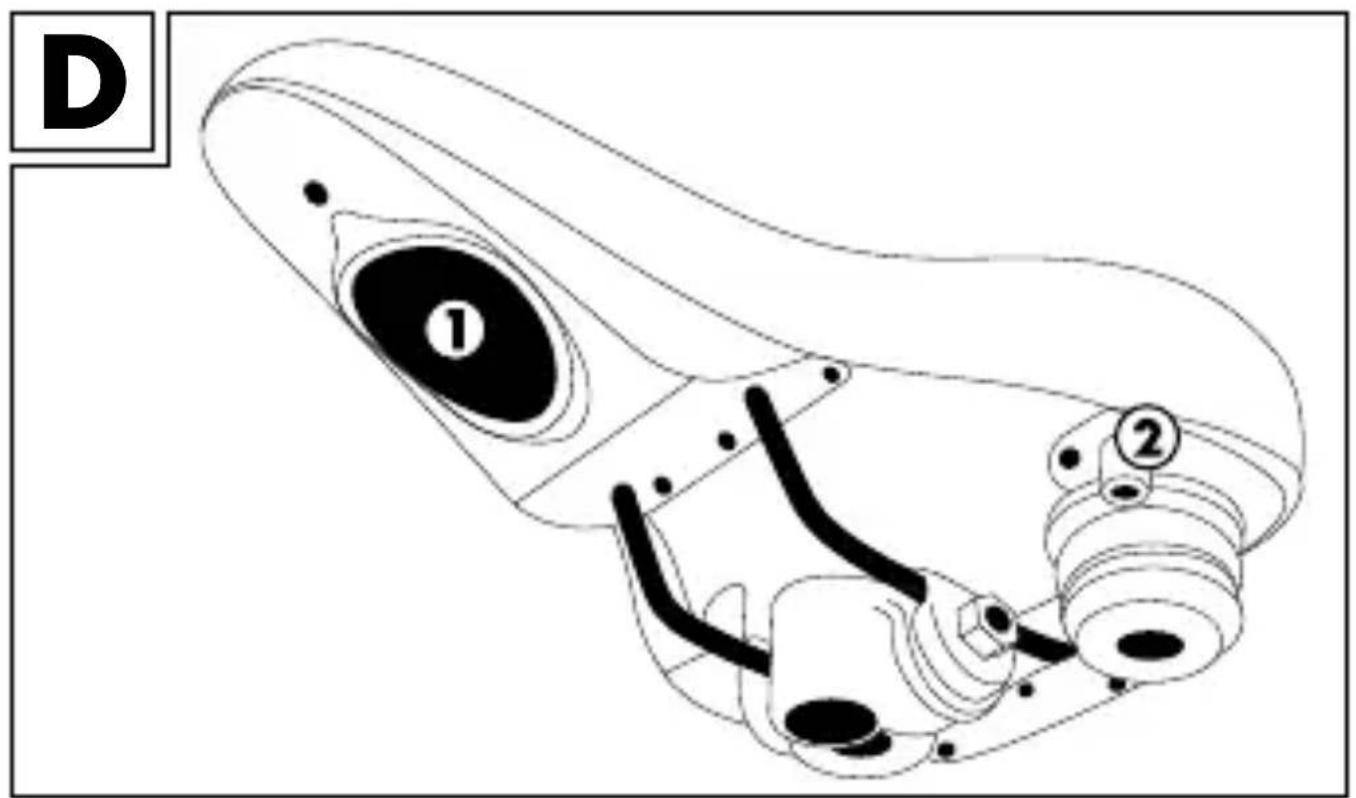

Push the inflation button (1) until you have achieved the desired degree of hardness (Fig. D).

Standard values:

• Soft - pump 3 x
• Medium - pump 8 x
• Hard - pump 15 x

Advice! Please note, the product will deflate over time. In this event, inflate the product per the instructions.

Deflating

Press the air valve (2) (Fig. D).

Care, storage

Also, store the item in a clean dry place at room temperature.

Important! Only clean with a damp cleaning cloth and thereafter, wipe dry.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 22558

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service
