Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

IOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Do not place the unit on its side during transport. It is recommended not to exceed the tilt angle of 45 degrees, in the best case the appliance is transported in a vertical position. It is necessary to allow the appliance standing upright for a few hours before installation “Prior to first use”. Protect the appliance during transport against weather influences.

i NOTE:

The appliance has rollers (R) which facilitate the transport and installation of the appliance.

CAUTION:

Use the rollers (R) only for forward or backward movement, otherwise the floor and the rollers could be damaged.

R

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment

Appliance overview

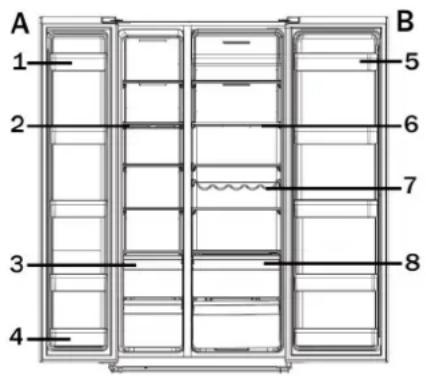

A 1 2 3 4 B 5 6 7 8

A Freezer B Fridge

1 Door storage racks
2 Glass shelves
3 Freezing boxes
4 2-Star freezing rack
5 Door storage racks
6 Glass shelves
7 Bottle rack
8 Vegetable boxes

Delivery scope

Fridge: 5x glass shelf, 1x chrome bottle rack,

2x vegetable box, 5x door storage rack, 2x egg tray

Freezer: 5x glass shelf, 2x freezing box, 5x door storage rack, 1x ice-cube tray

1x wrench for levelling the appliance doors

Installation

Conditions for the installation location

• Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.
• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;
• Place the appliance so that the appliance door can open without being impeded.

130° 135°

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.

- Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

- Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Levelling the appliances doors

If the doors are not at the same level and do not close parallel to each other, the refrigerator door must be aligned.

Maximum tolerance compensation is 5 mm!

Diagram showing a refrigerator with upward arrow and three labeled parts: wrench, switch, and door handle.

Open the door, loosen the locknut (2) with the supplied wrench (3)..

..if the refrigerator door is too low, turn the adjusting nut (1) counterclockwise to raise the door.

..if the refrigerator door is too high, turn the adjusting nut (1) clockwise to lower the door.

Once the doors are aligned, retighten the locknut (2).

Fixing the door handles

Check the tightness of the door handles. If necessary, tighten the door handle screws with a hexagonal screwdriver.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!

WARNING:

• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Control panel

GENERAL NOTE:

• About 10 seconds after the last button press, the control lamps stop flashing and the settings are activated.
• About 60 seconds after the last button press, the display will enter the standby mode.
  The standby mode is terminated as soon as buttons are pressed, or device door is opened.

Control lamps

1 - 10℃ 3 4 5 6 7 02℃ 2

1 Temperature display freezer

4 Super cooling 5 Super freezing 6 Holiday mode 7 Child safety lock

2 Temperature Display fridge

3 Door alarm function

Function buttons

MODE: Selection of functions

Press several times to choose between:

The corresponding control lamp flashes.

FREEZER: Temperature setting freezing

Allows you to regulate the inside temperature in the range of -15^ to -25^ .

FRIDGE: Temperature setting cooling

Allows you to regulate the inside temperature in the range of +2°C to +8°C.

UNLOCK 3s: Child safety lock

Press the button for about 3 seconds to lock/unlock the operation of the control panel.

Description of the functions

Super cool / Super freeze

When the super cooling or freezing function is activated, the device operates at maximum power to speed up the cooling or freezing process.

The super cooling function switches off automatically after about 180 minutes and the super freezing function after about 26 hours. The respective internal temperature adapts to the preset temperature.

The functions can be ended at any time before the switch-off times have expired by pressing the FRIDGE or FREEZER button.

Holiday mode

CAUTION:

Do not store any fresh or perishable food in the fridge during this time.

Cause of longer absence you can put the appliance into holiday mode.

During this period, the fridge is cooled down to +15°C instead of +5°C to +8°C. It does not only save energy, but also prevents unpleasant odors and mold, as the fridge is not completely switched off.

The cooling in the freezer is not affected and continues to cool at min. -18°C.

Pressing the FRIDGE or FREEZER button stops the function.

Door alarm function

As soon as the fridge or freezer door remains open for more than two minutes, an alarm sounds every minute and the warning lamp lights up. After approx. 10 minutes the alarm switches off automatically, if the doors were not closed prematurely.

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following section "Settings".

Settings

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, adjust the lowest possible temperature level (= highest power level), or select the super cool / freeze function first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

i NOTE:

In generally a low to medium power level works best for an optimized food storage. A high power level also increases the energy consumption.

Interior light

By opening the respective appliance door, the interior light switches on automatically.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and Maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice-cubes.
• One-, two- or three-star com- partments are not suitable for the freezing of fresh food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Storage space

Depending on requirements, shelves/drawers (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

i NOTE:

For the most efficient use of energy, place all shelves/drawers in their original position.

Fridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic covers with elastic strip
- Aluminum foil

Temperature zones and storage recommendations

The optimal cooling temperature is around 5\~7 degrees for the central area of the cooling.

Different cooling zones are created by the air circulation. Regardless of the power level, cold air drops off.

- The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2-3 degrees.

- About that it becomes less cold. For dairy products such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 5 degrees.

- Well-packed leftovers or preserves needs less cooling. The upper cooling part at around 8 degrees could be the right place.

- The cooling door is one of the warmest locations. The upper racks are good location for food that

needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks.

- The vegetable box (depending on the model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezer

The four-star freezer allows you to store frozen food at a temperature of -18^ C or colder for several months to produce ice cubes / to freeze fresh food.

CAUTION:

The two-star door rack with a temperature of -12^ and colder is only suitable for short-term storage.

Freezing

• Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions

• Do not exceed the maximum freezing capacity.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Keep the appliance door closed in the event of a power failure. Consider the information to the -temperature rinse time- during which the device content does not suffer any loss of quality.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Operating noise

Type of sound Cause
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance disconnect it from the power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odor.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
  Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

- Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with

warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.

• Remove the appliance content and storage it at a cool location.
• After everything was thoroughly dried, you can restart the operation.

Defrosting

The appliance keeps free from ice inside because of the NoFrost System. A defrosting procedure isn't necessary.

Changing the bulb

CAUTION:

Do NOT remove the cover of the interior light.

The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

Before you contact an authorized specialist

Problem Cause / Action
Unit is not working properly or at all	· Check the power supply / temperature setting / ambient temperature.· Unblock the ventilation openings, install the unit freely.
Loading is too warm	· Check the temperature setting / ambient temperature. · Open the door only as long as necessary.
Loud noise during operation	· Check the appliance position.· See the section “Operating noise”.
Water on the unit bottom	· Check the temperature setting.
Light does not work	· Check the power supply.· See “Changing the bulb”.

Error codes

With some malfunctions, the display shows error codes!

Code	Causes
E1	Temperature sensor failure fridge section
E3	Temperature sensor failure freezer section
E4	Defrosting sensor failure
E0	Environment sensor malfunctions
Ec	Communication sending failure
Er	Communication receiving failure

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Climate class SN/N/ST/T: this appliance is intended to be used at ambient temperature ranging from 10^ C to 43^ C.

Freezing capacity: the maximum freezing capacity within 24 hours is 10.4 kg.

Temperature rinse time: the period of time that the device can maintain an acceptable temperature for the frozen food is approx. 10 hours.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated (defrost) power: 240 W

Rated current: 1.3 A

Dimension H x W x D / Weight.....

Appliance size: 179.3 x 90.8 x 69.5 cm

Net weight: ....approx. 103.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
