USER MANUAL SBS 7335 IX BOMANN

Exterior view of a modern stainless steel refrigerator with dual doors and a digital display (no visible text or symbols)

Special safety Information for this Unit......Page 17

Transport and Packaging......Page 18

Appliance Equipment......Page 19

Installation......Page 20

Startup / Operation......Page 21

Cleaning and Maintenance......Page 24

Troubleshooting......Page 25

Technical Data......Page 25

Diagram illustrating three different states of a device with labeled components and directional arrows indicating movement or force.

Gerät auspacken

Line drawing of a mechanical assembly with clamps and a base (no text or symbols)

Line drawing of a mechanical assembly or mounting bracket with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and structural components (no text or symbols)

Line drawing of a refrigerator with open door and side door (no text or symbols)

Simple line drawing of two people standing on a ladder with pipes and motion indicators (no text or symbols)

Illustration showing two people cleaning a large wall and a side view of a water tank on a rail track (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

IOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Do not place the unit on its side during transport. It is recommended not to exceed the tilt angle of 45 degrees, in the best case the appliance is transported in a vertical position. It is necessary to allow the appliance standing upright for a few hours before installation “Prior to first use”. Protect the appliance during transport against weather influences.

i NOTE:

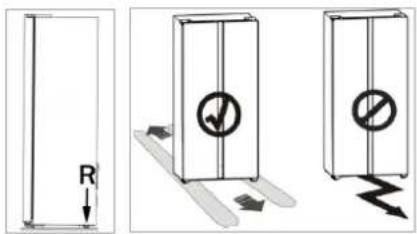

The appliance has rollers (R) which facilitate the transport and installation of the appliance.

CAUTION:

Use the rollers (R) only for forward or backward movement, otherwise the floor and the rollers could be damaged.

Diagram illustrating three different states of a device with labeled components and directional arrows indicating movement or force.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

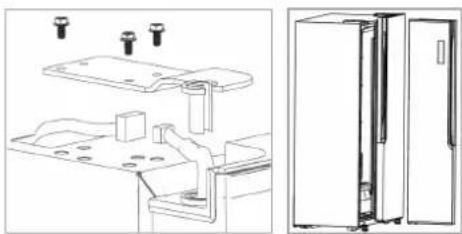

Removing the appliance doors

If the device does not fit through the room or kitchen door during transport, the appliance doors can be removed.

WARNING:

The device must not be connected to the power supply when removing the doors.

CAUTION:

Remove the device interior and put it safely aside.

i NOTE:

• Ask another person to assist; the device is heavy and must be tilted.
• You need: Phillips screwdriver and flat bladed screwdriver.

Technical line drawing of a mechanical assembly with clamps and a base (no text or symbols)

Technical line drawing of a mechanical assembly or fixture with no visible text or symbols

Technical line drawing of a refrigerator with mounting hardware and side view (no text or symbols)

Simple line drawing of a ladder with two hanging objects on one side and one on the other, no text or symbols present.

• Loosen the upper hinge cover.
• Disconnect the plug connection.
• Dismount the upper door hinge.
• Carefully lift the door out of the lower door hinge.

Repeat the steps ↑ for the other appliance door and continue ↓.

• Set both appliance doors safety aside.
• Tilt the device slightly backwards and block it in this position.
• Unscrew the lower hinges.
• When the device is in position, install the device doors in reverse order.

Appliance Equipment

Appliance overview

A B 1 2 3 4 5 1 2 3 4 3 4

A Freezer B Fridge

1 Interior light	1 Interior light
2 2-Star door storage rack	2 Door storage racks
3 4-Star door storage racks
4 Glass shelves	3 Glass shelves
5 Freezing drawer	4 Vegetable box

Delivery scope

Fridge: 5x glass shelf, 1x vegetable box, 3x door storage rack, 1x egg tray

Freezer: 5x glass shelf, 1x freezing drawer, 4x door storage rack, 1x ice-cube tray

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;
• Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.
• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust

the feet accordingly (see "Levelling the appliance").

- Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;
• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Appliance slope

NOTE:

Due to its construction, the appliance is sloping backwards, this is not a technical defect!

When the door storage racks are fully loaded, such a door can weigh up to 13-15 kilos.

The slope helps closing the doors more easier.

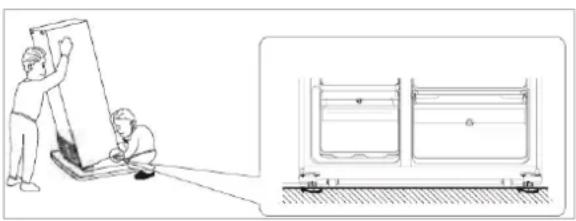

Levelling the appliance

Illustration showing two people installing or adjusting a large panel, with a separate view of a water tank mounted on a surface (no text or symbols)

Slight unevenness in the floor can be leveled out using the front feet.

Check whether the appliance is leveled horizontally. If the unit is not in balance, the feet must be adjusted.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!

WARNING:

• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Control panel

NOTE:

About 2 minutes after the last button press, the display will enter the standby mode.

The standby mode is terminated as soon as buttons are pressed, or device door is opened.

Control lamps

1 88 °C 2 -88 °C

1 Temperature display fridge
2 Temperature display freezer

OFF Fridge operation off

Automatic temperature control activated

Energy saving mode activated

Super cooling function activated

Super freezing function activated

Control panel locked for operation

Control panel unlocked for operation

Function buttons

FREEZER: Temperature setting freezer

Allows you to regulate the inside temperature in the range of -14^ to -22^ .

FRIDGE: Temperature setting fridge

Allows you to regulate the inside temperature in the range of +2^ to +8^ or to switch off the cooling mode if necessary.

MODE: Selection of functions

Press several times to choose between:

Automatic temperature control → Energy saving mode → Super cooling → Super freezing → User setting (no control lamp)

The corresponding control lamp flashes.

LOCK 3s: Safety child lock

Press the button for about 3 seconds to lock/unlock the operation of the control panel.

Function buttons

Automatic temperature setting

The optimal inside temperature is automatically adjusted taking into account the ambient temperature and the current inside temperature.

Energy saving mode

The device is put into energy saving mode.

The inside temperatures are automatically adjusted to around +8°C in the fridge and to -15°C in the freezer and kept constant.

Super cooling

Super freezing

When the super cooling or freezing function is activated, the device operates at maximum power to speed up the cooling or freezing process.

The super cooling function switches off automatically after about 150 minutes and the super freezing function after about 50 hours. The respective internal temperature adapts to the preset temperature.

The functions can be ended at any time before the switch-off times have expired by the MODE button.

Door alarm function

As soon as the fridge or freezer door remains open for more than 90 seconds, an alarm sounds in 35 second intervals until the doors are properly closed.

If the appliance doors remain open for more than 10 minutes, the interior light in the appliance goes out.

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following section "Settings".

Settings

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, adjust the lowest possible temperature (= highest power level), or select the super cooling / freezing function first, until the appliance has reached the desired operating temperature.

Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

NOTE:

In generally a medium power level works best for an optimized food storage. A high power level also increases the energy consumption.

Interior light

By opening the respective appliance door, the interior light switches on automatically.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and Maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice-cubes.
• One-, two- or three-star com-partments are not suitable for the freezing of fresh food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Storage space

Depending on requirements, shelves/drawers (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

i NOTE:

For the most efficient use of energy, place all shelves/drawers in their original position.

Fridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic covers with elastic strip
- Aluminum foil

Temperature zones and storage recommendations The optimal cooling temperature is around

5\~7 degrees for the central area of the cooling.

Different cooling zones are created by the air circulation. Regardless of the power level, cold air drops off.

- The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2-3 degrees.

- About that it becomes less cold. For dairy products such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 5 degrees.

- Well-packed leftovers or preserves needs less cooling. The upper cooling part at around 6-8 degrees could be the right place.

- The cooling door is one of the warmest locations. The upper racks are good location for food that

needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks.

- The vegetable box (depending on the model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezer

The four-star freezer allows you to store frozen food at a temperature of -18^ C or colder for several months to produce ice cubes / to freeze fresh food.

CAUTION:

The two-star door rack with a temperature of -12^ and colder is only suitable for short-term storage.

Freezing

• Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food

- Packed frozen merchandise should be stored in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.

- It is possible to store food for longer periods of time. The period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions

• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance disconnect it from the power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odor.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient

temperatures, the compressor will run more frequently and longer.

• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.
• After everything was thoroughly dried, you can restart the operation.

Defrosting

The appliance keeps free from ice inside because of the NoFrost System. A defrosting procedure isn't necessary.

Changing the bulb

CAUTION:

Do NOT remove the cover of the interior light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

Before you contact an authorized specialist

Problem Cause / Action
Unit is not working properly or at all	• Check the power supply / temperature setting / ambient temperature. • Unblock the ventilation openings, install the unit freely.
Loading is too warm	• Check the temperature setting / ambient temperature. • Open the door only as long as necessary.
Loud noise during operation	• Check the appliance position. • See the section “Operating noise”.
Water on the unit bottom	• Check the temperature setting.
Light does not work	• Check the power supply. • See “Changing the bulb”.

Error codes

With some malfunctions, the display shows error codes!

Code	Causes
E0	Display communication failure
E1	Temperature sensor failure fridge section
E2	Temperature sensor failure freezer section
E3	Defrosting sensor failure
E5	Defrost heater failure

NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Climate class SN/N/ST/T: this appliance is intended to be used at ambient temperature ranging from 10^ C to 43^ C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated (defrost) power: 240 W

Rated current: 1.5 A

Dimension H x W x D / Weight......

Appliance size: 177.0 x 90.0 x 59.0 cm

Net weight: ....approx. 81.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
