Product Type	Freestanding Refrigerator
Brand	Bomann
Model	VS 7329 IX
Dimensions (H x W x D)	185.0 x 60.0 x 70.0 cm (with door handle)
Net Weight	Approx. 64.0 kg
Power Supply	220-240 V~ / 50 Hz
Rated Power	100 W
Rated Current	0.75 A
Climate Class	SN/N/ST (10°C to 38°C ambient)
Refrigerant	Isobutane (R600a), flammable
NoFrost System	Yes, automatic defrosting
Super Cooling Function	Yes, max cool to approx. +2°C for 3 hours
Vacation Mode	Yes, maintains +17°C to save energy
Control Panel	Digital display with touch buttons
Interior Light	LED (replaceable by specialist)
Door Reversible	Yes, left or right opening
Wheels	Yes, for easy movement
Shelves	4 glass shelves (adjustable)
Crisper Drawers	2 fruit/vegetable boxes with humidity slider, 1 fresh box
Door Storage	4 racks, 1 egg tray
Temperature Range	+2°C to +8°C (adjustable)
Alarm Function	Acoustic signal if door open >90 sec
Accessories Included	Door handle, hinge cover, screw covers, manual

Frequently Asked Questions - VS 7329 IX BOMANN

How do I reverse the door opening on the Bomann VS 7329 IX?

Disconnect the appliance from power. Remove the cable cover strip, hinge cover, and upper hinge. Lift off the door. Move the lower hinge and door stopper to the opposite side. Reattach the door and handle, ensuring the door seal fits properly. See manual for detailed steps.

What do the error codes (flashing LED) mean?

When the door is open, the interior light flashes: 1 flash = temperature sensor failure; 2 flashes = defrost sensor failure; 5 flashes = display communication failure. Contact an authorized technician if problems persist.

How should I clean the refrigerator?

Always unplug first. Clean interior, exterior, door seal, and accessories with warm water and mild detergent or a damp microfiber cloth. Do not use steam cleaners, abrasive tools, or acidic detergents. Dry thoroughly before restarting.

How do I activate Super Cooling mode?

Press the SUPER button on the control panel. The appliance will cool to approx. +2°C for about 3 hours, then automatically return to the preset temperature. You can deactivate it early by pressing SUPER again.

What is Vacation mode and how do I use it?

Vacation mode keeps the fridge at +17°C to save energy during long absences. Do not store perishable food. Press and hold the VACATION button for 3 seconds to activate/deactivate. The vacation icon will light up.

Why is the alarm sounding?

The alarm sounds if the door is left open for more than 90 seconds. Press the ALARM button or close the door to stop it. If the door remains open for 10 minutes, the interior light turns off.

Does this refrigerator need manual defrosting?

No, the Bomann VS 7329 IX features a NoFrost system that automatically prevents ice buildup. No manual defrosting is necessary.

How do I adjust the temperature?

Press the FRIDGE button on the control panel repeatedly to cycle through temperatures from +2°C to +8°C. The display shows the set temperature. Wait a few hours for stabilization.

How can I save energy with this refrigerator?

Install away from heat sources, ensure 50-70 mm space at back and 100 mm on sides/top, keep doors closed, allow hot food to cool before storing, and do not set colder than necessary. The appliance has a vacation mode for longer absences.

What should I do with the appliance at the end of its life?

Do not dispose of it with household waste. Remove or disable locks (to prevent child entrapment) and take it to a designated collection point for electrical equipment. The refrigerant R600a is flammable; proper disposal is required.

USER MANUAL VS 7329 IX BOMANN

Exterior view of a modern white refrigerator with a digital display on top (no visible text or symbols)

Special safety Information for this Unit......Page 17

Transport and Packaging......Page 18

Appliance Equipment......Page 19

Installation......Page 19

Startup / Operation......Page 21

Cleaning and Maintenance......Page 24

Troubleshooting......Page 25

Technical Data......Page 25

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with labeled part 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a screw and mounting bracket (no text or symbols)

Diagram of a device with a handle and connector, showing a transformation from a rectangular component to a small mechanical part (no text or symbols present)

ALARM: Signalton beenden

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

i NOTE:

The appliance has wheels which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpacking the appliance

• Remove the appliance from its packaging.

• Remove all packaging material, such as foils, filler and cardboard packaging.

• To prevent hazards, check the appliance for any transport damage.

• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Appliance Equipment

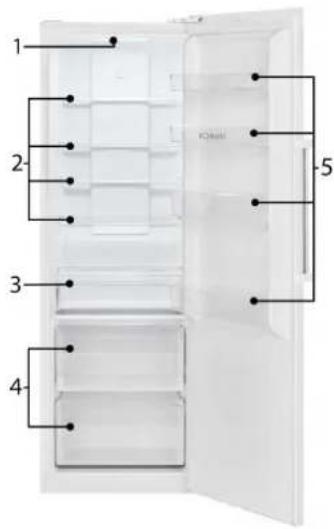

Appliance overview

1 2 3 4 5

1 Interior light
2 Glass shelves
3 Fresh box
4 Fruit/Vegetable boxes
5 Door storage racks

Delivery scope

4x glass shelf, 1x fresh box, 2x fruit/vegetable box with glass cover, 4x door storage rack, 1x egg tray, 1x door handle incl. fixing screws with covers, for reversing the door opening: 1x door hinge cover, 1x door stopper

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;
• Place the appliance so that the appliance door can open without being impeded.

100 50-70 100

1323 90° 115° 835

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.

- Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

- Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;
• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Assembling the door handle

• Carefully remove the cover caps on the door outside.
• Tighten the handle with the enclosed screws in the holes.
• Put the included screw covers on.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

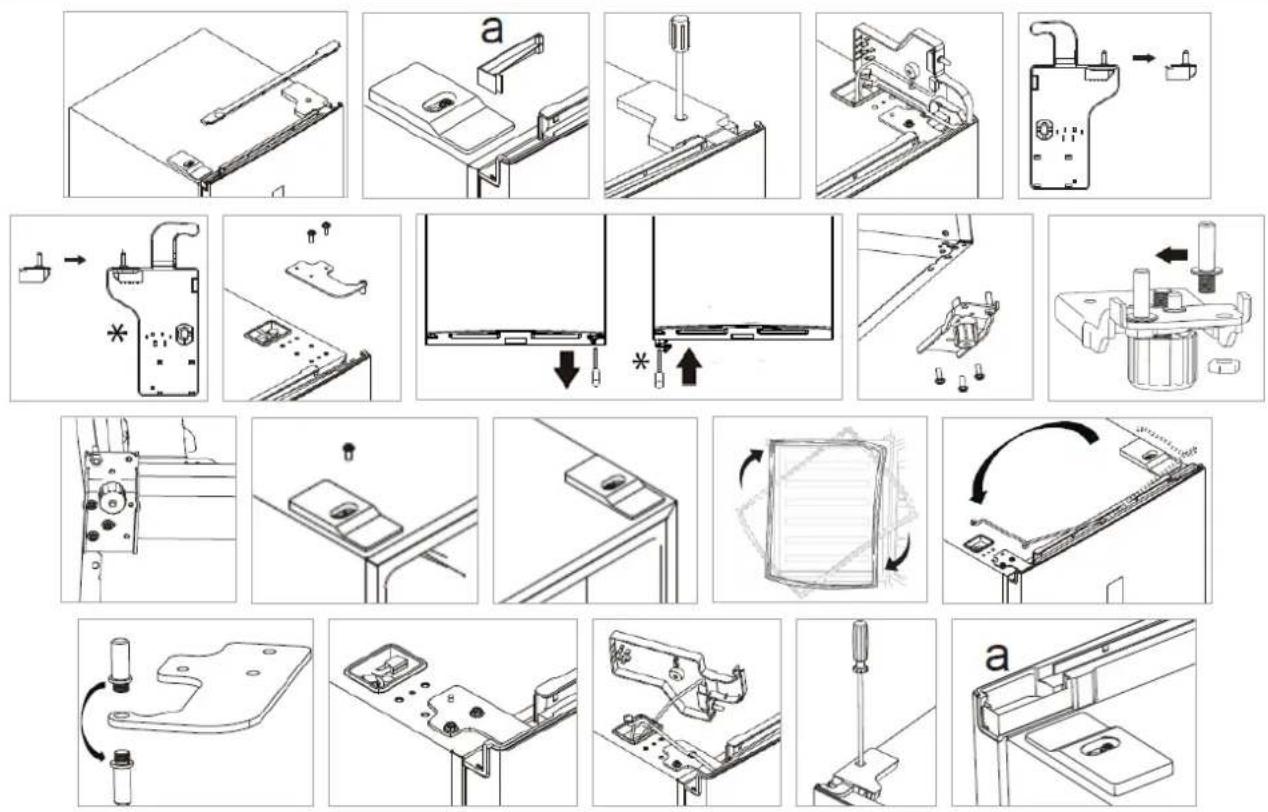

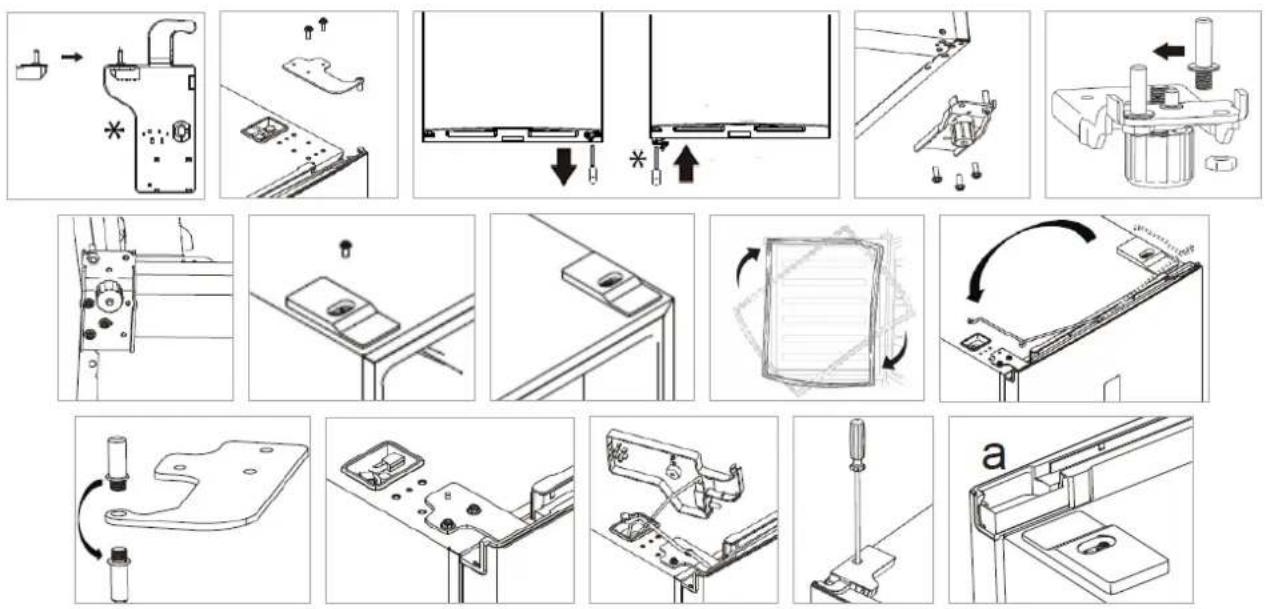

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

IOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.
  • *Delivery scope!
  Keep the parts to be replaced for another possible door stop change.

- Remove the cable cover strip on the door top and the dummy cap (a).

- Loosen the hinge cover and disconnect the plug connections.

• Detach the door contact switch from the hinge cover and insert it into the delivered hinge cover.
• Dismount the upper door hinge and lift out the appliance door.
• Remove the door stopper on the door underside and attach the delivered door stopper to the other door underside.
• Tilt the device slightly backwards and block it in this position. Unscrew the feet and dismount the lower door hinge.
• Transfer and attach the lower door hinge to the opposite device side; after you have unscrewed the hinge pin and inserted it into the adjacent hole. Screw in the feet accordingly.
• Put the device back in the upright position. Loo-sen the screw cover on the device top and reattach it on the other side.
• Put the appliance door on and fix it in the intended position.
• Check the door rubber seal for an exact fit and, if necessary, bring it into the correct position.
• Move the cable on the device from the right to the left slot.
• Transfer and fasten the upper door hinge on the opposite device side; after you have unscrewed the hinge pin and inserted it from the other side of the hinge.
• Lay the connection cable through the hinge opening. Put on the hinge cover, connect the display and door connector and screw on the hinge cover.
• Turn the blind cap (a) about 180^ and insert it.
• Dismount the door handle (if it is already installed) and attach it to the corresponding other outside of the door. Observe the instructions under "Assembling the door handle". Move the cover caps to the exposed holes on the other door side.

Check that the door is optimally aligned vertically and horizontally so that the door can open and close smoothly.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Control panel

i NOTE:

About 2 minutes after the last button press, the display will enter the standby mode.

The standby mode is terminated as soon as buttons are pressed, or device door is opened.

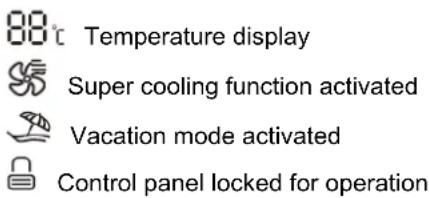

Control lamps

88°C Temperature display Super cooling function activated Vacation mode activated Control panel locked for operation

Function buttons

FRIDGE: Temperature setting

Allows you to regulate the inside temperature in the range of +2°C to +8°C.

SUPER: Super cooling

Activate/deactivate the super cooling function.

ALARM: Stop the acoustic signal

Stop the signal tone for the alarm function.

VACATION 3s: Vacation mode

Press the button for about 3 seconds to activate/deactivate the vacation mode.

LOCK 3s: Control panel lock

Press the button for about 3 seconds to lock/unlock the operation of the control panel.

The control panel locks automatically after about 25 seconds without any operation.

Function description

Super cooling

When the super cooling function is activated, the device operates at maximum power (approx. +2°C) to speed up the cooling process.

The super cooling function switches off automatically after about 3 hours. The internal temperature adapts to the preset temperature.

The function can be ended at any time before the switch-off time has expired.

Vacation mode

CAUTION:

Do not store any fresh or perishable food in the appliance during this time.

Cause of longer absence you can put the appliance into holiday mode.

During this period, the fridge is cooled down to only +17°C. It does not only save energy, but also prevents unpleasant odors and mold, as the appliance is not completely switched off.

Alarm function

As soon as the appliance door remains open for more than 90 seconds. Press the ALARM button or close the appliance door to stop the acoustic signal.

If the appliance door remains open for more than 10 minutes, the interior light goes out.

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following section "Settings".

Settings

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, adjust the lowest possible temperature (= highest power level), or select the super cooling function first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

i NOTE:

In generally a medium power level works best for an optimized food storage. A high power level also increases the energy consumption.

Interior light

When opening the appliance door, the interior light will turn on automatically.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic cover with elastic strip
- Aluminum foil

To avoid contamination of food, respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and Maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Storage space

Depending on requirements, shelves/drawers (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

NOTE:

For the most efficient use of energy, place all shelves/drawers in their original position.

Temperature zones and storage recommendations The optimal cooling temperature is around 5\~7 degrees for the central area of the cooling.

Different cooling zones are created by the air circulation. Regardless of the power level, cold air drops off.

- The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2-3 degrees.

• About that it becomes less cold. For dairy products such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 5 degrees.
• Well-packed leftovers or preserves needs less cooling. The upper cooling part at around 6-8 degrees could be the right place.
• The cooling door is one of the warmest locations. The upper racks are good location for food that needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks.
• The vegetable box (depending on the model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Fruit/Vegetable box with slider

The right humidity is crucial for long-lasting fresh fruits and vegetables. With the help of a slider you can regulate the humidity inside the vegetable box.

Slider position:

→ open: low humidity, recommended for fruits
→ closed: high humidity, recommended for vegetables

This allows ideal storage conditions for fruits and vegetables.

Fresh box

Suitable for fresh food such as fish, meat and seafood at a temperature 1\~2°C lower than in the fridge compartment.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance disconnect it from the power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odor.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.
• After everything was thoroughly dried, you can restart the operation.

Defrosting

The appliance keeps free from ice inside because of the NoFrost System. A defrosting procedure isn't necessary.

Changing the bulb

CAUTION:

Do NOT remove the cover of the interior light.

The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

Before you contact an authorized specialist

Problem Cause / Action
Unit is not working properly or at all	• Check the power supply / temperature setting / ambient temperature. • Unblock the ventilation openings, install the unit freely.
Loading is too warm	• Check the temperature setting / ambient temperature. • Open the door only as long as necessary.
Loud noise during operation	• Check the appliance position.• See the section “Operating noise”.
Water on the unit bottom	• Check the temperature setting.
Light does not work	• Check the power supply.• See “Changing the bulb”.

Error codes

In the event of some malfunctions, the interior light flashes when the appliance door is open:

LED flashes	Causes
1x	Temperature sensor failure
2x	Defrosting sensor failure
5x	Display communication failure

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Climate class SN/N/ST: this appliance is intended to be used at ambient temperature ranging from 10°C to 38°C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 100 W

Rated current: 0.75 A

Dimension H x W x D / Weight......

Appliance size: 185.0 x 60.0 x 70.0* cm

*measured depth with door handle

Net weight: ....approx. 64.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
