USER MANUAL KGE 7808.1 BOMANN

HOUSEHOLD - BUILT-IN FRIDGE / FREEZER

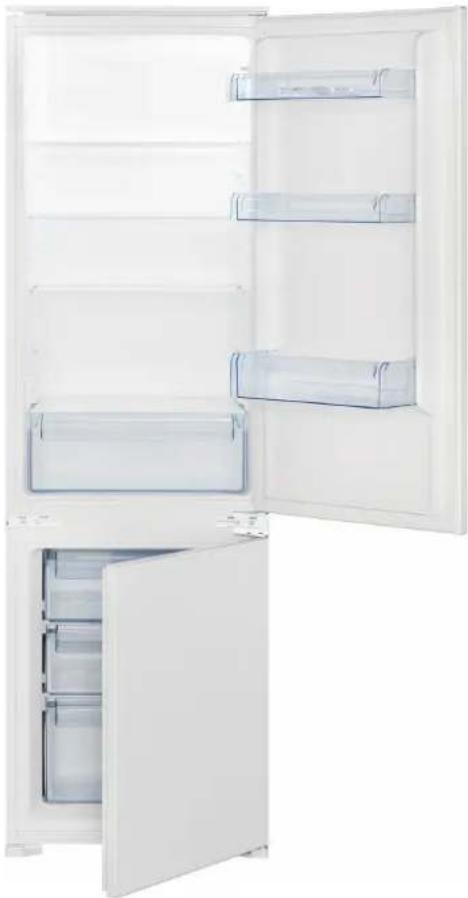

Interior view of a white refrigerator with open doors and shelves (no visible text or symbols)

Special safety Information for this Unit......Page 18

Transport and Packaging......Page 19

Appliance Equipment......Page 20

Installation......Page 20

Startup / Operation......Page 23

Cleaning and Maintenance......Page 26

Troubleshooting......Page 27

Technical Data......Page 27

Simple line drawing of a mechanical setup with a rotating component and a base (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

- The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

- For safety reasons, alterations or modifications of the appliance are prohibited.

- To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment

Appliance overview

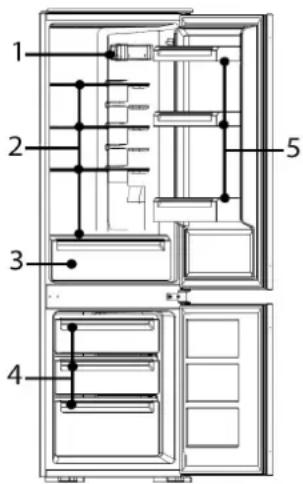

1 2 3 4 5

1 Control panel / interior light
2 Glass shelves
3 Vegetable box
4 Freezing drawers
5 Door storage racks

Delivery scope

4x glass shelf, 1x vegetable box, 3x door storage rack, 1x egg tray, 3x freezing drawer, incl. mounting material

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Refer to the instructions which we give you in "Built-in";
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance.

The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.

• Look for stable, horizontal appliance position.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reversing the door opening

If required, the door openings can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stops, the appliance must be disconnected from the power supply first.

NOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screwdriver as well as a thin-blade screwdriver.

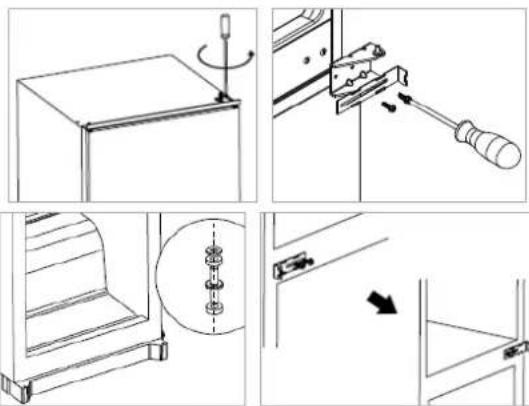

Four mechanical bracket components with mounting holes and a central bolt, shown in sequence (no text or symbols)

Simple line drawing of a mechanical setup with a rotating component and a base, no text or symbols present.

• Dismount the upper door hinge, lift the fridge door and set the door safely aside.
• Dismount the center door hinge, lift the freezer door and set the door safely aside.
• Release and move the lower hinge pin to the opposite appliance side.
• Move and fix the bracket angle of the center door hinge to the opposite appliance side.
• Put on the freezer door and fit it in the intended position.

Move and fix the center door hinge accordingly.

- Put on the fridge door and fix it in the intended position.

Transfer and fasten the upper door hinge to the opposite appliance side; after unscrewing the hinge pin and have reinstalled from the other hinge side.

Check that the doors are aligned vertically and horizontally to ensure proper opening and closing of the doors.

Built-in

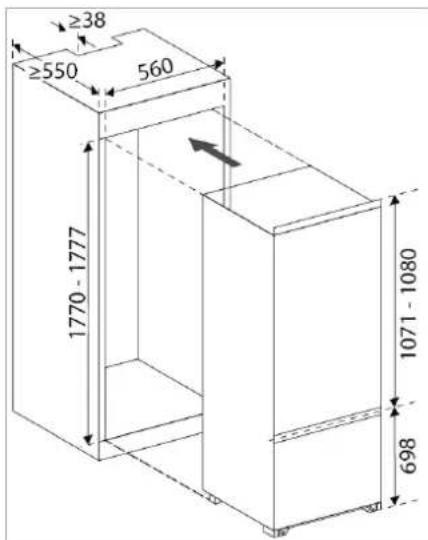

≥38 ≥550 560 1770 - 1777 1071 - 1080 698

Figures in mm

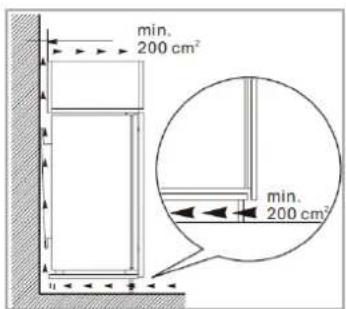

min. 200 cm² min. 200 cm²

For ventilation, an exhaust duct of approx. 38 mm depth must be provided on the appliance back.

The ventilation openings in the furniture base and building must be min. 200 cm ^4 to ensure that heated air can be freely escape.

Mounting material

(R) 1x seal (a) 4x guide (b) 4x bracket (c) 4x cover (d) 4x cover

(S1) 27x screws (S2) 2x screws (M) 2x cover

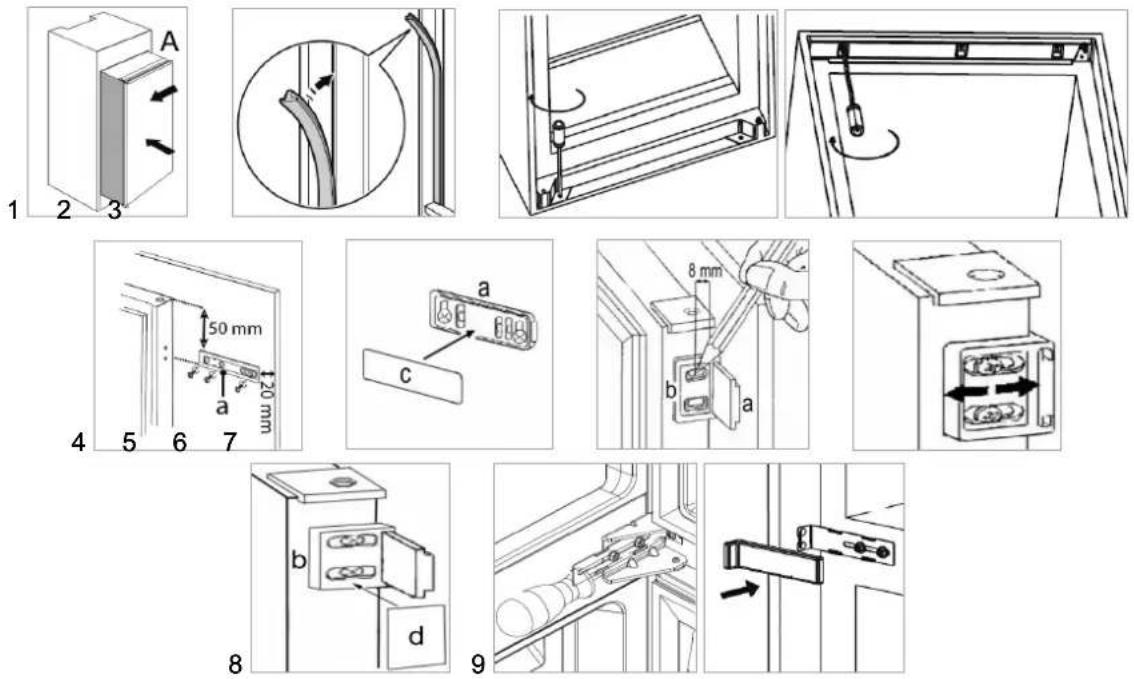

A 1 2 3 4 5 6 7 50 mm a c 8 mm b a 8 d 9

△ CAUTION:

Before drilling, check the furniture front for sufficient strength for the enclosed screw length.

1 Install the power cord so that the appliance can be easily connected after installation. Slide the appliance into the build-in opening until the stop plate (A) abuts the furniture.
2 Press the rubber seal between the appliance and built-in furniture firmly (on the side without hinge).
3 Open the appliance door. Push the appliance side, which is located opposite the hinges, against the built-in furniture. Arrange the appliance for a secure, vertical position, fix it with the supplied screws, bottom 2x (S2) and top 2x (S1).
4 In consideration of the shown distances, hold the guide (a) at the top and bottom inside of the furniture door; mark the positions of the drill holes. Af-

ter drilling, fix the guide with the screws (S1) provided.

5 Insert the cover (c) until it clicks in the guide (a).
6 Fully open the appliance and furniture door and join them together. Slide the angle (b) in the guide (a) and mark the drill holes. Remove the bracket and drill ∅ 2 mm holes with about 8 mm distance to the outer door edge. Put the bracket on again; secure it with the screws (S1) provided.
7 If an aligning of the furniture door is necessary, use the slot spacing. Check if the door is arranged vertical as well as horizontal, so that a smooth opening and closing of the door is ensured.
8 Insert the cover (b) until it clicks on the angle (b).
9 Fix the bracket angle of the center door hinge with the kitchen furniture using the enclosed screws

(S1). Put on the cover (M). Same procedure for fixing the other side of the appliance.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for about four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Switch on the appliance and adjust the power level at the control panel. Read the following sections as well.

Control panel

B1 Adjust 1 2 3 4 5 Smart L2 Super L3 Mode B2 L1

Function buttons

B1\_ADJUST

• Keep pressing the button for about 5 seconds to switch the appliance on or off.
• Press the button several times to select the power level: 1 -> 2 -> 3 -> 4 -> 5

B2\_MODE

Press the button several times to select the modes: SMART -> SUPER -> User's setting

Control lamps

L1: indicates the selection of the power level.
L2: indicates the activation of the SMART function.
L3: indicates the activation of the SUPER function.

Function description

SMART: Automatic temperature control

The indoor temperature automatically adapts to the ambient temperature of the most optimal way to preserve and store food.

SUPER: Quick cooling

When activated, the appliance operates at maximum power to speed up the cooling process.

The quick cooling function switches off automatically after about 54 hours. The indoor temperature adapts to the preset power level.

The function can be stopped at any time before the switch-off time has expired.

Alarm function

Once the fridge door remains open for more than 90 seconds, 5 consecutive alarm tones sounds every 30 seconds until the door is closed.

Settings

If the control lamps L1 are off, the appliance is in the off state. Switch on the appliance and select the desired power level.

The power levels [1-5] regulate the different values of the internal temperature.

Power level 1+2:

lowest level → warmest internal temp.

Temperature range approx. +4°C\~+10°C

Power level 3 :

medium level → optimal operating temp.

Temperature range approx. +3°C\~+7°C

Power level 4 + 5^* :

lowest level → coldest internal temp.

Temperature range approx. 0°C\~+6°C

*Beware of high setting because the maximum level usually already means "freezing point".

The temperature of the freezer is automatically controlled by the power level setting in the fridge.

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

During initial operation, turn the power level to the highest level (or SUPER) first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

NOTE:

In generally a low to medium power level works best for an optimized food storage. A high power level also increases the energy consumption.

Interior light

When opening the fridge door, the interior light will turn on automatically.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and Maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Storage space

Depending on requirements, shelves/drawers (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

i NOTE:

For the most efficient use of energy, place all shelves/drawers in their original position.

Fridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
• Special plastic covers with elastic strip
- Aluminum foil

Temperature zones and storage recommendations The optimal cooling temperature is around 5\~7 degrees for the central area of the cooling.

Different cooling zones are created by the air circulation. Regardless of the power level, cold air drops off.

- The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2-3 degrees.

• About that it becomes less cold. For dairy products such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 5 degrees.
• Well-packed leftovers or preserves needs less cooling. The upper cooling part at around 6-8 degrees could be the right place.
• The cooling door is one of the warmest locations. The upper racks are good location for food that needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks.
• The vegetable box (depending on the model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezer

The 4-star freezer allows you to store frozen food at a temperature of ≤ -18^ for several months; to produce ice cubes and to freeze fresh food.

i NOTE:

Make sure that the temperature in the freezer does not rise above -18^ . For this, the unit should be defrosted regularly. A thick frozen layer deteriorates the cooling and increases the power consumption.

Freezing

• Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food

• Packed frozen merchandise should be stored in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time. The period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions

• Do not exceed the maximum freezing capacity.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance, press the button B1 for approx. 5 seconds.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.

WARNING:

- The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.

Defrosting

CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

The fridge compartment has a partially automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

A permanently high power level can lead to increased ice formation. In this case, the fridge compartment must also be defrosted manually.

To achieve better cooling and to save energy, defrost the freezer regularly as follows:

• To start the defrosting process, switch the appliance off and disconnect it from the power supply.
• Remove the unit items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and setting the power level.

Changing the bulb

CAUTION:

Do NOT remove the cover of the interior light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

Before you contact an authorized specialist

Problem Cause / Action
Unit is not working properly or at all	· Check the power supply / temperature setting / ambient temperature.· Unblock the ventilation openings, install the appliance freely.
Loading is too warm	· Check the temperature setting / ambient temperature. · Open the door only as long as necessary.
Loud noise during operation	· Check the appliance position.· See the section “Operating noise”.
Water on the unit bottom	· Check the temperature setting / water discharge channel or opening.
Light does not work	· Check the power supply.· See “Changing the bulb”.

NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Climate class N/ST: this appliance is intended to be used at ambient temperature ranging from 16°C to 38°C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 115 W

Rated current: 0.75 A

Dimension H x W x D / Weight.....

Appliance size: 178.0 x 54.0 x 54.0 cm

Net weight: ....approx. 55.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
