USER MANUAL KSE 7805 BOMANN

HAUSHALTSAUSNBAUKNÜHLSCHRANKÜHLSCHKSEK78057805

Interior view of a white refrigerator with open doors and clear plastic shelves (no visible text or symbols)

Special safety Information for this Unit......Page 18

Transport and Packaging......Page 19

Appliance Equipment......Page 20

Installation......Page 20

Startup / Operation......Page 22

Cleaning and Maintenance......Page 25

Troubleshooting......Page 26

Technical Data......Page 26

Technical line drawing showing two views of a cabinet or support structure with a handle and bracket (no text or symbols)

Diagram of a rectangular device with a side panel and two arrows indicating direction (no text or symbols)

Diagram of a door panel with labeled parts (a and b), no text or symbols present

a 底二号 000 3

a c

Technical diagram showing a mechanical assembly with labeled components a and b, including a bracket and mounting holes.

Pure electrical connector diagram without any text, numbers, or symbols

b d 7

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a mechanical frame with a hanging hook and rotational arrow (no text or symbols)

Diagram showing a curved pipe or tube with an arrow pointing to it, enclosed in a circle (no text or symbols present)

ACHTUNG:

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Usee Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

NOTENDt highlights tips and information.

General Notes General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTENOTE

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Operate the appliance only pproperly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for Special Safety Information fo

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance appliance way and understand the hazards involved.

- ChildrenChildrent play with the appliance.

• Cleaning and user maintenance shall not be made by children dress they are older 8 years and supervised.
• NOTE: No children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING/WARNINGS: / Riskifiable

materialsmaterials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance mable

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

- Avoid the installation:oid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources; - at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).

- Do not expose the appliance any weather.

Appliance Equipment Appliance Equipment

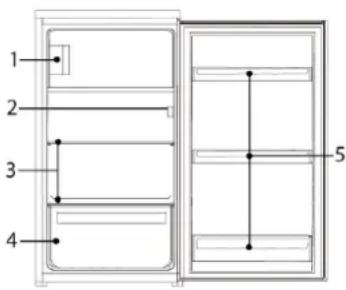

Appliance overviewAppliance overview

1 2 3 4 5

1 Freezer
2 Temperature control / light
3 Glass shelves
4 Vegetable box
5 Door storage racks

Delivery scope Delivery scope

2x glass shelf, 1x vegetable box, 3x door storage rack, 1x egg tray, incl. mounting material

Installation Installation

Conditions foCreditistalation locationistallation loc

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Refer to the instructions which we give you in "Built-in";
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to the "EU Product Data Sheet" or to the rating label located in the interior or on the appliance rear.

- Look for stable, horizontal appliance position.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

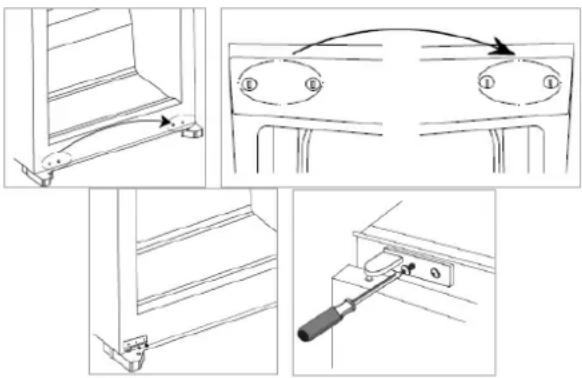

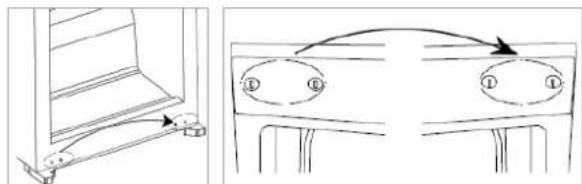

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

NOTENOTE

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

Technical line drawing showing two views of a cabinet or shelf with a handle and mounting bracket (no text or symbols)

Technical line drawing showing a structural component with arrows indicating motion, alongside a cross-sectional view of a table with two oval shapes labeled ① and ② (no text or symbols beyond labels)

Technical line drawing showing two mechanical assembly steps: one with a bracket and the other with a screwdriver inserted into a housing (no text or symbols)

• Dismount the upper door hinge, lift the appliance door and set the door safely aside.
• Dismount the lower door hinge.
• Place the respective blind caps on the exposed holes of the upper and lower door hinge.

• Turn over the originally upper door hinge and install it at the bottom left side.

• Put on the appliance door and fix it in the intended position.

• Turn over the originally lower door hinge and install it at the top left side.

Check that the door is aligned vertically and horizontally to ensure proper opening and closing of the door.

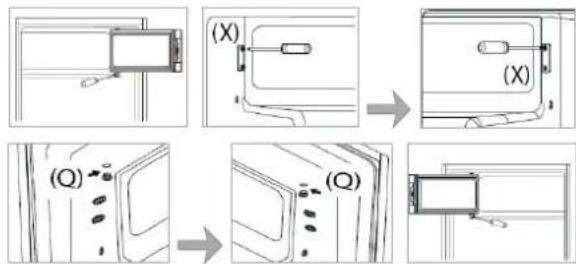

Reverse the freezer door opening opening

• Open the freezer door, disassemble the holder and remove the freezer door.
• Dismount the snapper (X) and attach it to the opposite side.
• Move the hinge pin retainer (Q).
• Turn over the freezer door, move the freezer door and bracket to the new position. Fix the bracket.

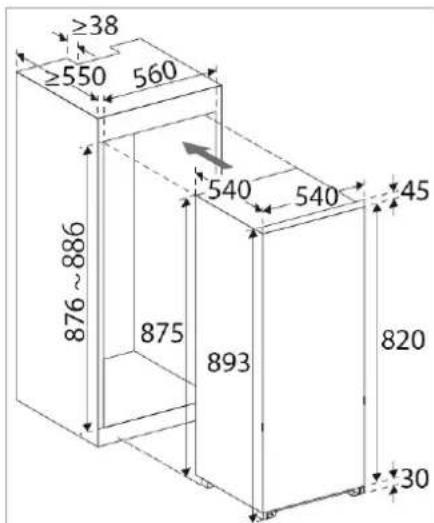

Built-in

≥38 ≥550 560 876~886 875 893 540 540 45 820 30

Figures in mm

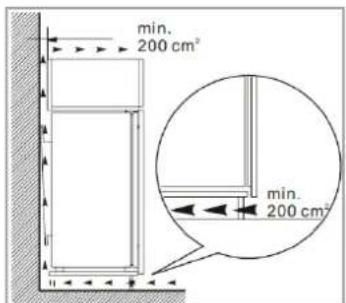

min. 200 cm² min. 200 cm²

For ventilation, an exhaust duct of approx. 38 mm depth must be provided on the appliance back.

The ventilation openings in the furniture base and building must be min. 200 cm ^4 to ensure that heated air can be freely escape.

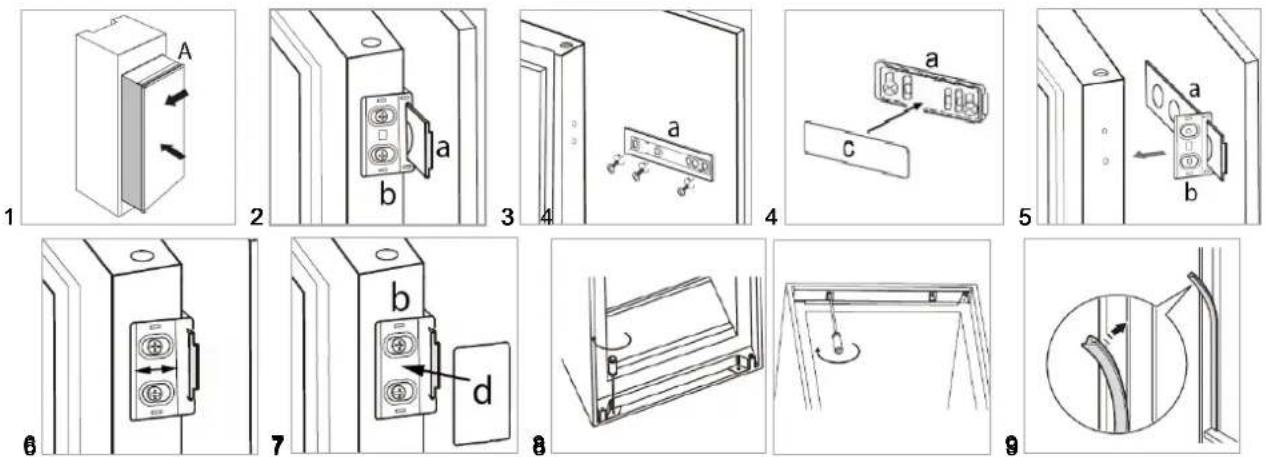

Mounting material Mounting material

(R) 1x seal (a)	2x guide rail (b) 2x bracket (c) 2x cover		(d) 2x cover (S) min.	15x screws

△ CAUTION:

Before drilling, check the furniture front for sufficient strength for the enclosed screw length.

1 Install the power cord so that the appliance can be easily connected after installation. Slide the appliance into the build-in opening until the stop plate (A) abuts the furniture.

Open the appliance door. Push the appliance side, which is located opposite the hinges, against the built-in furniture. Arrange the appliance for a secure, vertical position.

2 Screw the bracket (b) with the screws (S) into the screw holes provided on the appliance door. Insert the guide rail (a).

Check that the merged doors are optimally aligned vertically and horizontally so that smooth opening and closing is guaranteed.

Mark the position of the screw holes for the guide rail (a) on the furniture door.

3 Take the guide rail (a) out of the bracket (b) and fasten the guide rail to the pre-marked position using the screws (S) (possibly pre-drill the screw holes).

4 Insert the cover (c) until it clicks in the guide (a).

5 Release the bracket (b) from the appliance door. Open the appliance and furniture door completely and bring them together. Slide the bracket (b) into the guide rail (a) and fasten the bracket again with the screws (S).
6 If an aligning of the furniture door is necessary, use the slot spacing.
7 Insert the cover (d) until it clicks in the bracket (b).
8 Secure the appliance at the top and bottom of the built-in cabinet with the screws (S).
9 Press the rubber seal (R) between the appliance and the built-in furniture (side without hinge).

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for about four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

SettingsSettings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-7] regulate the different values of the internal temperature.

Setting@ti@f:state

Setting Lowest setting (warmest inside temp.)

SettingInHighest setting (coldest inside temp.)

The temperature of the freezer is automatically controlled by the power level setting in the fridge.

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior light Interior light

When opening the fridge door, the interior light will turn on automatically.

Storing foodStoring food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and Maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Fridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic covers with elastic strip
- Aluminum foil

Recommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage racks.

• With air circulation different climate zones arises.

• The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.

• The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

ShelvesShelves

Depending on requirements, the shelves (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

Vegetable vegetable box

Suitable for fruits and vegetables at a temperature around 8^ C, depending on the fridge temperature.

To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezerreezer

The 4-star freezer allows you to store frozen food at a temperature of ≤ -18^ for several months; to produce ice cubes and to freeze fresh food. The temperature of the freezer is automatically controlled by the temperature control in the fridge.

i NOTE:NOTE:

Make sure that the temperature in the freezer does not rise above -18^ . For this, the unit should be defrosted regularly. A thick frozen layer deteriorates the cooling and increases the power consumption.

FreezingFreezing

- Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.

• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen foodStoring frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions General safety precautions

- Do not exceed the maximum freezing capacity. See data under "EU Product Data Sheet" or on the rating label.

- Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.

- Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.

- Do not open the door in case of power failure. If the failure does not take longer than 13 hours, there's food will not be affected.

- Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.

- Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.

- Never touch frozen food with moist or wet hands.

Type of soundT	Open source
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching Softching

To switch off the appliance turn the temperature come sw trol to the off state.the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Do not adjust the temperature colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door no longer than required.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
  Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

witch off the appliance turn the temperature co Do not use a wire brush or other sharp, abrasive items.

- Do not use any acidic or abrasive detergents.

- Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.

Defrosting

△ CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

The fridge has an automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get

clogged. A light formation of ice on the interior back during operation is normal.

To achieve better cooling and to save energy, defrost the freezer regularly as follows:

• To start the defrosting process, turn the temperature control to the off state and disconnect the plug or turn off the fuse.
• Remove the unit items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and turning the temperature control.

Changing the bulb

CAUTION:CAUTION:

Do NOT Remove the cover of the interior light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

ProblemP	Cause/Action
Light does not work	Check the power supply.See “Changing the bulb”.

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz Rated power: 80 W

Dimension H x W x D / Weight....

Appliance size: 88.0 x 54.0 x 54.0 cm Net weight: approx. 29.0 kg

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety

Before you contact an authorized specialist Before you configuration authorized specialist

Problem/Procedure Action
Unit is not working properly or at all	· Check the power supply / temperature setting / ambient temperature. · Unblock the ventilation openings, install the appliance freely.
Loading is too warm	· Check the temperature setting / ambient temperature. · Open the door only as long as necessary.
Loud noise during operation	· Check the appliance position. · See the section “Operating noise”.
Water on the unit bottom	· Check the temperature setting / water discharge channel or opening.

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

EU Product Data Sheet EU Product Data Sheet

Product data sheet for household refrigerators/finesters/according to regulation (EU) No. 1060/2010 according to regulation (I)

BrandBrand		BOMANNBOMANN
ModelModel		KSE 7805E 7805
Category1)		7
Energy Efficiency class2)		A++
Annual Energy consumption3)	kWh/a	135
Net capacity cooling total	I	105
- thereof cold storage compartment	I	-
- thereof wine storage compartment	I	-
- thereof cold storage compartment	I	-
- thereof storage compartment for fresh-food	I	105
Net capacity freezing total	I	15
Star rating4)		4
Design temperature of other compartments	°C	-
Coldest storage temperature of wine storage compartment	°C	-
Frost-free		-
Temperature rise time	h	13
Freezing capacity	kg/24h	2
Climate class5)		N
Noise emission	dB(A) re1 pW	41
Built-in		√
Wine storage appliance		-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency)
3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.
4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C
** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C
*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C
(^**) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24h
5) Climate class SN: ambient temperature of +10°C up to +32°C
Climate class N: ambient temperature of +16°C up to +32°C
Climate class ST: ambient temperature of +16°C up to +38°C
Climate class T: ambient temperature of +16°C up to +43°C

BOMANN®
