USER MANUAL KS 7315.1 BOMANN

Interior view of a white refrigerator with open doors and shelves (no visible text or symbols)

Special safety Information for this Unit.... Page 23

Transport and Packaging...... Page 26

Appliance Equipment...... Page 26

Installation...... Page 26

Startup / Operation...... Page 29

Cleaning and Maintenance...... Page 34

Troubleshooting...... Page 35

Technical Data...... Page 36

Disposal...... Page 36

Einleitung

Diagram showing three stages of a 3D rectangular block with an arrow indicating transformation, and a curved arrow labeled 'r' at the end (no text or symbols present)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

(s)

Simple line drawing of a mechanical frame with two downward arrows and a small inset view (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

180°

(s)

Technical line drawing of a mechanical assembly with no visible text or symbols

180°

Hand placing a black arrow on a shelf with shelves (no text or symbols visible)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

i HINWEIS:

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instruc- tions very carefully before

putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

- The appliance is only to be used as described in the user manual. Do not use the unit for any other purpose. Any other use is not intended and can result in damages or personal injuries.

- This appliance is not intended to be used as a built-in appliance.

- Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.

- When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

• The appliance and if possible, the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.

- To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except

those described in this manual (depending on the model included the scope of delivery).

• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
- NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire /

flammable materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

NOTE:

The appliance has wheels which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpacking the appliance

• Remove the unit from its packaging.
• Remove all packaging material, such as foils, filler, cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according.

Appliance Equipment

Appliance overview

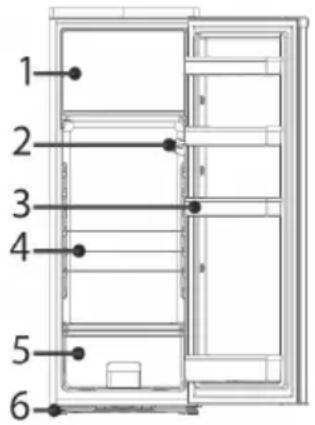

1 2 3 4 5 6

1 Freezer
2 Temperature control / light
3 Door racks
4 Glass shelves
5 Vegetable box
6 Feet

Delivery scope

4x glass shelf, 1x vegetable box, 4x door storage rack, 1x egg tray, 1x ice-cube tray, 2x blind cap (for reversing the door opening)

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

- Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;

- Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance.
  The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.
• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Mounting the door handle

Diagram showing three stages of a container or storage unit with arrows indicating process flow (no text or symbols)

Attach the door handle by removing the cover caps from the door outer side and tighten the handle with the delivered screws into the underlying holes. Put the included screw covers on.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.
• Make sure that the voltage supply matches the specifications on the rating label before connecting.
• Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

NOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screwdriver as well as a thin-blade screwdriver.
• Keep the parts to be replaced for another possible door stop change.

Technical line drawing of a mechanical assembly with no visible text or symbols

(s)

Simple line drawing of a mechanical frame with two wheels and directional arrows (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

180°

(s)

Technical line drawing of a mechanical assembly with no visible text or symbols

180°

• Loosen the screws on the unit back and remove the unit cover.
• Dismount the upper door hinge and the opposing screws (s) and lift the unit door.
• Transfer the door stopper on the underside of the door and set the unit door safely aside.
• Tilt the unit slightly backwards and block it in this position. Unscrew the feet and remove the lower door hinge.
• Transfer and attach the lower door hinge to the opposite unit side; after unscrewing the hinge pin and reinstalling it from the other hinge side. Screw in the feet accordingly.
• Put the unit back in the upright position. Put on the unit door and fix it in the intended position.
• Transfer and attach the upper door hinge to the opposite unit side; after

unscrewing the hinge pin and reinstalling it from the other hinge side. Screw in the screws (s) on the opposite side.

• Replace the unit cover and secure it.
• Dismount the door handle and attach it to the other door outside. Observe the instruction under "Mounting the door handle". Place the cover caps on the exposed holes on the other door side.

Check that the door is optimally aligned both vertically and horizontally to ensure a smooth opening and closing of the door.

Reverse the freezer door opening

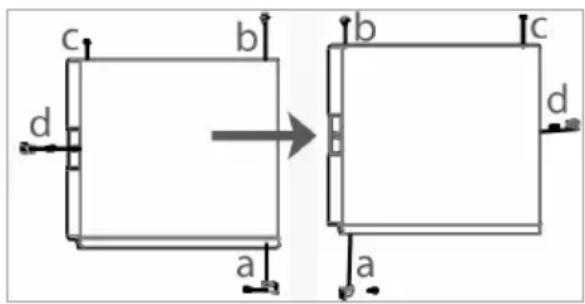

c b d a b c d a

• Keep the freezer door closed. Dismount the holding (a) and remove the freezer door.
• Move the hinge pin holder (b) and the blind plug (c).
• Dismount the door snapper (d) and fix it on the opposite side.
• Insert the enclosed blind caps onto the now exposed holes (a) and (d).

- Move the holding (a) accordingly. Position the freezer door and fix the holding.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

Settings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-7] regulate the different values of the internal temperature.

Setting 0: Off state

Power level 1 + 2 :

lowest level → warmest internal temp.

Temperature range approx. +8C\~+11°C

Power level 3 + 4 :

medium level → optimal operating temp.

Temperature range approx. +5°C\~+9°C

Power level 5 + 6 + 7*:

highest level → coldest internal temp.

Temperature range approx. 0^ +4^

*Beware of high setting because the

maximum level usually already means

"freezing point".

The temperature of the freezer is automatically controlled by the power level setting in the fridge.

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

During initial operation, adjust the coldest possible temperature, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

i NOTE:

In generally a low to medium power level works best for an optimized food storage.

A high power level also increases the energy consumption.

Interior light

When opening the fridge door, the interior light will turn on automatically.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see “Cleaning and Maintenance”).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• One-, two- or three-star *** compartments are not suitable for the freezing of fresh food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Storage space

Depending on requirements, shelves/drawers (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

i NOTE:

For the most efficient use of energy, place all shelves/drawers in their original position.

Fridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic cover with elastic strip
- Aluminum foil

Temperature zones and storage recommendations

The optimal cooling temperature is around 5\~7 degrees for the central area of the cooling.

Different cooling zones are created by the air circulation. Regardless of the power level, cold air drops off.

• The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2-3 degrees.
• About that it becomes less cold. For dairy products such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 5 degrees.
• Well-packed leftovers or preserves needs less cooling. The upper cooling

part at around 6-8 degrees could be the right place.

• The cooling door is one of the warmest locations. The upper racks are good location for food that needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks.
• The vegetable box (depending on the model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezer

The device is NOT suitable for freezing food.

The three freezer compartment allows you to store frozen food at a temperature of -18^ for up to three months.

Storing frozen food

- Packed frozen merchandise should be stored in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to

store them as fast as possible in the freezer.

• It is possible to store food for longer periods of time. This period might vary, so observe the storage information on the packaging of the merchandise.
• Keep a space between the individual items, so that the cold air can circulate.

General safety precautions

• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.

- Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.

- Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.

- Never touch frozen food with moist or wet hands.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temp. control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance turn the temperature control to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the power supply.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and un- pleased odors.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The appliance must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.

• Remove the appliance content and storage it at a cool location.

• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.

• After everything was thoroughly dried, you can restart the operation.

Defrosting

CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

The fridge compartment has a partially automatic defrosting system.

During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

A permanently high power level can lead to increased ice formation. In this case, the fridge compartment must also be defrosted manually.

To achieve better cooling and to save energy, defrost the freezer regularly as follows:

• To start the defrosting process, turn the temperature control to the off state and disconnect the plug or turn off the fuse.
• Remove the food items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and turning the temperature control.

Changing the bulb

Lamp specifications: 220-240 V\~ / max. 15 W

• Remove the lamp cover carefully.
• Change the bulb.
• Reattach the lamp cover properly.

Problem Cause / Action
Loading is too warm	• Check the temperature setting / ambient temperature. • Open the door only as long as necessary.
Loud noise during operation	• Check the appliance position. • See the section “Operating noise”.
Water on the unit bottom	• Check the temperature setting / water discharge channel or opening.
Light does not work	• Check the power supply. • See “Changing the bulb”.

NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Troubleshooting

Before you contact a specialist

Problem Cause / Action
Unit is not working properly or at all	• Check the power supply / temperature setting / ambient temperature.• Unblock the ventilation openings, install the appliance freely.

Technical Data

Climate class N/ST: this appliance is intended to be used at ambient temperature ranging from 16°C to 38°C.

Electrical connection....

Power voltage: .....220-240 V\~ / 50 Hz

Rated power: 80 W

Rated current: 0.8 A

Dimension H x W x D / Weight......

Appliance size: ....143.0 x 55.0 x 58.0 cm

Net weight: ....approx. 44.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
