BXEFF120E - Air purifier BLACK & DECKER - Free user manual and instructions

Product type	Air purifier / Fan
Brand	Black & Decker
Model	BXEFF120E
Power supply	220-240 V ~ 50/60 Hz
Power consumption (fan)	122.2 W
Maximum airflow	97.54 m³/min
Sound power level	67.3 dB(A)
Speed setting	Speed selection knob (on/off)
Carrying handle	Integrated on top
Housing material	Plastic
Recommended cleaning	Damp cloth with mild detergent; do not immerse
Child safety	Use by children over 8 years old under supervision
Moisture protection	Do not expose to rain or moisture
Certifications	Directives 2014/35/EU, 2014/30/EU, 2011/65/EU, 2009/125/EC
Warranty	Compliant with applicable legislation
Recycling	WEEE - deposit at approved center
Recommended use	Indoor, flat and stable surface
Cable length	Approximately 1.5 m (estimation)

Frequently Asked Questions - BXEFF120E BLACK & DECKER

How to clean the BXEFF120E air purifier?

Unplug the device and let it cool down. Clean with a damp cloth with a few drops of detergent. Do not use solvents, acidic or abrasive products. Never immerse the device in water.

What is the noise level of the device?

The sound power level is 67.3 dB(A), which corresponds to moderate noise, comparable to a normal conversation.

How to adjust the fan speed?

Use the speed knob on the device. It allows turning on and selecting the desired speed. To turn off, turn the knob to the off position.

Can the device be used by children?

Yes, from 8 years old and under adult supervision. Children should not perform cleaning or maintenance without supervision.

How to transport the device?

Use the carrying handle integrated on top. Make sure the device is turned off and unplugged before moving it.

What to do in case of malfunction?

Do not attempt to repair the device yourself. Contact an authorized technical support service. You can find the nearest one at http://www.2helpu.com/.

Does the device consume power in standby?

According to the specifications, standby power consumption is not applicable (N/A). It is recommended to unplug the device when not in use.

What is the maximum airflow?

The maximum airflow is 97.54 m³/min, which allows efficient air circulation in a medium-sized room.

Can the device be used outdoors?

No, the device is designed for indoor use only. Do not expose it to rain or moisture.

How to recycle the device at end of life?

Do not dispose of the device with household waste. Take it to an approved center for recycling of waste electrical and electronic equipment (WEEE).

USER MANUAL BXEFF120E BLACK & DECKER

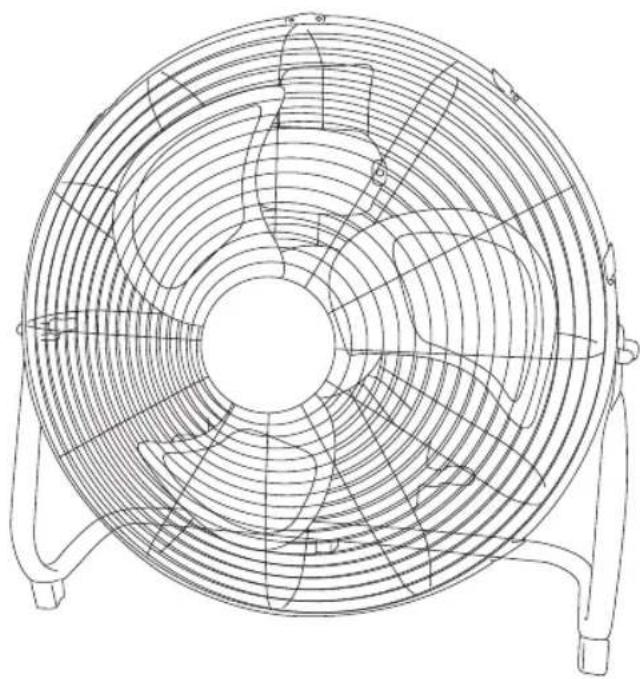

Line drawing of a standard open fan with visible blades and mounting base (no text or symbols)

Line drawing of a multi-free fan with visible blades and mounting feet (no text or symbols)

Fan BXEFF60E BXEFF120E

Dear customer,

Many thanks for choosing to purchase a BLACK+DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  ◆ Cleaning and user maintenance shall not be made by children unless they are supervised.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  ◆ Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.
  ♦ Disconnect the appliance from

the mains before undertaking any cleaning task. Ensure that the fan is switched off from the supply mains before removing the guard.

If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
◆ This appliance is for household use only, not professional, industrial use.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- The appliance must be used and placed on a flat, stable surface.

◆ Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
◆ Do not wrap the power cord around the appliance.

◆ Do not clip or crease the power cord.

Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
◆ Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

◆ Do not use or store the appliance outdoors.

Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
◆ Do not touch the plug with wet hands.
- Do not touch any of the appliance's moving parts while it is operating.

ENGLISH

(Original instructions)

Use and care:

◆ Fully unroll the appliance's power cable before each use.
Do not use the appliance if the on/off switch does not work.
◆ Do not move the appliance while in use.
◆ Use the appliance handle/s, to catch it or move it.
- Do not use the appliance if it is tipped up and do not turn it over.
◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
◆ Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Service:

Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
♦ CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.
◆ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

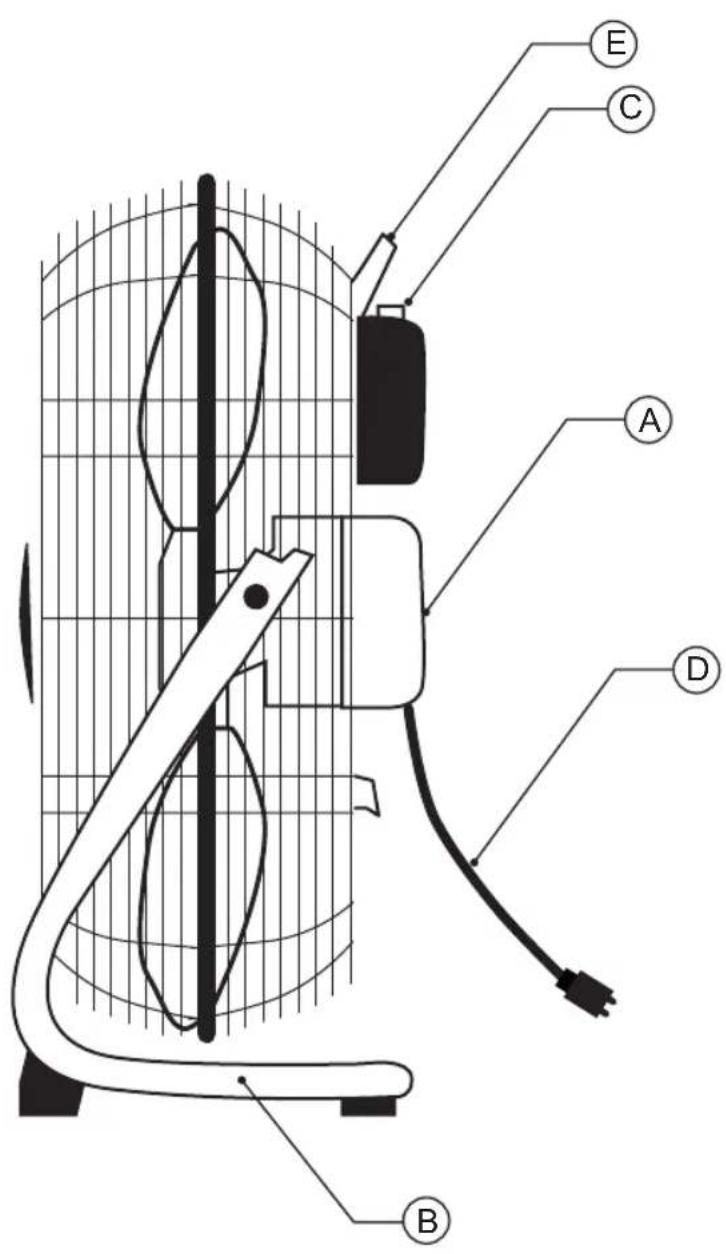

DESCRIPTION

A Motor body
B Support base
C Speed buttons
D Electric cable
E Handle

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

Before use:

Make sure that all products' packaging has been removed.

Use:

◆ Unroll the cable completely before plugging it in.

◆ Connect the appliance to the mains.
◆ Guide the appliance to direct the flow of air in the desired direction.

◆ Turn the appliance on, by using one of the speed selection buttons.

Once you have finished using the appli- ance:

♦ Stop the appliance, selecting position 0 on the selector control.

◆ Unplug the appliance from the mains.
◆ Clean the appliance.

Carry handle/s:

◆ This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (Fig.1).

CLEANING

◆ Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
◆ Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them,

use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

The following information details the features related to ecodesign.

BXEFF60E
Maximum fan flow rate (F) 7	7,72 m ^3 /min
Fan power input(P) 36,30 W
Service value (SV) (according to IEC 60879)	2,14 (m ^3 /min)/W
Standby power consumption (PSB)	N/A
Fan sound power level (LWA)	58,21 dB(A)
Maximum air velocity( c ) 3,06 metres/sec

BXEFF120E
Maximum fan flow rate (F) 97,54 m ^3 /min
Fan power input(P) 122,2 W
Service value (SV) (according to IEC 60879)	0,8 (m ^3 /min)/W
Standby power consumption (PSB)	N/A
Fan sound power level (LWA)	67,3 dB(A)
Maximum air velocity( c ) 4,13 metres/sec

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Warranty and technical assistance

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: http://www.2helpu.com/ You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/
