USER MANUAL BXBF80002GB BLACK & DECKER

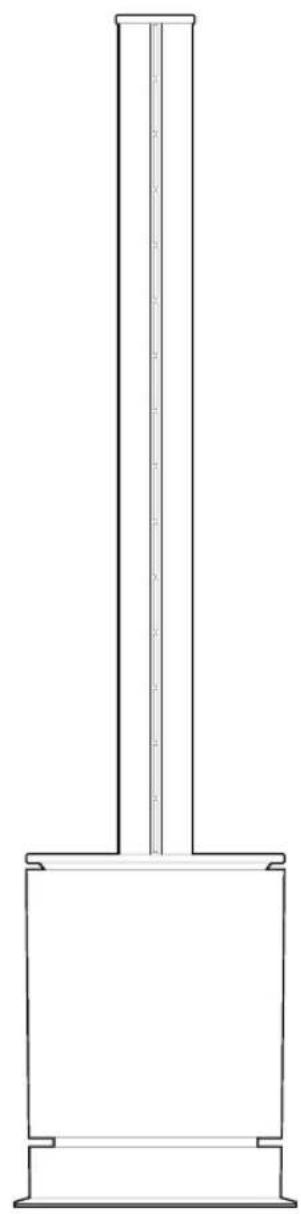

Technical line drawing of a vertical cylindrical component with a base, no text or symbols present

BXBF80002GBwww.blacka

ENGLISH

(Original instructions)

What's in the box

Instruction Manual

3 in 1 Bladeless Air Purifier Fan and Heater

Remote Control

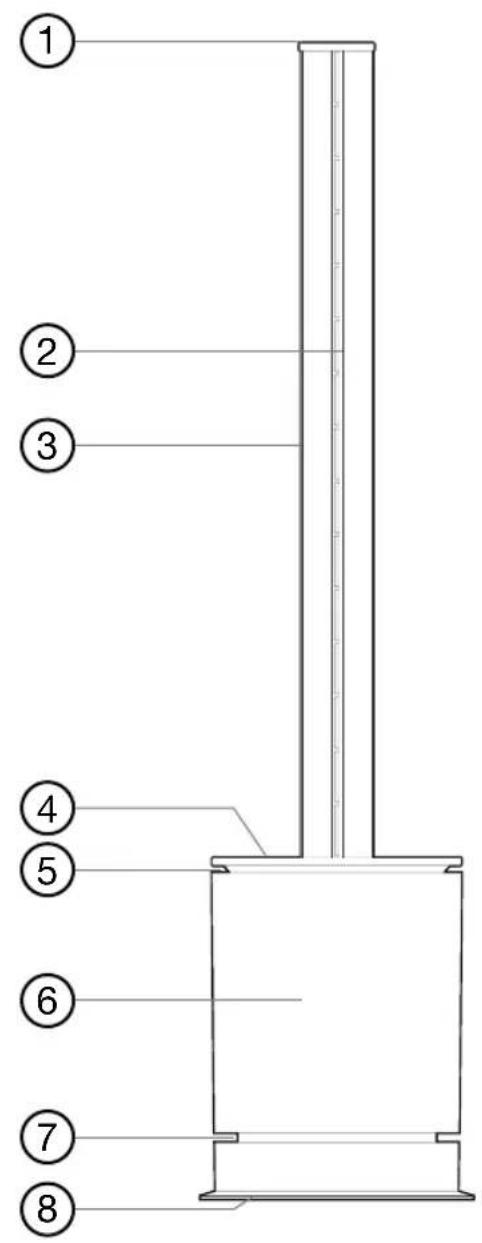

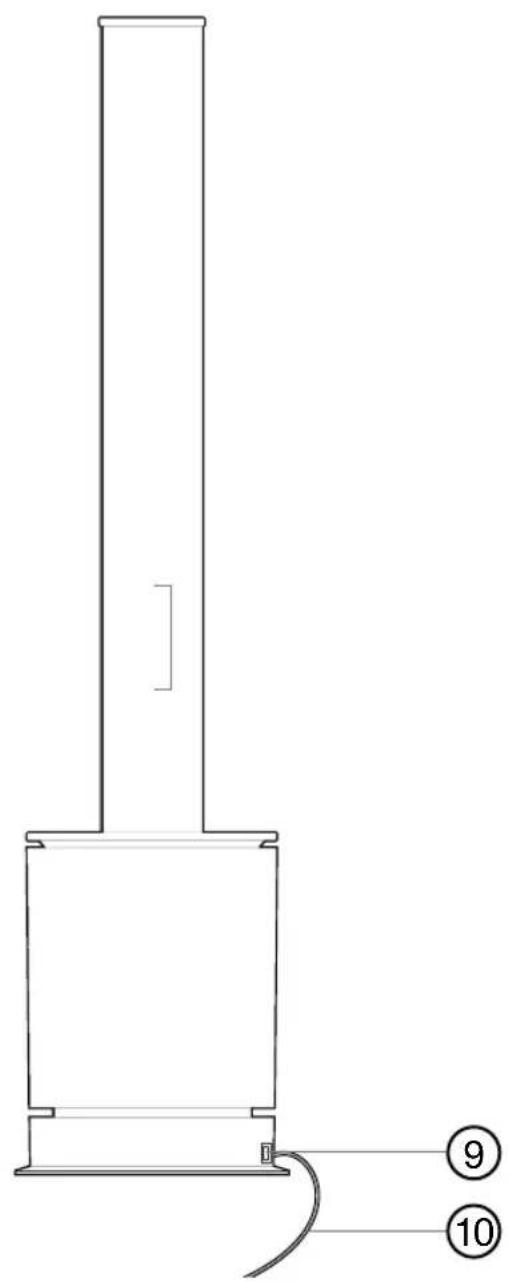

Features

1. Cover

2. Air outlet

3. Air duct

4. Control panel

5. Air inlet

6. Body

7. Air inlet

8. Base

9. Power switch

10. Power cable

Intended Use

Your BLACK+DECKER BXBF80002GB 3 in 1 Bladeless Air Purifier Fan and Heater has been designed for small and medium spaces.

This appliance is intended for indoor household use only.

Thank you for choosing BLACK+DECKER. We hope that you will enjoy using this product for many years.

Safety Instructions

⚠ WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

• Read this manual carefully before using the appliance.
  ◆ The intended use is described in this manual.
• The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
  ◆ Retain this manual for future reference.
  ♦ WARNING: When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

Using Your Appliance

Please read the operating instructions carefully before using your appliance for the first time.

◆ Check that the voltage of the main circuit corresponds with the rating of the appliance before operating.
◆ Children shall not play with the appliance.
- Do not let the cable hang over the edge of a table or counter or let it come into contact with any hot surfaces.
- The use of accessory attachments is not recommended by the appliance manufacturer, apart from those supplied with this product.
Do not pull the plug out by the cable as this may damage the plug and/or the cable.
- Do not use this product for anything other than its intended use.
- This appliance is for household use only.
- Do not carry the appliance by the power cable.
♦ Do not use the appliance outdoors.
♦ Do not operate with wet hands.
Use of an extension cable with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cable, appliance or plug point. Do not place the extension cable in a

ENGLISH

(Original instructions)

position where it can be pulled on by children or animals or tripped over.

◆ Always unplug the unit when not in use or before cleaning.
- The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.

Safety Of Others

◆ Close supervision is necessary when any appliance is used by or near children.
◆ Children should not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ Cleaning and user maintenance should not be undertaken by children without supervision.
◆ Take care when any appliance is used near pets.
- Do not allow the cord to become twisted.

After Use

• While cleaning, DO NOT use a wet cloth or use water on any part of the unit, as this may cause a short circuit or electrical shock.
• Keep this unit clean. Do not allow objects to enter the ventilation opening as this may cause electric shock, or damage to the unit. Switch off the unit and then remove the plug from the socket when not in use or before cleaning.
  ◆ Check all inlets and outlets regularly for accumulated dust.
  ◆ Disconnect the unit from mains outlet when it is not in use, or before relocating or cleaning it.
• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspections And Repairs

Do not attempt to dismantle, repair or remould any part of the unit. This should only be done by a qualified service agent. Even the change of power cable should be done by a qualified person.
In the unlikely event the appliance develops a fault, stop using it immediately and seek advice from the manufacturer.

In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentioned precautions and instructions, could affect the safe operation of this product.

Additional Safety Instructions for This Appliance

◆ Install the unit on flat and hard floor to diminish vibration or noise.
◆ Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
- Ensure that the unit is switched off after use.
- Do not immerse cables, plugs or any part of the appliance in water or any other liquid.
◆ Operate the unit only at the voltage specified.
Do not use the unit near open windows, as contact with rain and other natural elements could cause an electrical hazard
- Do not put heavy objects on the appliance.
♦ Do not tip the unit on its side. Keep in a horizontal position.
- Never insert any other object into the unit body to avoid any hazard or unit failure.

• Do not put the unit close to heat-generating devices or near flammable and dangerous materials.
  If the supply cable is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
  ◆ The appliance must be positioned so that the plug is accessible.
• For optimal airflow circulation, leave a distance of at least 1 metre around the appliance on every side. Always direct the airflow in order to optimise cooling. Avoid corners, small objects and other surfaces or objects which may impede the airflow.
  ♦ Keep away from curtains.
• Do not use in places of high temperature, humidity or dust
• Keep at least 1.5 meters away from fire source or tinder, and avoid direct sunlight.
• Do not share the socket with other high-power appliances.
• Do not use with a programmer or timer that can be automatically connected to the power supply.
  ◆ The appliance must be positioned so that the plug is accessible.
  ♦ Keep away from curtains.

⚠ WARNING: Do not place the unit on or near a hot gas electric burner.

ENGLISH

(Original instructions)

Electrical Safety

⚠ WARNING: Before use, check that the mains voltage corresponds to the voltage on the rating plate.

Always check that the mains voltage corresponds to the voltage on the rating plate.

◆ Appliance plugs must match the outlet. Never modify the plug in any way.
- Do not use any adapter plugs with this appliance. Unmodified plugs and matching outlets will reduce the risk of electric shock.
◆ To avoid the risk of electric shock, do not immerse the cord, plug or appliance in water or other liquid.

Extension Cables

◆ Up to 30m (100 ft) can be used without loss of power.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

⚠ WARNING: Before assembling, switch the appliance off and remove the plug from the socket.

Mains Plug Replacement

⚠ WARNING: The above section on mains plug replacement is for authorized service centre persons.

If a new mains plug needs to be fitted:

◆ Safely dispose of the old plug.
◆ Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.
◆ If the product is class I (earthed), connect the green/yellow lead to the earth terminal.

Note! If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Any replacement fuse must be of the same rating as the original fuse supplied with the product.

Features (see page 2)

1. Cover
2. Air outlet
3. Air duct
4. Control panel
5. Air inlet
6. Body
7. Air inlet
8. Base
9. Power switch
10. Power cable

Use

About the Controls

♦ Oscillation function
◆ Cool Mode
♦ Warm Mode
◆ Sleep Mode
◆ 9 Cool Speed Settings
◆ 4 Heat Speed Settings
◆ UV Sterilization Mode
◆ 8 Hour Timer

Control Panel

1. Warm/ Cool Mode
2. Display Screen
3. Power

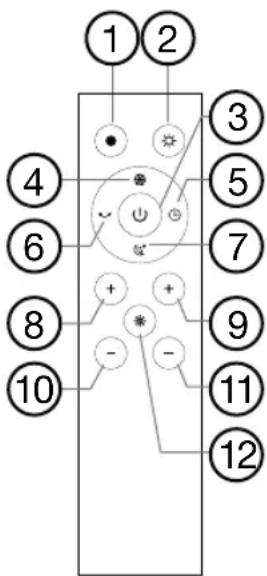

Remote Control

1. Cool mode
2. Warm mode
3. Power ON/OFF
4. Max mode
5. Timer
6. Oscillation
7. Sleep mode
8. Increase airflow
9. Increase temperature
10. Decrease airflow
11. Decrease temperature
12. UV Sterilisation

Installing the Battery

⚠ WARNING: Battery acid leakage can cause personal injury and cause damage to the product and surrounding property. If battery leakage occurs, thoroughly wash any affected skin, making sure to keep battery acid away from eyes, ears, nose and mouth. Immediately wash any clothing or other surface that comes in contact with leaked battery acid. If a chemical burn occurs or if irritation persists, seek medical attention. Dispose according to Local, State or Federal regulations.

⚠ WARNING: NEVER mix old and new batteries or different brands of batteries. Replace all batteries at the same time.

⚠ WARNING: NEVER mix alkaline, standard (carbon-zinc), rechargeable (nickel-cadmium) batteries with this product.
⚠ WARNING: NEVER dispose of batteries in fire, as they may leak and explode.
⚠ WARNING: ALWAYS remove exhausted batteries from product.

◆ Batteries are to be inserted following the polarity markings on the product.
◆ Remove batteries before extended storage.

To Begin Using Your Fan

◆ To begin using this unit, start by installing the batteries in the remote control. DO NOT use rechargeable batteries.
◆ To install the batteries, first detach the battery cover from the remote. To do this, place your finger on the grooved area at the centre of the battery cover and push down and away from the body of the remote.
◆ Insert 2 x AAA batteries into the battery compartment, taking care to ensure the polarities are correct.
Once the batteries have been correctly inserted, replace the battery cover by aligning each of the locking tabs with the corresponding notch on the remote control body and pushing it upwards until it clicks into place.
◆ The remote control is now ready for normal use.

How to Operate

◆ Place the unit on a firm and level surface.
◆ Plug the power cord into an active mains outlet. Flick the power switch on the main body of the unit to ON. The LED display illuminates, there will be an audible signal and then the unit enters Stand-by mode.
◆ Press the Power key on the remote or touch screen. There will be an audible signal and the fan will start at speed setting 3.
◆ To switch the fan to standby press the Power key on the remote. There will be an audible signal and the fan will stop once the unit has cooled down.
◆ To switch the unit off completely, flick the switch on the main body of the unit to OFF.

ENGLISH

(Original instructions)

◆ Direct the remote control at the remote control signal receiver on the display in order to maximise the remote control signal (effective distance 5m).

Note:

This appliance may respond to the remote control of other devices.

If you use the remote control of this appliance, other devices may respond.

This is due to the overlapping frequencies of the remote control. There is no quality problem in the product itself. To avoid, keep the remote control away from other electrical devices during operation.

Max Mode

Once the fan is switched ON, press the Max Mode key to select the maximum power, strongest airflow.
The control panel will display 'HH'. Press the key again to exit the setting. Alternatively the airflow can be adjusted by pressing the air flow keys.

Sleep Mode

Once the fan is switched ON, press the Sleep Mode key to select a soft, smooth airflow. The control panel will display 'LL'. Press the key again to exit the setting. Alternatively the airflow can be adjusted by pressing the air flow keys. Oscillation

Once the fan is switched ON, press the Oscillation key on the remote to activate the oscillation of the unit.
There will be a single audible signal and the fan will oscillate at 80^+/-5^ . Press the key again to stop the fan oscillating.
There will be a single audible signal. Alternatively press and hold the Power key on the control panel, until an audible signal is heard, to activate and deactivate this function.

UV Sterilisation

Once the fan is switched ON, press the UV key to activate. The control panel will display 'U'. Press again to turn off this function.

Cool Mode

When the fan is in Warm mode, press the Cool Mode key to activate. There will be a single audible signal. The display will show the air flow speed.

Note: The default start setting is Cool Mode.

Warm Mode

Once the fan is switched ON, press the Warm Mode key to activate. There will be a single audible signal. The display will show the ambient temperature. It will take a few seconds for the heater to activate.

Note: When in Warm Mode if the ambient temperature is below 0^ C the display will show 01 as it does not display negative values.

Once the unit has run for 9 hours in Warm Mode it will automatically turn off; To restart press the Power key.

The Max Mode and Sleep Mode are not available whilst in Warm Mode.

Increasing/ Decreasing the Temperature

- Once the fan is switched ON and in Warm Mode, press the right hand ‘+/-’ temperature keys on the remote to set the required temperature between 1-30°C. There will be a single audible signal with each key press. The display will show the temperature set. The set temperature should be higher than the ambient temperature in order for the heating function to turn on. - When the ambient temperature reaches the set temperature the heating function will stop and turn to a cool breeze. When the ambient temperature becomes lower than the temperature set the heating function will automatically re-activate.

Note: This function is not available when the unit is in Cool Mode.

The default setting temperature is 25^ C.

Increasing/ Decreasing the Air Flow

Once the fan is switched ON: On the remote, press the left hand '+' air flow key to increase the air flow and the left hand '-' air flow key to decrease the air flow.
◆ On the control panel press the Power key to cycle through the air flow setting required.

◆ Note: There are 9 speed settings in Cool Mode and 4 speed settings in Warm Mode.

Timer

This fan can be pre-set for automatic operation for a period of 1 to 8 hours. When this function is selected, the unit will automatically turn itself OFF to Stand-by mode at the end of the set time period.
Once the fan is switched ON, repeatedly press the Timer key to select 1-8 hours until the unit will automatically switch OFF. The timer changes in increments of 12 an hour. Press the Timer key during operation to check the time remaining.

Note: Once the Timer is set all other functions can be used normally.

Whenever a timer is set, the unit can also be switched OFF manually at any time. If the unit is switched OFF the timing setting will be cancelled.

Safety System

• This appliance includes an overheat protection sensor and an automatic fail-safe that cuts power to the unit if it's accidentally tipped over or overheats.
  ◆ If this sensor is triggered, unplug the unit and allow to cool.
  ◆ Check and remove any obstructions before restarting the appliance and be sure to place on a hard, level surface.

Cleaning and maintenance

⚠ WARNING: Before cleaning and maintenance, switch the appliance off and remove the plug from the socket, to prevent electric shock.

◆ Do not immerse any part of the appliance, power cord or plug in liquids.
Use a soft damp cloth to wipe the surface. Then dry with a soft cloth. Avoid using detergent, spray or chemicals as these may cause damage to the appliance.
◆ Clean the inlet and outlet vents with a soft brush or vacuum cleaner.
♦ Do not use water to clean these parts of the fan.
♦ Do not disassemble the fan for cleaning.
Do not immerse the fan in water and never allow water to enter the motor housing or any other part of the appliance.

(Original instructions)

ENGLISH

◆ Do not use gasoline, paint thinner or other chemicals to clean the fan.
◆ Gently wipe the surface of the remote control with a soft, dry cloth. If it will not be used for a long time, remove the button battery from the remote control.
◆ Clean the power plug with a soft, dry cloth.
◆ Do not clean the filter.

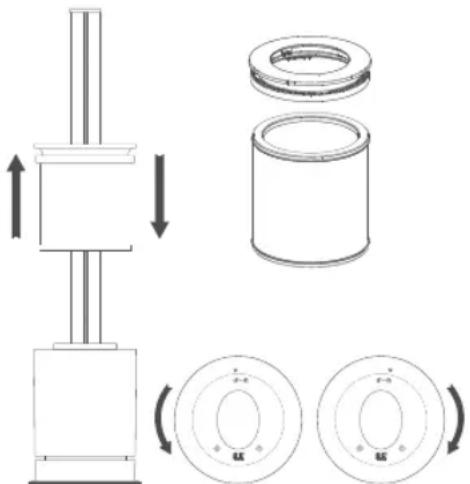

Filter Installation and Replacement

Note! Ensure the unit is unplugged before changing the filter.

This unit is equipped with a purifying air filter.

◆ Rotate the top cover anti-clockwise to unlock.
◆ Lift out the filter.
◆ Pull the top cover to separate from the filter.
◆ Push the new filter into the top cover.
◆ Put the assembled filter back into the unit and rotate the top cover clockwise to lock into position.

Replacement filters are available to purchase under code BXBF80003GB

Storage

◆ Once the fan has been cleaned, it can be stored in a plastic bag.
◆ Keep away from vibrations and electrical devices with cooling / heating function.
- Do not expose it to direct sunlight, hot and humid places.
◆ Keep out of the reach of children.

ENGLISH

(Original instructions)

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled, reducing demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.

Technical data

		BXBF80002GB
Input voltage V AC 220 - 240
Frequency Hz 50/60
Power input W 2000
Weight KG 3.5

Product Guarantee

This product comes with a 2 Year guarantee from the original date of purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. This guarantee is in addition to and in no way prejudices your statutory rights.

The Following Conditions Apply:

The product must be returned to the retailer with proof of purchase or a receipt within the 1st year of purchase. For any product related issues after 12 months please contact our customer services team.
◆ The product must be installed and used in accordance with the instructions contained in this instruction guide.
- It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
◆ This guarantee is valid in the UK and Republic of Ireland.

For all customer service enquires please contact us below;

RKW,

Sutton House,

Berry Hill Road,

Stoke-on-Trent,

ST4 2NL

Email [e-mail]

Tel [phone]

Black & Decker® and BLACK+DECKER™ and the Black & Decker® and BLACK+DECKER™ logos are registered trademarks of The Black & Decker® Corporation and are used under licence. All rights reserved. Imported and Distributed by RKW LTD, Sutton House, Berry Hill Industrial Estate, Berry Hill Road, Stoke-on-Trent, ST4 2NL

Model Identifier(s): BXBF80002GB
Item Symbol Value	Unit Item Unit
Heat Output				Type of heat input for electric storage, local space heaters only (select one)
Nominal heat output	Pnom 2.0 kW			Manual heat charge with integrated thermostat	No
Minimum heat output (indicative)	Pmin 1.7 kW			Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax, c 2.0 kW			Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At nominal heat output	elmax N/A kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin N/A kW			Single stage heat output and no room temperature control	No
In standby mode	eISB	0.00052	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	Yes
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control with presence detection	No
				Room temperature control with open window detection	No
				With distance control option	No
				With adaptive start control	No
				With working time limitation	Yes
				With black bulb sensor	No
Contact Details:	RKW LTD, Sutton House, Berry Hill Industrial Estate, Berry Hill Road, Stoke-on-Trent, ST4 2NL

11/2020
