Product Type	Turkish Coffee Machine
Brand	Beko
Model	TKM8961B
Rated Power	1100 W total; Induction heating: 2 x 525 W = 1050 W
Voltage	220-240 V AC, 50-60 Hz
Water Tank Capacity	1.5 L
Cup Size Settings	Small (60 ml), Medium (70 ml), Large (80 ml) per serving
Maximum Servings	3 servings per pot (two pots included)
Heating Zones	Two independent induction zones (left and right)
Control Panel	Touch buttons for 1/2/3 servings per side, cup size adjustment, on/off
Automatic Stirring System	Yes, for consistent foam
Safety Features	Overheat protection, automatic shut-off, detection sensors, error indicators
Sleep Mode	After 3 minutes of inactivity
Materials in Contact with Food	Yes
Accessories Included	2 coffee pots, measuring spoon
Cleaning	Hand wash pots; descale with citric acid; wipe exterior with damp cloth
Descaling	Use citric acid crystals dissolved in boiling water, let sit 10 minutes

Frequently Asked Questions - TKM8961B BEKO

How do I descale the Beko TKM8961B coffee maker?

To descale, pour one dessert spoon of citric acid crystals into the coffee pot, add boiling water to fill 1/3 of the pot, wait 10 minutes, then rinse thoroughly.

What does the red flashing light mean on the control panel?

A red flashing LED on a coffee-making button indicates an error. Common errors include: level exceeded, time out, coffee-making error, or no water. Refer to the manual's error section for specific troubleshooting.

Can I adjust the cup size for different serving amounts?

Yes, press the cup size adjustment button (9) to cycle between Small (60 ml), Medium (70 ml), and Large (80 ml). The LED shows the selected size.

What kind of coffee should I use?

Use fine grind fresh coffee suitable for Turkish coffee. The included measuring spoon helps measure the correct amount per serving.

How do I clean the coffee maker?

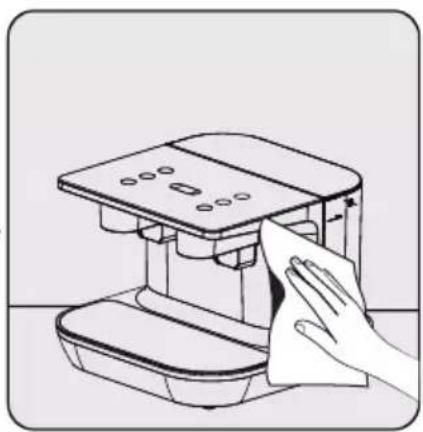

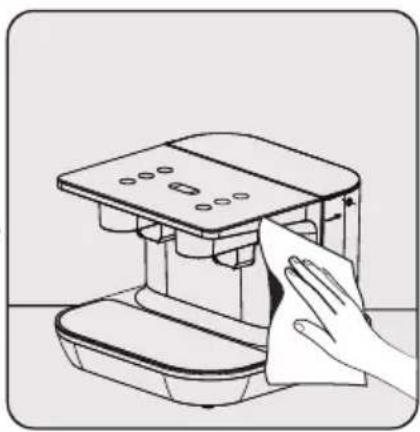

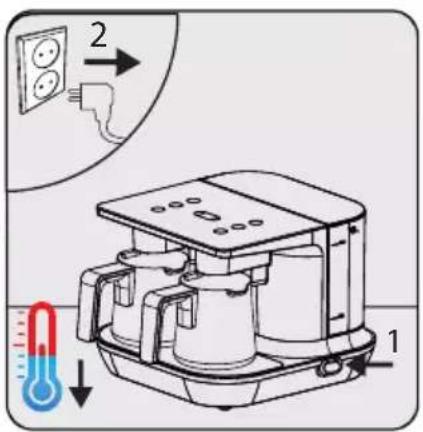

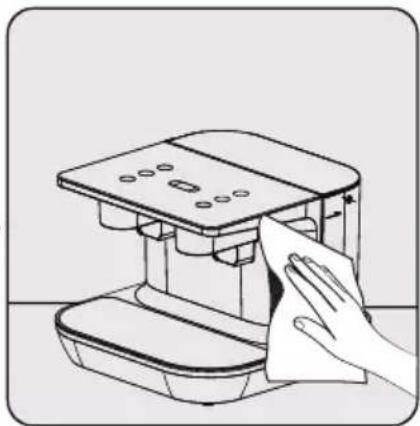

Unplug and let cool. Wipe the exterior with a damp cloth and mild detergent. Wash the coffee pots by hand (not dishwasher). Remove and rinse the water tank under running water.

Can I make more than 3 servings at a time?

No, each pot has a maximum capacity of 3 servings. You can use both pots simultaneously to make up to 6 servings total.

Why is my coffee not foamy?

Ensure you use fine grind coffee and the correct water amount. The automatic stirring system should produce foam. If not, check that the coffee pot is clean and dry, and that the water tank is properly installed.

What safety features does this coffee maker have?

It includes overheat protection, automatic shut-off, detection sensors that prevent operation without a pot, and error indicators for issues like no water or level exceeded.

How do I cancel a coffee-making process?

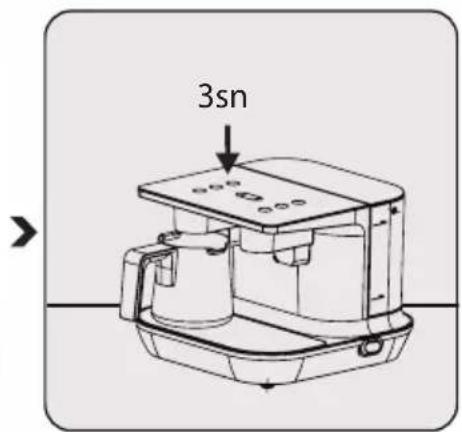

Press and hold the selected coffee-making start button for 3 seconds. The process will stop and the LED will turn off.

What should I do if the appliance shows a 'No Water' error?

Fill the water tank up to the max level. The water indicator LED is constantly red when empty. Once filled, the product will resume normal operation.

USER MANUAL TKM8961B BEKO

Turkish Coffee Machine

User Manual

Simple line icon of a coffee cup on a flat surface (no text or symbols)

TKM 8961 K TKM 8961 A

TKM 8961 S TKM 8961 B

EN / DE / TR / RO / SR / MK / HR / SQ / BQ / RU / AR

CONTENTS

ENGLISH	4-19
DEUTSCH	20-37
TÜRKÇE	38-52
ROMÂNĂ	53-70
СРПСКИ 71-86
MAKEДОНСКИ	87-103
HRVATSKI	104-119
SHQIPTARE	120-135
БЪЛГАРСКИ	136-151
РУССКИЙ	152-172

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Materials are intended to be in contact with food.

Warning for electric shock.

Functional grounding

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

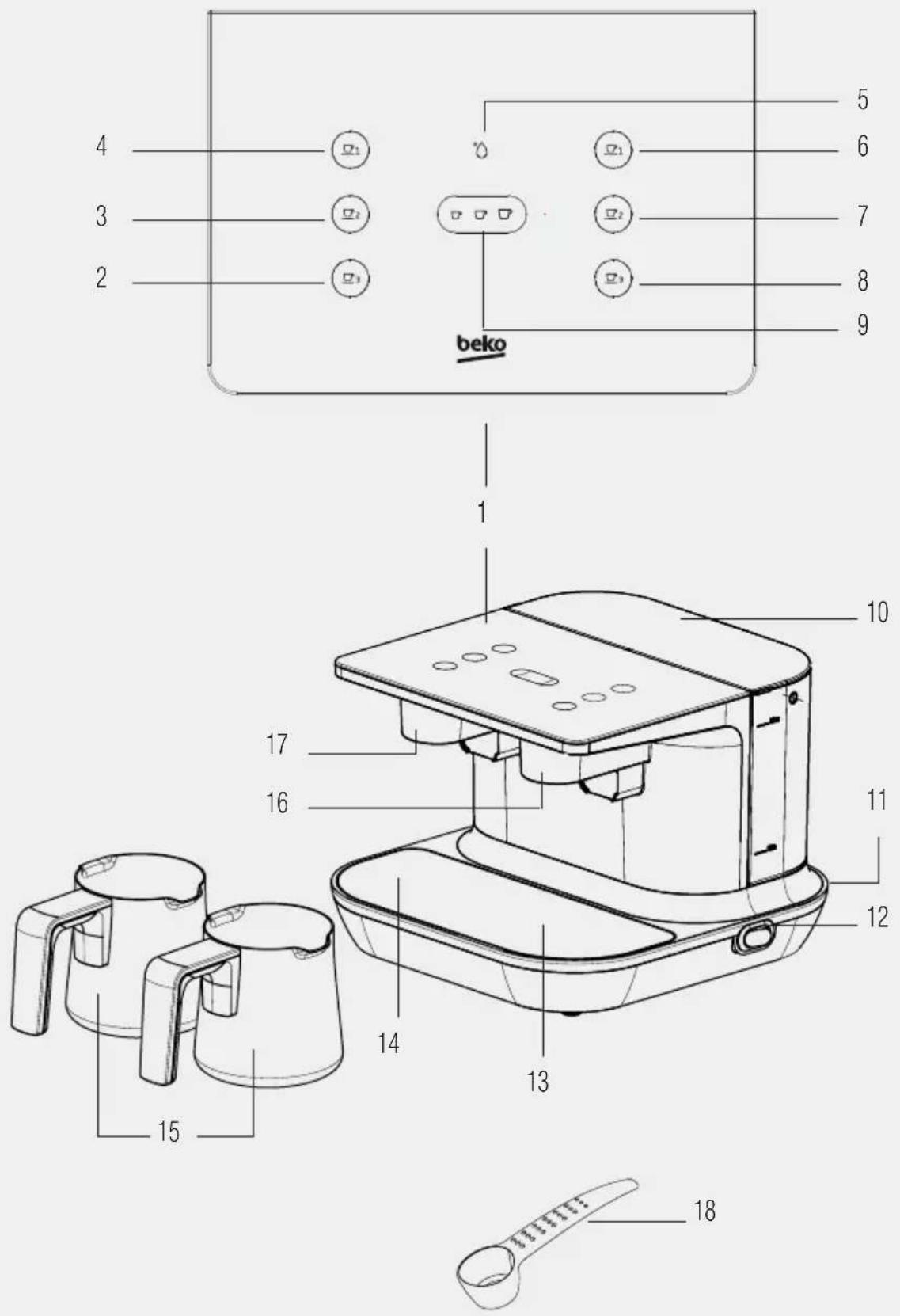

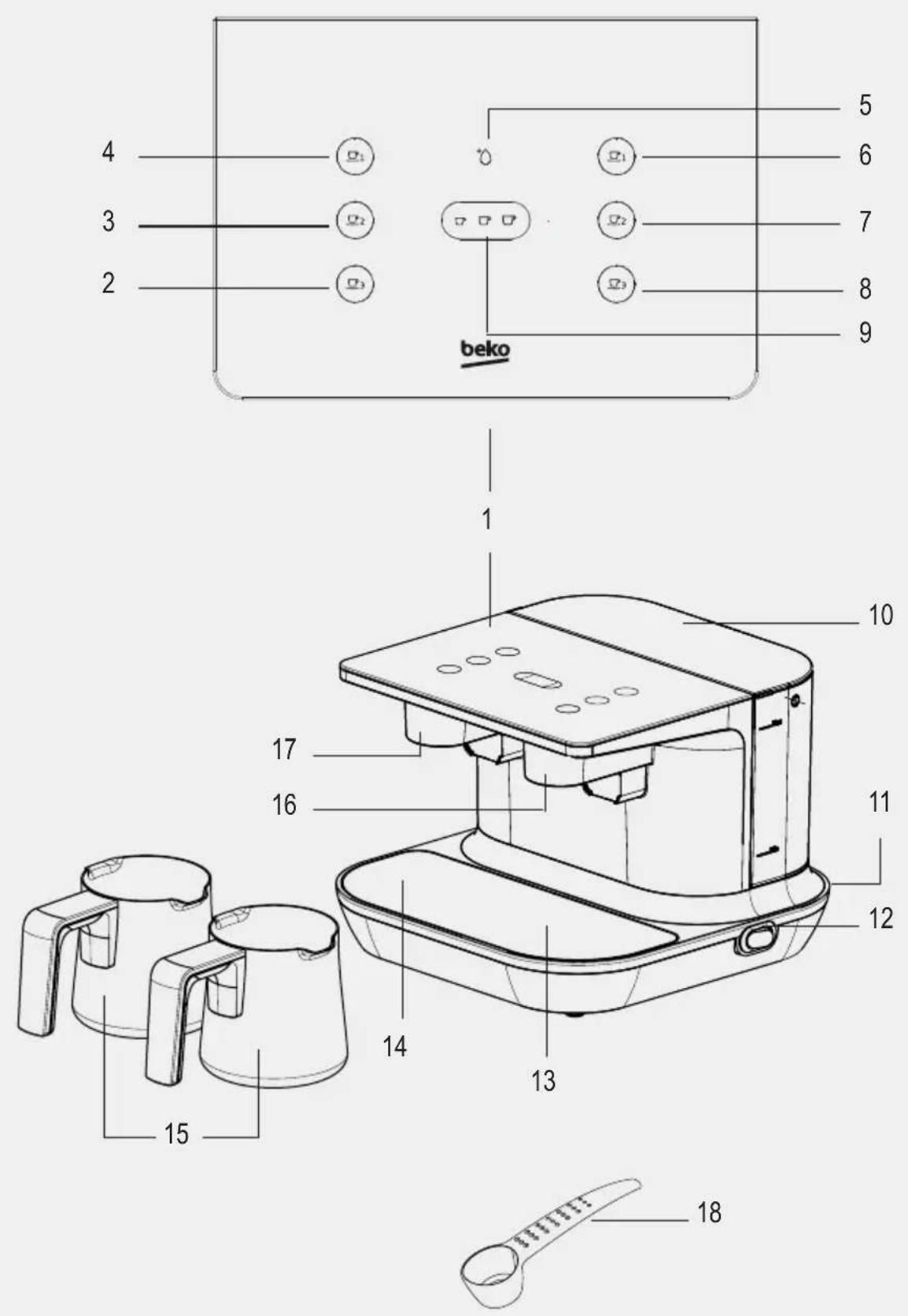

1. Control panel
2. Left compartment, button to start making 3 servings of coffee
3. Left compartment, button to start making 2 servings of coffee
4. Left compartment, button to start making 1 serving of coffee
5. Water indicator LED
6. Right compartment, button to start making 1 serving of coffee
7. Right compartment, button to start making 2 servings of coffee
8. Right compartment, button to start making 3 servings of coffee
9. Small-Medium-Large - cup size adjustment buttons
10. Water tank (1.5 l)
11. Mains cable
12. On/off button
13. Right compartment heating surface
14. Left compartment heating surface
15. Coffee-making pots - 2x
16. Right compartment coffee-making detection sensor
17. Left compartment coffee-making detection sensor
18. Coffee measuring spoons

Technical data

Power: Total Rated Input Power: 1100 W Induction Heating Input Power: 2 X 525 W = 1050 W Voltage: 220-240 V AC \~, 50-60 Hz Electrical insulation class: II

Technical and design modifications are reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1

Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions will void all types of warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• Do not use the appliance outdoors and in the bathroom.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle or separate the mounted parts of the appliance.

• Only use the original parts or parts recommended by the manufacturer.
  • Always use the appliance on a stable, flat, clean, dry and non-slip surface.

• Do not put any substances apart from coffee and sugar into the coffee-making pot.

• Do not drink the cooked Turkish coffee using the coffee-making pot.
  • Turkish Coffee Machine is designed to operate at 4-37°C 80% relative humidity.
• Due to the manufacturing technology, steam and odour may arise in the heating element of the appliance during the initial use. This is normal. They will disappear after a few cycles.
• WARNING: When making coffee, do not move the appliance and do not remove the coffee-making pot.
• Do not move the appliance when it is still hot or when there is liquid inside the coffee-making pot.
• The coffee-making pot and the heating surfaces get hot during use. For this reason, do not contact the heating surface or the pot during and after use (until it cools down).

1

Important instructions for safety and environment

• WARNING: When making coffee, there might be some hot steam over the pot. Avoid contacting these areas to prevent the effects of the hot steam.
• Avoid contacting hot surfaces and hold the pot only by handle.
• Ensure that the appliance is switched off before moving it.
• The base (black glass surface) on which the coffee-making pot is placed gets hot during operation. Therefore, do not touch this area while using and until the appliance gets cold.
• This appliance should be connected to a maximum 30 mA domestic fault current protection fuse for additional protection.
• Use the appliance with a grounded plug.

• If the supply cable is damaged, immediately stop using it to prevent any danger and have it replaced by the manufacturer, service agent or similarly qualified personnel.

• Do not use the appliance if the appliance itself or any part of it is damaged. Contact the authorised service.

• Do not use the appliance with an extension cord.
• Do not immerse the appliance, power cord, or power plug in water or any other liquids.
• Do not touch the appliance or its plug with damp or wet hands.
• Position the appliance in such a way that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before cleaning it and never clean it when it is in use.

1

Important instructions for safety and environment

• Do not pull the power cable of the appliance to unplug the appliance from the outlet and do not wrap its power cable around the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance in or near places where combustible or inflammable places or materials are present.
• Do not use the appliance next or close to heat resources (hob, grill, heater core, stove etc.).
• Keep the appliance away from steam resources and avoid using it in environments containing excessive steam.
• Do not use the coffee-making pot with any other heater (hob and etc.) apart from the appliance.

• Do not place anything (cups, coffee-making pots etc.) on the appliance.

• This appliance is not suitable for commercial use. It is intended to be used for household purposes in places such as:
  -Shops, offices and personnel kitchens in other working environments,
  -Farmhouses,
  -By customers in hotels, motels and other residential places,
  -Places for sleep and breakfast.

• This appliance can only be used to cook coffee.
• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

1

Important instructions for safety and environment

• This appliance may be used by children who are at the age of 8 or over and the people whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance.
• Cleaning and user maintenance procedures should not be performed by children over 8 unless they are supervised by an older person.
• If you keep the package material keep it away from children.
• Keep the appliance out of the reach of children under age 8.

• Supervise children to ensure that they do not play with the appliance.
  • This product only contains functional grounding connection.

• If you are using a pace maker, consult the manufacturer before using the appliance.

• Perform cleaning and care procedures in compliance with the "Cleaning and Care" section in this manual.
• WARNING: If there is damage (crack, breakage etc.) on the coffee-making surface, immediately disconnect the product from the mains and do not use it to prevent electric shock, and contact the authorised service.
• Do not fill the water tank with any other substance (milk, powdered milk) than water.
• Do not exceed the max. level mark of the water tank.
• When making coffee, do not stir the coffee with spoon or any other object and do not intervene in the process.
• Do not leave metal objects (such as cutlery) on hot surfaces in the coffee-making areas since these objects get hot.

1

Important instructions for safety and environment

• Do not use the devices with an external timer or a remote control system.
• This appliance cannot be used for built-in applications and it is not intended to be used inside cabinets. Do not put the coffee machine in a cabinet while it is running.

1.2 Compliance with the WEEE Directive and disposal of the waste product

This product does not contain harmful or prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urbanisation. Conforms to the WEEE Regulation. This product has been made from high-quality parts and materials which can be recycled and reused. Therefore, do not throw the product away with household and other waste at the end of its life. Take it to a collection point for recycling electrical and electronic devices. Contact local authorities for the collection points in your region. Help protect the environment and natural resources by recycling used products.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Use

2.1 Initial use

Read the whole user manual before using the product.

Make sure that the device is straight and balanced on a flat, clean, dry and non-slip surface.

Line drawing of a mechanical device with two cups and a top platform (no text or symbols)

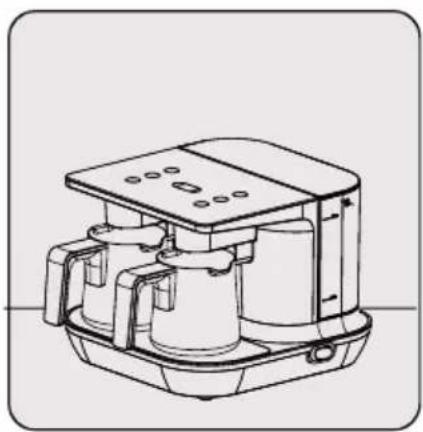

Place the product vertically on a flat, clean and dry surface.

Line drawing of a coffee maker with two cups and a tray, showing mechanical components and a directional arrow (no text or symbols)

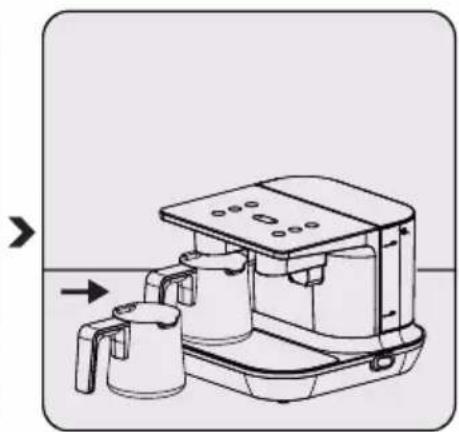

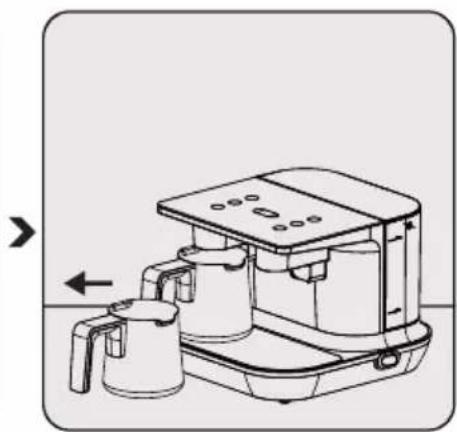

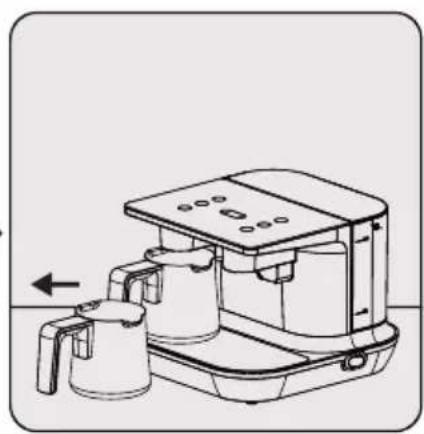

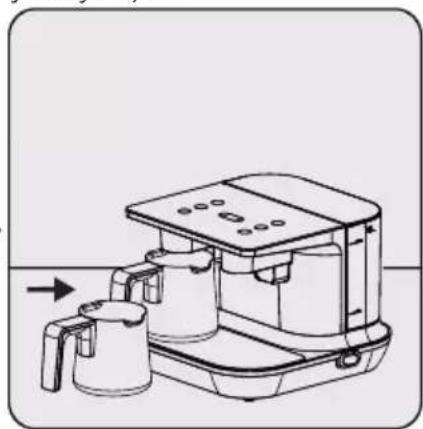

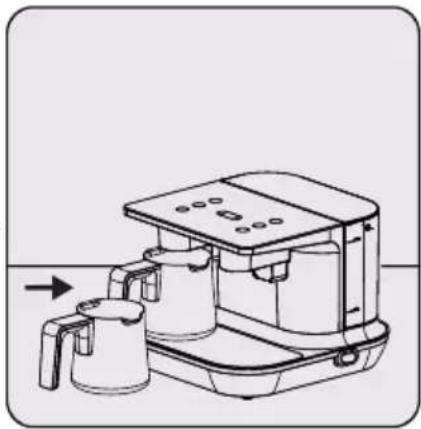

Slightly pull the coffee-making pot (15) out of its slot.

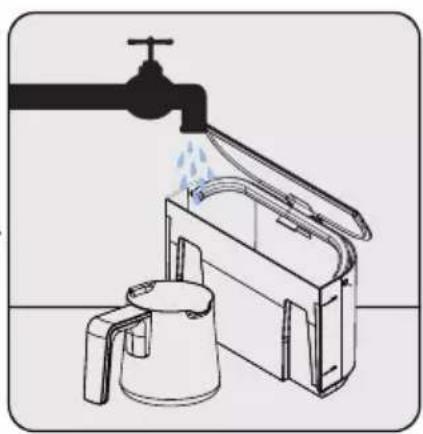

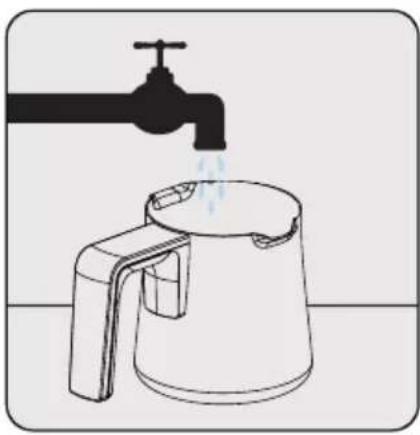

Diagram of a faucet pouring liquid into a water-filled container with a bucket (no text or symbols)

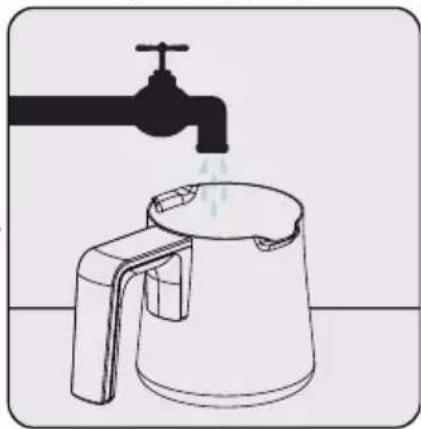

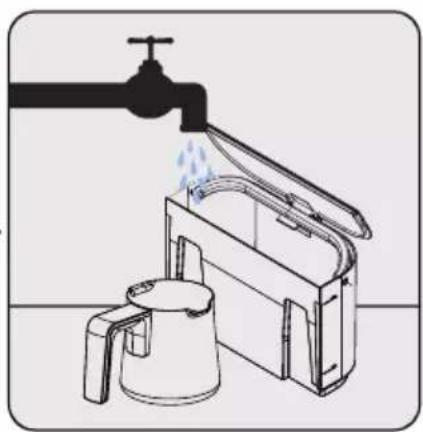

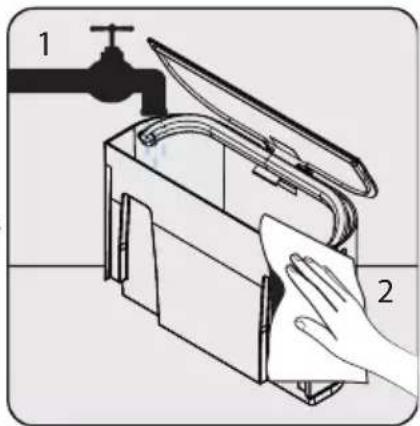

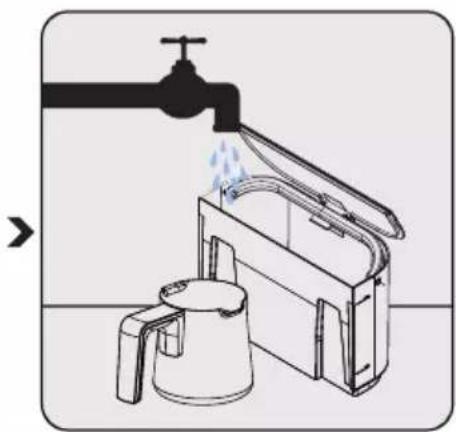

Wash the water tank (10) and the coffee making pot (15) by hand and dry them.

To obtain a tasty coffee, make sure that the inside of the coffee-making pot (15) is dry and clean.

Make sure that there are no water drops underneath the coffee-making pot (15) when preparing coffee. Otherwise, an annoying noise will be heard when the water drops get into contact with the hot base.

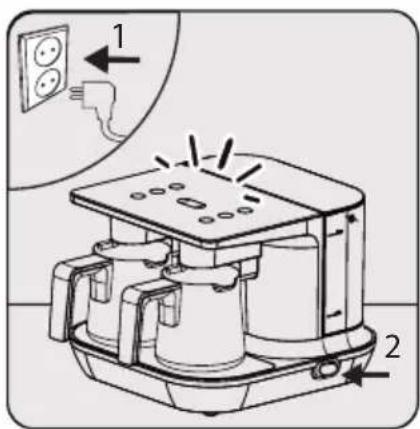

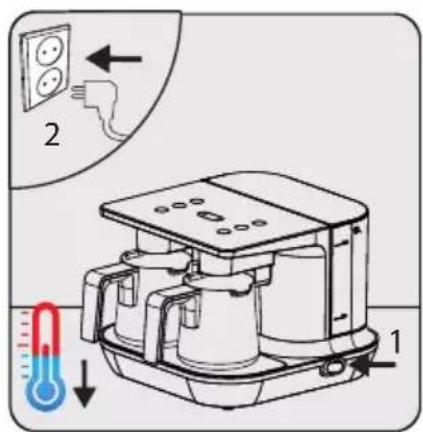

Insert the plug (11) in the wall-socket. Switch the On/Off button (12) to On (1) position
- All buttons on the control panel (1) will turn white.

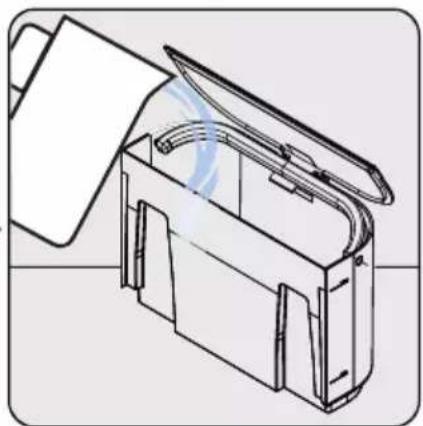

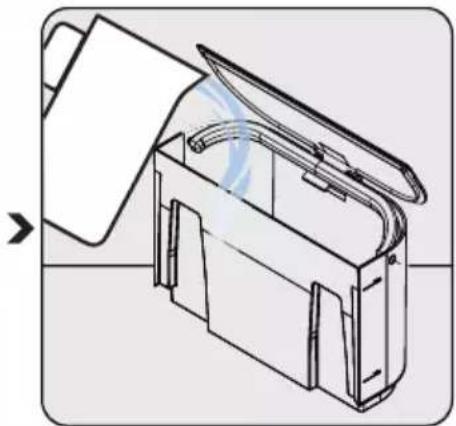

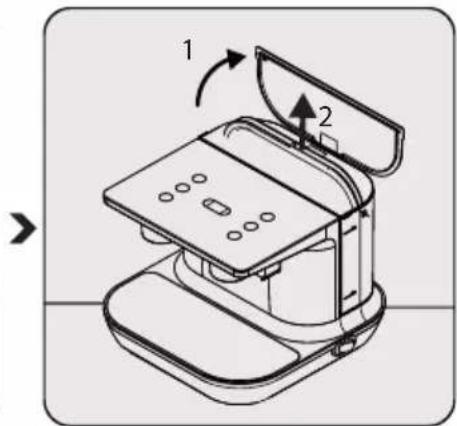

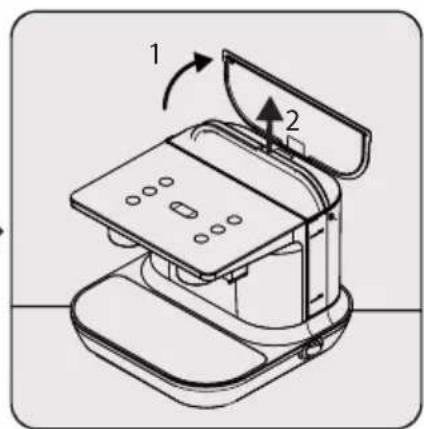

Open the cover of the water tank. Holding the handle, slightly pull it up to remove.

Technical line drawing of a mechanical component with no visible text or symbols

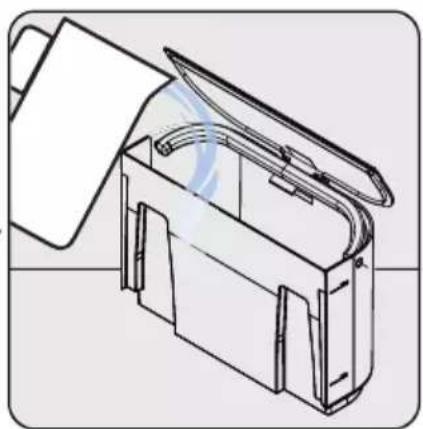

Fill the water tank (10) up to a level between min. and max. levels. Close the cover again and re-install it.

2 Use

If you want, you can also fill the water tank (10) without completely removing it. Repeat the same process after the appliance gives a water depleted warning (5).

To fill the pump and water system with water and bleed the air out of the system:

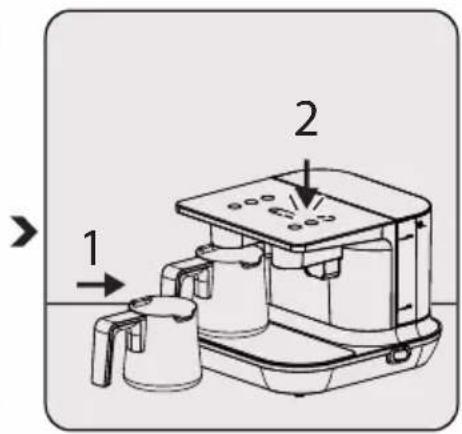

Place the coffee-making pot into the left compartment heating surface (14). Press the left compartment coffee-making button for 3 servings (2).

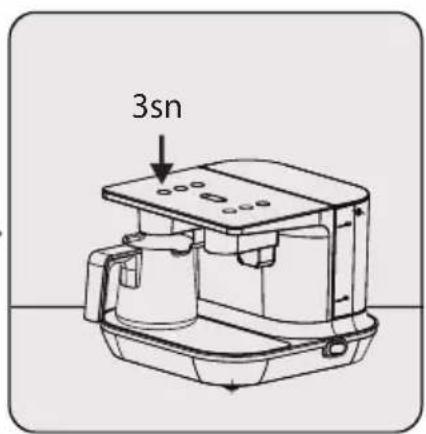

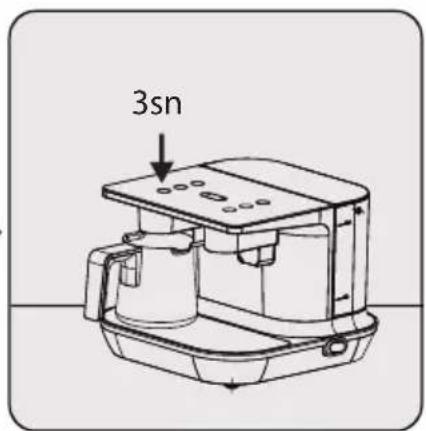

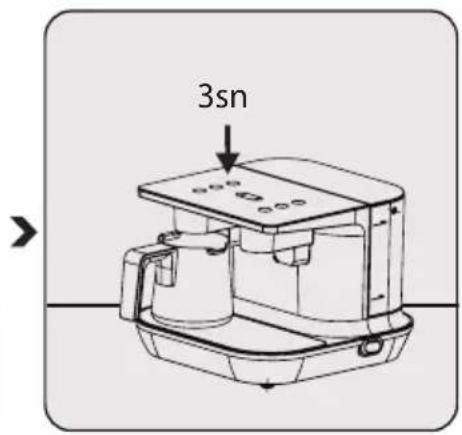

Once the water pumping process is over, press and hold the same button for 3 seconds to end the coffee-making process.

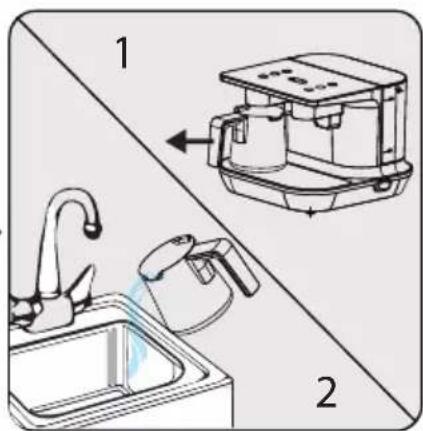

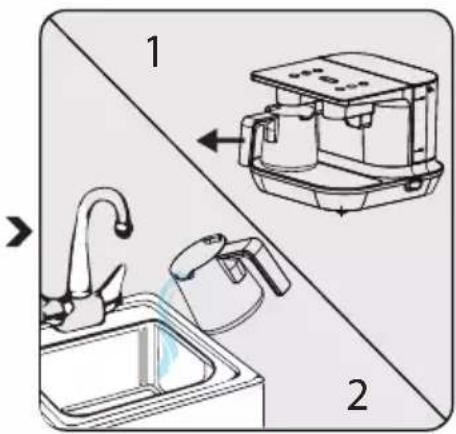

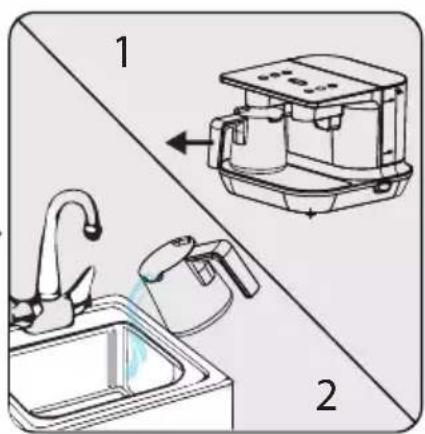

Take the coffee-making pot (15) and drain the water in it down the sink.

This way, proper operation of the pump in the appliance is ensured.

WARNING: Repeat this process also after you remove/place the water tank from/into its place and before brewing coffee.

To adjust the water amount according to the size cup:

	Small cup for one serving 60 ml on average.
	Medium cup for one serving 70 ml on average.
	Large cup for one serving 80 ml on average.

2 Use

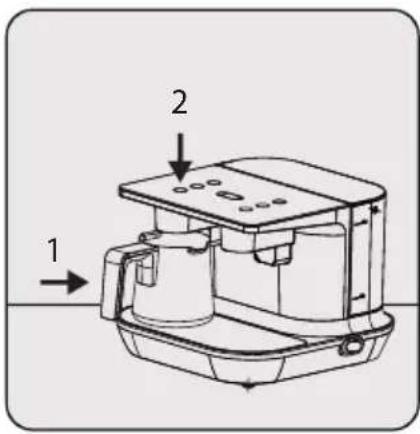

Place the coffee-making pot (15) into the left compartment heating surface (14). Press the left compartment coffee-making button for 1 serving (4).

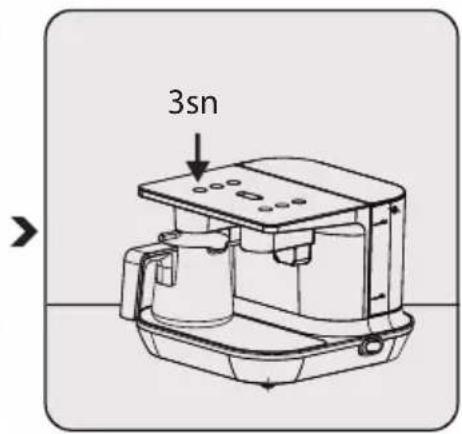

Once the water pumping process is over, press and hold the same button for 3 seconds to end the coffee-making process and drain the water inside the coffee-making pot (15) into your cup.

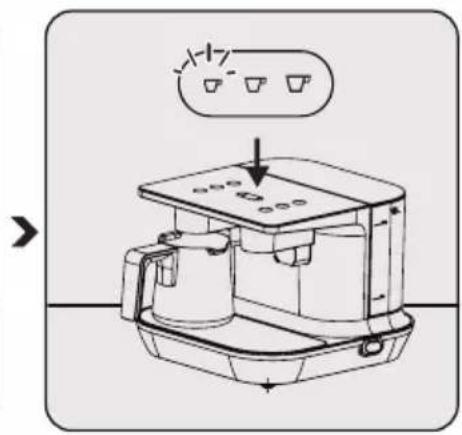

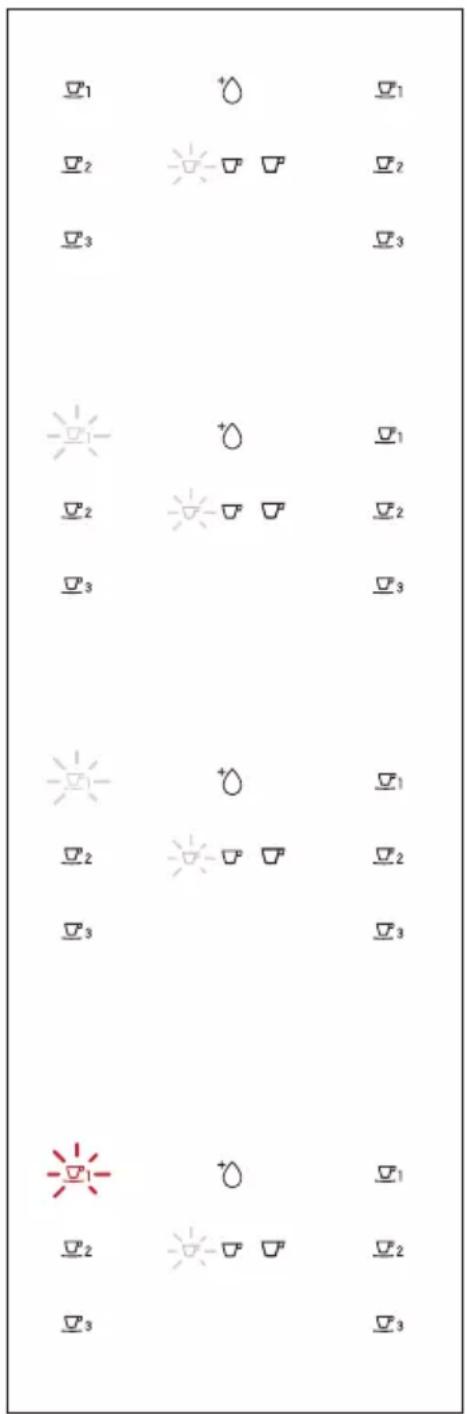

If the water you have poured into your cup is too little or too much, press the cup size adjustment button to set it to small, medium or large (9). You can press the cup size adjustment button (9) to switch between level. Once the LED of the desired cup size turns on, end the process.

The cup size LED will show the level to which the product is set.

Repeat the water amount adjusting process when you change the cup size. Repeat the water amount adjusting process when you change the cup size.

2.2 Coffee making

Line drawing of a kitchen pot with a spoon lifting a lid, no text or symbols present

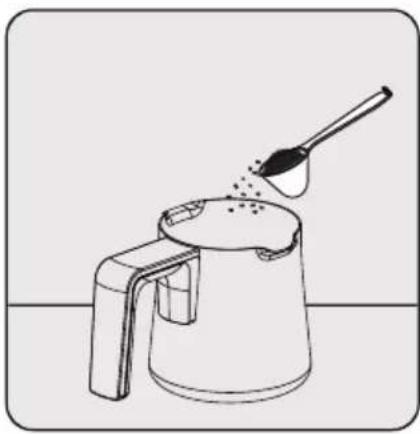

Put the desired amount of coffee and sugar (up to 3 servings) into the coffee-making pot (15).

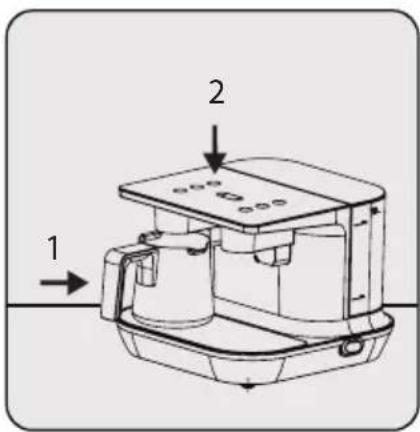

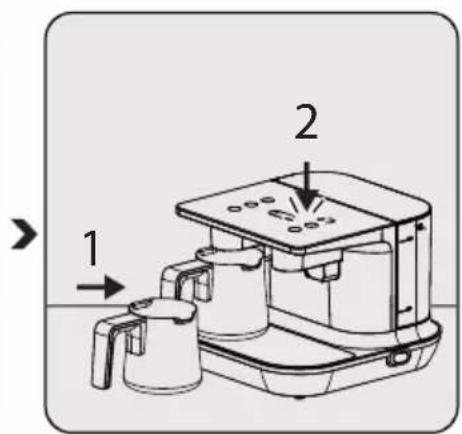

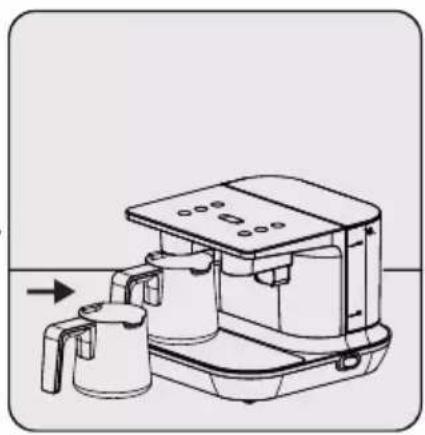

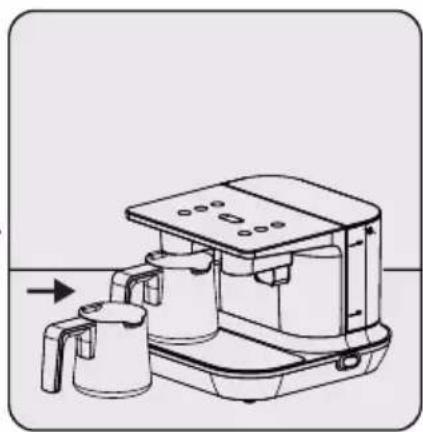

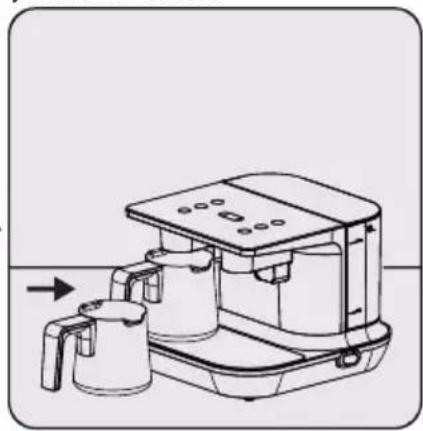

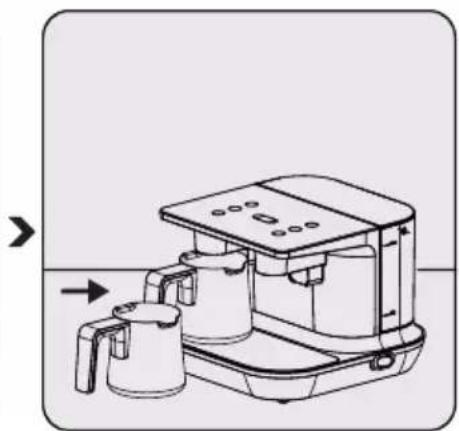

Place the coffee-making pot (15) in its slot. Slightly press the button that is found on the compartment where you have placed the coffee-making pot (15) and that shows the number of servings based on the amount of coffee you have added.
- The light of the selected button will light in white.

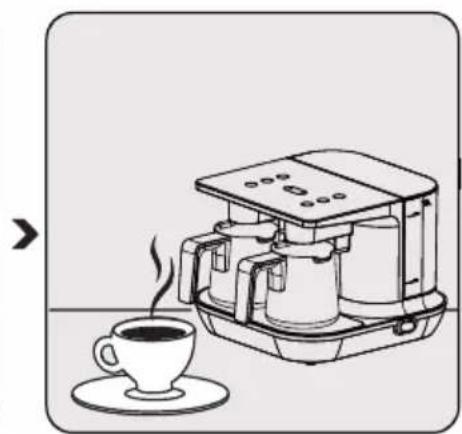

Illustration of a coffee maker with a steaming cup on a table (no text or symbols)

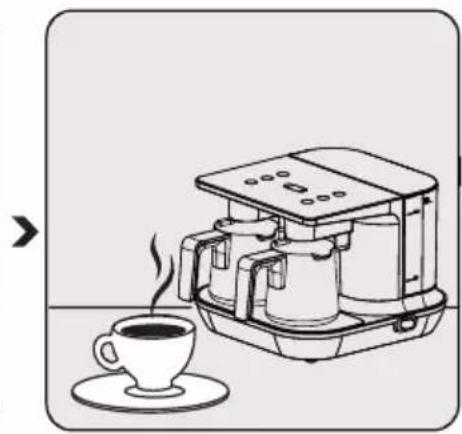

Once the coffee-making process is complete, an audio warning will be heard and the LED of the relevant coffee-making button will flash in white. Once the LED turns dull white, slightly pull back the coffee-making pot (15) to remove it and pour the coffee into your cup.

WARNING:

• Pay attention not to stain the heating surface (13-14). If you drip coffee onto the heating surface, wipe it with a slightly damp cloth before it gets dry.
• Do not use the coffee-making pot on any cooking appliance other than the Coffee Machine! (Hob etc.)
• The appliance will not start unless you place the coffee-making pot (15) properly into its seat.
• Fully insert the pot back into its seat in upright position. Otherwise your product will not run.

• Coffee-making time is 1-1.5 min. for 1 person., 1.5-2.5 min. for 2 persons and 2-3.5 min. for 3 persons.
• For a tasty coffee, take the coffee-making pot (15) from the seat without waiting!
• Pour coffee swiftly in order to prevent the foam and grounds from remaining in the coffee-making pot (15).
• If you want to cancel the coffee-making process for any reason, press and hold the selected coffee-making starting button for 3 seconds.

2.3 Amounts

This is an easy-to-use appliance designed to make Turkish coffee. You can prepare foamy Turkish coffee that suits your tastes by using the quantities in the table. Following quantities are provided only for information purposes. You can adjust them according to your personal tastes.

• Add sufficient coffee for one, two or three persons by using the measuring spoon, desired amount of sugar and required amount of water for your cup size (recommended cup size is 65 ml) into the coffee-making pot.
• These amounts are for a one-serving medium cup. You can use the measuring spoon provided with the product for measuring the amount of coffee. For a foamy, delicious coffee, use fine grind fresh coffee suitable for making Turkish coffee.

Recommended quantities of ingredients to prepare coffee
	Sugar-free	With little sugar	With medium amount of sugar	Sweet
Coffee 1 measure	1 measure 1 measure	1 measure
Sugar -		1/2 cube of sugar / 1/2 tea spoon of granulated sugar	1 cube of sugar / 1 tea spoon of granulated sugar	2 cubes of sugar / 2 tea spoons of granulated sugar

*These quantities are for single serving.
*You can prepare 3 servings of coffee maximum in a single pot.
* We recommend you to use sugar cubes to easily adjust the amount of sugar.

2.4 Sleep mode

If you do not do anything on the appliance for 3 minutes, it will give an audio warning (beep) and switch to stand-by mode. If you press the coffee-making start button or the cup size adjustment button, an audio warning will be heard and the appliance will leave sleep mode.

2.5 Notifications

Product is ready to make coffee

LED of the selected cup size is constantly on in white. LEDs of the coffee-making starting button are in dull white.

Making coffee

LED of the selected coffee-making starting button is constantly on in white.

Coffee-making process is complete

LED of the selected coffee-making starting button is flashing in white.

Level exceeded error

The selected button's LED for coffee-making start is flashing in red

Please wait

Do not remove the coffee-making pot.

Remove the coffee-making pot, and pour the coffee into the cup before serving.

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

2 Use

Time out error

The selected button's LED for coffee-making start is continuously on in red

Coffee-making error 1

The button LEDs for coffee-making start for the relevant compartment are flashing in red

Coffee-making error 2

LEDs of all coffee-making starting buttons are constantly on in red

No water

Water indicator LED is constantly on in red

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

Fill the water tank with water up to the max level. (When there is no water left, the coffee-making start buttons will go off and the user cannot make any selection).

3 Cleaning and care

3.1 Cleaning

• Since the appliance will be hot during coffee-making, please wait until it is cold if you would like to clean it afterwards.
• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.
• Never immerse the appliance or its power cable in water or any other liquid.
• Use a dry cloth to wipe the water droplets that appear on the sensor glass (16-17) after consecutive coffee-making cycles.
• Do not wash the coffee-making pot (15) in dishwasher.

Switch the On/Off button (12) of the appliance to Off (0) position. Unplug the appliance. Allow it to cool down.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

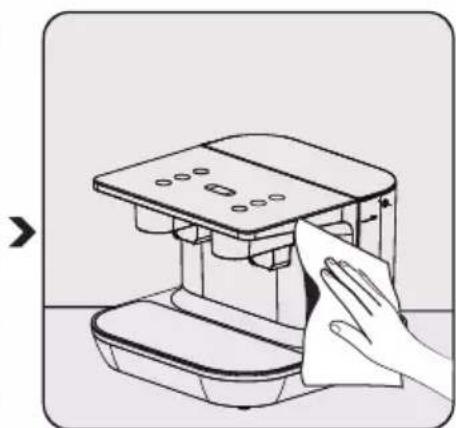

Use a damp cloth and a small amount of washing liquid to clean the outer surface of the appliance.

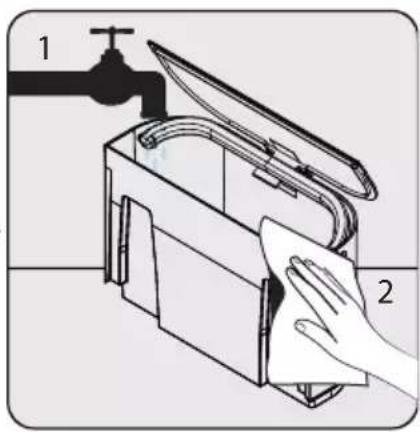

Remove the water tank (10) of the appliance. Wash it under running water with little washing liquid. Then dry and re-install it.

Illustration of a water tap dispensing liquid into a container (no text or symbols)

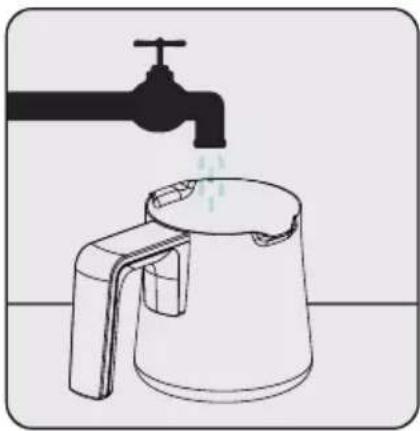

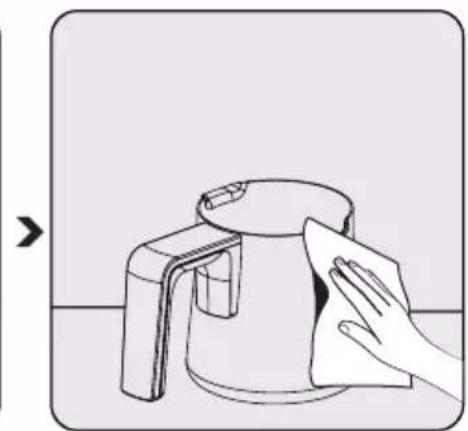

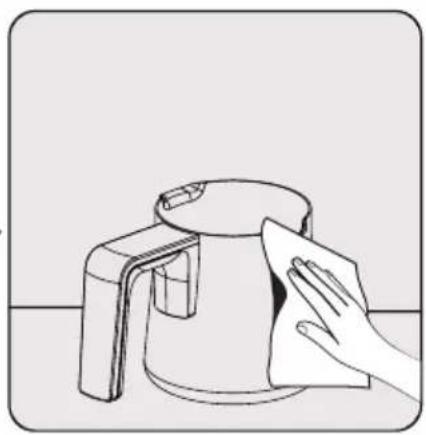

Wash the coffee-making pot by hand.

Line drawing of a hand cleaning a ceramic kettle with a cloth (no text or symbols)

Then, dry it.

Line drawing of a microwave oven with a side-mounted unit and a hand pump (no text or symbols)

After drying the coffee-making pot, re-in-stall it.

3.1.2 Descaling

To clean the stains (deposits) that might appear in the coffee-making pot in time without harming the inner base surface, pour one dessert spoon of citric acid crystals to the coffee-making pot and pour boiling water on it, so that water fills 1/3 of the pot. Wait for 10 minutes. At the end of the waiting process, you can rinse the coffee-making pot (15) and use it again.

3 Cleaning and care

WARNING: If you do not perform the descaling process for a long time, the base of the water reservoir of the appliance will get covered with lime and become inoperable.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance and its power cable out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may be damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

4 Technological features of the appliance

Automatic stirring system that ensures that the coffee is foamy and ideally consistent

The technology that allows making coffee at the best consistency.

Additional safety system eliminating the necessity of watching the coffee while it is being prepared

5 Before calling the authorised service agent

First, check it the appliance is plugged in or not.

Check whether there is any break or damage on the cable.

Check if there is enough water in the water tank and if it is fitted in its place or not.

Clean the level detection glass.

Line drawing of a coffee maker with two cups and a lid (no text or symbols)

Line drawing of a kitchen appliance with two cups and a tray, showing no text or symbols

Diagram of a kitchen sink with faucet and cup pouring liquid (no text or symbols)

Technical line drawing of a mechanical component with a handle and internal structure (no text or symbols)

Line drawing of a kitchen pot with a spoon lifting a lid, no text or symbols present

Line drawing of a coffee machine with a steaming cup on a saucer (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a water tap pouring liquid into a container (no text or symbols)

Line drawing of a hand cleaning a kettle with a cloth (no text or symbols)

Line drawing of a coffee maker with two cups and a tray, showing mechanical components without any text or symbols.

Line drawing of a laboratory filtration or mixing machine with two cups and a top lid (no text or symbols)

Line drawing of a mechanical device with two cups and a lid, showing no text or symbols

Illustration of a faucet pouring liquid into a water-filled container with a bucket (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a kettle pouring liquid from a ladle into a container (no text or symbols)

Illustration of a coffee machine with a steaming cup on a saucer (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a water tap pouring liquid into a small container (no text or symbols)

Line drawing of a hand cleaning a ceramic kettle with a cloth (no text or symbols)

Ardından kurulayın.

Line drawing of a coffee maker with a side arm and handle, showing mechanical components without any text or symbols.

Technical line drawing of a mechanical device with two cylindrical components and a top plate (no text or symbols)

Line drawing of a coffee maker with two cups and a lid, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a kitchen sink with a faucet pouring liquid from a container (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a kitchen pot with a spoon pouring granular material from a lid (no text or symbols)

Illustration of a coffee machine with a steaming cup on a table (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a faucet pouring liquid into a water dispenser (no text or symbols)

Line drawing of a hand cleaning a ceramic kettle with a cloth (no text or symbols)

Line drawing of a coffee maker with a side arm and handle, showing mechanical components without any text or symbols.

Line drawing of a mechanical device with two cups and a top platform (no text or symbols)

Stavite proizvod vertikalno na ravnu, čistu i suvu površinu.

Line drawing of a coffee maker with a side arm and handle, showing no text or symbols

Lagano povucite lonac za kuvanje kafe (15) iz njegovog ležišta.

Diagram showing a faucet pouring liquid into a water-filled container with a bucket nearby (no text or symbols)

Ubacite utikač (11) u zidnu utičnicu. Okrenite dugme za Uključivanje/Isključivanje (12) na položaj Uključeno (I) - Sva dugmad na kontrolnoj tabli (1) će pobeleti.

Otvorite poklopac rezervoara za vodu. Držeći ga za dršku, lagano ga povucite da biste ga skinuli.

Technical line drawing of a mechanical component with a handle and internal structure (no text or symbols)

Stavite lonac za kuvanje kafe na grejnu površinu levog odeljka (14). Pritisnite dugme za pravljenje kafe na levom odeljku za 3 posluženja (2).

Kada se proces pumpanja vode završi, pritisnite i zadržite isto dugme 3 sekunde za završetak pravljenja kafe.

Uzmite lonac za kafu (15) i sipajte vodu u njega kroz slivnik.

Stavite Ionac za kuvanje kafe (15) na grejnu površinu levog odeljka (14). Pritisnite dugme za pravljenje kafe na levom odeljku za 1 posluženje (4).

Kada se proces pumpanja vode završi, pritisnite i zadržite isto dugme 3 sekunde za završetak pravljenja kafe i za sipanje vode u lonac za kuvanje kafe (15) u vašu šolju.

Line drawing of a kettle pouring liquid from a ladle into a container (no text or symbols)

Stavite željenu količinu kafe i šećera (do 3 posluženja) u lonac za kuvanje kafe (15).

Stavite lonac za kafu (15) u njegovo ležište. Lagano pritisnite dugme koje se nalazi u odeljku u kojem ste stavili lonac za kuvanje kafe (15) i koje pokazuje broj posluženja baziranih na količini kafe koju ste dodali.
- Svetlo odabranog dugmeta će zasvetleti belo.

Line drawing of a coffee machine with a steaming cup on the side (no text or symbols)

lsključite proizvod. Izvadite lonac za kuvanje kafe iz njegovog ležišta. Koristite vlažnu krpu za čišćenje osnove lonca za kafu, grejne površine (uverite se da je grejna površina hladna) i senzorsko staklo. Možete ponovo uključiti proizvod za početak novog procesa kuvanja kafe. Kontaktirajte ovlašćenog servisnog agenta ako se greška javi ponovo.

lsključite proizvod. Izvadite lonac za kuvanje kafe iz njegovog ležišta. Koristite vlažnu krpu za čišćenje osnove lonca za kafu, grejne površine (uverite se da je grejna površina hladna) i senzorsko staklo. Možete ponovo uključiti proizvod za početak novog procesa kuvanja kafe. Kontaktirajte ovlašćenog servisnog agenta ako se greška javi ponovo.

Isključite proizvod. Izvadite lonac za kuvanje kafe iz njegovog ležišta. Koristite vlažnu krpu za čišćenje osnove lonca za kafu, grejne površine (uverite se da je grejna površina hladna) i senzorsko staklo. Možete ponovo uključiti proizvod za početak novog procesa kuvanja kafe. Kontaktirajte ovlašćenog servisnog agenta ako se greška javi ponovo.

Prebacite dugme za uključivanje/isključivanje (12) aparata na položaj Isključeno (0) Izvucite utikač aparata iz struje. Ostavite da se ohladi.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Upotrebite vlažnu krpu i malu količinu tečnosti za pranje da očistite spoljnu površinu aparata.

Illustration of a hand cleaning a kitchen sink with a faucet and cloth (no text or symbols)

Izvadite rezervoar za vodu (10) sa aparata. Operite ga pod mlazom vode uz malo tečnosti za pranje. Zatim ga osušite i ponovo stavite.

Illustration of a water tap pouring liquid into a container (no text or symbols)

Ručno operite lonac za kafu. Zatim ga osušite. Kada se lonac za kafu osuši vratite ga u

Line drawing of a hand cleaning a ceramic kettle with a cloth (no text or symbols)

Line drawing of a kitchen appliance with a handle and lid, showing internal components and a directional arrow (no text or symbols)

ležište.

3.3 Prenos i transport

• Tokom prenosa i transporta, nosite aparat u njegovom originalnom pakovanju. Ambalaža uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovo pakovanje. Aparat se može oštetiti.
• Ako vam uređaj ispadne, to može izazvati trajno oštećenje, odnosno aparat može postati nefunkcionalan.

Line drawing of a coffee maker with two cups and a lid (no text or symbols)

Line drawing of a coffee maker with two cups and a tray, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a faucet pouring liquid into a water-filled storage tank (no text or symbols)

Technical line drawing of a mechanical device with a lid and internal components (no text or symbols)

Line drawing of a coffee maker with a tray and cup, showing a press or printer setup (no text or symbols)

Line drawing of a kettle with a spoon pouring liquid from a lid (no text or symbols)

Line drawing of a coffee machine with a steaming cup on a table (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a water tap dispensing liquid into a container (no text or symbols)

Illustration of a hand cleaning a kettle with a cloth (no text or symbols)

Line drawing of a hand cleaning a kettle with a cloth (no text or symbols)

Line drawing of a kitchen appliance with a side arm and handle, showing no text or symbols

уредот.

Line drawing of a laboratory filtration or mixing machine with two cups and a top lid (no text or symbols)

Stavite proizvod okomito na ravnu, čistu i suhu površinu.

Line drawing of a mechanical device with two cups and a lid, showing no text or symbols

Lagano izvucite lonac za spravljanje kave (15) iz njegovog ležišta.

Illustration of a kitchen sink with a faucet and water spray, showing no text or symbols

Ručno operite spremnik za vodu (10) i lon-ac za spravljanje kave (15) te ih osušite.

Za pripremu ukusne kave, pripazite da lonac za kuhanje (15) bude suh i čist.

Otvorite poklopac spremnika za vodu. Držeći ručku, lagano ga izvucite da biste ga skinuli.

Technical line drawing of a mechanical device with a handle and internal compartments (no text or symbols)

Napunite spremnik za vodu (10) do ra-zine između minimalne i maksimalne ra-zine. Zatvorite poklopac ponovno te vrat-ite spremnik na svoje mjesto.

2 Uporaba

Ako želite, možete također puniti spremnik za vodu (10) bez njegovog kompletnog vađenja. Ponovite isti proces nakon što vas uređaj upozori na nedostatak vode (5).

Stavite lonac za spravljanje kave u lije- vi odjeljak grijaće površine (14). Pritis- nite gumb za spravljanje kave u lijevom odjeljku za 3 posluženja (2).

Čim proces crpljenja vode završi, pritisnite i zadržite isti gumb 3 sekunde da biste završili proces spravljanja kave.

Uzmite lonac za kavu (15) te sipajte vodu u njega niz slivnik.

Stavite lonac za spravljanje kave (15) u li-jevi odjeljak grijaće površine (14). Pritis-nite gumb za spravljanje kave u lijevom odjeljku za 1 posluženje (4).

Čim proces crpljenja vode završi, pritisnite i zadržite isti gumb 3 sekunde da biste završili proces spravljanja kave te sipajte vodu unutar lonca za kavu (15) u vašu šalicu.

Ako je količina vode koju ste sipali u vašu šalicu premala ili prevelika, pritisnite gumb za prilagodbu veličine šalice da biste je podesili na malu, srednju ili veliku (9). Možete pritisnuti gumb za prilagodbu veličine šalice (9) za prebacivanje između razina. Kada se LED svjetlo željene veličine šalice upali, proces je završen.

LED svjetlo za veličinu šalice će prikazati razinu na kojoj je proizvod postavljen. Ponovite proces prilagodbe količine vode kada mijenjate veličinu šalice. Ponovite proces prilagodbe količine vode kada mijenjate veličinu šalice.

2.2 Spravljanje kave

Line drawing of a kettle pouring liquid from a ladle into a container (no text or symbols)

Illustration of a coffee machine with a steaming cup on a saucer (no text or symbols)

Prebacite gumb uključeno/isključeno (12) uređaja na položaj Isključeno (0). Isključite uređaj iz napajanja. Pustite da se ohladi.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a water tap pouring liquid into a small container (no text or symbols)

Ručno operite lonac za spravljanje kave. Zatim ga osušite. Nakon što se osuši ponovno ga vratite na uređaj.

Illustration of a hand cleaning a ceramic kettle with a cloth (no text or symbols)

Line drawing of a kitchen appliance with a side arm and handle, showing internal components (no text or symbols)

Line drawing of a coffee maker with two cups and a lid (no text or symbols)

Line drawing of a coffee maker with a side arm and handle, showing no text or symbols

Diagram of a kitchen sink with faucet and bucket pouring water (no text or symbols)

Pastroni rezervuarin i ujit (10) dhe rezervuari i kafes (15)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a kettle with a spoon pouring liquid from a lid (no text or symbols)

Illustration of a coffee machine with a steaming cup on a table (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of a water tap dispensing liquid into a container (no text or symbols)

Line drawing of a hand cleaning a ceramic teapot with a cloth (no text or symbols)

Line drawing of a coffee machine with a side arm and lid, showing no text or symbols

Pas tharjes, ri-instaloni rezervuarin e kaf-es.

Line drawing of a mechanical device with two cylindrical components and a top platform (no text or symbols)

Line drawing of a coffee maker with a side arm and handle, showing internal components (no text or symbols)

Diagram of a kitchen sink with a faucet pouring liquid from a lid, showing water flow (no text or symbols)

Technical line drawing of a mechanical component with a handle and internal structure (no text or symbols)

Illustration of a kitchen pot with a spoon pouring granular material from a lid (no text or symbols)

Поставете желаното количество кафе и захар (до 3 кафета) в каната за кафе (15).

Illustration of a coffee maker with a steaming cup on a table (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a water tap pouring liquid into a container (no text or symbols)

Illustration of a hand cleaning a ceramic teapot with a cloth (no text or symbols)

Line drawing of a mechanical device with a cylindrical component and a base, showing no text or symbols.

Line drawing of a coffee maker with a side arm and handle, showing mechanical components without any text or symbols.

Simple line drawing of a coffee cup on a flat surface (no text or symbols)

TKM 8961 K

TKM 8961 A

TKM 8961 S

TKM 8961 B

RU

Line drawing of a coffee maker with two cups and a lid (no text or symbols)

Line drawing of a mechanical device with two cups and a tray, showing no text or symbols

Diagram of a faucet spraying water into a container with a bucket, showing liquid level (no text or symbols)

Technical line drawing of a mechanical component with a handle and internal structure (no text or symbols)

Line drawing of a kitchen appliance with a tray and lid, showing a downward arrow and a small icon above (no text or symbols)

Line drawing of a kettle with a spoon pouring liquid from a lid (no text or symbols)

Illustration of a coffee maker with a steaming cup on a saucer (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a water tap pouring liquid into a container (no text or symbols)

Line drawing of a hand cleaning a ceramic kettle with a cloth (no text or symbols)

Line drawing of a coffee maker with two cups and a tray, no text or symbols present

вите ее на место.

3 Очистка и уход

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of a coffee maker with a side arm and handle, showing internal components (no text or symbols)

Line drawing of a hand cleaning a ceramic teapot with a cloth (no text or symbols)

Illustration of a water tap pouring liquid into a container (no text or symbols)

Line drawing of a coffee maker with a tray and lid, showing a base and top view (no text or symbols)

Line drawing of a coffee maker with a steaming cup on the side (no text or symbols)

Illustration of a kitchen pot with a spoon lifting a lid, showing food being poured (no text or symbols)

Diagram of a faucet spraying water into a container with a bucket (no text or symbols)

Line drawing of a coffee maker with two cups and a tray, showing mechanical components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical device with two cups and a top lid (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, showing motion or flow direction (no text or symbols)

Simple line drawing of a coffee cup on a flat surface (no text or symbols)

TKM 8961 K

TKM 8961 A

TKM 8961 S

TKM 8961 B

AR
