Product Type	Ultra-slim external Blu-ray burner
Brand	Pioneer
Model	BDR-XS07TUHD
Category	Auto (external optical drive)
Dimensions (L x W x H)	135 x 135 x 18 mm
Weight	290 g (cable included)
Power Supply	USB 3.0 (bus-powered, 5V)
Interface	USB 3.0 (compatible with USB 2.0)
Supported formats (read)	BD-ROM, BD-R/RE, DVD±R/RW, DVD±R DL, DVD-RAM, CD-R/RW
Supported formats (write)	BD-R/RE (up to 100 GB BDXL), DVD±R/RW, CD-R/RW
Blu-ray read speed	6x (BD-ROM), 8x (BD-R)
BD-R write speed	6x (BD-R), 2x (BD-RE), 4x (BD-R DL)
Ultra HD Blu-ray support	Yes (UHD BD)
M-DISC support	Yes
PureRead technology	Yes (improves CD reading)
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or shocks. Use on a stable surface.
Spare parts and repairability	The product contains no user-serviceable parts. Contact customer service.
Warranty	2 years (depending on country)

Frequently Asked Questions - BDR-XS07TUHD PIONEER

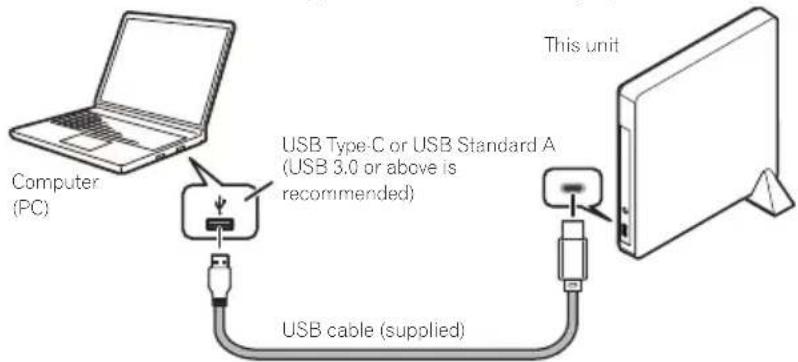

How do I connect the BDR-XS07TUHD burner to my computer?

Use the supplied USB cable to connect the burner to a USB 3.0 (or USB 2.0) port on your computer. The burner is powered directly by the USB cable, no external power source is needed.

Can the BDR-XS07TUHD read Ultra HD Blu-ray (4K) discs?

Yes, the BDR-XS07TUHD supports reading Ultra HD Blu-ray (UHD BD) discs provided that your computer has compatible playback software (e.g., PowerDVD) and an HDCP 2.2 connection.

What types of discs can I burn with this burner?

You can burn BD-R/RE discs (including BDXL up to 100 GB), DVD±R/RW, DVD±R DL, and CD-R/RW. It also supports M-DISC for long-term archival.

Does the burner work with macOS?

Yes, the BDR-XS07TUHD is compatible with Windows and macOS (no additional driver required). For UHD Blu-ray playback, third-party software is needed on both systems.

What should I do if the computer does not detect the burner?

Check the USB connection, try another port. Make sure the cable is fully inserted. Restart the computer. If the problem persists, test on another PC to isolate the cause.

How do I clean the optical drive?

Use a soft, dry cloth to wipe the exterior. For the tray and lens, use a cleaning disc designed for optical drives. Never spray liquid directly.

Can I use this burner with a game console (PS4, Xbox)?

No, the BDR-XS07TUHD is designed for computers. Game consoles generally do not support USB external optical drives.

What is the maximum writing speed for a BD-R?

The maximum write speed for a standard BD-R (25 GB) is 6x. For dual-layer BD-R (50 GB), it is 4x. BD-RE are limited to 2x.

Is the burner compatible with CD and DVD discs?

Yes, it reads and writes all common CD (CD-R, CD-RW) and DVD (DVD±R, DVD±RW, DVD±R DL, DVD-RAM) formats.

Where can I find compatible burning software?

The burner comes with CyberLink PowerDVD (for Blu-ray playback) and Power2Go (for burning). You can also use third-party software like ImgBurn or Roxio.

USER MANUAL BDR-XS07TUHD PIONEER

Operating Instructions

Mode d'emploi

Bedienungsanleitung

Handleiding

Provozní pokyny

Instrukcja obsługi

使用说明书

操作手册

Thank you for buying this Pioneer product. Before using the drive, read all warnings, cautions, notices and other important safety information contained in these Operating Instructions. Please read the entire manual before using this drive as it contains important information, such as regulatory data, software license agreement(s), product registration details, service instructions and guidelines.

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_B_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

Precautions Regarding Use

• Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the result of the use or breakdown of this product. It is strongly recommended to regularly back up all critical data.
• Care must be taken not to infringe copyright restrictions under the laws of each country. If this device is used to record copyrighted materials, approval must be obtained from the respective copyright holders. The recording of copyrighted materials without the express approval of the respective copyright holders may result in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of this device in the unauthorized copying of copyrighted materials.
• All names of corporations, products, and systems listed herein, even when the (TM) or (®) symbols are omitted, are considered the registered trademarks of the respective owners.

DANGER – VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825:2014, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel. The following caution label appears on your unit.

CLASS 1 LASER PRODUCT

Location: Top of built-in drive and rear of outer mounting case

Location: Top of built-in drive

D58-5-2-2b*_A1_En

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

D58-5-1-2a A1 En

For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.

Machine Noise Information Regulation 3.

GPSGV: The highest sound-pressure level is 70 dB(A) or less in accordance EN ISO 7779.

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. D8-10-2_A1_

CAUTION

This product satisfies EMC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

is a trademark of Blu-ray Disc Association.

is a trademark of DVD Format/Logo Licensing Corporation.

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. If the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact.

AUSTRALIA

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

Telephone: [phone],

9am to 5pm Monday to Friday (EST)

OTHER REGIONS

PIONEER HIGH FIDELITY TAIWAN CO., LTD.

8F., No.407, Ruiguang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C)

S022_A_En

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Safety instructions

To ensure your personal safety and to maximize the full operating potential of your unit, read and follow these safety instructions.

Read & Retain Instructions – Read all operating and user information provided with this drive.

Cleaning – Use a damp cloth to clean the exterior housing. Avoid using any fluids including liquid, aerosol or alcohol-based cleaning products.

Water or Moisture – Avoid operating or locating this drive near water or other sources of fluid.

Installation – Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged.

Ventilation – Slots and openings in the chassis are for cooling and proper operation of the unit. Do NOT block or cover the openings. Do NOT place this unit on a bed, rug, etc. as this can block the openings. This unit should not be placed in a built-in installation unless properly ventilated.

Operation - Avoid moving, lifting or reorienting this drive while a disc is rotating inside.

Environment – Avoid installing this drive in a location with exposure to large quantities of dust, high temperatures, high humidity, or subject to excessive vibrations or shocks.

Power Sources – Operate this drive only from the recommended power sources. If you are unsure of the power source, consult an authorized Pioneer representative.

Power-Cord Protection – When unplugging the unit, pull on the plug – not on the cord. Do not handle the cord or plug with wet hands; doing so could cause an electric short or shock. Do not allow anything to pinch or rest on the power cord and do not place in a walkway.

Object & Liquid Entry – Never push inappropriate objects into the device. Avoid spilling any liquids into or on the outside of the drive.

Condensation – Moisture can form in the operating section of the product if the drive is taken from cool surroundings to a room with a warmer temperature. Let the drive stand for one to two hours in the new location before turning it ON.

Servicing – Opening or removing the cover exposes you to possible electrical shock or other danger. Contact a Pioneer authorized service representative for repairing this drive.

Damage Requiring Service – Unplug the unit and refer servicing to qualified service personnel in the following situations:

• When the power cord, plug, or chassis is damaged.
  • If liquid has been spilled.
• If the product has been exposed to rain or water.
• If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and can require extensive work by a qualified technician to restore the unit to its normal operation.
• When the product exhibits a distinct change in performance – this indicates a need for service.

About DualDisc Playback – DualDisc is a two-sided disc with one side containing DVD video/audio/etc. content and the opposite side containing non-DVD content such as digital audio material. The non-DVD audio side is not compliant with the CD Audio Specification; therefore, may not play. The DVD side of DualDisc media plays in this unit. For more details about the DualDisc specification, please refer to the disc manufacturer or your retailer.

• Avoid touching or scratching the signal surface (shiny side) of the disc.
• Hold the disc by the edges or by the center hole and one edge.
• Do not affix paper or labels to the disc.
• Discard warped or cracked discs as they may cause damage to the drive.
• Avoid specially shaped discs such as hearts or polygons.
• Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
• Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.

Always be sure to store your discs in proper disc storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the signal surface) before use.

Hand holding a circular object with directional arrows, no text or symbols visible

Note

Some discs may not be playable due to different recording formats or the physical condition of the disc at the time of recording or playback.

Operating environment

The operating environment below is only for reference. It does not guarantee the operation.

During DVD/CD disc writing and reading

• Supported OS: Windows 10, Windows 8.1, Windows 8, Windows 7, macOS Mojave 10.14, macOS High Sierra 10.13, macOS Sierra 10.12, Mac OS X 10.11 standard loaded model
  • CPU: Pentium III 800 MHz or above (Pentium 4, 2.2 GHz or above*)
  • Memory: 128 MB or above (256 MB or above*)
• Hard disk free space: 2 GB or above (7 GB or above*)
  • Sound card: 16 bit or above
  • Graphic: 1024 × 768, 32 bit or above display
• Devices: Arrange for a separate video input device (video cassette recorder and camcorder, etc.) and capture card.

*: Recommended operating environment

During Blu-ray disc writing and reading

• Supported OS: Windows 10, Windows 8.1, Windows 8, Windows 7, macOS Mojave 10.14, macOS High Sierra 10.13, macOS Sierra 10.12, Mac OS X 10.11 standard loaded model
  • CPU: Core Duo T2700/Core 2Duo E6300 or above
  • Memory: 1 GB or above
• Hard disk free space: During recording 25 GB (50 GB or above*), during playback 120 MB
• Graphic: During digital output of BD-Video videos, an HDCP-compatible graphic function and monitor are required.

*: Recommended operating environment

During Ultra HD Blu-ray reading\*

For details on the playback environment, visit the Pioneer website.

https://pioneer-iot.com/product/bd-and-dvd/external-bd-writerbdr-xs07tuhd/

*: Supplied software application is only for Windows OS.

The required environment varies depending on your OS and applications.

For answers to your queries on the OS and applications, contact the consultation desk of each software manufacturer.

Blu-ray Disc, BDXL, the Blu-ray Disc and BDXL logos are trademarks of the Blu-ray Disc Association.

Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.

Mac, Mac logo, Mac OS, OS X, macOS, Sierra and Mojave are trademarks of Apple Inc., registered in the U.S. and other countries.

Other company and product names used herein might be the trademarks or registered trademarks of their respective companies.

Features

Maximum Write Speed* Maximum Read Speed*

BD-R	6X	BD-ROM SL/DL	6X
BD-R DL	6X	BD-ROM DL/TL(Ultra HD Blu-ray)	4X
BD-R TL	4X	BD-R	6X
BD-R QL	4X	BD-R DL	6X
BD-R (LTH)	6X	BD-R TL/QL	4X
BD-RE	2X	BD-R (LTH)	6X
BD-RE DL	2X	BD-RE	6X
BD-RE TL	2X	BD-RE DL	6X
M-DISC BD-R SL/TL	4X	BD-RE TL	4X
M-DISC BD-R DL	6X	M-DISC BD-R SL/DL	6X
		M-DISC BD-R TL	4X
DVD-R	8X
DVD-R DL	6X	DVD-ROM	8X
DVD-RW	6X	DVD-ROM DL	8X
DVD+R	8X	DVD-R	8X
DVD+R DL	6X	DVD-R DL	8X
DVD+RW	8X	DVD-RW	8X
DVD-RAM	5X	DVD+R	8X
M-DISC(DVD)	4X	DVD+R DL	8X
		DVD+RW	8X
CD-R	24X	DVD-RAM	5X
CD-RW	24X	M-DISC(DVD)	8X
		CD-ROM, CD-R, CD-RW	24X

* When using a USB 2.0 port, BD writing/reading speed doesn't achieve 6X.

Buffer Memory Size Interface

4 MBytes (Read/Write) USB 3.1 Gen1(3.0)/2.0

Disc Format

• Ultra HD Blu-ray (BD-ROM Dual/Triple layer)
• BD-ROM (Single/Dual layer)
• BD-R (Single/Dual/Triple/Quadruple layer)
• BD-RE (Single/Dual/Triple layer)
• M-DISC BD-R (Single/Dual/Triple layer)

• DVD-ROM (Single/Dual layer)
• DVD-Video (Single/Dual layer)

• DVD - R

• DVD - RW

• DVD + R

• DVD + RW

• DVD-RAM (Non-cartridge), ver2.0&2.1&2.2

• M - D I S C ( D V D )

• CD-ROM Mode 1&2
• CD-ROM XA Mode 2 (form 1, form 2)
• KODAK Photo CD (Single and Multi-session)
• CD-Extra (CD PLUS)
- C D t e x t
• C D - R
- CD - RW (MS / HS / US / US + )
- CD-DA
• Video CD

RAM2 media is supported only reading.

Note

• A specific application software is necessary to write the formats listed above.
  • Supported media required for specific BD, DVD and CD writing speeds.
  • Average writing speed may decrease when multiple discs are written during the same session.
  •The Pioneer's Drive Utility is needed to configure the Quiet Drive and PureRead features. https://pioneer.jp/support/download/index-e.html
• Supplied software application is only for Windows OS.

Interface

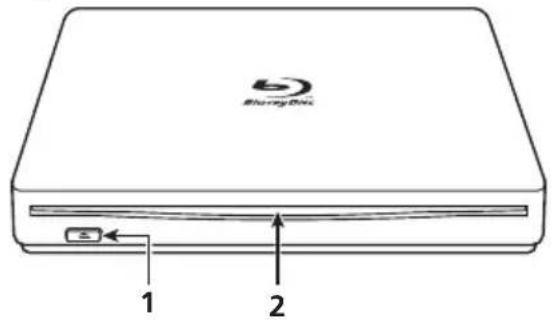

Front/Top view

1 Eject Button ( ▲)

Press to eject a disc.

* If this device is connected to Mac, you will not be able to use this function due to the specifications of macOS.

2 Disc Loading Slot

Insert disc (only a BD, DVD or CD) slowly; when inserted a certain distance, the disc will automatically be pulled into the drive.

The disc should be inserted flatly, parallel with the surface of the drive.

Do not insert objects other than specified discs into the loading slot.

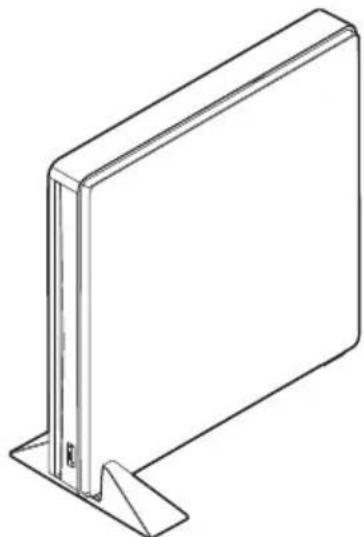

In the case of vertical installation

Line drawing of a rectangular frame with a corner support and a small triangular base (no text or symbols)

If the device is installed vertically, be sure to use the stand and rubber cushion provided as accessories.

Installation of the stand and pasting of the rubber cushion (recommended example)

Insert the drive right till the end of the stand.

If you do not paste a rubber cushion, the vibrations could result in noise and poor operation.

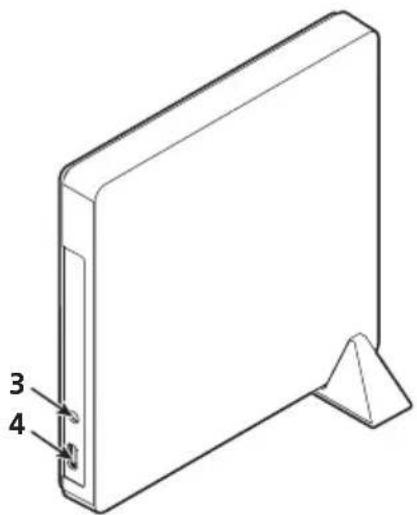

Rear view

3

D

AC Adapter Connector

4 USB Connector

USB 3.1 Gen1(3.0) Type-C Connector

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Caution

About Region codes

- The region code can only be changed five (5) times, including the initial setting. Please be aware that the fifth change becomes PERMANENT. Therefore, avoid changing the region code unless absolutely necessary.

- Region codes are part of the DVD Standard. However, region codes on DVD discs are optional. DVD discs with no specified region code can be played on all compliant players and/or application.

Connection

This is a hot-plug unit. Connect the unit to the supplied USB cable.

1 Confirm that your computer (PC) has available USB port.

2 With your Windows® or Mac operating system running, use the supplied USB cable to connect this unit to the PC.

Caution

• Do not disconnect the USB cable during data transfers.
• Do not disconnect the USB cable during the PC start nor any operation with the unit.

Note

• It is recommended to connect to USB 3.0 port or above, since when a USB 3.0 cable is connected to a USB 2.0 port, the connection will be limited to USB 2.0 performance standards.
• This unit can operate with USB 1.1 but will not provide optimum performance.
• Connecting this unit through a USB HUB or using unspecified cables may not guarantee proper operation.

About disc insertion and removal

- Disc insertion

Insert the disc horizontally into the disc insertion slot.

Once the disc has been inserted up to a certain point, it will be automatically pulled in.

* Do not forcibly push in the disc during insertion.

For Windows

- Removing the disc

In general, use the eject function of the application, or the disc eject button.

- When you are unable to remove the disc by the normal operation

Use forced ejection of drive utility.

For macOS

- Removing the disc

Either perform command + click, or right-click on the disc icon to display the menu, and then select "Remove ".

* For details on “How to Remove an Unformatted Disc” in macOS Mojave, refer to the website of the device.

https://pioneer-iot.com/

- When you are unable to remove the disc by the normal operation

Use forced ejection of drive utility.

* Also try reconnecting the USB connector.

* Depending on the specifications of macOS, you may not be able to use the eject button in the front.

Downloading and Installing CyberLink Media Suite (with Product Key)

*This is an application specially for Windows. It cannot be used with macOS.

1 Access the website shown on the back of this manual.
2 Check the content of the License Agreement, and click "Agree" to proceed to the CyberLink webpage.

<<Download>>

1 After accessing the download website, sign in with your CyberLink member e-mail address and password.

(If you have not registered as a CyberLink member, click "Register now" and register to be a member.)

2 After signing in, the product key input screen will be displayed. Enter the provided product key and click "Submit".

The product key is on the back of this manual.

(The 16-character key printed on the label.)

3 If the product key has been entered correctly, the screen to download the downloader will be displayed. Click the download link to download the downloader.

*Re-downloading the downloader

After registering the product key on the download website, an e-mail will be sent to your registered CyberLink member e-mail address.

The downloader can be re-downloaded from the Link in the e-mail for 30 days from registration of the product key.

<<Install>>

1 Connect the drive to Windows PC.
2 Run the downloaded file to start downloading the program.
3 After the download is complete, the installation message will be displayed in the dialog box. Click "Install" to start up the installer.

(Even if you do not click "Install", the installer will automatically start up after 1 minute.)

4 After the installer starts up, follow the instructions on the installer to install the product.

Specifications

Orientation	This device supports both vertical installation and horizontal.
Disc Size	12 cm(Drive does not support non-standard shapes such as business cards, diamond, etc.) (Drive does not support 8 cm adapter.)

Data Transfer Rate * Media that is dirty or damaged can affect the transfer rate.

Data Read (sustained)	BD	Max. 27.00 MBytes/sec.
	DVD	Max. 10.80 MBytes/sec.
	CD	Max. 3.60 MBytes/sec.
Data Write (sustained)	BD	Max. 27.00 MBytes/sec. (6X BD-R)
	DVD	Max. 10.80 MBytes/sec. (8X DVD-R)
	CD	Max. 3.60 MBytes/sec. (24X CD-R)

Access Time/Seek Time (Random Averages)

Access Time	BD-ROM	210 ms
	DVD-ROM	200 ms
	CD-ROM	190 ms
Seek Time	BD-ROM	190 ms
	DVD-ROM	180 ms
	CD-ROM	170 ms

Power

Standby.	0.65 W
DC IN Connector
Power Supply.	DC +5 V, 1.0 A (AVE)

Physical Information

Dimensions (excluding foot pad)	135 mm (W) × 135 mm (D) × 18 mm (H)
Weight (Drive only)	0.28 kg (Typ.)
Operation Temperature	+5 °C to +35 °C
Operation Humidity	5 % to 85 % (no condensation)
Storage Temperature	−40 °C to +60 °C
Storage Humidity	5 % to 90 % (no condensation)

Accessories

USB Standard A to USB Type-C 35 cm	1
USB Type-C to USB Type-C 35 cm	1
Vertical stand	1
Rubber cushion	2

Note

Specifications and designs are subject to possible modifications without notice, due to improvements.

© 2019 PIONEER CORPORATION.

All rights reserved.

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

Téléphone: 1800-672-102,

8F., No.407, Ruiguang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C)

S022 A Fr

Three-step diagram showing hand positioning of a disc and a circular object with a ring (no text or symbols)

Hand holding a CD with arrows indicating rotation (no text or symbols)

Remarque

4 Mo (Lecture/Écriture) USB 3.1 Gen1 (3.0)/2.0

Format du Disque

• Ultra HD Blu-ray (BD-ROM double/triple couche)
  • BD-ROM (simple/double couche)
  • BD-R(simple/double/triple/quadruple couche)
  • BD-RE (simple/double/triple couche)
  • M-DISC BD-R (simple/double/triple couche)

• DVD-ROM (simple/double couche)
• DVD-Video (simple/double couche)
• DVD - R
• DVD - RW
• DVD + R
• DVD + RW
• DVD-RAM (Non-cartouche), ver2.0&2.1&2.2
• M - D I S C (D V D)

• Mode CD-ROM 1 & 2
  • CD-ROM XA Mode 2 (form 1, form 2)
  • KODAK Photo CD (Simple et Multi-session)
  • CD-Extra (CD PLUS)
• C D t e x t
  • C D - R
• CD - RW (MS / HS / US / US + )
• CD-DA
  • Video CD

Line drawing of a rectangular metal bracket with a corner support (no text or symbols)

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Attention

Illustration of a CD or DVD disc with an arrow indicating compression (no text or symbols present)

Systèmes Windows

- Retrait du disque

Dimensions (talon non compris) 135 mm (L) x 135 mm (P) x 18 mm (H)

© 2019 PIONEER CORPORATION.

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

Telefon: [phone],

8F, No. 407, Ruiguang Rd., Neihu Dist., Taipei City 114,

Taiwan (R.O.C.)

S022_A_De

• M - D I S C ( D V D )

• CD-ROM Mode 1&2
• CD-ROM XA Mode 2 (form 1, form 2)
• KODAK Photo CD (Einzel- und Multi-Session)
• CD-Extra (CD PLUS)
- C D t e x t
• C D - R
- CD - RW (MS / HS / US / US + )
- CD-DA
• Video CD

Line drawing of a rectangular metal frame with a corner bracket (no text or symbols)

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Vorsicht

Illustration of a CD or DVD disc with an arrow indicating compression (no text or symbols present)

Für Windows

https://pioneer-iot.com/

© 2019 PIONEER CORPORATION.

KLASSE 1 LASERPRODUCT

SERVICE NA VERKOOP VOOR PIONEER-PRODUCTEN

Pioneer Electronics Australia Pty Ltd

8F., No.407, Ruiguang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.)

S022_A_NI

Opmerking

Line drawing of a rectangular frame with a corner support (no text or symbols)

Connector AC-adapter

4 USB-connector

USB 3.1 Gen1(3.0) Type-C-connector

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Opgelet

Overr regiocodes

Illustration of a CD or DVD drive with an arrow indicating compression (no text or symbols present)

Voor Windows

https://pioneer-iot.com/

© 2019 PIONEER CORPORATION.

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

Telefon: [phone],

8F., No.407, Ruiguang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C)

S022_A_Cs

Poznámka

• CD-ROM XA Mode 2 (form 1, form 2)

Line drawing of a rectangular metal bracket with a triangular base and corner supports (no text or symbols)

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Upozornění

O kódech regionů

Illustration of a CD or DVD disc being placed into a rectangular box, with an arrow indicating the disc (no text or symbols present)

Pro Windows

https://pioneer-iot.com/

© 2019 PIONEER CORPORATION.

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

Telefon: [phone],

Hand holding a circular object with directional arrows, no text or symbols present

Uwaga

https://pioneer-iot.com/product/bd-and-dvd/external-bd-writerbdr-xs07tuhd/

• CD-ROM XÁ Tryb 2 (form 1 i form 2)

Line drawing of a rectangular metal frame with a corner bracket and mounting base (no text or symbols)

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Przestroga

Kody regionów

Illustration of a CD or DVD disc being placed into a rectangular box, with an arrow indicating the disc (no text or symbols present)

W systemie Windows

• Wyjmowanie płyty

https://pioneer-iot.com/

© 2019 PIONEER CORPORATION.

注

https://pioneer-iot.com/product/bd-and-dvd/external-bd-writerbdr-xs07tuhd/

Line drawing of a rectangular metal bracket with a corner support (no text or symbols)

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

注意

关于区域码

Illustration of a CD or DVD disc with an arrow indicating rotation (no text or symbols present)

对于 Windows

- 移除光盘

https://pioneer-iot.com/

- 通过正常操作无法移除光盘时

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

电话：1800-672-102

8F., No.407, Ruiguang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C)

S022_A_En

© 2019 日本先锋公司。

版权所有。

Illustration showing three steps of a hand holding a circular object with a handle, next to a disc with a prohibition symbol (no text or labels)

Hand holding a CD or DVD with arrows indicating direction (no text or symbols)

註

https://pioneer-iot.com/product/bd-and-dvd/external-bd-writerbdr-xs07tuhd/

Line drawing of a rectangular metal frame with a corner bracket and mounting base (no text or symbols)

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

注意

關於區域碼

Illustration of a CD or DVD disc with an open case and a circular button, showing no text or symbols.

使用 Windows

- 移除光碟

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

電話：1800-672-102

Замечание

https://pioneer-iot.com/product/bd-and-dvd/external-bd-writerbdr-xs07tuhd/

Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)

Внимание

Коды регионов

Illustration of a CD or DVD disc being placed into a rectangular box, with an arrow indicating the disc (no text or symbols present)

Для Windows

-Извлечение диска

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia

8F, No.407, Ruiguang Rd., Neihu Dist., Taipei City 114,

Taiwan (R.O.C)

S022_A_Ru

https://jpn.pioneer/ja/pcperipherals/bdd/eula/cyberlink_media_suite/en.php

The downloader can be re-downloaded from the Link in the e-mail sent from CyberLink for 30 days from registration of the product key.

CyberLink Media Suite Product key for free download

© 2019 PIONEER CORPORATION.

All rights reserved.

© 2019 PIONEER CORPORATION.

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

Корпорация Пайонир

Pioneer Electronics Australia Pty Ltd

5 Arco Lane, Heatherton, VIC 3202, Australia TEL: [phone]

PIONEER CORPORATION

生产者：日本先锋公司
