Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 40

1.1 Signal words....41
1.2 Safety instructions....41

1. Installation 44

2.1 Minimum distances.... 45
2.2 Installation steps 46
2.3 Electrical connection....52

1. Extraction mode / Recirculation mode....53

3.1 Extraction mode 53
3.2 Recirculation mode....53

3.2.1 Carbon filters....54
3.3 Grease filter(s) 55

1. Control panel....55

4.1 Operation....56

4.1.1 Manual cleaning mode....59
4.1.2 Reminder display of the carbon filter(s)....60
4.1.3 Setting of the time of the day....61

1. Environmental protection 61

5.1 Energy saving....61

1. Cleaning and maintenance....62

6.1 Grease filters....63
6.2 Carbon filters.... 64
6.3 Replacing of the illuminant.... 65

1. Trouble shooting....65
2. Technical data....67

3. Waste management....68

4. Guarantee conditions....69

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for extracting/recirculating cooking vapours in private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
3. The power cord must be replaced by a qualified professional only.
4. Never repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

5. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

6. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel.
c) Do not touch the appliance until the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!

2. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa ( 4 × 10^-5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock.
5. The technical data of your energy supply must meet the data on the rating label.
6. Your domestic circuit must be equipped with an automatic circuit breaker.
7. Strictly observe the minimum distance between hood and hob. It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

MINIMUM DISTANCE HOOD TO

Ceramic-glass rings / hotplates	min. 65 cm
Gas cooker	min. 75 cm
Coal / oil / stove wood firing	min. 85 cm

1. Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

2. The load-bearing capacity of the wall/ceiling of the installation room must be checked before you install the appliance. The appliance must be installed at a suitable position only.

3. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally. RISK OF ELECTIC SHOCK!

4. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.

5. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
6. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
7. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
8. The exhaust hose must not be made of flammable materials or contain any flammable materials.
9. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
10. Disconnect the appliance from the mains before cleaning and maintenance.
11. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
12. Children must not play with the appliance.
13. Always supervise children when they are near the appliance.
14. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!
3. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. We recommend to carry out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!
2. The appliance must be transported and installed by at least two persons.

3. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney

4. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.

5. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
6. Take the enclosed parts from the packaging and its polystyrene-components.
7. Check that the power cord and the appliance are not damaged before electrical connection.
8. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

⚠ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

We recommend to carry out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!

1. For extracting the exhaust air always observe the current legal regulations.
2. The diameter of the exhaust hose must meet the diameter of the connecting ring.
3. The load-bearing capacity of the wall/ceiling of the installation room must be checked before you install the appliance.
4. The appliance must be installed at a suitable position only.
5. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally.
6. Clean the environment thoroughly before installation. This prevents dust or rubble from being sucked in during initial operation of the appliance.

7. During installation ensure that the extractor hood is in horizontal position in order to avoid accumulations of fat in one corner of the appliance.

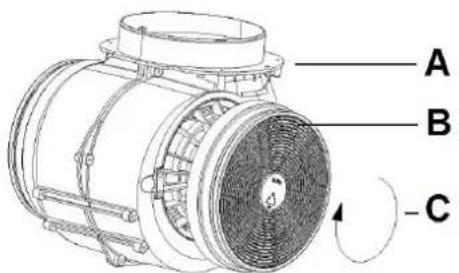

8. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

9. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
10. The proper maximum bending angle outwards is 120^ .
11. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
12. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^ is required. Otherwise condensate will get into the motor of the hood.
13. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
14. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
15. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
16. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

2.1 Minimum distances

i Strictly observe the minimum distance between hood and hob.
i It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

REQUIRED MINIMUM DISTANCE HOOD TO
Ceramic-glass rings / hotplates	min. 65 cm
Gas cooker	min. 75 cm
Coal / oil / stove wood firing	min. 85 cm

1. The minimum distances do not represent the required total height but a minimum value generated by adding the height of the hob (floor hob) and the required minimum distance of the hob to the extractor hood (hob extractor hood)

(floor hob)

+ (hob extractor hood)

= MINIMUM INSTALLATION HEIGHT

1. Adapt the total installation height to the height of the user. Please note that the extraction capacity of the appliance can decrease if installed at a large distance to the hob.

⚠ WARNING! Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

⚠️ CAUTION! Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!

2.2 Installation steps

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

⚠ WARNING! Do not damage the wiring in the wall while drilling

NOTICE! Two assistants are required for installation.

We recommend to carry out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!

YOU CAN LAY THE EXHAUST HOSE AS FOLLOWS:

VERTICALLY: Lay the exhaust hose to a roof cap*.

Cross-sectional diagram of a pipe system with brick walls and water flow indicators (no text or labels)

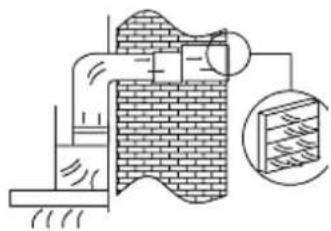

HORIZONTALLY: Lay the exhaust hose to an exhaust outlet equipped with an air grille*.

Diagram of a brick wall structure with an inset showing a magnified view of the internal structure (no text or symbols)

*: Not included in delivery.

INSTALLATION STEPS:

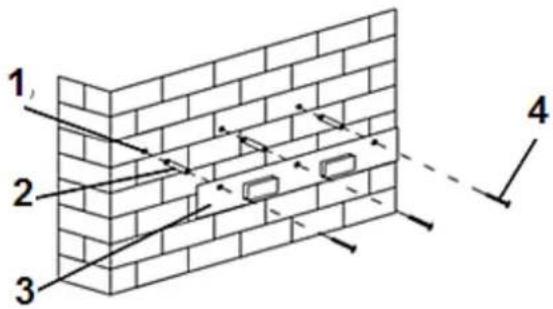

1. Drill three 8 mm holes (1) to fix the wall bracket (3). Tighten the wall bracket using the supplied screws and dowels (2 / 4) on the wall.

1 2 3 4

1	DRILL HOLES
2	DOWELS
3	WALL BRACKET
4	SCREWS 4*30 mm

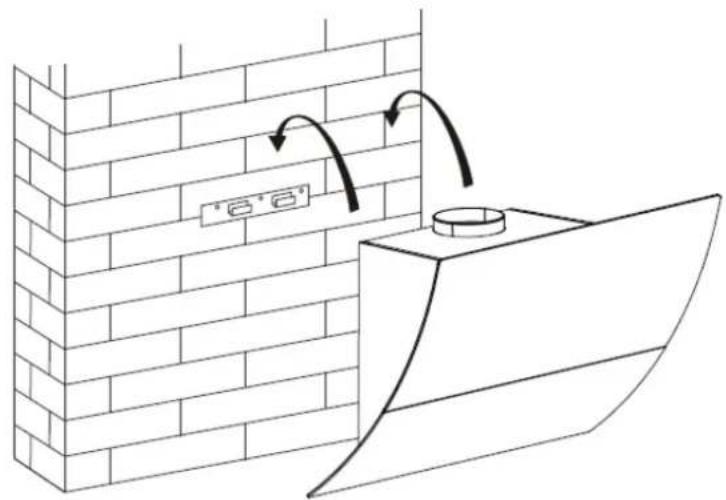

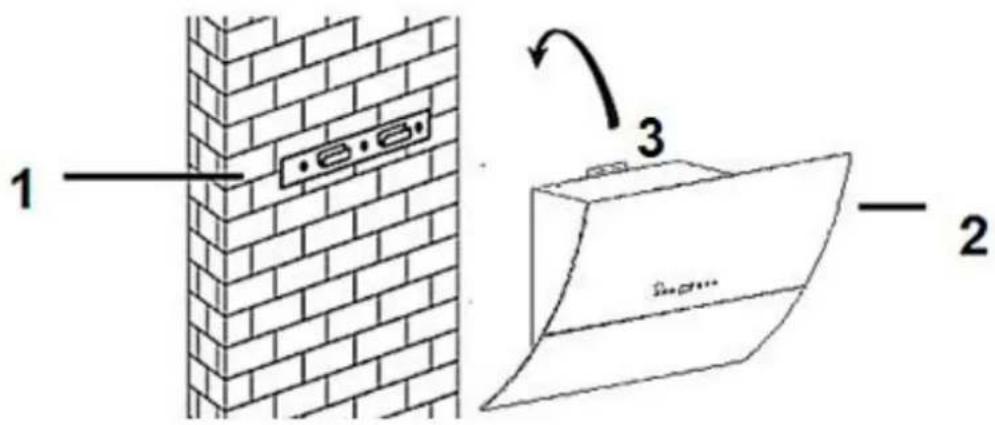

1. Lift the extractor hood and hang it on the wall bracket.

Diagram showing brick wall installation with labeled components and directional arrows indicating flow or movement

SCHNEIDER

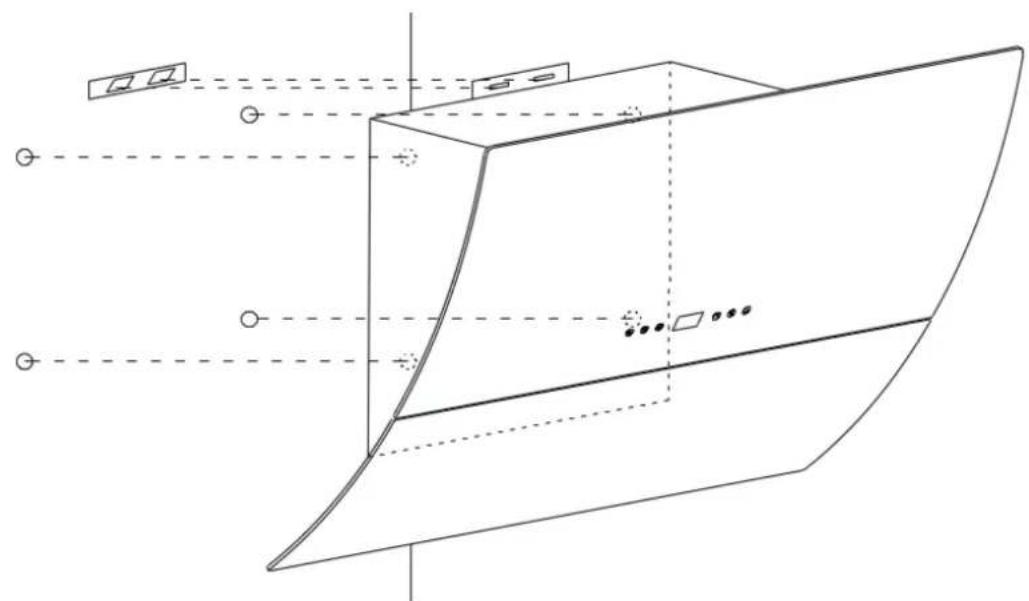

1. Four additional 4*8 mm drillings are required to fix the appliance.

a) Open the glass panel of the appliance and remove the aluminium grease filter.
b) Mark the position of the 4 drill holes (s. fig. below).
c) Remove the extractor hood from the wall bracket.
d) Drill the four ∅ 8 mm holes at the marked points.
e) Insert the fixing material (dowels, etc.) ^9 into the wall.

Pure technical line drawing of a 3D geometric structure without any text, numbers, or symbols

1. Lift the extractor hood (2) and hang it on the wall bracket (1) again (s. fig. below).
2. Screw the extractor hood on the wall using the appropriate screws. The appliance must be installed in horizontal position. Check proper position using a spirit level.

1 2 3

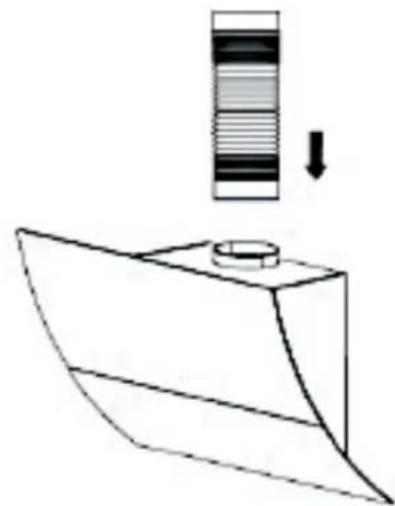

1. Install the one-way-valve on the air outlet of the hood ^10 .

2. Install the exhaust hose on the air outlet (s. fig. below).

Diagram showing a mechanical component with a cylindrical part and a vertical striped bar, no text or symbols present.

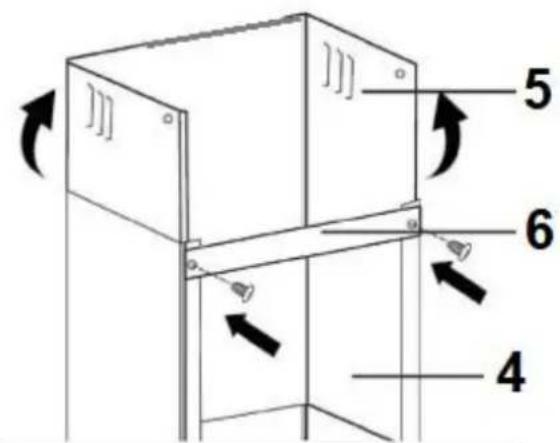

1. Insert the upper chimney (5) into the lower chimney (4). Fix the lower chimney bracket on the lower chimney at the desired height using two 4*8 mm screws (s. fig. below). Do not tighten the screws too firmly so the upper chimney will stay telescopic after installation.

Technical diagram of a cabinet or enclosure with numbered components and directional arrows indicating movement or assembly.

a. INSTALLATION OF THE CHIMNEY / EXTRACTION MODE

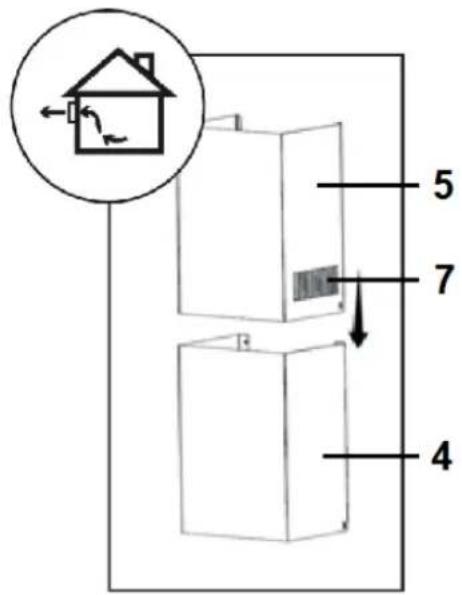

The louvres (7) of the upper chimney (5) must face downwards and be covered by the lower chimney (4); s. fig. below.

Diagram of a house interior with numbered components and airflow indicators

4	LOWER CHIMNEY
5	UPPER CHIMNEY
7	LOUVRES (both sides)

b. INSTALLATION OF THE CHIMNEY / RECIRCULATION MODE

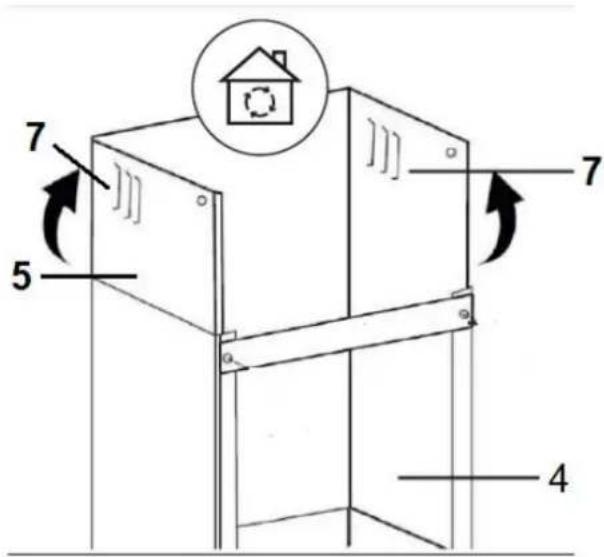

The louvres (7) of the upper chimney (5) must face upwards and not be covered by the lower chimney (4); s. fig. below.

7 5 4 7

4	LOWER CHIMNEY
5	UPPER CHIMNEY
7	LOUVRES (both sides)

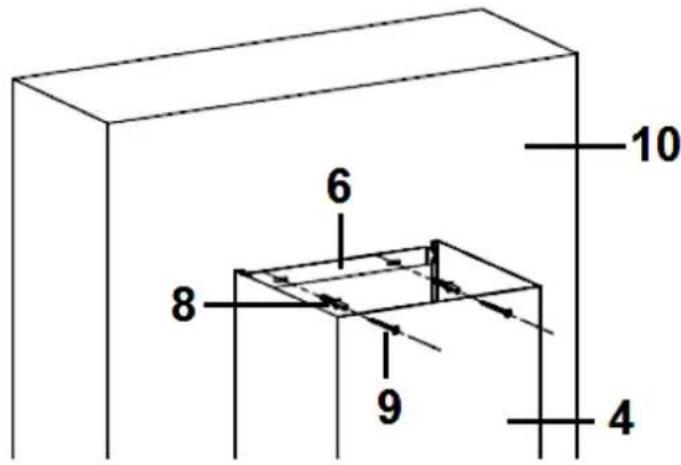

1. Place the chimney on the extractor hood and fix the lower chimney bracket (6) on the wall (10) using the 2 appropriate screws (4 mm*30 mm).

10 6 8 9 4

1. Pull out the upper chimney. Adjust the upper chimney relevant to the height you desire (s. fig. below).

2. When you have reached your desired height, mark the drill holes for the upper chimney bracket (11). Drill the holes to install the upper chimney bracket. Then fix the upper chimney bracket on the wall properly using the appropriate fixing material.

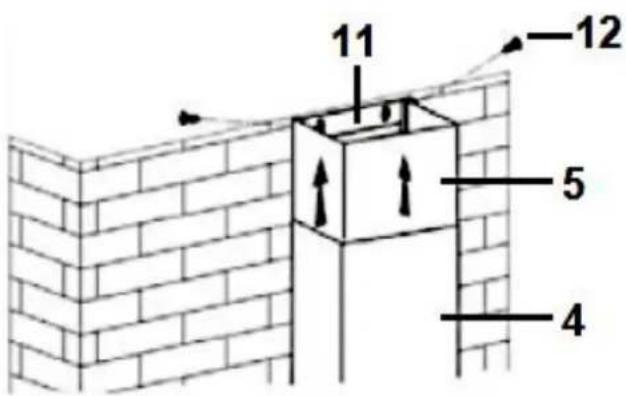

3. Fix the upper chimney (5) on the chimney bracket (11) properly using 2 screws (12 / 4*8 mm); s. fig. below.

11 12 5 4

4	LOWER CHIMNEY
5	UPPER CHIMNEY
11	UPPER CHIMNEY BRACKET
12	SCREWS (4*8 mm)

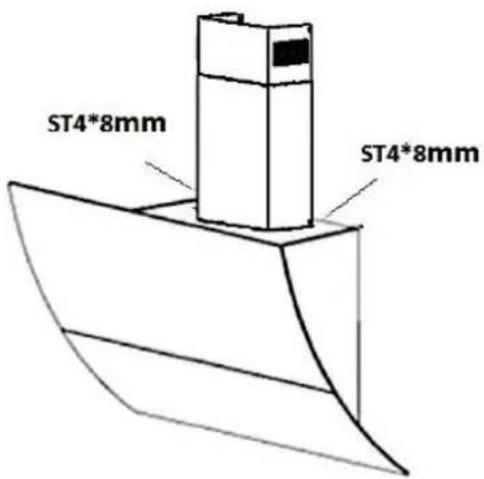

1. Fix the lower chimney on the body of the extractor hood using two ST4*8 mm screws (s. fig. below).

ST4*8mm ST4*8mm

1. Insert the aluminium grease filter(s) and connect the appliance to the mains ^11 .

Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.

2.3 Electrical connection

Check that the voltage indicated on the rating plate matches the mains voltage of your home before connecting the extractor hood to the mains.

Check that the extractor hood is installed properly before you connect the appliance to the mains.

3.1 Extraction mode

⚠ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

❖ The extractor hood is usually ready for the use in extraction mode.
In extraction mode, the intake air is led through an exhaust hose to the outside. For this purpose, an exhaust shaft or an outwardly leading exhaust pipe must be available in your house / flat.

If your appliance is equipped with a carbon filter, you must remove the carbon filter before you operate the appliance in the extraction mode!

If you want to use the extractor hood in extraction mode, please always observe the instructions given in chapter 2. INSTALLATION and in chapter 2.2 INSTALLATION STEPS, point 8.a. INSTALLATION OF THE CHIMNEY / EXTRACTION MODE.

3.2 Recirculation mode

• You can also use the appliance in recirculation mode.
  In recirculation mode, the exhaust air is led back into the kitchen.
  If you want to use the extractor hood in recirculation mode, you have to install the carbon filters; s. chapter 3.2.1 CARBON FILTERS.

In recirculation mode you can use CARBON FILTERS to eliminate cooking vapours and odours.

If you want to use the extractor hood in recirculation mode, please always observe the instructions given in chapter 2.2 INSTALLATION STEPS, point 8.b. INSTALLATION OF THE CHIMNEY / RECIRCULATION MODE.

3.2.1 Carbon filters

WARNING! Carbon filters should only be used in recirculation mode!

NOTICE! Carbon filters are not included in the scope of delivery ^12 .

i Replace the CARBON FILTERS regularly (see also chapter CLEANING AND MAINTENANCE).
i CARBON FILTERS for your extractor hood are optional available.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: See chapter TECHNICAL DATA

WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

HOW TO INSTALL THE CARBON FILTERS:

1. Remove the ALUMINIUM GREASE FILTER(S).
2. The CARBON FILTERS are intended to be installed on both sides of the motor.
3. Place the CARBON FILTER on the motor and turn it clockwise until it is firmly tightened (s. fig. below).

A B C

A	MOTOR
B	CARBON FILTER
C	CLOCKWISE ROTATION = Place the CARBON FILTER on the motor and turn the filter clockwise until it is installed properly.

1. Repeat the procedure on the other side of the motor.
2. Reinstall the ALUMINIUM GREASE FILTER(S).
3. If you want to uninstall the CARBON FILTERS, turn the filters anti-clockwise and remove them.

⚠ WARNING! Install the carbon filters safely and properly; otherwise the carbon filters can loosen and cause hazardous situations.

NOTICE! The suction capacity is decreased by installed carbon filters.

NOTICE! Depending on frequency of use, replace the carbon filters every three to six months. Clean the grease filter(s) regularly for proper operation of the motor (s. chapter CLEANING AND MAINTENANCE).

3.3 Grease filter(s)

i Always ensure that the grease filter(s) is / arc inserted properly.
i Clean the grease filter(s) regularly (s. chapter CLEANING AND MAINTENANCE).

⚠ WARNING! Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

4. Control panel

NOTICE! Never press two buttons of the control panel simultaneously.

i After you have connected the appliance to the mains, the display flashes slowly ^13 . The extractor hood closes. The appliance is now in STAND-BY MODE.

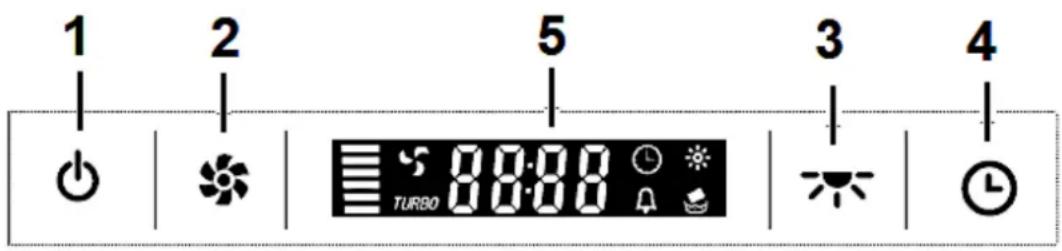

1 2 5 3 4 TURBO 8:00 AM 9:00 AM 10:00 AM 11:00 AM 12:00 AM 13:00 AM 14:00 AM

(Fig. similar: Modifications are possible)

1	BUTTON: ON / OFF➢ Button for the ACTIVATION / DEACTIVATION of the WORKING MODE.➢ Button for the ACTIVATION / DEACTIVATION of the MANUAL CLEANING MODE (replacement of the filters etc.).
2	BUTTON: POWER LEVELS➢ Button for the SETTING of the POWER LEVELS (setting of the motor speed)
3	BUTTON: ILLUMINANT➢ Button for the ACTIVATION / DEACTIVATION of the ILLUMINANT.➢ Button to reset the REMINDER DISPLAY OF THE CARBON FILTER(S).
4	BUTTON: TIMER➢ Button for the SETTING of the TIME OF THE DAY.➢ Button for the SETTING of the TIMER (countdown time for the extractor hood)
5	DISPLAY

4.1 Operation

BUTTON: ON / OFF

You can use the button -ON / OFF- ⏻ (1) to activate / deactivate the WORKING MODE of the appliance.
You can also use this button to activate / deactivate the MANUAL CLEANING MODE of the appliance (s. chapter 4.1.1 MANUAL CLEANING MODE)

HOW TO ACTIVATE THE WORKING MODE:

1. The extractor hood must be in STAND - BY MODE (extractor hood is closed).
2. Press the button -On / Off- ⚙ (1) once briefly to activate the WORKING MODE of the appliance.

3. The extractor hood opens.

4. When the extractor hood is open completely and the display as well as the indicators of all buttons are on, the extractor hood is in WORKING MODE.

5. If you press the button -ON / OFF- 🔊 (1) once briefly during WORKING MODE, the motor of the appliance stops. The illuminant remains switched on!
6. To deactivate the WORKING MODE, proceed as follows:

HOW TO DEACTIVATE THE WORKING MODE:

1. The extractor hood must be in WORKING MODE (extractor hood is open).
2. Press and hold the button -On / Off- ⚙ (1) for 3 seconds to deactivate the WORKING MODE of the appliance.
3. The motor and the illuminant of the appliance switch off and the extractor hood closes.
4. The extractor hood is in STAND - BY MODE again.

BUTTON: POWER LEVELS

You can use the button -POWER LEVELS- (2), to set the POWER LEVELS (motor speed) of the extractor hood.
The appliance is equipped with 3 power levels (1 / 2 / 3)

HOW TO SET THE POWER LEVELS:

1. The extractor hood must be in WORKING MODE (extractor hood is open).
2. Press the button -POWER LEVELS- (2) repeatedly until the desired power level (1 / 2 / 3) is displayed.

POWER LEVEL 1:

This power level is suitable for slow cooking / simmering and roasting with the lid of the cookware closed.
Use this power level when low steam generation occurs (low concentration of cooking fumes).

POWER LEVEL 2:

SCHNEIDER

Use this power level for an ideal air circulation in the kitchen when medium steam generation occurs (medium concentration of cooking fumes).

POWER LEVEL 3:

Use this power level when lots of steam occurs (strong concentration of cooking fumes).

BUTTON: ILLUMINANT

You can use the button -ILLUMINANT- (3) to switch on or off the ILLUMINANT of the appliance (press button briefly).
You can also use this button to reset the REMINDER DISPLAY OF THE CARBON FILTER(S); s. chapter 4.1.2 REMINDER DISPLAY OF THE CARBON FILTER(S).

⚠ WARNING! The illuminant must not be covered by thermal insulation or other materials. RISK OF FIRE!
⚠️ CAUTION! Do not touch the illuminant within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illuminant while the appliance is operating. Do not switch on the illuminant to illuminate the room.

You can use the button -TIMER- (4) to programme a COUNTDOWN TIME for the extractor hood (extractor hood must be in WORKING MODE).

The selectable period of time starts at 15 minutes up to a total of 60 minutes.

You can also use this button to set the TIME OF THE DAY of the appliance (extractor hood must be in STAND - BY MODE); s. chapter 4.1.3 SETTING OF THE TIME OF THE DAY).

HOW TO SET THE TIMER:

1. The extractor hood must be in WORKING MODE (extractor hood is open).
2. Press the button -TIMER- Ⓤ (4) for approx. one second.
3. The display flashes and switches to the setting mode of the TIMER.
4. Now you can set the TIMER or the desired countdown time.

a. Press the button -TIMER- (4) to increase the countdown time by 15 minutes.
b. Press the button -POWER LEVELS- (2) to decrease the countdown time by 1 minute.
c. Press the button -ILLUMINANT- (3) to increase the countdown time by 1 minute.

➢ After 5 seconds (without using any operating buttons) the countdown starts. The indicator of the TIMER remains on.

When the set countdown time has elapsed, the extractor hood switches off automatically.

4.1.1 Manual cleaning mode

You can use the button -ON / OFF- (1) to activate or deactivate the MANUAL CLEANING MODE of the appliance.
The appliance must be in MANUAL CLEANING MODE to remove the aluminium grease filter(s) for cleaning and / or to insert or replace the carbon filters (in recirculation mode only!).

HOW TO ACTIVATE THE MANUAL CLEANING MODE:

1. The extractor hood must be in STAND - BY MODE (extractor hood is closed).
2. Press and hold the button -On / Off- (1) for 3 seconds to activate the MANUAL CLEANING MODE.
3. The extractor hood opens.
4. When the extractor hood is open completely, the MANUAL CLEANING MODE is displayed.
5. Now you can remove / insert the aluminium grease filter(s) and / or insert or replace the carbon filters (in recirculation mode only!).

HOW TO DEACTIVATE THE MANUAL CLEANING MODE:

1. When the appliance is in MANUAL CLEANING MODE, press and hold the button -On / Off- (1) for 3 seconds to deactivate the MANUAL CLEANING MODE.
2. The extractor hood closes.
3. When the extractor hood is closed completely, the appliance is in STAND - BY MODE again.

4.1.2 Reminder display of the carbon filter(s)

You can use the button -ILLUMINANT- (3) to reset the REMINDER DISPLAY OF THE CARBON FILTER(S);

HOW TO RESET THE REMINDER DISPLAY OF THE CARBON FILTER(S)

➢ Press the button -ILLUMINANT- (3) for some time to reset the REMINDER DISPLAY OF THE CARBON FILTER(S); e.g. if you do not need to replace or you have replaced the carbon filter(s) [in recirculation mode only!] or if you use the appliance in extraction mode.
When you use the appliance for the first time, the REMINDER DISPLAY OF THE CARBON FILTER(S) goes on automatically.
i After 14 hours of operation the REMINDER DISPLAY OF THE CARBON FILTER(S) also goes on automatically.

4.1.3 Setting of the time of the day

You can use the button -TIMER- (4) to set the TIME OF THE DAY of the appliance (extractor hood must be in STAND - BY MODE).

HOW TO SET THE TIME OF THE DAY:

1. The extractor hood must be in STAND - BY MODE (extractor hood is closed).
2. Press the button -TIMER- (4) for approx. one second.
3. The display flashes and switches to the setting mode of the time of the day (88:88 flashes on the display).
4. Now you can set the time of the day:

a. Press the button -ON / OFF- ⏻ (1) to switch between hours and minutes setting.
b. Press the button -POWER LEVELS- ✪ (2) to decrease the numeric value.
c. Press the button -ILLUMINANT- (3) to increase the numeric value.

When the setting of the time of the day is completed, the appliance exits the setting mode after 5 seconds automatically.

5. Environmental protection

5.1 Energy saving

❖ Cover your cookware (cooking pot / pan) with lids during cooking.
The diameter of the cooking pot / pan should meet the diameter of the cooking zone or the size of the flame of the burner (gas appliances).
❖ Switch off the extractor hood after cooking or use the delayed switch-off function (equipment depends on model).
Only switch on the illuminant while the appliance is in operation. Do not switch on the illuminant to illuminate the room.
❖ Switch off the illuminant(s) of the appliance after cooking.
The power level should always meet the intensity of the generated cooking fumes. Use the highest motor speed of the appliance (highest power level) to extract strong concentration of cooking fumes only. A lower power level always means a lower energy consumption.
Make sure there is sufficient supply air to allow the extractor hood to operate efficiently and with low operating noise.

In the case of a strong concentration of cooking fumes select a higher power level early. Cooking fumes which are already distributed in the kitchen may require a longer operation of the extractor hood.
- Clean the grease filter(s) regularly as clean filters will increase the efficiency of the appliance.
❖ Replace the carbon filters (for recirculation mode only!) regularly. Observe the information given on the packaging of the carbon filters.

6. Cleaning and maintenance

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it.

⚠ WARNING! Ignoring the cleaning and maintenance instructions will cause an increased RISK OF FIRE!

NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.
4. Clean the glass panels ^14 with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.
7. Do not use any abrasive detergents or vinegar cleaners.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!

SPECIAL INSTRUCTIONS FOR APPLIANCES WITH A STAINLESS STEEL CASING ^15 :

To clean stainless steel surfaces, use a non-abrasive stainless steel cleaning agent only.

NOTICE! Never use stainless steel cleaner for the direct environment of the control panel or the control panel itself.

NOTICE! Aggressive detergents such as abrasive detergents, vinegar cleaners, etc. damage the surface of the extractor hood.

6.1 Grease filters

WARNING! Failure to follow the cleaning instructions will increase the RISK OF FIRE due to fat deposits.

NOTICE! The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.

NOTICE! Do not damage the grid of metal-made (aluminium) grease filters.

• Clean the filters by hand or in a dishwasher regularly (up to 55 °C).
  Do not use any acrid or corrosive detergents.
  Do not use any abrasive detergents!
  Do not use any alkaline dishwasher-detergents! (pH more than 7).

CLEANING INTERVAL FOR ALUMINIUM GREASE FILTERS:

➢ Every 2 - 3 weeks according to the frequency of use of the extractor hood.

MANUAL CLEANING OF THE ALUMINIUM GREASE FILTERS:

1. Soak the aluminium grease filter(s) in warm rinse water (up to 55 °C).
2. Then clean the grease filter(s) with a soft brush. Be careful not to damage the grid of the grease filter(s).
3. After cleaning: Rinse the grease filter(s) thoroughly using hot water.

4. Repeat this process in case of stubborn soilings or deposits.

5. Dry the filter(s) properly before you reinstall it / them.

CLEANING OF THE ALUMINIUM GREASE FILTERS IN THE DISHWASHER:

The grease filter(s) can also be cleaned in the dishwasher: Normal programme (up to 55 ^0 C)
Do not put the filter(s) in the dishwasher together with tableware. Dry the filter(s) properly before you reinstall it / them.

NOTICE! Filters which are blocked with food leftovers are not covered by the guarantee.

6.2 Carbon filters

⚠ WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

⚠ WARNING! Carbon filters should only be used in recirculation mode!

i CARBON FILTERS for your extractor hood are optional available.

◆ Conventional carbon filters cannot be cleaned.
The capacity of these filters is limited. You can use such filters for about 3 - 6 months approx.
❖ Replace used filters immediately. Find further information on the filter packaging.

REPLACEMENT INTERVAL FOR CARBON FILTERS:

At least every 3 - 6 months according to the frequency of use of the extractor hood.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: See chapter TECHNICAL DATA

6.3 Replacing of the illuminant

⚠ WARNING! The LED-illuminant must be replaced by a competent person only. If the LED-illuminant is damaged, please contact a qualified professional. Illuminants and the replacing of illuminants are not included in guarantee.

7. Trouble shooting

MALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL:
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
LIGHT IS ON BUT MOTOR DOES NOT WORK:
1. Ventilation damper blocked.2. Motor mounting defective.	1. Remove blockage.2. Replace motor.
ABNORMAL MOTOR-SMELLS:
1. Motor defective.	1. Replace motor.
SMEAR OF OIL:
1. One-way valve is leaky.	1. Seal the valve.
APPLIANCE VIBRATES:
1. Motor not properly fixed.2. Hood not properly fixed.	1. Fix motor properly.2. Fix hood properly.
INSUFFICIENT EXTRACTING CAPACITY:
1. Too much distance hood-hob.2. Too much draught because of open doors and/or windows.	1. Lower position of hood.2. Close the doors/windows.
APPLIANCE IS UNSTABLE:
1. Screws are not firmly tightened.2. The mounting bracket / mounting plate is not fixed firmly.	1. Tighten the screws.2. Fix the mounting bracket / mounting plate properly.

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the aftersales service.

IF THE HOOD DOES NOT WORK PROPERLY AND / OR YOU CAN HEAR INCREASED OPERATING NOISE, CHECK THE SCHEDULE BELOW:

▶ Incorrect dimension of the air duct.
Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 / 150 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
➢ Install a cover panel with moveable slats, which do not obstruct the air vent.
➢ Check condition and cleanliness of the filters.
➢ Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3 - 6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the aftersales service.

8. Technical data

TECHNICAL DATA*

Type	Extractor hood
Material	Stainless steel, glass
Installation-width in cm:
SL S4-90 A++	90,00
SL S4-60 A++	60,00
Touch control	✓
Recirculation / extraction mode**	✓	✓
Annual energy consumption (AEC _hood )	10,7 kW/h
Energy efficiency category	A++
Fluid dynamical efficiency (FDE _hood )	29,1
Fluid dynamical efficiency category	A
Lighting efficiency (LE _hood ):
SL S4-90 A++	26 lux/W
SL S4-60 A++	29 lux/W
Lighting efficiency category:
SL S4-90 A++	B
SL S4-60 A++	A
Grease separation	65,9 %
Grease separation category	D
Air flow ***	333 m ^3 /h 502 m	^3 /h
Maximum air flow Qmax	564 m ^3 /h
A-rated noise emission ***	49 dB 59 dB
Power consumption off (Po)	-
Power consumption standby (Ps)	0,93 W
Power consumption lighting system (Wi)	3 W (1*3 W / LED)
Connected load	113 W
Voltage / frequency	AC 220 - 240 V / 50 Hz
Grease filter / material / dishwasher-proof	2 aluminium	✓
Carbon filter ****	2*CF 110
Exhaust hose	✓
Installation material	✓
Instruction manual	✓
Telescopic chimney extractable from - to	42,00 - 78,00 cm
Total height incl. telescopic chimney	126,00 cm

Dimensions appliance H*W*D in cm:
SL S4-90 A++	48,20 - 126,00*90,00*42,00
SL S4-60 A++	48,20 - 126,00*60,00*42,00

Weight net / gross in kg:
SL S4-90 A++	20,50 / 25,50
SL S4-60 A++	17,00 / 20,50

◆ Technical modifications reserved.

*	According to Regulation (EU) No. 65/2014
**	Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = ∅ 150 mm, drilling about ∅ ca. 160 mm.
***	Measured values at minimum/maximum motor speed.
****	Optional equipment.

9. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD! RISK OF NJURY!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the SCHNEIDER-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a SCHNEIDER-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SCHNEIDER

August 2014

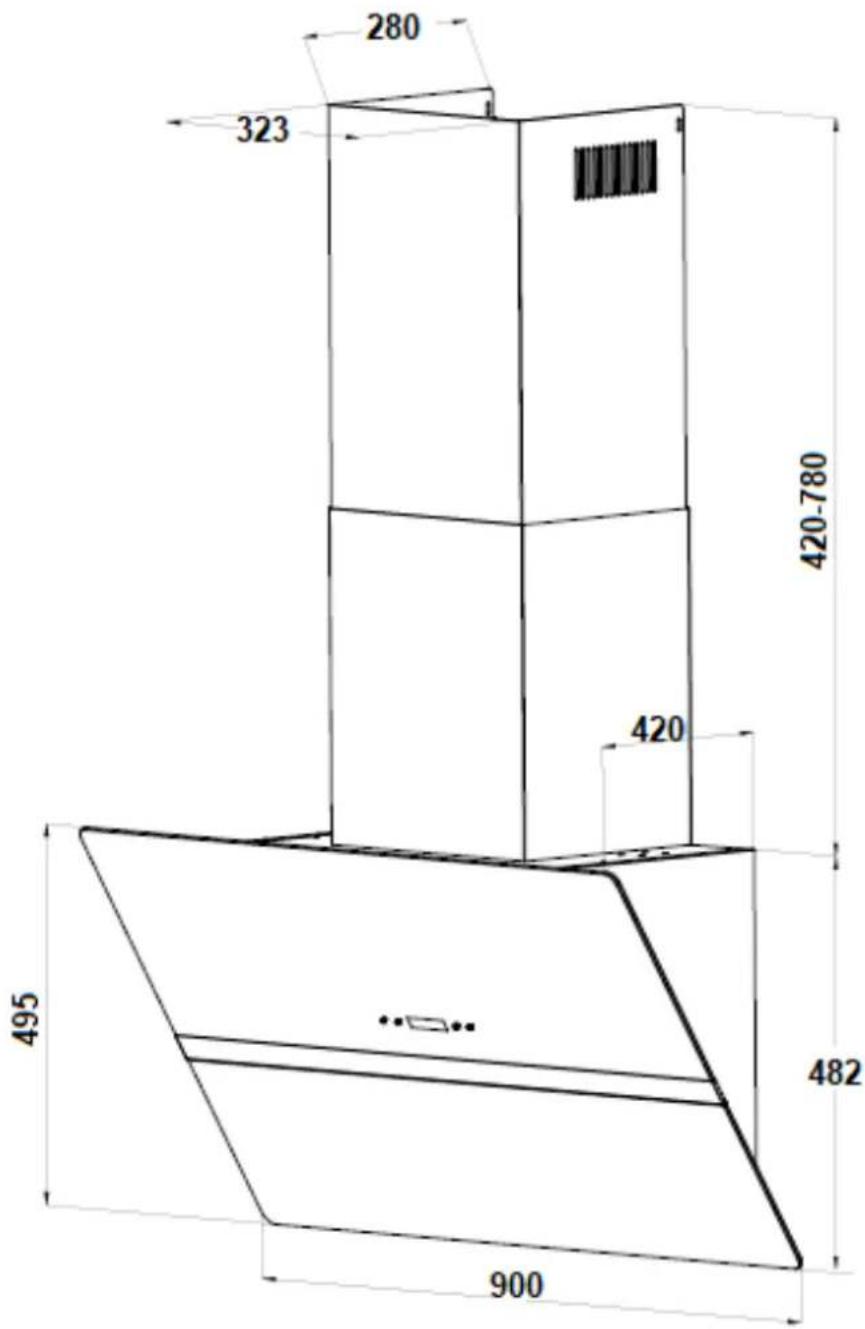

i Abmessungen in mm.

i Dimensions in mm.

SL S4-90 A++

280 323 420-780 420 495 482 900

i Abmessungen in mm.
i Dimensions in mm.

SERVICE INFORMATION

SCHNEIDER

Aftersales service information on the leaflet inside this instruction manual.
