Product Type	Portable evaporative air cooler
Brand	Innoliving
Model	INN-758
Power Supply	220-240 V~ 50 Hz
Power Consumption (Fan)	67 W
Maximum Air Flow	7.5 m³/min
Sound Power Level	65 dB(A)
Maximum Air Speed	8 m/sec
Fan Speed Settings	Low, Mid, High
Cooling Function	Evaporative cooling with water and ice tablets
Swing Function	Yes, horizontal oscillation
Water Tank Capacity	Approximately 5 L (estimated)
Ice Tablets Included	Yes
Filter Type	Dust filter and cooling pad
Cleaning	Dust filter and cooling pad removable for cleaning
Safety Features	Auto shut-off if no water? (not specified), but warnings against empty tank operation
Weight	Not specified (estimated 8-10 kg)
Dimensions	Not specified (estimated 30x30x70 cm)
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - INN-758 Innoliving

How do I use the ice tablets to get cooler air?

Fill the ice tablets with tap water and freeze them for a couple of hours. Then place the frozen tablets into the water tank (already filled with water up to the MAX level). Press the 'Cooler' button to activate the cooling function.

How do I fill the water tank?

Remove the tank, fill it with water up to the MAX mark (approximately 1/3 full), then reinsert it. Do not exceed the MAX level, especially after adding ice tablets.

How do I clean the dust filter?

Remove the screw and press the release levers to take out the filter. Clean with a mild detergent and soft brush, then let it dry completely before reinserting it.

What should I do if the device stops blowing cold air?

Check if the water tank is empty or if the cooling pad is dirty. Refill the tank and clean the cooling pad if necessary. Also ensure the ice tablets are frozen.

Can I use the cooler without water?

No, the cooling function requires water. Using it without water may damage the pump. The fan function can be used without water if you only need air circulation.

How do I activate the swing function?

Press the 'Swing' button to enable horizontal oscillation. For vertical airflow direction, manually adjust the inner fins.

Is it safe to leave the cooler unattended?

Yes, but ensure children are supervised and the device is placed on a flat, stable surface away from water sources. Always unplug when not in use.

What is the recommended distance from walls?

Keep a minimum distance of 20 cm from walls to ensure proper air intake.

How do I clean the cooling pad?

Remove the dust filter first, then take out the cooling pad. Gently brush off dust with a soft brush, rinse with water if needed, and air dry completely before reinstalling.

What does the 'No water' indicator mean?

The control panel shows a 'No water' symbol. This indicates the water tank is empty or the water level is too low. Refill the tank to use the cooling function.

USER MANUAL INN-758 Innoliving

innoliving easy tech, easy life

White portable air conditioner unit with cooling fins and control panel (no visible text or symbols)

INN-758

MANUALE D'USO

USER MANUAL

PRIMA DELL'USO LEGGERE ATTENTAMENTE IL SEGUENTE MANUALE DI ISTRUZIONI E CONSERVARLO PER FUTURE CONSULTAZIONI.

Close-up of a mechanical component with white brackets and a blue handle, partially covered by light-colored liquid (no visible text or symbols)

Close-up of a hand touching a light-colored surface with small circular artifacts (no text or symbols visible)

Icon of a person reading a book inside a circle (no text or symbols)

BEFORE USE, READ ALL THE INSTRUCTIONS AND WARNINGS CAREFULLY AND KEEP THIS USER MANUAL SAFE FOR FUTURE REFERENCES.

Before use, read the operating instructions and warnings carefully. Keep this manual safe for the entire life of the device, for future references. Failure to follow the instructions could cause accidents and void the warranty by raising the manufacturer from any liability.

This equipment must be used only for the purpose for which it was designed, that is as an air cooler for household use. Any other use is considered improper and therefore dangerous.

WARNINGS

• Keep all packing material (plastic bags, cardboard, polystyrene, etc..) out of reach of children, since they are potential dangerous and must be disposed of as required by law.
• Before plugging in the appliance, check that the voltage indicated on the rating label matches the mains voltage. The rating label is on the product.
• Before use, check that the power cord and plug are not visibly damaged. If the cord or plug are damaged, they must be replaced by manufacturer or by the authorized after sale service.
• This appliance can be used by children over 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if under surveillance, or if they have received the instructions regarding use of the device and if they understand the dangers involved. The cleaning and maintenance operations performed by the user must not be performed by children. Keep the appliance and its cord out of reach of children under the age of 8 years old.
• Make sure that children do not play with the appliance.
• Disconnect the power plug by pulling the plug, not the cable.
• Do not touch the plug and the device with wet hands.
• Remove the plug from the mains when the device is not in use.
  • Always make sure the plug is fully inserted into the electrical outlet before turning on the product.
• Always place the product on a flat and stable surface.
• Do not use the device outdoors or near a bath tub, pools, showers etc. The water level in the tank must never exceed the MAX level indicated in the tank.
• Do not insert foreign objects into the device.
• Do not obstruct the entrance and the air leakage in any way.
• Do not add chemical or metallic products inside the water tank. These components can cause damage to the product and prevent the proper operation.
• Avoid prolonged exposure of children and elders to the direct flow of the air.
• Do not leave the unit exposed to direct sunlight for a long period of time.
• Do not use aggressive cleaning agents to clean the product.
• Do not let the unit and / or the cable come into contact with hot surfaces.
• Do not use the product if it has been dropped, if there are any visible damage or leaks.
• In case of failure or faulty operation, switch the appliance off and do not try to tamper with it. For repairs contact the authorized service center.
• Operate in a well ventilated area. During use, the device must be kept at a minimum distance of 20 cm from the wall to ensure the correct operation of the air intakes. The device should not be placed immediately under or over curtain or similar. Do not cover the device with blankets or similar, during use.
• Keep the ice tablets out of the reach of children.

• Do not swallow the liquid inside the ice tablets.

• Make sure the product is turned off and unplugged before removing the grids, cleaning or filling the tank.

• Be careful when using this product because of possible hot steam emission.

Description Symbol Value Unit
Maximum air flow F 7,5 m3/min
Power consumption of the fan P 67 W
Operating values SV 0,112 (m3/min)/W
Power consumption in "Stand-by" mode P	SB	-W
sound power level of the fan	LWA	65	dB(A)
Maximum air speed	C	8	m/sec
Measurement standard for operating values	IEC 60879:1986 (corr.1992)
Contact for more information	Innoliving Spa Via Merloni, 9 -60131 Ancona

Assembling

Wheels Installation: insert and fix by pressing the 4 wheels into the holes in the bottom of the air cooler.

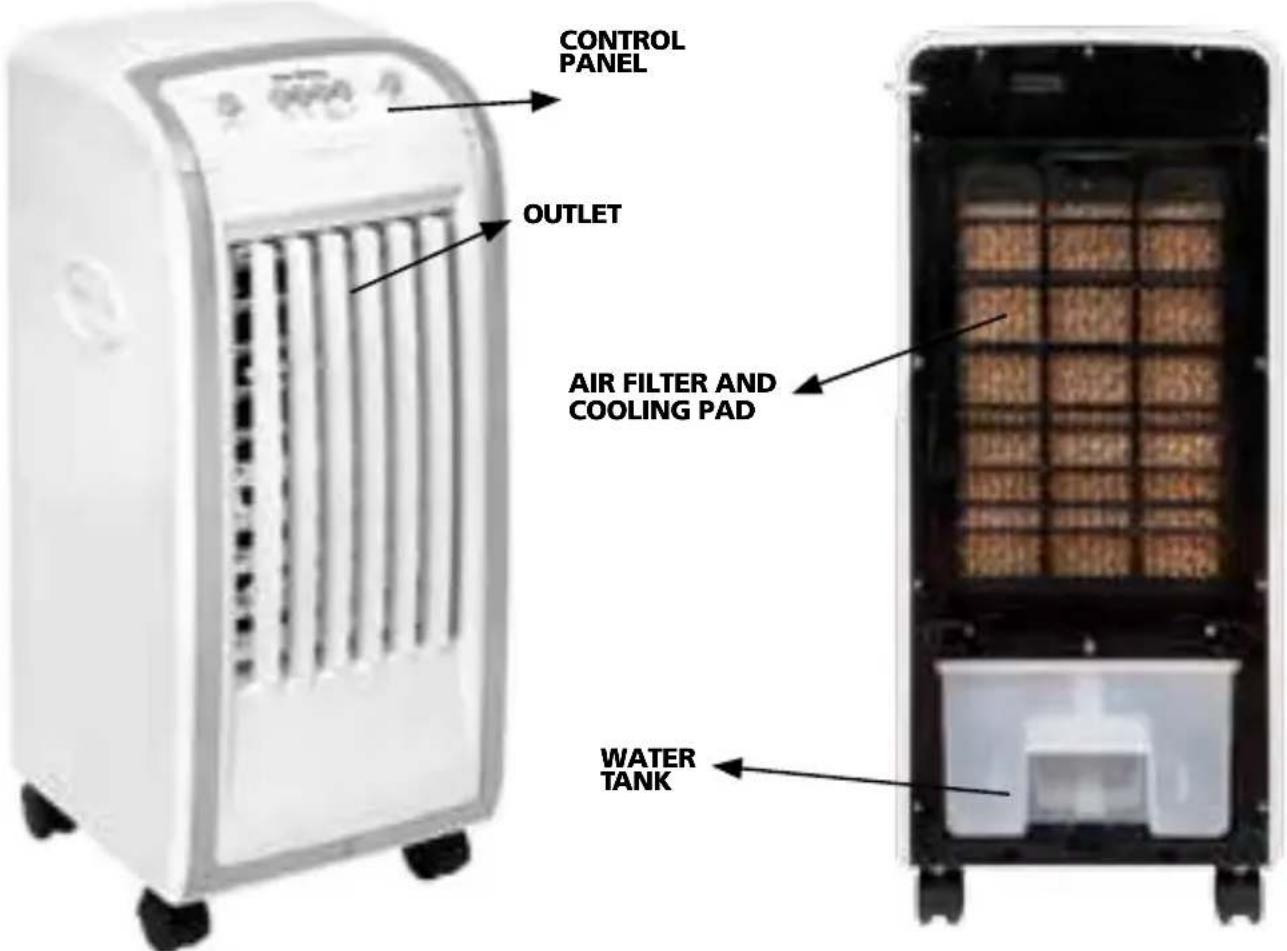

Product Description:

COOLING PAD ICE BOXESAIR FILTER

Close-up of wooden planks with horizontal stripes (no text or symbols visible)

Grid-patterned panel with uniform dark gray squares (no text or symbols)

Two blue plastic bottles with red caps, no text or symbols visible

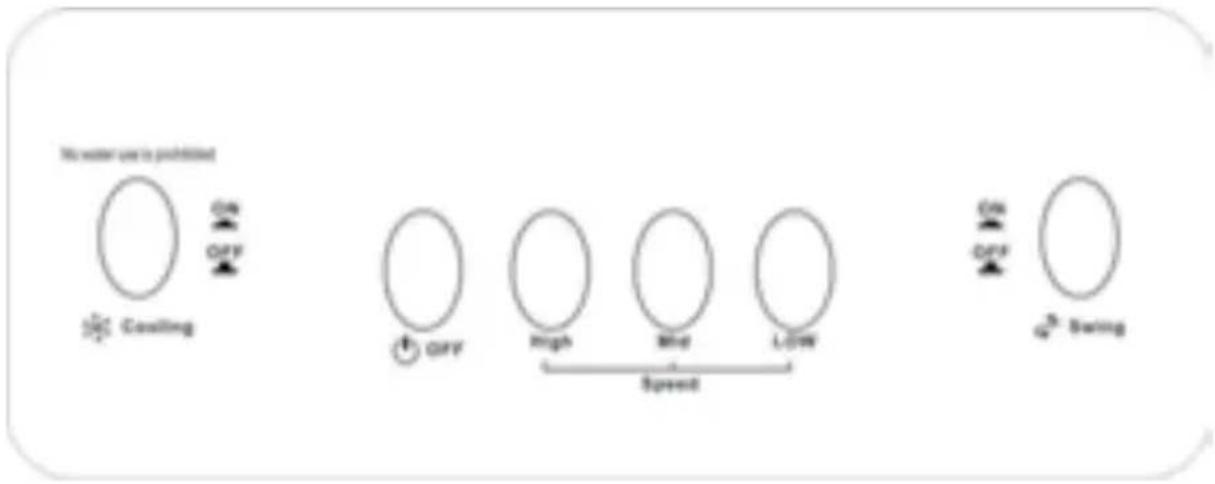

Control Panel

1.OFF Button and Fan Speed Settings

To operate the machine, you must select an air ventilation mode.

The device has three different fan speed settings: "Low", "Mid" and "High" (low-medium-high).

Press the "Low" button to allow the air cooler to work at low speed.

Press the "Mid" button to allow the air cooler to work at medium speed.

Press the "High" button to allow the air cooler to work at high speed.

Press the OFF button to turn off the fan and switch the device off.

2.Cooling Function (Cooler)

Press the "Cooler" button to activate the cooling function after adding the ice tablets and water into the tank, see sections "HOW TO FILL THE TANK" and "HOW TO USE THE DEVICE WITH THE ICE TABLETS". Set the desired speed setting using the appropriate buttons.

Do not enable this function if the tank is empty. Do not enable this function if the tank is empty.

3.Swing Function (Swing)

Press the "Swing" button let the external fins move to the right and to the left and place the inner fins of air dispersion in the desired position. These fins make it possible to direct the air upwards or downwards and must be positioned manually

HOW TO FILL THE TANK

Take out the tank and fill 1/3 with water up to the MAX mark.

• The water level must not exceed the MAX level indicated on the tank itself.
• Insert the previously frozen ice tablets in the tank with water to obtain an air jet even more fresh.

Note:

The water level in the tank must not exceed the MAX level indicated, even after having inserted the ice tablets.

HOW TO USE THE ICE TABLETS

If you place the ice tablets in the tank, you can get a fresher air jet.

• Fill the tablets with tap water and store them in the freezer for a couple of hours
• Once frozen, the ice tablets are ready to be placed in the tank

Cleaning and Maintenance

Dust accumulating on the dust filter may prevent proper air flow. Therefore we recommend to clean the filter and all its parts regularly, following the instructions below.

Before proceeding with any maintenance or cleaning operation, switch off the appliance and remove the plug form the main socket.

Never clean the product components with flammable liquids. The vapours may cause fire or explosion. Clean the external part of the device with a damp cloth with the exception of the control panel and dry with a soft cloth

Dust Filter

To remove the dust filter, simply remove the screw and press the two release levels located at the top of the filter down to remove it. Use a mild detergent and a soft brush to clean and remove dust and dirt from the filter. Put the filter on again inserting the bottom firstly and pushing the upper part to lock it.

Cooling Pad

After removing the dust filter, the cooling pad is visible. Take out the pad with the appropriate protection and gently remove the pad. Use a clean, soft brush to remove dust and dirt from the pad. Rinse with water if necessary, and leave to air dry. Do not use chemical cleaning solutions that can damage the pad

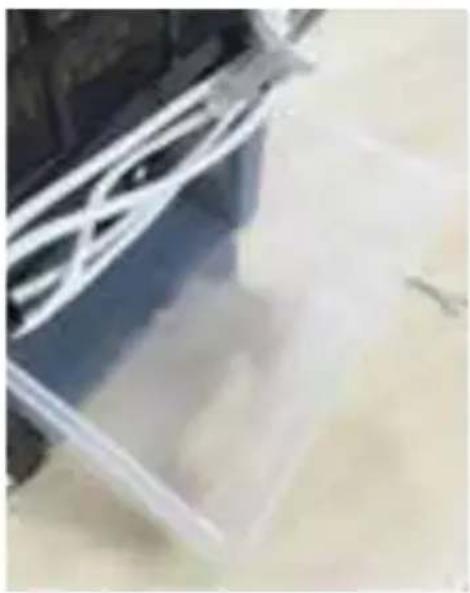

Water Tank

Turn the tank lock lever in a horizontal position and pull it towards you to remove the tank partially. Before proceeding with the cleaning, wipe any residue of water, removing the plastic stoppers on the bottom of the tank. It is advisable to place a container under the tank to collect the water that will naturally start to drain from the product

Close-up of a car's front wheel rim and side arm, showing white trim and blue body (no visible text or symbols)

Close-up of a hand touching a white surface with soft bokeh effects (no text or symbols visible)

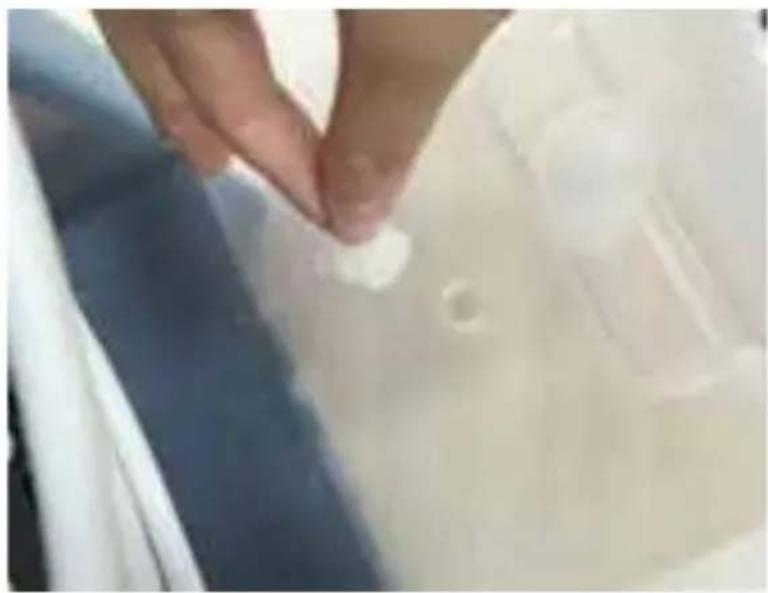

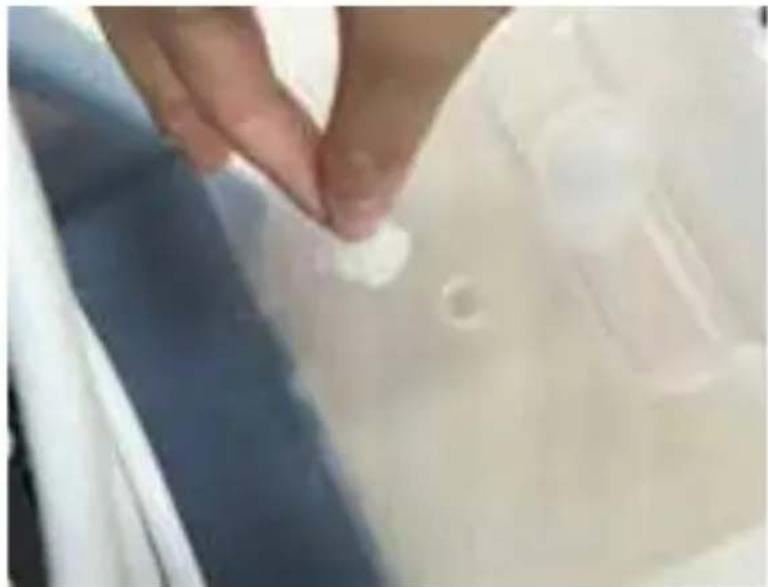

After finishing the emptying phase, insert the stopper into the hole again. Then use a mild detergent to clean and dry the tank. Replace the tank in the initial position and rotate the locking lever in the upright position.

Cleaning the external part of the product

Clean the external part of the device with a damp cloth with the exception of the control panel and dry with a soft cloth. Do not use abrasive cleaners. Make sure the unit has been thoroughly dried before proceeding again with normal use.

Warning: Do not let water come into contact with the control panel. Clean the top of the appliance with a soft, dry cloth.

RATING LABEL:

Innoliving Spa

Via Merloni, 9 - 60131 Ancona - Italy

INN-758 CONDIZIONATORE EVAPORATIVO - AIR COOLER 220-240V\~50Hz 70W

LOT n.

MADE IN CHINA

This product complies with all the applicable European regulations

Read carefully the user manual

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.
