Product Type	Evaporative Air Cooler
Brand	Innoliving
Model	INN-756
Power Supply	220-240V~50Hz, 60W
Fan Power Consumption	55 W
Maximum Air Flow	6.5 m³/min
Sound Power Level	65 dB(A)
Maximum Air Speed	9 m/sec
Operating Value	0.118 (m³/min)/W
Fan Speed Settings	Low, Mid, High
Cooling Function	Evaporative cooling with ice tablets and water tank
Swing Function	Automatic left-right oscillation + manual fin adjustment
Water Tank	Removable, with MAX and MIN level indicators
Ice Tablets	Reusable, included (freeze before use)
Dust Filter	Washable, removable (press release levers)
Cooling Pad	Washable, replaceable
Mobility	4 wheels for easy movement
Control Panel	Buttons for power, fan speed, cooling, and swing
Safety Class	Class II (double insulation)
Certification	CE compliant
Minimum Distance from Wall	At least 20 cm
Usage	Indoor household use only

Frequently Asked Questions - INN-756 Innoliving

How do I use the ice tablets?

Place the ice tablets in the freezer for a few hours until frozen. Then put them in the water tank and add water up to the MAX level. The ice tablets enhance the cooling effect.

How do I clean the dust filter?

Press the two release levers at the top of the filter to remove it. Clean with a mild detergent and soft brush, then rinse and dry. Reinsert by pushing the bottom first and locking the top.

How do I fill the water tank?

Turn the tank lock lever horizontally, remove the tank, add tap water (and optionally ice tablets) without exceeding the MAX level. Then replace the tank and lock lever vertically.

Can I use the cooling function without water?

No, the cooling function must not be activated if the tank is empty, as it can damage the pump and void the warranty.

What should I do if the device is not cooling?

Check that the water tank is filled to the appropriate level, the ice tablets are frozen (if used), and the filter and cooling pad are clean. Ensure the cooler button is pressed.

How do I clean the water tank?

Turn the tank lock lever horizontally, remove the tank, and remove the plastic stoppers at the bottom to drain water. Clean with mild detergent, rinse, dry, and replace the stoppers. Reinsert the tank and lock vertically.

Is it safe to leave the device unattended?

Always unplug the device when not in use. Keep it out of reach of children under 8 years old. Do not block the air intakes or cover the device.

How often should I clean the cooling pad?

Regularly, depending on usage and dust levels. Remove the dust filter first, then take out the cooling pad. Use a soft brush to remove dust, rinse with water if needed, and air dry completely before reinserting.

What does the swing function do?

Pressing the swing button activates automatic left-right oscillation of the inner fins. You can also manually adjust the external fins to direct air up or down.

Where can I find the model and serial number?

The rating label is located on the product. It includes the model INN-756, power specifications, and lot number. It is also mentioned in the user manual.

USER MANUAL INN-756 Innoliving

innoliving easy tech, easy life

White air conditioner unit with black top and white side panels, no visible text or symbols

INN-756

MANUALE D'USO

USER MANUAL

PRIMA DELL'USO LEGGERE ATTENTAMENTE IL SEGUENTE MANUALE DI ISTRUZIONI E CONSERVARLO PER FUTURE CONSULTAZIONI.

Interior view of a mechanical drawer with blue liquid and a black component (no visible text or symbols)

PAD RAFFREDDAMENTO

Grid of six identical rectangular storage compartments filled with brown granular material (no text or symbols visible)

FILTRO

Grid-patterned solar panel with square cells and mounting base (no text or symbols)

TAVOLETTE GHIACCIO

Two blue plastic bottles with red caps, no visible text or symbols

Close-up of a black industrial machine with wheels, no visible text or symbols

Fig-1

Close-up of a hand holding a small object against a dark rectangular base (no visible text or symbols)

Fig.-2

Close-up of a hand holding a cylindrical object inside a metal drawer (no visible text or symbols)

Fig.3

Fig.-4

Close-up of a transparent plastic container with a black control panel on top (no visible text or symbols)

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Icon of a person reading a book inside a black circle (no text or symbols)

BEFORE USE, READ ALL THE INSTRUCTIONS AND WARNINGS CAREFULLY AND KEEP THIS USER MANUAL SAFE FOR FUTURE REFERENCES.

Before use, read the operating instructions and warnings carefully. Keep this manual safe for the entire life of the device, for future references. Failure to follow the instructions could cause accidents and void the warranty by raising the manufacturer from any liability.

This equipment must be used only for the purpose for which it was designed, that is as an air cooler for household use. Any other use is considered improper and therefore dangerous.

WARNINGS

- Keep all packing material (plastic bags, cardboard, polystyrene, etc..) out of reach of children, since they are potential dangerous and must be disposed of as required by law.

- Before plugging in the appliance, check that the voltage indicated on the rating label matches the mains voltage. The rating label is on the product.

- Before use, check that the power cord and plug are not visibly damaged. If the cord or plug are damaged, they must be replaced by qualified personnel, by manufacturer or by the authorized after sale service.

- This appliance can be used by children over 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if under surveillance, or if they have received the instructions regarding use of the device and if they understand the dangers involved. The cleaning and maintenance operations performed by the user must not be performed by children. Keep the appliance and its cord out of reach of children under the age of 8 years old.

- Make sure that children do not play with the appliance.

- Disconnect the power plug by pulling the plug, not the cable.

- Do not touch the plug and the device with wet hands.

- Remove the plug from the mains when the device is not in use.

• Always make sure the plug is fully inserted into the electrical outlet before turning on the product.

• Always place the product on a flat and stable surface.

- Do not use the device outdoors or near a bath tub, pools, showers etc. The water level in the tank must never exceed the MAX level indicated in the tank.

- Do not insert foreign objects into the device.

- Do not obstruct the entrance and the air leakage in any way.

- Do not add chemical or metallic products inside the water tank. These components can cause damage to the product and prevent the proper operation.

- Avoid prolonged exposure of children and elders to the direct flow of the air.

- Do not leave the unit exposed to direct sunlight for a long period of time.

- Do not use aggressive cleaning agents to clean the product.

- Do not let the unit and / or the cable come into contact with hot surfaces.

- This device must be used only for the purpose for which it was conceived.

- Avoid dropping the unit.

- In case of malfunctions, contact the authorized after sales service. Do not try to repair the product yourself.

- Do not use the product if it has been dropped, if there are any visible damage or leaks.

- In case of failure or faulty operation, switch the appliance off and do not try to tamper with it. For repairs contact the authorized service center.

- Operate in a well ventilated area. During use, the device must be kept at a minimum

distance of 20 cm from the wall to ensure the correct operation of the air intakes. The device should not be placed immediately under or over curtain or similar. Do not cover the device with blankets or similar, during use.

• Keep the ice tablets out of the reach of children.
• Do not swallow the liquid inside the ice tablets.
• Make sure the unit is off and disconnected from the main power, before removing the filter, performing cleaning activities or fill the tank.
• Pay attention on the use of the product because of the possible emission of hot steam.

Description Symbol Value Unit
Maximum air flow F 6,5 m3/min
Power consumption of the fan P 55 W
Operating values SV 0,118 (m3/min)/W
Power consumption in "Stand-by" mode P	SB	-W
sound power level of the fan	LWA	65	dB(A)
Maximum air speed	C	9	m/sec
Measurement standard for operating values	IEC 60879:1986 (corr.1992)
Contact for more information	Innoliving Spa Via Merloni, 9 -60131 Ancona

Assembling

Wheels Installation: insert and fix by pressing the 4 wheels into the holes the bottom of the air cooler.

Product Description:

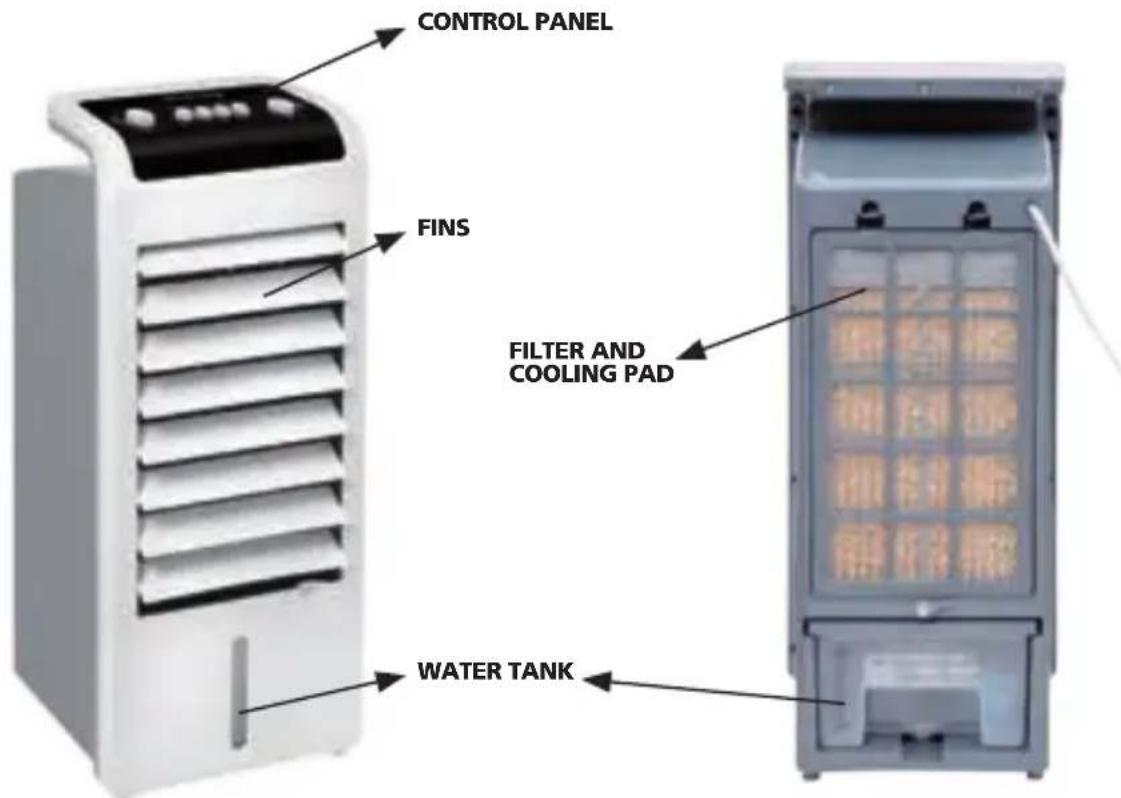

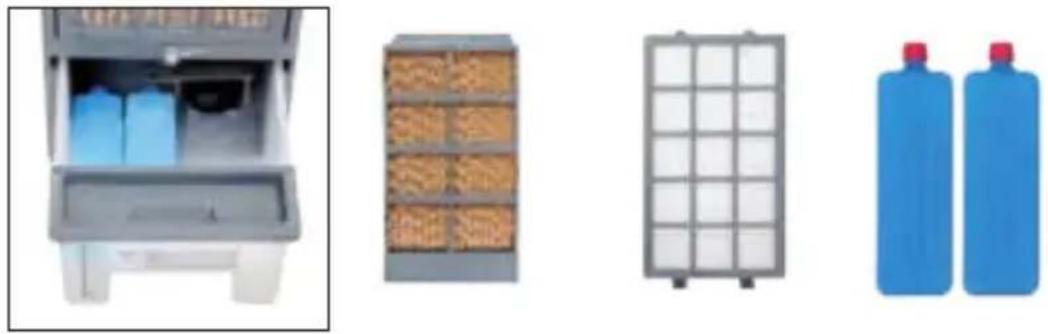

COOLING PAD ICE BOXESFILTER

Product display showing a drawer with blue liquid and a grid of containers, alongside two blue plastic bottles with red caps (no text or symbols visible)

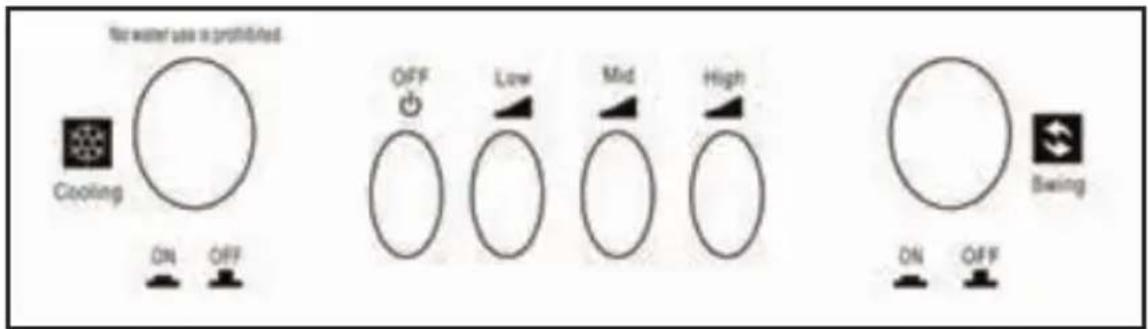

Control Panel

1.OFF Button and Fan Speed Settings

To operate the machine, you must select an air ventilation mode.

The device has three different fan speed settings: "Low", "Mid" and "High" (low-medium-high).

Press the "Low" button to allow the air cooler to work at low speed.

Press the "Mid" button to allow the air cooler to work at medium speed.

Press the "High" button to allow the air cooler to work at high speed.

Press the OFF button to turn off the fan and switch the device off.

2.Cooling Function (Cooler)

Press the "Cooler" button to activate the cooling function after adding the ice tablets and water into the tank, see sections "HOW TO FILL THE TANK" and "HOW TO USE THE DEVICE WITH THE ICE TABLETS". Set the desired speed setting using the appropriate buttons.

Do not enable this function if the tank is empty. Do not enable this function if the tank is empty.

3.Swing Function (Swing)

Press the "Swing" button let the inner fins move to the right and to the left and place the external fins of air dispersion in the desired position. These fins make it possible to direct the air upwards or downwards and must be positioned manually

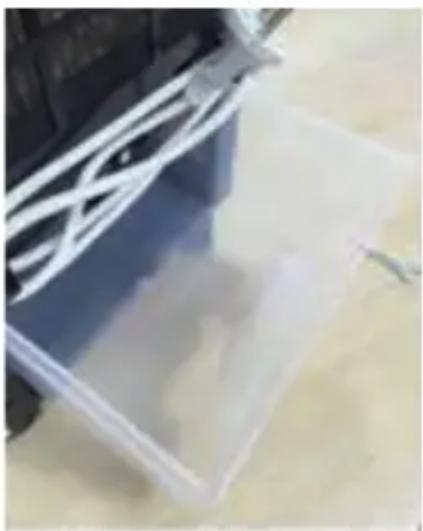

How to fill the tank: Turn the tank lock lever in the horizontal position and remove the tank. The tank lock lever is in the back of the device. Insert the ice tablets inside the tank and add tap water (Fig.-2 and -3) making sure not to exceed the "MAX" level indicated in the back of the tank. (Fig.-4)

Place the tank, and turn the lock lever in the vertical position

Close-up of a black rectangular object with four small circular wheels, possibly a device or fixture (no visible text or symbols)

Fig.-1

Close-up of a black rectangular object with a white tool inserted, possibly a device or component (no visible text or symbols)

Fig.-2

Close-up of a hand holding a cylindrical object inside a transparent container (no visible text or symbols)

Fig.3

Fig.-4

Water Tank Indications

Frequently check the water level in the tank. Make sure the water level is not below the minimum level 'MIN' indicated on the tank itself. The activation of the cooling function with a low level of water can cause damages to the pump and void the warranty.

Before pouring the water in the tank, turn the device off and disconnect it from the mains.

HOW TO USE THE DEVICE WITH THE ICE TABLETS

In order to increase the effect of air cooling, it is possible to use the ice tablets provided with the device. Put the ice tablets in the freezer for a few hours. Once frozen, place the tablets in the tank by adding water up to the "MAX" level indicated. The use of ice tablets allows an increasing effect of air cooling of the device.

Cleaning and Maintenance

Dust accumulating on the dust filter may prevent proper air flow. Therefore we recommend to clean the filter and all its parts regularly, following the instructions below.

Before proceeding with any maintenance or cleaning operation, switch off the appliance and remove the plug form the main socket.

Never clean the product components with flammable liquids. The vapours may cause fire or explosion

Dust Filter

To remove the dust filter, simply press the two release levels located at the top of the filter down to remove it. Use a mild detergent and a soft brush to clean and remove dust and dirt from the filter. Put the filter on again inserting the bottom firstly and pushing the upper part to lock it.

Cooling Pad

After removing the dust filter, the cooling pad is visible. Take out the pad with the appropriate protection and gently remove the pad. Use a clean, soft brush to remove dust and dirt from the pad. Rinse with water if necessary, and leave to air dry. Do not use chemical cleaning solutions that can damage the pad

Water Tank

Turn the tank lock lever in a horizontal position and pull it toward you to remove the tank partially. Before proceeding with the cleaning wipe any residue of water, removing the plastic stoppers on the bottom of the tank. It is advisable to place a container under the tank to collect the water that will naturally start to drain from the product

Close-up of a mechanical component with transparent frame and metal clamped parts (no visible text or symbols)

Close-up of a hand holding a small white object near a surface, with no visible text or symbols.

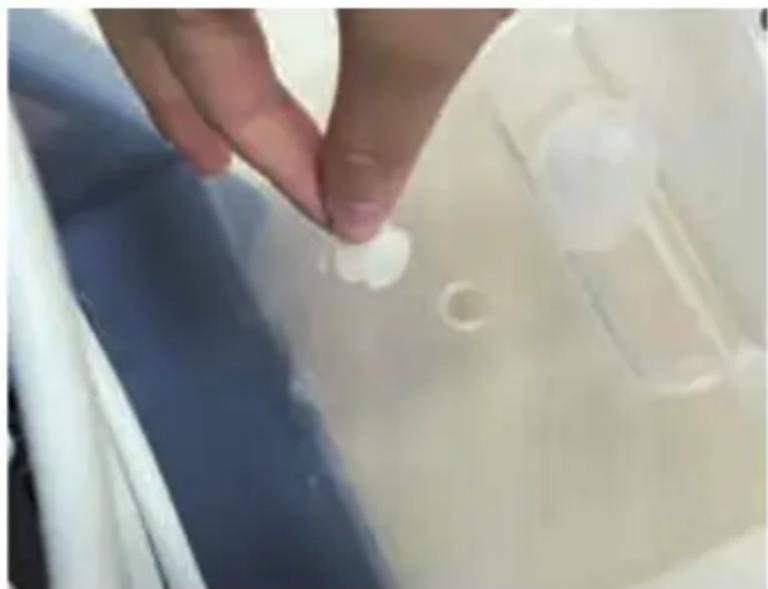

After finishing the emptying phase, insert the stopper into the hole again. Then use a mild detergent to clean and dry the tank. Replace the tank in the initial position and rotate the locking lever in the upright position.

Cleaning the external part of the product

Clean the external part of the device with a damp cloth with the exception of the control panel and dry with a soft cloth. Do not use abrasive cleaners. Make sure the unit has been thoroughly dried before proceeding again with normal use.

Warning: Do not let water come into contact with the control panel. Clean the top of the appliance with a soft, dry cloth.

RATING LABEL:

Innoliving Spa

Via Merloni, 9 - 60131 Ancona - Italy

INN-756 CONDIZIONATORE EVAPORATIVO - AIR COOLER 220-240V\~50Hz 60W

LOT n.

MADE IN CHINA

This product complies with all the applicable European regulations

Read carefully the user manual

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 9 60131 Ancona Italy Tel 199.188.335 www.innoliving.it

MADE IN CHINA

CE
