XPRESS-ON FUN SHELL - Phone Accessories NOKIA - Free user manual and instructions

Product type	Customization cover with LEDs and motion sensor
Brand	Nokia
Model	Xpress-on Fun Shell (CC-140D)
Category	Phone accessories
Compatibility	Nokia 3220
Approximate dimensions	105 x 45 x 20 mm
Approximate weight	50 g
Power supply	Via the phone's battery
Materials	Plastic
In-air display	Integrated LEDs in the back cover to display text messages or images up to 15 characters
Motion games	AirExpress (airplane) and SwampRacer (hovercraft) – tilt control
Sensor	Built-in accelerometer to detect movements
Included application	Wave message (creation and display of light messages)
Installation	Remove original cover, insert provided connector, then install front and back Fun Shell covers
LED power supply	Phone battery (may reduce battery life)
Maintenance and cleaning	Soft, dry, clean cloth. Do not use harsh chemicals, solvents, or strong detergents.
Safety	Do not expose to moisture; do not attempt to open or repair yourself; use only qualified personnel.
Spare parts and repairability	Front and back covers, connector. Repair by authorized center only.
General information	Manufactured by Nokia; declaration of conformity available on Nokia website. Copyright © 2004 Nokia.

Frequently Asked Questions - XPRESS-ON FUN SHELL NOKIA

How to install the Nokia Xpress-on Fun Shell on my Nokia 3220?

Turn off the phone and remove the original cover. Remove the rubber cap from the intended slot, then carefully insert the provided connector without using tools. Then install the front and back Fun Shell covers. Turn on the phone and set the date and time. The Cover browser application installs automatically; use it to install the Wave message and games applications.

What games are available with the Fun Shell?

The shell includes two games: AirExpress (fly a plane in an archipelago) and SwampRacer (hovercraft racing in swamps). Both are controlled by tilting the phone.

How to display a light message in the air?

Use the Wave message application. Create a text (max 15 characters) or a drawing, then select 'Display'. Point the back of the phone towards the target person and wave it regularly. The LEDs in the back cover paint the message. The effect is better in darkness.

Can I use the Fun Shell with other phones than the Nokia 3220?

No, the Nokia Xpress-on Fun Shell is only compatible with the Nokia 3220 phone. It has a specific connector and a format adapted to this model.

How to maintain the Fun Shell cover?

Use a soft, dry, clean cloth to clean the cover. Do not use chemicals, solvents, or harsh detergents. Avoid moisture, dust, and extreme temperatures.

Why does my phone display 'shell not attached' even though the cover is installed?

Remove the back cover and put it back correctly. Make sure the connector is properly in place. If the problem persists, check that the phone's date and time are set correctly.

How to calibrate the motion sensor for games?

In the settings menu of each game, select calibrate sensor. Hold the phone in the desired game position for one second. You can also adjust sensitivity with keys 1 to 5 during the game.

Does the Fun Shell use a lot of battery?

Using the LEDs and motion sensor can reduce battery life of the phone. To save battery, disable the applications or reduce LED brightness in settings if possible.

Where can I find the complete manual for the Fun Shell?

The manual is available for free download on notice-facile.com for the Nokia Xpress-on Fun Shell model. You can also check the Nokia Support website.

What to do if an LED stops working?

Turn off the phone, remove the cover and check that the connector is clean and properly inserted. If the problem persists, contact a Nokia authorized service center. Do not attempt to repair yourself.

USER MANUAL XPRESS-ON FUN SHELL NOKIA

User guide for Nokia Xpress-on™ Fun shell (for Nokia 3220 phone)

9233896

Issue 2

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION, declare under our sole responsibility that the product CC-140D

is in conformity with the provisions of the following Council Directive: 1999/5/EC.

A copy of the Declaration of Conformity can be found at

http://www.nokia.com/phones/declaration_of_conformity/.

Copyright © 2004 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People and Xpress-on are trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Java is a trademark of Sun Microsystems, Inc.

The information contained in this user guide was written for the Nokia Xpress-on Fun shell product. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes to any of the products described in this document without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

Contents

FOR YOUR SAFETY 4

1. Overview......5
2. Installation....6
3. Using the Wave message application 8

Selecting a language for the application 8

Creating a wave message containing text....9

Creating a wave message containing an image....9

Showing a wave message in the air....11

Showing a previously created wave message in the air....11

Viewing instructions about using the application....11

Changing the application settings 12

1. Playing the motion games....13

Game settings....13

AirExpress 14

SwampRacer 14

Care and maintenance 15

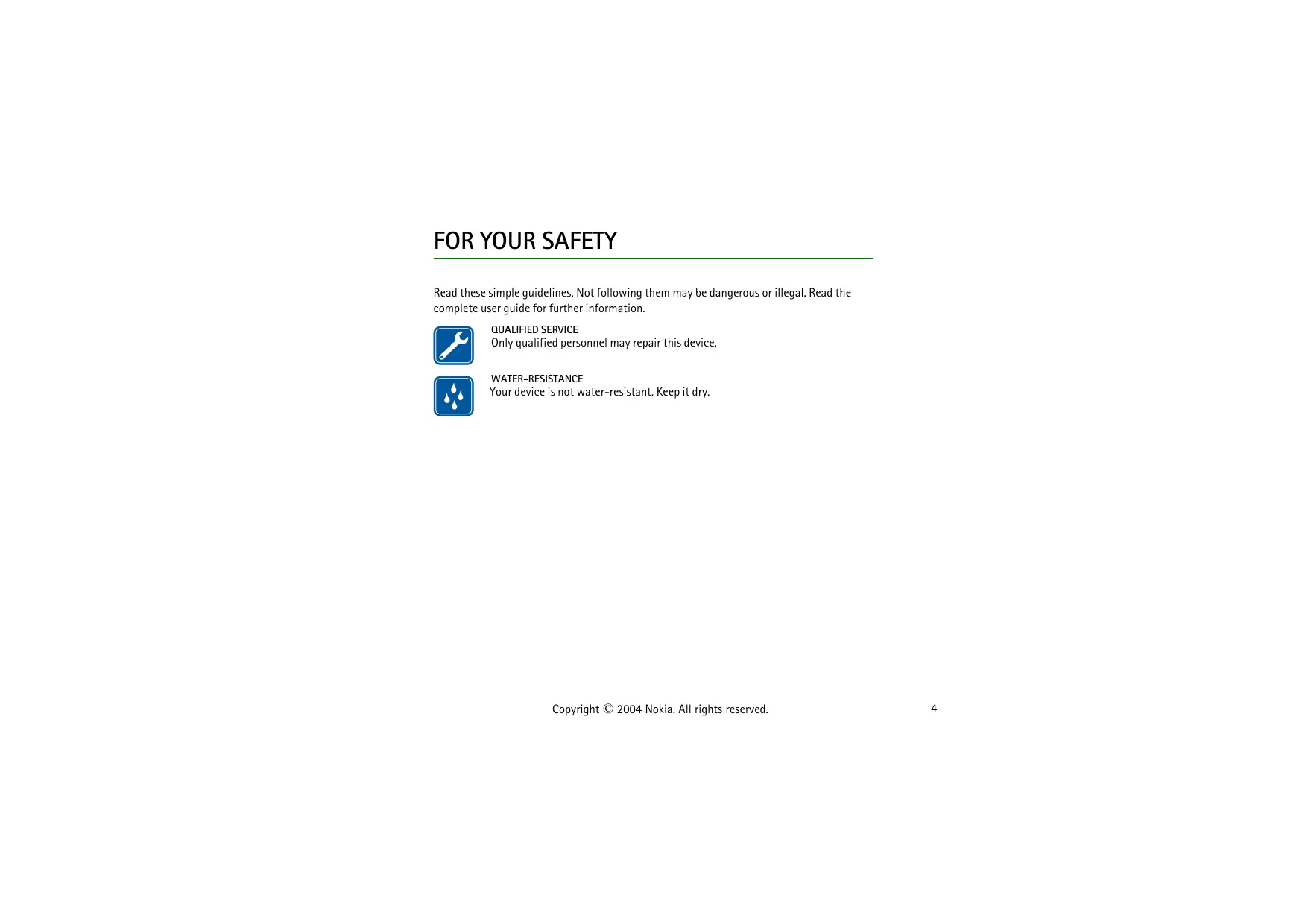

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

QUALIFIED SERVICE

Only qualified personnel may repair this device.

WATER-RESISTANCE

Your device is not water-resistant. Keep it dry.

1. Overview

The Nokia Xpress-on™ Fun shell allows you to make a statement, with or without sound, by waving your Nokia 3220 phone in the air. The shell also includes two motion games that you can play by tilting and moving the phone.

The shell comes with a connector that must be plugged into the phone before the shell can be used. The connector can be found under the shell in the sales package.

This user guide describes how to install the front and back part of the Nokia Xpress-on Fun shell and how to use the Wave message application and the motion games.

Read this user guide carefully before using the Nokia Xpress-on Fun shell. In addition to this user guide, read the user guide of your Nokia 3220 phone, which provides important safety and maintenance information. Check www.nokia.com/support or your local Nokia Web site for additional information related to your Nokia product.

When the Nokia Xpress-on Fun shell is installed on the Nokia 3220 phone, it may not be possible to use the phone with some enhancements.

The Nokia Xpress-on Fun shell takes its power from the phone battery. Note that using the shell may drain the phone battery faster.

2. Installation

Note: Before removing the cover, always switch off the power from your phone and disconnect the charger and any other device. Avoid touching electronic components while changing the covers. Always store and use the device with the covers attached.

For general instructions on changing the back and front cover of your Nokia 3220 phone, see the user guide that came with it.

To install the Nokia Xpress-on Fun shell and its connector:

1. Remove the original back cover of your Nokia 3220 phone. Remove the rubber part from the slot shown in the picture. Insert the connector supplied with the shell into the slot. Do not use any tools for removing the rubber part or inserting the connector. Once the connector is correctly in place, do not remove it.

Diagram of a mobile phone with a magnified inset showing internal components (no text or symbols)

1. Install the front cover of the Nokia Xpress-on Fun shell.
2. Install the back cover of the Nokia Xpress-on Fun shell.
3. Switch on the phone.
4. Set the date and time correctly on your phone.

The shell automatically installs the Cover browser application in the Collection submenu of the Applications menu in your phone.

1. To install the Wave message application and the two motion games, select Cover browser in the Collection submenu, and select the applications that you want to install. The Wave message application is added to the Collection submenu and the games to the Games submenu. The installation takes several minutes.

If you do not install all three applications, you can install the remaining ones later using the Cover browser application.

Always make sure that you have the date and time set correctly in the phone.

If the phone displays a message that the shell is not attached when you try to launch the Wave message application or either motion game, remove and re-attach the back cover, and try again.

Your device and its enhancements may contain small parts. Keep them out of reach of small children.

3. Using the Wave message application

You can create light messages with the Wave message application. To start the application, press Menu in standby mode, select Applications, Collection, and Select application, scroll to Wave message, and press Open or 📊.

■ Selecting a language for the application

When you start the Wave message application for the first time, the application selects the language that is currently used in the phone if this language is included in the application.

If the phone language is not included in the application, the application asks whether you want to try to download the language using the GPRS (general packet radio service) or HSCSD (high speed circuit switched data) network service. Press Yes to download the language or No to use English in the application.

To use the GPRS or HSCSD network service, define the browser settings in the Services menu of your Nokia 3220 phone for a mobile Internet connection. For more information, see the user guide of your phone.

For the availability of the GPRS or HSCSD service, related fees, and appropriate settings, contact your network operator or service provider.

The actual invoice for calls and services from your service provider may vary, depending on network features, rounding off for billing, taxes and so forth.

■ Creating a wave message containing text

Start the Wave message application and select Create message. Key in a message of up to 15 characters. To insert a smiley, press Options and select Insert smiley.

To show the message in the air, press Display. See also Showing a wave message in the air on page 11. To save the message for later use, press Options and select Save.

You can set the phone to play a sound when you wave the phone in the air: select Settings in the main menu of the Wave message application, and select Sound list.

■ Creating a wave message containing an image

Start the Wave message application and select Create image. Draw an image.

When the image is complete, press Options, and select Display to show it in the air.

While drawing, you can do the following:

• To move the cursor, use the scroll keys. Alternatively, press 2 to move up, 4 to move left, 6 to move right, or 8 to move down.
• If the entire image does not fit in the editing screen, you can select the area to be edited by moving the red-bordered selection frame to the right or left in the smaller screen.
• To select the drawing mode, press Options, and select Change mode and then Draw (to draw a line) or Normal (to draw a single dot). Alternatively, press 1 while drawing. The drawing mode indicator is shown above the editing screen at the left side of the display.

When Normal is selected, you can draw a dot or change the color of the current dot by pressing 5. Normal is the default drawing mode.

When Draw is selected, you can press 5 to lift the pen (to move the cursor) or to put it down (to continue drawing).

• To activate the eraser, press Options, and select Change mode and Erase.
  Alternatively, press 3 while drawing. While using the eraser, you can lift it (to move the cursor) or put it down by pressing 5.
• To fill a closed area, press Options, and select Change mode and Fill.
  Alternatively, press 7 while drawing. Move the cursor to the desired area and press 5 to fill it.
• To insert another image into the current one, press Options and select Insert image. Select the folder where the desired image is located (Archive or
  Templates), scroll to the image, and press Insert. Move the inserted image where you want to add it, press Options, and select OK. To remove the inserted image, press Options and select Undo.
• To add text to the image, press Options and select Insert text. Key in the text and press Insert. Move the text where you want to add it, press Options, and select OK. To remove the text, press Options and select Undo.
• To save the image in the Archive folder, press Options and select Save.
• To clear the screen without saving the image, press Options and select Clear screen.

■ Showing a wave message in the air

To show the message, turn the back side of the phone towards the person to whom you want to show it, and wave the phone in the air evenly. The LEDs in the back cover paint the message in the air. The LEDs work best in the dark or with a dark background behind you, and the optimal viewing distance is from 1 to 6 metres.

If the message does not appear in the air, try to wave the phone faster from one side to another. To discover the optimal waving speed and position, you can practice waving your phone, for example, in front of a mirror.

■ Showing a previously created wave message in the air

Start the Wave message application, and select the folder (Archive or Templates) where the wave message is saved. Scroll to the desired message, and press Display in the Templates folder, or press Options and select Display in the Archive folder. If you want to edit or delete a message saved in the Archive folder, press Options, and select Edit or Delete.

■ Viewing instructions about using the application

Start the Wave message application, and select Instructions and the desired topic.

■ Changing the application settings

Start the Wave message application, and select Settings. You can select the sound that is played while you show a message in the air (Sound list), adjust the sound volume, or switch the sound on or off.

You can also try to download the same language for the application as the one that is currently selected for your phone (Language). The Language setting is available only if the language was not selected automatically or if you did not download the language when you started the Wave message application for the first time. For more information, see Selecting a language for the application on page 8.

4. Playing the motion games

The Nokia Xpress-on Fun shell includes two motion games, AirExpress and SwampRacer, which you can control by tilting the phone forward, backward, left, or right. These operations are based on an acceleration sensor built into the shell.

To launch either of these games, press Menu in standby mode, and select Applications, Games, and Select game. Select AirExpress or SwampRacer, and press Open or 📄.

For details on playing the game, select Instructions in the main menu of each game.

For general information about using Java ^™ applications, see the user guide of the Nokia 3220 phone.

■ Game settings

Each game has its own settings that allow you to customize the game according to your needs. You can calibrate the acceleration sensor, set the control sensitivity, and select the control type (for SwampRacer only). To access the settings, go to the game-specific settings menu and select the desired option.

To calibrate the sensor, hold your phone for one second in the position where you normally want to keep the phone while playing.

The control sensitivity setting allows you to define how much you need to tilt the phone to steer the airboat or airplane. You can also change the sensitivity while playing by pressing one of the keys 1 to 5.

The control type setting allows you to define how the vehicle behaves when you steer it in the SwampRacer game.

To set the sounds, lights, and shakes for the games, press Menu in standby mode, and select Applications, Games, App. settings, and the desired option.

AirExpress

AirExpress lets you fly freely around an exotic archipelago. Watch out for whales and erupting volcanoes as you pop balloons in racing mode or deliver various packages in delivery mode.

You can steer the plane by tilting the phone. For more information, select Instructions in the AirExpress game.

SwampRacer

SwampRacer is a high-octane airboat racing game, set in the boggy swamps.

You can steer the airboat by tilting the phone. For more information, select Instructions in the SwampRacer game.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you protect your warranty coverage.

• Keep the device dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any light sensors lenses.

If the device is not working properly, take it to your nearest authorized service facility for service.
