IAN 113329 - Lighting MELINERA - Free user manual and instructions

Product Type	LED String Lights
Model	IAN 113329
Brand	Melinera
Length	5 meters
Number of LEDs	50
Light Color	Warm White
Power Source	3 x AA batteries (not included)
Battery Life	Approximately 18 hours
Functions	8 lighting modes including steady, flashing, fading
Wattage	2.4 W
Voltage	4.5 V (DC)
Protection Class	IP20 (indoor use only)
Material	Copper wire, plastic LEDs
Weight	150 g
Dimensions (packaging)	10 x 10 x 5 cm
Care and Cleaning	Wipe with a dry cloth; do not immerse in water
Safety Warnings	Keep away from children under 3 years; risk of entanglement
Spare Parts	Not available separately; replace entire unit
Repairability	Non-repairable; disposal at end of life
Warranty	2 years
Manufacturer	Melinera

Frequently Asked Questions - IAN 113329 MELINERA

What type of batteries does the Melinera IAN 113329 require?

The lighting requires 3 AA batteries, which are not included in the package.

How long do the batteries last?

Battery life is approximately 18 hours when using new alkaline batteries.

Can I use the lights outdoors?

No, the lights are rated IP20 and designed for indoor use only. Exposure to moisture can damage the product.

How many lighting modes are available?

The lights feature 8 different modes, including steady on, flashing, fading, and more. Press the button on the battery pack to cycle through modes.

What is the length of the string?

The total length is 5 meters, with 50 LEDs spaced evenly.

Can I connect multiple strings together?

No, these lights are not designed for daisy-chaining. Connecting multiple sets may cause overheating.

What should I do if the lights stop working?

First, try replacing the batteries with fresh ones. If they still don't work, check for any visible damage. The product is non-repairable and should be disposed of properly.

Are replacement bulbs available?

No, the LEDs are non-replaceable. If a bulb fails, the entire string needs to be replaced.

What is the warranty period?

The Melinera IAN 113329 comes with a 2-year warranty. Keep your receipt as proof of purchase.

How do I clean the lights?

Wipe the lights with a dry, soft cloth. Do not use water or cleaning agents, as they may damage the electrical components.

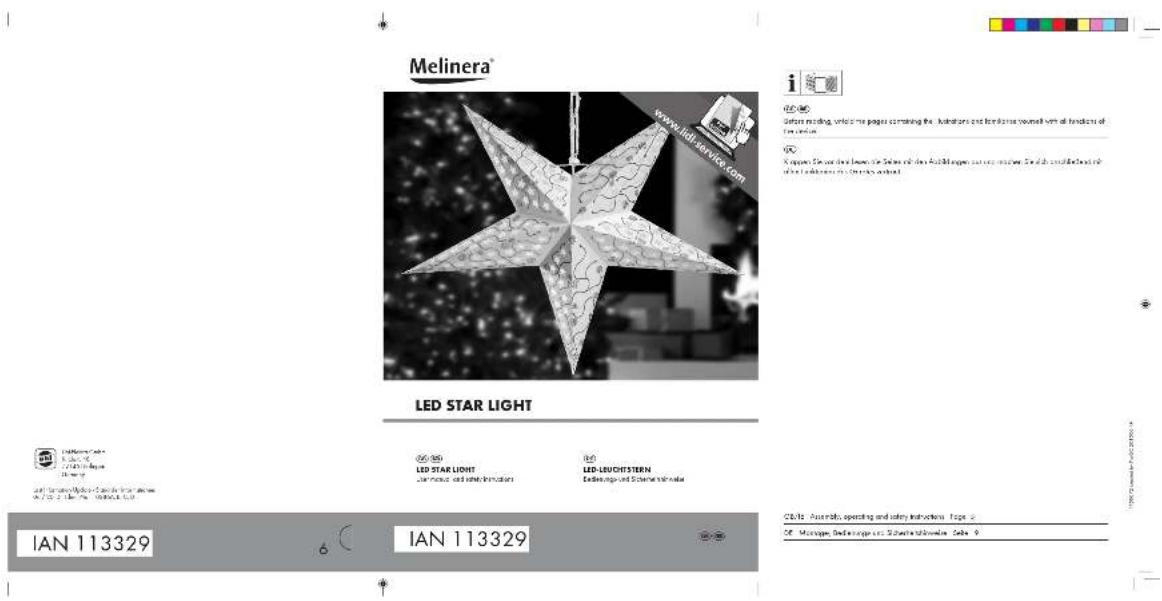

USER MANUAL IAN 113329 MELINERA

Melinera® www.melinera.com LED STAR LIGHT LED STAR LIGHT Laser music and audio information LED LEUCHSTERN Endurance and Science light info IAN 113329 IAN 113329 Click: Australia, opening and adding instructions. Page 5 OF: Mortgage, DeFiagoupe, CS, Charles Schulden, Table 9

Melinera® www.melinera.com LED STAR LIGHT LED STAR LIGHT Laser music and audio information LED LEUCHSTERN Endurance and Science light info IAN 113329 IAN 113329 Click: Australia, opening and adding instructions. Page 5 OF: Mortgage, DeFiagoupe, CS, Charles Schulden, Table 9

A

B

C

Simple line drawing of a cord with two flowers and a bow, no text or symbols present

D

E

F

Introduction......Page 6

Intended use Page 6

Parts description......Page 6

Technical data......Page 6

Scope of delivery....Page 6

Safety Notices......Page 6

Application......Page 7

Changing the bulbs....Page 7

Maintenance and Cleaning......Page 8

Disposal Page 8

Warranty and Service......Page 8

Service address Page 8

Manufacturer Page 8

LED Star Light

Introduction

Familiarise yourself with the device before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

Intended use

This product is suitable only for use indoors. This product is intended only for use in private households and not for commercial use.

Parts description

1 Lampshade
2 LED holder
3 LED lighting chain
4 String
5 Cord stopper
6 Power plug
7 Suction cup

Technical Data

Model No.: JCL010DB

Nominal voltage: 220-240 V\~, 50Hz, 4.8 W total

Illuminant: 10x LED, 3 V = - - , 0.064 W

Protection class: □

Article No.:

10286A: red/gold

10286B: white

10286C: grey/white

10286D: gold/white

- Scope of delivery

1 LED lighting chain
1 LED holder
1 lampshade
2 spare LEDs
1 suction cup
1 user manual

Safety Notices

PLEASE READ THE USER MANUAL BEFORE USING THE DEVICE.

If there is damage caused by failure to follow the instructions in this user manual, the warranty will be void. No liability will be assumed for consequential damage. If there is property damage or personal injury that was caused by improper handling or failure to follow the safety instructions, no liability will be assumed.

WARNING RISK OF DEATH OR ACCIDENTS FOR INFANTS AND CHILDREN

Never leave children unattended with packaging material. There is a risk of suffocation from packaging material. Children often underestimate the risks. Always keep children away from the product.

This product is not a toy and doesn't belong in the hands of children. Children may not recognise the dangers that can be associated with handling the product.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

■ Make sure that the product is only operated by competent people.

CAUTION! RISK OF OVERHEATING!

Do not operate the product when it is in the packaging.

■ After use, store the product in the package in order to avoid unwanted damage.
■ Do not pull the cord of the product.
- Do not attach any additional objects to the product.

product is suitable exclusively for operation indoors in dry enclosed spaces.

AVOID THE RISK OF DEATH DUE TO ELECTRIC SHOCK!

Before use please ensure that the existing mains voltage is in accordance with the operating voltage required by the product (220-240 V).
- Check the product and the mains plug for any damage every time before connecting it to the mains.
■ Never use the product if you detect any damage whatsoever.
The outer flexible cable of the product cannot be replaced. If the cable is damaged the product must be disposed of.
■ Never open one of the electrical operating parts or stick any kind of object into it.
■ Protect the mains cord from sharp edges, mechanical stress and hot surfaces.
- Do not attach the product with sharp staples or nails.
■ Always unplug the appliance from the power outlet before assembling, disassembling or cleaning it.
■ Never touch the plug of the product or the product itself with wet hands.
- Keep the product away from moisture.
The product must not be connected electrically to any other product. In the event of an extended period of non-use (e.g. holidays) disconnect the product from the mains.
■ To avoid damage to your eyes, do not look directly into the beam of light.
If you have questions about the product or are not sure, seek the advice of an electrician.
- Do not remove or replace any LEDs if the lighting chain is connected to the mains supply.
■ Only use replacement LEDs that match the ones provided.

Application

Please note: The bulbs are connected in series. If one bulb is defective, up to 10 bulbs in total can fail.

☐ Unfold the lampshade (figures A and B).
☐ Stick the LED holder with the LED lighting chain 3 into the lampshade 1 (figures C and D).
☐ Pull the string through the cord stopper 5 (figure D).
☐ Fold the lampshade together and close it with the string 4 and the cord stopper 5 (figure E).
☐ Attach the suction cup to a clean smooth surface and hang up the star light by means of the string 4.
☐ Plug the mains plug into the mains outlet.
The LED lighting chain is switched on.
☐ Pull the mains plug out of the mains outlet to switch off the LED lighting chain 3.

Changing the bulbs

■ Change the bulbs as illustrated in figure F.

● Maintenance and Cleaning

CAUTION! DANGER OF ELECTROCUTION!

Pull the mains plug out of the outlet first.

CAUTION! DANGER OF ELECTROCUTION!

For reasons of electrical safety, the product must never be cleaned with water or other liquids or immersed in water.

- Don't use any benzene or any other solvents. This would damage the product.

☐ Use only a dry, lint-free cloth to clean the product.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your local community or municipal administration for more details on how to dispose your worn-out product.

To help protect the environment, please dispose of the product properly, and not in household waste, when it has reached

the end of its useful life. Please contact your local authority for information on collection points and their opening hours.

● Warranty and Service

Note: this product includes a 36 month warranty from the date of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.

The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs. Please contact the Uni-Elektra GmbH service address with any questions. The product can only be returned to us after contacting us. Postage due shipments will not be accepted. Warranty services do not extend or restart the warranty period of 36 months.

Service address

Uni-Elektra GmbH

Kirchstr. 48

72145 Hirrlingen / Germany

Tel.: [phone] / 91385-0

[e-mail]

IAN 113329

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Manufacturer

Uni-Elektra GmbH

Kirchstr. 48

72145 Hirrlingen / Germany
