Product type	Heated insoles
Brand	CRIVIT
Model	IAN 100082
Article number	IAN 100082
Compatible shoe size	36 - 48
Power supply	2 Ni-MH battery packs (3.6 V, 1400 mAh)
Power supply unit (input)	100 - 240 V~, 50/60 Hz, 0.3 A max
Power supply unit (output)	5 V ⎓, 600 mA
Charging time	Approx. 6.5 to 8 hours
Battery life (level II)	Approx. 5 hours
Heat levels	2 (level I and II)
Operation indicator	Green LED (level I), red (level II)
Included accessories	2 heated insoles, 2 battery packs, 1 power supply unit, instruction manual
Main safety instructions	Do not use if damaged; do not expose to moisture; do not dry on heat source; supervision required for children and sensitive persons
Maintenance and cleaning	Clean with a dry cloth; air regularly; do not use harsh products
Warranty	3 years from date of purchase
Customer service (France)	Tel.: [phone], Email: [e-mail]
Customer service (Switzerland)	Tel.: [phone] (0.08 CHF/min), Email: [e-mail]
Importer	Kompernass Handels GmbH (via Lidl)
Operating temperature	+15 °C to +35 °C

Frequently Asked Questions - IAN 100082 CRIVIT

How to charge the battery packs?

Plug the supplied power supply unit into a mains socket. Connect the connectors of the power supply unit to the sockets of the switched-off battery packs. The red LEDs light up. Charging takes 6.5 to 8 hours. When the LEDs turn green, charging is complete.

How long does the battery last?

At heating level II, the battery life is approx. 5 hours. At level I, it is longer but not specified.

How to adapt the insoles to my shoe size?

Use the cutting marks under the insole as a guide. Cut leaving a little margin, then adjust at the heel and sides so they fill the shoe well.

Can I use the insoles in the rain?

No, protect the insoles and battery packs from moisture. If they get wet, dry them only in air, never on a radiator or with a hair dryer.

What to do if the insoles no longer heat up?

First check that the battery packs are charged (green or red LED). If discharged, recharge them. If the problem persists, contact customer service.

Can children use this product?

Yes, children from 8 years of age can use it under adult supervision. Persons with reduced heat sensitivity should consult a doctor.

What types of shoes are suitable?

All shoes offering enough space. The insoles add about 4 mm thickness. The more insulated the shoe, the longer the battery life.

How to clean the insoles and batteries?

Clean the battery packs with a dry, lint-free cloth. Air the insoles from time to time. Never use harsh products or chemical solutions.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers defects in materials and workmanship, but not damage due to transport or misuse.

How to contact customer service?

In France: 0800 919270 (toll-free) or by email at [e-mail]. In Switzerland: 0842 665566 (0.08 CHF/min), email [e-mail]. Hours: Monday to Friday, 8am-8pm.

USER MANUAL IAN 100082 CRIVIT

BEHEIZBARE EINLEGESOHLEN CEB 1400 A1

DE AT CH

Operating instructions

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Line drawing of a boot with a medical device attached to the sole (no text or symbols)

Abb. 1

ACHTUNG

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 • 44867 BOCHUM • DEUTSCHLAND

www.kompernass.com

Sommaire

Introduction....14

Line drawing of a boot with a medical device attached to the sole (no text or symbols)

Fig. 1

ATTENTION

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Indice

Introduzione....28

Diritti d'autore 28

Illustration of a boot with a water pump attached to the sole, showing lacing and a small container (no text or symbols)

Figura 1

ATTENZIONE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Index

Introduction 40

Copyright 40

Limited liability 40

Intended use 40

Warnings 41

Safety 42

Risks from electrical current 42

Interaction with the battery pack 42

Basic Safety Instructions 43

Initial use 44

Items supplied and transport inspection 44

Disposal of the packaging 44

Before initial use 45

Appliance description 45

Trimming the insoles to size 45

Charging the battery pack 46

Handling and operation 47

Switching the insoles on / off / selecting the heat setting . . . . 47

Cleaning....48

Storage 48

Disposal 48

Disposal of the appliance....48

Disposal of batteries /cells 48

Appendix 49

Technical Data 49

Information regarding the EC Declaration of Conformity . . . 49

Warranty 50

Service 50

Importer 50

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these operating instructions on to whoever might acquire the appliance at a future date.

GB

Copyright

This documentation is copyright protected.

Any copying and / or reproduction, wholly or partially, including reproduction of the illustrations, also in a modified format is only permitted with written consent from the manufacturer.

Limited liability

All technical information, data and information for the connection and operation contained in these operating instructions correspond to the latest at time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe the instructions, improper use, inappropriate repairs, making unauthorised changes or for using unauthorised replacement parts.

Intended use

These heatable insoles are intended exclusively for warming the feet on cold days during extended periods outdoors. They are intended solely for domestic use, not for commercial applications. Any use other than that previously described, or a modification of the insoles, is not permitted and may result in injury and/or damage to the insoles. The manufacturer assumes no liability for damages caused by contrary applications. The user alone bears the liability.

Warnings

In these extant operating instructions the following warnings are used:

DANGER

A warning of this risk level signifies a potentially dangerous situation.

In the event that the dangerous situation is not avoided it could lead to death or serious physical injury.

▶ Comply with the directives in this warning to avoid the risks of death or serious physical injury.

WARNING

A warning of this risk level signifies a potentially dangerous situation.

If the dangerous situation is not avoided it could lead to physical injuries.

▶ Observe the instructions in this warning to avoid personal injuries.

IMPORTANT

A warning of this risk level signifies possible property damage.

If the dangerous situation is not avoided it could lead to physical injuries.

▶ Observe the instructions in this warning to avoid property damage.

NOTE

▶ A notice signifies additional information that may assist you in the handling of the appliance.

Safety

In this chapter you will receive important safety information regarding the handling of the appliance. Incorrect usage can lead to injuries and property damage.

Risks from electrical current

DANGER

Observe the following safety instructions to avoid risks from electrical current:

▶ Do not use the appliance if the power adapter, the connection cable or the connector plug is damaged.
▶ Under no circumstances should you open the power adapter. There is a risk of receiving an electric shock if voltage carrying connections are touched or the electrical and /or mechanical construction is changed.

Interaction with the battery pack

△WARNING

The risk of explosions and leakages exists!

For safe handling of battery pack observe the following safety instructions:

▶ Do not throw the battery pack into a fi re.
▶ Do not short circuit the battery pack.
▶ Check the battery pack regularly. Leaking battery acid can cause permanent damage to the device. Special care should be taken when handling a damaged or leaking battery. Danger from acid burns! Wear protective gloves.

• Store the battery pack away from children.
  ▶ Disconnect the battery pack from the insole if you do not intend to use it for longer periods.
  ▶ The battery packs must be properly disposed of separately from the insoles.

Basic Safety Instructions

For safe handling of the appliance observe the following safety information:

■ Before use, check the insoles, the battery pack and the power adapter for any externally visible damage. Do not take into operation an appliance that is damaged or has been dropped.

■ To avoid possible risks, arrange for damaged cables or connectors to be exchanged by an authorised specialist or the Customer Service Department.

■ Check your feet regularly for any redness of the skin. Too much heat for a long time can cause burns. Children should therefore use the product only under adult supervision.

■ This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

■ People who can not correctly perceive heat or cold, such as diabetics and people with disabilities etc, should consult their doctor before using the insoles.

■ Do not operate the insoles unattended.

■ Protect the insoles and the battery packs against rain and snow. Should the insoles and the battery pack becomes wet, allow them to air dry only.

■ Do not dry the insoles and the battery pack on the heating, with other sources of heat or with a hair dryer.

GB

■ Protect the battery packs against moisture and the penetration of liquids. After attaching the battery packs to your shoes, they must always be connected (even when not switched on) to the insoles when outdoors. Thereby, the penetration of moisture and soiling in the connector sockets or plugs will be avoided.

■ Operate the insoles only with the supplied battery packs.

■ Use only the supplied power adapter to charge the battery packs. The power adapter is designed for indoor use and may not be exposed to moisture.

■ In the event of malfunctions or thunderstorms, remove the plug from the mains power socket.

Initial use

Items supplied and transport inspection

The device is delivered with the following components as standard:

- 2 x heatable insoles with integrated heating elements and connection cables

- 2 x Ni-MH battery packs

- Power adapter

• This operating manual

NOTE

▶ Check the contents to make sure everything is there and for visible damage.

▶ If the delivery is not complete, or is damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of the packaging

The packaging protects the device from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

culation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

Before initial use

Remove all packaging materials and all transport securing devices from the appliance.

NOTE

▶ With initial use and for a brief period, a light odour accumulation can occur. This is normal and completely harmless.

Appliance description

① Insole connector plug
② Insole (underside)
3 Trimming marks
4 Connection socket of the battery pack
5 Function indicator of the battery pack
6 Function switch for the heat settings
⑦ Battery pack
8 Mains power connector for power pack
9 Connector plugs for power adapter

Trimming the insoles to size

IMPORTANT

The heating element is located in the region of the toes.

▶ Under no circumstances should you cut within the warning symbol ⊖, as this may damage the heating element.

First, select the shoes in which you wish to wear the insoles ②. Bear in mind that the insoles ② are ca. 4 mm thick and that the better the shoe is insulated against cold, the longer you can heat with a single battery charge.
The trim marks ③ for different shoe sizes are printed on the bottom of the insoles and serve only as a guide for trimming.
Initially, trim the insoles 2 slightly larger than needed. Determine the required actual size by using an existing insole.
◆ Cut along the trim marks ③ and adjust the insole ② at the heel and sides to your individual size.

NOTE

In the final state the insole should fill the entire foot bed and it not be possible for it to move in the shoe.

Charging the battery pack

The battery packs ⑦ re charged via the supplied power adapter ⑧. For safe and faultless operation of the appliance with the electrical connection, observe the following instructions:

IMPORTANT

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with that of your mains power supply. This data must be compatible to avoid possible damage to the device.
▶ Ensure that the mains power cable is not damaged and that it has not been laid over hot surfaces and / or sharp edges.
▶ Ensure that the mains power cable is not overtaut or kinked.
▶ Do not let the power cable hang over edges (trip wire effect).
◆ Plug the power adapter 8 into a mains power socket. Ensure that the battery packs 7 are switched off (function indicators 5 do not glow).
Connect the connector plugs ⑨ of the power adapter ⑧ with the connection sockets ④ of the battery packs ⑦ The function indicators ⑤ glow red and the battery packs ⑦ re being charged. The optimum charging time is a minimum of 6.5 hours and a maximum of 8 hours.
◆ The battery packs ⑦ are fully charged when the function indicators ⑤ glow green.

NOTE

▶ Frequent overcharging of the battery packs ⑦ over 8 hours) results in a reduction of both efficiency and service lifetime.
▶ During extended storage (e.g. over the summer) the battery packs ⑦ should be fully discharged every 2 months and then recharged.

Handling and operation

In this section you receive important information for the handling and operation of the appliance.

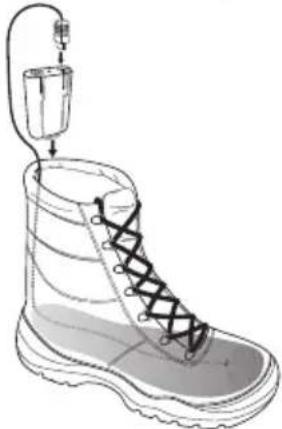

Switching the insoles on / off / selecting the heat setting

◆ Place the trimmed insole 2 in your shoes with the printed side down and run the cable upward along the heel.

- Attach the battery packs ⑦ using the straps to your shoes and connect the connector plug ① of the insoles ② with the connection sockets ④ of the battery pack ⑦ see Figure 1).

Line drawing of a boot with a medical device attached to the sole (no text or symbols)

Fig. 1

IMPORTANT

When wearing low shoes, tuck the excess cable into your socks. The cable must not drag on the ground while walking!
Press the function switch 6 to switch the battery pack 7 on. The battery pack 7 switches itself on with the heat level I and the function indicator 5 glows green.
By pressing the function switch 6 once again, the heat level II can be switched on. The function indicator 5 glows red.
To switch the battery pack ⑦ off, press the function switch ⑥ once more. The function indicator ⑤ goes out.

NOTE

For quick warming, it is recommended to initially select the the heat level II. It can later, if necessary, be turned down to the lower heating level.
▶ When the battery pack ⑦ is discharged, the function indicator ⑤ switches off and the insole ② is no longer heated.

GB

Cleaning

IMPORTANT

Protect the insoles 2nd the battery packs against moisture and the ingress of liquids.

▶ Do NOT use aggressive cleaning agents or chemical solvents, otherwise the surfaces may be damaged.

■ Clean the battery pack⑦ with a dry lint-free cloth.

■ The insole ^2 should be taken out of the shoes occasionally and aired.

Storage

■ Disconnect the battery packs ⑦ from the insoles ② if you do not intend to use them for longer periods.

■ Store the insoles ② and the battery packs ⑦ in a dry place away from direct sunlight.

Disposal

Disposal of the appliance

dispose of this appliance in your normal domestic waste. This product is subject to European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. The battery packs must be properly disposed of separately from the insoles.

Disposal of batteries /cells

Used batteries / cells may not be disposed of in household waste. All consumers are legally required to dispose of batteries / cells at a collecting point in their community or at a retail company. The purpose of this obligation is to ensure that batteries / cells are disposed of in a non-polluting manner. Only dispose of batteries / cells when they are fully discharged.

GB

Appendix Technical Data

Power adapter GQ07-050060-AG
Input voltage 100 - 240 V	~ 50/60 Hz
Current consumption max. 0.3 A
Output voltage 5 V	---
Output current 600 mA
Protection class	II / ☐
Operating temperature +15 to +35°C
Humidity (no condensation) ≤ 75 %

Ni-MH Battery Pack
Voltage 3.6 V	—
Capacity 1400 mAh
Charging time approx. 6.5 - 8 hrs

Insoles
Input voltage 3.6 V	---
Current consumption 300 mA
Shoe sizes 36 - 48
Max. operating time	approx. 5 hrs(at Heat Level II)

Information regarding the EC Declaration of Conformity

In regard to compliance with basic requirements and other relevant provisions, this appliance conforms with the Low Voltage Directive 2006/95/EC and the Electromagnetic Compatibility Directive 2004/108/EC.

The complete original Declaration of Conformity can be obtained from the importer.

Warranty

With this device you receive a 3 year warranty from the date of purchase. This appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim please contact, by telephone, our Service Department. Only in this way can a post-free dispatch for your goods be assured.

NOTE

The warranty covers only claims for material and manufacturing defects, not for transport damages, worn parts or for damage to fragile components, e.g. buttons or batteries.

GB

This appliance is intended solely for private domestic use, not for commercial applications. If this product has been subjected to improper or inappropriate handling, abuse, or modifications not carried out by one of our authorised sales and service outlets, the warranty will be considered void.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs eff ected under warranty. This applies also to replaced and repaired parts.

Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date.

Repairs carried out after lapse of the warranty period are subject to charge.

Service

GB

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 100082

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
