IAN 282422 - Lighting MELINERA - Free user manual and instructions

Product type	LED decorative lighting
Model	IAN 282422
Brand	Melinera
Category	Lighting
Dimensions	Approx. 100 x 10 x 10 cm (L x W x H)
Weight	Approx. 0.5 kg
Power supply	Mains adapter 230 V, 12 V DC output
Power consumption	6 W
Light source type	Integrated non-replaceable LED
Color temperature	3000 K (warm white)
Luminous flux	300 lm
Lifespan	Approx. 25,000 hours
Protection rating	IP20 (indoor use)
Material	Aluminum and plastic
Color	White / Silver
Cable length	1.5 m
Main functions	Ambient lighting, built-in dimmer
Care and cleaning	Disconnect before cleaning, use a soft dry cloth
Safety	Do not immerse in water, keep away from heat sources
Spare parts and repairability	LED not replaceable, mains adapter available as spare part
General information	Suitable for indoor use, exclude wet rooms

Frequently Asked Questions - IAN 282422 MELINERA

Where can I find the IAN number 282422 on the product?

The IAN number is usually found on a label on the power supply unit or on the cable near the plug. It may also be included in the user manual.

Can I replace the LED if it no longer works?

No, the LEDs are integrated and non-replaceable. In case of failure, the entire luminaire must be replaced.

What is the color temperature of this lighting?

The color temperature is 3000 K (warm white), ideal for a cozy atmosphere.

Is this product dimmable?

Yes, the luminaire comes with a built-in dimmer to adjust the light intensity.

What accessories are included in the box?

The pack includes the luminaire, a mains adapter, a power cable, and the user manual.

Can I use this luminaire outdoors?

No, the protection rating is IP20, which means it is suitable only for indoor use.

What is the maximum power consumption?

The consumption is 6 W, do not exceed this value.

How to clean the luminaire?

Unplug it and use a soft dry cloth. Do not use abrasive products or liquids.

What to do if the mains adapter is defective?

Contact Lidl/Melinera customer service to order a replacement adapter specific to model IAN 282422.

Is there a timer function?

This model does not have a built-in timer. You can use an external programmable plug.

USER MANUAL IAN 282422 MELINERA

LED-SOLAR-LAMPION / LED SOLAR LANTERN LAMPION SOLAIRE À LED

DE AT CH

LED-SOLAR-LAMPION

Operation and Safety Notes

NL BE

LED-SOLAR-LAMPION

GB / IE Operation and Safety Notes Page 9

HG00523A/D HG00523E HG00523C
B

C

D

LED-Solar-Lampion

Einleitung

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for outdoor use for decoration. The product is not intended for commercial use or for use in other applications.

■ Not suitable for household room

illumination.

This product is suitable for extreme temperature up to -21°C.

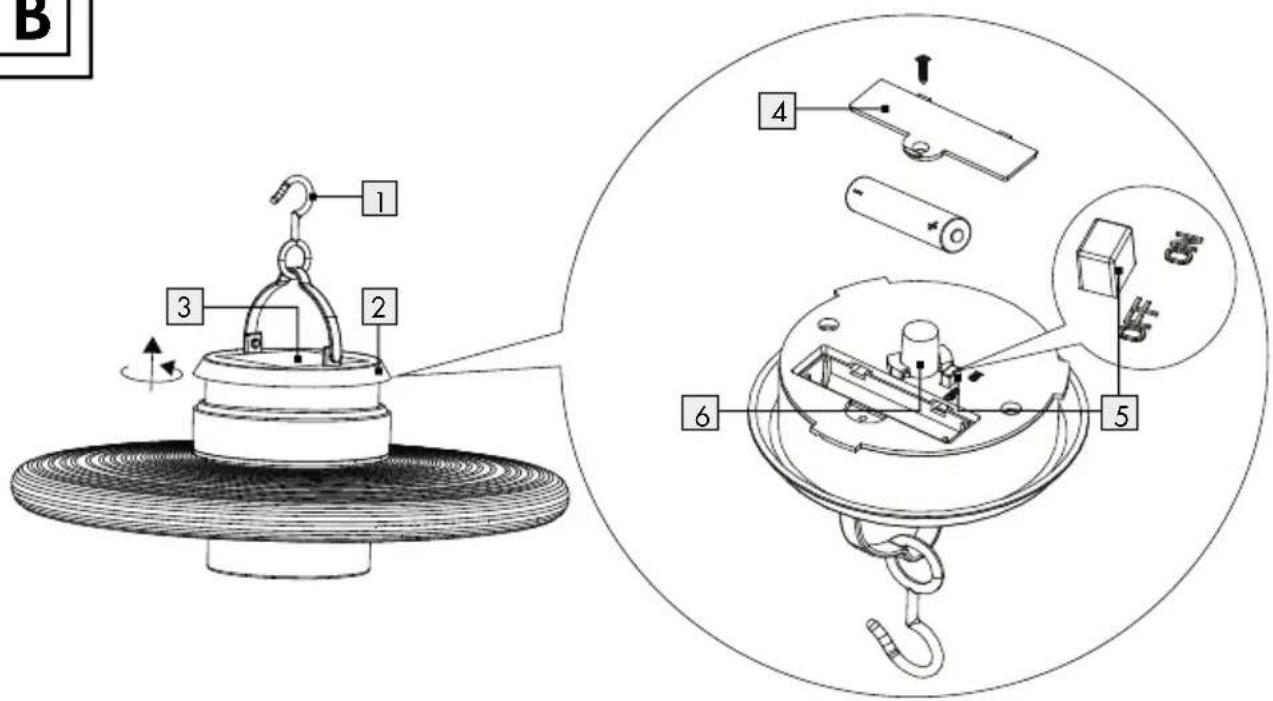

• Description of parts

1 Hanging hook
2 Lamp cover
3 Solar cell
4 Battery compartment cover
5 ON-/OFF-switch
6 LED
7 Stabilizer
8 Holder (bottom)
9 Holder (top)

- Technical data

Operating voltage: 1.2 V= (direct current)

Battery: 1 x 1.2 V = (direct current)

Ni-MH battery, 600 mAh, AAA

Illuminant: 1 x LED

(cannot be replaced)

Life time LED: approx. 20,000 hours

Degree of protection: IP44 (splash-proof)

Scope of delivery

Immediately after unpacking please check the package contents for completeness and if all parts and the product are in good condition. Do not assemble the product if the package contents are incomplete.

1 LED solar lantern
2 Stabilizers
1 Operating instructions

Safety Information

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and

understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use the product if it is damaged.
  ■ Under no circumstances should you take the product apart. Improper repairs may place the user in considerable danger. Repairs should only be carried out by specialist personnel.
  ■ Do not put this product in water or other liquids!
  ■ The illuminant is not replaceable.
  If the illuminant fails at end of its life, the entire product must be replaced.

Safety instructions for rechargeable batteries

WARNING! DANGER TO LIFE!

Rechargeable batteries are not intended to be in the hands of children. If accidentally swallowed seek immediate medical attention!

■

CAUTION! EXPLOSION HAZARD!

Never throw batteries into fire or water!
Do not exert mechanical strain on batteries!
Do not use disposable batteries.
■ Never short-circuit or open rechargeable batteries.

Risk of equipment damage

■ Only use the battery type specified!
When inserting the battery ensure the correct polarity! This is shown inside the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!

- Assembly

☐ Open the lamp cover 2 (see fig. B).

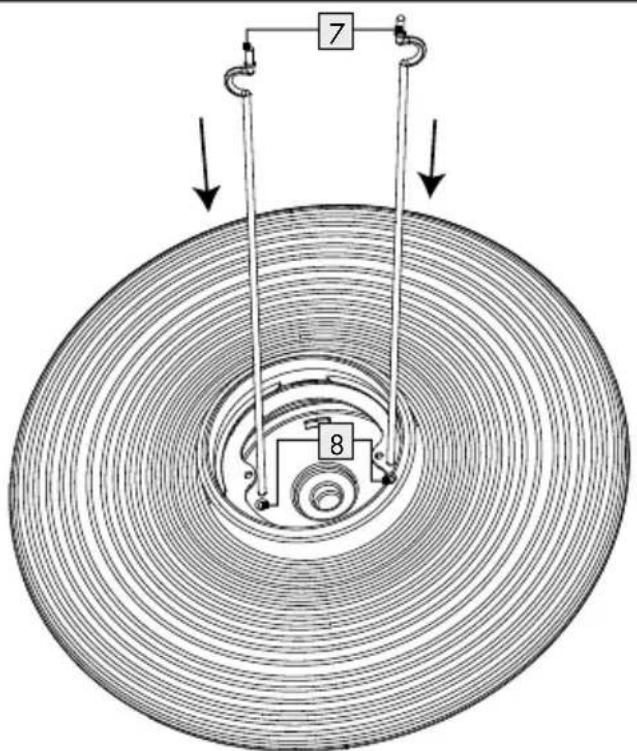

☐ First insert the stabilizers 7 into the holders (bottom) 8 located on the inner side of the housing (see fig. C). Pull the lamp apart.

☐ Insert the other end of the stabilizers 7 into the holders (top) 9 located on the top of the lamp (see fig. D).

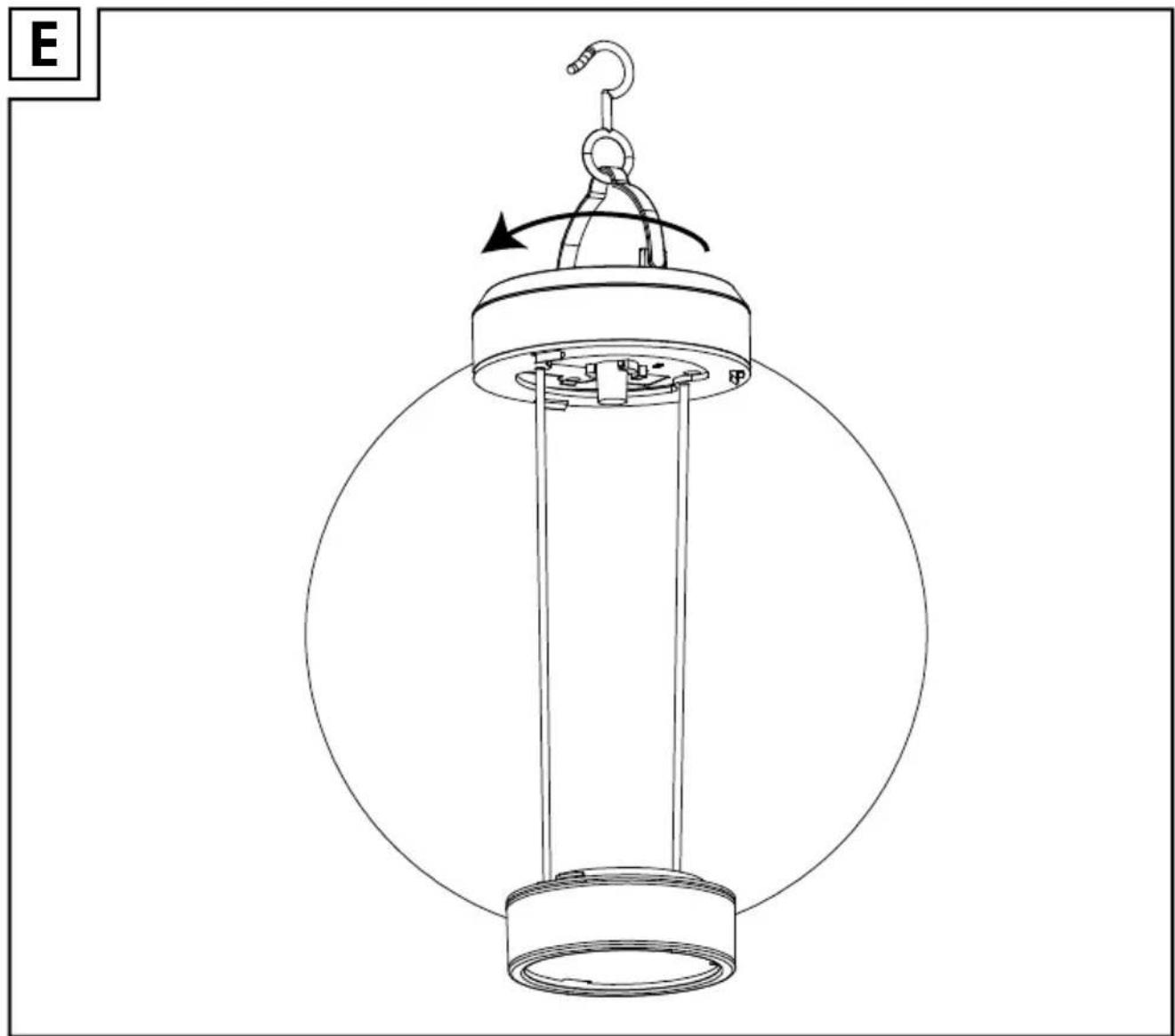

☐ Close the lamp cover 2 (see fig. E).

- Inserting / replacing the battery

□ See fig. B.

Use

☐ Switch the product on by pressing the ON/OFF switch 5 (see fig. B).
☐ The battery charging period using the solar cell depends on the intensity of the sunlight and the angle incidence of the light on the solar cell 3. With fully charged battery the product stays on for about 6 hours.
Place the solar cell 3 as perpendicular as possible to the angle of light incidence. In this way you will receive the highest light levels.

Note: For the best results, put the product in a place where the solar cell 3 is exposed to direct sunlight for as long as possible. Do not hang the product in trees or under canopies etc. as this reduces the incidence of incoming sunlight. Position the product in such a way that the solar cell 3 is not covered or in the shade.

Note: Make sure the solar cell is not impacted by other light sources, e.g. yard- or street lighting, or the light will not switch on at twilight.

- Cleaning and maintenance

■ Under no circumstances should you use liquids or detergents, as these will damage the product.
☐ The product should only be cleaned on the outside with a soft, dry or slightly dampened cloth.

- Troubleshooting

● = Problem
= Cause
O = Solution
● The light does not come on in the dark, even after being exposed to sunlight all day.
- Artificial sources of light such as street lights, etc. are simulating daylight to the photosensor.
Place the product in a location where it is shielded from artificial sources of light.

Electrostatic discharges can lead to malfunctions. In cases of the product failing to work, remove the batteries for a short while and then replace them.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening

hours can be obtained from your local authority.

Defective or exhausted rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return rechargeable batteries and / or the product using the recycling facilities provided.

Improper disposal of rechargeable batteries can damage the environment!

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. For this reason, dispose of used rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44

● = Problème
● = Cause
O = Solution

WAARSCHUWING! LEVENSGEVAAR!
