IAN 292850 - Accessoires pour home trainer CRIVIT - Free user manual and instructions

Product type	Bicycle tool kit
Brand	Crivit
Model	IAN 292850
Dimensions (L × W × H)	Approx. 28.5 × 21.3 × 6 cm
Weight	Approx. 1850 g
Number of tools	15+ tools included
Tools included	Chain whip, bearing cup tool, pedal wrench (15 mm), 8 mm hex key, tool holder/extractor, 6 hex keys (2/2.5/3/4/5/6 mm including 4/5/6 mm ball-end), 3 tire levers, chain tool for 6-10 speeds, spoke wrench (9-15), square crank puller, Hollowtech II star cap tool, Shimano HG lockring tool, Torx T25 wrench
Intended use	Simple bicycle repairs for private use
Material	Steel, plastic (depending on components)
Maintenance and cleaning	Clean with a dry cloth only; do not use aggressive cleaners
Storage	Store clean and dry in a temperature-controlled room
Safety	Contains small parts, choking hazard; sharp edges; not suitable for children under 36 months
Warranty	3 years from date of purchase, covering material and manufacturing defects
After-sales service (France)	Phone: [phone], email: [e-mail]
After-sales service (Belgium)	Phone: [phone] (€0.15/min), email: [e-mail]
Item number	IAN 292850
Country of origin	Not specified in the manual

Frequently Asked Questions - IAN 292850 CRIVIT

What types of bicycles can this tool kit repair?

This kit is designed for simple repairs on all types of bicycles, including cassette removal, pedals, cranks (square and Hollowtech II), inner tube replacement, chain tool, and spoke tensioning.

How to use the cassette extractor?

Insert the cassette extractor (12) into the lockring, then hold it with the chain whip and a hex key. Unscrew the lockring, then remove the cassette. Ensure the extractor is compatible with your cassette.

How to remove a pedal with this kit?

Use the provided pedal wrench (15 mm). Turn the left pedal counterclockwise and the right pedal also counterclockwise. Grease the threads before reassembling.

Is this kit suitable for electric bicycles?

It can be used for basic repairs on electric bicycles (tires, chain, etc.), but specific components like the motor or battery require specialized tools not included.

How to change an inner tube with the tire levers?

Let out the air, insert a tire lever between the rim and tire near the valve. Use a second tire lever to pry and remove the tire. Hook the first one to a spoke to prevent it from falling.

How to maintain the tools for long life?

Clean them with a dry cloth after use. Do not clean with aggressive products. Store them in a dry, temperate place away from moisture.

What to do if a tool is broken or missing?

Contact after-sales service (France: 0800 919270, Belgium: 070 270 171) or by email. The product is covered by a 3-year warranty for material and manufacturing defects.

Can this kit be used for professional repairs?

No, it is intended for private use and does not replace professional tools. For intensive repairs, higher quality tools are recommended.

How to remove a Hollowtech II crank with this kit?

Screw in the star cap with the provided tool, unscrew the crank bolt, then remove the crank. Use the bearing cup tool to remove the internal bearing.

Are there safety precautions to follow?

Yes, keep small parts out of reach of children (choking hazard). Beware of sharp edges. Check the condition of tools before each use. Do not leave children unattended.

USER MANUAL IAN 292850 CRIVIT

Two open tool cases with mechanical components, one labeled 'crivit' and the other 'www.lidl-sc', no readable text or symbols on the main objects.

FAHRRAD-WERKZEUG-SET

BIKE TOOL KIT

SET D'OUTILS À VÉLO

DE AT CH

FAHRRAD-WERKZEUG-SET

Gebrauchsanleitung

FR BE

SET D'OUTILS À VÉLO

Instructions for use

NL BE

FIETS GEREEDSCHAPSET

Gebruiksaanwijzing

ES

Diagram of a hand using a tool to cut a bicycle wheel, showing gear and blade alignment (no text or symbols)

Illustration of a hand using a wrench to adjust a mechanical component (no text or symbols visible)

Mechanical diagram showing a wheel with rotating components and directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust a bicycle wheel rim (no text or symbols present)

Line drawing of a hand operating a gear mechanism with teeth and gears (no text or symbols)

Illustration of a hand operating a mechanical gear assembly with chains (no text or symbols)

Illustration of a hand using a tool to adjust a circular component (no text or symbols present)

Illustration of hands using a tool to adjust a mechanical component with a rotating arrow (no text or symbols)

Illustration of hands using a tool to adjust a chain link (no text or symbols present)

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Package contents

1 x chain whip (1)
1 x bearing spanner, e.g. for Hollowtech II, compatible bearing shells (2)
1 x pedal wrench (15mm) (3)
1 x Allen key, 8mm (4)
1 x attachment holder/puller (5)
6 x Allen key 2 / 2.5 / 3 / 4 / 5 / 6mm (4 / 5 / 6mm with spherical head) (6)
3 x tyre lever (7)
1 x chain rivet tool for 6 - 10 gears (8)
1 x spoke spanner (9/10/11/12/13/14/15) (9)
1 x square crank puller (10)
1 x star cap tool for Hollowtech II chainsets (11)
1 x cassette removal tool for Shimano HG (12)
1 x T25 Torx spanner (13)
1 x tool case
1 x instructions for use

Technical Data

Dimensions: approx. 28.5 x 21.3 x 6cm

$$ (L \times W \times H) $$

Weight: approx. 1.850g

Date of manufacture (month/year):

2017

Intended use

This item is a bicycle tool case for private use. The item is intended for simple repairs and does not replace specialist tools.

Safety Instructions

Life-threatening hazard!

- Never leave children unattended with the packing materials. There is a risk of suffocation!

Risk of injury!

• The item contains sharp components. Be careful not to injure yourself!
• Pay special attention to your fingers when flipping the case open and shut. There is a risk of injury from crushing.
• Check the item for damage or wear before each use.
• Caution! Not suitable for children under 36 months. Risk of suffocation and choking due to small parts that can be swallowed or inhaled!

Use

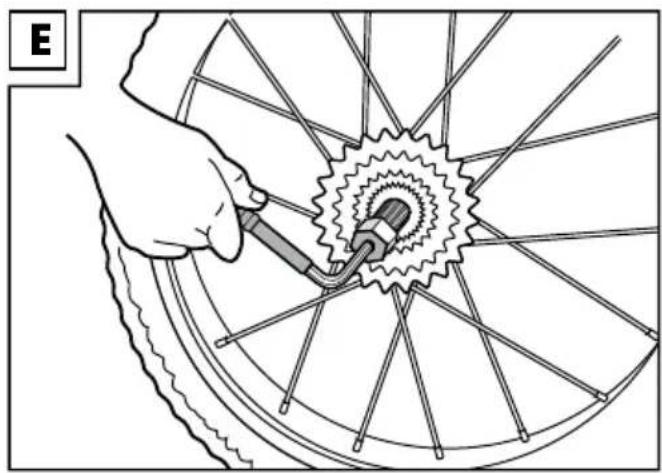

Removing the cassette (Fig. E)

1. Remove the back wheel of your bicycle. To do this, undo the quick release or alternatively, undo the nuts.
2. Put the cassette removal tool (12) into the closure ring of the cassette (Fig. E).

Note: Take note that the removal tool must fit your cassette. Depending on the manufacturer, you may possibly require a different removal tool each time.

1. Put the chain whip in parallel around the sprockets of the cassette.

2. Insert the Allen key (4) with the attachment (5) into the cassette removal tool (12) and loosen the closure ring.

3. First unscrew the closure ring. Then remove the cassette.

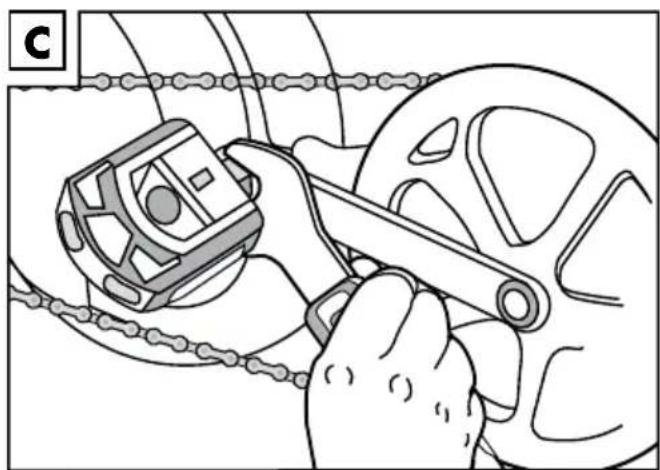

Removing the pedals (Fig. C)

1. Unscrew the left pedal with the pedal wrench (3), by turning it anticlockwise.
2. Unscrew the right pedal with the pedal wrench (3), by turning it clockwise.

Note: Grease the pedal thread before reinstating the pedals.

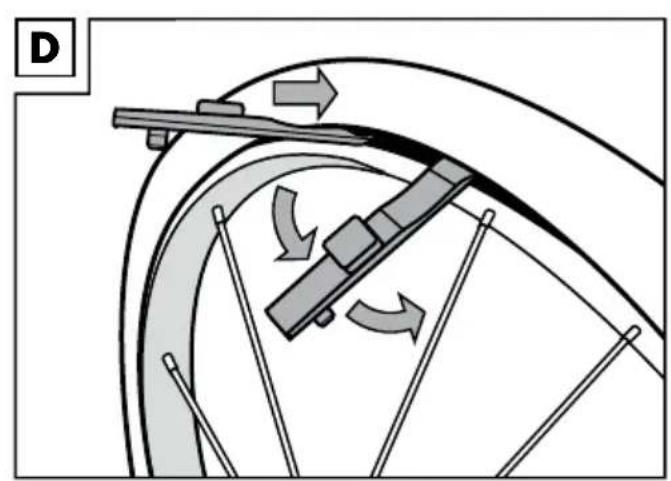

Changing the tube (Fig. D)

1. Let the air out of the tube.
2. Using the flat end of the tyre lever (7), carefully push it between the rim and the tyre. Start near the valve.

Note: To prevent the tyre lever falling out again, you can attach it to a spoke using the hook.

1. Insert the second tyre lever (7) in a little further and pull the tyre over the rim until the tube can be removed all the way around.

Note: Handle the tyre lever carefully. The tube must not be damaged.

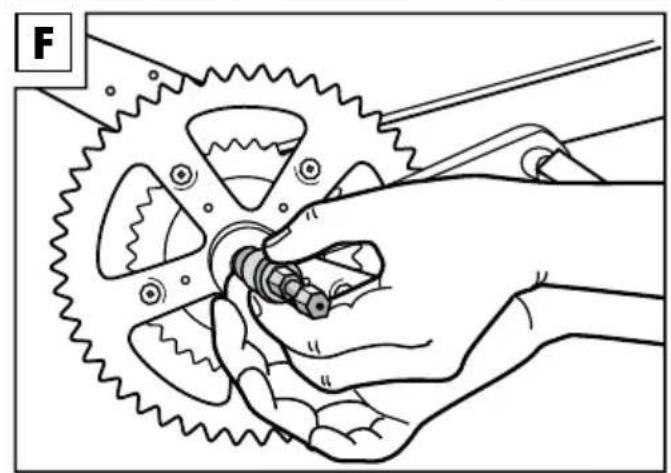

Removing a (square) crank (Fig. F)

1. Loosen the crank bolt with a suitable key and remove it.
   Note: Some cranks have bolt covers. These must be removed before the crank is disassembled.
2. Turn the bolt of the crank puller (10) back completely and turn the crank puller (10) by hand into the crank.
   Note: To make sure that the crank puller is firmly seated in the crank, tighten it with a spanner (SW 22mm).
3. Screw in the bolt of the crank puller (10) with a spanner (SW 14) until the crank has come loose.

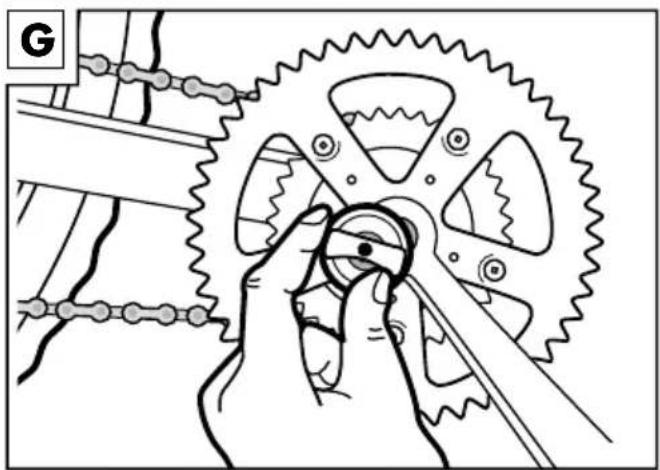

Removing (Hollowtech II) crank (Fig. G)

1. Unscrew the crank cap with the star cap tool (11).
2. Loosen the crank bolts with the appropriate Allen key (6).

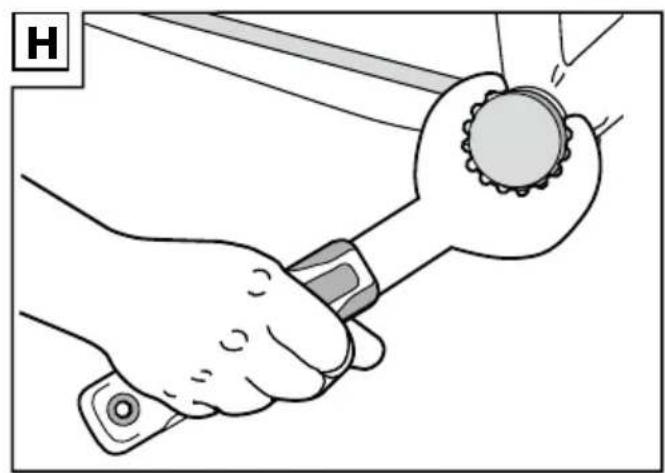

Removing the inside bearing (Hollowtech II chainset) (Fig. H)

1. First remove the crank.
2. Loosen the left bearing shell with the bearing spanner (2), turning anti-clockwise.
3. Loosen the right bearing shell with the bearing spanner (2), turning clockwise.
4. Remove the inside bearing.

Note: Grease the inside bearing before reinstating.

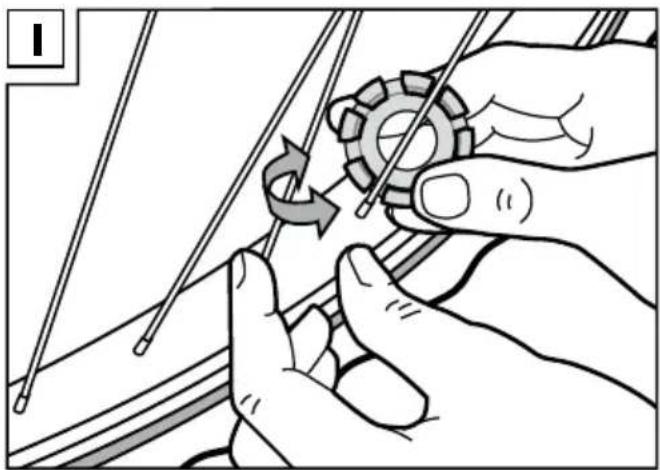

Tensioning the spokes (Fig. I)

1. Attach the spoke spanner (9) to a nipple.
2. Turn the spoke spanner clockwise to tighten the spoke or anti-clockwise to loosen it.
3. Check the tension of the spokes and repeat steps 1 and 2 if necessary.

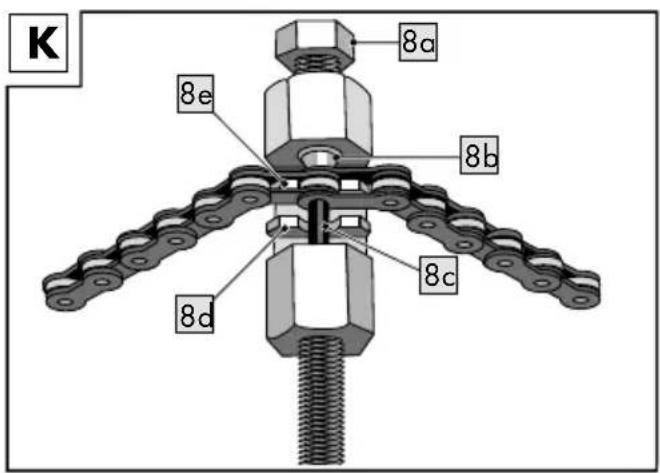

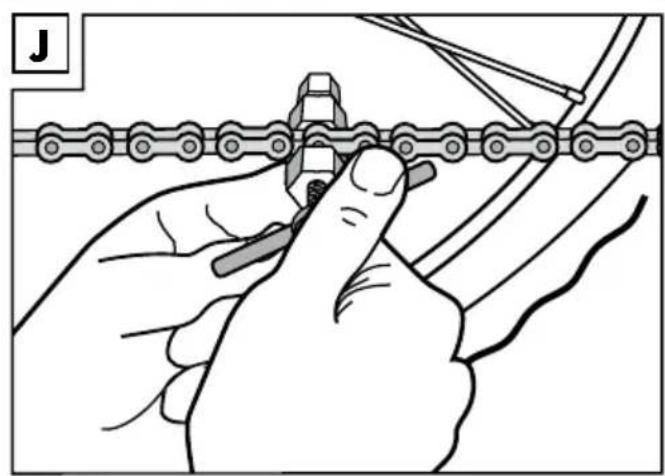

Opening the chain (Fig. J) (Fig. K)

1. Put the chain rivet tool (8) onto the lower chain strand.
2. Place the chain exactly onto the guide rail (8e).
3. Turn the adjusting screw (8a) to secure the chain. The chain guard (8b) must be correctly aligned with the chain and be firmly attached to the chain.

Note: The chain guard holds the chain tight during removal / insertion of the chain rivet and prevents the chain from tilting. The hollow space serves to receive the chain rivet when it's being pressed out.

1. Turn the lever clockwise to remove the respective chain rivet using the chain tool (8c).
2. Pull the rivet-free end of the chain out through the rear derailleur.

Note: Note that the guide rail (8d) is not suitable for holding the chain. Always put the chain onto the guide rail (8e) when pressing the chain rivet in or out.

Closing the chain (Fig. K)

1. Insert the two ends of the chain into each other and fit the chain into the chain rivet tool (8).
2. Secure the chain with the chain guard (8b).
3. Position the new chain rivet on the guide rail (8d) and press it in.

Storage, cleaning

Always store the product in clean and dry condition at room temperature.

Only wipe clean with a dry cleaning cloth. IMPORTANT! Never clean the product with aggressive cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 292850

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
