Product Type	Port Replicator
Brand	Panasonic
Model	CF-VEB531U
Dimensions (L x H x D)	Approximately 400 mm x 67 mm x 215 mm
Weight	Approximately 1.5 kg
Power Supply	15.6 V DC (specified AC adapter CF-AA5713A required)
Expansion Bus Connector	100-pin
USB Ports	3 x USB 2.0, 1 x USB 3.0
LAN Port	RJ-45 × 1 (1000BASE-T/100BASE-TX/10BASE-T)
HDMI Port	HDMI × 1 (HDMI standard, digital display)
VGA Port	Mini Dsub 15-pin female (analog interface)
Serial Port	D-sub 9-pin male
Security	Kensington security lock (LOCK)
Main Functions	Connect all peripherals at once to the laptop; avoids plugging/unplugging multiple cables each time you transport it
Compatibility	Panasonic CF-53*1 series laptops (only)
Maintenance and Cleaning	Do not use liquids; wipe with a dry cloth if necessary; avoid dust and humidity
Usage Precautions	Do not connect/disconnect in sleep or hibernation; use only the specified adapter; do not expose to water, heat, metallic objects
Environmental Information	Do not dispose of with household waste – recycle via collection points (compliant with WEEE)
Repairability	In case of malfunction, contact Panasonic technical support

Frequently Asked Questions - CF-VEB531U PANASONIC

What is the main use of the Panasonic CF-VEB531U?

The CF-VEB531U is a port replicator (docking station) that allows you to connect all your peripherals (monitor, keyboard, mouse, network, etc.) to a Panasonic CF-53*1 series laptop in a single operation, thus avoiding plugging and unplugging multiple cables each time you transport it.

Which computers is the CF-VEB531U compatible with?

It is exclusively compatible with the Panasonic CF-53*1 series laptops. It does not work with other models.

How to properly connect the computer to the port replicator?

1. Turn off the computer and disconnect all cables. 2. Connect the specified AC adapter (CF-AA5713A) to the replicator and to a power outlet. 3. Slide the computer onto the replicator, aligning the connectors, then gently lower it to connect the expansion bus connector. 4. Push firmly to ensure the connection. Never connect the computer while it is powered on or in sleep mode.

How to disconnect the computer from the port replicator?

Turn off the computer and close the lid. Slide the lever all the way back to unlock the connector, then lift the computer. Do not release the lever abruptly and do not press on the computer during the operation.

Can the computer remain on or in sleep mode during connection?

No. Do not connect or disconnect the port replicator when the computer is powered on, in sleep mode, or in hibernation. This could damage the computer or the replicator.

Which ports are available on the CF-VEB531U?

It features: 3 USB 2.0 ports, 1 USB 3.0 port, 1 HDMI port (digital display), 1 VGA port (analog display), 1 serial port (D-sub 9-pin male) and 1 RJ-45 LAN port (10/100/1000BASE-T).

What safety precautions should be observed?

Use only the specified AC adapter (CF-AA5713A). Do not place metal objects or liquids on the product. If smoke, odor, or overheating occurs, disconnect immediately and contact support. Do not connect a telephone line to the LAN port. Avoid humidity, dust, and high temperatures.

Can a long HDMI or VGA cable be used with the replicator?

It is not recommended to use an interface cable longer than 3 meters. Beyond that, signal quality may degrade or operation may become unstable.

What to do if the port replicator stops working?

Disconnect the computer and the AC adapter. Test the computer alone: if it works normally, the problem likely comes from the replicator. Then contact Panasonic technical support for repair.

How to dispose of the CF-VEB531U at end of life?

Do not dispose of it with household waste. In accordance with the WEEE directive, take it to an approved collection point for recycling. You can also return it to your retailer when purchasing an equivalent product.

USER MANUAL CF-VEB531U PANASONIC

ENGLISH	OPERATING INSTRUCTIONS
	Precautions....8Names and Functions of Parts....9Connecting/Disconnecting....10Specifications....12

Use of an interface cable longer than 3 m {9.84 feet} is not recommended.

11-E-1

Schnittstellenkabel

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

Please dispose of this item only in designated national waste electronic collection schemes, and not in the ordinary dust bin.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

36-E-1

DEUTSCH

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Declaration of Conformity (DoC)

"Hereby, Panasonic declares that this Port Replicator is in compliance with the essential requirements and other relevant provisions of EU Council Directives."

Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

18-E-0

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

18-G-0

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

18-F-0

For U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

This device is Class B verified to comply with Part 15 of FCC Rules when used with Panasonic Notebook Computer.

Responsible Party: Panasonic Corporation of North America

One

Panasonic

Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

For Canada

Canadian ICES-003

This Class B digital apparatus complies with Canadian ICES-003.

Thank you for purchasing the port replicator for the Panasonic CF-53 note-book computer series ^*1 .

By connecting your peripheral devices to the port replicator, you can save yourself the trouble of having to connect and disconnect several cables every time you transport the computer.

^*1 This port replicator cannot be used for other models.

Parts Inclusion

Operating Instructions (This Book)......1

NOTE

• This manual explains the procedure for default settings. The procedure may differ according to the settings.
  ● Reference to the on-screen manuals of the computer.

Microsoft ^® and Windows ^® are registered trademarks of Microsoft Corporation in the United States and/or other countries.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.

- Do Not Place Containers of Liquid or Metal Objects on Top of This Product

If water or other liquid spills, or if paper clips, coins, or foreign matter get inside this product, fire or electric shock may result.

- If foreign matter has found its way inside, immediately unplug the AC plug and remove the unit from this product. Then contact your technical support offi ce.

- If a Malfunction or Trouble Occurs, Immediately Stop Use

If a Malfunction Occurs, Immediately Unplug the AC Plug and Remove the Unit From This Product

• This product is damaged
• A foreign object is inside this product
- Smoke is emitted
• An unusual smell is emitted
- Unusually hot

Continuing to use this product while any of the above conditions are present may result in fire or electric shock.

- If a malfunction or trouble occurs, immediately unplug the AC plug and remove the unit from this product. Then, contact your technical support offi ce for repair.

- Use Only the Specifi ed AC Adaptor With This Product

Using an AC adaptor other than the one supplied (supplied with the unit or one sold separately as an accessory) may result in a fi re.

- Do Not Touch This Product and Cable When It Starts Thundering

Electric shock may result.

- Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, resulting in an injury.

- Do Not Connect a Telephone Line, or a Network Cable Other Than the One Specifi ed, Into the LAN Port

If the LAN port is connected to a network such as the ones listed below, a fire or electric shock may result.

• Networks other than 1000BASE-T, 100BASE-TX or 10BASE-T
- Phone lines (IP phone (Internet Protocol Telephone), Telephone lines, internal phone phones, etc.)

- Do Not Keep This Product Wherever There is a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc.

Otherwise, possibly resulting in fire or electric shock.

- Do Not Leave This Product in High Temperature Environment for a Long Period of Time

Leaving this product where it will be exposed to extremely high temperatures such as near fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts. Continued use in such a resulting condition may lead to short-circuiting or insulation defects, etc. which may in turn lead to a fire or electric shocks.

- Using this product continuously in a hot environment will shorten the product life. Avoid use in these types of environments.

- When using in hot or cold environment, some peripherals may fail to work properly. Check the operation environment of the peripherals.

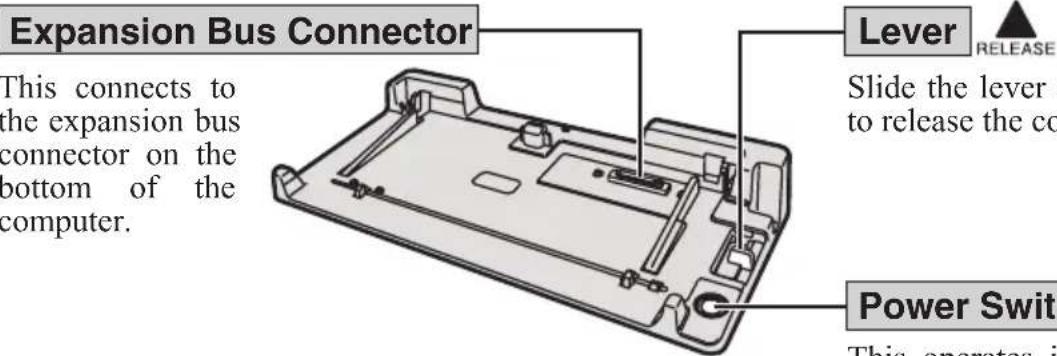

Names and Functions of Parts

The port replicator allows your peripheral devices to function exactly as if they were connected directly to the computer. (Refer to “Description of Parts” in the “Operating Instructions” accompanying the computer.)

CAUTION

Do not touch the expansion bus connector, pins or springs of the port replicator.

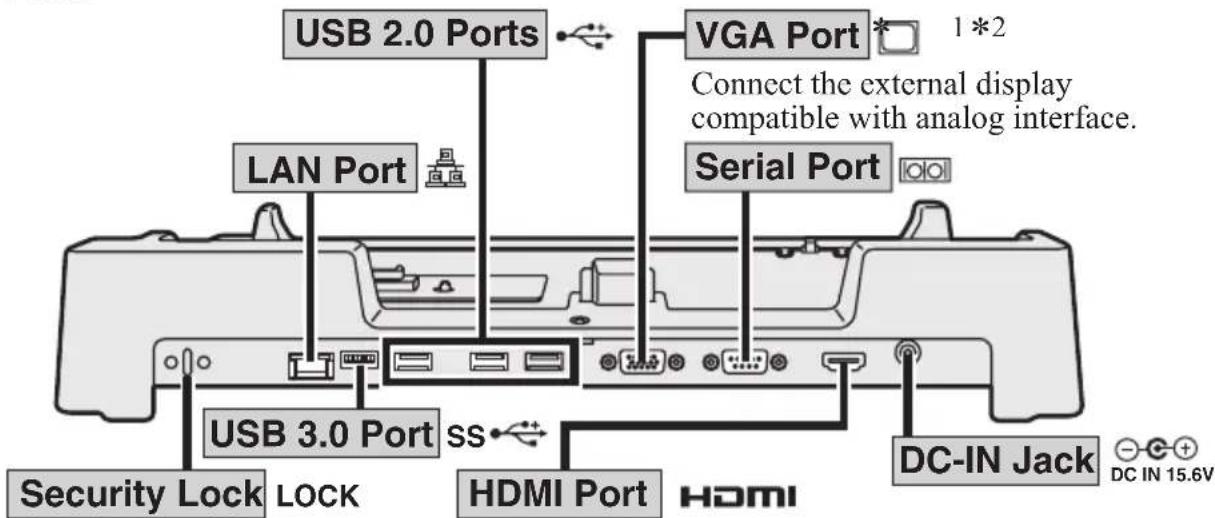

Rear

A Kensington cable can be connected.

For more information, read the manual that comes with the cable.

Connector for HDMI compatible digital display. It is not compatible with the analog display.

The display specifications of the maximum resolution, etc. that can be output differ according to the specifications of the device connected.

For details, refer to the specifications of the device connected.

*1 For display switching when an external display compatible with VGA port and external display compatible with HDMI port are connected at the same time, refer to 📋 Reference manual "External Display".

*2 When the port replicator is connected, the VGA Port of the computer cannot be used.

Front

Slide the lever all the way back to release the computer.

This operates identically to the power switch on the computer.

Connecting/Disconnecting

CAUTION

Do not connect or disconnect the port replicator while the computer is powered on or in the sleep ^*1 or hibernation mode.

*1 Windows XP: standby

Connecting

1 Power off the computer, disconnect all cables from the computer, and close all connector covers.

2 Connect the plug of the AC adaptor that came with the computer to the DC-IN jack of the port replicator and plug the other end into an AC outlet.

Diagram of a cable and plug connection (no text or symbols)

CAUTION

- Refer to the “Operating Instructions” accompanying computer for information on proper handling of the AC adaptor and AC cord.

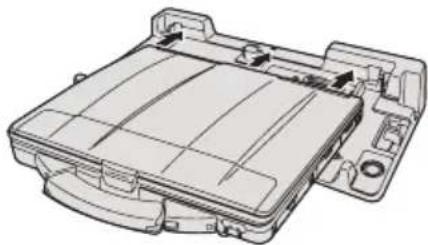

3 Slide the computer onto the port replicator, align the back of the computer with the rear of the port replicator, and then slowly lower the computer to connect the expansion bus connector.

Technical line drawing of a mechanical component with no visible text or symbols

CAUTION

• Do not connect the computer to a port replicator while the computer is connected to the AC adaptor or other cables.
• Do not attempt to make connections if there is any object between the computer and the port replicator. Doing so could damage the computer and the port replicator.

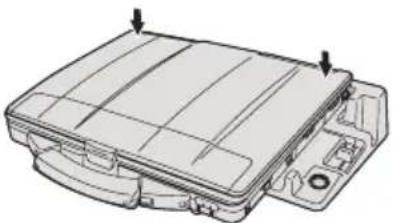

4 Press the computer firmly against the port replicator. This will cause the expansion bus connector on the bottom of the computer to connect to the expansion bus connector of the port replicator.

Technical line drawing of a battery pack with mounting holes and internal compartments (no text or symbols)

CAUTION

● While connecting the computer to the port replicator:

• Do not attempt to move the port replicator.
• Do not open the display wider than necessary (180° or more).
• It is impossible to remove the battery pack and the hard disk drive.

- If the computer malfunctions while the port replicator is attached, disconnect the port replicator and check to see if the computer operates normally. If the computer operates normally, the port replicator may be malfunctioning. Contact your Technical Support.

Disconnecting

1 Power off the computer and close the display.

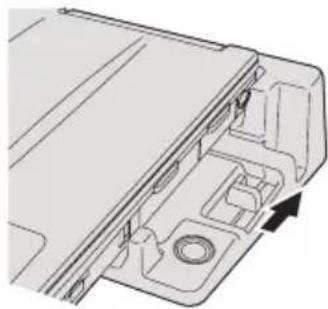

2 Slide the lever all the way back. The computer's connector disengages the expansion bus connector of the port replicator.

Technical line drawing of a mechanical component with internal parts and an arrow indicating direction (no text or symbols)

CAUTION

● After sliding the lever, do not suddenly release it. The lever may relock.
- Do not slide the lever while pressing against the computer from above. Doing so could damage the computer.

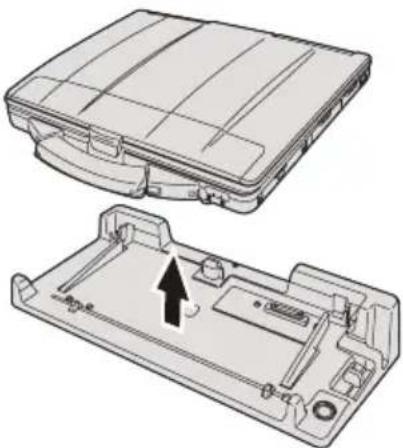

3 Lift up the computer to remove it from the port replicator.

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows internal housing with an arrow indicating a component (no text or symbols present)

Item Description
Power Supply Input	DC 15.6 V [Do not use other than the specified AC adaptor (Model No. CF-AA5713A)].
Expansion Bus Connector 100-pin
USB Port*1	USB 2.0 × 3 / USB 3.0 × 1
LAN Port RJ-45 × 1
HDMI Port*1*2	HDMI × 1 For exclusive use with HDMI standard
VGA Port Mini Dsub 15-pin female (Analog interface)
Serial Port Dsub 9-pin male
Physical Dimensions (Width × Height × Depth)	Approx. 400 mm × 67 mm × 215 mm{15.8" × 2.7" × 8.5"}
Weight Approx. 1.5 kg {3.3 lb.}

^*1 Does not guarantee operation of all USB and HDMI-compatible peripherals.
*2 When connecting the HDMI compatible display, specifications such as maximum resolutions available to output differ, depending on the specifications of the connected devices. See the specifications of the connected device for details.

DEUTSCH

Diagram of a device with cable and plug connections (no text or symbols)

VORSICHT

Technical line drawing of a battery pack assembly (no text or symbols)

VORSICHT

Technical line drawing of a mechanical housing or enclosure component with mounting holes and internal compartments (no text or symbols)

VORSICHT

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

VORSICHT

Technical illustration of two views of a device housing with internal components and a black arrow indicating a specific part (no text or symbols present)

Diagram of a cable and plug connection (no text or symbols)

ATTENTION

Technical line drawing of a mechanical component with no visible text or symbols

ATTENTION

Technical line drawing of a mechanical component with mounting holes and internal ribs (no text or symbols)

ATTENTION

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

ATTENTION

Technical illustration of a device housing with internal components and an arrow indicating a specific part (no text or symbols present)

Diagram of a cable and plug connection (no text or symbols)

УВАГА

Technical line drawing of a mechanical component with internal ribs and mounting brackets (no text or symbols)

УВАГА

Technical line drawing of a battery pack with mounting holes and internal compartments (no text or symbols)

УВАГА

Technical line drawing of a mechanical component with no visible text or symbols

УВАГА

Technical illustration of a device housing with internal components and an arrow indicating a specific part (no text or symbols present)

Diagram of a cable and plug connection (no text or symbols)

お願い

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

お願い

Technical line drawing of a battery pack with mounting holes and internal compartments (no text or symbols)

お願い

Technical line drawing of a mechanical component with no visible text or symbols

お願い

Technical illustration of a device casing with internal components and an arrow indicating a specific part (no text or symbols present)

Panasonic Solutions Company

3 Panasonic Way, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

Importer's name & address pursuant to the EU GPSD (General Product Safety

Directive) 2001/95/EC Art.5

Panasonic Computer Products Europe, Panasonic Marketing Europe GmbH

Hagenauer Straße 43

65203 Wiesbaden

Germany

55-E-1

Web Site : http://panasonic.net/
