| Product Type | Active Studio Monitor |
| Model | 8030C |
| Brand | Genelec |
| Configuration | Two-way bi-amplified |
| Dimensions (with Iso-Pod) | 299 x 189 x 178 mm (11 13/16 x 7 7/16 x 7 in) |
| Dimensions (without Iso-Pod) | 285 x 189 x 178 mm (11 1/4 x 7 7/16 x 7 in) |
| Weight | 5.0 kg (11 lb) |
| Mains Voltage | 100-240 V AC, 50-60 Hz |
| Power Consumption (Idle) | 3 W |
| Power Consumption (Standby) | <0.5 W |
| Power Consumption (Full Output) | 60 W |
| Frequency Response | 54 Hz - 20 kHz (±2 dB) |
| Lower Cutoff (-6 dB) | <47 Hz |
| Upper Cutoff (-6 dB) | >25 kHz |
| Maximum SPL (short term) | >104 dB @ 1 m |
| Maximum SPL (long term) | >96 dB @ 1 m |
| Maximum Peak SPL (pair) | ≥110 dB |
| Self-Generated Noise | ≤5 dB(A) @ 1 m |
| Drivers | Bass: 130 mm (5 in) cone; Treble: 19 mm (3/4 in) metal dome |
| Crossover Frequency | 3.0 kHz |
| Amplifier Power (Bass) | 50 W |
| Amplifier Power (Treble) | 50 W |
| Input Connector | XLR female, balanced 10 kOhm |
| Input Sensitivity | -6 dBu for 100 dB SPL @ 1 m |
| Sensitivity Adjustment Range | -12 dB (constantly variable) |
| Tone Controls | Desktop (-4 dB @ 160 Hz), Treble Tilt (-2 dB @ 15 kHz), Bass Roll-Off (-4 dB @ 55 Hz), Bass Tilt (0 to -6 dB in -2 dB steps) |
| ISS Auto Standby | Yes, <0.5 W standby, adjustable |
| Mounting Options | Iso-Pod table stand, 3/8" UNC mic stand, M6x10 mm for Omnimount brackets |
| Minimum Clearance | 5 cm (2") behind, above, sides for ventilation |
| Guarantee | 2 years |
| FCC Compliance | Class B digital device, part 15 |
Frequently Asked Questions - 8030C GENELEC
User questions about 8030C GENELEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Monitor in PDF format for free! Find your manual 8030C - GENELEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 8030C by GENELEC.
USER MANUAL 8030C GENELEC


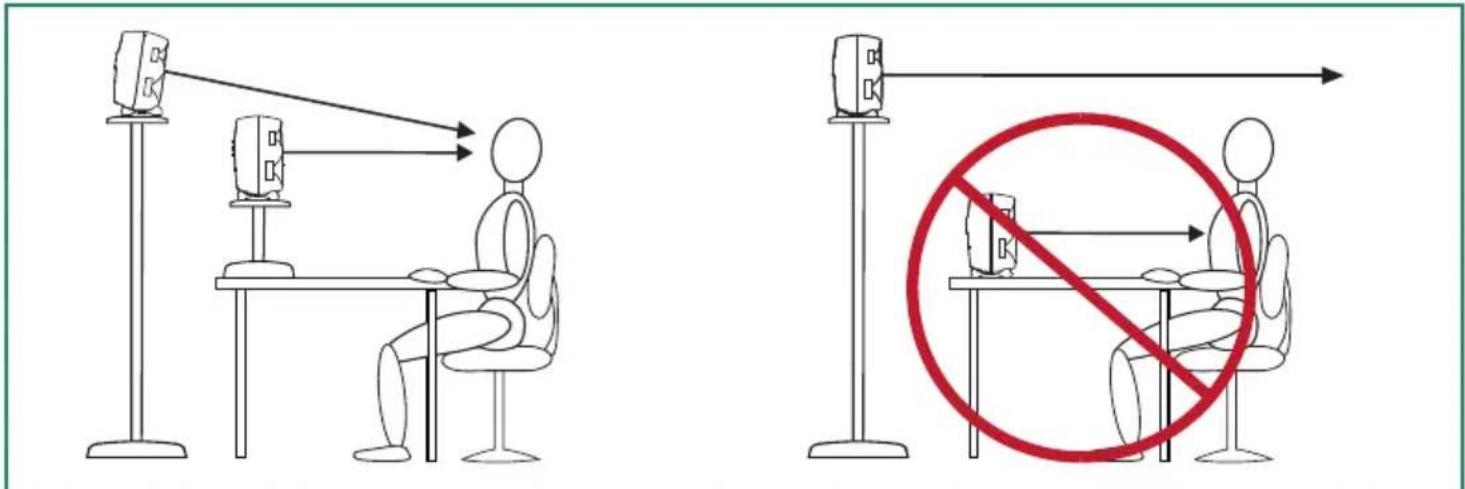

Vertical Angle

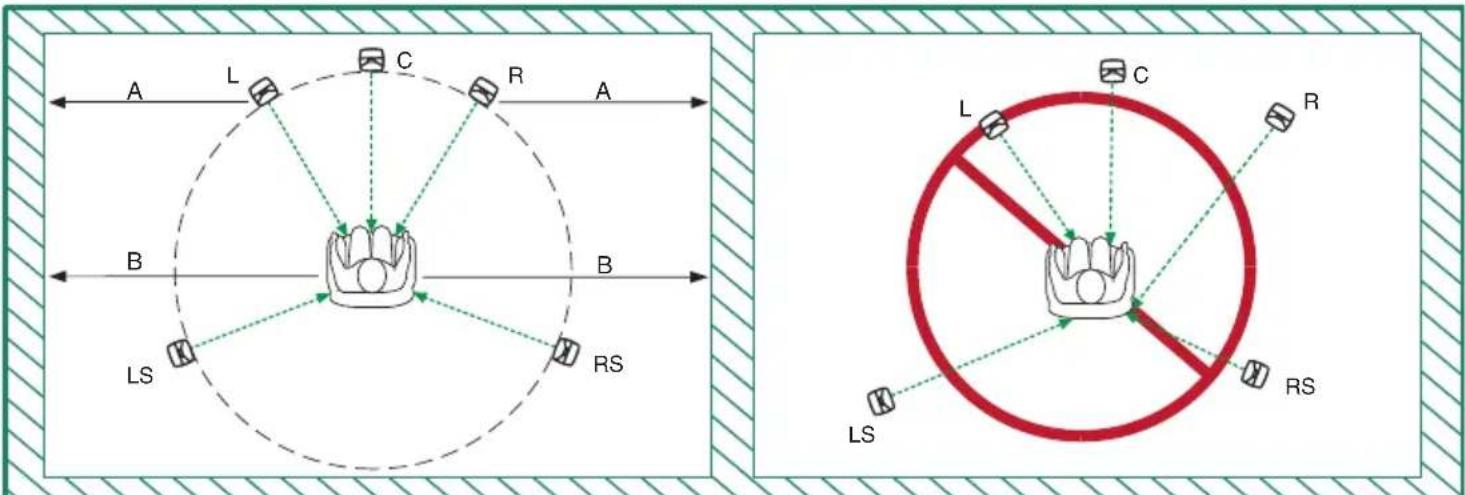

Symmetry of Room Installation

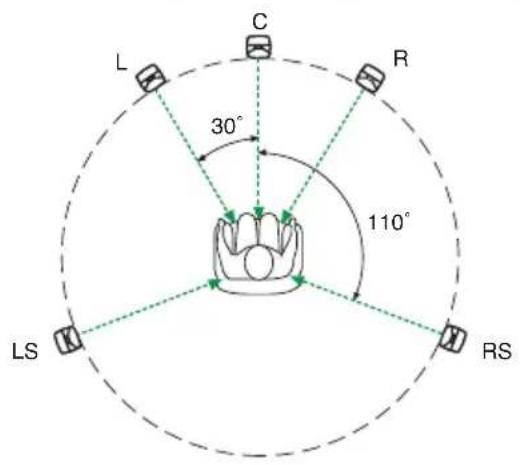

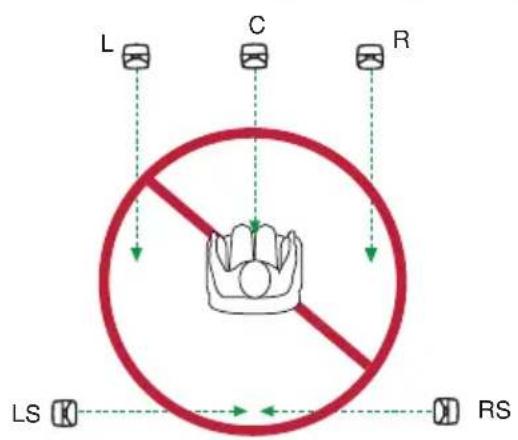

A["Stop Signal"] --> B["L"]
A --> C["C"]
A --> D["R"]
B --> E["Directional Arrow"]
C --> F["Directional Arrow"]
D --> G["Directional Arrow"]
H["LS"] --> I["Stop Signal"]
J["RS"] --> K["Stop Signal"]
Speaker Angle


Using Tone Controls
Free standing in a damped room Free standing in a reverberant room



Suggested Tone Control Settings
General description
The bi-amplified GENELEC 8030C is a two way active monitoring loudspeaker designed to be small but still have high output, low coloration, and broad bandwidth.
The 8030C is ideal for near field monitoring, mobile vans, broadcast and TV control rooms, surround sound systems, home studios, multimedia applications and also for use with computer soundcards. As an active loudspeaker, it contains drivers, power amplifiers, active crossover filters and protection circuitry. The MDE™ (Minimum Diffraction Enclosure™) loudspeaker enclosure is made of die-cast aluminium and shaped to reduce edge diffraction. Combined with the advanced Directivity Control Waveguide™ (DCW™), this design provides excellent frequency balance in difficult acoustic environments. If necessary, the bass response of the 8030C can be extended with a suitable Genelec subwoofer.
Positioning the loudspeaker
Each 8030C monitor is supplied with an integrated amplifier unit, mains cable and an operating manual. After unpacking, place the loudspeaker in its required listening position, taking note of the line of the acoustic axis. The axes of all loudspeakers should converge at ear height at the listening position (see Figure 1).
Connections
Connect the audio cables first and the mains power cables only after you have completed the audio cabling. Do not connect the loudspeaker to an unearthed mains supply or using an unearthed
8030C
Active Monitoring System
mains cable.
Audio input is via a 10 kOhm balanced female XLR connector labelled "INPUT". An unbalanced source may be used as long as pin 3 is grounded to pin 1 at the unbalanced source connector (see Figure 2).
Once the connections have been made, the loudspeakers are ready to be switched on.
ISS™ autostart function
The automatic power saving function ISS (Intelligent Signal Sensing) can be activated by setting the "ISS" switch on the back panel to "ON." Automatic powering down to standby mode happens after a certain time when playback has ended. The power consumption in standby mode is typically less than 0.5 watts. Playback will automatically resume once an input signal is detected from the source.
There is a slight delay in the automatic powering up. If this is undesirable, the ISS ^™ function can be disabled by setting the “ISS” switch on the back panel to “OFF.” In this mode, the monitor is powered on and off using the power switch on the back panel.
Setting the sensitivity control
The input sensitivity of the loudspeaker can be matched to the output of the audio signal source by adjusting the sensitivity control on the back panel.
Setting the tone controls

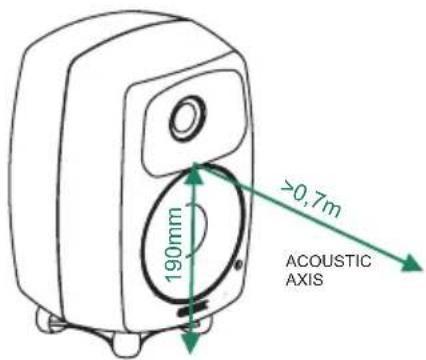

Figure 1: Location of the acoustic axis

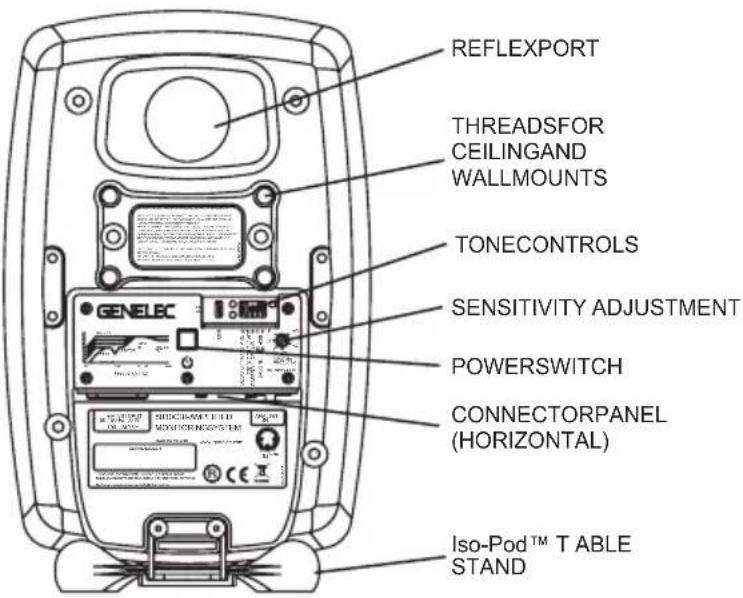

Figure 3: Control and connector layout on the rear panel of the 8030C.

Figure 2: Type of cable needed if unbalanced source is used (example shown is RCA output to the XLR input)
The frequency response of the 8030C can be adjusted to match the acoustic environment by setting the tone control switches on the rear panel. The controls are "Desktop", "Treble Tilt", "Bass Tilt" and "Bass Roll-Off". An acoustic measuring system is recommended for analyzing the effects of the adjustments, however, careful listening with suitable test recordings can also lead to good results if a test system is not available. Table 1 shows some typical settings in various situations. Figure 4 shows the effect of the controls on the anechoic response.
Desktop
The desktop low frequency control (Switch 1) attenuates the bass frequencies around 160 Hz by 4 dB. This feature is designed to compensate for the boost often occurring at this frequency range when the loudspeaker is placed upon a meter bridge, table or similar reflective surface.
Treble Tilt
Treble Tilt (switch 2) attenuates the treble response above 4 kHz by 2 dB, which can be used for smoothening down an excessively bright sounding system.
Bass Roll-Off
Bass Roll-Off (switch 3) activates a -4 dB filter to the lowest bass frequencies (55 Hz). This can be used for compensating excessively heavy bass reproduction typically caused by loudspeaker placement near room boundaries.
Bass Tilt
| Loudspeaker Mounting Position Desktop T | Treble Tilt Bass Tilt Bass Roll-Off | ||
| Flat anechoic response OFF OFF OFF OFF | |||
| Free standing in a damped room OFF OFF | OFF OFF | ||
| Free standing in a reverberant room OFF OFF | -2 dB OFF | ||

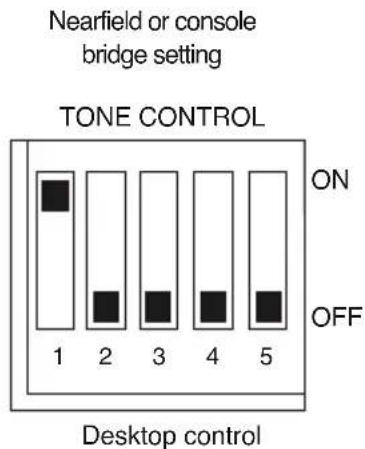

| Near field or console bridge ON OFF OFF OFF | |||

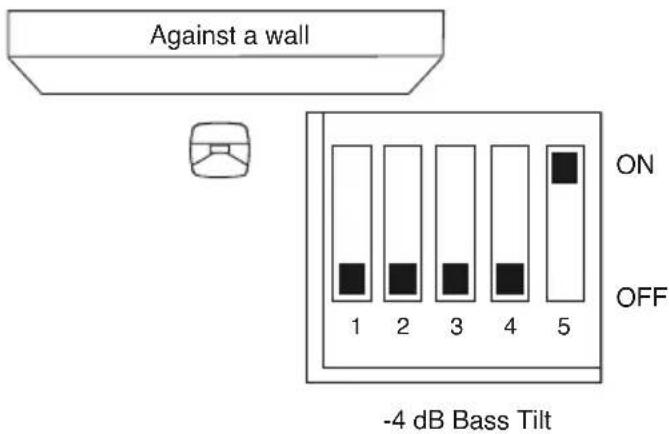

| Near to a wall OFF OFF -4 dB OFF | |||
| On a desk ON OFF -2 dB OFF |
Table 1: Suggested tone control settings for differing acoustical environments.

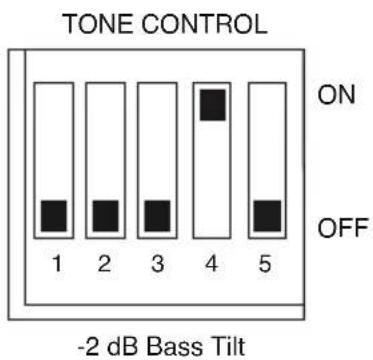

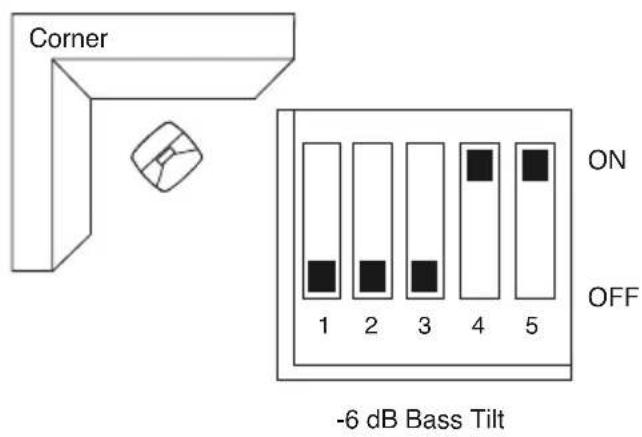

Bass Tilt offers three attenuation levels for the bass response below 1 kHz, usually necessary when the loudspeakers are placed near room boundaries. The attenuation levels are -2 dB (switch 4 "ON"), -4 dB (switch 5 "ON") and -6 dB (both switches "ON").

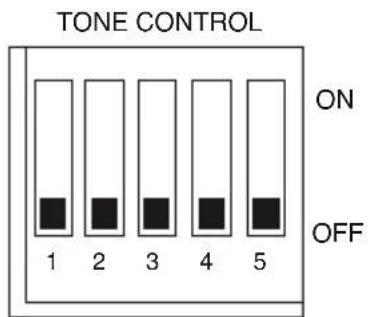

The factory setting for all tone controls is "OFF" to give a flat anechoic response. Always start adjustment by setting all switches to "OFF" position. Measure or listen systematically through the different combinations of settings to find the best frequency balance.
Mounting considerations
Align the loudspeakers correctly
Always place the loudspeakers so that their acoustic axes (see figure 1) are aimed towards the listening position. Vertical placement is preferable, as it minimises acoustical cancellation problems around the crossover frequency.
Maintain symmetry
Check that the loudspeakers are placed symmetrically and at an equal distance from the listening position. If possible, place the system so that the listening position is on the centerline of the room and the loudspeakers are placed at an equal distance from the centerline.
Minimise reflections
Acoustic reflections from objects close to the loudspeakers like desks, cabinets, computer monitors etc. can cause unwanted blurring of the sound image. These can be minimised by placing the loudspeaker clear of reflective surfaces. For instance, putting the loudspeakers on stands behind and above the mixing console usually gives a better result than placing them on the meter bridge.
Minimum clearances
Sufficient cooling for the amplifier and functioning of the reflex port must be ensured if the loudspeaker is installed in a restricted space such as a cabinet or integrated into a wall structure. The surroundings of the loudspeaker must always be open to the listening room with a minimum clearance of 5 centimeters (2") behind, above and on both sides of the loudspeaker. The space adjacent to the amplifier must either be ventilated or sufficiently large to dissipate heat so that the ambient temperature does not rise above 35 degrees Celsius (95°F).
Mounting options
The 8030C offers several mounting options: The
Iso-Pod™ (Isolation Positioner/Decoupler™) vibration insulating table stand allows tilting of the loudspeaker for correct alignment of the acoustic axis. The stand can be attached to three mounting points allowing vertical and symmetrical horizontal positioning. On the base of the loudspeaker is a 3/8" UNC threaded hole compatible with a standard microphone stand. On the rear there are two M6x10 mm threaded holes for Omnimount® size 20.5 brackets.
Maintenance
No user serviceable parts are to be found within the amplifier unit. Any maintenance or repair of the 8030C unit should only be undertaken by qualified service personnel.
Safety considerations
Although the 8030C has been designed in accordance with international safety standards, the following warnings and cautions should be observed to ensure safe operation and to maintain the loudspeaker under safe operating conditions:
- Servicing and adjustment must only be performed by qualified service personnel. The loudspeaker must not be opened.
- Do not use this product with an unearthed mains cable as this may compromise electrical safety.
- Do not expose the loudspeaker to water or moisture. Do not place any objects filled with liquid, such as vases on the loudspeaker or near it.
- This loudspeaker is capable of producing sound pressure levels in excess of 85 dB, which
may cause permanent hearing damage.
- Free flow of air behind the loudspeaker is necessary to maintain sufficient cooling. Do not obstruct airflow around the loudspeaker.
- Note that the amplifier is not completely disconnected from the AC mains service unless the mains power cord is removed from the amplifier or the mains outlet.
Guarantee
This product is guaranteed for a period of two years against faults in materials or workmanship. Refer to supplier for full sales and guarantee terms.
Compliance to FCC rules
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.

line

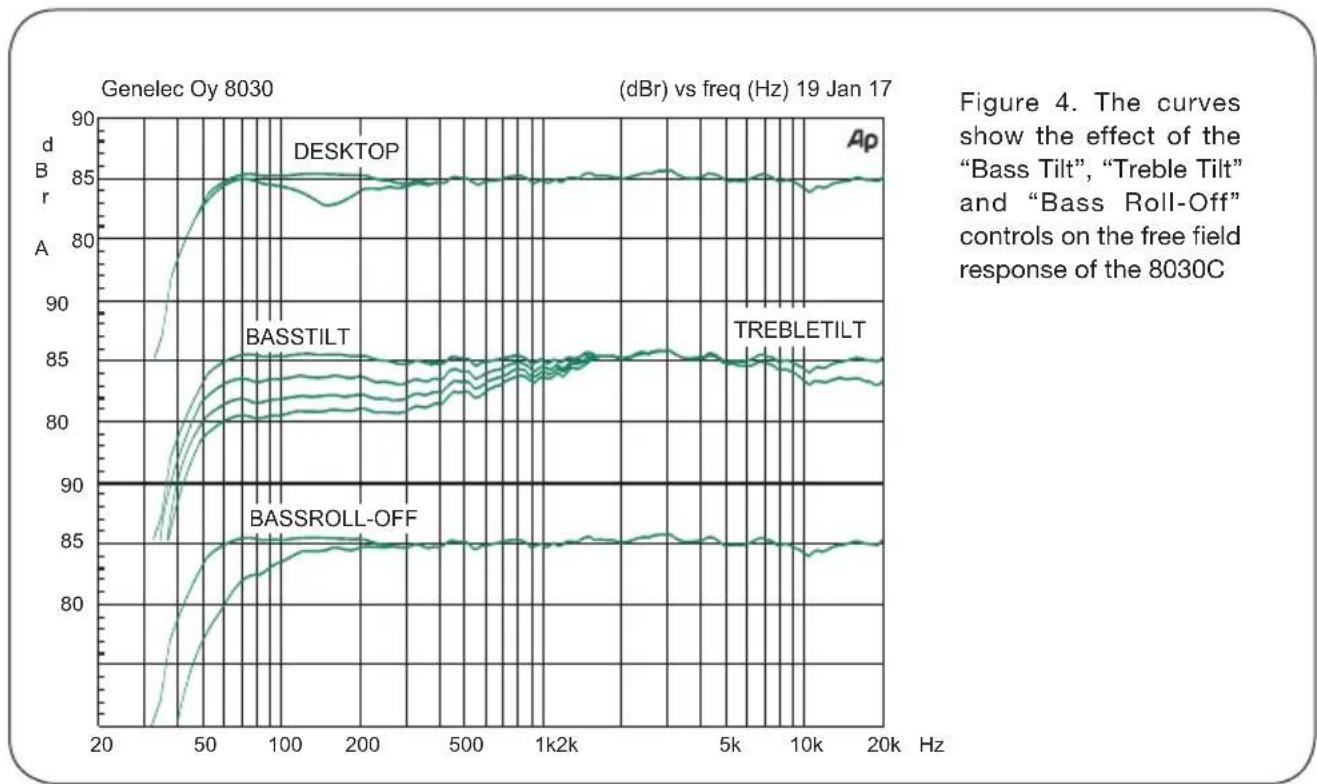

| Frequency (Hz) | BASSROLL-OFF (dBr) | BASSTILT (dBr) | TREBLE TILT (dBr) | DESKTOP (dBr) | | -------------- | ------------------ | -------------- | ----------------- | ------------- | | 20 | ~80 | ~80 | ~80 | ~80 | | 50 | ~85 | ~85 | ~85 | ~85 | | 100 | ~85 | ~85 | ~85 | ~85 | | 200 | ~85 | ~85 | ~85 | ~85 | | 500 | ~85 | ~85 | ~85 | ~85 | | 1k2k | ~85 | ~85 | ~85 | ~85 | | 5k | ~85 | ~85 | ~85 | ~85 | | 10k | ~85 | ~85 | ~85 | ~85 | | 20k | ~85 | ~85 | ~85 | ~85 |
line

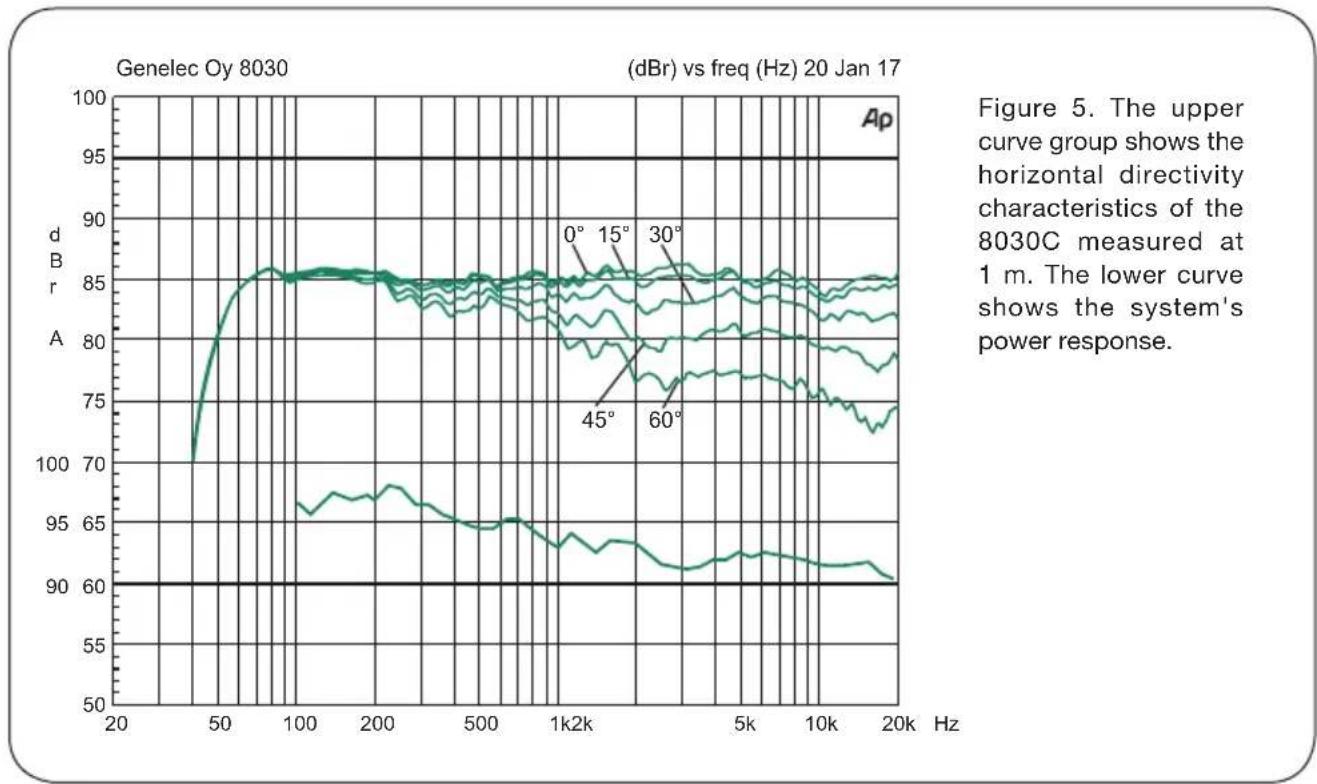

| Frequency (Hz) | dBr (dBp) at 0° | dBr (dBp) at 15° | dBr (dBp) at 30° | dBr (dBp) at 45° | dBr (dBp) at 60° | | -------------- | --------------- | ---------------- | ---------------- | ---------------- | ---------------- | | 20 | ~95 | ~95 | ~95 | ~95 | ~95 | | 50 | ~85 | ~85 | ~85 | ~85 | ~85 | | 100 | ~85 | ~85 | ~85 | ~85 | ~85 | | 200 | ~85 | ~85 | ~85 | ~85 | ~85 | | 500 | ~85 | ~85 | ~85 | ~85 | ~85 | | 1k2k | ~85 | ~85 | ~85 | ~85 | ~85 | | 5k | ~85 | ~85 | ~85 | ~85 | ~85 | | 10k | ~85 | ~85 | ~85 | ~85 | ~85 | | 20k | ~85 | ~85 | ~85 | ~85 | ~85 |SYSTEM SPECIFICATIONS
Lower cut-off frequency, -6 dB: < 47 Hz
Upper cut-off frequency, -6 dB: >25 kHz
Accuracy of frequency response:
54 Hz - 20 kHz (± 2.0 dB)
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz:
@ 1 m > 104 dB SPL
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit): @ 1 m > 96 dB SPL _
Maximum peak acoustic output per pair @ 1 m distance
with music material: ≥ 110 dB
Self generated noise level in free field @ 1 m on axis:
≤ 5 dB (A-weighted)
Harmonic distortion at 85 dB SPL @ 1 m on axis:
Freq: 50...100 Hz < 2 %
100 Hz < 0.5 %
Drivers: Bass 130 mm (5 in) cone
Treble
19 mm (3/4 in) metal dome
Weight: 5.0 kg (11 lb)
Dimensions: Height 299 mm (11 ^13 / _16 in)
(including Iso-Pod™ table stand)
Height 285 mm (11 ^1 / _4 in)
(without Iso-Pod™ table stand)
Width 189 mm (77/16 in)
Depth 178 mm (7 in)
CROSSOVER SECTION
Connector: Input: XLR female, balanced 10 kOhm, pin 1 gnd, pin 2 +, pin 3 -
Input level for 100 dB SPL output at 1 m: -6 dBu
Input sensitivity control range relative to max output: -12 dB (Constantly variable)
Crossover frequency, Bass/Treble: 3.0 kHz
Treble Tilt control operating range: 0 to -2 dB @ 15 kHz
Bass Roll-Off control: -4 dB step @ 55 Hz
Bass Tilt control operating range in -2 dB steps: 0 to -6 dB @ 100 Hz
Desktop control: -4 dB @ 160 Hz
The 'CAL' position is with all tone controls set to 'off' and the input sensitivity control to maximum (fully clockwise).
AMPLIFIER SECTION
Bass amplifier output power: 50 W
Treble amplifier output power: 50 W
Long term output power is limited by driver unit protection circuitry.
Amplifier system distortion at nominal output:
THD < 0.05 %
Mains voltage: 100-240 V AC 50-60 Hz
Voltage operating range: ±10 %
Power consumption:
Idle 3 W
Standby in ISS mode <0.5 W
Full output 60 W
Yleistä
54 Hz - 20 kHz (± 2,0 dB)
100 Hz...3 kHz: @ 1 m > 104 dB SPL
Paino: 5,0 kg (11 lb)
Mitat
Korkeus 299 mm (11 ^13 / _16 in)
