Type	Freestanding Refrigerator with Freezer Compartment
Brand	Bomann
Model	KG 7319
Overall Dimensions (H x W x D)	85 cm x 55 cm x 60 cm
Weight	30 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	A+
Annual Energy Consumption	150 kWh
Refrigerator Capacity	120 L
Freezer Capacity	15 L
Noise Level	40 dB
Climate Class	N-ST
Defrost Type	Manual (Refrigerator), Manual (Freezer)
Temperature Range (Fridge)	0°C to 8°C
Freezer Star Rating	4 Stars (***)
Reversible Door	Yes
Adjustable Shelves	Yes (3 glass shelves)
Door Storage	Yes (3 balconies, 1 egg tray)
Refrigerant	R600a (Isobutane)
Cleaning & Maintenance	Wipe with damp cloth, defrost when ice builds up
Safety Features	Leveling feet, Child lock not available
Spare Parts Availability	Contact Bomann service for shelves, thermostat, etc.

Frequently Asked Questions - KG 7319 BOMANN

How do I adjust the temperature in the refrigerator?

The temperature is controlled by a thermostat dial inside the refrigerator. Turn the dial to a higher number for colder temperature and lower for warmer. A medium setting (3-4) is recommended for normal use.

My refrigerator is not cooling properly. What should I do?

Check that the appliance is level and the door seals are clean. Ensure the condenser coils at the back are dust-free. Verify that the thermostat is set correctly and the compressor is running. If the problem persists, contact Bomann service.

How often should I defrost the freezer?

Defrost the freezer when ice thickness exceeds 5 mm (about 1/4 inch). This typically occurs every few months. Remove food, unplug the appliance, and let ice melt naturally. Do not use sharp tools to remove ice.

Can I reverse the door opening direction?

Yes, the door is reversible. You can change the hinge side by following the instructions in the manual. This may require a screwdriver and some time. Ensure the appliance is unplugged before starting.

What is the proper way to clean the refrigerator?

Unplug the refrigerator first. Clean the interior with a mild detergent and warm water. Wipe dry thoroughly. Do not use abrasive cleaners. The condenser coils should be vacuumed every few months for efficiency.

Why is there water at the bottom of the refrigerator?

This is often due to a blocked defrost drain. Clean the drain hole using a cotton swab or soft wire. Make sure the drain pan is correctly positioned. If water persists, check if the door is sealing properly.

What does the climate class N-ST mean?

Climate class N-ST indicates that the refrigerator is designed to operate in ambient temperatures from 16°C to 38°C (60°F to 100°F). Operating outside this range may affect performance.

How do I level the refrigerator?

Use adjustable feet at the bottom front of the appliance. Turn them clockwise to raise, counterclockwise to lower. The refrigerator should be slightly tilted backward so that doors close easily.

What should I do if the door won't close properly?

Check that the appliance is level. Ensure no food packages are blocking the door. Clean the gasket (seal) with warm water. If the gasket is damaged, replace it. Overloading can also cause poor closure.

How can I save energy with my refrigerator?

Keep the refrigerator away from heat sources and allow adequate ventilation. Do not set the thermostat colder than necessary. Avoid frequent door openings and keep food organized. Defrost regularly and clean coils.

USER MANUAL KG 7319 BOMANN

Line drawing of a double refrigerator with front and back panels (no text or symbols)

Special safety Information for this Unit.... Page 24

Transport and Packaging...... Page 26

Appliance Equipment...... Page 27

Installation...... Page 27

Startup / Operation...... Page 30

Cleaning and Maintenance...... Page 34

Troubleshooting...... Page 35

Technical Data...... Page 35

Disposal...... Page 36

EU Product Data Sheet...... Page 37

Einleitungleitung

Installation Installation

Simple line drawing of a boat on water with a cloud above it, no text or symbols present

Line drawing of a kitchen appliance with a door, drawer, and stove (no text or symbols)

Diagram illustrating a mechanical assembly or lifting process with labeled components and directional arrows

Two technical line drawings of a vehicle interior, one showing front and side views with a handle, the other showing a kitchen appliance (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols Synthesis Instructions for Usese Instructi

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING: WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:CAUTION:

This refers to possible hazards to the machine or other objects.

NOTENOT highlights tips and information.

i NOTENOTE

Illustrations can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisageductions for Use purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the unit for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

General Notes General Notes The appliance and if possible, the

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic

bags, boxes, polystyrene etc.) out of their reach.

WARNING: WARNING:

Do not allow small children to play with the foil. There is a danger of surger of su focation location

Special safety Information for this Spubital Safety In

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:NING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).

WARNING: WARNING:

• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance safety and understand the hazards involved.

- ChildrenShidrent play with the appliance.

- Cleaning and user maintenance shall not be made by children, while they are older 8 years and supervised.

- NOTE: Noteren aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING: Risk of fire /

flammable material false materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

• disconnect the plug,
  • thoroughly air the room in which the

appliance is installed and

NG: Risk of fire /

- contact an authorized technician.

Transport Track Packaging and Packag

Transport the appliance transport the applian

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installa-

If the coolant circuit is damaged: coolant circuit is damaged:

- avoid any open flames or ignition source,

is damaged: tion "Prior to first use". Protect the appli-ance during transport against weather influences.

i NOTENOTE

The appliance has wheels which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpacking the appliance Unpacking the appliance

• Remove the unit from its packaging.
• Remove all packaging material, such as foils, filler, cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Appliance Equipment Appliance Equip

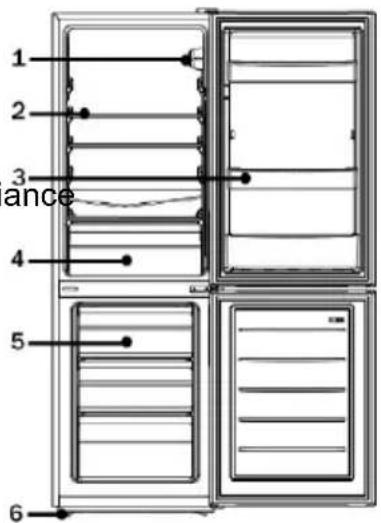

Appliance overviewpliance overview

1 2 3 ance 4 5 6

1 Temperature control / light

4 Vegetable box

2 Glass shelves

5 Freezing

3 Door storage racks

drawers

DeliveEyescopescope

3x Glass shelf, 1x vegetable box, 3x door storage rack, 1x egg tray, 3x freezing drawer, 1x ice-cube tray

Installationation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power con-

sumption. Enough clearance is necessary.

• Gap to the back and to the side walls each approx. 10 cm;

• Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to the “EU Product Data Sheet” or to the rating label located in the interior or on the appliance rear.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock.electric shock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reversethe door openingthe door opening

If required, the door openings can be moved from the right (supplied condition) to the left side.

WARNING: RNING:

When replacing the door stops, the appliance must be disconnected from the power supply first.

NOTENOTE

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screwdriver as well as a thin-blade screwdriver.

Simple line drawing of a table with a tray and a small object on top (no text or symbols)

Line drawing of a car interior with a parked car and a numbered circle marker (no text or symbols)

Diagram illustrating a mechanical assembly or lifting process with labeled components and an inset detail view.

Line drawing of a furniture or appliance component with no visible text, numbers, or symbols

Simple line drawing of a plate with a knife and a cheese, no text or symbols present

1 Remove the hinge cover, disassemble the upper door hinge and lift out the fridge door.
2 Transpose the blind plug on the top of the door.
3 Transpose the doorstop on the underside of the door. Set the door safely aside.

4 Disassemble the middle door hinge. Lift out the freezer door.
5 Transpose the blind plug on the top of the door. Set the door safely aside.
6 Tilt the unit slightly backwards and block it in this position. Unscrew the feet and disassemble the lower door hinge.

Transpose and secure the lower door hinge to the opposite unit side after unscrewing the hinge pin and inserting it from the other hinge side.

Screw in the feet accordingly.

7 Return the unit to the upright position. Put on the freezer door and fix it in the intended position.
Rotate the middle door hinge about 180^ , transfer and secure it to the opposite unit side after moving the blind plugs on the exposed holes.
8 Transfer and secure the upper door hinge to the opposite unit side after moving the blind plug on the exposed holes. Put on the hinge cover.

Check that the doors are aligned vertically and horizontally to ensure proper opening and closing of the doors.

Startup /tOperationperation

Prior to first use Prior to first use

CAUTION:CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

SettingsSettings

Setting [ OFF ] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-7] regulate the different values of the internal temperature.

Setting GETOFF state

Setting 1: Setting setting (warmest inside temp.)

Setting 7: Highest setting (coldest inside temp.)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior light

When opening the fridge door, the interior light will turn on automatically.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect To the following instructions: the following instruction

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see “Cleaning and Maintenance”).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Fridgeridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic cover with elastic strip
- Aluminum foil

Recommendations Recommendations

- Store fresh packed items on the glass shelves, fresh fruits and vegetables in

the vegetable box.

avoid contamination of food, respect

- Place bottles in the door storage tions: racks.

- With air circulation different climate zones arises.

• The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.
• The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

ShelvesShelves

Depending on requirements, the shelves (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

Vegetable boxVegetable box

Suitable for fruits and vegetables at a temperature around 8^ C, depending on the fridge temperature.

To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezerreezer

The 4-star freezer allows you to store frozen food at a temperature of ≤ -18^ for several months; to produce ice cubes and to freeze fresh food. The temperature of the freezer is automatically controlled by the temperature control in the fridge.

FreezingFreezing

- 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours. The appliance is not compromised if the setting will not revert to a normal operating temperature after the freezing process, but for economic reasons you should possibly avoid it.

- Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.

- Frozen food should be kept in contact with the bottom of the compartment.

- Keep a space between the individual items, so that the cold air can circulate.

Storing frozen foodStoring frozen food

- Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.

- It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions General safety precaution

- Do not exceed the maximum freezing capacity. See data under "EU Product Data Sheet" or on the rating label.

- Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.

- Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.

• Keep closed the unit door in case of power failure. If the failure does not take longer than 16 hours, the food will not be affected.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the appliance can cause symptoms like burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Operating noise Operating noise

Type of sound Type Cause Cause
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off Switching off

• Remove the appliance content.
• Disconnect the power supply.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and un- pleased odors.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must ch off the appliance turn the te be completely intact, so that the door closes properly.

To switch off the appliance turn the term switch off the appliance turn the te be completely intact, so that the door perature control to the off state. closes properly

If the appliance is out of use for long periods:

Cleaning and Maintenance Cleaning and Maintenance Clean the water discharge

WARNING: WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk risk electric shock! Hot site shock could damage the plastic parts.
• The appliance must be dry before restarting operation.

CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance Including Interlacing

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.

channel / opening carefully e.g. with a pipe cleaner.

• After everything was thoroughly dried, you can restart the operation.

DefrostIngDefrosting

CAUTION:CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

The fridgefridgean automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A the appliance including int light formation of ice on the interior back during operation is normal.

Easy FrostEasy Frost

Reduced ice formation and fast defrosting in the freezer thanks to EASY-FROST technology.

The icing of the freezer and the frozen goods are clearly minimized. Thus defrosting is less required.

• To start the defrosting process, turn the temperature control to the off state and disconnect the plug or turn off the fuse.
• Remove the food items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and turning the temperature control.

Changing the bulbChanging the bulb

CAUTION:CAUTION:

Do NOT Remove the cover of the interior light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Problem/Cause / Cause
Loading is too warm	· Check the temperature setting / ambient temperature. · Open the door only as long as necessary.
Loud noise during operation	· Check the appliance position. · See the section “Operating noise”.
Water on the unit bottom	· Check the temperature setting / water discharge channel or opening.
Light does not work	· Check the power supply. · See “Changing the bulb”.

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Troubleshooting Troubleshooting Electrical connection....

Before you contact a specialist act a

Problem/Cause / Action
Unit is not working properly or at all	• Check the power supply / temperature setting / ambient temperature.• Unblock the ventilation openings, install the appliance freely.

Power voltage: .....220-240 V\~ / 50 Hz Rated current: .....0.34 A

Dimension H x W x D / Weight.....

Appliance size: ....144.0 x 47.4 x 49.5 cm Net weight: ....approx. 36.0 kg

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustblå" Symboline Spordol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

EU Product Data Sheet EU Product Data Sheet

Data sheet for subspacehold refrigerators/freezers abridged or firegrazing Noord060/2049 Matio060/2

BrandBrand		BOMANN
Model		KG 7319
Category 0 category		7
Energy Efficiency class ^2)		A++
Annual Energy consumption ^3)	kWh/a	159
Net capacity cooling total	I	109
- thereof cold storage compartment	I	-
- thereof wine storage compartment	I	-
- thereof cellar compartment	I	-
- thereof storage compartment for fresh-food	I	109
Net capacity freezing total	I	48
Star rating ^4)		4
Design temperature of other compartments	°C	-
Coldest storage temperature of wine storage compartment	°C	-
Frost-free		-
Temperature rise time	h	16
Freezing capacity	kg/24h	2.5
Climate class ^5)		N/ST
Noise emission	dB(A) re1 pW	38
Built-in		-
Wine storage appliance		-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances,

3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances

2) A+++ (highest efficiency) to G (lowest efficiency)

3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

4) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C

^(**) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24h

5) Climate class SN: ambient temperature of +10°C up to +32°C

Climate class N: ambient temperature of +16°C up to +32°C

Climate class ST: ambient temperature of +16°C up to +38°C

Climate class T: ambient temperature of +16°C up to +43°C

BOMANN®
