Special safety Information for this Unit......Page 17

Transport and Packaging......Page 18

Appliance Equipment......Page 19

Installation......Page 19

Startup / Operation......Page 21

Cleaning and Maintenance......Page 23

Troubleshooting......Page 24

Technical Data......Page 25

Technical diagram illustrating the step-by-step installation of a refrigerator with labeled parts and directional arrows indicating motion.

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in the instructions for Usenstructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

i NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNINGING

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance to provide way and understand the hazards involved.

- Children should not play with the appliance.

• Cleaning and user maintenance shall not be made by childrenldress they are older 8 years and supervised.
• NOTE: No children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolantoolant

WARNING/WARNINGS: / Riskifiable

materialsmaterials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance mable

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

i NOTE:

The appliance has rollers which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpacking the appliance

• Remove the appliance from its packaging.

• Remove all packaging material, such as foils, filler and cardboard packaging.

• To prevent hazards, check the appliance for any transport damage.

• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

- Place the appliance so that the appliance door can open without being impeded.

100 50-70 100

100 100 633 130° 938 1140-1160

AppliApple Equipmentance Equipment

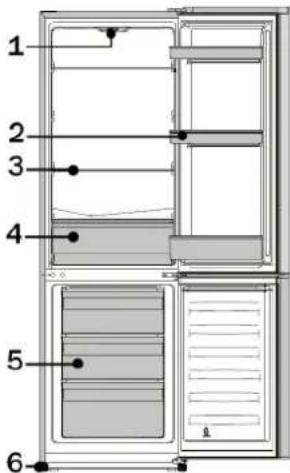

Appliance overviewAppliance overview

1 2 3 4 5 6

1 Temperature control / interior light
2 Door storage racks
3 Glass shelves
4 Vegetable box
5 Freezing drawers
6 Feet

Delivery scope Delivery scope

3x glass shelf, 1x vegetable box, 3x door storage rack, 2x egg tray, 3x freezing drawer, 1x ice-cube tray, 1x hinge cover (reversing the door opening)

Installation Installation

Conditional for the installation location the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

- Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to the "EU Product Data Sheet" or to the rating label located in the interior or on the appliance rear.
• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid little installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
  tion Improper connection may cause to an eelectric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reversing the door opening the door opening

If required, the door openings can be moved from the right (supplied condition) to the left side.

WARNING:ARNING:

When replacing the door stops, the appliance must be disconnected from the power supply first.

NOTENOTE

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.
• *Delivery scope! Keep the parts to be replaced for another possible door stop change.

Simple 3D diagram of a rectangular box with a small circular element on top (no text or symbols)

Line drawing of a hand adjusting a door handle mechanism (no text or symbols)

Diagram of a device with arrows indicating movement or assembly (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating movement

Diagram of a refrigerator with arrows indicating movement or change, no text or symbols present

Pure diagram of a computer monitor with an arrow pointing to the front panel (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3D diagram of a rectangular block with a downward arrow and two small symbols at the base (no text or labels)

3D diagram of a rectangular block with two arrows pointing downward and a star symbol on the side (no text or labels)

• Remove the hinge cover and the blanking cap.
• Dismount the upper door hinge and lift out the fridge door.
• Transfer the doorstop on the door underside and set it safely aside.

• Dismount the middle door hinge and lift out the freezer door.

• Transfer the doorstop on the door underside and set it safely aside.

• Tilt the device slightly backwards and lock it in this position. Unscrew the feet and disassemble the lower door hinge.
• Transfer and fasten the lower door hinge to the opposite device side after unscrewing the hinge

pin and inserting it from the other hinge side. Screw in the feet accordingly.

• Put the device back in the upright position. Put on the freezer door and fix it in the intended position.
• Turn the middle door hinge by 180^ , transfer and fasten it to the opposite device side after you have moved the blind plugs to the exposed holes.
• Put on the fridge door and fix it in the intended position.
• Transfer and fasten the upper door hinge to the opposite device side after unscrewing the hinge pin and inserting it from the other hinge side.
• Put on the hinge cover (*scope of delivery) and the blind cap.

Check that the doors are optimally aligned both vertically and horizontally to ensure smooth opening and closing of the doors.

Startup Statepationera

Prior to first use Prior to first use

CAUTIONCAUTION

After transport, the appliance should be left standing upright for about four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Staffing the appliancerting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

Settings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1 - 7] regulate the different values of the internal temperature.

SetBegtDrgOff sate

Setting lowest setting (warmest inside temp.)

Setting 7: Highest setting (coldest inside temp.)

The temperature of the freezer is automatically controlled by the power level setting in the fridge.

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the power level to the highest level first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior lightlight

When opening the fridge door, the interior light will turn on automatically.

Stoßing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

To avoid contamination of food, respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and Maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Fridgeridge

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic covers with elastic strip
- Aluminum foil

Recommendationscommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage racks.
• With air circulation different climate zones arises.
• The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.
• The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.
• Let warm food cool down first.

ShelvesShelves

Depending on requirements, the shelves (partially and depending on model) can be adjusted in height or removed to optimize the storage space.

Vegetable box

Suitable for fruits and vegetables at a temperature around 8^ C, depending on the fridge temperature.

To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold.

Freezerreezer

The 4-star freezer allows you to store frozen food at a temperature of ≤ -18^ for several months; to produce ice cubes and to freeze fresh food.

i NOTE:NOTE:

Make sure that the temperature in the freezer does not rise above -18^ . For this, the unit should be defrosted regularly. A thick frozen layer deteriorates the cooling and increases the power consumption.

FreezingFreezing

• Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautioneral safety precautions

• Do not exceed the maximum freezing capacity. See data under "EU Product Data Sheet" or on the rating label.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 18 hours then food will not be affected.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Operating noise Operating noise

Type of soundy	Conflusion
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching Switching

To switch off the appliance turn the temperature control to tbetoff state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").

- Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips Tips Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
  Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

△ CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interioreaning the appliaGBaingHgtagbiber bulb

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
  • After everything was thoroughly dried, you can restart the operation.

DefrostingDefrosting

CAUTION:CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

The fridgeidge an automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

To achieve better cooling and to save energy, defrost the freezer regularly as follows:

• To start the defrosting process, switch the appliance off and disconnect it from the power supply.
• Remove the unit items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and setting the power level.

CAUTION:CAUTION:

Do NOT remove the cover of the interior light.

The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troublesfootingbooting

Before you contact an authorized specialist

ProblemProble	Cause / Action
Unit is not working properly or at all	Check the power supply / temperature setting / ambient temperature.Unblock the ventilation openings, install the appliance freely.
Loading is too warm	Check the temperature setting / ambient temperature. Open the door only as long as necessary.
Loud noise during operation	Check the appliance position.See the section “Operating noise”.
Water on the unit bottom	Check the temperature setting / water discharge channel or opening.
Light does not work	Check the power supply.See “Changing the bulb”.

OTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data Technical Data

Electrical connElectrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 80 W

Dimension H x W x D / WeighDimensionH x W x D /. Weigh.....

Appliance size: 161.3 x 55.4 x 55.8 cm

Net weight: ....approx. 58.0 kg

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning Methaingustwith'sSymbolbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

EU ProducEDataPacShuett Data Sheet

Product data sheet for household refrigerators/flosters according to regulation(EU) Noa1060/2010 No1060/2010

Brand		BOMANN
Model		KG 7327
Category1)		7
Energy Efficiency class2)		A+++
Annual Energy consumption3)	kWh/a	128
Net capacity cooling total	I	159
- thereof cold storage compartment	I	-
- thereof wine storage compartment	I	-
- thereof cold storage compartment	I	-
- thereof storage compartment for fresh-food	I	159
Net capacity freezing total	I	66
Star rating4)		4
Design temperature of other compartments	°C	-
Coldest storage temperature of wine storage compartment	°C	-
Frost-free		-
Temperature rise time	h	18
Freezing capacity	kg/24h	3
Climate class5)		N/ST/T
Noise emission	dB(A) re1 pW	39
Built-in		-
Wine storage appliance		-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency)
3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.
4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C
** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C
*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C
(^**) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24 h
5) Climate class SN: ambient temperature of +10°C up to +32°C
Climate class N: ambient temperature of +16°C up to +32°C
Climate class ST: ambient temperature of +16°C up to +38°C
Climate class T: ambient temperature of +16°C up to +43°C

BOMANN®
