| Product Type | Digital Cinema Projector |
| Brand | Barco |
| Model | DP4K-30L |
| Display Technology | DLP (3-chip) |
| Resolution | 4K (4096 x 2160) |
| Brightness | 30,000 lumens |
| Contrast Ratio | 2000:1 (typical) |
| Light Source | Xenon lamp |
| Lamp Life | 2000 hours (average) |
| Lens | Interchangeable, motorized zoom and focus |
| Lens Shift | Motorized, vertical and horizontal |
| Inputs | DVI, HDMI, SDI (3G/6G/12G), Ethernet |
| 3D Support | Yes (via external emitter) |
| Network Control | RJ45, RS232, GPIO |
| Power Consumption | 3200 W (max) |
| Dimensions (W x D x H) | 700 x 1000 x 400 mm |
| Weight | 105 kg (without lens) |
| Installation | Professional installation required, ceiling mount or rack |
| Maintenance | Lamp replacement, filter cleaning, software updates |
| Safety | Class 4 laser product if laser model; otherwise high brightness hazard |
| Spare Parts & Repairability | Authorized service centers, replaceable lamp and filters |
Frequently Asked Questions - DP4K-30L Barco
How do I replace the lamp in the Barco DP4K-30L?
Turn off the projector and disconnect power. Wait 30 minutes for cooling. Open the lamp door, release the lamp holder, and remove the old lamp. Insert the new lamp (ensure it is the correct type), secure it, and reset the lamp timer via the OSD menu.
What is the recommended projection distance for a 10-meter screen?
Using a standard lens, the throw ratio is typically between 0.8 and 1.2. For a 10m wide screen, the distance should be approximately 8-12 meters. Refer to the lens specifications for exact numbers.
How can I clean the air filters?
Turn off and unplug the projector. Locate the air filter covers on the side or bottom. Remove the filters and gently vacuum them or wash with mild soap and water. Ensure they are completely dry before reinstalling. Clean every 500 hours of operation.
Does the DP4K-30L support 3D content?
Yes, it supports 3D via an external DLP Link emitter. Ensure you have compatible 3D glasses and the correct signal source. The projector must be set to 3D mode in the menu.
What is the typical lamp life and where can I buy a replacement?
The Xenon lamp typically lasts 2000 hours at full brightness. Replacement lamps can be purchased from Barco authorized dealers or online. Part number: B9050087 (example).
How do I update the firmware?
Download the latest firmware from the Barco support website. Transfer it to a USB drive. Insert the USB into the projector, go to Menu > System > Firmware Update, and follow the on-screen instructions.
What are the safety precautions for installation?
Ensure the mounting structure can support at least 150 kg. Use safety chains. Do not block ventilation. The projector must be installed by qualified personnel, as it contains high voltage and intense light sources.
Why is the projector not turning on?
Check power connections and circuit breaker. Ensure the interlock switch on the lamp door is engaged. If the lamp end-of-life indicator is on, replace the lamp. If still not working, contact a certified technician.
Can I use a longer cable for HDMI connection?
For 4K/60Hz, use active optical HDMI cables or fiber optic extenders for distances over 15 meters. Ensure the cable is certified for 18 Gbps bandwidth.
How do I adjust the lens focus and zoom?
Use the remote control or projector keypad to enter Lens Control mode. Then adjust zoom and focus using the on-screen sliders or arrow keys. For precise alignment, use the test pattern.
User questions about DP4K-30L Barco
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Projector in PDF format for free! Find your manual DP4K-30L - Barco and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DP4K-30L by Barco.
USER MANUAL DP4K-30L Barco
Checklist for laser illuminated RG3 projector installations performed in the USA
Checklist can be filled out electronically or can be printed and filled out manually.
Reporter
| Date of report | |
| Name of reporter |
Installer information
| Installing company | ||
| Address | ||
| Phone | ||
| Email contact | ||
| The installer confirms to be a valid laser show variance holder | ☐ YES | ▼ Variance No. ▼ |
| OR The installer confirms to be trained and authorized (e.g. by Barco NV) | ☐ YES | ▼ Authority name ▼ |
| ▼ Authority Variance No. if not Barco ▼ | ||
NOTE: If the end user intends to change the installation, the end user shall be a laser light show variance holder or shall be trained and authorized by a laser light show variance holder.
Installers' on-site representative responsible for safety and compliance
| Name | |
| Title | |
| Phone |
Venue information
| Permanent installation (e.g. cinema theatre) or temporary installation (e.g. show, gig) | □ PERMANENT □ TEMPORARY |
| Name of venue | |
| Room number (if applicable) | |
| Address | |
| Phone | |
Safety Officer, Person responsible for safety of show and operator
| Name | |
| Title | |
| Phone | |
Training and documentation provided to Operator/Owner
| Training on the safe operation and maintenance | □PASS |
| FDA/CDRH installation requirements – Any modifications must be approved | □PASS |
Checklist for laser illuminated RG3 projector installations performed in the USA
List of state, local, and other agencies notified if applicable for RG3 installations
| A | |
| B | |
| C | |
| D |
Projectors in scope of this registration form
Per projector a Details Projector form page must be filled in this registration document! (see following pages)
Total number of projectors included in this registration form:
Signatures
Installer's signature
| Name: | |
| Date: |
Signature
Safety officer/ Owner signature
| Name: | |
| Date: |
Signature
!!! In case the installer is not a laser light show variance holder then this installation checklist must be completed after the installation and sent to pvg@barco.com !!!
P 2 / 22
Checklist for laser illuminated RG3 projector installations performed in the USA
Details Projector 1.
Projector information
| Manufacturer | Barco NV | |
| Model | ||
| Serial Number | ||
| Manufacturing date | ||
| Laser Hazard Classification | ☐ CLASS 1 RG3☐ CLASS 2 RG3☐ OTHER CLASS → | CLASS: |
Projector and restricted access area inspected
| Projector securely mounted | ☐PASS |
| Projector housing is assembled properly | ☐PASS |
| Restricted access area and RG3 product warning signs provided | ☐PASS |
| Readily accessible control provided to immediately terminate projection light (e.g. mains switch, circuit breaker) | ☐PASS |
| Restricted access control implemented (including physical means e.g. key, pass code) | ☐PASS |
Clearance distances confirmed

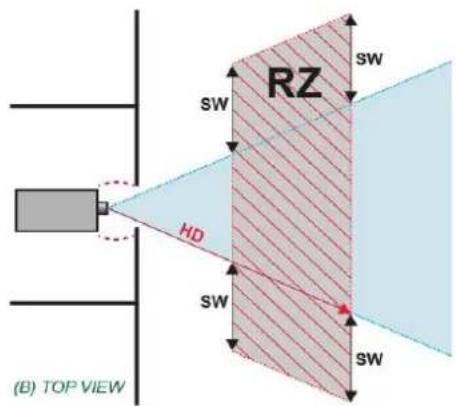

| The Hazard Distance (HD) is confirmed to be | □ Meter□ Foot | |

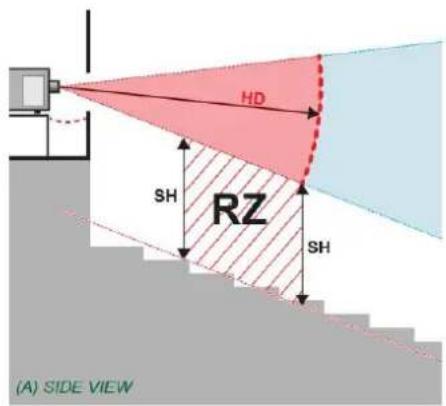

| How high is the lower part of the projected beam above floor level where audience is permitted to stand (=Separation Height SH) | □ Meter□ Foot | |
| If applicable: How wide is the lateral distance between the projected beam from where audience is permitted to stand (=Separation Width SW) | □ Meter□ Foot |
The installer confirms that the Restriction Zone (RZ) is respected
□ YES □ NO
