Product Type	Wireless Electric Broom
Brand	Beko
Model	VRX 221 DR
Rated Power	100 W
Power Supply	Rechargeable Li-ion battery (model ZB1852-01)
Charger Input Voltage	100-240 V~ 50-60 Hz, 0.8 A max
Charger Output Voltage	26.0 V = 0.6 A
Charging Time	3 to 4 hours
Runtime at Maximum Power	22 minutes
Runtime at Minimum Power	Up to 40 minutes
Filter Type	Washable HEPA filter (replacement recommended every 3 to 6 months)
Dustbin Capacity	Approximately 0.5 L
Included Accessories	Electric turbo brush, 2-in-1 brush, crevice tool, dual-angle extension, charging station
Maintenance	Clean the filter regularly and empty the dustbin after each use
Safety	Do not vacuum liquids, hot ashes or flammable substances; use only with the supplied charger
Environmental Compliance	Compliant with WEEE and RoHS directives
Country of Manufacture	Manufactured in ecological and modern factories (not specified)

Frequently Asked Questions - VRX 221 DR BEKO

How to charge the battery of the Beko VRX 221 DR?

Place the appliance on the charging station and plug the charger into a wall outlet. The indicator light flashes blue during charging. Full charge takes 3 to 4 hours. The indicator turns solid blue for 2 minutes and then turns off when the battery is fully charged.

What is the runtime of the VRX 221 DR electric broom?

The runtime at maximum power is 22 minutes. Using minimum power, the runtime can reach up to 40 minutes.

How to clean the HEPA filter?

Turn off the appliance and unplug it. Remove the HEPA filter and gently clean it under cold water. Let it dry completely before reinstalling. Replace the filter every 3 to 6 months to maintain performance.

Can I vacuum water with this broom?

No, never use the vacuum to pick up water or any other liquid. This could damage the appliance and pose an electrical risk.

What should I do if the battery does not charge?

Check that the charger is properly plugged in and that the charging station is well connected. If the problem persists, contact an authorized service. Do not attempt to disassemble the battery.

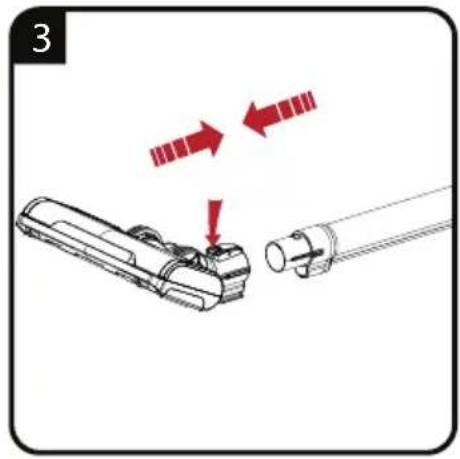

How to assemble the accessories?

Insert the accessory into the vacuum opening until you hear a 'click'. To remove it, press the release buttons. The dual-angle extension allows you to reach corners and narrow spaces.

What accessories are included with the VRX 221 DR?

The appliance comes with an electric turbo brush, a 2-in-1 brush, a crevice tool, a dual-angle extension, and a charging station.

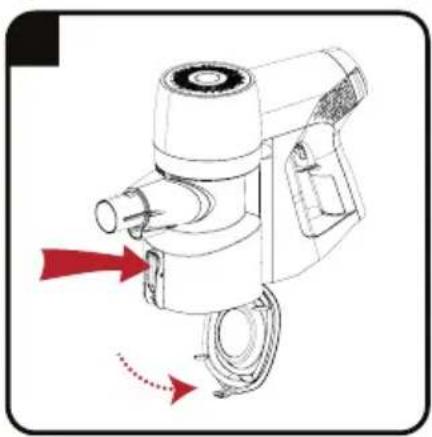

How to empty and clean the dustbin?

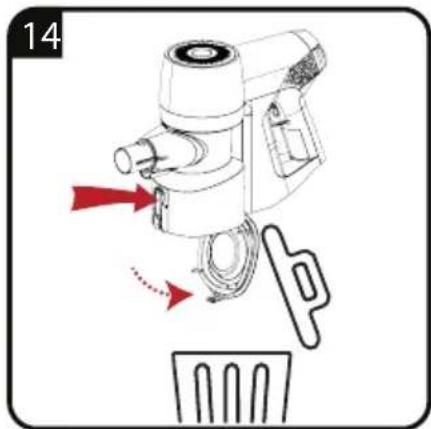

Press the dustbin release button to remove it. Empty it over a trash can. You can rinse it with cold water if necessary, but make sure it is completely dry before replacing it.

Can the broom be used without a filter?

No, never use the appliance without a filter. This could damage the motor and reduce performance.

How to store the appliance when not in use?

Unplug the appliance, clean it and make sure it is dry. Store it in a cool, dry place, out of reach of children. If you don't use it for a long period, recharge the battery every 3 months.

USER MANUAL VRX 221 DR BEKO

Cordless Stick Vacuum Cleaner

User Manual

Simple line drawing of a decorative border with circular patterns (no text or symbols)

VRT 82821 BV

VRT 82821 DV

VRX 221 DR

EN - DE - FR - ES - RO - IT - PL - SL - CS - BG - HU - MS - TH - NL

CONTENTS

ENGLISH 07-14

DEUTSCH	15-24
FRANÇAIS	25-33
ESPAÑOL	34-44
ROMANIAN	45-55
ITALIANO	56-65
POLSKI	66-76
SLOVENŠČINA	77-85
ČESKY	86-94
BULGARIAN	95-103
MAGYAR	104-112
MALAY	113-121
Inu	122-129
NEDERLANDS	130-137

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a pen or stylus with a pointed tip and a labeled number 13 (no text or symbols on the object itself)

Diagram of a mechanical component with a numbered label '15' pointing to a shaft (no text or symbols on the object itself)

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
RO	UTILIZARE CURĂȚAREA ȘI ÎNGRIJIREEA
IT	UTILIZZO PULIZIA E CURA
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
SL	DELOVANJE ČIŠČENJE IN VZDRŽEVANJE
CS	PROVOZ ČIŠTĚNÍ A PÉČE
BG	РАБОТА ПОЧИСТВАНЕ И ГРИЖИ
HU	MŰKÖDÉS TISZTÍTÁS ÉS KARBANTARTÁS
MS	PENGGUNAAN PEMBERSIHAN DAN PENYELENGGARAAN
TH	การใช้งานเครื่องใช้ของคุณ การทําความสะอาดและการบริษฐรักษา

Collection of industrial tools and components including a motor, screwdriver, and a box with a red arrow (no text or symbols)

Technical illustration of a mechanical device with red arrows indicating motion or assembly (no text or symbols)

Diagram showing two mechanical components with red arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with handle and control panel (no text or symbols)

Illustration of a sewing machine with three separate parts, one being cut (no text or symbols)

Technical illustration of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with red arrows indicating motion or flow direction (no text or symbols)

Illustration of a hand using a microscope to lift a cylindrical object, with a red arrow indicating the motion direction (no text or symbols present)

Illustration of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Illustration of a hand holding a mechanical device with a red upward arrow indicating motion or force (no text or symbols)

Illustration of a hand holding a cylindrical component next to a device, with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a cylindrical connector with a red arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical device with a red arrow indicating motion or force (no text or symbols present)

Technical line drawing of a vacuum cleaner with a magnified inset showing the component detail (no text or symbols)

Technical line drawing of a vacuum cleaner assembly with no visible text or symbols

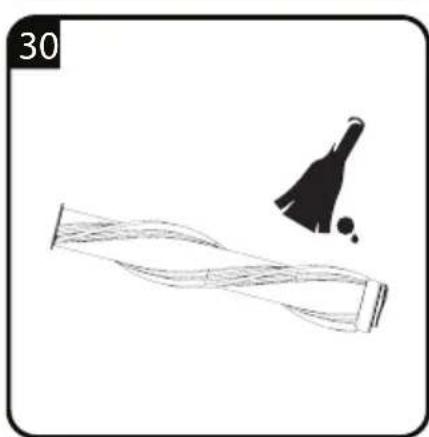

Illustration of a twisted rope or cable with a small black silhouette above it (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Please read this manual first!

Dear Customer,

Thank you for selecting a Beko product. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well.

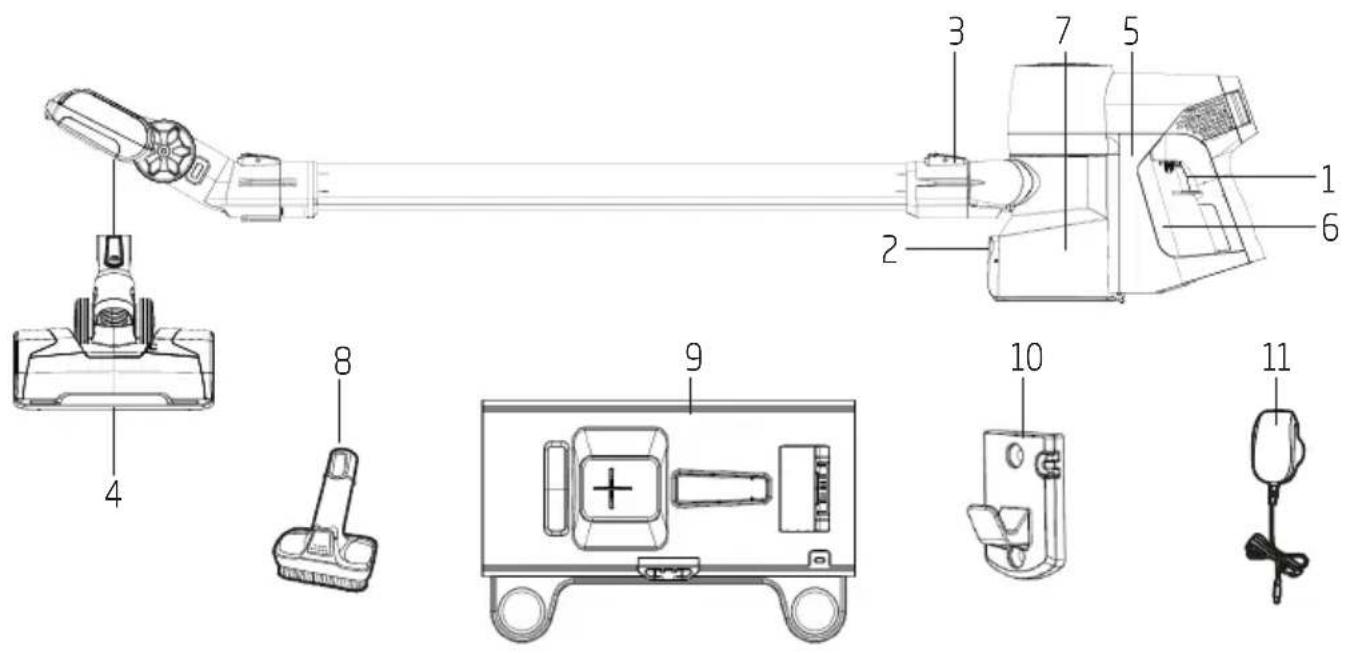

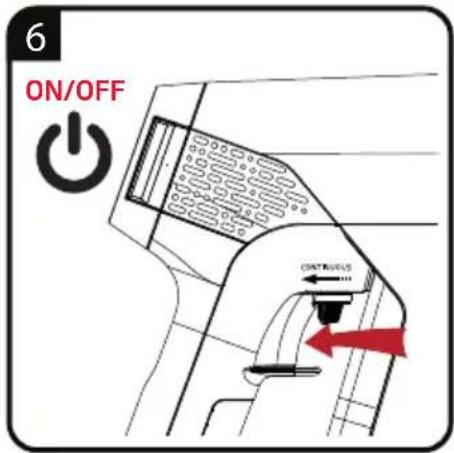

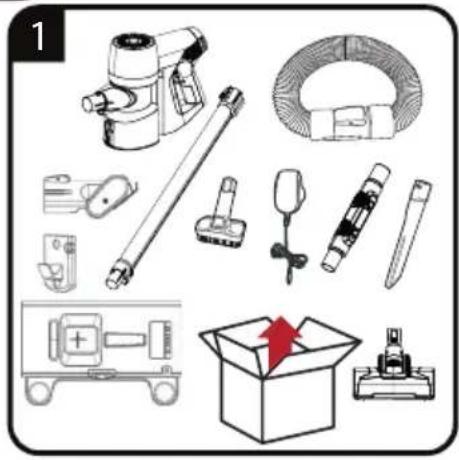

1. On/off button
2. Dust cup release button
3. Metal tube release button
4. Electrical turbo brush
5. Machine body
6. Battery pack
7. Dust cup
8. Two-in-one brush
9. Charging dock (VRT82821BV, VRX 221 DR)

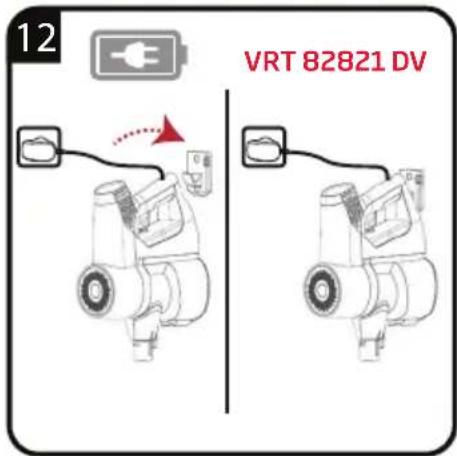

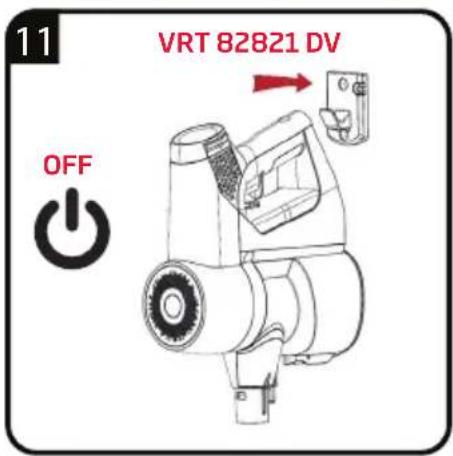

10. Wall hook (VRT 82821 DV)
11. Power supply plug
12. Elbow (VRT82821BV, VRX 221 DR)
13. Crevice
14. Mini turbo brush (VRT82821BV)
15. Flexible hose (VRT82821BV)
16. Dust brush (VRT82821BV)

Technical data

Rated input power :

180W (VRT82821BV)

Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful advices regarding the usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Protection class for electric shock.

Input :

100 - 240 V\~ 50-60Hz 0.8 A (max)

Output :26.0V = 0.6A

Charging time : 3-4 hours

Running time max. power

VRT82821DV : 22 min.

VRT82821BV : 12 min.

VRX 221 DR : 22 min.

Running time min. power to up to:

40 min.

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This appliance has been produced in environmentally-friendly, state-of-the-art facilities.

Input :

100 - 240 V\~ 50-60Hz 0.8 A (max)

Output :26.0V = 0.6A

Parameter of External Power Supply

Manufacturer	: DONGGUAN DONGKUN POWER TECHNOLOGY CO.,LTD
Model Identifier :	DK20C-260060H-V
Input Voltage :	100-240V~
Input Frequency :	50-60Hz
Input Current :	0.8A
Output Voltage :	26.0V
Output Current :	0.6A
Output Power :	15.6W
Average active efficiency :	87.15%
Efficiency at low load(10%) :	84.34%
No-load power consumption :	0.064W

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the adapter or the appliance itself is damaged, do not use it. Contact an authorised service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• Do not use the appliance with an extension cable.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not vacuum water or other liquids.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or inflammable ambience or places are present.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cable in water for cleaning.
• Do not attempt to dismantle the appliance.

1 important safety and environmental instructions

- Use the original parts or parts recommended by the manufacturer only.

- Do not clean the particles such as cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.

- Use the appliance only with the adapter supplied with.

- Do not use the appliance without filters; otherwise it can get damaged.

- If you keep the packaging materials, store them out of the reach of children.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

- Children should be supervised to ensure that they do not play with the appliance

- The appliance is only to be used with the power supply unit provided with the appliance.

- The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance

- If the adapter is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner

- The battery must be removed from the appliance before it is scrapped;

•The appliance must be disconnected from the supply mains when removing the battery;

- Please dispose of used batteries according to local laws and regulations.

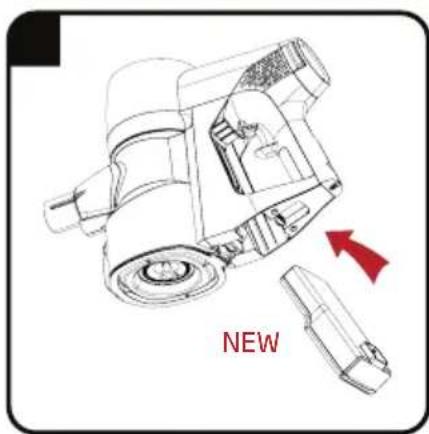

- This appliance contains batteries that are only replaceable by skilled persons.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit DK20C-260060H-V provided with this appliance.

- Please remove and insert the batteries according to UM.

1 Important safety and environmental instructions

• Rechargeable batteries are to be removed from the appliance before being charged;
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance and safely disposed of.
• If the appliance is to be stored unused for a long period, the batteries should be removed.
• The supply terminals are not to be short-circuited.
• Only use with ZB1852 or ZB1852-01 battery.

2 Part assembling

2.1 Elbow (12) and flexible hose (15)

The elbow and flexible hose are extension tools, one end is inserted into the suction port, the other end is connected with the accessories, which can clean corners or narrow spaces

Technical illustration of a mechanical component with threaded ends and a separate cylindrical assembly (no text or symbols)

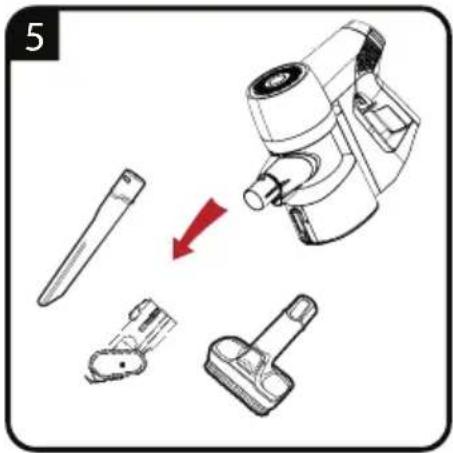

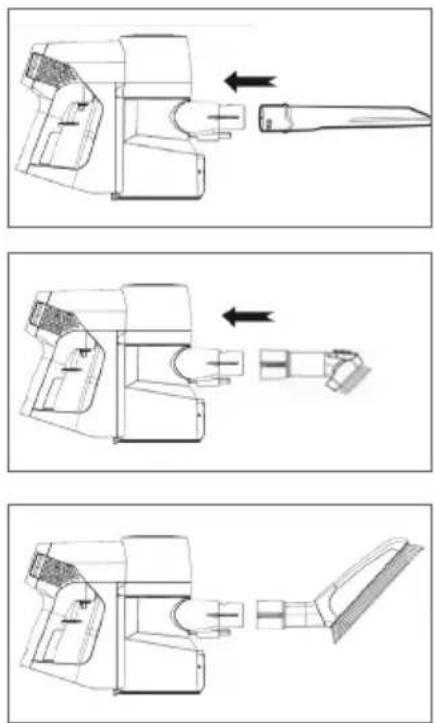

2.2 Crevice (13), 2in1 Brush (8) and dust brush (16)

Push the round part of the accessory into the suction part until it clicks.

The hairbrush of the 2in1 accessory can be removed.

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols)

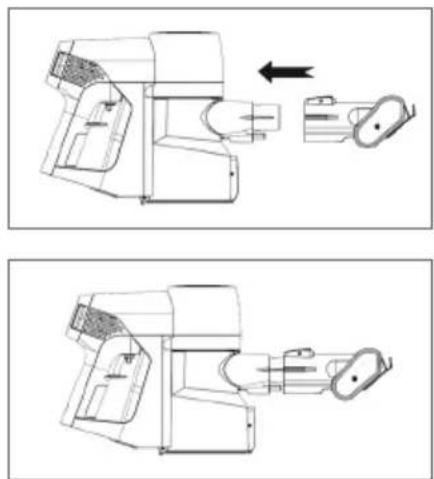

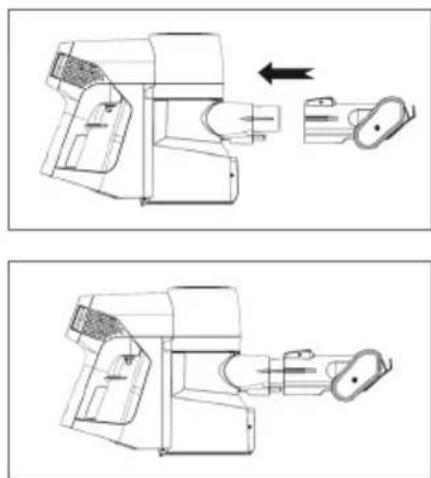

2.3 Mini turbo brush (14)

Push the end of the Mini-brush into the suction part until it clicks.

Remove it by pulling the buttons.

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

3 Use

3.1 Charging Indicator

Working Charging		Fully charged	Lower power
Persistent light blue	Blinking light blue	Persistent light blue 2 minutes and then going out.	Blinking red light

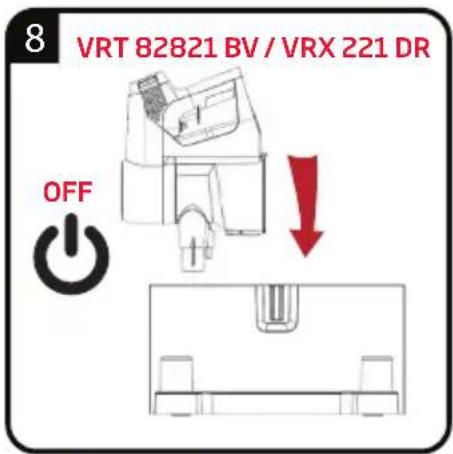

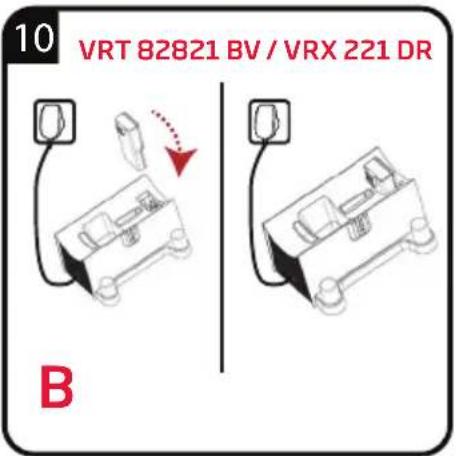

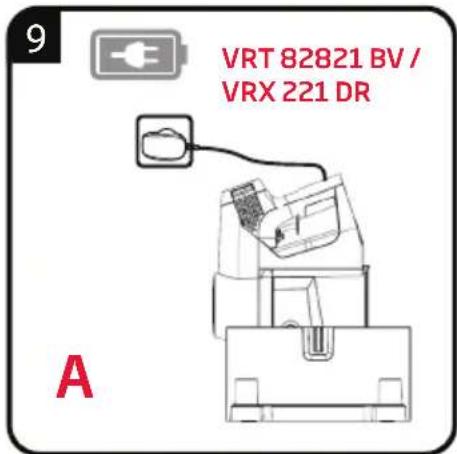

3.2 Charging dock (9)

While charging the battery on the charging dock the charge indicator flashes blue.

- When you receive this product, please use the charger provided by our company to recharge the battery for 3 hours (no need to charge it full).

- Do not place the battery on the charging base for a very long time. If it is still charging beyond the normal charging time, stop it immediately. Otherwise, the battery may cause heating, deformation or burning hazard.

- When the battery is not in use for a long time, we recommend you fully charge the battery (usually 4.5 hours). The charging period should be every 3 months for the products not in use.

4 Information

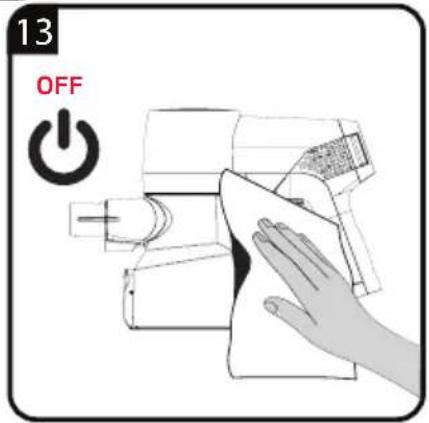

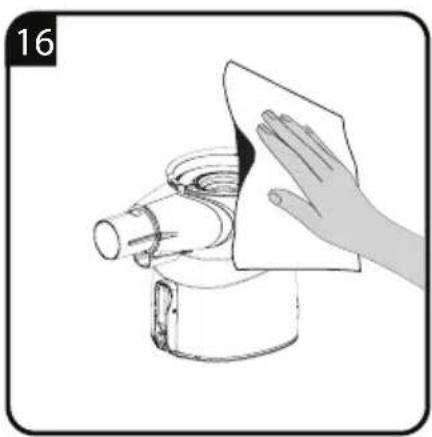

4.1 Cleaning and care

Switch off and unplug the appliance, before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

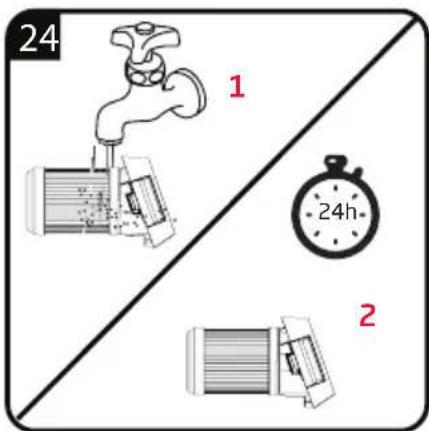

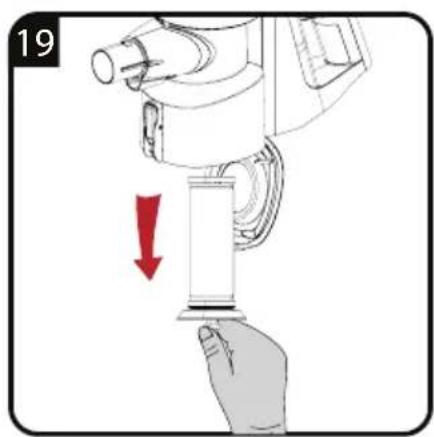

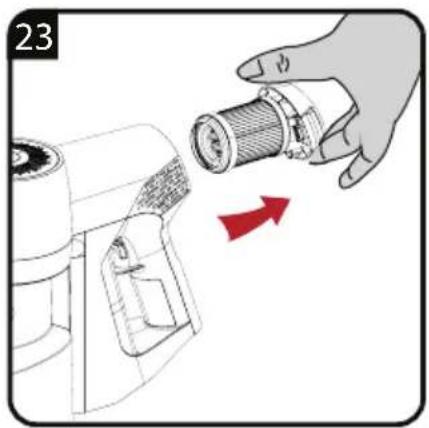

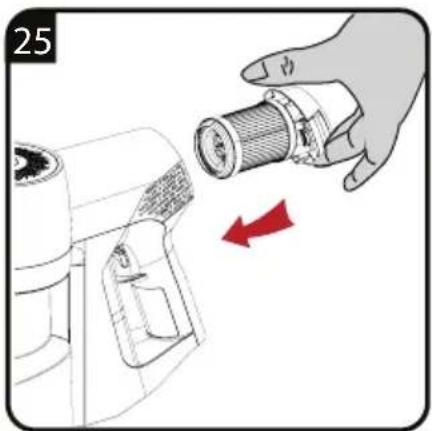

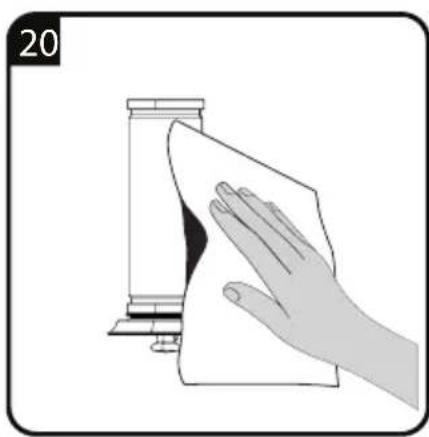

4.2 Hepa filter

- In order to ensure the performance of the product, we recommend you clean regularly, and replace one after 3-6 months. (Depending on usage)

WARNING: Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

5 Information

4.3 Compliance with the WEEE Directive and disposal of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

4.4 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

4.5 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do

not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

4.6 Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

4.7 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.

4.8 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.

Technical illustration of a mechanical component with a cylindrical shaft and attached fastener (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

2.3 Minibürste (14)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

3 Verwendung

3.1 Ladeanzeige

Technical illustration of a mechanical component with a cylindrical shaft and attached fastener (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

2.3 Mini Turbo Brosse (14)

Technical line drawings of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

3 Utilisation

3.2 Station de charge (9)

Technical illustration of a mechanical component with a cylindrical shaft and attached spring, shown from two different angles (no text or symbols present)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols)

2.3 Mini cepillo turbo (14)

Technical line drawings of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

3 Uso

Producător: DONGGUAN DONGKUN POWER TECHNOLOGY CO.,LTD

Identificator model: DK20C-260060H-V

Tensiune de intrare: 100-240 V\~

Technical illustration of a mechanical component with a cylindrical shaft and attached fastener (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

3 Utilizare

Technical illustration of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

2.3 Mini spazzola turbo (14)

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols)

3 Uso

Technical illustration of a mechanical component with cylindrical and rectangular parts (no text or symbols)

2.2 Ssawka do szczelin (13), szczotka 2w1 (8) i szczotka do kurzu (16)

Technical line drawing of a mechanical device with an arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

3 Użytkowanie

Technical illustration of a mechanical component with cylindrical and rectangular parts (no text or symbols)

2.2 Špranja (13), 2 v 1 krtača (8) i krtača za prah (16)

Okrogli del dodatne opreme potisnite v sesalni del, dokler se ne zaskoči.

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols)

2.3 Mini turbo krtača (14)

Konec Mini-brush potisnite v sesalni del, dokler se ne zaskoči.

Odstranite ga s potegom gumbov.

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

3 Uporaba

3.1 Indikator polnjenja

Technical illustration of a mechanical component with a cylindrical shaft and attached cable (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols)

2.3 Mini turbo kartáč (14)

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

3 Použití

Technical illustration of a mechanical component with a cylindrical shaft and a rectangular shaft, shown from different angles (no text or symbols)

2.2 Приставка (13), Четка 2в1 (8) и четка за прах (16)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols)

2.3 Мини турбо четка (14)

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

3 Употреба

Technical illustration of a mechanical component with a cylindrical shaft and attached fastener (no text or symbols)

Three-step diagram showing a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with two views showing internal components and a directional arrow (no text or symbols)

3 Használat

3.1 Töltöttségjelző

Output : 26.0V = 0.6A

Masa pengecasan : 3-4 jam

Kuasa maks. masa jalanan

VRT82821DV : 22 min

VRT82821BV : 12 min.

VRX 221 DR : 22 min.

Technical illustration of a mechanical component with a cylindrical shaft and attached rectangular bar (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

3 Penggunaan

4.4 Mematuhi Arahan RoHS

Output Current: 0.6A

กําลังเอาห์พุท15.6W

Technical illustration of a mechanical component with a cylindrical shaft and a rectangular bar, both without any text or symbols.

Technical line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

3 ก๊าล์ใช้ง๒๓๙

Uitvoer :26,0 V = 0,6A

Technical illustration of a mechanical component with a cylindrical shaft and attached fastener (no text or symbols)

2.2 Spleet- (13), 2-in-1-borstel (8) en stofborstel (16)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

2.3 Mini-turboborstel (14)

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

3 Gebruik

3.1 Oplaadlampje
