Product Type	Motorcycle Helmet
Brand	Crivit
Model	IAN 103798
Shell Material	Polycarbonate composite
Certification	ECE 22.05 / DOT approved
Weight	Approx. 1500 g (size M)
Available Sizes	S, M, L, XL
Closure System	Micro-ratchet chin strap
Visor Type	Clear, scratch-resistant, anti-fog coated
Sun Visor	Integrated drop-down sun visor
Ventilation	Adjustable chin and top vents
Lining	Removable and washable antiallergic liner
Cheek Pads	Removable, available in different thicknesses
Emergency Release	Quick-release cheek pads for emergency
Warranty	2 years
Cleaning Instructions	Hand wash liner in lukewarm water; wipe shell with mild soap
Spare Parts Available	Visors, liners, cheek pads, buckles

Frequently Asked Questions - IAN 103798 CRIVIT

How do I determine the correct helmet size?

Measure your head circumference just above the eyebrows using a flexible tape. Use the sizing chart provided in the manual to match your measurement to the appropriate size (S, M, L, XL). The helmet should fit snugly without pressure points.

How should I clean the helmet?

Remove the inner liner and cheek pads. Hand wash them with mild soap in lukewarm water and let them air dry. Clean the outer shell with a damp cloth and mild detergent. Do not use harsh chemicals or solvents.

Can I replace the visor?

Yes, replacement visors are available as spare parts. Follow the instructions in the manual to remove the old visor and snap the new one into place. Ensure it is fully secured.

Is the helmet suitable for all seasons?

The helmet features adjustable ventilation to adapt to different weather conditions. The drop-down sun visor helps in bright conditions, and the clear visor can be used in low light. However, it is primarily designed for temperate climates.

How long does a motorcycle helmet last?

Manufacturers recommend replacing your helmet every 5 years from the date of purchase, or sooner if it has been involved in a crash or shows signs of damage. The EPS liner may degrade over time.

Can I use this helmet for other sports?

No, this helmet is specifically designed for motorcycling and meets motorcycle safety standards. Do not use it for cycling, skiing, or other activities as it may not provide adequate protection.

How do I adjust the chin strap?

Thread the strap through the buckle and pull to tighten. Ensure the strap lies flat against your chin and is snug but comfortable. The micro-ratchet system allows fine adjustment.

What should I do if the helmet has been in an impact?

Replace it immediately. Even if no visible damage is present, the EPS liner may be compromised. Do not attempt to reuse the helmet after any significant impact.

Are spare parts available for this model?

Yes, you can purchase spare parts such as visors, liners, cheek pads, and buckles through the Crivit website or authorized dealers. Check the manual for part numbers.

How do I use the drop-down sun visor?

Slide the lever located on the left side of the helmet to lower or raise the sun visor. Use it in bright sunlight to reduce glare. Ensure it is fully retracted when not needed.

USER MANUAL IAN 103798 CRIVIT

Exterior view of a modern silver and black sports helmet with sleek design (no visible text or symbols)

KLAPPHELM

DELTA SPORT HANDELSKONTOR GMBH

Wangarp b

B-22397 Hamburg

Vencr 01/2015

Delta-Sport No: DSHJL70202

DE AT

KLAPPHELM

Bedienungsanleitung

GB

FLIP-UP HELMET

Instructions for use

DE AT

Before reading, fold out the illustration page and get to know all of the functions of your unit.

GB Instructions for use 13

IAN 103798IAN 103798

DE AT CB

Diagram showing a helmet with a side view and a close-up of the head (no text or symbols present)

GB Instructions for use

Parts Overview 14

Scope of Delivery 14

Important Information 14

Instructions for Use

Safety Advice 14-15

Product Characteristics.... 15 - 16

Use and Installation Instructions

Inner Lining 17

Chin-Wind Deflector....17

Snap-Fastener System 17

Sun Shield....17

Cheek Pads 17

Acoustic Damping 17

Front Vent 17

Top Vent 17

Winter Collar 18

Visor Replacement 18

Selecting the Correct Helmet Size 18

Maintenance and Care.... 18 - 19

Storage 19

Disposal Instructions 19

3 Years Warranty 19

Congratulations!

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

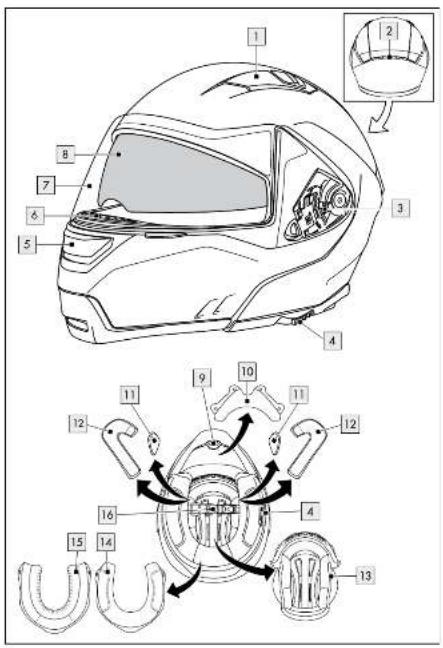

Parts Overview

1 Top vent
2 Air exhaust
3 Visor mechanism
4 Slider for sun shield with safety latch
5 Front vent
6 Breath deflector
7 Visor
8 Sun shield
9 Pivoted release
10 Chin-wind deflector
11 Acoustic damping
12 Cheek pads
13 Inner Lining
14 Standard collar
15 Winter collar
16 Chin straps with snap fastener

Scope of Delivery

The scope of delivery for your helmet consists of the following:

• Additional pair of cheek pads for individual size adjustment
- Replacement visor
- Acoustic damping
- Winter collar
- Helmet bag
- Instructions for use

Important Information

Our helmets are manufactured in accordance with the latest technology and are specifically designed for motorcycling. Whether the owner deems them to be suitable for any other use, is up to him. Wearing a helmet does not exclude the possibility of injury should an accident occur.

To guarantee adequate protection this helmet must be well fitting and securely fastened. Every helmet that is exposed to a hard blow must be replaced.

We guarantee that this item is free of production and material defects. The guarantee does not apply to normal wear and tear and in case of improper use.

Instructions for Use

Safety Advice

• Warning!
  When riding, the helmet may only be used if the chin piece and visor are closed.
• The helmet is equipped with a hinged sun shield, which may only be used in conjunction with a closed visor.
  • To open the chin piece, press the release (9) and lift the chin piece up (see Fig. A).
• To close the chin part, pull the chin section down until it audibly locks into place.
• The retention system must always be carefully set and locked.
  • Always ensure that there is no airflow restriction inside the helmet.
• Ensure that your visor is clean and scratch-free at all times. Never use smoked visors at night or when visibility is poor. Exchange damaged visors for a genuine replacement immediately. Your safety is at risk.
  You are able to obtain replacement visors from the stipulated service address for a period of 5 years from the purchase date. Visor type: DS-MULTIX301.

• Never make any changes to any part of your helmet. Do not make any alterations to the outer shell, do not insert screws.

• The helmet may not be painted or have stickers or labels.

• The helmet is designed to absorb the energy of a blow or a collision by destroying some of its components. In case of a further blow it wouldn't protect you any longer. After an accident, the helmet must be replaced even though it doesn't show external damages.
• Refrain from transporting your helmet by hanging it onto any part of your motorcycle. Keep it away from exhaust pipes and other sources of heat.
• Never use solvents, petrol or other detergents when cleaning the shell and interior of your helmet. Only use water and pH balanced soap. The padding can be cleaned using soap and a small brush. The visor should be cleaned with soap and water only, leave it to air-dry. Do not expose the visor to any source of heat!
• Only use genuine spare parts for your helmet.
• Only use the sun shield and tinted visor in daylight! Never use in twilight or at night.

Product Characteristics

ECE-R 22.05 Homologation

This helmet is in compliance with ECE-R 22.05 standards and is homologised accordingly. The ECE-R 22.05 standard consists of uniform conditions for the approval of protective

helmets and its visors for drivers and passengers of motorcycles and mopeds. The basic principles for these tests are the so called ECE-Regulations of the Economic Commission for Europe.

Significant Tests of the ECE-Regulation 22.05

• Shock absorbance
  • Dynamic test of wear features
• Field of vision test
• Design strength
  • Sustainability test (Strip-off test)
• Chin straps and lock test
  • Shear test for outside edges
• Friction performance test of the outer shell
• Visor test (mechanical and visual characteristics)
• Chin bar, chin part damping test

Voluntary product testing

Emission certificate

The TÜV Rheinland emission certificate indicates products tested for contaminants and according to current knowledge pose no risks to the health.

Inside Padding with Coolmax® Inserts

Coolmax® by INVISTA is a high-performance fabric fibre

that supports its wearers during sport activities. Based on the patented DuPont-fibre technology, Coolmax ^® transports moisture from the body to the fabric surface where it dries quicker than with any other fabric.

The specially developed fibres of INVISTA that are used for Coolmax ^® -fabrics transport the moisture away from the body to the surface of the fabric where it has the opportunity to evaporate quickly. At the same time, the uniquely formed fibres offer maximum breathing activity, even in wet conditions. In addition, the breathing activity improves the heat regulating effect.

Cheeks, forehead and neck pads of this article are equipped with Coolmax ^® .

HeiQ® Pure dynamiq

FRESH & COMFORTABLE THERMOREGULATING ANTIMICROBIAL

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

Breath deflector and visor ventilation

The breath deflector (6) decreases fogging of the visor due to exhaled air. Additionally, the air circulation in the visor area is improved.

Integrated sun shield

High-strength HCM outer shell

High Density Copolymer Matrix: High quality ABS plastic is formed under extreme heat and pressure to make a robust and impact-resistant outer shell.

Anti-scratch and Anti-fog coated visor

Separate winter comfort collar

Removable, washable liner

Toolless visor changes

2 Outer shell sizes (S / M and L / XL)

Suitable for eyeglass wearers

Safety lock closure

Use and Installation Instructions

Inner Lining

The inner lining (13) can be completely removed and cleaned separately (see care instructions).

To remove the inner lining, firstly remove the helmet collar and the cheek pads. Then undo the back press-studs of the inner lining and pull the clips of the inner lining from the front side of the helmet (see Fig. C).

Chin-Wind Deflector

The chin-wind deflector (10) is secured to the pivoted piece by means of snaps.

This can be removed and re-attached as required (see Fig. E).

Snap-Fastener System

The snap-fastener enables an individual and quick vernier adjustment of the chin strap.

Press the snap-fastener together until the helmet is sitting comfortably but firm (see Fig. D).

By means of the snap at the end of the chinstrap, the excess chinstrap can be attached to additionally secure it.

Sun Shield

The integrated sun shield (8) will enable you to quickly and easily react to changed light conditions with the aid of the patent mechanism.

To pull out and retract the sun shield, press the safety latch to operate the slider (4) (see Fig. B).

Note:

• Please take care that the edge of the sun shield does not block your field of vision.
• The sun shield may only be used when the visor is closed and may only be used during the day.

Cheek Pads

You will receive two different pairs of cheek pads (12) for individual size adjustment.

The thinner cheek-pads are already pre-mounted as standard. The thicker cheek pad is enclosed with the helmet separately.

If the helmet is too loose and therefore is not sitting firmly on your head, you can replace the thin cheek pad with the thicker ones.

The cheek pads are affixed via three press-studs respectively in the helmet. You can easily remove the pads (see Fig. F). The thicker cheek pads can now also be affixed in the helmet with three press-studs. You need to be able to hear that each press-stud locks-in.

Acoustic Damping

The acoustic damping (11) is for noise reduction, in particular when driving at high speeds.

Press the acoustic damping into the cavity of the cheek pads (see Fig. G). The acoustic side pad equipped with Velcro faces towards the helmet shell.

Front Vent

The front vent (5) can be opened and closed by means of a slider (see Fig. H).

Top Vent

The top vent (1) can be opened and closed by means of a slider (see Fig. 1).

Winter Collar

To reduce the wind inlet at the bottom of the helmet during periods with very cold temperatures, the pre-installed standard collar (14) can be replaced with the supplied winter collar (15).

Removing the standard collar

Pull the one-piece standard collar out of the helmet (see Fig. J).

Inserting the Winter Collar

First attach the plastic clip in the centre at the back part of the helmet in the groove between the outer shell and the padding.

Once the plastic clip is completely locked, press the complete winter collar again firmly onto the padding of the helmet (see Fig. K).

Visor Replacement

If the pre-mounted visor (7) is damaged or severely scratched, you can exchange it with the replacement visor.

Removal of the Visor

• Slide the visor into the highest position (fully opened) (see Fig. L).
• Pull the visor-locking lever and remove the visor (see Fig. M).

Inserting the Visor

• Place the replacement visor on the hold-down device and observe the correct positioning in the process (fully opened) (see Fig. L).
• Pull the visor-locking lever and place the visor appropriately (see Fig. N).
• Allow the replacement visor to snap in and close the visor.

Selecting the Correct Helmet Size

• Choose your helmet by measuring the circumference of your head with a flexible tape measure. Always try on a couple of different sizes before buying a close fitting helmet. When wearing the helmet, the skin of your temples should ideally move with it.

• Make sure that the helmet does not move around when the retention system is open.

• The retention system must be set securely. The chinstrap must sit comfortably under the chin as far back towards the neck as possible. Fasten it as tight as possible. The right degree of tension is reached once you find it difficult to insert your finger between the chinstrap and neck, yet finding it easy to breath and swallow. Make sure that the helmet sits securely once the retention system is on. Make sure that the helmet does not restrict your movements, e.g. when turning your head to look behind you.

- Make sure the helmet carries a sticker certifying homologation.

Size table
Size Head circumference
M 57 - 58cm
L 59 - 60cm
XL 61cm

Maintenance and Care

Regular maintenance and care contributes to safety and maintaining the helmet.

Cleaning of the Helmet

• Never use solvents, petrol or other detergents when cleaning the shell and interior of your helmet.
• Only use water and pH balanced soap.

Visor care and cleaning

- After using the helmet, lightly wipe off any grime (e.g. dead insects, dirt, sand, dust etc.) from the visor with a soft cloth and then fully wipe it clean using a dry soft cloth.

• When the visor gets wet (e.g. rainwater) it should always be wiped with a soft cloth.
• When cleaning the visor, never use any petroleum-based solvents or detergents containing abrasives.

Cleaning of the Cheek Pads, Acoustic Pads and Inside Pads

• Hand wash below 30 °C.
• Allow to dry at room temperature.
• Avoid sources of heat.
• When not in use, store in a dry, well ventilated place.

Five abstract geometric symbols: a crown, crossed-out triangle, crossed-out square, and crossed-out cross (no text or labels)

Storage

When not in use, store the helmet in a dry and well ventilated place at room temperature. Avoid sources of heat. Do not needlessly expose the item to heat, e.g. in the car in hot outside temperatures.

Disposal Instructions

Dispose of the product and all its components through a licensed disposal company or your municipal disposal facilities. Please observe the current regulations. If in doubt, consult your disposal facility about an environmentally friendly disposal.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

Size M IAN: 103796

Size L IAN: 103797

Size XL IAN: 103798

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service
