Product Type	Pickup Truck (Automobile)
Brand	Mitsubishi
Model	L200 (2015)
Fuel Tank Capacity	75 liters
Recommended Fuel	Diesel (EN590, Cetane Number 51 or higher)
Engine Oil	Refer to Maintenance section for specified grade
Tire Inflation Pressure	Refer to Maintenance section
Transmission Options	Manual (M/T) or Automatic (A/T)
Drive Type	4WD (with transfer shift lever) or 2WD
Seating Capacity	Up to 5 (depending on cab type: Single, Club, Double)
Keyless Entry	Standard on some trims (remote control switch)

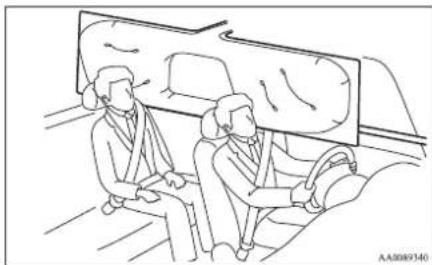

Airbag System	SRS airbags for driver and front passenger; side and curtain airbags optional
Child Restraint	ISOFIX lower anchorages in rear seat (Double cab)
Steering Wheel Adjustment	Height adjustable
Maintenance	See owner's manual for scheduled maintenance intervals
Spare Parts	Use Mitsubishi Motors Genuine Parts; available at authorized service points
Safety Features	Electronic immobilizer, seat belt pretensioners, force limiters, ABS, ASC

Frequently Asked Questions - L200 (2015) MITSUBISHI

What type of fuel does the Mitsubishi L200 (2015) require?

The L200 requires diesel fuel meeting the EN590 standard with a cetane number of 51 or higher. Use summer diesel above -5°C and winter diesel below -5°C.

What is the fuel tank capacity of the L200?

The fuel tank capacity is 75 liters.

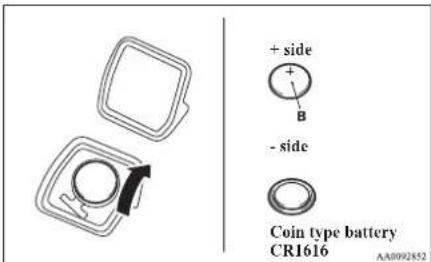

How do I replace the remote control key battery?

Remove the screw, open the case with a flat-blade screwdriver, replace the old battery with a CR1616 coin-type battery (positive side down), then close and test.

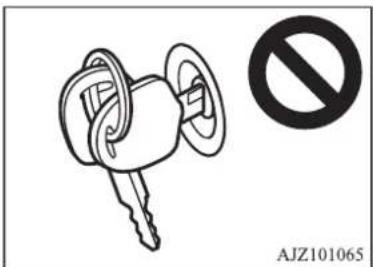

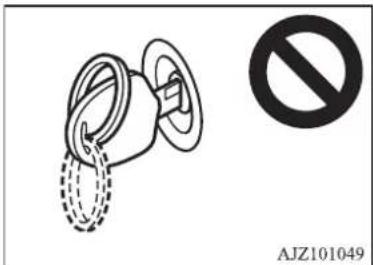

What should I do if the electronic immobilizer prevents the engine from starting?

Ensure the key is not in contact with metal objects or other immobilizer keys. Turn the key back to 'LOCK' and try again. If it still fails, contact a Mitsubishi Motors Authorized Service Point.

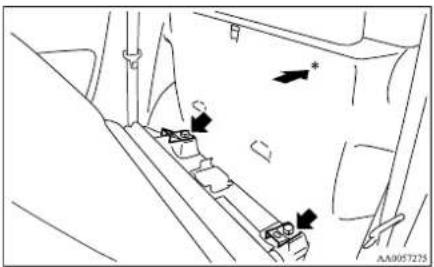

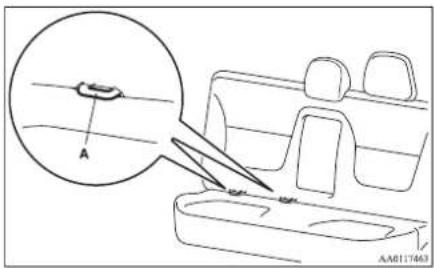

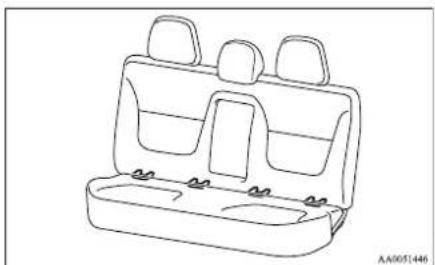

Where are the ISOFIX child seat anchorages located?

ISOFIX anchorages are available in the rear seat of Double cab models. Refer to the 'Child restraint' section for installation instructions.

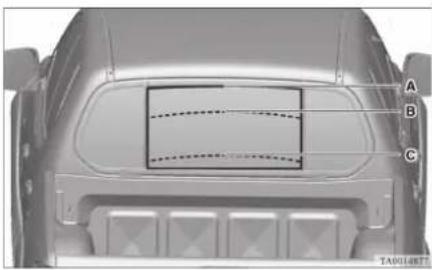

How do I operate the rear retractable power window?

Use the rear retractable power window switch. The window stops in three positions: fully closed, ventilation (slightly open), and fully open. Firmly press the switch for fully closed or fully open; lightly press for ventilation.

What is the recommended tire inflation pressure?

Refer to the Maintenance section of the owner's manual for the correct tire inflation pressures. They vary by load and driving conditions.

How do I adjust the seat belt height?

Press the lock knob (A) on the seat belt anchor to move it down. To move it up, simply slide it without pressing the knob. Adjust so the belt rests across your shoulder without touching your neck.

What should I do if the sunroof safety mechanism activates repeatedly?

If the safety mechanism is activated 5+ times consecutively, press the tilt-up switch repeatedly until fully tilted up, then hold for 3 seconds. Then open fully and close again to reset.

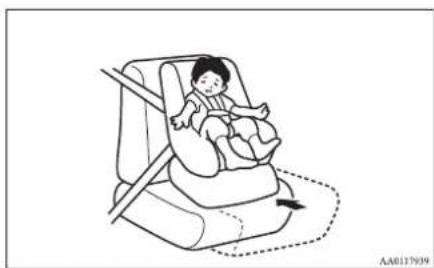

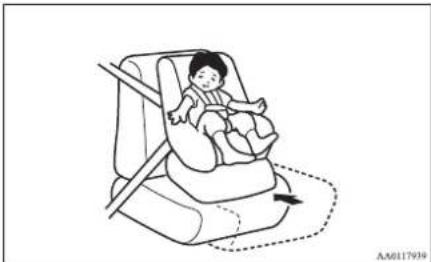

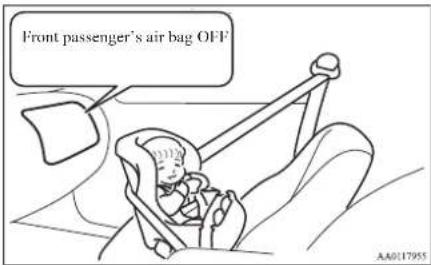

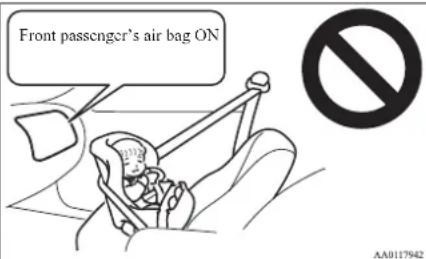

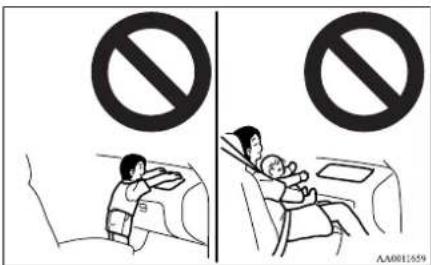

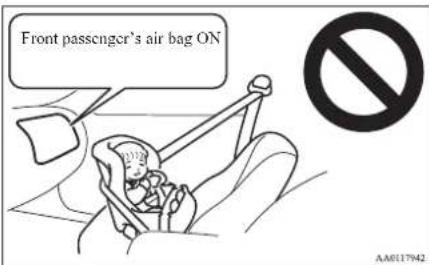

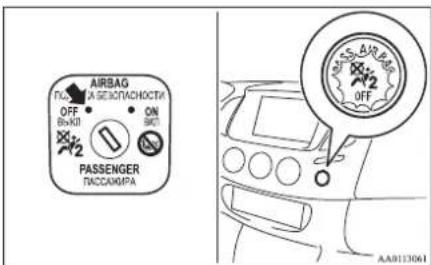

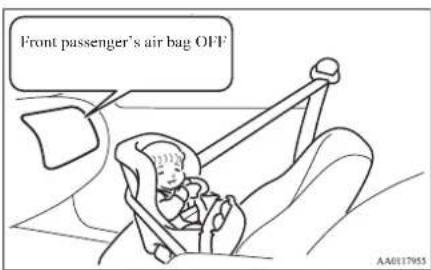

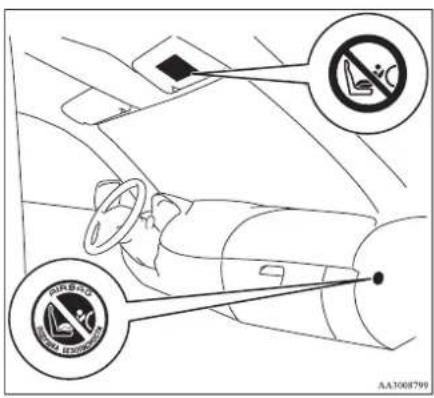

Can I use a rearward-facing child seat in the front passenger seat?

No unless the front passenger airbag is deactivated. If necessary, turn OFF the front passenger airbag ON-OFF switch first. A forward-facing child seat in the front seat should have the seat moved to the rearmost position.

USER MANUAL L200 (2015) MITSUBISHI

L20D - ENGLISH - OKTE15E3

L200 - ENGLISH - OKTE15E3

Foreword

Thank you for seeking a MITSURISHI 1200 as your new vehicle. This owner's manual will add to your understanding and full enjoyment of the many fine features of this vehicle. It contains information prepared to acquaint you with the proper way to operate and maintain your vehicle for the interest in driving pleasure.

MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in design and specifications under to make additions to or improvements in this product without obligation to install them on products previously manufactured. It is an absolute requirement for the driver to strictly observe all laws and regulations concerning vehicles.

This owner's manual has been written in compliance with such laws and regulations, but some of the contents may become contradictory with later amendment of the laws and regulations.

Please leave this owner's manual in this vehicle at time of resale. The next owner will appreciate having access to the information contained in this owner's manual.

Repairs to your vehicle:

Vehicles in the warranty period. All warranty repairs must be carried out by a MITSUDISHI MOTORS Authorical Service Point.

Vehicles outside the warranty period. Where the vehicle is repaired is at the discretion of the owner.

Throughout this owner's manual the words WARNING and CAUTION appear. These serve is reminders to be especially careful. Failure to follow instructions could result in personal injury or damage to your vehicle.

WARNING

indicates a strong possibility of severe personal injury or death. If instructions are not followed.

CAUTION

means hazards or unsafe practices that could cause minor personal injury or damage to your vehicle. You will see another important symbol.

NOTE: gives helpful information.

Indicates optional equipment. It may differ according to the sales classification, refer to the sales catalogue.

Abbreviations used in this owner's manual: LIID: Left-Hand Drive RHD: Right-Hand Drive M/T: Manual Transmission A/T: Automatic Transmission The symbol used on the vehicles: See owner's manual

Mitsubishi Motors Europe B.V.

© 2014 Mitsubishi Motors Corporation

Information for station service
Fuel	Fuel tank capacity 75 litres
	Fuel requirements	Cattle number (CN500)51 or higherRefer to the "General information" section for the fuel selection
Engine oil Roller to the "Maintenance" section for the selection of engine oil.
Tire inflation pressure Refer to the "Maintenance" section for the tire inflation pressure.

Table of contents

Overview

General information

Locking and unlocking

Seat and seat belts

Instruments and controls

Starting and driving

For pleasant driving

For emergencies

Vehicle care

Maintenance

Specifications

Alphabetical index

Declaration of Conformity

Instruments and Controls (Driver's area)

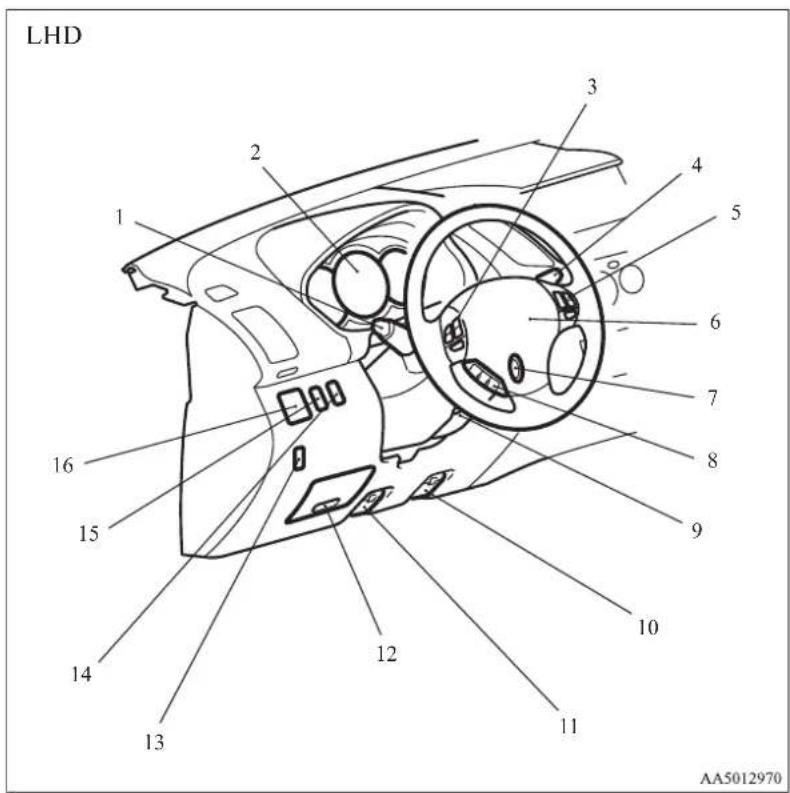

10010010833

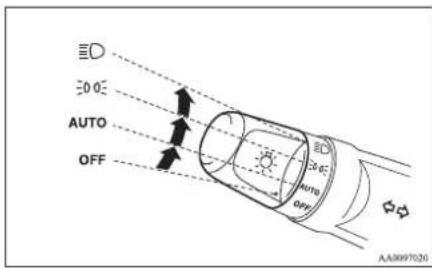

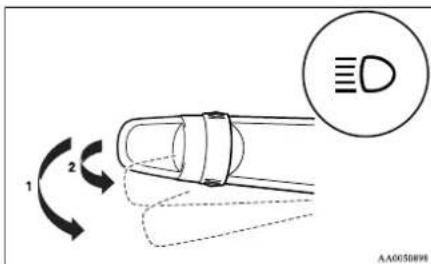

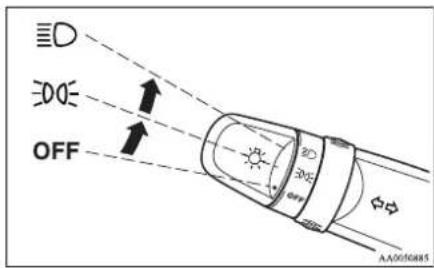

1. Combination headlamps and dipper switch p. 5-32

Turn-signals lever p. 5-36

Front fog lamp switch* p. 5-37

Rear fog lamp switch p. 5-38

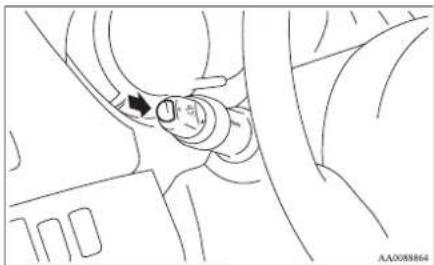

Headlamp washer switch* p. 5-42

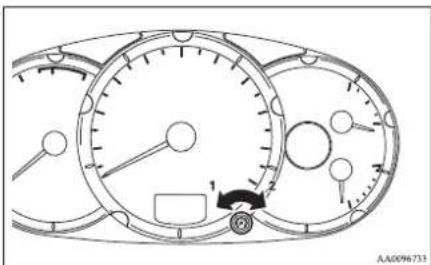

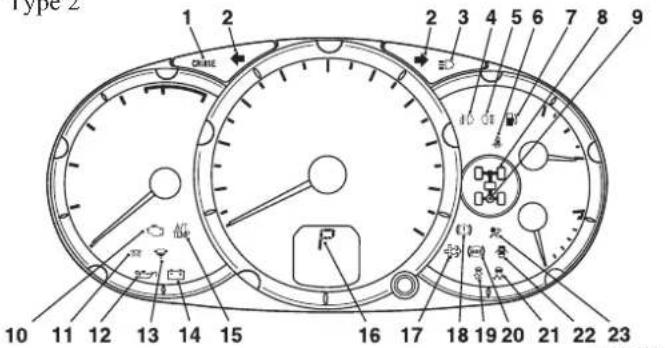

1. Instruments p. 5-02

2. Audio remote control switches* p. 7-44, 7-63

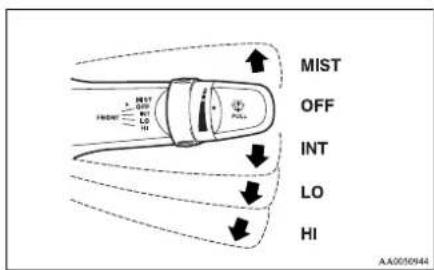

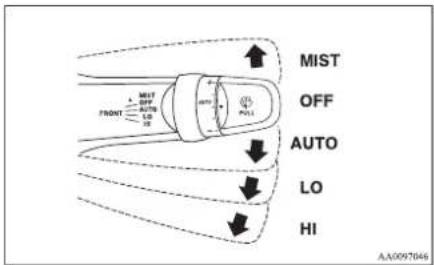

3. Wiper and washer switch p. 5-38

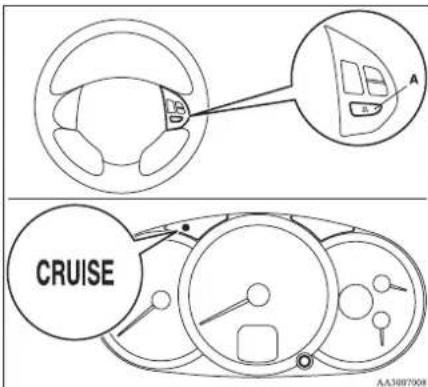

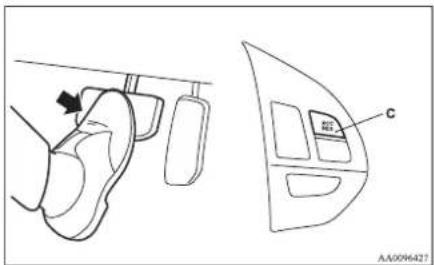

4. Cruise control switches* p. 6-51

5. Supplemental restraint system (SRS) - airbag (for driver's seat)* p. 4-28

Horn switch p. 5-44

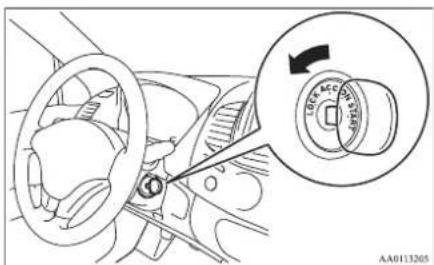

1. Ignition switch p. 6-12

2. Hands-free & voice recognition switches* p. 7-84

3. Steering wheel height adjustment p. 6-09

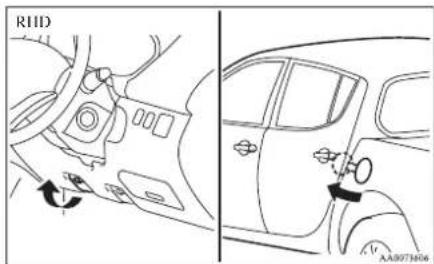

4. Fuel tank filler door release lever* p. 2-02

5. Bonnet release lever p. 10-03

6. Fuses p. 10-20

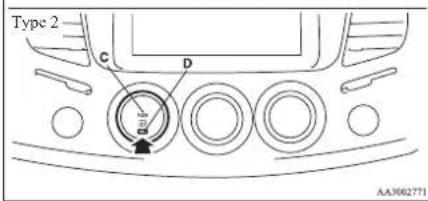

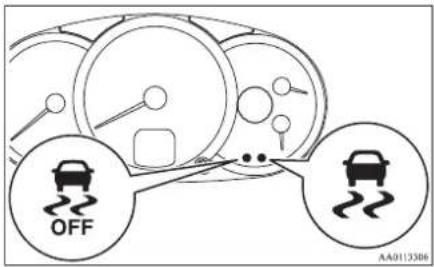

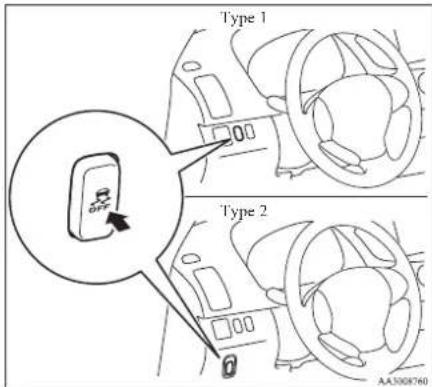

7. Active stability control (ASC) OFF switch Type 2* p. 6-49

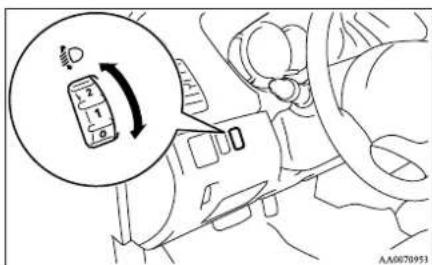

8. Headlamp levelling switch* p. 5-35

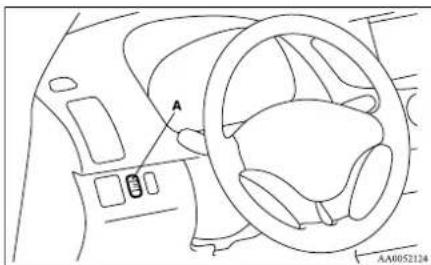

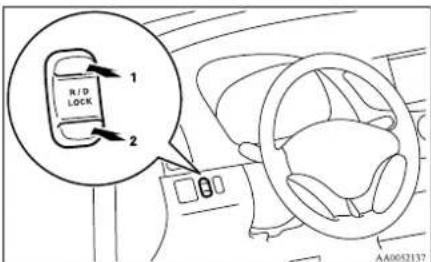

9. Active stability control (ASC) OFF switch Type 1* p. 6-49 Rear differential lock switch* p. 6-34

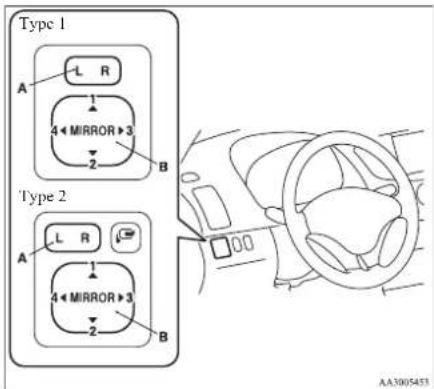

10. Electric remote-controlled outside rear-view mirror switch* p. 6-10

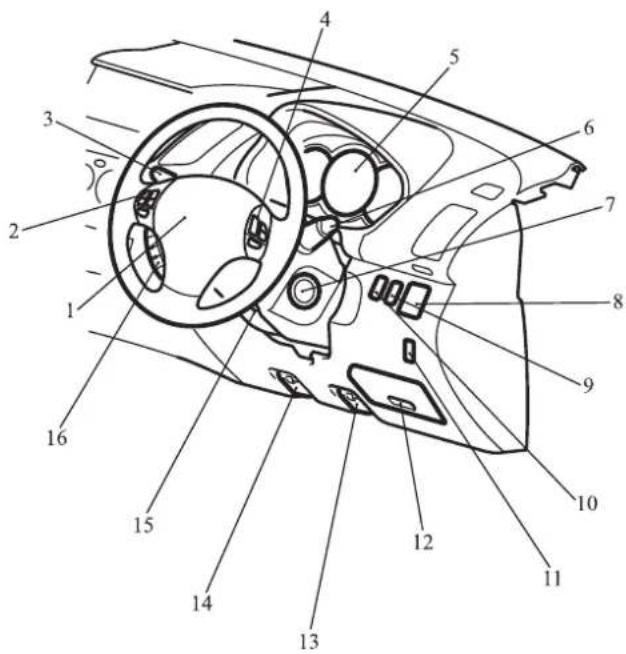

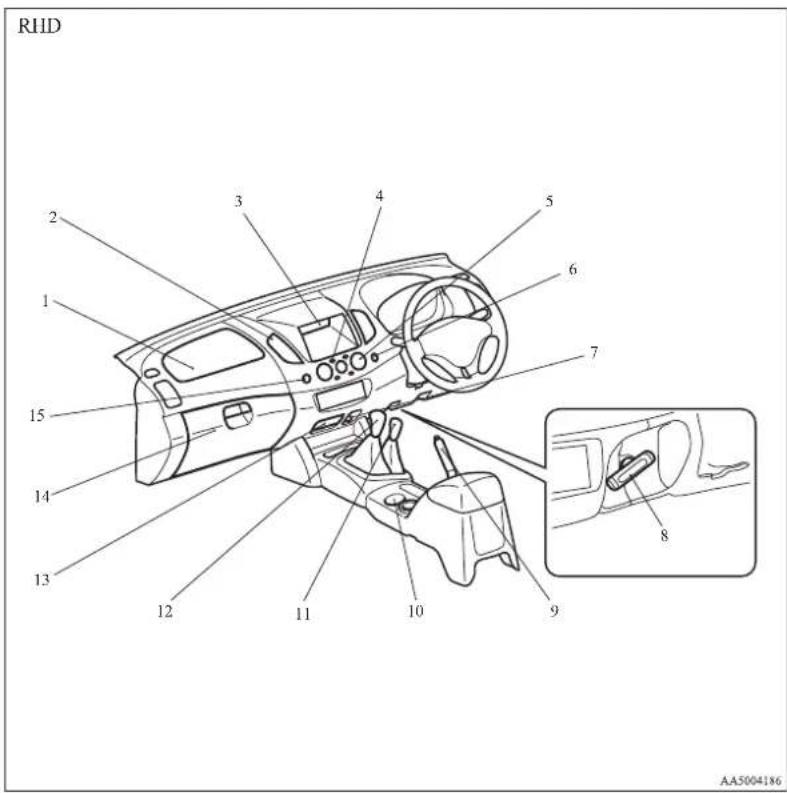

RHD

AA5012723

1. Supplemental restraint system (SRS) - airbag (for driver's seat)* p. 4-28 Horn switch p. 5-44
2. Audio remote control switches* p. 7-44, 7-63
3. Combination headlamps and dipper switch p. 5-32 Turn-signals lever p. 5-36 Front fog lamp switch* p. 5-37 Rear fog lamp switch p. 5-38 Headlamp washer switch* p. 5-42
4. Cruise control switches* p. 6-51
5. Instruments p. 5-02
6. Wiper and washer switch p. 5-38
7. Ignition switch p. 6-12
8. Electric remote-controlled outside rear-view mirror switch* p. 6-10
9. Active stability control (ASC) OFF switch Type 1* p. 6-49 Rear differential lock switch* p. 6-34
10. Headlamp levelling switch* p. 5-35
11. Active stability control (ASC) OFF switch Type 2* p. 6-49
12. Fuses p. 10-20
13. Bonnet release lever p. 10-03
14. Fuel tank filler door release lever* p. 2-02
15. Steering wheel height adjustment p. 6-09
16. Hands-free & voice recognition switches* p. 7-84

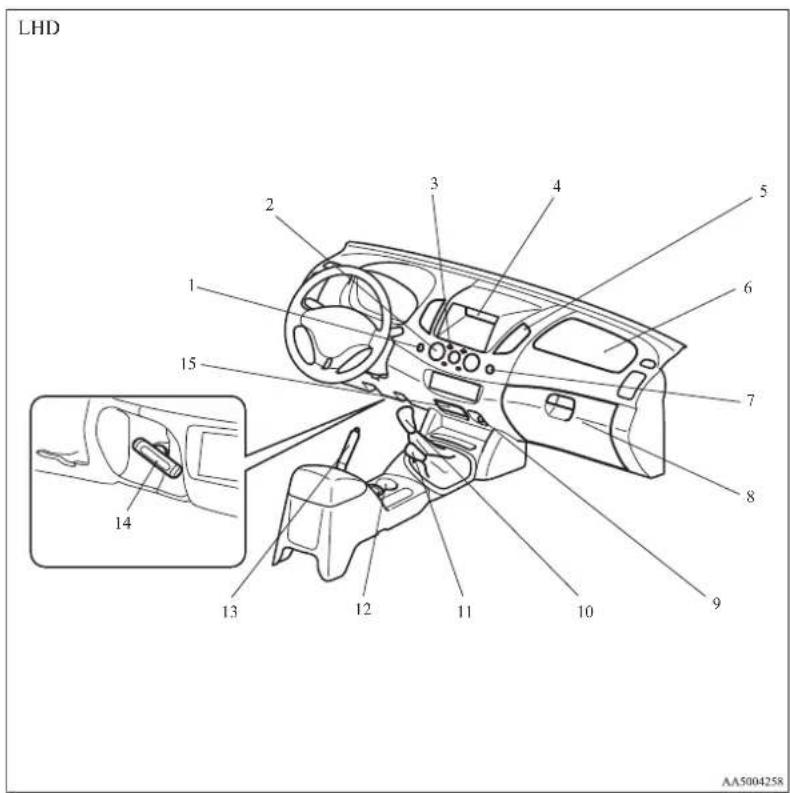

Instruments and Controls (Single cab)

100100106148

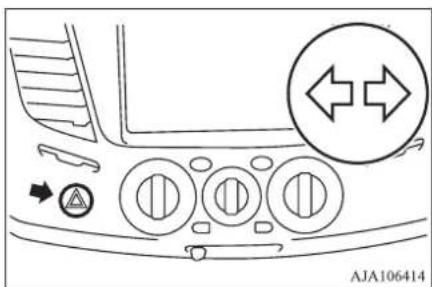

1. Hazard warning flasher switch p. 5-37

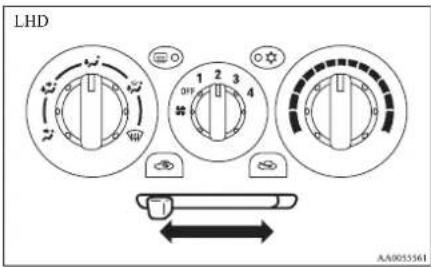

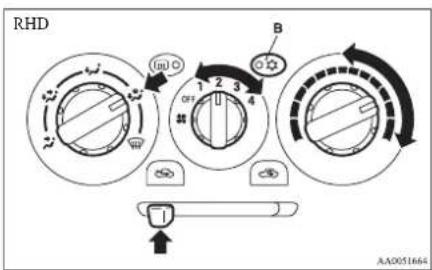

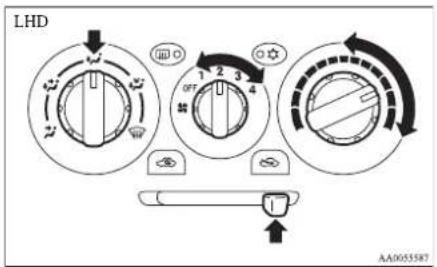

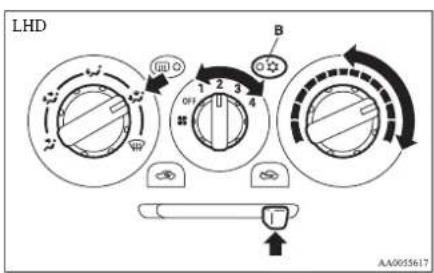

2. Heater/Manual air conditioning* p. 7-04
3. Rear window demister switch p. 5-43
4. Utility box p. 7-114
5. Ventilators p. 7-02
6. Supplemental restraint system (SRS) - airbag (for front passenger's seat)* p. 4-28
7. Front passenger's airbag OFF indication lamp* p. 4-32
8. Glove box p. 7-112

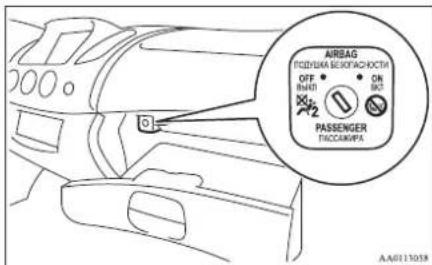

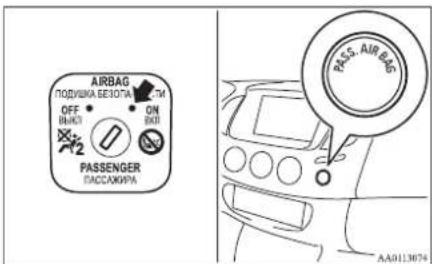

   Front passenger's airbag ON-OFF switch* p. 4-31
9. Cigarette lighter p. 7-108
10. Gearshift lever p. 6-16
11. Transfer shift lever (4WD only) p. 6-25
12. Cup holder* p. 7-115

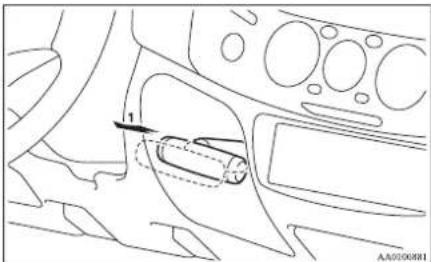

13. Parking brake lever Type 1* p. 6-07
14. Parking brake lever Type 2* p. 6-07
15. Ashtray p. 7-107

1. Supplemental restraint system (SRS) - airbag (for front passenger's seat) p. 4-28

2. Ventilators p. 7-02

3. Utility box p. 7-114

4. Rear window demister switch p. 5-43

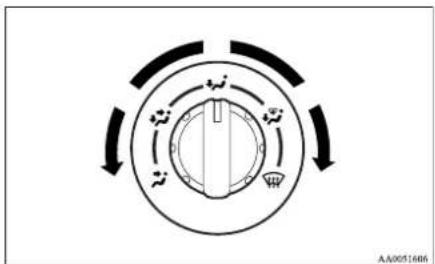

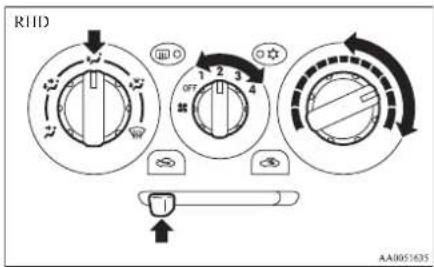

5. Heater/Manual air conditioning* p. 7-04

6. Hazard warning flasher switch p. 5-37

7. Cigarette lighter p. 7-108

8. Parking brake lever Type 2* p. 6-07

9. Parking brake lever Type 1* p. 6-07

10. Cup holder* p. 7-115

11. Transfer shift lever (4WD only) p. 6-25

12. Gearshift lever p. 6-16

13. Ashtray p. 7-107

14. Glove box p. 7-112

Front passenger's airbag ON-OFF switch p. 4-31

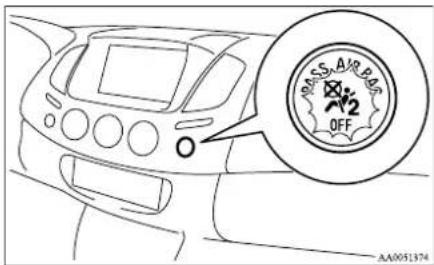

1. Front passenger's airbag OFF indication lamp p. 4-32

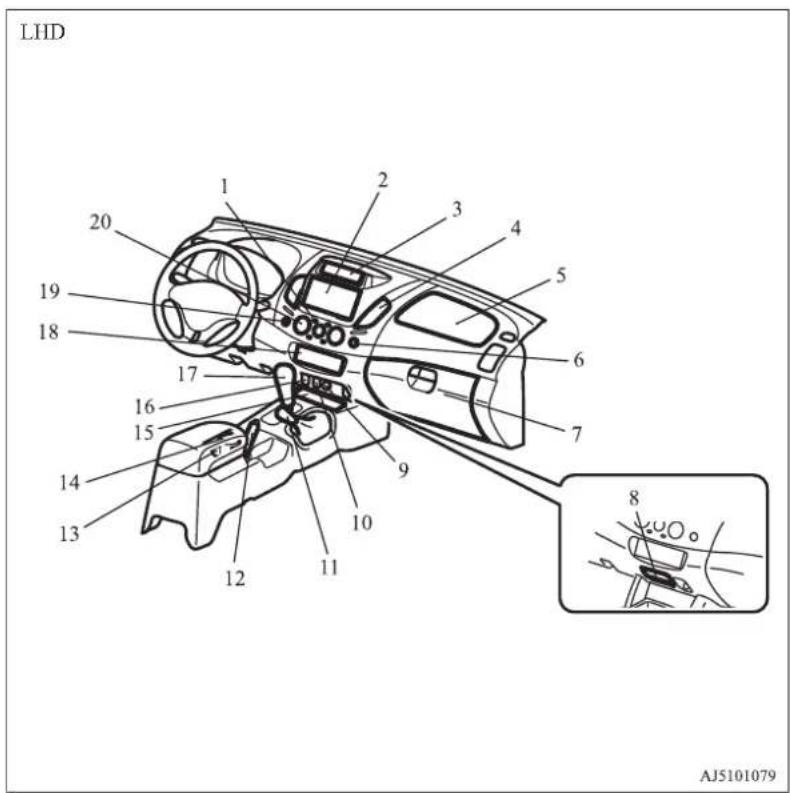

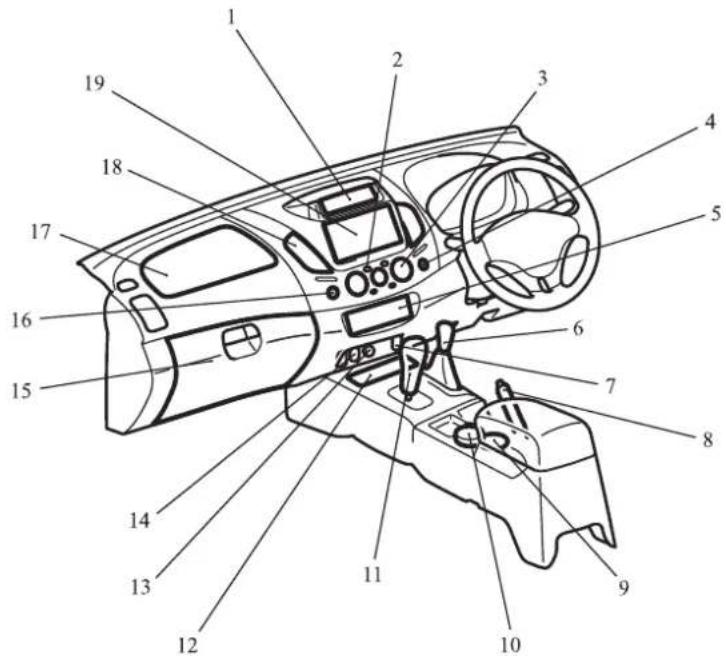

Instruments and Controls (Club, Double cab)

100100108302

1. Rear window demister switch (vehicle with heater/manual air conditioning) p. 5-43
2. Utility box* p. 7-114

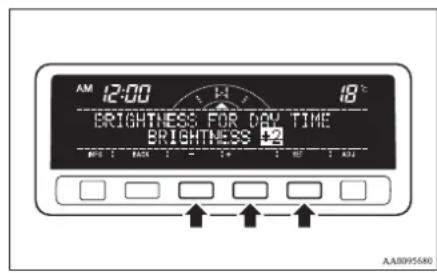

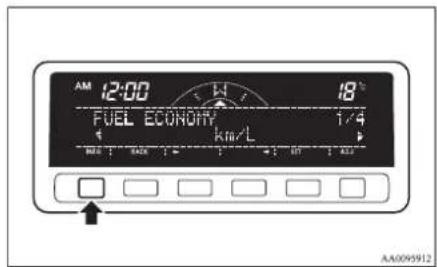

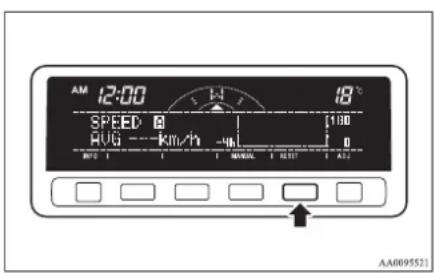

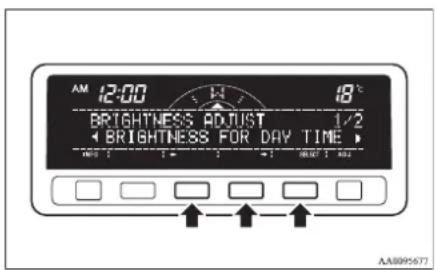

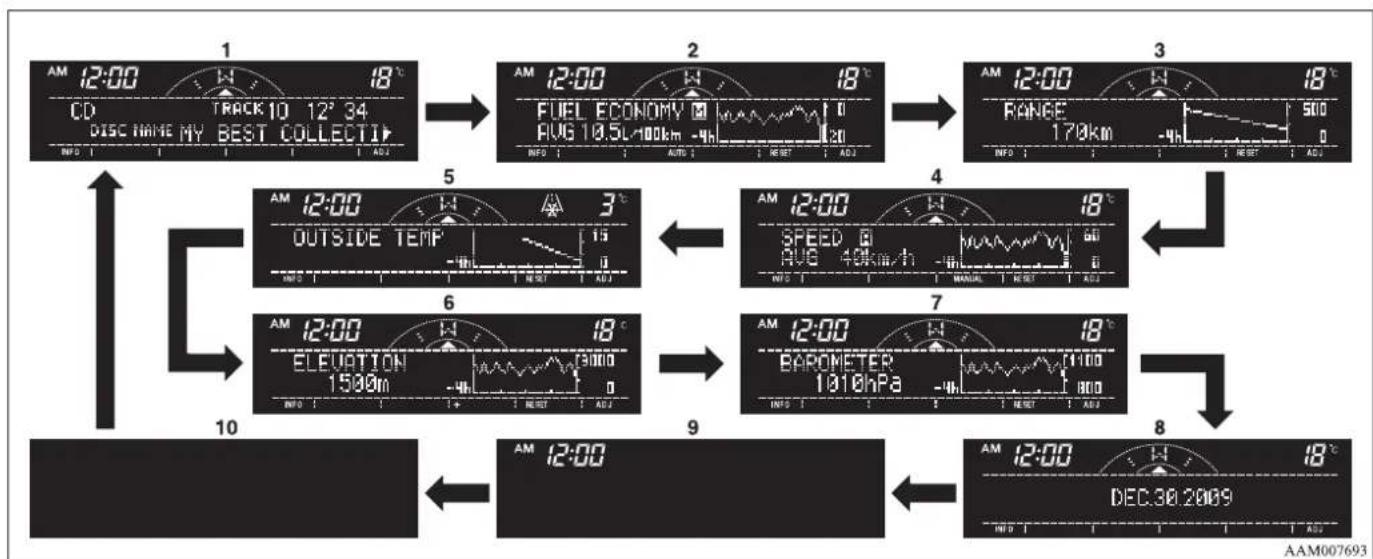

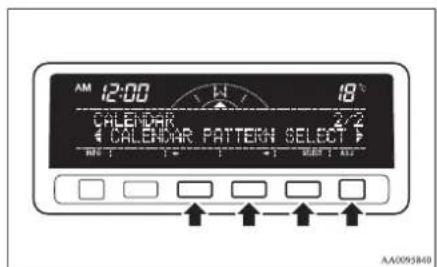

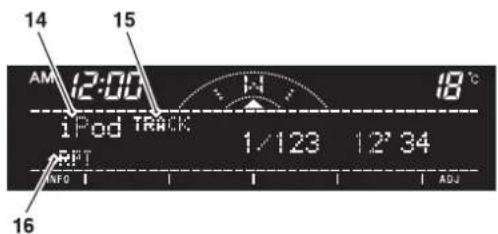

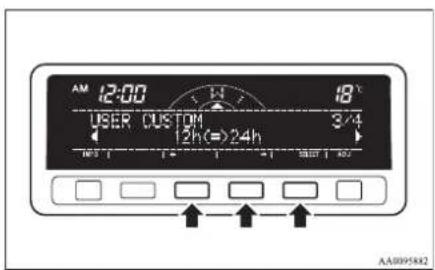

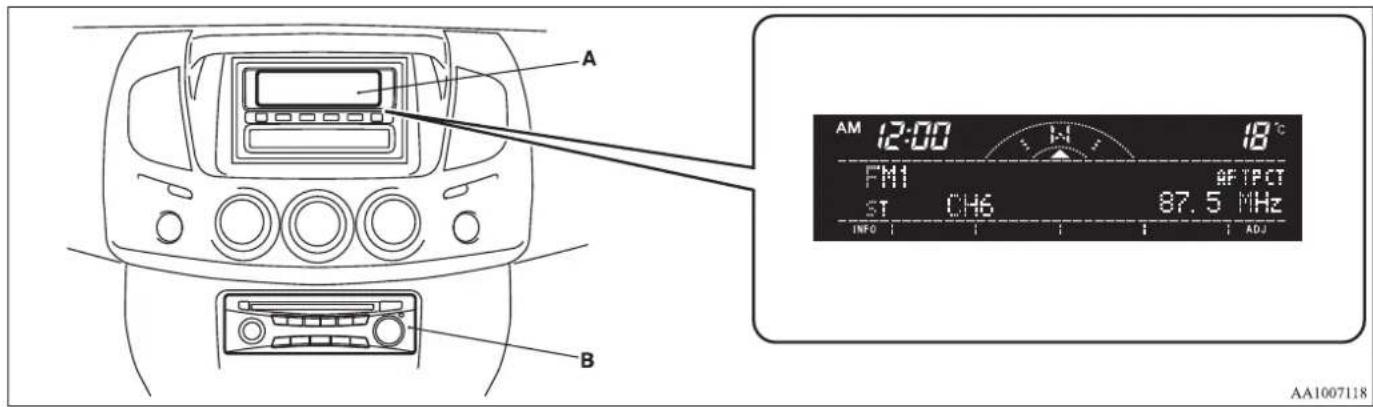

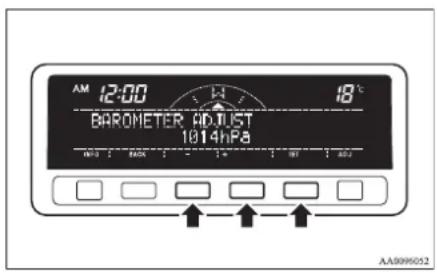

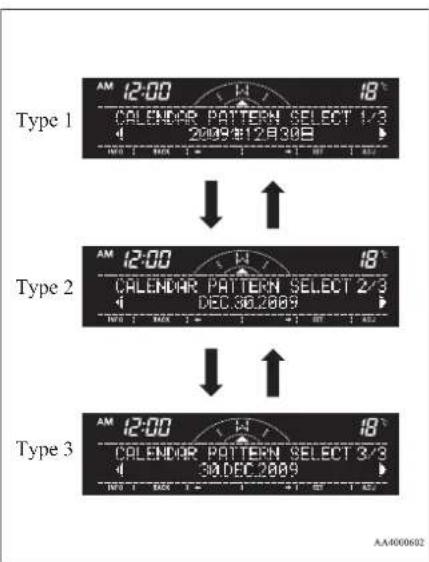

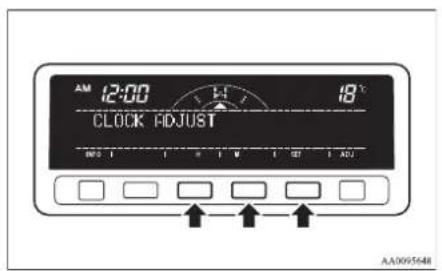

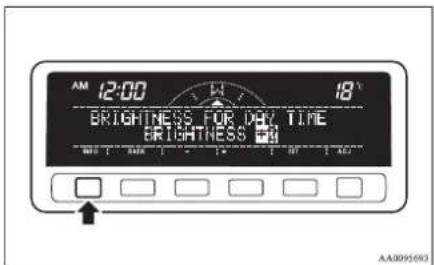

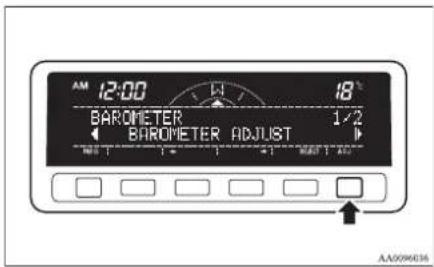

   Centre information display* p. 5-10
   Audio* p. 7-51
   MITSUBISHI Multi-Communication System*
   Refer to the separate "MITSUBISHI Multi-Communication System owner's manual"
3. Centre information display* p. 5-10
4. Ventilators p. 7-02
5. Supplemental restraint system (SRS) - airbag (for front passenger's seat)* p. 4-28
6. Front passenger's airbag OFF indication lamp* p. 4-32
7. Glove box p. 7-112

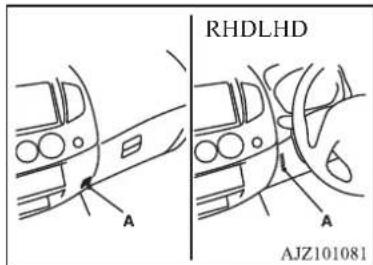

   Front passenger's airbag ON-OFF switch* p. 4-31
   USB input terminal* p. 7-103
8. Ashtray (fixed position)* p. 7-107
9. Cigarette lighter p. 7-108
10. Rear retractable power window switch* p. 3-09
11. Transfer shift lever (4WD only) p. 6-25, 6-30
12. Parking brake lever p. 6-07
13. Cup holder p. 7-115
14. Ashtray (moveable)* p. 7-107
15. Front console box* p. 7-113
16. Heated seat switch* p. 4-07
17. Gearshift lever* p. 6-16
    Selector lever* p. 6-19
18. Audio* p. 7-15
19. Hazard warning flasher switch p. 5-37
20. Heater/Manual air conditioning* p. 7-04

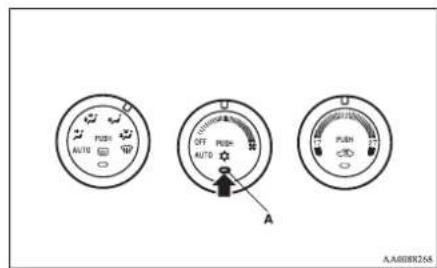

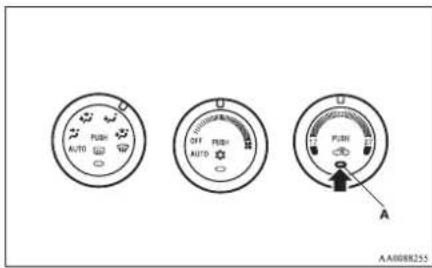

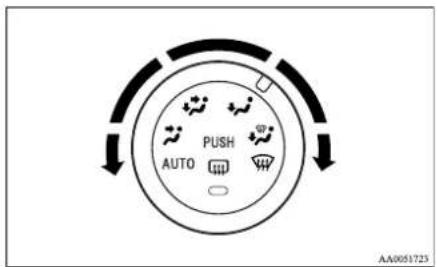

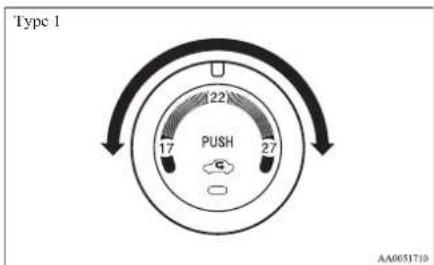

    Automatic air conditioning* p. 7-09

RHD

AJ5101082

1. Centre information display* p. 5-10

2. Rear window demister switch (vehicle with heater/manual air conditioning) p. 5-43

3. Heater/Manual air conditioning* p. 7-04 Automatic air conditioning* p. 7-09

4. Hazard warning flasher switch p. 5-37

5. Audio* p. 7-15

6. Transfer shift lever (4WD only) p. 6-25, 6-30

7. Heated seat switch* p. 4-07

8. Parking brake lever p. 6-07

9. Cup holder p. 7-115

10. Ashtray (moveable)* p. 7-107

11. Gcarshift lever* p. 6-16 Selector lever* p. 6-19

12. Front console box* p. 7-113

13. Cigarette lighter p. 7-108

14. Rear retractable power window switch* p. 3-09

15. Glove box p. 7-112

Front passenger's airbag ON-OFF switch* p. 4-31 USB input terminal* p. 7-103

1. Front passenger's airbag OFF indication lamp* p. 4-32

2. Supplemental restraint system (SRS) - airbag (for front passenger's seat)* p. 4-28

3. Ventilators p. 7-02

4. Utility box* p. 7-114

Centre information display* p. 5-10 Audio* p. 7-51

MITSUBISHI Multi-Communication System*

Refer to the separate "MITSUBISHI Multi-Communication System owner's manual"

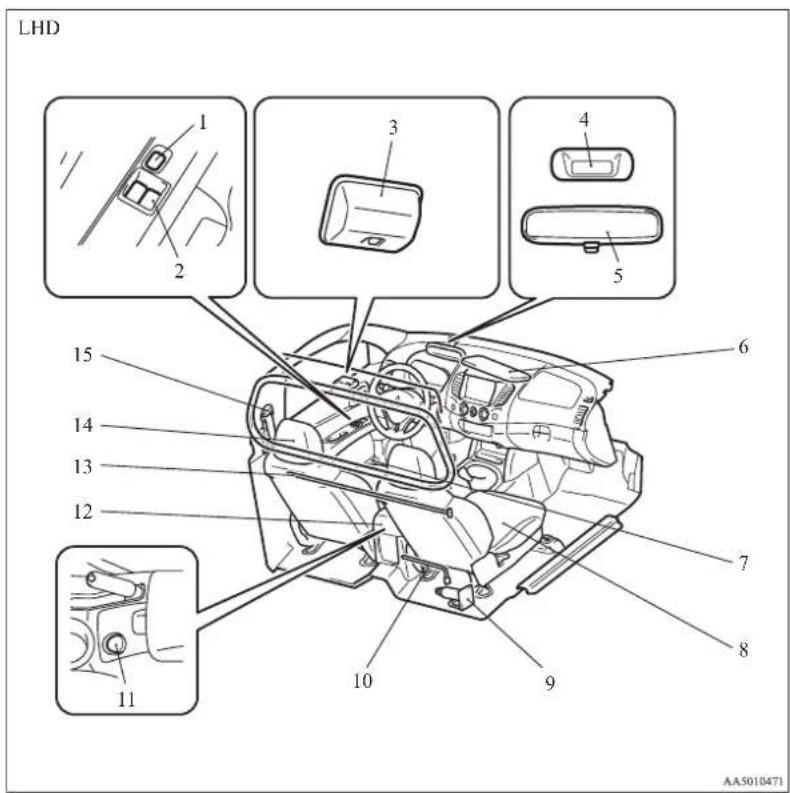

Interior (Single cab)

10010820618

1. Lock switch* p. 3-11

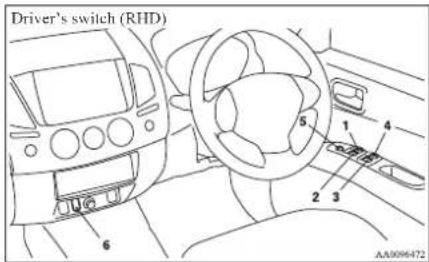

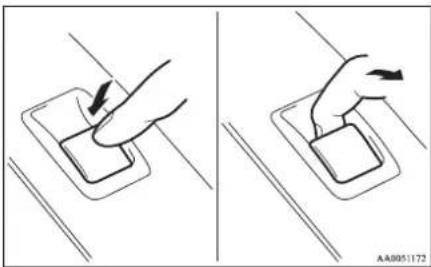

2. Electric window control switch* p. 3-09
3. Room lamp p. 7-110, 10-26, 10-36

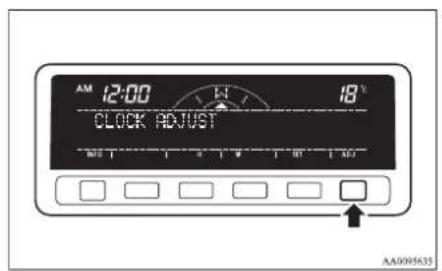

4. Digital clock p. 7-109
5. Inside rear-view mirror p. 6-09
6. Sun visors p. 7-106
7. Bottle holder p. 7-115

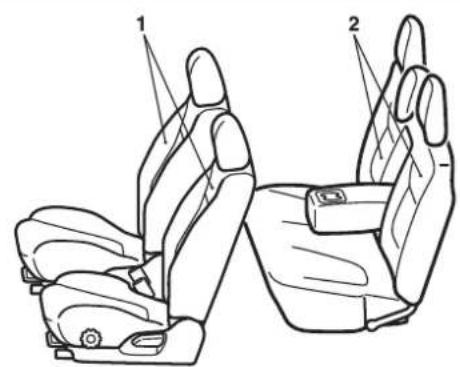

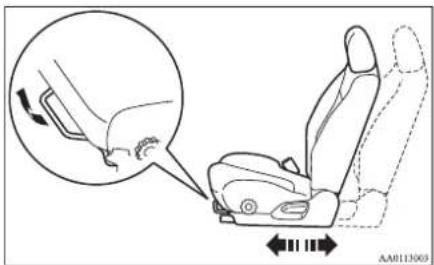

8. Front seats p. 4-04
9. Jack p. 8-07
10. Tools*1 p. 8-07
11. Accessory socket* p. 7-109
12. Floor console box* p. 7-113
13. Jack handle p. 8-07
14. Head restraints p. 4-08
15. Seat belts p. 4-10

NOTE: ^*1 - Tools differ according to the vehicle model.

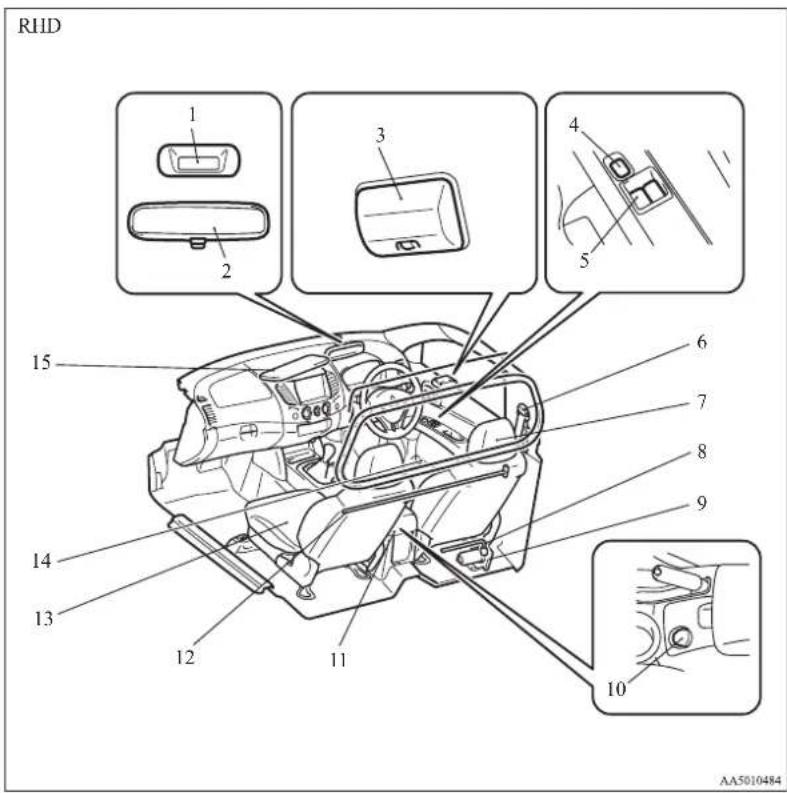

1. Digital clock p. 7-109
2. Inside rear-view mirror p. 6-09
3. Room lamp p. 7-110, 10-26, 10-36
4. Lock switch* p. 3-11
5. Electric window control switch* p. 3-09
6. Seat belts p. 4-10
7. Head restraints p. 4-08
8. Tools*1 p. 8-07
9. Jack p. 8-07
10. Accessory socket* p. 7-109
11. Floor console box* p. 7-113
12. Jack handle p. 8-07
13. Front seats p. 4-04
14. Bottle holder p. 7-115
15. Sun visors p. 7-106

NOTE: ^*1 - Tools differ according to the vehicle model.

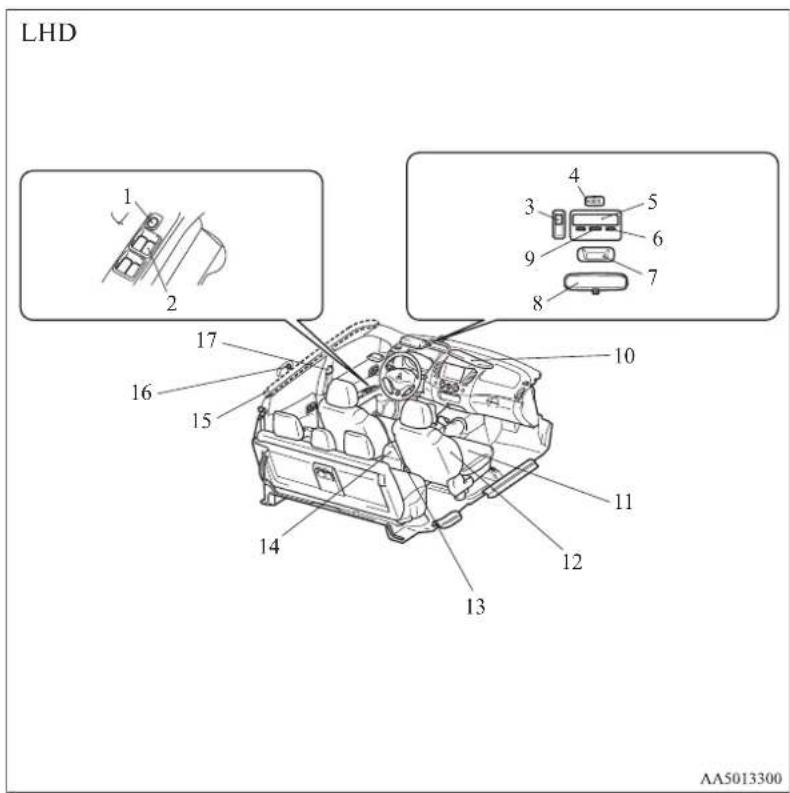

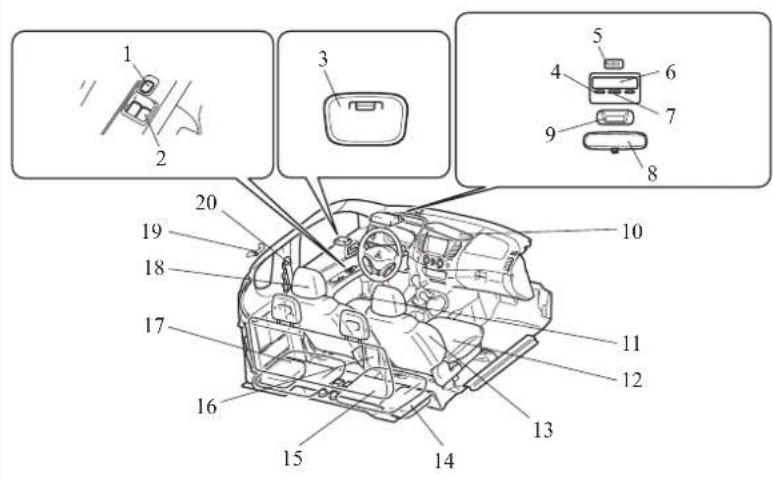

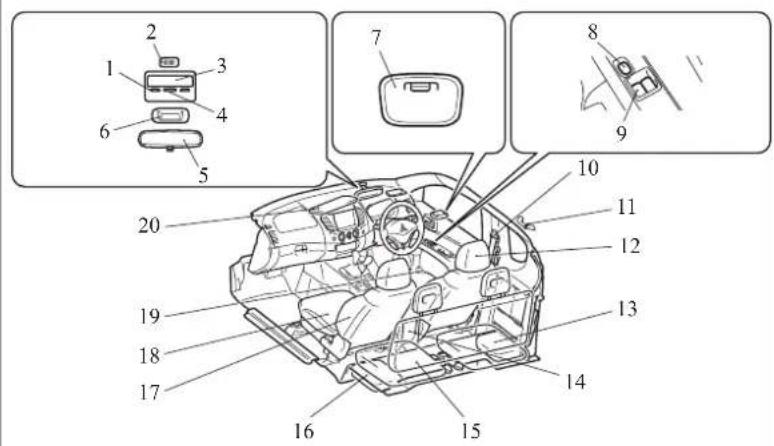

Interior (Club cab)

100100206194

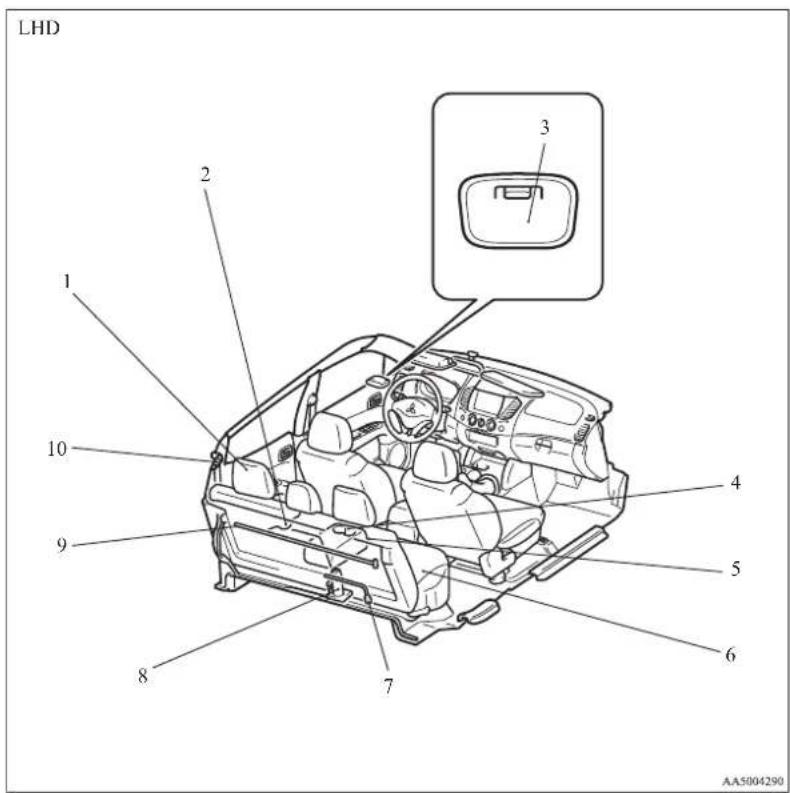

LHD

AA5013283

1. Lock switch* p. 3-11
2. Electric window control switch* p. 3-08
3. Room lamp (rear) p. 7-110, 10-26, 10-36
4. Personal lamps* p. 7-111, 10-26, 10-36
5. Microphone (for Hands-free & voice recognition)* p. 7-85
6. Sunglasses holder* p. 7-114
7. Room lamp (front)* p. 7-110, 10-26, 10-36
8. Inside rear-view mirror p. 6-09

9. Digital clock* p. 7-109

10. Sun visors p. 7-106

Card holder p. 7-106

Vanity mirror p. 7-107

1. Bottle holder p. 7-115
2. Front seats p. 4-04

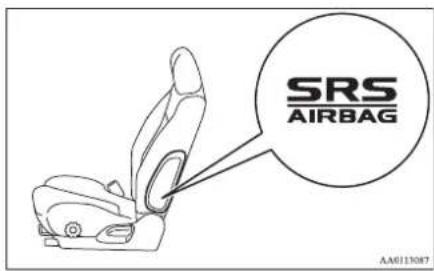

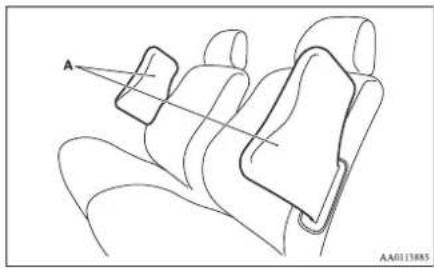

3. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 4-37
4. Secret box p. 7-114
5. Rear seat* p. 4-07
6. Floor console box p. 7-113

Accessory socket p. 7-109

Auxiliary Audio connector (RCA)* p. 7-43

1. Jack p. 8-07

Jack handle p. 8-07

Tools p. 8-07

1. Head restraints p. 4-08
2. Coat hook* p. 7-116
3. Scat belts p. 4-10

Adjustable seat belt anchor p. 4-12

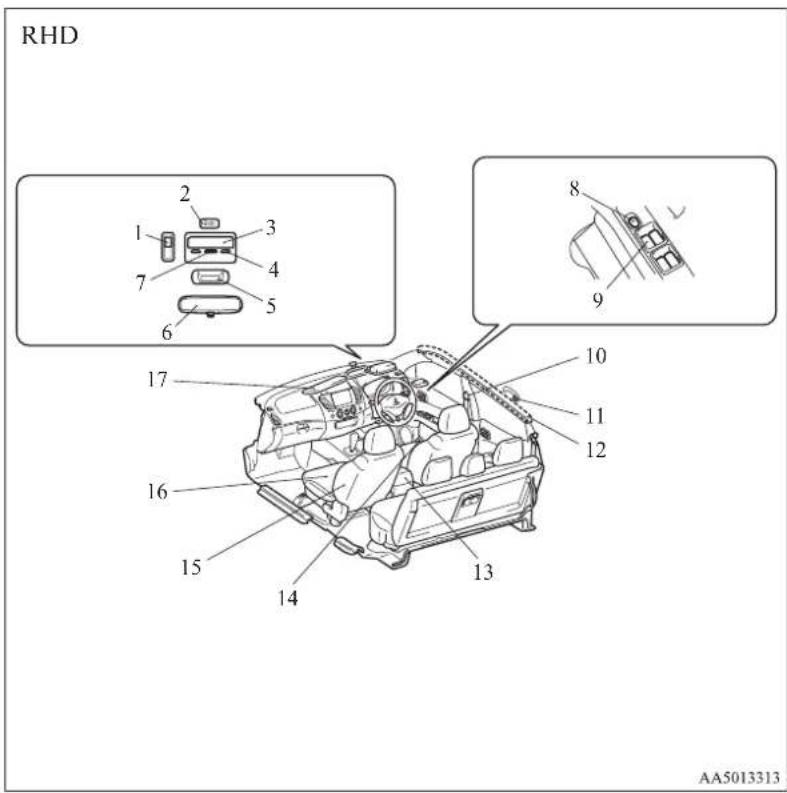

RHD

AA5013296

1. Personal lamps* p. 7-111, 10-26, 10-36

2. Microphone (for Hands-free & voice recognition)* p. 7-85

3. Sunglasses holder* p. 7-114

4. Room lamp (front)* p. 7-110, 10-26, 10-36

5. Inside rear-view mirror p. 6-09

6. Digital clock* p. 7-109

7. Room lamp (rear) p. 7-110, 10-26, 10-36

8. Lock switch* p. 3-11

9. Electric window control switch* p. 3-08

10. Seat belts p. 4-10

Adjustable seat belt anchor p. 4-12

1. Coat hook* p. 7-116

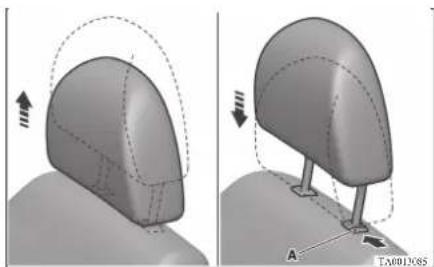

2. Head restraints p. 4-08

3. Secret box p. 7-114

4. Floor console box p. 7-113

Accessory socket p. 7-109

Auxiliary Audio connector (RCA)* p. 7-43

1. Rear seat* p. 4-07

2. Jack p. 8-07

Jack handle p. 8-07

Tools p. 8-07

1. Supplemental restraint system (SRS) - side airbag (for front seat)*

p. 4-37

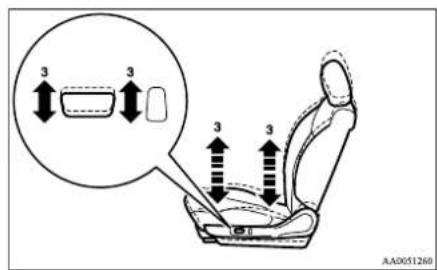

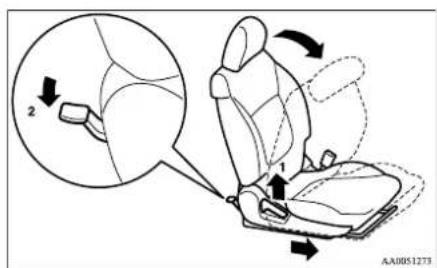

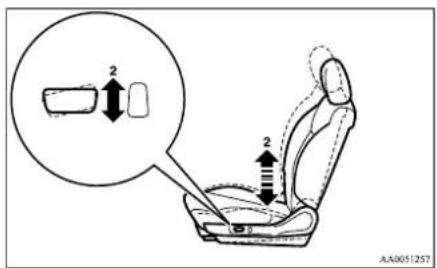

1. Front seats p. 4-04

2. Bottle holder p. 7-115

3. Sun visors p. 7-106

Card holder p. 7-106

Vanity mirror p. 7-107

Interior - front area (Double cab)

100100204695

1. Lock switch* p. 3-11
2. Electric window control switch* p. 3-09

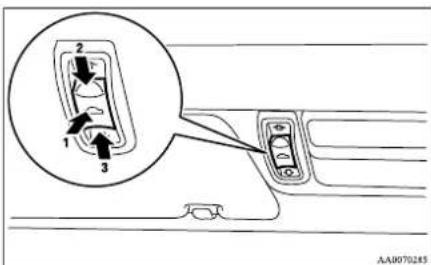

3. Sunroof switch* p. 3-14
4. Microphone (for Hands-free & voice recognition)* p. 7-85
5. Sunglasses holder p. 7-114
6. Personal lamps p. 7-111, 10-26, 10-36

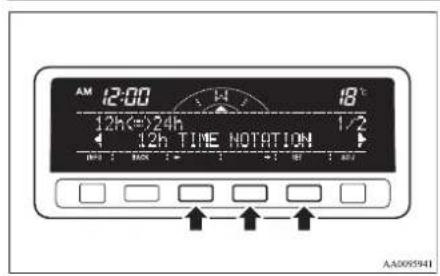

7. Digital clock* p. 7-109
8. Inside rear-view mirror p. 6-09
9. Room lamp (front) p. 7-110, 10-26, 10-36
10. Sun visors p. 7-106

Card holder p. 7-106

Vanity mirror p. 7-107

1. Front seats p. 4-04
2. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 4-37
3. Bottle holder p. 7-115
4. Floor console box p. 7-113

Accessory socket* p. 7-109

Auxiliary Audio connector (RCA)* p. 7-43

1. Supplemental restraint system (SRS) - curtain airbag* p. 4-37
2. Coat hook* p. 7-116
3. Seat belts p. 4-10

Adjustable seat belt anchor (front seats) p. 4-12

1. Sunroof switch* p. 3-14
2. Microphone (for Hands-free & voice recognition)* p. 7-85
3. Sunglasses holder p. 7-114
4. Personal lamps p. 7-111, 10-26, 10-36
5. Digital clock* p. 7-109
6. Inside rear-view mirror p. 6-09
7. Room lamp (front) p. 7-110, 10-26, 10-36
8. Lock switch* p. 3-11
9. Electric window control switch* p. 3-09

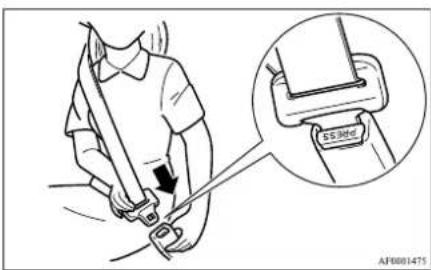

10. Seat belts p. 4-10
    Adjustable seat belt anchor (front seats) p. 4-12
11. Coat hook* p. 7-116
12. Supplemental restraint system (SRS) - curtain airbag* p. 4-37
13. Floor console box p. 7-113
    Accessory socket* p. 7-109
    Auxiliary Audio connector (RCA)* p. 7-43
14. Bottle holder p. 7-115
15. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 4-37
16. Front seats p. 4-04
17. Sun visors p. 7-106
    Card holder p. 7-106
    Vanity mirror p. 7-107

Interior - rear area (Double cab)

1 Interior - rear area (Double cab)

100108201144

1. Head restraints p. 4-08
2. Bottle holder p. 7-115
3. Room lamp (rear)* p. 7-110, 10-26, 10-36
4. Cup holder p. 7-115

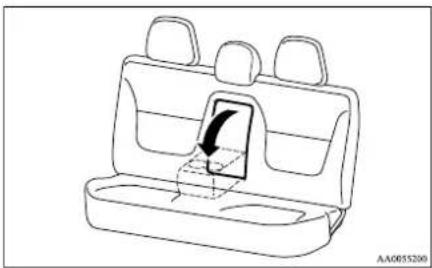

5. Armrest (for rear seat) p. 4-08
6. Rear seats p. 4-07
7. Tools*1 p. 8-07
8. Jack p. 8-07
9. Jack handle*1 p. 8-07
10. Seat belts (for rear seats) p. 4-10

NOTE:*1- Tools differ according to the vehicle model.

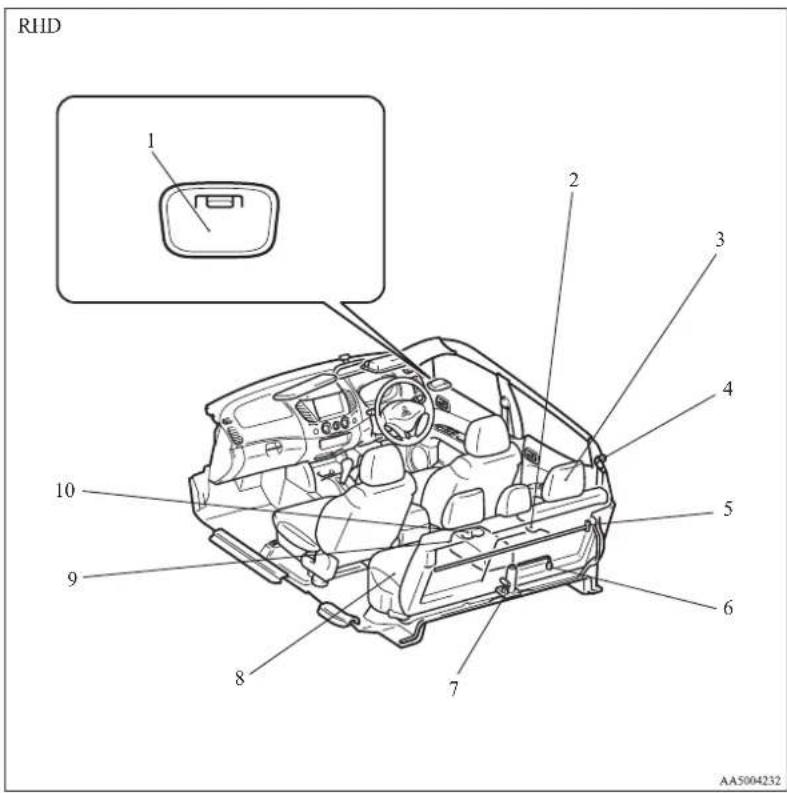

1. Room lamp (rear)* p. 7-110, 10-26, 10-36

2. Bottle holder p. 7-115

3. Head restraints p. 4-08

4. Seat belts (for rear seats) p. 4-10

5. Jack handle*1 p. 8-07

6. Tools ^*1 p. 8-07

7. Jack p. 8-07

8. Rear seats p. 4-07

9. Armrest (for rear seat) p. 4-08

10. Cup holder p. 7-115

NOTE: ^*1 - Tools differ according to the vehicle model.

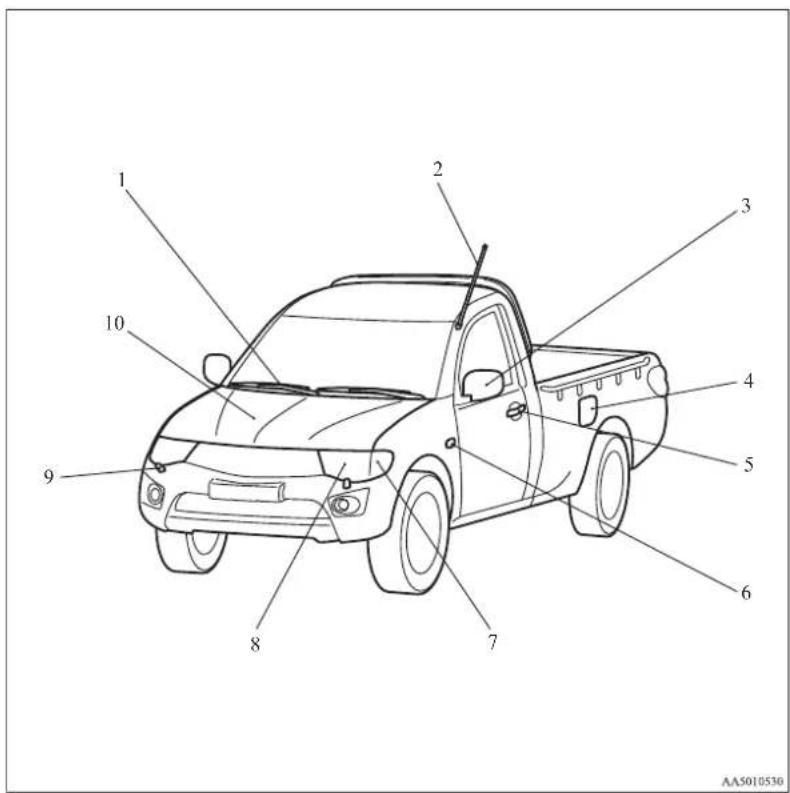

Exterior - front (Single cab)

1

Exterior - front (Single cab)

100100503952

1. Wiper and washers p. 5-38
2. Antenna p. 7-83
3. Outside rear-view mirrors p. 6-10
4. Fuel tank filler door p. 2-02
5. Locking and unlocking p. 3-02
6. Side turn-signal lamps p. 5-36, 10-25, 10-30
7. Front turn-signal lamps p. 5-36, 10-25, 10-29
8. Headlamps p. 5-32, 10-25, 5-35
   Position lamps p. 5-32, 10-25, 10-29
9. Headlamp washers* p. 5-42
10. Engine compartment p. 11-22
    Bonnet p. 10-03

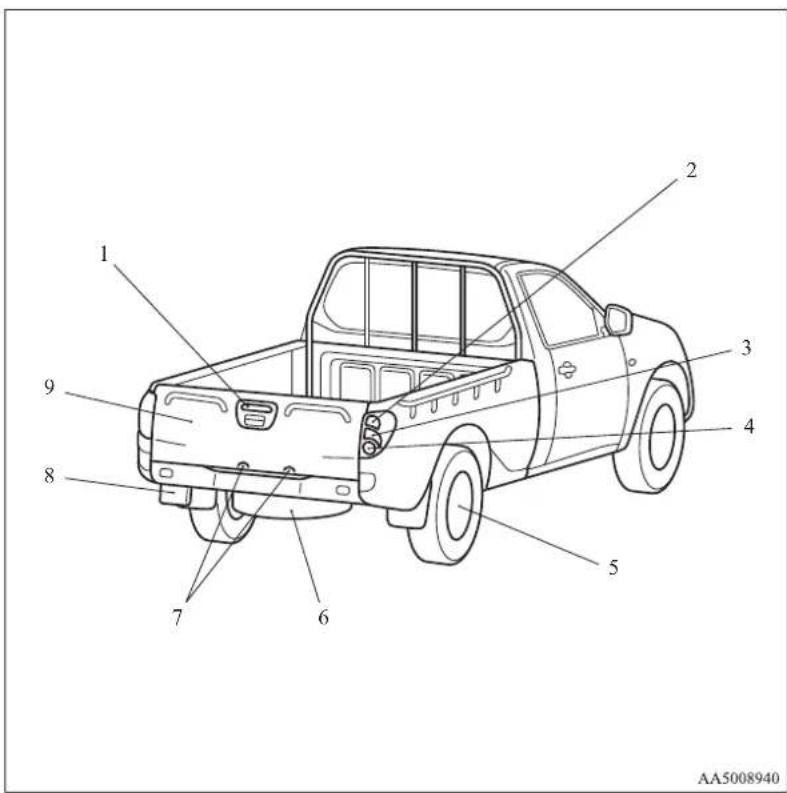

Exterior - rear (Single cab)

100100505419

1. High-mounted stop lamp p. 10-25, 10-34
2. Rear turn-signal lamps p. 5-36, 10-25, 10-33
3. Stop and tail lamps p. 5-32, 10-25, 10-33
4. Reversing lamps p. 10-25, 10-33
5. Tyre inflation pressures p. 10-12
   Changing tyres p. 8-18
   Tyre rotation p. 10-14
   Tyre chains p. 10-15
6. Spare wheel p. 8-17
7. Licence plate lamps p. 5-32, 10-25, 10-35
8. Rear fog lamp (Driver's side only) p. 5-38, 10-25, 10-33

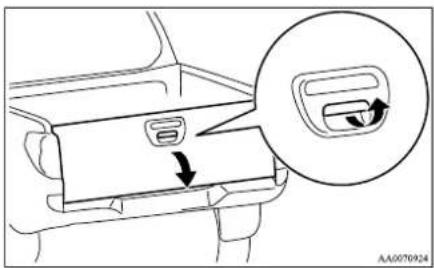

9. Rear gate p. 3-11

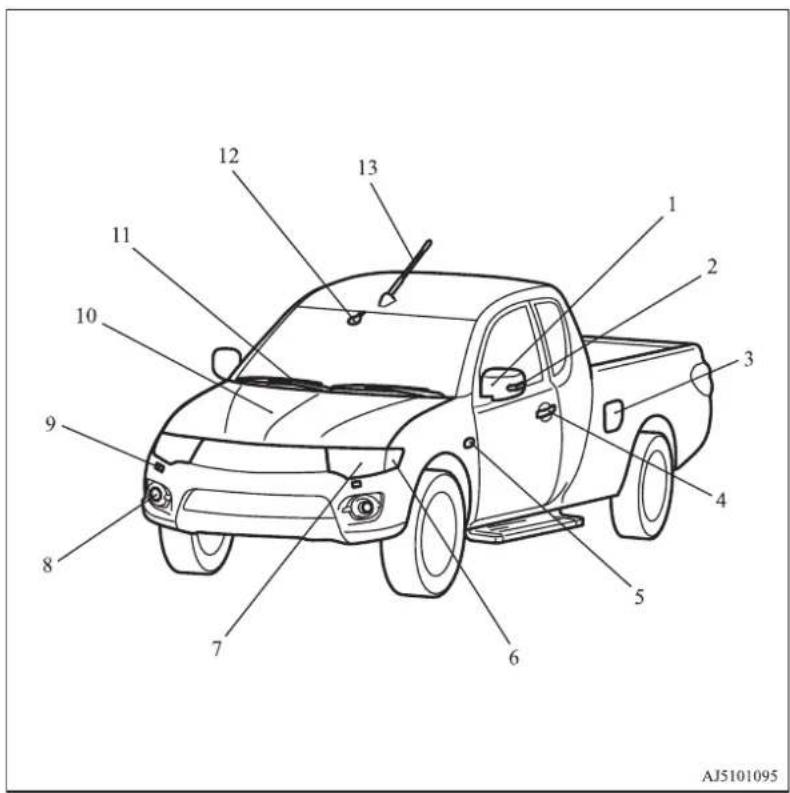

Exterior - front (Club cab)

100100506852

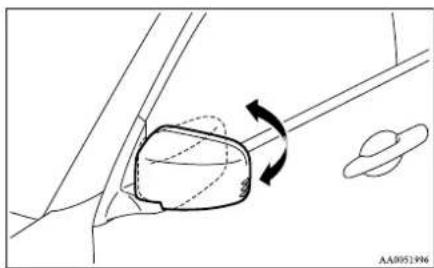

1. Outside rear-view mirrors p. 6-10
2. Side turn-signal lamps* p. 5-36, 10-25, 10-30
3. Fuel tank filler door p. 2-02
4. Locking and unlocking p. 3-02 Keyless entry system* p. 3-04
5. Side turn-signal lamps* p. 5-36, 10-25, 10-30
6. Front turn-signal lamps p. 5-36, 10-25, 10-30
7. Headlamps p. 5-32, 10-25, 10-27 Position lamps p. 5-32, 10-25, 10-29
8. Front fog lamps* p. 5-37, 10-25, 10-30
9. Headlamp washers* p. 5-42
10. Bonnet p. 10-03
    Engine compartment p. 11-22
11. Wiper and washers p. 5-38
12. Rain sensor* p. 5-39
13. Antenna p. 7-83

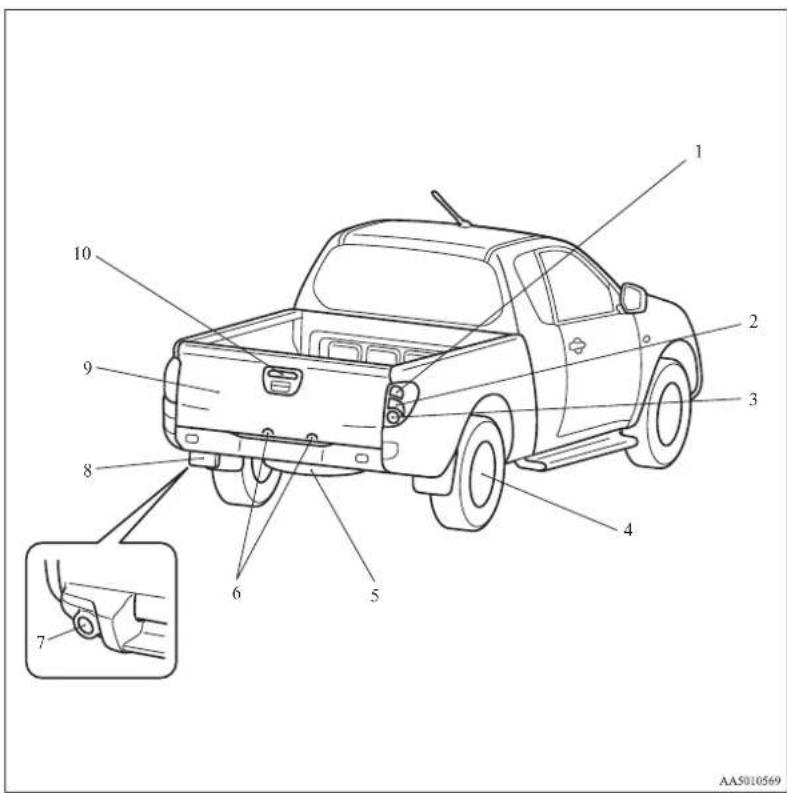

Exterior - rear (Club cab)

L00100505057

1. Rear turn-signal lamps p. 5-36, 10-25, 10-33
2. Stop and tail lamps p. 5-32, 10-25, 10-33
3. Reversing lamps p. 10-25, 10-33
4. Tyre inflation pressures p. 10-12
   Changing tyres p. 8-18
   Tyre rotation p. 10-14
   Tyre chains p. 10-15
5. Spare wheel p. 8-17
6. Licence plate lamps Type 1 p. 5-32, 10-25, 10-35
7. Rear fog lamp (Driver's side only) Type 2* p. 5-38, 10-25, 10-33
8. Rear fog lamp (Driver's side only) Type 1* p. 5-38, 10-25, 10-33
9. Rear gate p. 3-11
10. High-mounted stop lamp p. 10-25, 10-34

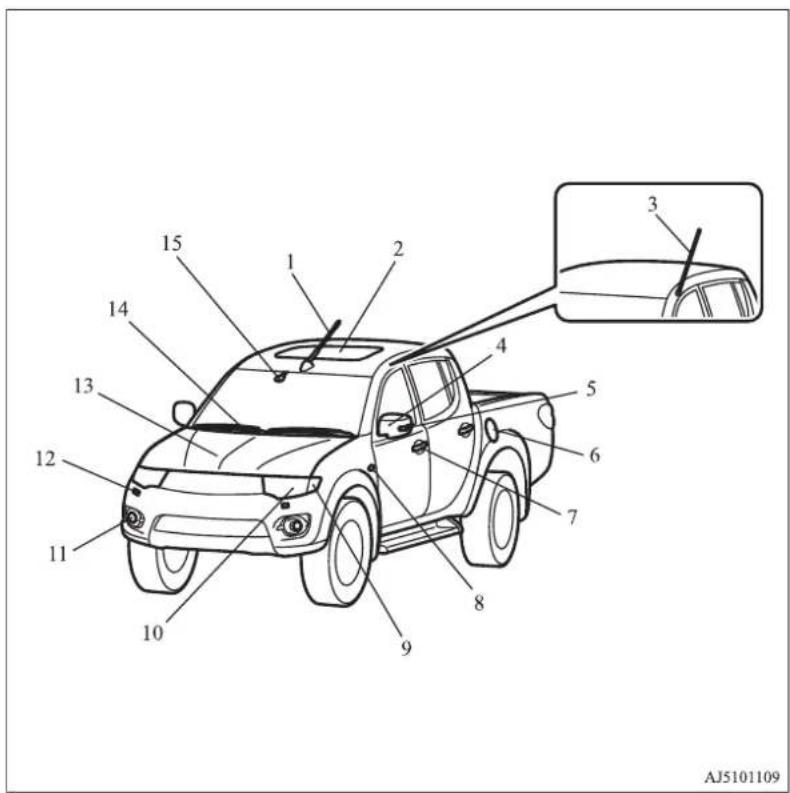

Exterior - front (Double cab)

100100506865

1. Antenna* p. 7-83

2. Sunroof* p. 3-14

3. Antenna* p. 7-83

4. Outside rear-view mirrors p. 6-10

5. Side turn-signal lamps* p. 5-36, 10-25, 10-30

6. Fuel tank filler door p. 2-02

7. Locking and unlocking p. 3-02 Keyless entry system* p. 3-04

8. Side turn-signal lamps* p. 5-36, 10-25, 10-30

9. Front turn-signal lamps p. 5-36, 10-25, 10-30

10. Headlamps p. 5-32, 10-25, 10-27

Position lamps p. 5-32, 10-25, 10-29

1. Front fog lamps* p. 5-37, 10-25, 10-30

2. Headlamp washers* p. 5-42

3. Bonnet p. 10-03

Engine compartment p. 11-22

1. Wiper and washers p. 5-38

2. Rain sensor* p. 5-39

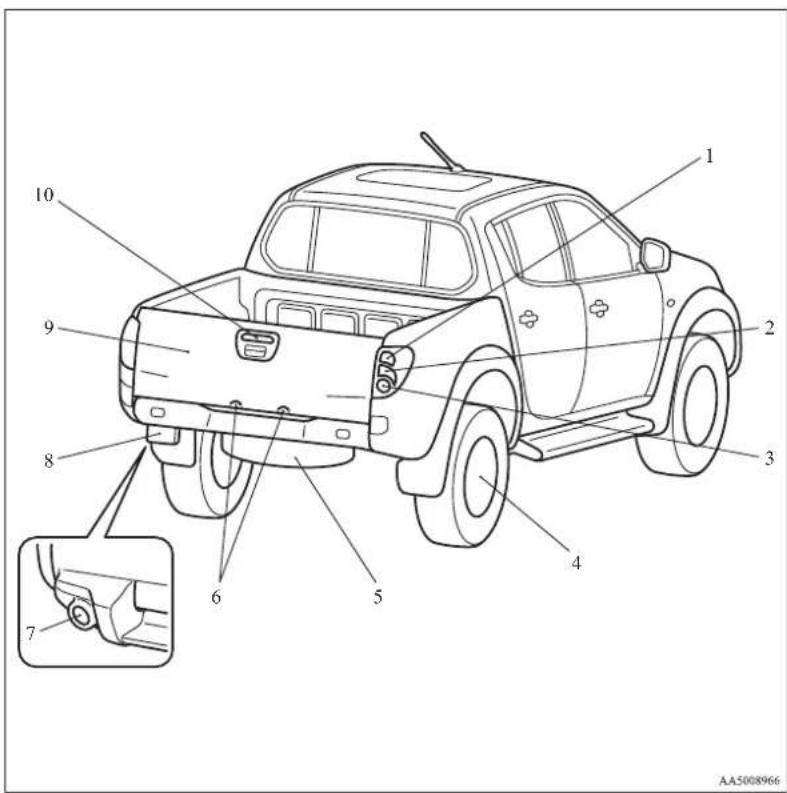

Exterior - rear (Double cab)

100100505060

1. Rear turn-signal lamps p. 5-36, 10-25, 10-33

2. Stop and tail lamps p. 5-32, 10-25, 10-33

3. Reversing lamps p. 10-25, 10-33

4. Tyre inflation pressures p. 10-12

Changing tyres p. 8-18

Tyre rotation p. 10-14

Tyre chains p. 10-15

1. Spare wheel p. 8-17

2. Licence plate lamps Type 1 p. 5-32, 10-25, 10-35

3. Rear fog lamp (Driver's side only) Type 2* p. 5-38, 10-25, 10-33

4. Rear fog lamp (Driver's side only) Type 1* p. 5-38, 10-25, 10-33

5. Rear gate p. 3-11

6. High-mounted stop lamp p. 10-25, 10-34

General information

Fuel selection.... 2-02

Filling the fuel tank....2-02

Installation of accessories.... 2-03

Modification/alterations to the electrical or fuel systems.... 2-04

Genuine parts.... 2-04

Used engine oils safety instructions and disposal information.... 2-05

Disposal information for used batteries.... 2-05

Fuel selection

Fuel selection

100200102907

Recommended fuel

Cetane number (EN590) 51 or higher

CAUTION

- Your vehicle is designed to use only diesel fuel that meets the EN590 standard. Use of any other type of diesel fuel would adversely affect the engine's performance and durability.

NOTE

- Due to the separation of paraffin, the fluidity of the fuel decreases considerably as the temperature falls. Because of this fact there are two kinds of fuel: “summer” and “winter”. This must be considered in winter use. Select either of the two kinds of fuel in accordance with ambient temperature. Above -5 °C: “Summer” diesel Below -5 °C: “Winter” diesel When travelling abroad, find out in advance about the fuels served in local service stations.

NOTE

- Poor-quality diesel fuel can cause deposits to form in the injector, resulting in black smoke and rough idling. If these problems occur, you are advised to add a cleaning additive to the diesel fuel when you refuel the vehicle. The additive will break up and remove the deposits, thereby returning the engine to a normal condition. Be sure to use a MITSUBISHI MOTORS GENUINE DIESEL FUEL SYSTEM CLEANER. Using an unsuitable additive could make the engine malfunction. For details, please contact a MITSUBISHI MOTORS Authorized Service Point.

Filling the fuel tank

E00200202025

WARNING

• When handling fuel, comply with the safety regulations displayed by garages and filling stations.
  Before removing the fuel cap, be sure to get rid of your body's static electricity by touching a metal part of the car or the fuel pump. Any static electricity on your body could create a spark that ignites fuel vapour.

WARNING

● Perform the whole refueling process (opening the fuel tank filler door, removing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapour could be ignited.
- Do not move away from the fuel tank filler until refueling is finished. If you moved away and did something else (for example, cleaning your windscreen) partway through the refueling process, you could pick up a fresh charge of static electricity.
- If the tank cap must be replaced, use only a MITSUBISHI MOTORS original part.

Fuel tank capacity

75 litres

Refueling

1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear left side of your vehicle.
   Type 1

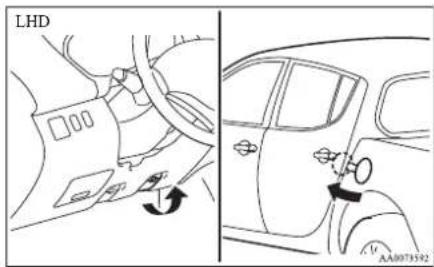

Open the fuel tank filler door with the release lever located below the instrument panel.

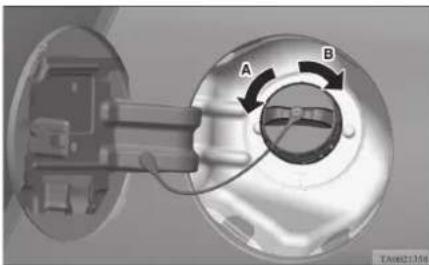

1. Open the fuel tank filler tube by slowly turning the cap anticlockwise.

Mechanical component diagram showing a rotating dial with labeled points A and B (no text or symbols beyond labels)

A- Remove B- Close
Type 2

Slide the cover (1). Insert the key in the cap (2) and unlock it. Turn the cap and remove it.

OKTE15E3

CAUTION

- Since the fuel system may be under pressure, remove the fuel tank filler tube cap slowly. This relieves any pressure or vacuum that might have built up in the fuel tank. If you hear a hissing sound, wait until it stops before removing the cap. Otherwise, fuel may spray out, injuring you or others.

1. Insert the gun in the tank port as far as it goes. Do not tilt the gun.

2. When the gun stops automatically, do not fill with fuel any more.

3. To close, turn the fuel tank filler tube cap slowly clockwise until you hear clicking sounds, then gently push the fuel tank filler door closed.

Installation of accessories

E00200300875

We recommend you to consult your MITSUBISHI MOTORS Authorized Service Point.

● The installation of accessories, optional parts, should only be carried out within the limits prescribed by law in your country, and in accordance with the guidelines fitting instructions and warnings contained within the documents accompanying the parts or accessories.

Modification/alterations to the electrical or fuel systems

• Improper installation of electrical components may cause an electrical fire if incorrectly fitted. Please refer to the Modification/alteration to the electrical or fuel systems section within this owner's manual.
• Using a cellular phone or radio set inside the vehicle without an external antenna may cause electrical system interference, which could lead to unsafe vehicle operation.
• Tyres and wheels which do not meet specifications must not be used. Refer to the “Specifications” section for information regarding wheel and tyre sizes.
• When fitting accessories, ensure that maximum gross vehicle weight and maximum axle weight are not exceeded.

Important points!

Due to large number of accessory and replacement parts of different manufactures available in the market, it is not possible, not only for MITSUBISHI MOTORS, but also for a MITSUBISHI MOTORS Authorized Service Point, to check whether the attachment or installation of such parts affects the overall safety of your MITSUBISHI-vehicle. Even when such parts are officially authorized, for example by a “general operators permit” (an appraisal for the part) or through the execution of the part in an officially approved manner of construction, or when a single operation permit following the attachment or installation of such parts, it cannot be deduced from that alone, that the driving safety of your vehicle has not been affected.

Consider also that there basically exists no liability on the part of the appraiser or the official. Only in the case of parts (MITSUBISHI MOTORS original replacement or exchange parts as well as MITSUBISHI MOTORS genuine accessories) that are recommended and released by a MITSUBISHI MOTORS Authorized Service Point and that are attached or installed by a MITSUBISHI MOTORS Authorized Service Point can you assume, that optimal safety has been provided. The same also pertains to modifications of MITSUBISHI vehicle with respect to the production specifications. For your own safety, in such cases, you should only undertake modifications according to the recommendations of a MITSUBISHI MOTORS Authorized Service Point.

Modification/alterations to the electrical or fuel systems

E00200400238

MITSUBISHI MOTORS CORPORATION has always manufactured safe, high quality vehicles. In order to maintain this safety and quality, it is important that any accessory that is to be fitted, or any modifications carried out which involve the electrical or fuel systems, should be carried out in accordance with MITSUBISHI guidelines.

CAUTION

- If the wiring interferes with any part of the vehicle bodywork or improper installation methods are used, i.e. protective fuses not installed, etc.), electronic devices may be adversely affected, possibly resulting in an electrical fire or other failures that may cause an accident.

Genuine parts

E00200500545

MITSUBISHI MOTORS has gone to great lengths to bring you a superbly crafted automobile offering the highest quality and dependability.

Use MITSUBISHI MOTORS Genuine Parts, designed and manufactured to maintain your MITSUBISHI MOTORS automobile at top performance. MITSUBISHI MOTORS Genuine Parts are identified by this mark and are available at all MITSUBISHI MOTORS Authorized Service Points.

Used engine oils safety instructions and disposal information

E00200600025

WARNING

● Prolonged and repeated contact may cause serious skin disorders, including dermatitis and cancer.
● Avoid contact with the skin as far as possible and wash thoroughly after any contact.
- Keep used engine oils out of reach of children.

Protect the environment

It is illegal to pollute drains, water courses and soil. Use authorized waste collection facilities, including civic amenity sites and garages providing facilities for disposal of used oil and used oil filters. If in doubt, contact your local authority for advice on disposal.

Disposal information for used batteries

E00201300029

Your vehicle contains batteries and/or accumulators.

Do not mix with general household waste.

For proper treatment, recovery and recycling of used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2006/66/EC.

By disposing of these batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

OKTE15E3

General information

Locking and unlocking

Keys.... 3-02

Electronic immobilizer (Anti-theft starting system).... 3-02

Keyless entry system* 3-04

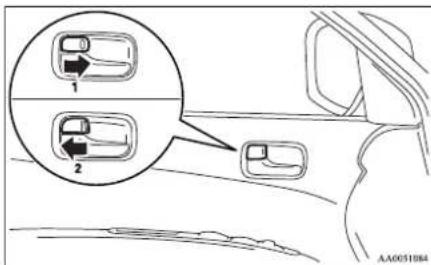

Doors....3-06

Central door locks* 3-07

"Child-protection" rear doors (Double cab)....3-08

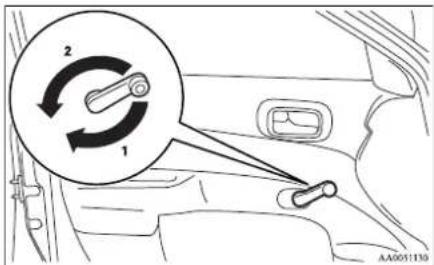

Manual window control* 3-08

Electric window control* 3-08

Quarter window (Club cab)....3-13

Rear gate.... 3-14

Sunroof* 3-14

Keys

Keys

E00300101608

Two keys are provided. The key fits all locks. Keep one in a safe place as a spare key.

WARNING

- When taking a key on flights, do not press any switches on the key while on the plane. If a switch is pressed on the plane, the key emits electromagnetic waves, which could adversely affect the plane's flight operation.

When carrying a key in a bag, be careful that no switches on the key can be easily pressed by mistake.

NOTE

● The key number is stamped on the tag as indicated in the illustration.

Make a record of the key number and store the key and key number tag in separate places, so that you can order a key in the event the original keys are lost.

● The key is a precision electronic device with a built-in signal transmitter. Please observe the following in order to prevent a malfunction.

• Do not leave in a place that is exposed to direct sunlight, for example on the dashboard.
• Do not disassemble or modify.
• Do not excessively bend the key or subject it to strong impacts.
• Do not expose to water.
• Keep away from magnetic key holders.
• Keep away from audio systems, personal computers, TVs, and other equipment that generates a magnetic field.

NOTE

- Do not clean with ultrasonic cleaners of similar equipment.

- Do not leave the key where it may be exposed to high temperature or high humidity.

- The engine is designed so that it will not start if the ID code registered in the immobilizer computer and the key's ID code do not match. Refer to the "Electronic immobilizer" section for details and key usage.

Electronic immobilizer (Anti-theft starting system)

ED0300203094

The electronic immobilizer is designed to significantly reduce the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is attempted. A valid start attempt can only be achieved (subject to certain conditions) using a keyless operation system “registered” to the immobilizer system.

NOTE

- In the following cases, the vehicle may not be able to receive the registered ID code from the key. This means the engine will not start even when the registered key is turned to the "START" position.

Electronic immobilizer (Anti-theft starting system)

NOTE

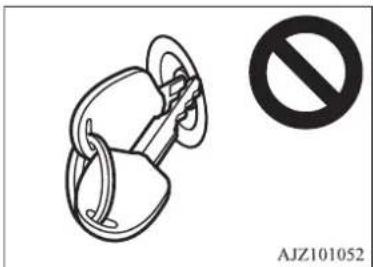

- When the key contacts a key ring or other metallic or magnetic object

- When the key grip contacts metal of another key

Simple line drawing of a keyhole with a no-smoking symbol (no text or labels)

- When the key contacts or is close to other immobilizing keys (including keys of other vehicles)

NOTE

In cases like these, remove the object or additional key from the vehicle key and turn the key back to the "ACC" or "LOCK" position. Then try again to start the engine. If the engine does not start, we recommend you to contact your MITSUBISHI MOTORS Authorized Service Point.

NOTE

- Two keys are provided. If you lose one of them, order a replacement as soon as possible. To obtain a key, take your vehicle and all remaining keys to a MITSUBISHI MOTORS Authorized Service Point. If you need an extra spare key, take your vehicle and all the keys to a MITSUBISHI MOTORS Authorized Service Point. All the keys have to be re-registered in the immobilizer computer unit. The immobilizer allows up to 8 different ID codes to be registered, you can register a maximum of 8 keys for use.

CAUTION

- Don't make any alterations or additions to the immobilizer system; alterations or additions could cause failure of the immobilizer.

Keyless entry system*

Keyless entry system\*

100300301860

Press the remote control switch, and all doors will be locked or unlocked as desired.

AA0044750

1- LOCK switch
2- UNLOCK switch
3- Indication lamp

To lock

Press the LOCK switch (1), and all doors will be locked. When they are locked with the room lamp at the [•] position, the room lamp and the turn-signal lamps blink once.

To unlock

Press the UNLOCK switch (2), and all doors will be unlocked. When unlocked with the room lamp at the [•] position, the room lamp will be turned on for approximately 15 seconds and the turn-signal lamps will blink twice.

NOTE

● The indication lamp (3) comes on each time a switch is pressed.
- If the UNLOCK switch (2) is pressed and any of the doors is not opened within approximately 30 seconds, relocking will automatically occur.
- It is possible to modify functions as follows: For further information, please contact your MITSUBISHI MOTORS Authorized Service Point.
- The time from pressing the UNLOCK switch (2) to the moment of automatic locking can be changed.
- The confirmation function (flashing of the turn-signal lamps) can be set to operate only when the doors are locked or only when the doors are unlocked.
- The confirmation function (this indicates locking or unlocking of the doors with the blink of the turn-signal lamps) can be deactivated.

NOTE

• The number of times the turn-signal lamps are flashed by the confirmation function can be changed.
  ● The keyless entry system does not operate in the following conditions:
  • The key is left in the key cylinder.
• The door is open.
• The remote control switch will operate within approximately 4 m from the vehicle. However, the operating range of the remote control switch may change if the vehicle located near a power station, or radio/TV broadcasting station.
• If either of the following problems occurs the battery may be exhausted.
• The remote control switch is operated at the correct distance from the vehicle, but the doors are not locked/unlocked in response.
• The indication lamp (3) is dim or does not come on.
  For further information, please contact your MITSUBISHI MOTORS Authorized Service Point.
  If you replace the battery yourself, refer to "Procedure for replacing the remote control switch battery" on page 3-05.
• If your remote control switch is lost or damaged, please contact your MITSUBISHI MOTORS Authorized Service Point for a replacement remote control switch.

NOTE

- If you wish to add a remote control switch, we recommend you to contact a MITSUBISHI MOTORS Authorized Service Point. A maximum of 4 remote control switches are available for your vehicle.

Procedure for replacing the remote control switch battery

F00309500190

1. Before replacing the battery, remove static electricity from your body by touching.
2. Remove the screw (A) from the remote control switch.

1. With the MITSUBISHI mark facing you, insert the cloth-covered tip of a straight blade (or minus) screwdriver in-

to the notch in the remote control switch case and use it to open the case.

Line drawing of a screwdriver with a handle and screwdriver tip, showing mechanical components (no text or symbols)

NOTE

- Be sure to perform the procedure with the MITSUBISHI mark facing you. If the MITSUBISHI mark is not facing you when you open the remote control switch case, the switches may come out.

1. Remove the remote control transmitter from the remote control switch case. Then, open the remote control transmitter using the method described in step 3.

Line drawing of a tool with a handle and screwdriver, no text or symbols present

1. Remove the old battery.
2. Install a new battery with the + side (B) down.

1. Close the remote control transmitter firmly.

Doors

1. Place the remote control transmitter in the remote control switch case, then securely close the remote control switch case.
2. Attach the screw (A) removed in step 2.
3. Check the keyless entry system to see that it works.

NOTE

● You may purchase a replacement battery at an electric appliance store.
● A MITSUBISHI MOTORS Authorized Service Point can replace the battery for you if you prefer.

CAUTION

- When the remote control switch case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal components.

Doors

ED030401584

CAUTION

● Make sure the doors are closed: driving with doors not completely closed is dangerous.
● Never leave children in the vehicle unattended.

CAUTION

● Be careful not to lock the doors while the key is inside the vehicle.

NOTE

- To prevent the key from being locked inside the vehicle, neither the lock knob on the driver's door nor the key can be used to lock the driver's door when it is open.

To lock or unlock with the key

1- Insert or remove the key
2-Lock
3- Unlock

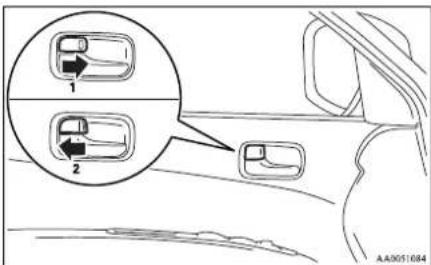

To lock or unlock from inside the vehicle

1-Lock
2- Unlock

Pull the inside door handle towards you to open the door.

NOTE

- The driver's door can be opened without using the lock knob by pulling on the inside door handle. If your vehicle is equipped with the central door lock system, all other doors are unlocked at the same time.

To lock without using the key

Set the inside lock knob (1) to the locked position, and close the door (2).

NOTE

- The driver's door cannot be locked using the inside lock knob while the driver's door is opened.

● Each of the doors can be locked or unlocked independently by using the inside lock knob.

NOTE

● Repeated continuous operation between lock and unlock could activate the central door locking systems built-in protection circuit and prevent the system from operating. If this occurs, wait about 1 minute before operating the inside lock knob or the key.

All of the doors can be locked and unlocked as described hereafter.

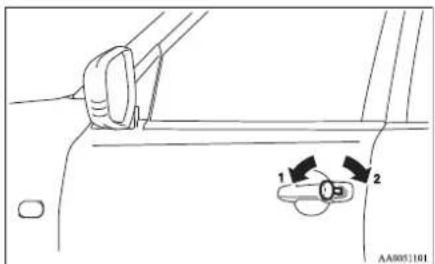

Driver's door with key

Turn the key in the driver's door towards the front of the vehicle to lock the doors and towards the rear of the vehicle to unlock the doors.

1-Lock
2- Unlock

Driver's door with inside lock knob

Set the inside lock knob on the driver's door towards the front of the vehicle to lock the doors. Set it towards the rear of the vehicle to unlock the doors.

1-Lock
2- Unlock

"Child-protection" rear doors (Double cab)

Unlocking doors using selector lever (vehicle with keyless entry system)

It is possible to unlock all of the doors using the selector lever by placing in the "P" position while the ignition switch is in the "ON" position.

Line drawing of a parking lift with a parking tag and circular symbol (no text or labels)

NOTE

- The vehicle is shipped from the factory with a setting established such that the doors are not unlocked when the selector lever is placed in the "P" position with the ignition switch in the "ON" position. If you wish to change the setting such that the doors are unlocked, contact your MITSUBISHI MOTORS Authorized Service Point.

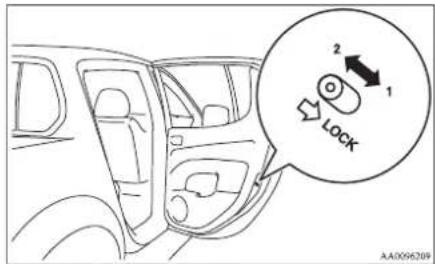

"Child-protection" rear doors (Double cab)

E00300900742

1-Lock

2- Unlock

Child protection helps prevent doors from being opened accidentally, especially when small children are in the rear seat.

A lever is provided on each rear door.

If the lever is set to the locked position, the rear door cannot be opened using the inside handle.

To open the rear door while the child protection is in use, pull the outside door handle.

If the lever is set to the "Unlock" position, the child protection mechanism does not function.

CAUTION

- When driving with a child in the rear seat, please use the child protection to prevent accidental door opening which may cause an accident.

Manual window control\*

ED0302100067

1- To open

2- To close

Electric window control\*

ED0302200127

The electric windows can only be operated with the ignition switch in the "ON" position.

WARNING

● Before operating the electric window control, make sure that nothing can get trapped (head, hand, finger, etc.).
● Never leave the vehicle without removing the key.

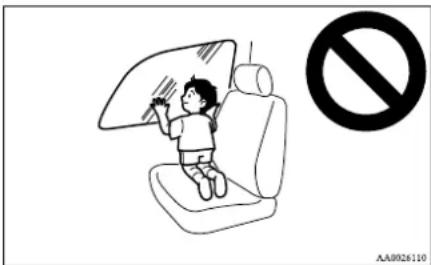

● Never leave a child (or other person who might not be capable of safe operation of the electric window control) in the vehicle alone.
● The child may tamper with the switch at the risk of its hands or head being trapped in the window.

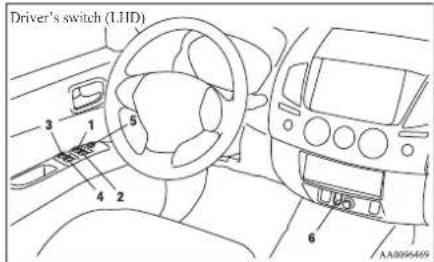

Electric window control switch

E00302301431

Each window opens or closes while the corresponding switch is operated.

1- Driver's door window
2- Front passenger's door window
3- Rear left door window (Double cab)
4- Rear right door window (Double cab)
5- Lock switch
6- Rear retractable power window (Double cab)*

The switches can be used to operate all door windows. A window can be opened or closed by operating the corresponding switch.

Press the switch down to open the window, and pull up the switch to close it.

Two-step diagram showing a hand pressing a button on a surface, with no text or symbols present.

If the switch is fully pressed down/pulled up, the door window automatically opens/closes completely.

If you want to stop the window movement, operate the switch lightly in the reverse direction.

NOTE

● Repeated operation with the engine stopped will run down the battery. Operate the window switches only while the engine is running.
● The rear door windows only open halfway.

Electric window control*

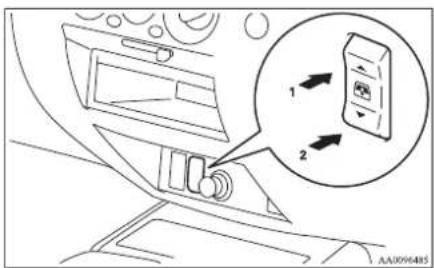

Rear retractable power window switch (Double cab)\*

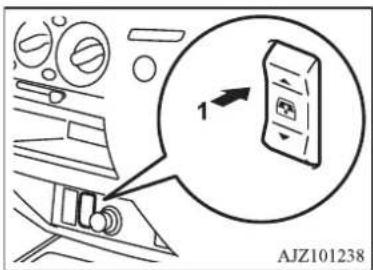

The rear retractable power window switch can be used to operate the rear retractable power window. The rear retractable power window stops in three positions: the fully closed position, a ventilation position, and the fully open position.

1- Close
2- Open

NOTE

- It is not possible to stop the rear retractable power window in any position other than the fully closed position, ventilation position, and fully open position.

If the rear retractable power window is opened while the rear window demister is operating, the rear window demister automatically stops. When the rear retractable power window is subsequently fully closed,

NOTE

the behaviour of the rear window demister depends upon the elapsed time of the rear window demister's timer. (The timer runs for about 20 minutes in total.)

• If the rear window demister's timer is running, the rear window demister restarts for the remaining time.
• If the rear window demister's timer has finished, the rear window demister does not operate. If you wish to activate the rear window demister, press the rear window demister switch again.

Top-down view of a car's rearview showing front grille, dashboard, and side panels (no text or symbols)

A- Fully closed position

In this position, the rear retractable power window is fully closed.

To place the rear retractable power window in the fully closed position, firmly press the rear retractable power window switch (1).

B- Ventilation position

In this position, the rear retractable power window is slightly open.

To place the rear retractable power window in the ventilation position, lightly press the rear retractable power window switch (1) or (2).

WARNING

- In each of the following circumstances, the operating direction of the rear retractable power window switch and the operating direction of the rear retractable power window do not match each other. Exercise caution to avoid the risk of accidentally trapping a hand or your head when operating the rear retractable power window.

• Even if the rear retractable power window switch (1) is lightly pressed while the rear retractable power window is moving from the fully closed position towards the ventilation position, the rear retractable power window does not return to the fully closed position.
• Even if the rear retractable power window switch (2) is lightly pressed while the rear retractable power window is moving from the fully open position towards the ventilation position, the rear retractable power window does not return to the fully open position.

C- Fully open position

In this position, the rear retractable power window is fully open.

To place the rear retractable power window in the fully open position, firmly press the rear retractable power window switch (2).

WARNING

- If the rear retractable power window switch (1) is lightly pressed while the rear retractable power window is moving from the fully closed position towards the fully open position, the rear retractable power window will come up to the ventilation position. To avoid the risk of accidentally trapping a hand or your head, do not operate the switch while the rear retractable power window is moving.

NOTE

● The rear retractable power window only opens halfway.

Lock switch

E00303100396

When this switch is operated, the passenger's switches and the rear retractable power window switch cannot be used to open or close the windows.

To unlock, press it once again.

1- Lock

2- Unlock

NOTE

- The driver's switch can open or close any door windows.

WARNING

- A child may tamper with the switch at the risk of its hands or head being trapped in the window. When driving with a child in the vehicle, please press the window lock switch to disable the passenger's switches and rear retractable power window switch.

Timer function

L00302400709

Door's window

The door windows can be opened or closed for 30 seconds after the ignition switch is turned from the "ON" position to the "ACC" or "LOCK" position. If the driver's door is opened during this period, the door window can be opened or closed for another 30 seconds.

However, once the driver's door is closed, the windows cannot be operated.

Rear retractable power window

The rear retractable power window can be opened or closed for 30 seconds after the ignition switch is turned from the "ON" position to the "ACC" or "LOCK" position. If the driver's door is opened during this period, the rear retractable power window can be opened or closed for another 30 seconds. However, once the driver's door is closed, the rear retractable power window cannot be operated.

Safety mechanism

E00302501912

Door's window

If a hand or head is trapped in the closing power window, it will lower automatically. Nonetheless, make sure that nobody puts their head or hand out of the power window when closing a power window. The lowered window will become operational after a few seconds.

Electric window control*

WARNING

- If the safety mechanism is activated three or more times successively, the safety mechanism will be temporarily cancelled. If a hand or head got trapped, a serious injury could result.

CAUTION

- The safety mechanism is cancelled just before the power window is fully closed. This allows the power window to close completely. Therefore be especially careful that no fingers are trapped in the power window.

NOTE

● The safety mechanism can be activated if the driving conditions or other circumstances cause the power window to be subjected to a physical shock similar to that caused by a trapped hand or head.

NOTE

- If the safety mechanism is activated three or more times in a row, the safety mechanism will be cancelled and the power window will not close correctly. In such a case, the following procedure should be implemented to rectify this situation. Repeatedly raise the appropriate power window switch until that power window has been fully closed. Following this, release the switch, raise the switch once again and hold it in this condition for at least one second, then release it. You should now be able to operate the power window in the normal fashion.

Rear retractable power window

If a hand or head is trapped in the closing rear retractable power window, it will lower automatically.

Nonetheless, make sure that nobody puts their head or hand out of the rear retractable power window when closing a rear retractable power window.

The lowered window will become operational after a few seconds.

WARNING

- If the safety mechanism is activated three or more times successively, the safety mechanism will be temporarily cancelled. If a hand or head got trapped, a serious injury could result.

CAUTION

● The safety mechanism is cancelled just before the rear retractable power window is fully closed. This allows the rear retractable power window to close completely. Therefore be especially careful that no fingers are trapped in the rear retractable power window.

NOTE

● The safety mechanism can be activated if the driving conditions or other circumstances cause the rear retractable power window to be subjected to a physical shock similar to that caused by a trapped hand or head.

NOTE

- If the safety mechanism is activated three or more times in a row, the safety mechanism will be cancelled and the rear retractable power window will not close correctly. In such a case, the following procedure should be implemented to rectify this situation. Repeatedly press the rear retractable power window switch (1) until that rear retractable power window has been fully closed. Following this, release the switch, press the switch once again and hold it in this condition for at least 1 second, then release it. You should now be able to operate the rear retractable power window in the normal fashion.

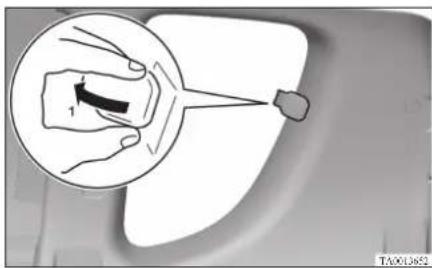

Quarter window (Club cab)

L00302600088

To open

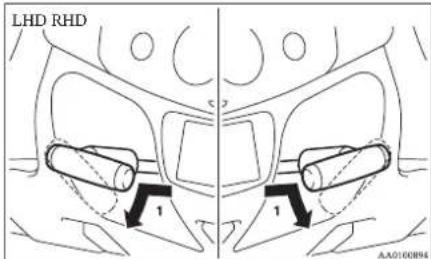

1. Pull the lever towards you.

Illustration of a hand holding a small object with an arrow, viewed through a magnified circular inset (no text or symbols)

1. Push the lever towards the outside of the vehicle.

2. Push the lever towards the rear of the vehicle to secure it in place.

To close

Pull the lever, returning it to its original position and securing it in place.

Rear gate

Rear gate

100303000050

3 To open

Lift up the handle and lower the rear gate.

Diagram of a car interior showing a seatbelt with directional arrows, and a close-up inset of the seatbelt (no text or symbols)

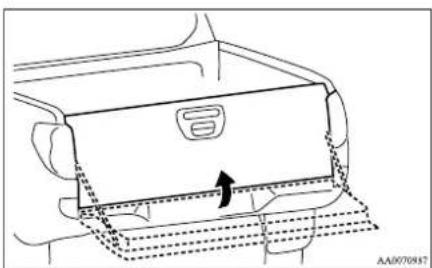

To close

Raise the rear gate and close with enough force to latch the assembly securely into position.

Diagram of a car interior showing a door handle and seat area with dashed lines indicating alignment or movement (no text or symbols)

CAUTION

• Do not stand behind the exhaust pipe when loading and unloading luggage. Heat from the exhaust could lead to burns.
  ● Pay attention not to catch your fingers in the rear gate.
  ● Do not weight the rear gate.
  ● Before driving, make sure that the rear gate is securely closed. If the rear gate opens while driving the vehicle, objects stored in the cargo area could fall out onto the road.

Sunroof\*

E00302700887

The sunroof can only be operated with the ignition switch in the "ON" position.

To open

The sunroof automatically opens if the switch (3) is pressed.

To stop the moving sunroof, press the switch (1) or (2).

NOTE

● The sunroof automatically stops just before reaching the fully open position.
Press the switch again to fully open it.

To close

The sunroof closes while the switch (2) is pressed.

To tilt up

When the switch (1) is pressed, the rear edge of sunroof rises for ventilation.

To tilt down

The sunroof tilt down while the switch (2) is pressed.

Safety mechanism

F0030380029

If a hand or head is trapped in the closing sunroof, it will reopen automatically. Nonetheless, make sure that nobody puts their head or hand out of the sunroof when opening or closing.

The opened sunroof will become operational after a few seconds.

If the safety mechanism is activated 5 or more times consecutively or the switch (1) is kept pressed for 10 seconds or longer with the sunroof stationary in the fully tilted up position, normal closing of the sunroof will be aborted. In such an event, you should take the following steps:

1. Press the switch (1) repeatedly until the sunroof has been fully tilt up.

2. Once the fully tilt up position has been reached, press again and hold the switch (1) for at least 3 seconds.

3. After pressing the switch (3) to perform full opening, press the switch (2) to fully close the sunroof.

NOTE

● The safety mechanism can be activated if the driving conditions or other circumstances cause the sunroof to be subjected to a physical shock similar to that caused by a trapped hand or head.
● Avoid stopping the sunroof before it reaches the opening or closing end during operations. If this should accidentally happen, repeat the process from step 1.

CAUTION

● The safety mechanism is cancelled just before the sunroof is fully closed. This allows the sunroof to close completely. Therefore be especially careful that no fingers are trapped in the sunroof.

1. Following this action, it should be possible to operate the sunroof in the normal manner.

Sunshade

F0030790X44

Slide the sunshade manually to open and close it.

Line drawing of a car rearview dashboard and backrest (no text or symbols)

CAUTION

● Be careful that hands are not trapped when closing the sunshade.

NOTE

● The sunshade will operate together with the sunroof when the sunroof is opened.
- Be sure to tilt down the sunroof before closing the sunshade.
● The sunshade cannot be closed with the sunroof opened. Do not attempt to close the sunshade when the sunroof is opened.

WARNING

• Do not put head, hands or anything else out of the sunroof opening while driving the vehicle.
  ● Never leave a child (or other person who might not be capable of safe operation of the sunroof switch) in the vehicle alone.
  ● Before operating the sunroof, make sure that nothing is capable of being trapped (head, hand, finger, etc.).

NOTE

● The sunroof stops just before reaching the fully open position.
If the vehicle is driven with the sunroof in this position, wind throb is lower than with the sunroof fully open.
- When leaving the vehicle unattended, make sure you close the sunroof and remove the ignition key.
- Do not try to operate the sunroof if it is frozen closed (after snow fall or during extreme cold).
- Do not sit or place heavy luggage on the sunroof or roof opening edge.
- Release the switch as soon as the sunroof reaches the fully open or fully closed position.

NOTE

• If the sunroof does not operate when the sunroof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, we recommend you to have the sunroof checked.
• Depending on the model of ski carriers or roof carriers, the sunroof may make contact with the carrier when the sunroof is tilted up. Be careful when tilting up the sunroof if such a ski carrier or a roof carrier is installed.
  ● Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.
• Be careful, not to put any wax on the weatherstrip (black rubber) around the sunroof opening. If stained with wax, the weatherstrip cannot maintain a weatherproof scal with the sunroof.
  ● After washing the vehicle or after it has rained, wipe off any water that is on the sun-roof before operating it.
  ● Operating the sunroof repeatedly with the engine stationary will run down the battery. Operate the sunroof while the engine is running.

Seat and seat belts

Seat....4-02

Seat adjustment.... 4-03

Front seat....4-04

Rear seat ^* 4-07

Head restraints....4-08

Seat belts.... 4-10

Pregnant women restraint....4-13

Seat belt pretensioner system and force limiter system*....4-13

Child restraint....4-14

Seat belt inspection.... 4-27

Supplemental restraint system (SRS) - airbag* 4-28

Seat

Seat

E00400102042

AA1008724

1-Front seat

● To adjust forward or backward → p. 4-04
● To recline the seatback → p. 4-04
● To adjust the seat height (Driver's seat)* → p. 4-05
- To get in and out of the cargo space (Club cab, passenger's seat) → p. 4-06
- Folding the seatback forward (Single cab, passenger's seat)* → p. 4-06
● Heated seats* → p. 4-07

2-Rear seat\*

● Folding the seatback forward (Double cab) → p. 4-08
● Folding up the seat cushion (Club cab)* → p. 4-08
● Armrest (Double cab) → p. 4-08

Seat adjustment

E00400300200

Adjust the driver's seat so that you are comfortable and that you can reach the pedals, steering wheel, switches etc. while retaining a clear field of vision.

WARNING

- Do not attempt to adjust the seat while driving. This can cause loss of vehicle control and result in an accident. After adjustments are made, ensure the seating is locked in position by attempting to move the seat forward and rearward without using the adjusting mechanism.

WARNING

● It is extremely dangerous to ride in the cargo area (inside or outside) of a vehicle.
Also, the cargo area and rear seats should never be used as a play area by children. In a collision, people or children riding unrestrained in these areas are more likely to be seriously injured or killed. Do not allow people or children to ride in any area of your vehicle that is not equipped with seats and seat belts, and make sure that everyone travelling in your vehicle is in a seat and wearing a seat belt, or in the case of a child is strapped in a child restraint.
● To minimize the risk of personal injury in the event of a collision or sudden braking, the seatbacks should always be in the almost upright position while the vehicle is in motion. The protection provided by the seat belts may be reduced significantly when the seatback is reclined. There is greater risk that the passenger will slide under the seat belt, resulting in serious injury, when the seatback is reclined.

CAUTION

● Make sure the seat is adjusted by an adult or with adult supervision for correct and safe operation.
- Do not place a cushion or the like between your back and the seatback while driving. The effectiveness of the head restraints will be reduced in the event of an accident.
- When sliding the seats, be careful not to catch your hand or foot.

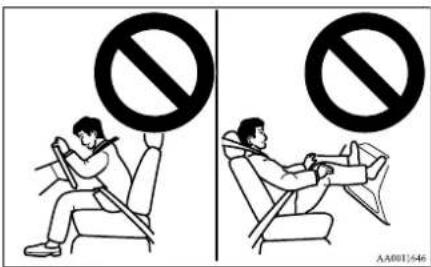

- When sliding or reclining the seat rearward, pay careful attention to the rear seat passengers. (Double cab and Club cab)

Front seat

Front seat

L0400400012

To adjust forward or backward

E00400500824

Manual type

Pull the seat adjusting lever and adjust the seat forward or backward to the desired position. After adjustment, release the adjusting lever to lock the seat in position.

WARNING

● To ensure the seat is locked securely, try to move the seat forward or backward without using the adjusting lever.

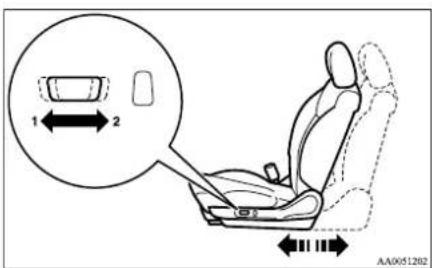

Power type

Adjust the seat by operating the switch as indicated by the arrows.

1- Adjustment forward
2- Adjustment backward

NOTE

● To prevent the battery from running down operate the power type seat with the engine running.

To recline the seatback

E00400601037

Manual type

In order to recline the seatback, lean forward slightly, pull the seatback lock lever up, and then lean backward to the desired position and release the lever. The seatback will lock in that position.

CAUTION

● The reclining mechanism of the seatback is spring loaded, causing it to return to the vertical position when the lock lever is operated. When operating the lever, sit close to the seatback or hold it with your hand to control its return motion.

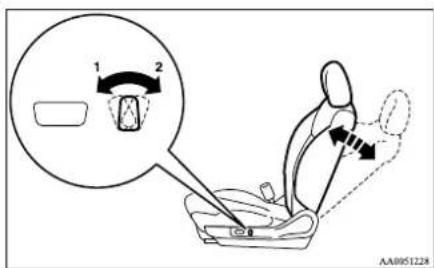

Power type

Adjust the seatback angle by operating the switch as indicated by the arrows.

1- To move to forward direction
2- To recline rearward

NOTE

● To prevent the battery from running down operate the power type seat with the engine running.

To adjust the seat height (Driver's seat)\*

E00400701113

Manual type

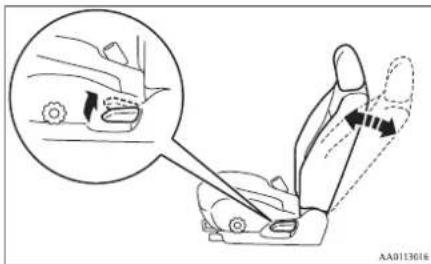

Dial type

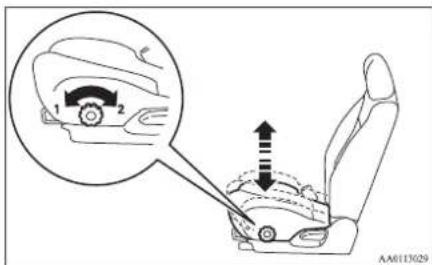

To adjust the seat cushion height, turn the dial as shown in the illustration.

1- To move the seat cushion up
2- To move the seat cushion down

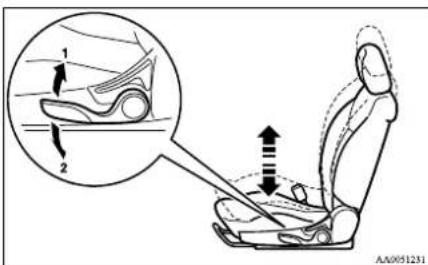

Lever type

Adjust the seat height by repeatedly operating the lever.

1- Raise
2-Lower

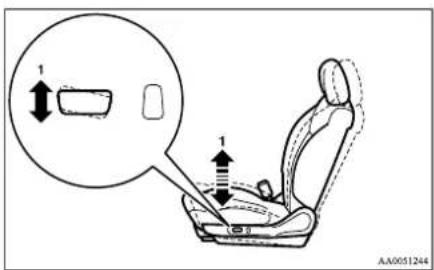

Power type

To adjust the seat height, operate the switch as indicated by arrows.

NOTE

● To prevent the battery from running down operate the power type seat with the engine running.

Front seat

1- To move the front of the seat up and down

3- To move the whole seat up and down

2- To move the rear of the seat up and down

E0041100002

The lever can be used to make getting in and out easier.

1- To get in or out
2- To get out

When the lever or pedal is used, the seatback will tilt forward and at the same time the entire seat will move forward. To return the seat, slide the entire seat rearward and then raise the seatback rearward to lock the seat in position.

WARNING

- Do not drive the vehicle with the seatback folded forward. The seat is not retained position if it is not kept in an upright position, so serious injuries could be suffered in the event of hard braking or a collision.

CAUTION

● The reclining mechanism of the seatback is spring loaded, causing it to return to the vertical position when the lock lever is operated. When using the lever, sit close to the seatback or hold it with your hand.

● Use a foot to operate the pedal (2).

Folding the seatback forward (Single cab, passenger's seat)\*

E00410400031

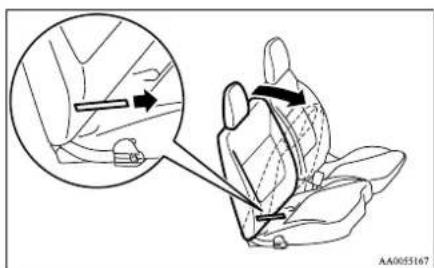

To access the onboard tool kit, fold forward the seatback of the passenger's seat. Refer to "Tools, jack and jack handle" on page 8-07.

Pull the band and fold the seatback forward.

Heated seats\*

E00401100784

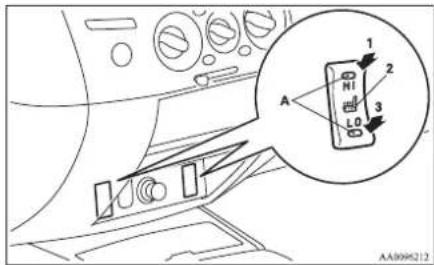

The heated seats can be operated with the ignition switch in the "ON" position.

1 (HI)- Heater high (for quick heating).

2- Heater off.

3 (LO)-Heater low (to keep the seat warm).

The indication lamp (A) will illuminate while the heater is on.

CAUTION

● Switch off seat heaters when not in use.
- Operate in the high position for quick heating. Once the seat is warm, set the heater to low to keep it warm. Slight variations in seat temperature may be felt while using the heated seats. This is caused by the operation of the heater's internal thermostat and does not indicate a malfunction.

- If the following types of persons use the heated seats, they might become too hot or receive minor burns (red skin, heat blisters, etc.):

• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or sleep inducing medication (cold medicine, etc.)

- Do not place heavy objects on the seat or stick pins, needles, or other pointed objects into it.

- Do not use a blanket, cushion, or other material with high heat insulation properties on the seat while using the heater; this might cause the heater element to overheat

CAUTION

- When cleaning the seat, do not use benzene, kerosene, petrol, alcohol, or other organic solvents; these might damage the surface of the seat and also the heater element.

- If water or any other liquid is spilled on the seat, allow it to dry thoroughly before attempting to use the heater.

● Turn the heater off immediately if it appears to be malfunctioning during use.

Rear seat\*

E00401300148

When a person is sitting in the middle seating position of the rear seat, adjust the head restraint to height at which it lock in position. Refer to "Head restraints" on page 4-08.

Head restraints

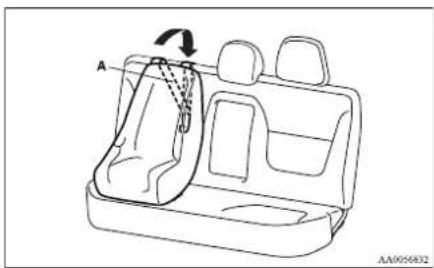

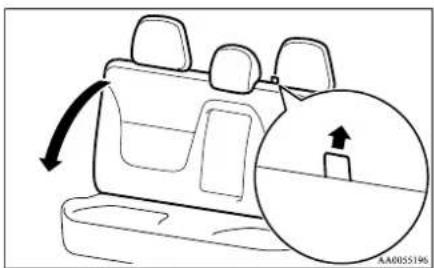

Folding the seatback forward (Double cab)

E00401600242

Pull up the band on the top of the seatback and fold it forward.

Diagram of a car backseat with seatbelt and side panel, showing a directional arrow and magnified view of the seat area (no text or symbols)

Confirm that the seatback locks securely when it is returned.

Folding up the seat cushion (Club cab)\*

E00411300024

The right and left seat cushions can be folded up separately.

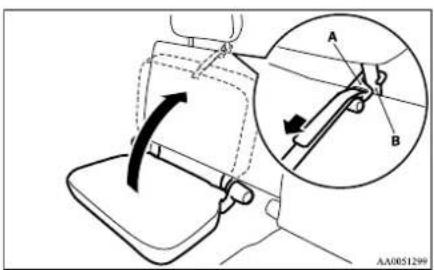

To fold the seat cushions up, raise the seat cushions.

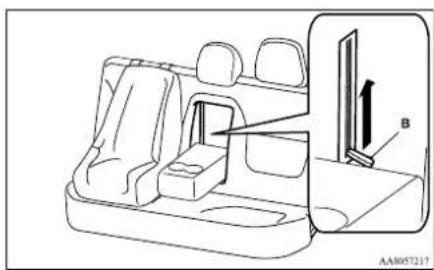

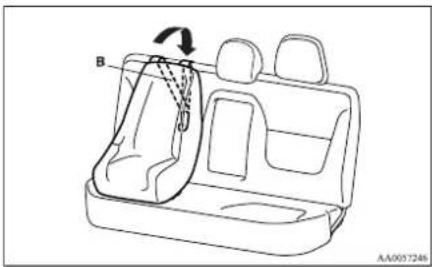

Securely retain the seat cushion by hooking the retaining band (A) onto the head restraint (B) of the rear seat.

Armrest (Double cab)

E00401700605

To use the armrest, fold it down. To return to the original position, push it backward (into the seatback) until it is level with the seat.

Line drawing of a car backseat with seatbelt and seatbelt cover (no text or symbols)

NOTE

• Do not stand or sit on the armrest. It could break.
  ● The top surface of the armrest contains a cup holder for rear seat occupants. Refer to “Cup holder” on page 7-115.

Head restraints

E00403300995

WARNING

● Driving without the head restraints in place can cause you and your passengers serious injury or death in an accident. To reduce the risk of injury in an accident, always make sure the head restraints are installed and properly positioned when the seat is occupied.
● Never place a cushion or similar device on the seatback. This can adversely affect head restraint performance by increasing the distance between your head and the restraint.

To adjust height

Adjust the head restraint height so that the centre of the restraint is as close as possible to eye level to reduce the chances of injury in the event of collision. Any person too tall for the restraint to reach their seated eye level, should adjust the restraint as high as possible.

To raise the head restraint, move it upward. To lower the restraint, move it downward while pushing the height adjusting knob (A) in the direction of the arrow. After adjustment, push the head restraint downward and make sure that it is locked.

3D CAD model of a mechanical component with directional arrows indicating motion (no text or symbols)

To remove

Lift the head restraint with the height adjusting knob (A) pushed in.

To install

Confirm that the head restraint is facing the correct direction, and then insert it into the seatback while pressing the height adjusting knob (A) in the direction indicated by the arrow.

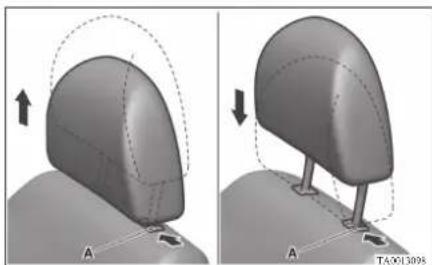

3D CAD model of a mechanical component with two views (top and side), showing a curved top and base with mounting points, no text or symbols present.

CAUTION

- Confirm that the height adjusting knob (A) is correctly adjusted as shown in the illustration, and also lift the head restraints to ensure that they do not come out of the seatback.

Two 3D model of a mechanical component with a prohibition symbol overlay (no text or symbols on the components)

CAUTION

- If your vehicle is equipped with the rear seat head restraint, the head restraints for the front and rear seats differ in size. When installing head restraints, make sure the front and rear head restraints are fitted in their respective seats.

Seat belts

Seat belts

E00404800825

To protect you and your passengers in the event of an accident, it is most important that the seat belts are worn correctly while driving.

A seat belt for a front seat equipped with an airbag has a pretensioner system. These belts are used the same way as a conventional seat belt.

Refer to “Seat belt pretensioner system and force limiter system” on page 4-13.

WARNING

● Always place the shoulder belt over your shoulder and across your chest. Never put it behind you or under your arm.
● One seat belt should be used by only one person. Doing otherwise can be dangerous.
● The seat belt will provide its wearer with maximum protection if the recliner seatback is placed in fully upright position. When the seatback is reclined, there is greater risk that the passenger will slide under the belt, especially in a forward impact accident, and may be injured by the belt or by striking the instrument panel or seatbacks.
- Seat belts should always be worn by every adult who drives or rides in this vehicle, and by all children who are tall enough to wear seat belts properly.

WARNING

• Remove any twists when using the belt.
• No modifications or additions should be made by the user which will either prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.
• To reduce risk of serious or fatal injury in an accident, including the deploying driver's airbag, adjust the driver's seat as far back as possible while maintaining a position that still allows good visibility and good control of the steering wheel, the brake and accelerator, and vehicle controls.

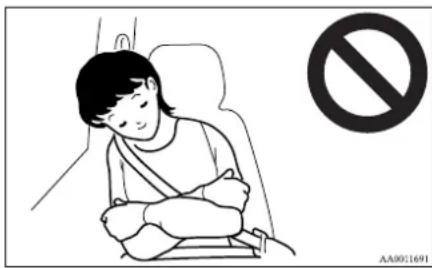

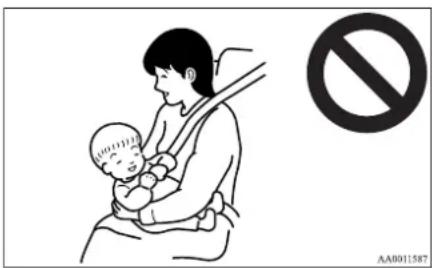

  ● Never hold a child in your arms or on your lap when riding in this vehicle, even if you are wearing your seat belt. To do so risks severe or fatal injury to the child in a collision or sudden stop.
  ● Always adjust the seat belt to a snug fit.

3-point type seat belt (with emergency locking mechanism)

E00404901126

This type of belt requires no length adjustment. Once worn, the belt adjusts itself to the movement of the wearer, but in the event of a sudden or strong shock, the belt automatically locks to hold the wearer's body.

NOTE

- You can check if the belt locks by pulling it forward quickly.

To fasten

1. Pull the seat belt out slowly while holding the latch plate.

NOTE

• When the seat belts cannot be pulled out in a locked condition, pull the belts once force fully and then return them. After that, pull the belts out slowly once again.
• Insert the latch plate into the buckle until a "click" is heard.

WARNING

● Never wear the lap portion of the belt across your abdomen. During accidents it can press sharply against the abdomen and increase the risk of injury.
● The seat belts must not be twisted when worn.

1. Pull the belt slightly to adjust slackness as desired.

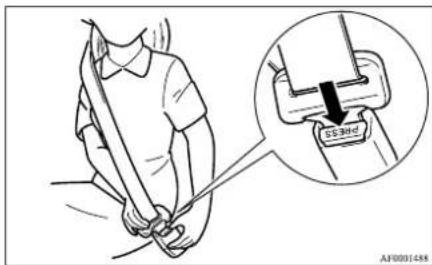

To unfasten

Hold the latch plate and push the button on the buckle.

NOTE

- As the belt retracts automatically, keep holding the latch plate while retracting so that the belt stows slowly. Failure to do this could damage the vehicle.

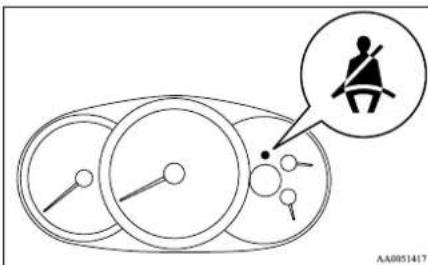

Seat belt reminder/warning lamp

E00409802026

A tone and warning lamp are used to remind the driver and front passenger (if so equipped) to fasten the seat belt.

NOTE

● For the front passenger seat, the warning function works only while a person is sitting on the seat.

Diagram of a pulley system with a person inside, showing no text or symbols

When the ignition key is turned to the "ON" position, the warning lamp will come on and a tone will sound for about 6 seconds. If the front seat belt remains unfastened approximately 1 minute later, the warning lamp will flash and the tone sounds intermittently (each 12 times) when the vehicle is driven. If the passenger subsequently unfastens the seat belt while driving, the warning lamp and tone will issue further warnings. And if the seat belt remains unfastened, the warning lamp and tone will issue further warnings each time the vehicle starts moving from a stop. When the seat belt is fastened, the warnings will stop.

Seat belts

WARNING

- In order to reduce the risk of serious or fatal injury in an accident, always wear your own seat belt. Do not allow anyone to ride in your vehicle unless he or she is also seated and wearing a seat belt. Children should additionally be restrained in a secure child restraint system.

NOTE

- When luggage is placed on the front passenger seat, a sensor in the seat cushion may depending on the weight and position of the luggage, cause the warning tone to sound and the warning lamp to come on (Double cab).

Adjustable seat belt anchor (front seats)\*

F00405000299

The seat belt anchor height can be adjusted.

Move the seat belt anchor down with the lock knob (A) depressed. To move the anchor up, slide it without depressing the lock knob (A).

Anchor down Anchor up

WARNING

- When adjusting the seat belt anchor, set it at a position that is sufficiently high so that the belt will make full contact with your shoulder but will not touch your neck.

Lap belts\*

E00405100128

The lap belts should be adjusted by holding the belt and latch plate at right angles to each other, and then pulling the belt as shown in the illustration to a snug fit around the occupant.

1- Tighten
2- Loosen

While holding the latch plate, insert the latch plate into the buckle until a "click" is heard.

Pregnant women restraint

E00405600064

WARNING

- Seat belts work for everyone, including pregnant women. Pregnant women should use the available seat belts. This will reduce the likelihood of injury to both the woman and the unborn child. The lap belt should be worn across the thighs and as snug against the hips as possible, but not across the waist. Consult your doctor if you have any additional questions or concerns.

Seat belt pretensioner system and force limiter system\*

E00405700283

The driver's and front passenger's seat equipped with an airbag has a pretensioner seat belt.

Pretensioner system

E00405801089

The pretensioner system will retract their respective seat belts instantaneously, thus maximizing the seat belt's effectiveness, if there is a frontal impact severe enough to injure the driver and/or front passenger and the ignition switch is in the "ON" or "START" position.

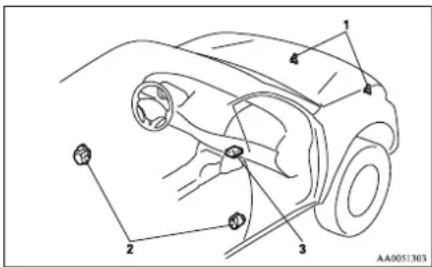

The seat belt pretensioner includes the following components:

1- Front impact sensors
2- Seat belt pretensioners
3- Airbag control unit

WARNING

● To obtain the best results from your pretensioner seat belt, make sure you have adjusted your seat correctly and wear your seat belt properly.

CAUTION

● Installation of audio equipment or repairs in the vicinity of the pretensioner seat belts or floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is important to do so because the work could affect the pretensioner systems.

CAUTION

- If you need to scrap the vehicle, please consult a MITSUBISHI MOTORS Authorized Service Point. It is important to do so because unexpected activation of the pretensioner seat belts could cause injuries.

NOTE

● The pretensioner seat belts will be activated if the vehicle suffers a severe frontal impact, even if the seat belts are not worn.
● The pretensioner seat belts are designed to work only once. After the pretensioner seat belts have been activated, we recommend you have them replaced by a MITSUBISHI MOTORS Authorized Service Point.

SRS warning lamp

F00405900126

This warning lamp is shared by the SRS airbags and the pretensioner seat belts.

Refer to "SRS warning lamp" on page 4-40.

Force limiter system

E00406000078

In the event of a collision, each force limiter system will effectively absorb the load applied to the seat belt so as to minimize the impact to the passenger.

Child restraint

Child restraint

E00406401297

When transporting children in your vehicle, some type of child restraint system should always be used according to the size of the child. This is required by law in most countries.

The regulations concerning driving with children in the front seat may differ from country to country. You are advised to comply with the relevant regulations.

WARNING

• When possible, put children in the rear seat. Accident statistics indicate that children of all sizes and ages are safer when properly restrained in the rear seat rather than in the front seat. (Double cab and Club cab)
• Holding a child in your arms is no substitute for a restraint system. Failure to use a proper restraint system can result in severe or fatal injury to the child.
  ● Each child restraint device or fixing is to be used only by one child.
• When attaching a child restraint to the rear seat, place the front seatbacks in the upright position.
  Otherwise, the child could be seriously injured in the event of hard braking or a collision. (Double cab and Club cab)

Caution for installing the child restraint on vehicles with a front passenger airbag

E00406500565

The label shown here is attached on vehicles with a front passenger airbag.

WARNING

- Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an airbag in front of it!

WARNING

- A REARWARD FACING CHILD RESTRAINT must NOT be used in the front passenger seat if the front passenger's airbag has not been deactivated. The force of an inflating airbag could kill or cause serious injuries to the child.

NOTE

- If you have a rearward facing child restraint system that cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger's airbag ON-OFF switch before using it. (Refer to "To turn an airbag off" on page 4-31.)

WARNING

● A FORWARD FACING CHILD RE-STRAINT should not be used in the front passenger seat whenever possible; if used in the front passenger seat, adjust the seat to the most rearward position.

Illustration of a baby sitting in a car seat with a diagonal guide line and dashed outline (no text or symbols)

Infants and small children

E00406602124

When transporting infants and small children in your vehicle, follow the instruction given below.

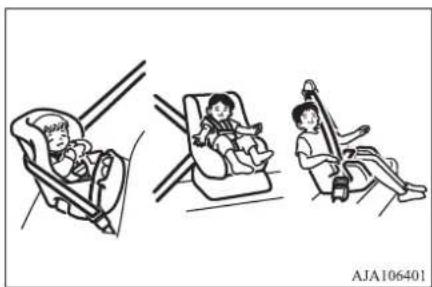

Illustration of three different car seatbelt scenarios: indoor, mid-level, and stationary (no text or symbols)

Instruction:

● For small infants, an infant carrier should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the face or the throat, a child seat should be used.
- The child restraint system should be appropriate for the child's weight and height and properly fit in the vehicle.

- Before purchasing a child restraint system, try installing it in the seat to make sure there is a good fit. Because of the location of the seat belt buckles and the shape of the seat cushion, it may be difficult to securely install some manufacturer's child restraint systems. If the child restraint system can be pulled forward or to either side easily on the seat cushion after the seat belt has been tightened, choose another manufacturer's child restraint system.

WARNING

• When installing a child restraint system, refer to the instructions provided by the manufacturer of the restraint system. Failure to do so can result in severe or fatal injury to the child.
  ● After installation, push and pull the child restraint system back and forth, and side to side, to see that it is properly secured. If the child restraint system is not installed securely, it may cause injury to the child or other occupants in the case of accident or sudden stops.
• When the child restraint system is not in use, keep your child restraint system secured with the seat belt or remove it from the vehicle in order to prevent it from being thrown around inside the vehicle during an accident.

Child restraint

NOTE

● Depending on the seating position in the vehicle and the child restraint system that you have, the child restraint can be attached using one of the following two locations:
• To the lower anchorage in the rear seat ONLY if the child restraint has ISOFIX mountings (Double cab, See page 4-25).
• To the seat belt (See page 4-27).

Older children

E00406700235

Children who have outgrown the child restraint system should be seated in the rear seat and wear combination lap shoulder belt. The lap portion of the belt should be snug and positioned low on the abdomen so that it is below the top of the hip-bone. Otherwise, the belt could intrude into the child's abdomen during an accident and cause injury.

WARNING

● Children who are not buckled up can be thrown out of the vehicle in an accident.
● Children who are not buckled up can strike other people in the vehicle in an accident.
● A child should never be left unattended in your vehicle. When you leave the vehicle, take the child with you.

Suitability for various ISOFIX positions
F00411401729

Mass group Size class Fixture			Vehicle ISOFIX positions
			Rear Outboard (Double cab)
Carrycot	F ISO/L1 X
	G ISO/L2 X
0 - Up to 10 kg E ISO/R1 X
0+ - Up to 13 kg	E ISO/R1		IL^*1
	D ISO/R2 X
	C ISO/R3 X
I -9 to 18 kg	D ISO/R2 X
	C ISO/R3 X
	B ISO/F2 IUF
	B1 ISO/F2X		IUF, IL^*2
	A ISO/F3 IUF
II -15 to 25 kg X
III -22 to 36 kg X

CAUTION

- When installing a child restraint system, remove the head restraint from the seat.

Key of letters to be inserted in the table above:

• IUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
• IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS GENUINE parts).
  ● X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.

4

IL (Genuine part information)

Genuine part No. UN	R44 Approval No.
*1	MZ314393 (Child restraint system), MZ314394 (ISOFIX base)	E1-04301146
*2	MZ313045 E1-04301133

NOTE

● MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Suitability for various seating positions

E00406802445

Single cab (Separate seat)

Mass group	Scating position
	Front passenger
	Activated airbag	Deactivated airbag#
0 - Up to 10 kg X X
0+ - Up to 13 kg X		L*1

Child restraint

Mass group	Seating position
	Front passenger
	Activated airbag	Deactivated airbag#
1-9 to 18 kg X		L^*2
II -15 to 25 kg X		L^*3
III -22 to 36 kg X		L^*3

^a : With front passenger's airbag deactivated by means of front passenger's airbag ON-OFF switch

CAUTION

- When installing a child restraint system, remove the head restraint from the seat.

Key of letters to be inserted in the table above:

● L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
● X- Seat position not suitable for children in this mass group.

L (Genuine part information)

Genuine parts No. UN-R44 Approval No.
*1	MZ314393 E1-04301146
*2	MZ313045 E1-04301133
*3	MZ314250 E1-04301169

Child restraint

NOTE

• There is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group "0-Up to 10 kg".
  MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Single cab (Bench seat)

Mass group	Seating position
	Front passenger		Front centre
	Activated airbag	Deactivated airbag#
0 - Up to 10 kg X X X
0+ - Up to 13 kg X		L^*1	X
I -9 to 18 kg X		L^*2	X
II -15 to 25 kg X		L^*3	X
III -22 to 36 kg X		L^*3	X

: With front passenger's airbag deactivated by means of front passenger's airbag ON-OFF switch

CAUTION

- When installing a child restraint system, remove the head restraint from the seat.

Key of letters to be inserted in the table above:

● L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
● X- Seat position not suitable for children in this mass group.

L (Genuine part information)

Genuine parts No. UN-R44 Approval No.
*1	MZ314393 E1-04301146
*2	MZ313045 E1-04301133
*3	MZ314250 E1-04301169

NOTE

- There is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group "0-Up to 10 kg".

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Club cab

Mass group	Seating position
	Front passenger		Rear outboard
	Activated airbag	Deactivated airbag#
0 - Up to 10 kg X X X
0+ - Up to 13 kg X		L*1	L*1
I -9 to 18 kg X		L*2	L*2
II -15 to 25 kg X		L*3	X
III -22 to 36 kg X		L*3	X

: With front passenger's airbag deactivated by means of front passenger's airbag ON-OFF switch

Child restraint

CAUTION

- When installing a child restraint system, remove the head restraint from the seat if the head restraint is adjustable.

Key of letters to be inserted in the table above:

● L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
● X- Seat position not suitable for children in this mass group.

L (Genuine part information)

Genuine parts No. UN	-R44 Approval No.
*1	MZ314393 E1-04301146
*2	MZ313045 E1-04301133
*3	MZ314250 E1-04301169

NOTE

- There is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group "0-Up to 10 kg".

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Double cab

Mass group	Seating position
	Front passenger		Rear outboard Rear centre
	Activated airbag	Deactivated airbag#
0 - Up to 10 kg X X U X

Child restraint

Mass group	Scating position
	Front passenger		Rear outboard Rear centre
	Activated airbag	Deactivated airbag#
0+ - Up to 13 kg X		L*1	U, L*1	X
I -9 to 18 kg X		L*2	U, L*2	L*2
II -15 to 25 kg X		L*3	U, L*3	L*3
III -22 to 36 kg X		L*3	U, L*3	L*3

: With front passenger's airbag deactivated by means of front passenger's airbag ON-OFF switch

CAUTION

- When installing a child restraint system, remove the head restraint from the seat.

Key of letters to be inserted in the table above:

• U- Suitable for "universal" category restraints approved for use in this mass group.
  ● L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
  ● X- Seat position not suitable for children in this mass group.

L (Genuine part information)

Genuine parts No. UN-R44 Approval No.
*1	MZ314393 E1-04301146
*2	MZ313045 E1-04301133
*3	MZ314250 E1-04301169

Child restraint

NOTE

- There is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group "0-Up to 10 kg". MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Child restraint anchorage points (Double cab)\*

100406900354

Anchorage locations

There are 2 child restraint anchorage points on the floor, located behind the rear seat. These are for securing a child restraint system tether strap to each of the 2 rear seating positions in your vehicle.

*: Rear of the vehicle

CAUTION

● The anchorages are only applicable for child restraints fitted in the rear seat.

Tether anchorage strap installation

WARNING

● Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attaching other items or equipment to the vehicle.

1. Remove the head restraint from the location in which you wish to install a child restraint.

2. Drop the child restraint's tether strap (A) down the back of the rear seatback.

1. Tip the armrest forward. Open the fastener (B) that is located in the space where the armrest was stowed.

Line drawing of a car interior showing seat, door, and window (no text or symbols)

1. Put your hand in the opening of the fastener, attach the tether strap's hook (C) to the tether anchorage (D), and securely tighten the tether strap.

Installing a child restraint system to the lower anchorage (ISOFIX child restraint mountings)\*

E00408900114

Your vehicle's second seat is fitted with lower anchorages for attaching a child restraint system with ISOFIX mountings.

Line drawing of a car rear seat rack with three seats and two side compartments (no text or symbols)

Child restraint system with ISOFIX mountings

E00409000574

The child restraint system is designed only for seats that incorporate lower anchorages. Retain the child restraint system using the lower anchorages.

It is not necessary to retain the child restraint system using the vehicle's seat belts.

Line drawing of a car seat assembly (no text or symbols)

A- Child restraint system connectors

To install

WARNING

- If there is any foreign material in or around the connectors, remove it before installing the child restraint system. Also, make sure the seat belt is away from, not looped through or otherwise interfering with, the child restraint system. If foreign matter is not removed and/or the seat belt interferes with the child restraint system, the child restraint system will not be secured properly and could move forward in the event of sudden braking or a collision, seriously injuring the child and possibly other vehicle occupants.

Child restraint

WARNING

- When the vehicle is moving do not adjust the seat where the child restraint system is installed.

1. Remove the head restraint from the location in which you wish to install a child restraint. Refer to "Head restraints" on page 4-08.
2. Push the child restraint system's connectors into the lower anchorages (A) in accordance with the instructions provided by the child restraint system's manufacturer.

If your child restraint system requires the use of a tether strap, fasten the tether strap in accordance with steps 3 through 5. If a tether strap is unnecessary, perform the step 6.

1. Drop the child restraint's tether strap (B) down the back of the rear seatback.

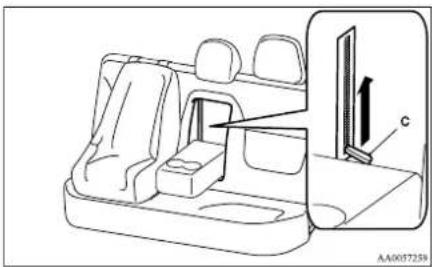

1. Tip the armrest forward. Open the fastener (C) that is located in the space where the armrest was stowed.

1. Put your hand in the opening of the fastener, attach the tether strap's hook (D) to the tether anchorage (E), and securely tighten the tether strap.

1. Push and pull the child restraint system in all directions to be sure it is firmly secured.

To remove

Remove the child restraint in accordance with the instructions provided by the child restraint system's manufacturer.

Installing a child restraint system to a 3-point type seat belt (with emergency locking mechanism)

E00408700822

Installation:

1. Put a child restraint system on the seat in which you wish to install it.
   If the head restraint is adjustable, remove the head restraint from the seat. Refer to "Head restraints" on page 4-08
2. Fasten the seat belt to secure the child restraint system.
   Make sure you hear a "click" when you insert the latch plate in the buckle.
3. Remove all slack by using the locking clip.
4. Push and pull the child restraint in all directions to be sure it is secure.

WARNING

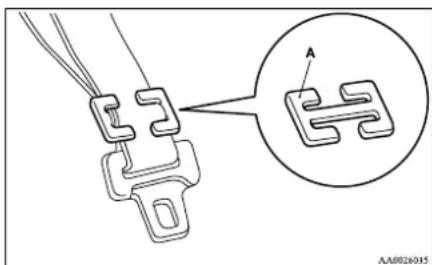

- For some types of child restraint, the locking clip (A) should be used to help avoid personal injury during a collision or sudden manoeuvre.

It must be fitted and used in accordance with the child restraint manufacturer's instructions.

The locking clip must be removed when the child restraint is removed.

Pure mechanical component diagram without any text, numbers, or symbols

Seat belt inspection

E00406300475

- Check the belts for cuts, worn or frayed webbing and for cracked or deformed metallic parts. Replace the belt assembly if defective.

● A dirty belt should be cleaned with neutral detergent in warm water. After rinsing in water, let it dry in the shade. Do not attempt to bleach or re-dye the belts because this affects their characteristics.

WARNING

We recommend you have all seat belt assemblies including retractors and attaching hardware inspected after any collision. We recommend that seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly.
- Do not attempt to repair or replace any part of the seat belt assemblies; we recommend you to have this work done by a MITSUBISHI MOTORS Authorized Service Point. Incorrect repair or replacement could reduce the effectiveness of the belts and could result in serious injury in the event of a collision.
- Once the pretensioner has activated, it cannot be re-used. It must be replaced together with the retractor.

Supplemental restraint system (SRS) - airbag*

Supplemental restraint system (SRS) - airbag\*

E00407202273

4

The information written in this Supplemental Restraint System (SRS) section contains important points concerning the driver, front passenger, side and curtain airbags.

The SRS driver and front passenger airbags are designed to supplement the primary protection of the driver and front passenger side seat belt systems by providing those occupants with protection against head and chest injuries in certain moderate-to-severe frontal collisions.

The SRS side airbag is designed to supplement the properly worn seat belts and provide the driver and front passenger with protection against chest injury in certain moderate-to-severe side impact collisions.

The SRS curtain airbags are designed to supplement the properly worn seat belts and provide the driver and passengers with protection against head injuries in certain moderate-to-severe side impact collisions.

The SRS is NOT a substitute for the seat belts; for maximum protection in all types of crashes and accidents, seat belts should ALWAYS be worn by everyone who drives or rides in this vehicle.

WARNING

● IT IS VERY IMPORTANT TO ALWAYS PROPERLY WEAR YOUR SEAT BELT, EVEN WITH AN AIRBAG:

- Seat belts help keep the driver and passengers properly positioned, which reduces injury risk in all collisions, and reduces the risk of serious or fatal injuries when the airbags inflate.

During sudden braking just before a collision, an unrestrained or improperly restrained driver or passengers can move forward into direct contact with or within close proximity to the airbag which may then deploy during the collision.

The initial stage of airbag inflation is the most forceful which could cause serious or fatal injuries if the occupant contacts it at this stage.

- Seat belts reduce the risk of injury in roll-overs, rear impact collisions, and in lower-speed frontal collisions, because driver's and passenger's airbags are not designed to inflate in those situations.

WARNING

- Seat belts reduce the risk of being thrown from your vehicle in a collision or roll-over.

● IT IS VERY IMPORTANT TO BE PROPERLY SEATED.

A driver or front passenger too close to the steering wheel or instrument panel during airbag deployment can be killed or seriously injured.

Airbags inflate very fast, and with great force.

If the driver and front passenger are not properly seated and restrained, the airbags may not protect you properly, and could cause serious or fatal injuries when it inflates.

- Before driving, adjust the driver's seat as far back as possible while still maintaining complete control of the vehicle.

- Before driving, adjust the front passenger seat as far back as possible.

- Make sure all vehicle occupants are always properly restrained using the available seat belts.

- With seat belts properly fastened, the driver and passengers should sit well back and upright without leaning against the window or door.

- Do not sit on the edge of the seat, or lean head or chest close to the steering wheel or instrument panel.

Do not put feet or legs on or against the instrument panel.

Supplemental restraint system (SRS) - airbag*

WARNING

- Infants and small children should never be unrestrained, stand up against the instrument panel or be held in your arms or on your lap. They could be seriously injured or killed in a collision, including when the airbag inflates. They should be properly seated in an appropriate child restraint system. See the "Child restraint" section of this owner's manual.

WARNING

- A REARWARD FACING CHILD RESTRAINT must NOT be used in the front passenger seat if the front passenger's airbag has not been deactivated. The force of an inflating airbag could kill or cause serious injuries to the child.

NOTE

- If you have a rearward facing child restraint system that cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger's airbag ON-OFF switch before using it. (Refer to "To turn an airbag off" on page 4-31.)

WARNING

● A FORWARD FACING CHILD RE-STRAINT should not be used in the front passenger seat whenever possible; if used in the front passenger seat, adjust the seat to the most rearward position. Failure to do so could kill or cause serious injuries to the child.

Line drawing of a baby sitting in a car seat, viewed from above (no text or symbols)

Supplemental restraint system (SRS) - airbag*

WARNING

● Older children should be seated, properly wearing the seat belt, with an appropriate booster seat if needed.

4

Caution for installing the child restraint on vehicles with a front passenger airbag

E00408800588

The label shown here is attached on vehicles with a front passenger airbag.

WARNING

● Extreme Hazard! Do not use a rearward facing child re- straint on a seat protected by an airbag in front of it!

How the Supplemental Restraint System works

E00407301352

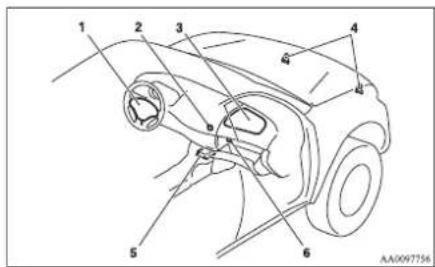

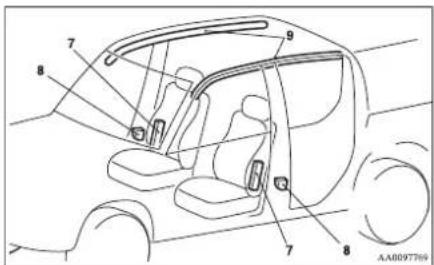

The SRS includes the following components:

1- Airbag module (Driver)
2- Front passenger's airbag OFF indication lamp
3- Airbag module (Passenger)
4- Front impact sensors
5- Airbag control unit
6-Front passenger's airbag ON-OFF switch

7- Side airbag modules

8- Side impact sensors

9- Curtain airbag modules

The airbags will operate only when the ignition switch is in the "ON" or "START" position.

When the airbag control unit detect an impact of sufficient frontal or side force, it sends an ignition signal to the airbag modules to ignite materials in the inflator and generate gas and inflate the airbags.

The airbags deployment produces a sudden, loud noise, and releases some smoke and powder, but these conditions are not injurious, and do not indicate a fire in the vehicle. People with respiratory problems may feel some temporary irritation from chemicals used to produce the deployment; open the windows after airbag deployment, if safe to do so.

The airbags deflate very rapidly after deployment, so there is little danger of obscured vision.

The time required from the sensors detecting an impact to deflation of the airbags after deployment is shorter than a blink of an eye.

CAUTION

● Airbags inflate at an extremely rapid speed. In certain situations, contact with inflating airbags can result in abrasions, light cuts, bruises, and the like.

Front passenger's airbag ON-OFF switch

E00410100331

The front passenger's airbag ON-OFF switch can be used to disable the front passenger's airbag. If you have a rearward facing child restraint system that cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger's airbag ON-OFF switch before using it. (Refer to "To turn an airbag off" on page 4-31.)

The front passenger's airbag ON-OFF switch is located in the glove box.

WARNING

● To reduce risk of serious or fatal injury:
- Always remove the key from the ignition switch before operating a front passenger's airbag ON-OFF switch. Failure to do so could adversely affect the airbag performance.
- Wait at least 60 seconds to operate the front passenger's airbag ON-OFF switch after turning the ignition switch from "ON" position to "LOCK" position.
The SRS airbag system is designed to retain enough voltage to deploy the air-bag.

WARNING

- Always remove the key from the front passenger's airbag ON-OFF switch after operating that switch. Failure to do so could lead to improper position of the front passenger's airbag ON-OFF switch.

To turn an airbag off

E00410600440

To turn an airbag off, follow these steps:

1. Insert the key into the key opening of the appropriate front passenger's airbag ON-OFF switch, and turn that airbag ON-OFF switch to the "OFF" position.
2. Remove the key from the key opening of the front passenger's airbag ON-OFF switch.
3. Insert the key into the ignition switch, and turn the ignition to the "ON" position.

Supplemental restraint system (SRS) - airbag*

The front passenger's airbag OFF indication lamp will stay on to show that the front passenger's airbag is not operational. ("Front passenger's airbag OFF indication lamp" on page 4-32)

That airbag will remain OFF, and will NOT deploy, until it is turned ON again.

WARNING

● To reduce risk of serious or fatal injury:
- If the indication lamp does not come on when the front passenger's airbag ON-OFF switch is turned OFF, do not fit a rearward facing child restraint system to the front passenger seat.
- Do not turn OFF the front passenger's airbag ON-OFF switch except when a rearward facing child restraint system is fitted to the front passenger seat.

To turn an airbag on

L00410700135

To turn an airbag on, follow these steps:

1. Insert the key into the key opening of the appropriate front passenger's airbag ON-OFF switch, and turn that airbag ON-OFF switch to "ON" position.

2. Remove the key from the key opening of that front passenger's airbag ON-OFF switch.

3. Insert the key into the ignition switch, and turn the ignition to the "ON" position.

The front passenger's airbag OFF indication lamp goes off to show that the front passenger's airbag is operational.

That airbag will remain ON, and will be ready to deploy, until it is again turned OFF.

WARNING

- To reduce risk of serious or fatal injury: - Turn ON the front passenger's airbag ON-OFF switch immediately after removing a rearward facing child restraint system from the front passenger seat.

WARNING

- If the indication lamp remains on when the front passenger's airbag ON-OFF switch is turned ON, do not allow anyone to sit on the front passenger seat.

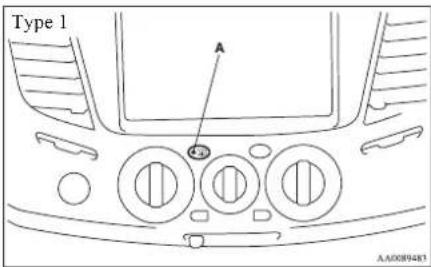

Front passenger's airbag OFF indication lamp

E00410200257

The front passenger's airbag OFF indication lamp is located in the instrument panel.

When the front passenger's airbag ON-OFF switch is turned OFF, the indication lamp will stay on to show that the front passenger's airbag is not operational.

When the front passenger's airbag ON-OFF switch is turned ON, the indication lamp goes off to show that the front passenger's airbag is operational.

WARNING

- If the indication lamp behaves in any of the following ways, there may be a fault in the airbag system.

Have the vehicle inspected at a MITSUBISHI MOTORS Authorized Service Point as soon as possible.

• The indication lamp does not come on when the front passenger's airbag ON-OFF switch is turned OFF.
• The indication lamp stays on when the front passenger's airbag ON-OFF switch is turned ON.

WARNING

- Do not fit any accessory that makes the indication lamp impossible to see, and do not cover the indication lamp with a sticker. You would not be able to verify the status of the passenger airbag system.

Driver's and passenger's front airbag system

E00407400330

The driver's airbag is located under the pad-ded cover in the middle of the steering wheel. The front passenger's airbag is contained in the instrument panel above the glove box.

The driver's airbag and the front passenger's airbag are designed to inflate at the same time even if the passenger seat is not occupied.

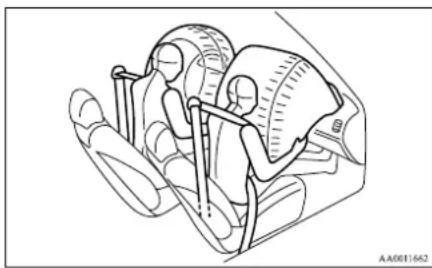

Line drawing of a car interior with two seated figures and seatbelt (no text or symbols)

Deployment of front airbags

F00407501354

The front airbags ARE DE- SIGNED TO DEPLOY when...

Supplemental restraint system (SRS) - airbag*

Head-on collision with a solid wall at speed of approximately 25 km/h (16 mph) or higher

Line drawing of a pickup truck with a flashlight emitting exhaust smoke, no text or symbols present

Moderate to severe frontal impact within the shaded area between the arrows

Top-down line drawing of a car's front view showing dashboard and rear seats (no text or symbols)

AA1002966

The front airbags are designed to deploy when the vehicle suffers a moderate to severe frontal impact. A typical condition is shown in the illustration.

The front airbags will deploy if the severity of impact is above the designed threshold level, comparable to an approximately 25 km/h (16 mph) collision when impacting straight into a solid wall that does not move or deform. If the severity of the impact is below the above threshold level, the front airbags may not deploy. However, this threshold speed will be considerably higher if the vehicle strikes an object that absorbs the impact by either deforming or moving (for example, another stationary vehicle, pole or a guard rail).

Because frontal collisions can easily move you out of position, it is important to always properly wear your seat belts. Your seat belts will help keep you in a safe distance from the steering wheel and instrument panel during the initial stages of airbag deployment. The initial stage of airbag inflation is the most forceful, and can possibly cause serious or fatal injuries. Moreover, the seat belts in your vehicle are your primary means of protection in a collision. The SRS airbags are designed to provide additional protection. Therefore, for your safety and the safety of all occupants, be sure to always properly wear your seat belts.

The front airbags MAY NOT DEPLOY when...

With certain types of frontal collisions, the vehicle's body structure is designed to absorb the shock to help protect the occupants from harm. (The vehicle body's front area may deform significantly as it absorbs the impact.) Under such circumstances, the front airbags may not deploy irrespective of the deformation and damage to the vehicle body. Examples of some typical conditions are shown in the illustration.

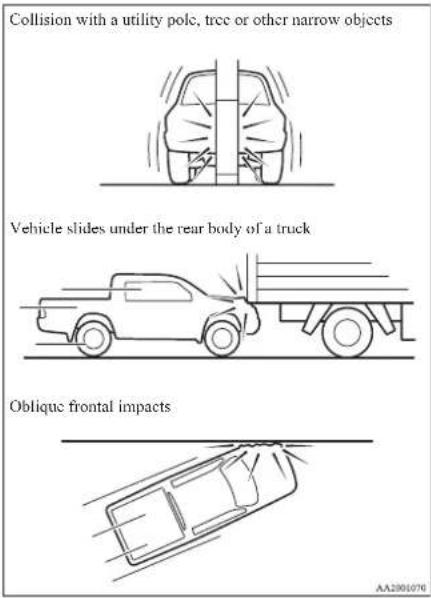

Examples of some typical conditions are shown in the illustration.

Because the front airbags do not protect the occupant in all types of frontal collisions, be sure to always properly wear your seat belts.

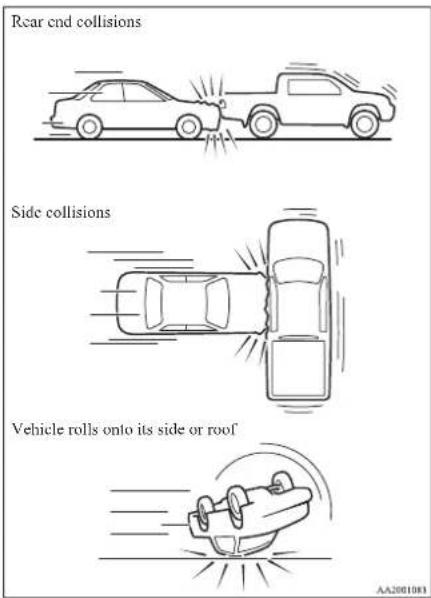

The front airbags ARE NOT DESIGNED TO DEPLOY when...

Because the front airbags do not protect the occupant in all types of collisions, be sure to always properly wear your seat belts.

The front airbags are not designed to deploy in conditions where they cannot typically provide protection to the occupant. Such conditions are shown in the illustration.

The front airbags MAY DE- PLOY when...

The front airbags may deploy if the bottom of the vehicle suffers a moderate-to-severe impact (undercarriage damage).

Supplemental restraint system (SRS) - airbag*

Examples of some typical conditions are shown in the illustration.

Because the front airbags may deploy in certain types of unexpected impacts as shown in the illustration that can easily move you out of position, it is important to always properly wear your seat belts. Your seat belts will help keep you a safe distance from the steering wheel and instrument panel during the initial stages of airbag deployment. The initial stage of airbag inflation is the most forceful and can possibly cause serious or fatal injuries if you contact it at this stage.

Collision with an elevated median/island or kerb

Simple line drawing of a pickup truck on a road (no text or symbols)

Vehicle travels over a deep hole/pothole

Vehicle drives down a steep slope and hits the ground

Simple line drawing of a car speeding with motion lines (no text or symbols)

WARNING

• Do not attach anything to the steering wheel's padded cover, such as trim material, badges, etc. It might strike and injure an occupant if the airbag inflates.

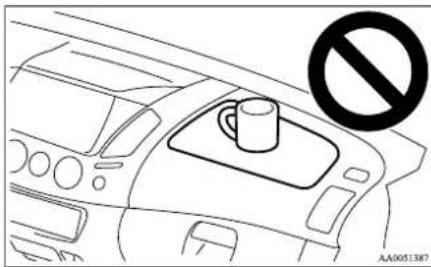

• Do not set anything on, or attach anything to, the instrument panel above the glove box. It might strike and injure an occupant if the airbag inflates.

Line drawing of a car interior with a mug and a circular no-smoking symbol (no text or labels)

WARNING

• Do not attach accessories to, or put them in front of, the windscreen. These objects could restrict the airbag inflation, or strike and injure an occupant if the airbags inflate.
• Do not put packages, pets or other objects between the airbags and the driver or front passenger. It could affect airbag performance, or could cause injury when the airbag inflates.
  ● Right after the airbag inflation, several airbag system components will be hot. Do not touch them; you could be burned.
  ● The airbag system is designed to work only once. Once the airbags have deployed, they will not work again. They must promptly be replaced, and we recommend you to have the entire airbag system inspected by a MITSUBISHI MOTORS Authorized Service Point.

Side airbag system

E00407600563

The side airbags (A) are contained in the driver and front passenger seatbacks. The side airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.

Line drawing of a car seatbelt with labeled component A (no text or symbols beyond label)

The label shown here is attached to the seat-backs with a side airbag.

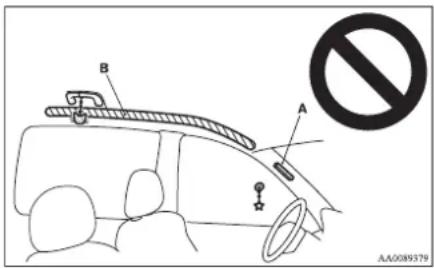

Curtain airbag system

E00409100474

The curtain airbags are contained in the front pillars and roof side rail. The curtain airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat or rear seat.

Line drawing of two people seated in a car, one wearing a headset, with no visible text or symbols

Deployment of side airbags and curtain airbags

E00407701011

The side airbags and curtain airbags ARE DESIGNED TO DEPLOY when...

The side airbags and curtain airbags are designed to deploy when the vehicle suffers a moderate-to-severe side impact to the middle of the passenger compartment.

The typical condition is shown in the illustration.

Top-down line drawing of a car with exhaust lines indicating airflow or traffic (no text or symbols)

The seat belts in your vehicle are your primary means of protection in a collision. The SRS side airbags and curtain airbags are designed to provide additional protection. Therefore, for your safety and the safety of all occupants, be sure to always properly wear your seat belts.

Supplemental restraint system (SRS) - airbag*

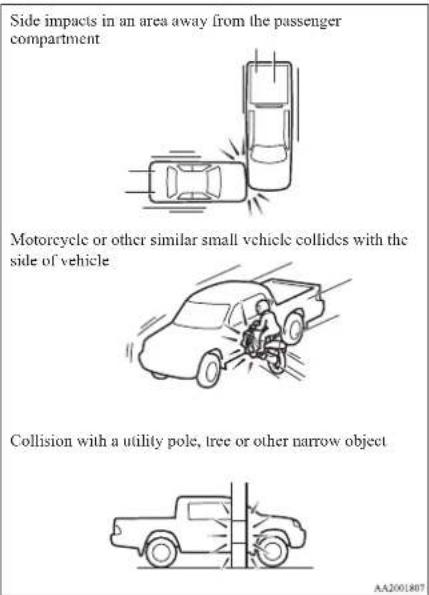

The side airbags and curtain airbags MAY NOT DEPLOY when...

With certain types of side collisions, the vehicle's body structure is designed to absorb the shock to help protect the occupants from harm. (The vehicle body's side area may deform significantly as it absorbs the impact.) Under such circumstances, the side airbags and curtain airbags may not deploy irrespective of the deformation and damage to the vehicle body.

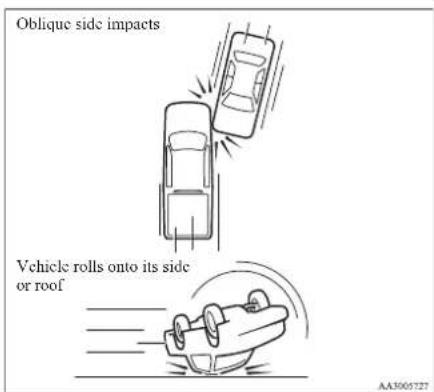

Examples of some typical conditions are shown in the illustration.

Because the side airbags and curtain airbags do not protect the occupant in all types of side collisions, be sure to always properly wear your seat belts.

The side airbags and curtain airbags ARE NOT DESIGNED TO DEPLOY when...

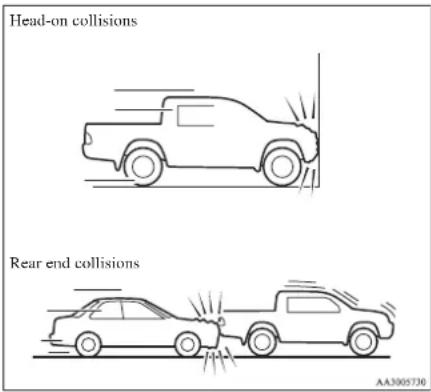

The side airbags and curtain airbags are not designed to deploy in conditions where they cannot usually provide protection to the occupant. Typical conditions are shown in the illustration.

Because the side airbags and curtain airbags do not protect the occupant in all types of collisions, be sure to always properly wear your seat belts.

WARNING

• The side airbags and curtain airbags are designed to supplement the driver and passenger seat belts in certain side impacts. Seat belts should always be worn properly, and the driver and passenger should sit well back and upright without leaning against the window or door.
• The side airbags and curtain airbags inflate with great force. The driver and front passenger should not put their arms out the window, and should not lean against the door, in order to reduce the risk of serious or possible fatal injury from the deploying side airbag and curtain airbag.

Illustration of a person breastfeeding in a car seat with a no-smoking symbol (no text or labels)

WARNING

• Do not allow a child to kneel on the passenger seat facing the passenger's side door, since the side airbags and curtain airbags inflate with great force. Otherwise, the child may be killed or seriously injured.

WARNING

• Do not allow any rear seat occupant to hold onto the seatback of either front seat, in order to reduce risk of injury from the deploying side airbag. Special care should be taken with children.
• Do not place any objects near or in front of the seatback of either front seat. They could interfere with proper side airbag inflation, and also could cause injury if thrown free by side airbag deployment.

Supplemental restraint system (SRS) - airbag*

WARNING

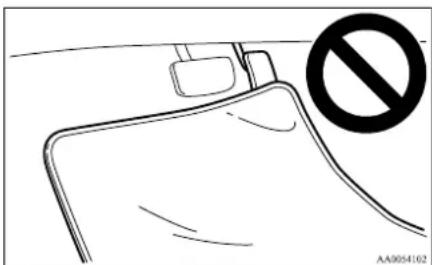

• Do not place stickers, labels or additional trim on the seatback of either front seat. They could interfere with proper side air-bag inflation.
• Do not install seat covers on seats with side airbags. Do not re-cover seats that have side airbags. This could interfere with proper side airbag inflation.
• Do not attach a microphone (A) or any other device or object around the part where the curtain airbags (B) activate such as on the windscreen, side door glass, front and rear pillars and roof side or assist grips. When the curtain airbags inflate, the microphone or other device or object will be hurled with great force or the curtain airbags may not activate correctly, resulting in death or serious injury.

WARNING

- Do not put a hanger or any heavy or pointed object on the coat hook.

If the curtain airbag was activated, any such item could be propelled away with great force and could prevent the curtain airbag from inflating correctly. Hang clothes directly on the coat hook (without using a hanger).

Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook.

- Do not allow a child to lean against or close to the front door even if the child is seated in a child restraint system.

The child's head should also not be leaned against or be close to the area of the seat where the side airbag and curtain airbag are located. It is dangerous if the side airbag and curtain airbag inflate.

Failure to follow all of these instructions could lead to serious or fatal injury to the child.

We recommend work around and on the side airbags and curtain airbags system to be done by MITSUBISHI MOTORS Authorized Service Point. Improper work could result in inadvertent deployment of a side airbags and curtain airbags, or could render a side airbags and curtain airbags inoperative; either situation could result in serious injury.

SRS warning lamp

E00407802761

There is a Supplemental Restraint System (“SRS”) warning lamp on the instrument panel. The system checks itself every time the ignition switch is turned to the “ON” position. The SRS warning lamp will come on for several seconds and then go out. This is normal and means the system is working properly. If there is a problem involving one or more of the SRS components, the warning lamp will come on and stay on.

The SRS warning lamp is shared by the SRS airbag and the seat belt pretensioner system.

Diagram of a mechanical device with a magnified inset showing a person holding a tool (no text or symbols present)

WARNING

- If any of the following conditions occur, there may be a problem with the SRS airbags and/or seat belt pretensioners, and they may not function properly in a colli-

WARNING

sion or may suddenly activate without a collision:

• Even when the ignition switch is in "ON" position, the SRS warning lamp does not come on or it remains on.
• The SRS warning lamp comes on while driving.

The SRS airbags and seat belt pretensioners are designed to help reduce the risk of serious injury or death in certain collisions. If either of the above conditions occurs, immediately have your vehicle checked by a MITSUBISHI MOTORS Authorized Service Point.

SRS servicing

E00407901244

WARNING

We recommend any maintenance performed on or near the components of the SRS to be performed by a MITSUBISHI MOTORS Authorized Service Point.
Improper work on the SRS components or wiring could result in inadvertent deployment of the airbags, or could render the SRS inoperative; either situation could result in serious injury.

WARNING

• Do not modify your steering wheel, seat belt retractor or any other SRS components. For example, replacement of the steering wheel, or modifications to the front bumper or body structure can adversely affect SRS performance and lead to possible injury.
• If your vehicle has sustained any damage, we recommend you to have the SRS inspected to ensure it is in proper working order.
  ● On vehicles equipped with side airbags, do not modify your front seats, centre pillar and centre console.
  It can adversely affect SRS performance and lead to possible injury.
  Also, if you have found any tear or open seam in the seat fabric at the portion near the side airbag, we recommend you to have the seat inspected.
• On vehicles with the curtain airbags, if you have found any scratch, crack or damage to the portion of the front and rear pillars and roof side rail, we recommend you to have the SRS inspected by a MITSUBISHI MOTORS Authorized Service Point.

NOTE

• When you transfer ownership of the vehicle to some other person, we urge you to alert the new owner that it is equipped with the SRS and refer the new owner to the applicable section in this owner's manual.
• If you junk or scrap the vehicle, we urge you to first take the vehicle to a MITSUBISH MOTORS Authorized Service Point so that the SRS can be rendered safe.

Instruments and controls

Instruments....5-02

Indication and warning lamps.... 5-06

Indication lamps....5-07

Warning lamps.... 5-08

Centre information display* 5-10

Combination headlamps and dipper switch.... 5-32

Headlamp levelling switch* 5-35

Turn-signals lever....5-36

Hazard warning flasher switch....5-37

Front fog lamp switch* 5-37

Rear fog lamp switch....5-38

Wiper and washer switch.... 5-38

Rear window demister switch.... 5-43

Horn switch....5-44

Instruments

Instruments

E00500100876

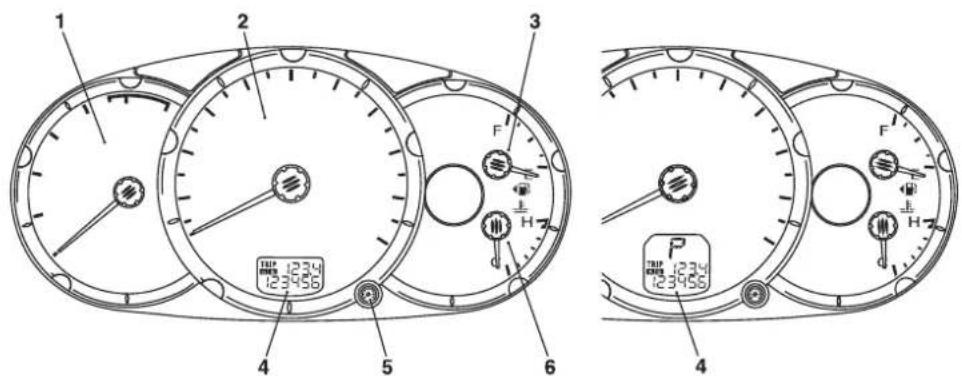

Type A Type B

1- Tachometer
2- Speedometer
3- Fuel gauge
4- Odometer/Tripmeter
5- Tripmeter reset button/Daytime dipper button*
6- Water temperature gauge

Speedometer

F0050021X0880

Indication for km/h

The speedometer indicates the vehicle's speed in kilometers per hour (km/h).

Indication for km/h and mph

The speedometer indicates the vehicle's speed in miles per hour (mph) and kilometers per hour (km/h).

Tachometer

EDOS(KB300780)

The tachometer indicates the engine speed (r/min). The tachometer can help you obtain more economical driving and also warns you of excessive engine speeds.

OKTE15E3

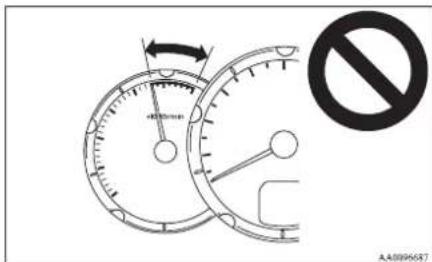

CAUTION

- When driving, watch the tachometer to make sure that the engine speed indication does not rise into the red zone (excessive engine rpm).

Odometer/Tripmeter

E00500601113

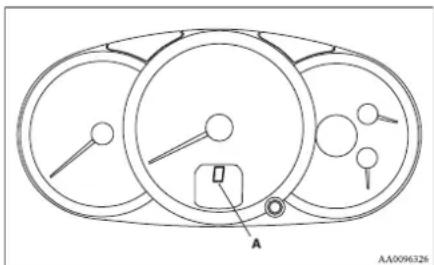

When the ignition switch is in the "ON" position, odometer and tripmeter indications are given.

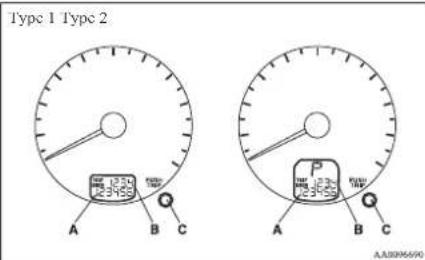

A- Odometer

B- Tripmeter

C- Reset button

Odometer

The odometer indicates the total distance the vehicle has travelled.

Instruments and controls

Instruments

Tripmeter

The tripmeter indicates the distance travelled during a particular trip or period.

There are two tripmeter displays: TRIP A and B

TRIP A can be used to measure the distance travelled since the current trip began. At the same time, TRIP B can be used to measure the distance from an intermediate location.

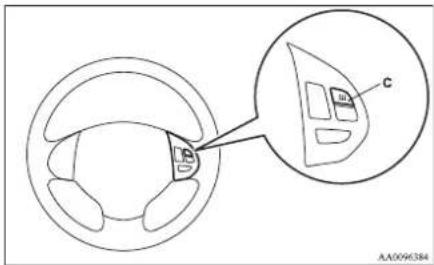

Every time the reset button (C) is pressed lightly (less than 1 second), the tripmeter display changes (between TRIP A and B

To reset the tripmeter

To return the display to "0", press the reset button (C) for more than 1 second. Only the currently displayed value will be reset. If TRIP A is displayed, for example, only TRIP A will be reset.

Fuel gauge

E00500700902

The fuel gauge indicates the fuel level in the fuel tank when the ignition switch is in the "ON" position.

F-Full

E- Empty

Fuel lid mark

The fuel lid mark (A) indicates that the fuel tank filler door is located on the left side of the vehicle (Refer to "Filling the fuel tank" on page 2-02).

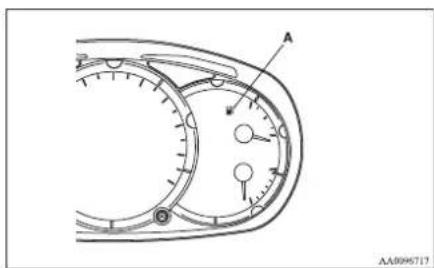

Low fuel warning lamp

E00508100739

The warning lamp (A) comes on when the fuel level is getting low (approx. 11 litres) with the ignition switch in the "ON" position. Refuel as soon as possible.

NOTE

● On inclines or curves, due to the movement of fuel in the tank, the low fuel warning lamp may indicate incorrectly.

Water temperature gauge

EDDS00800479

The water temperature gauge indicates the engine coolant temperature when the ignition switch is in the "ON" position.

CAUTION

- If the indication needle enters the H zone while the engine is running, it indicates that the engine is possibly overheating. Immediately park your vehicle in a safe place and make the necessary corrections. (Refer to "Engine overheating" on page 8-04.) While driving, care should always be taken to maintain the normal operating temperature.

Daytime dipper button (meter illumination control)\*

E00508800273

The rheostat can be adjusted while the head-lamps or tail lamps turn on. Turn the dial to adjust the illumination (meter, multi centre display, audio system's control panel, heater control panel, etc.) to the desired brightness.

1- To reduce brightness
2- To increase brightness

Indication and warning lamps

E00501503533

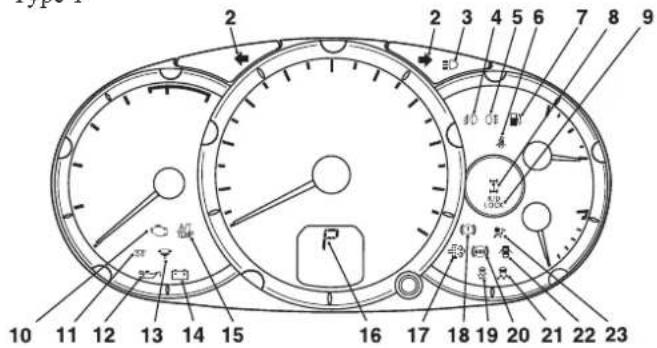

Type 1

Type 2

AA1008740

1. CRUISE indication lamp* → p. 6-51
2. Turn-signal indication lamps/Hazard warning indication lamps → p. 5-07
3. High-beam indication lamp → p. 5-07
4. Front fog lamp indication lamp ^* → p. 5-07
5. Rear fog lamp indication lamp → p. 5-07
6. Seat belt reminder/warning lamp → p. 4-11
7. Low fuel warning lamp → p. 5-05

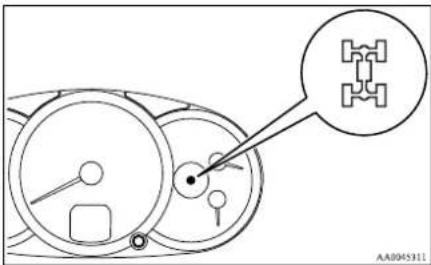

8. 2WD/4WD operation indication lamp* → p. 6-27, 6-32

9. Rear differential lock indication lamp* → p. 6-35

10. Check engine warning lamp → p. 5-08
11. Diesel preheat indication lamp → p. 5-07
12. Oil pressure warning lamp → p. 5-09
13. Fuel filter indication lamp → p. 5-08
14. Charge warning lamp → p. 5-09

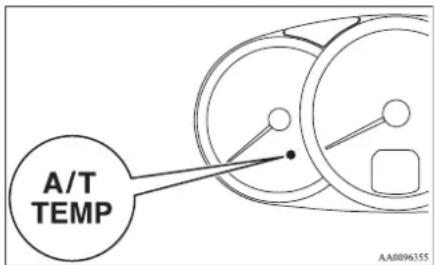

15. A/T (automatic transmission) fluid temperature warning lamp (vehicles with A/T) → p. 6-23

16. Selector lever position indicator (vehicles with A/T) → p. 6-20

17. Diesel particulate filter (DPF) warning lamp* → p. 6-15

18. Brake warning lamp → p. 5-08
19. Active Stability & Traction Control (ASTC) OFF indication lamp* p. 6-49
20. Anti-lock brake system (ABS) warning lamp* → p. 6-46
21. Active Stability & Traction Control (ASTC) indication lamp* → p. 6-49
    22- Door ajar warning lamp → p. 5-10
22. Supplemental restraint system (SRS) warning lamp* → p. 4-40

Indication lamps

E00501600012

Turn-signal indication lamps/ Hazard warning indication lamps

F00501700185

These indication lamps blink on and off when a turn-signal lamp is operating.

NOTE

- If the blinking is too fast, the cause may be a blown lamp bulb or a faulty turn-signal connection.

When the hazard warning lamp switch is pressed, all turn-signal lamps will flash on and off continuously.

High-beam indication lamp

00501800115

This indication lamp illuminates when the high-beam is used.

Front fog lamp indication lamp\*

L00501900347

This indication lamp illuminates while the front fog lamps are on.

Rear fog lamp indication lamp

E00502000114

This indication lamp illuminates while the rear fog lamp is on.

Diesel preheat indication lamp

L00502300250

This indication lamp illuminates when the ignition switch is placed in the "ON" position. As the glow plug becomes hot, the lamp goes out and the engine can be

started.

CAUTION

- If the diesel preheat indication lamp comes on after the engine is started, the engine speed may not rise above the idling speed because of fuel freezing. In this case, keep the engine idling for about ten minutes, then turn off the ignition switch and immediately turn it on again to confirm that the diesel preheat indication lamp is off.

NOTE

• If the engine is cold, the diesel preheat indication lamp is on for a longer time.
• When the engine has not been started within about 5 seconds after the diesel preheat indication lamp went out, return the ignition switch to the "LOCK" position. Then, turn the switch to the "ON" position to preheat the engine again.
• When the engine is warm, the diesel preheat indication lamp does not come on even if the ignition switch is placed in the "ON" position.

Warning lamps

Fuel filter indication lamp

E00509900170

This indication lamp illuminates when the ignition switch is turned to the "ON" position and goes off after the engine has started. If it lights up while the engine is

running, it indicates that water has accumulated inside the fuel filter; if this happens, remove the water from the fuel filter.

Refer to "Removal of water from the fuel filter" on page 8-06.

When the lamp goes out, you can resume driving. If it either does not go out or comes on from time to time, we recommend you to have the vehicle inspected.

Warning lamps

E00502400017

Brake warning lamp

F00502501637

This lamp illuminates when the ignition switch is turned to the "ON" position, and goes off after a few seconds. Always make sure that the lamp goes off before driving.

With the ignition switch in the “ON” position, the brake warning lamp illuminates under the following conditions:

• When the parking brake lever has been engaged.
• When the brake fluid level in the reservoir falls to a low level.
• When the brake force distribution function is not operating correctly. (vehicles with anti-lock brake system)

CAUTION

- In the situations listed below, brake performance may be compromised or the vehicle may become unstable if brakes are applied suddenly; consequently, avoid driving at high speeds or applying the brakes suddenly. Furthermore, immediately the vehicle should be brought to a stop in a safe location and to have it checked.

• The brake warning lamp does not illuminate when the parking brake is applied or does not turn off when the parking brake is released.
• The ABS warning lamp and brake warning lamp illuminate at the same time. For details, refer to “ABS warning lamp” on page 6-46. (vehicles with anti-lock brake system)
• The brake warning lamp remains illuminated during driving.

● The vehicle should be brought to a halt in the following manner when brake performance has deteriorated.

- Depress the brake pedal harder than usual. Even if the brake pedal moves down to the very end of its possible stroke, keep it pressed down hard.

CAUTION

- Should the brakes fail, use engine braking to reduce your speed and carefully pull the parking brake lever to park your vehicle. Depress the brake pedal to operate the stop lamp to alert the vehicles behind you.

Check engine warning lamp

E00502601944

This lamp is a part of an on-board diagnostic system which monitors the emissions, engine and automatic transmission control systems.

If a problem is detected in one of these systems, this lamp illuminates.

Although your vehicle will usually be drivable and not need towing, we recommend you to have the system checked as soon as possible.

[ Vehicles to comply with the Euro 3 and Euro 4 regulation]

This lamp will also illuminate for a few seconds when the ignition switch is turned to the "ON" position. If it does not go off after a few seconds, we recommend you to have the vehicle checked.

[ Vehicles to comply with the Euro 5+]

This lamp will also illuminate when the ignition switch is turned to the "ON" position, and goes off after the engine has started. If it does not go off after the engine has started, we recommend you to have the system checked.

CAUTION

● Prolonged driving with this lamp on may cause further damage to the emission control system. It could also affect fuel economy and drivability.
- If the lamp does not illuminate when the ignition switch is turned to the "ON" position, we recommend you to have the system checked.
- If the lamp illuminates while the engine is running, avoid driving at high speeds and we recommend you to have the system checked. During vehicle operation with the lamp illuminated, the vehicle may not accelerate when you depress the accelerator pedal. When the vehicle is stationary with the lamp illuminated, you must depress the brake pedal more firmly than usual since the engine idling speed is higher than usual and the vehicle with an A/T has a stronger tendency to creep forward.

NOTE

● The engine electronic control module accommodating the onboard diagnostic system has various fault data (especially about the exhaust emission) stored. This data will be erased if a battery cable is disconnected which will make a rapid diagnosis difficult. Do not disconnect a battery cable when the check engine warning lam is ON.

Charge warning lamp

100502700821

This lamp illuminates when the ignition switch is turned to the "ON" position, and goes off after the engine has started.

CAUTION

- If the lamp comes on while the engine is running, the probable cause is as shown below. Park the vehicle immediately at a safe place and we recommend you to have it checked. - Broken drive belt or abnormality in the charging system. A broken drive belt causes poor braking efficiency. Depress the brake pedal harder than usual to park the vehicle in a safe place.

Oil pressure warning lamp

F:00502800620

This lamp illuminates when the ignition switch is turned to the "ON" position, and goes off after the engine has started. If it illuminates while the engine is running,

the oil pressure is too low.

If the warning lamp illuminates while the engine is running, turn the engine off and have it inspected.

CAUTION

• If this lamp illuminates when the engine oil level is not low, have it inspected.
  ● This warning lamp does not indicate the amount of oil in the crankcase. This must be determined by checking the oil level on the dipstick, while the engine is switched off.
• If you continue driving with low engine oil level or with this warning lamp illuminated, engine seizure may occur.

NOTE

- The oil pressure warning lamp should not be treated as an indication of the engine's oil level. The oil level must be checked using the dipstick.

Centre information display*

Door ajar warning lamp

E00503300475

This lamp illuminates when a door is either open or not completely closed.

If the vehicle speed reaches approximately 8 km/h

(5 mph) with a door open or

incompletely closed, the warning lamp flashes 16 times and a buzzer simultaneously sounds 16 times as a warning.

CAUTION

● Before moving your vehicle, check that the warning lamp is OFF.

NOTE

- It is possible to change the buzzer setting for either of the following types of operation. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

NOTE

• No buzzer operation (buzzer disabled)
  • Continuous buzzer operation

Centre information display\*

F00517801407

WARNING

- When operating the system for a prolonged period, make sure the vehicle is parked in a well-ventilated area to avoid the accumulation of toxic fumes inside and outside of the passenger compartment.

CAUTION

● The driver should not operate the display while the vehicle is in motion.
- When operating the system, stop the vehicle in a safe area.

When the ignition switch is turned to the "ACC" position, the screen switches on automatically.

NOTE

• Placing a cellular phone in the monitor's small storage compartment may weaken the phone's reception. This does not indicate a fault with the system.
• Use of wireless devices such as transceivers or a cellular phone near the monitor may make the following condition on the display. This does not indicate a fault with the system.

• The screen goes dark temporarily.
- The compass may not show the correct direction.
- Depending on the angle of view, you may see reddish horizontal lines on the monitor. The lines are a characteristic of the vacuum fluorescent display (VFD) used in the monitor. They do not indicate a fault.

Centre information display*

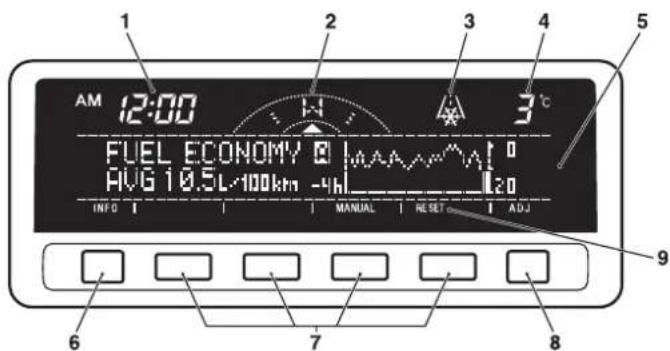

AA1008001

1- Digital clock → p. 5-20

Indicates the time.

2- Electronic compass

This display shows the direction of the vehicle.

3- Frozen road warning → p. 5-16

Gives an indication when the outside temperature is 3 °C or lower.

4- Outside temperature → p. 5-16

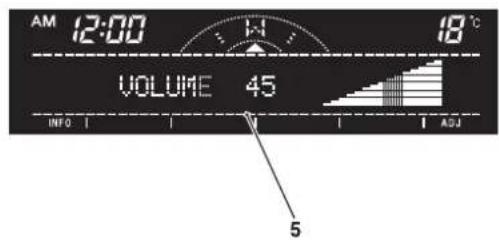

5- Centre information display indications Indicates details of each display.

6- "INFO" button

Used to select various kinds of information for display.

7- Function buttons

Press this button to select options shown in the display.

8- "ADJ" button

Used for adjusting the clock and for selecting settings displays.

9- Display for function buttons

This display shows the options available for each function button.

Centre information display*

Adjusting the time

E00518000063

Following modes are available for clock adjustment:

• For vehicles with MITSUBISHI genuine audio: "Automatic mode" and "Manual mode"
• Except for vehicles with MITSUBISHI genuine audio:

"Manual mode" only

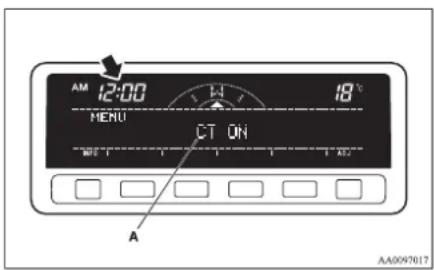

Automatic mode (MITSUBISHI genuine audio)

The automatic adjustment mode can set the local time automatically by using the signal from the local RDS stations. In this mode, "CT" (A) (Clock Time: sent with the RDS signal) is shown in the audio display.

NOTE

● Automatic clock adjustment does not take place while a settings display is shown.

Manual mode

The manual mode is also available in case the automatic mode shows the incorrect time when the adjacent local RDS stations are located in a different time zone. Refer to “Radio data system (RDS)” on page 7-20. It is possible to manually adjust the time.

Refer to “Changing the clock settings” on page 5-20.

Changing the information display

E00517901349

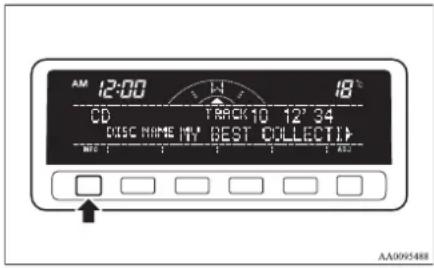

Every time the "INFO" button is pressed lightly, the display can be changed to the following:

Centre information display*

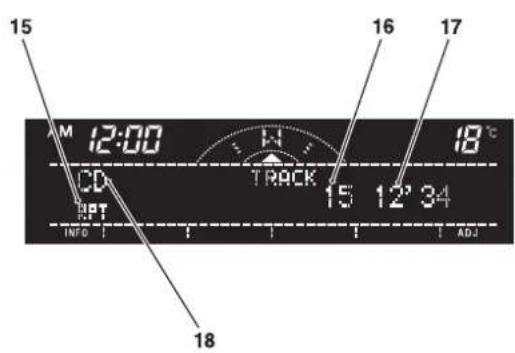

    subgraph Time_Steps
        K["CD TRACK 10 12° 34 DISC NAME MY BEST COLLECTIF INFO"] --> L["FUEL ECONOMY AVG 10.5L-100km -4h AUTO"] --> M["RANGE 170km -4h RESET ADJ"]
    end

    subgraph Sensor_Steps
        N["OUTSIDE TEMP 3 °C"] --> O["SPEED AVG 40km/h"] --> P["BAROMETER 1010hPa"]
    end

    subgraph Control_Steps
        Q["ELEVATION 1500m 3000"] --> R["BARometer 1100"]
    end

    style A fill:#f9f,stroke:#333
    style B fill:#f9f,stroke:#333
    style C fill:#f9f,stroke:#333
    style D fill:#f9f,stroke:#333
    style E fill:#f9f,stroke:#333
    style F fill:#f9f,stroke:#333
    style G fill:#f9f,stroke:#333
    style H fill:#f9f,stroke:#333
    style I fill:#f9f,stroke:#333
    style J fill:#f9f,stroke:#333
    style K fill:#ccf,stroke:#333
    style L fill:#ccf,stroke:#333
    style M fill:#ccf,stroke:#333
    style N fill:#ccf,stroke:#333
    style O fill:#ccf,stroke:#333
    style P fill:#ccf,stroke:#333
    style Q fill:#ccf,stroke:#333
    style R fill:#ccf,stroke:#333
    style S fill:#ccf,stroke:#333
    style T fill:#ccf,stroke:#333
    style U fill:#ccf,stroke:#333
    style V fill:#ccf,stroke:#333
    style W fill:#ccf,stroke:#333
    style X fill:#ccf,stroke:#333
    style Y fill:#ccf,stroke:#333
    style Z fill:#ccf,stroke:#333

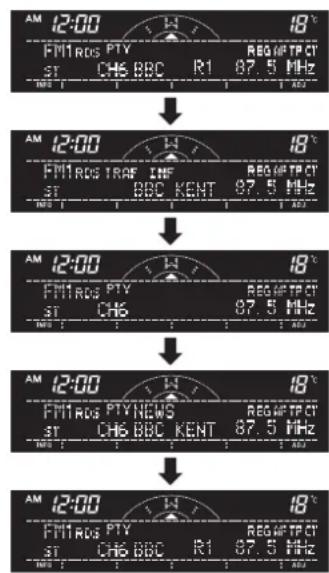

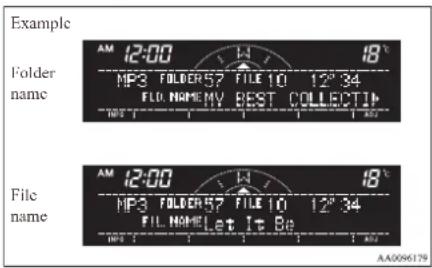

1- Audio information* → p. 7-15
2- Average fuel consumption → p. 5-14
3- Driving range → p. 5-14
4- Average speed → p. 5-15
5- Outside temperature → p. 5-16
6- Altimeter → p. 5-17
7- Barometer → p. 5-18
8- Calendar → p. 5-18
9- Clock-only → p. 5-18
10- Blank → p. 5-19

Centre information display*

Average fuel consumption

E00518200267

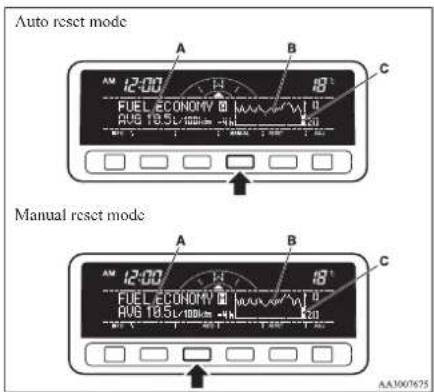

The average fuel consumption during the period since the last reset is shown in (A) and the momentary fuel consumption in (C). The average value of the fuel consumption is graphed every 5 minutes and the data for up to 4 hours are shown in (B). When you press the "MANUAL" function button in the auto reset mode, the mode will be changed to the manual reset mode. When you press the "AUTO" function button in the manual reset mode, the mode will be changed to the auto reset mode.

NOTE

• When you turn the ignition switch to the "ON" position after turning it from the "ON" position to the "ACC" or "LOCK" position in the manual reset mode, the auto reset mode will automatically be selected.
• When the average fuel consumption cannot be calculated, “--.-” will be shown.
  ● The average and momentary fuel consumption change depending on the driving condition (road condition, driving behavior, etc.). The indications may differ from the actual fuel consumption. Therefore, it is recommended to use the indications as reference.
• The unit indication can be changed to your desired setting {km/L, L/100 km, mpg (UK GALLON), or mpg (US GALLON)}. Refer to “User customization” on page 5-27.

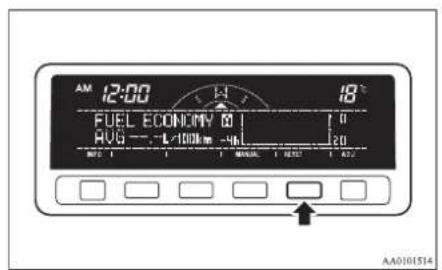

Resetting the average fuel consumption

Press the "RESET" function button to reset the average fuel consumption indication.

NOTE

● The average fuel consumption can be reset separately for the auto reset mode and for the manual reset mode.
- When you turn the ignition switch to the "ON" position about 4 hours (or more) after turning it from the "ON" position to the "ACC" or "LOCK" position in the auto reset mode, the average fuel consumption indication will automatically be reset.

Driving range

E00518300095

This value (A) shows the distance (in km or miles) that can be driven on the fuel remaining in the fuel tank. The driving range is graphed every 5 minutes and the data for up to 4 hours are shown in (B).

NOTE

• When the driving range is 50 km (30 miles) or less, the display shows “----”.
  When it is 3,000 km (2,000 miles) or more, "3,000 km" or "2,000 miles" will be shown
• When the driving range cannot be measured, the display shows “----”.
  ● The driving range is shown based on the accumulated fuel consumption data, however, may be changed depending on the driving condition (road condition, driving behavior etc.). If the battery terminals are disconnected, the accumulated fuel consumption data will be erased. It is recommended to use the indication as reference.
• When the vehicle is fueled, the driving range will be updated. However, if the amount of fueling is small, the indication may not be correct. Therefore, fill up the tank as much as possible in case of fueling.
• When the vehicle is stopped on a steep slope, the value of the driving range may increase. This is caused by the fuel movement inside the tank on the slope and is not deemed as a failure.

Resetting the driving range

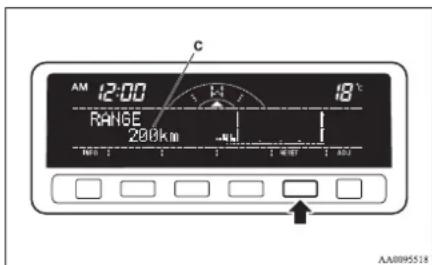

Press the “RESET” function button to reset the driving range plotted in graph.

NOTE

• Pressing the "RESET" function button will not reset the indication (C).
• It is possible to set the display unit to km or miles.
  Refer to "User customization" on page 5-27.

Average speed

E00518400126

The average speed during the period since the last reset is shown in (A) and the momentary speed in (C). The average value of the vehicle speed is graphed every 5 minutes and the data for up to 4 hours are shown in (B).

When you press the “MANUAL” function button in the auto reset mode, the mode will be changed to the manual reset mode. When you press the “AUTO” function button in the manual reset mode, the mode will be changed to the auto reset mode.

Auto reset mode

Manual reset mode

NOTE

• When you turn the ignition switch to the "ON" position after turning it from the "ON" position to the "ACC" or "LOCK" position in the manual reset mode, the auto reset mode will automatically be selected.
• When the average speed cannot be calculated, “---” will be shown.

Centre information display*

NOTE

● The average and momentary speed change depending on the driving condition (road condition, driving behavior, etc.). The indications may differ from the actual speed. Therefore, it is recommended to use the indications as reference.
- The unit indication can be changed to you desired setting (km/h or mph). Refer to “User customization” on page 5-27.

Resetting the average speed

Press the “RESET” function button to reset the average vehicle speed.

NOTE

● The average speed can be reset separately for the auto reset mode and for the manual reset mode.

NOTE

- When you turn the ignition switch to the "ON" position about 4 hours (or more) after turning it from the "ON" position to the "ACC" or "LOCK" position in the auto reset mode, the average speed indication will automatically be reset.

Outside temperature

E00518501108

The outside temperature is graphed every 5 minutes and the data for up to 4 hours are shown in (A). The current outside temperature is shown in (B).

AA0095534

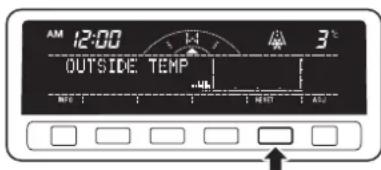

Resetting the outside temperature

Press the “RESET” function button to reset the graph of the outside temperature.

AA0095547

NOTE

● Depending on factors such as the driving conditions, the displayed temperature may vary from the actual outside temperature.
- It is possible to set the display unit to ^ or ^ .

Refer to "User customization" on page 5-27.

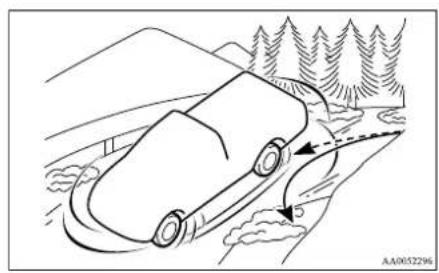

Frozen road warning

E00537100021

This shows the temperature outside the vehicle.

When the outside air temperature drops below about 3 °C (37 °F), the alarm sounds and the outside air temperature warning symbol (A) flashes for about 10 seconds.

To adjust the elevation

It is possible to adjust the currently indicated elevation using the following function buttons:

CAUTION

● There is a danger the road might be icy, even when this symbol is not flashing, so please take care when driving.

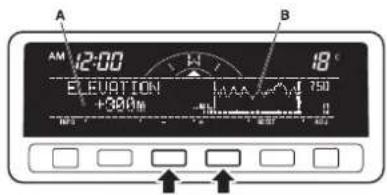

Altimeter

E00518600069

The current elevation in units of 100 m (400 ft) is shown in (A). The elevation is graphed every 5 minutes and the data for up to 4 hours are shown in (B).

“+”- Adjustment of elevation

The elevation increases by 100 m (400 ft) every time you lightly push the "+" button.

If you continue pressing the button for about 2 seconds or more, the elevation indication is fast-forwarded. Then the setting is changed to the elevation selected.

“-”- Adjustment of elevation

The elevation decreases by 100 m (400 ft) every time you lightly push the “-” button. If you continue pressing the button for about 2 seconds or more, the elevation indication is fast-forwarded. Then the setting is changed to the elevation selected.

NOTE

● The elevation is determined from changes in atmospheric pressure. Depending on weather conditions, the indicated elevation may differ from the actual elevation. Variations in atmospheric pressure can cause different elevations to be shown even in the same location. This behavior does not indicate a fault. Use the indication as a guide only.

Centre information display*

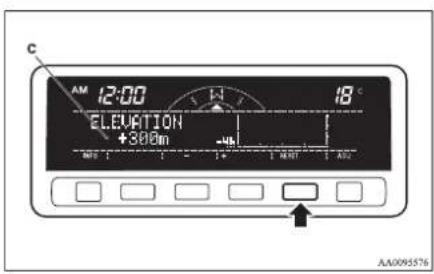

Resetting the elevation

Press the "RESET" function button to reset the elevation plotted in graph.

NOTE

• Pressing the "RESET" function button will not reset the indication (C).
• It is possible to set the display unit to m or ft.

Refer to "User customization" on page 5-27.

Barometer

E00518700044

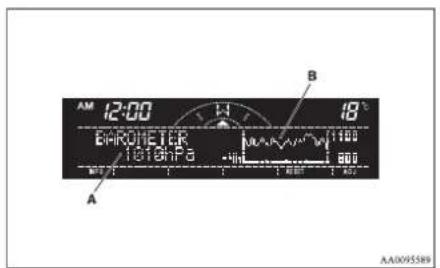

This display shows the atmospheric pressure at the present location in (A). The atmospheric pressure values are graphed every 5 minutes and the data for up to 4 hours are shown in (B).

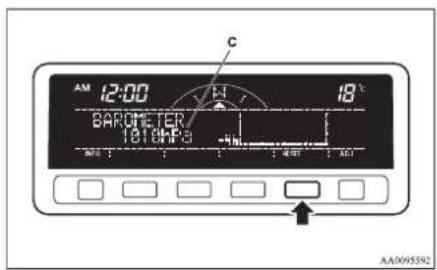

Resetting the atmospheric pressure

Press the "RESET" function button to reset the atmospheric pressure plotted in graph.

NOTE

• Pressing the "RESET" function button will not reset the indication (C).
• It is possible to set the display unit to hPa, mb, kPa, or inIg. Refer to "User customization" on page 5-27.

Calendar

E00518800032

The date is shown. The calendar pattern can be changed to your desired setting.

Refer to "Changing the calendar setting" on page 5-24.

Clock-only

E00518900033

Only the clock is shown. The time notation can be changed to your desired setting. (12 hour/24 hour)

Refer to "User customization" on page 5-27.

Blank

E00519000015

The whole display can be turned into blank. In this case, buttons remain illuminated.

Solid black rectangle on white background with no text or symbols

NOTE

- If you operate the audio system, the audio display pops up.

Selecting settings displays

ED051910009D

Every time the "ADJ" button is pressed lightly, the display can be changed to the following:

CAUTION

● The driver should not operate the display while the vehicle is in motion.
- When operating the system, stop the vehicle in a safe area.

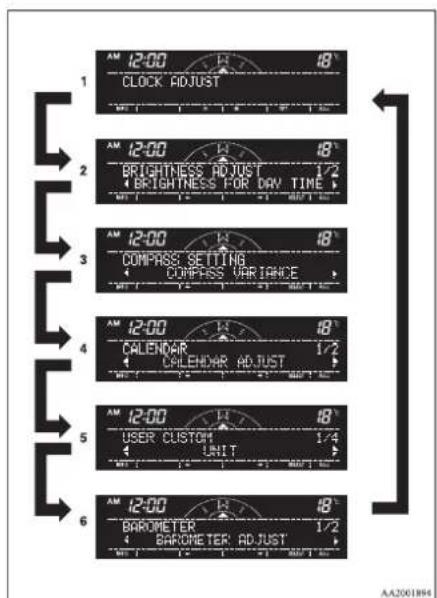

1- Changing the clock settings → p. 5-20
2- Adjusting the display brightness → p. 5-21
3- Correcting the compass p. 5-22
4- Changing the calendar setting → p. 5-24
5- User customization → p. 5-27
6-Adjusting the barometer p. 5-30

Centre information display*

Changing the clock settings

E00519200121

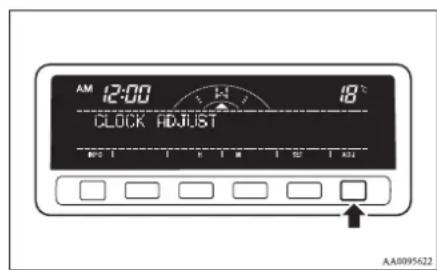

1. Press the "ADJ" button to select the clock setting display.

1. It is possible to adjust the clock using the function buttons.

“H”- Adjust “hour”.

The indication increases by one hour, every time you lightly press the "H" function button. If you continue pressing the button for about 2 seconds or more, the indication is fast-forwarded, and then the setting is changed to the hour selected.

“M”- Adjust “minute”.

The indication increases by one minute, every time you lightly press the "M" function button. If you continue pressing the button for about 2 seconds or more, the indication is fast-forwarded, and then the setting is changed to the minute selected.

"SET" To reset the minutes to zero.

The time is adjusted as described below by pressing the function button "SET".

In this occasion, the display flashes twice and then the setting is changed.

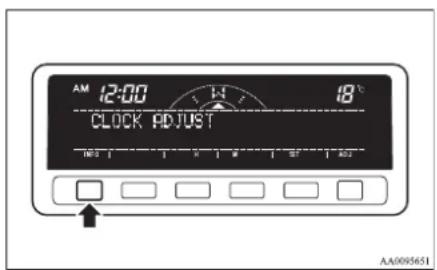

1. After making the adjustment, press the "INFO" button to select the information display.

Adjusting the display brightness

E00519300034

The display brightness can be adjusted at 13 levels for both daytime and nighttime.

● BRIGHTNESS FOR DAY TIME
The display brightness is adjusted when the light switch is in the "OFF" position.
● BRIGHTNESS FOR NIGHT TIME
The display brightness is adjusted when the light switch is in the D” or “D” position.

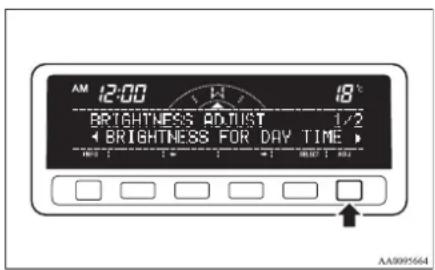

1. Press the "ADJ" button to show the brightness adjusting display.

1. Press the “←” or “→” function button to select the setting you wish to adjust (daytime or nighttime). Then press the “SELECT” function button.

1. Use the function buttons to adjust the brightness.

“+”- To make the display brighter The display becomes brighter by one step, every time you lightly press the “+” function button. If you continue pressing the button for about 2 seconds or more, the indication is fast-forwarded.

“-”- To make the display darker The display becomes darker by one step, every time you lightly press the “-” function button. If you continue pressing the button for about 2 seconds or more, the indication is fast-forwarded.

“SET” To set the brightness

- Press function button "SET" to set the new brightness. The display will flash twice.

Centre information display*

NOTE

• If you next wish to adjust the other adjustment setting (daytime or nighttime), press the "ADJ" button or "BACK" function button.
• After adjustment, press the "INFO" button to select the information display.

NOTE

● As the display brightness can be adjusted in the center information display only, the brightness inside the meter cannot be changed.

Correcting the compass

E00519400178

This compass shows the direction of the vehicle by the 8 azimuth system.

NOTE

• This system uses the earth's magnetic field, and so may not show the correct direction depending on the traffic condition or in the following places where the earth's magnetic field is disrupted.
  • Car parks located in buildings and tunnels
  • Expressways and underground cables
  • Area over the subway
• Transforming station
• Areas along the railroad
  In these cases, the correct direction will be displayed once the vehicle returns to a place where the earth's magnetic field is stable.

NOTE

- Do not install ski racks, antennas, etc. which are attached to the vehicle by means of a magnet. They affect the operation of the compass.

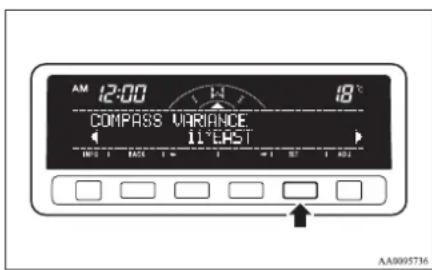

Setting the declination

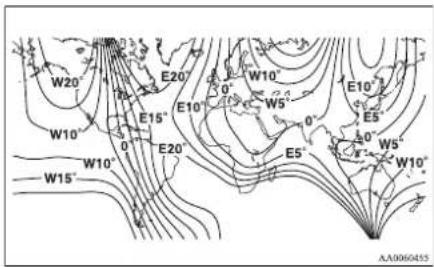

The declination is the difference between true north (the direction of the geographic north pole) and where a compass needle points to. Since the declination varies from place to place, it needs to be set for each region. Otherwise the compass will not show the correct direction.

Set the declination by the following steps:

NOTE

● The default declination setting is 0 degrees. In accordance with the illustration, set the declination setting to the declination contour nearest to a region where you drive the vehicle.
● The declination can be set at intervals of 1 degrees, from 28 degrees west (W28) to 28 degrees east (E28).

With a settings display showing, press the "ADJ" button and select "COMPASS VARIANCE".

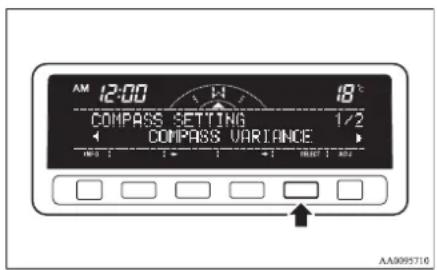

1. Press the function button for "SELECT".

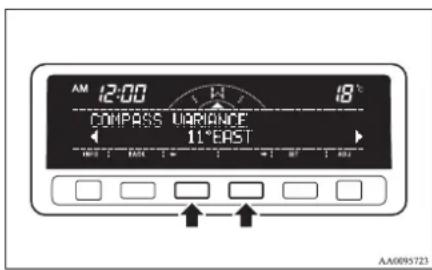

1. Press the function button for “←” or “→” to set the desired declination.

Pressing “←” or “→” for more than 1 second makes the value change rapidly.

1. When the declination adjustment has been completed, press the "SET" function button.

Setting the compass

The compass is usually calibrated automatically when the vehicle is moving. At times when complete calibration is not possible, no compass indications are given. Manually set the compass using the following procedure.

Abstract geometric diagram with curved dotted lines and a triangle, no text or symbols present

NOTE

- If your vehicle has a sunroof, keep the sunroof closed when calibrating the compass. Having the sunroof open when calibrating the compass could render the compass unable to correctly show directions.

With a settings display showing, press the "ADJ" button and select "COMPASS CALI-BRATION".

Centre information display*

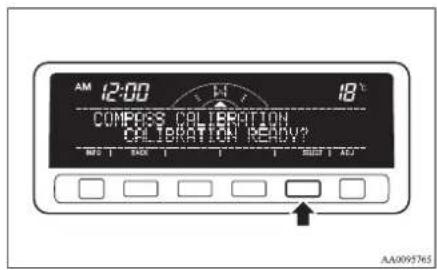

1. Press the function button for "SELECT".

1. Press the function button for "SELECT".

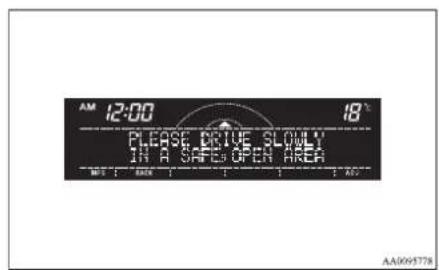

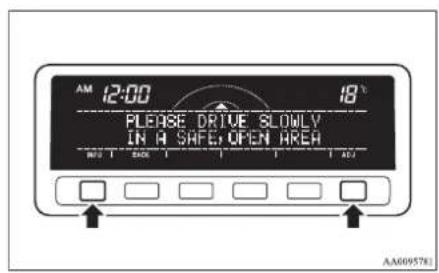

2. Turn the vehicle slowly through 360 degrees in a safe, open area with no buildings and other vehicles.

NOTE

- The "Completed the calibration". message may be displayed even if you terminate the turn before it is complete and return to the vehicle's original direction. The compass may not be properly calibrated in this case, so you must turn the vehicle through at least 360 degrees.

1. The compass setting will finish automatically and the words "COMPASS CALIBRATION COMPLETE" will appear on the screen.

Changing the calendar setting

The date and the calendar indication patterns can be changed.

Date setting

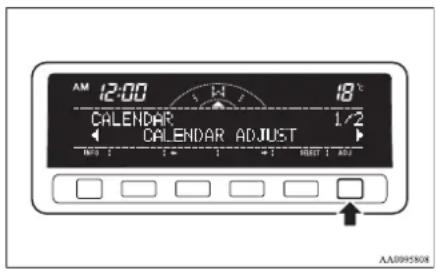

1. Press the "ADJ" button to select the calendar setting display.

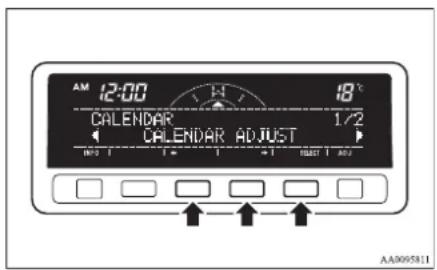

1. Press the “←” or “→” function button to select “CALENDAR ADJUST”. Then press the “SELECT” function button.

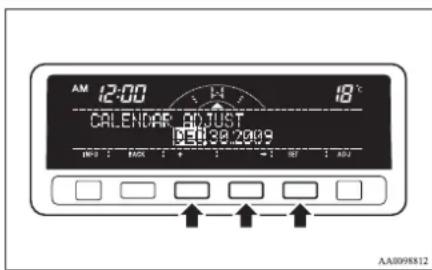

1. Use the function buttons to set the calendar.

“→”- Select “YEAR”, “MONTH”, “DAY” you wish to change. “YEAR”, “MONTH”, and “DAY” are changed over by turns every time you lightly press the “→” function button.

“+”- Change “YEAR”, “MONTH”, “DAY” you have selected. The indication is changed to your desired date every time you lightly press the “+” function button. If you continue pressing the button for about 2 seconds or more, the indication is forwarded.

“SET”- Determine the date. Press the “SET” function button. Then the display flashes twice and the setting is changed.

NOTE

● The year changes in the following sequence: 2012 → 2013 → ... 2099 → 2012 or 2013 → 2014 → ... 2099 → 2013.
- You can return to the previous display by pressing the “BACK” function button.

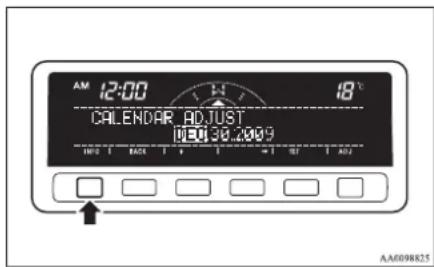

1. After setting the date, press the "INFO" button to return to the information display.

Centre information display*

Changing the calendar pattern

1. Press the "ADJ" button to select the calendar setting display. Press the "←" or "→" function button to select "CALENDAR PATTERN SELECT". Then press the "SELECT" function button.

1. Press function button “←” or “→” to select your desired indication pattern.

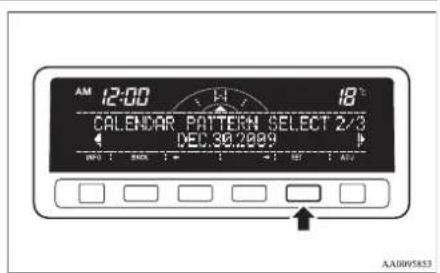

1. Press the function button "SET". The display will flash twice, and the indication pattern will be updated.

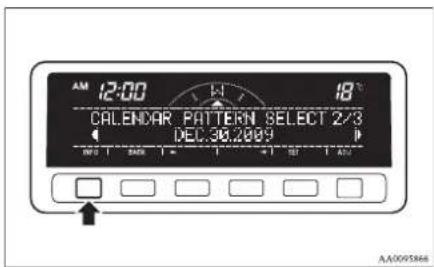

1. After setting the calendar pattern, press the "INFO" button to return to the information display.

User customization

E00519600183

You can set the indication of unit, language, and the time notation.

In addition, you can return these settings to the factory default settings.

Selecting the item to set

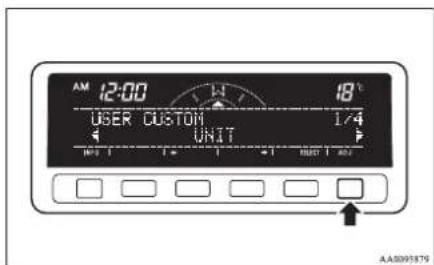

1. Press the "ADJ" button to select the user customization display.

1. Press the function button “←” or “→” to select the item you wish to set.

● "UNIT": Changing the unit
● "LANGUAGE": Changing the language
● “12h ↔ 24h”: Changing the time format
● "DEFAULT": Resetting to factory settings

Push the function button "SELECT". The setting display for your selected item will appear.

Changing display units

It is possible to change the display units for the fuel consumption, driving range, average speed, outside temperature, elevation, and atmospheric pressure as shown below.

FUEL ECONO-MY	km/L → L/100 km →mpg (UK GALLON) →mpg (US GALLON)
RANGE km → miles
SPEED km/h → mph
OUTSIDE TEM-PERATURE	°C → °F
ELEVATION m → ft

BAROMETER

hPa → mb → kPa → inHg

● Changing the display unit for fuel consumption

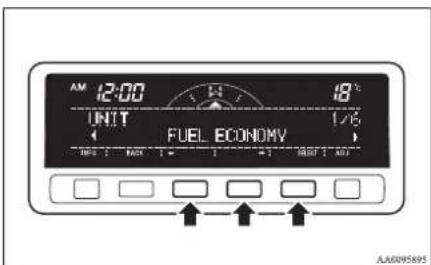

1. Press the “←” or “→” function button to select “FUEL ECONOMY”. Then press the “SELECT” function button.

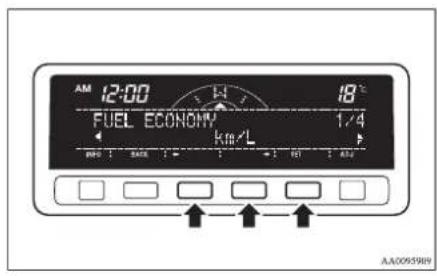

1. Press the “←” or “→” function button to select “km/L”. Then press the “SET” function button. The display will flash twice, and the display unit will be updated to the selected one.

Centre information display*

1. After setting, press the "INFO" button to return to the information display.

Changing the language

It is possible to set the display language of the centre information display.

● To change the display language to English

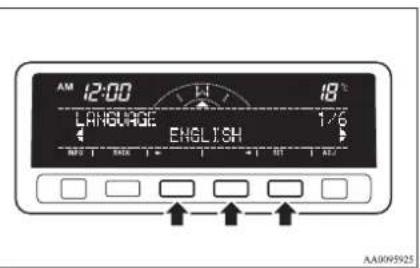

1. Press the “←” or “→” function button to select “ENGLISH”. Then press the “SET” function button. The display will flash twice, and then the setting is completed to the language selected.

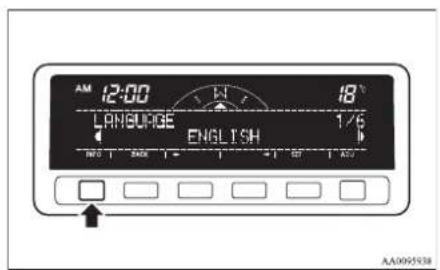

1. After setting the language, press the "INFO" button to return to the information display.

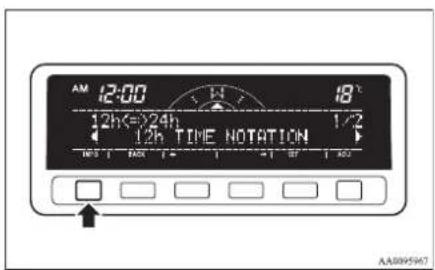

Changing the time notation

It is possible set the time notation to 12-hour or 24-hour.

1. Press the “←” or “→” function button to select “12h TIME NOTATION” or “24h TIME NOTATION”. Then press the “SET” function button. The display will flash twice, and the display time notation will be updated to the selected one.

NOTE

- You can return to the previous display by pressing the "BACK" function button.

1. After setting the time notation, press the "INFO" button to return to the information display.

Returning display items to their factory settings

You can return to the setting of each item to the factory default settings.

NOTE

● The factory settings are as follows:

• Fuel consumption: L/100 km (62 mph)
- Driving range: km
• Average speed: km/h
- Outside temperature: °C
- Elevation: m
• Atmospheric pressure: hPa
• Display language: English
• Time notation: 12-hour

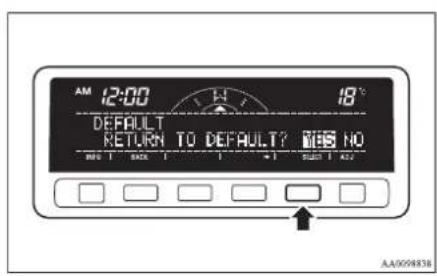

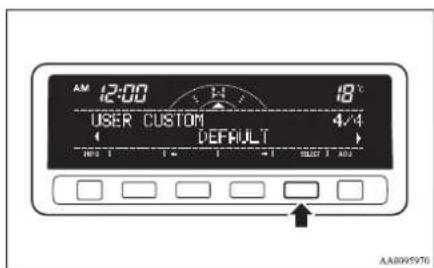

1. Push the "SELECT" function button.

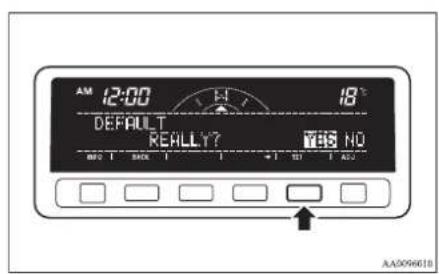

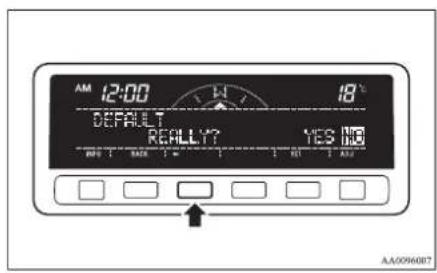

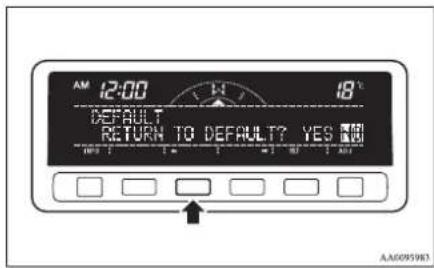

1. Press the “←” function button to select “YES”.

Centre information display*

1. Press the "SELECT" function button.

1. Once more press the “←” function button to select “YES”.

1. Press the "SET" function button.

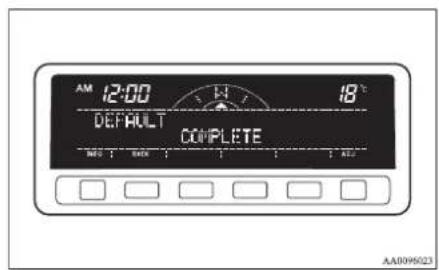

1. The display shown below will appear, and the display items will return to their factory settings.

NOTE

- If the battery terminals are disconnected, the settings for the date and time may be erased. If this happens, please set the date and time again.

Adjusting the barometer

E00524400033

It is possible to adjust the barometer indication and return it to the factory setting.

NOTE

- It is not necessary to adjust the barometer because it has been adjusted at the factory. However, if you wish, adjust it using an accurate barometer.

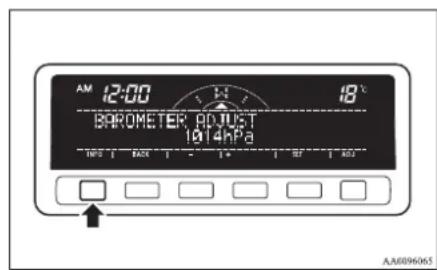

To adjust the barometer

1. Press the "ADJ" button to select the barometer adjustment display.

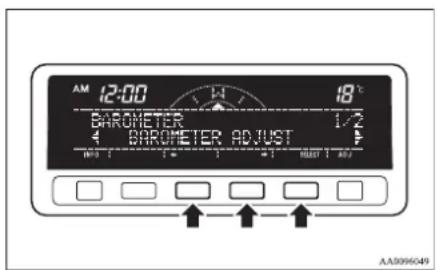

1. Press the “←” or “→” function button to select the “BAROMETER ADJUST” display. Then press the “SELECT” function button.

1. Adjust the barometer by pressing the function buttons.

“+”- To adjust the barometer Each gentle press of the “+” function button will increase the indicated barometer by 2 hPa. If you continue pressing the button for about 2 seconds or longer, the indication is fast-forwarded.

“-”- To adjust the barometer Each gentle press of the “-” function button will decrease the indicated barometer by 2 hPa. If you continue pressing the button for about 2 seconds or longer, the indication is fast-forwarded.

“SET” To set the barometer - Press the “SET” function button. The display will flash twice, and the new setting will be established.

NOTE

● You can return to the previous display by pressing the "BACK" function button.

1. After setting the barometer adjust, press the "INFO" button to return to the information display.

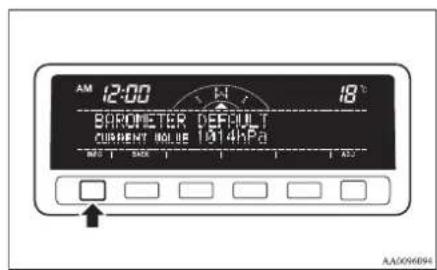

Resetting to the factory setting

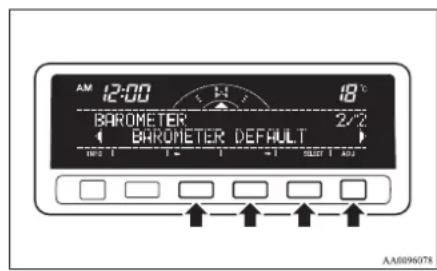

1. Press the "ADJ" button to select the barometer adjustment display. Press the “←” or “→” function button to select the "BAROMETER DEFAULT" display. Then press the "SELECT" function button.

Combination headlamps and dipper switch

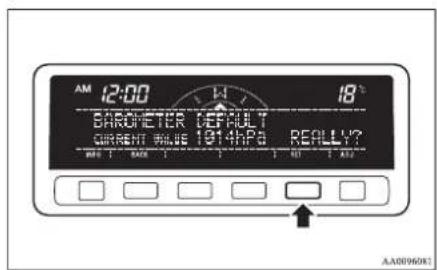

1. Press the "SET" function button. The display will flash twice and the barometer indication will return to the factory settings.

NOTE

• Although the barometer value is changed to the factory setting, a barometer unit you have selected is unchanged.

• You can return to the previous display by pressing the "BACK" function button.

• After setting the barometer default, press the "INFO" button to return to the information display.

Care of the monitor

E00519700012

If the monitor becomes covered in fingerprints or otherwise dirty, clean it with a soft and dry cloth.

NOTE

- Don't use a wet cloth or abrasive cleaner as this may cause damage.

Combination headlamps and dipper switch

E00506003533

Headlamps

NOTE

• Do not leave the headlamps and other lamps on for a long time while the engine is stationary (not running). A run-down battery could result.
• When it rains or when the vehicle has been washed, the inside of the lens sometimes becomes foggy. This is the same phenomenon as when window glass mists up on a humid day, and does not indicate a functional problem. When the lamp is switched on, the heat will remove the fog. However, if water gathers inside the lamp, we recommend you to have it checked.

Type 1

Rotate the switch to turn on the lamps.

OFF	All lamps off
	Position, tail, licence plate and instrument panel lamps on
	Headlamps and other lamps go on

Type 2

Rotate the switch to turn on the lamps.

OFF All lamps off
AUTO	With the ignition switch in the “ON” position, headlamps, position, tail, licence plate, and instrument panel lamps turn on and off automatically in accordance with outside light level. All lamps turn off automatically when the ignition switch is turned to the “OFF” position.
EDGE	Position, tail, licence plate and instrument panel lamps on
ED	Headlamps and other lamps go on

NOTE

● The sensitivity of the automatic on/off control can be adjusted.
For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.
- When the headlamps are turned off by the automatic on/off control with the ignition switch in the "ON" position, the front fog lamps (if so equipped) and rear fog lamp also go off. When the headlamps are subsequently turned back on by the automatic on/off control, the front fog lamps also come on but the rear fog lamp stays off. If you wish to turn the rear fog lamp back on, operate the switch again.
- Do not cover the sensor (A) for the automatic on/off control by affixing a sticker or label to the windscreen.

Combination headlamps and dipper switch

NOTE

- If the lamps do not turn on or off with the switch in the "AUTO" position, manually operate the switch and we recommend you to have your vehicle checked.

[ Vehicles with Daytime Run- ning Lamp]

When the ignition switch is in the "ON" position and the lamp switch is set to the "OFF" position, the low beam of the headlamps, tail lamps, etc., will illuminate.

Lamps (headlamps, fog lamps, etc.) auto-cutout function

- If the ignition key is turned to "LOCK" or "ACC" position or removed from the ignition switch and the lamps will stay on for about 3 minutes without opening the driver's door while the lamp switch in the "≡D" position, the lamps automatically turn off. - If the ignition key is turned to "LOCK" or "ACC" position or removed from the ignition switch and the driver's door is opened within 3 minutes while the lamp switch in the "≡D" position, a buzzer will sound to warn the driver that the lamps have not been turned off, and these lamps will automatically turn off.

NOTE

- The lamp auto-cutout will not function when the lamp switch is in the “Position. - When the ignition key has been turned either to the “LOCK” or “ACC” position or removed from the ignition switch with the lamp switch in the ☑ position, and the lamp switch is returned to the “OFF” position within approximately 3 minutes, the auto-cutout function will not be activated.

When you want to keep the lamps on

- Turn the lamp switch in the "OFF" position to switch off all lamps while the ignition key is in the "LOCK" or "ACC" position or remove it from the ignition switch. - Turn on the lamps with the switch in the "E005" or "ED" position again, then the lamps will remain on.

NOTE

- It is possible to alter the auto-cutout function such that: - Auto-cutout function is never activated. For details, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

Lamp monitor buzzer

E00506100184

If the driver's door is opened when the ignition key is in the "LOCK" or "ACC" position or removed from the ignition switch while the lamps are on, a buzzer will sound to remind the driver to turn off the lamps. When the lamp auto-cutout function acts, the buzzer will stop automatically. When this function does not act, turn off the lamp switch to stop the buzzer.

Dipper (High/Low beam change)

E00506200286

When the lamp switch is in the ' position, the beam changes from high to low (or low to high) each time the lever is pulled to (1). While the high-beam is on, the high-beam indication lamp in the instrument cluster will also illuminate.

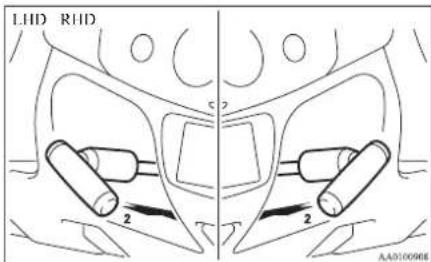

Headlamp flasher

E00506300157

The high-beams flash when the lever is pulled slightly (2), and will go off when it is released.

When the high-beam is on, the high-beam indication lamp in the instrument cluster will also illuminate.

NOTE

● The high-beams can also flash when the lamp switch is in the "OFF" position.
- If you turn the lamps off with the headlamps set to high-beam illumination, the headlamps are automatically returned to their low-beam setting when the lamp switch is next turned to the “Position.

Headlamp levelling switch\*

E00506400826

The angle of the headlamp beam varies depending on the load carried by the vehicle. The headlamp levelling switch can be used to adjust the headlamp illumination distance (when the lower beam is illuminated) so that the headlamps' glare does not distract other drivers.

Set the switch (referring to the following table) to the appropriate position according to the number of people and the load in the vehicle.

CAUTION

● Always perform adjustments before driving. Do not attempt to adjust while driving, as it could cause an accident.

NOTE

- When adjusting the beam position, first put the dial in the "0" position (the highest beam position).

Single cab

Vehicle condition
Switch position	“0” “2”

•: 1 person

: Full luggage loading

Switch position 0- Driver only

Switch position 2- Driver + Full luggage loading

Club cab

Vehicle condition
Switch position	“0” “3” or “4”

•: 1 person

: Full luggage loading

Switch position 0- Driver only

Turn-signals lever

Switch position 3- Driver + Full luggage loading {Vehicles with heavy duty suspension}

Switch position 4- Driver + Full luggage loading {Vehicles without heavy duty suspension}

Double cab

Vehicle condition
Switch position	“0”	“2” or “3” or “4”

●: 1 person

Full luggage loading

Switch position 0- Driver only

Switch position 2- Driver + Full luggage loading {Vehicles with heavy duty suspension for Russia, Kazakhstan and Ukraine}

Switch position 3- Driver + Full luggage loading

{Vehicles with heavy duty suspension except for Russia, Kazakhstan and Ukraine}

{Vehicles with head-lamp - type 2* and without heavy duty suspension}

Switch position 4- Driver + Full luggage loading

{Vehicles with head-lamp - type 1* and without heavy duty suspension}

*: Refer to "Outside" on page 10-25

Turn-signals lever

E00506501273

The turn-signal lamps flash when the lever is operated (with the ignition switch in the "ON" position). At the same time, the turn-signal indication lamps flash.

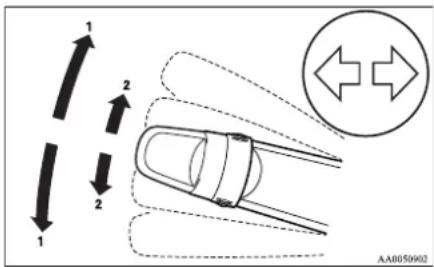

1- Turn-signals

When making a normal turn, use position (1). The lever will return automatically when cornering is completed.

There are times when the lever will not return after cornering. This occurs when the steering wheel is turned only slightly.

In such cases, return the lever by hand.

2- Lane-change signals

When changing lanes, use position (2). It will return to the neutral position when released.

NOTE

• If the lamp flashes unusually quickly, the bulb in a turn-signal lamp may have burned out. We recommend you to have the vehicle inspected.

• It is possible to activate the following functions. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

• Flashing of the turn-signal lamps and the indication lamp in the instrument cluster when the lever is operated with the ignition switch in the "ACC" position

• Flashing of the turn-signal lamps and the indication lamp in the instrument cluster three times when you move the lever to (2) slightly then release it
• The time required to operate the lever for the 3-flash function can be adjusted.

Hazard warning flasher switch

E00506602066

Use the hazard warning flasher switch when the vehicle has to be parked on the road for any emergency.

The hazard warning flashers can always be operated, regardless of the position of the ignition key.

Push the switch to turn on the hazard warning flashers; push the switch again to turn them off.

When this switch is operated, all turn-signal lamps flash continuously, as do the turn-signal indication lamps in the instrument cluster.

NOTE

• If the lamps are kept flashing for a long time, the battery will be discharged, resulting in hard engine starting or no start condition.
• If the lamp flashes unusually quickly, the bulb in a turn-signal lamp may have burned out.

We recommend you to have the vehicle inspected.

Front fog lamp switch\*

L00506800934

The front fog lamps can be used only when the headlamps or tail lamps are on. Turn the knob once in the "ON" direction to turn on the front fog lamps. The indication lamp in the instrument cluster will also come on. To turn the front fog lamps off, turn the knob once in the "OFF" direction. While the rear fog lamp is on, turn the knob twice in the "OFF" direction to turn the front fog lamps off. The knob will automatically return to its original position when you release it.

Rear fog lamp switch

NOTE

• The front fog lamps are automatically turned off when the headlamps or tail lamps are turned off. To turn the front fog lamps or again, turn the knob in the "ON" direction after turning on the headlamps or tail lamps.
• Do not use fog lamps except in conditions of fog, otherwise excessive lamp glare may temporarily blind oncoming vehicle drivers.
• In case of vehicles with Daytime Running Lamp, the front fog lamp can be operated even if the lamp switch is set to the "OFF" position, because the low beam of the head-lamps, tail lamps, etc. illuminate when the ignition key is at the "ON" position.

Rear fog lamp switch

F00506900313

The rear fog lamp illuminates only when the headlamps or front fog lamps (if so equipped) are on.

An indication lamp in the instrument cluster comes on when the rear fog lamp is turned on.

[ Vehicles without front fog lamps ]

Turn the knob once in the "ON" direction to turn on the rear fog lamp. To turn the rear fog lamp off, turn the knob once in the "OFF" direction. The knob will automatically return to its original position when you release it.

[ Vehicles with front fog lamps ] Turn the knob once in the "ON" direction to turn on the front fog lamps. Turn the knob once more in the "ON" direction to turn on the rear fog lamp. To turn the rear fog lamp off, turn the knob once in the "OFF" direction. Turn the knob once more in the "OFF" direction to turn off the front fog lamps. The knob will automatically return to its original position when you release it.

AA0088851

NOTE

● The rear fog lamp is automatically turned off when the headlamps and front fog lamps (if so equipped) turned off.
- To turn the rear fog lamp on again, turn the knob once in the "ON" direction after turning on the headlamps. (Vehicles without front fog lamps)

NOTE

● To turn the rear fog lamp on again, turn the knob twice in the "ON" direction after turning on the headlamps. (Vehicles with front fog lamps)
- In case of vehicles with Daytime Running Lamp, the rear fog lamp can be operated even if the lamp switch is set to the "OFF" position, because the low beam of the head-lamps, tail lamps, etc. illuminate when the ignition key is at the "ON" position.

Wiper and washer switch

E00507101191

CAUTION

- If the washer is used in cold weather, the washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm the glass with the defroster or rear window demister before using the washer.

Windscreen wipers

E00516900303

Except for vehicles equipped with rain sensor

The windscreen wipers can be operated with the ignition switch in the "ON" or "ACC" position.

If the blades are frozen to the windscreen, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper motor may be damaged.

MIST Misting function - The wipers will operate once.

OFF-Off

INT- Speed sensitive intermittent operation Interval between wipers varies in accordance with vehicle speed.

LO-Slow

III- Fast

To adjust intermittent intervals

With the lever in the "INT" (speed-sensitive) position, the intermittent intervals can be adjusted by turning the knob (A).

1- Fast 2- Slow

NOTE

● The speed-sensitive-operation function of the windscreen wipers can be deactivated. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

Misting function

Move the lever in the direction of the arrow and release, to operate the wipers once. Use this function when you are driving in mist or drizzle.

If the lever is held in the upward position (MIST), the wipers continue operating until the lever is released.

Diagram of a finger with a curved handle and an arrow indicating direction (no text or symbols)

Vehicles with rain sensor

E00526400369

The windscreen wipers can be operated with the ignition switch in the "ON" or "ACC" position.

Wiper and washer switch

If the blades are frozen to the windscreen, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper motor may be damaged.

MIST- Misting function The wipers will operate once.

OFF-Off

AUTO- Auto-wiper control Rain sensor The wipers will automatically operate depending on the degree of wetness on the windscreen.

LO-Slow

HI-Fast

Rain sensor

Can only be used when the ignition switch is in the "ON" position.

If the lever is put in the "AUTO" position, the rain sensor (A) will detect the extent of rain (or snow, other moisture, dust, etc.) and the wipers will operate automatically. Keep the lever in the "OFF" position if the windscreen is dirty and the weather is dry. Wiper operation under these conditions can scratch the windscreen and damage the wipers.

CAUTION

• With the ignition switch in the "ON" position and the lever in the "AUTO" position, the wipers may automatically operate in the situations described below.
  If your hands get trapped, you could suffer injuries or the wipers could malfunction. Be sure to turn the ignition switch to the "OFF" position or move the lever to the "OFF" position to deactivate the rain sensor.
• When cleaning the outside surface of the windscreen, if you touch the rain sensor.
• When cleaning the outside surface of the windscreen, if you wipe with a cloth the rain sensor.
• When using an automatic car wash.
  • A physical shock is applied to the wind-screen.
• A physical shock is applied to the rain sensor.

NOTE

● To protect the rubber parts of the wipers, this operation of the wipers does not take place when the vehicle is stationary and the ambient temperature is about 0 °C or lower.
- Do not cover the sensor by affixing a sticker or label to the windscreen. Also, do not put any water-repellent coating on the windscreen. The rain sensor would not be able to detect the extent of rain, and the wipers might stop working normally.

NOTE

- In the following cases, the rain sensor may be malfunctioning. Have the vehicle inspected at a MITSUBISHI MOTORS Authorized Service Point.

- When the wipers operate at a constant interval despite changes in the extent of rain. - When the wipers do not operate even though it is raining.

- The wipers may automatically operate when things such as insects or foreign objects are affixed to the windscreen on top of the rain sensor or when the windscreen is frozen. Objects affixed to the windscreen will stop the wipers when the wipers cannot remove them. To make the wipers operate again, place the lever in the "LO" or "HI" position. Also, the wipers may operate automatically due to strong direct sunlight or electromagnetic wave. To stop the wipers, place the lever in the "OFF" position.

- Contact a MITSUBISHI MOTORS Authorized Service Point when replacing the windscreen or reinforcing the glass around the sensor.

To adjust the sensitivity of the rain sensor

With the lever in the "AUTO" (rain sensor) position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (A).

"+"- Higher sensitivity to rain

"-"- Lower sensitivity to rain

NOTE

- It is possible to activate the following functions. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

- Automatic operation (rain droplet sensitive) can be changed to intermittent operation (vehicle-speed sensitive).

• Automatic operation (rain droplet sensitive) can be changed to intermittent operation (except vehicle-speed sensitive).

Misting function

Move the lever in the direction of the arrow and release, to operate the wipers once.

Use this function when you are driving in mist or drizzle.

If the lever is held in the upward position (MIST), the wipers continue operating until the lever is released.

Diagram of a finger with a curved handle and an arrow indicating upward motion (no text or symbols)

Wiper and washer switch

The wipers will operate once if the lever is moved to the "AUTO" position and the knob (A) is turned in the "+" direction when the ignition switch is "ON" position.

Windscreen washer

100507200805

The windscreen washer can be operated with the ignition switch in the "ON" or "ACC" position.

The washer fluid will be sprayed onto the windscreen by pulling the lever towards you. The wipers operate automatically several times while the washer fluid is being sprayed.

On a vehicle equipped with a headlamp washer, the headlamp washer operates together with the windscreen washer the first time the windscreen washer is used if the headlamps are on.

Diagram of a mechanical component with curved arrows indicating motion or rotation (no text or symbols)

CAUTION

- If the washer is used in cold weather, the washer fluid sprayed against the glass may freeze resulting in poor visibility. I eat the glass with the defroster or demister before using the washer.

NOTE

- It is possible to spray washer fluid without activating the wipers. To do so, hold the lever in the pulled position and turn the ignition switch to the "ON" or "ACC" position.

NOTE

- It is possible to cause the wipers never to operate when washer fluid is sprayed. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

Headlamp washer switch\*

ED0510100273

The headlamp washer can be operated when the ignition switch is in the "ON" or "ACC" position and the headlamps are on.

Push the button once and the washer fluid will be sprayed on to the headlamps.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

NOTE

- If the ignition switch is in the "ON" or "ACC" position and the headlamps are on the headlamp washer operates together with the windscreen washer the first time the windscreen washer lever is pulled.

Precautions to observe when using wipers and washers

E00507600014

• If the moving wipers become blocked by ice or other deposits on the glass, the motor may burn out even if the wiper switch is turned to OFF. If obstruction occurs, park your vehicle in a safe place, turn off the ignition, and clean the deposits from the glass so that the wipers operate smoothly.
• Do not use the wipers when the glass is dry. They may scratch the glass surface and the blades wear out prematurely.
  ● Before using the wipers in cold weather, check that the wiper blades are not frozen onto the glass. The motor may burn out if the wipers are used with the blades frozen onto the glass.
  ● Avoid using the washer continuously for more than 20 seconds. Do not operate the washer when the fluid reservoir is empty.

Otherwise, the motor may burn out.

- Periodically check the level of washer fluid in the reservoir and refill if required.

During cold weather, add a recommended washer solution that will not freeze in the washer reservoir. Failure to do so could result in loss of washer function and frost damage to the system components.

Rear window demister switch

100507900961

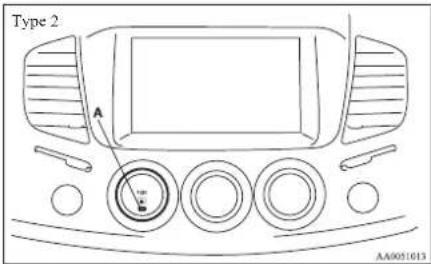

The rear window demister switch can be operated with the ignition switch in the "ON" position.

Push the switch to turn on the rear window demister. It will be turned off automatically in about 20 minutes. To turn off the demister within about 20 minutes, push the switch again.

The indication lamp (A) will illuminate while the demister is on.

NOTE

- If your vehicle is equipped with heated mirrors, these operate in conjunction with the demister. Refer to "Heated mirror" on page 6-11.

Horn switch

NOTE

● The demister switch is not to melt snow but to clear mist. Remove snow before use of the demister switch.
● To avoid unnecessary discharge of the battery, do not use the rear window demister during starting of the engine or when the engine is not running. Turn the demister off immediately after the window is clear.
- When cleaning the inside of the rear window, use a soft cloth and wipe gently along the heater wires, being careful not to damage the wires.
- Do not allow objects to touch the inside of the rear window glass, or damaged or broken wires may result.

Horn switch

E00508000608

Press the steering wheel on or around the "→" mark.

Starting and driving

Economical driving....6-02

Driving, alcohol and drugs....6-02

Safe driving techniques....6-03

Running-in recommendations....6-04

Parking brake....6-07

Parking 6-08

Steering wheel height adjustment.... 6-09

Inside rear-view mirror....6-09

Outside rear-view mirrors.... 6-10

Ignition switch....6-12

Steering wheel lock....6-13

Starting....6-13

Diesel particulate filter (DPF)*....6-15

Manual transmission.... 6-16

Automatic transmission Sports Mode 4A/T, 5A/T....6-19

Easy select 4WD* 6-25

Super select 4WD*....6-29

Rear differential lock* 6-34

4-wheel drive operation.... 6-38

Inspection and maintenance following rough road operation....6-41

Cautions on handling of 4-wheel drive vehicles....6-41

Limited-slip differential* 6-43

Braking....6-43

Brake assist system* 6-44

Anti-lock brake system (ABS)*....6-45

Power steering system....6-48

Active Stability & Traction Control (ASTC)*......6-48

Cruise control*....6-50

Cargo loads....6-55

Trailer towing....6-55

Economical driving

Economical driving

E00600100620

For economical driving, there are some technical requirements that have to be met. The prerequisite for low fuel consumption is a properly adjusted engine. In order to achieve longer life of the vehicle and the most economical operation, we recommend you to have the vehicle checked at regular intervals in accordance with the service standards. Fuel economy and generation of exhaust gas and noise are highly influenced by personal driving habits as well as the particular operating conditions. The following points should be observed in order to minimize wear of brakes, tyres and engine as well as to reduce environmental pollution.

Starting

Avoid rapid acceleration and sudden starts; such operation will result in higher fuel consumption.

Shifting

Shift only at an appropriate speed and engine speed. Always use the highest gear possible. The transfer shift lever should be set to “2H” when driving 4WD vehicles on normal roads and express ways to obtain best possible fuel economy.

City traffic

Frequent starting and stopping increases the average fuel consumption. Use roads with smooth traffic flow whenever possible. When driving on congested roads, avoid use of a low gear at high engine speeds.

Idling

The vehicle consumes fuel even during idling. Avoid extended idling whenever possible.

Speed

The higher the vehicle speed, the more fuel consumed. Avoid driving at full speed. Even a slight release of the accelerator pedal will save a significant amount of fuel.

Tyre inflation pressure

Check the tyre inflation pressures at regular intervals. Low tyre inflation pressure increases road resistance and fuel consumption. In addition, low tyre pressures adversely affect tyre wear and driving stability.

Load

Do not drive with unnecessary articles in the cargo area. Especially during city driving where frequent starting and stopping is necessary, the increased weight of the vehicle will greatly affect fuel consumption.

Cold engine starting

Starting of a cold engine consumes more fuel.

Unnecessary fuel consumption is also caused by keeping a hot engine running. After the engine is started, commence driving as soon as possible.

Air conditioning\*

The use of the air conditioning will increase the fuel consumption.

Driving, alcohol and drugs

E00600200012

Driving after drinking alcohol is one of the most frequent causes of accidents.

Your driving ability can be seriously impaired even with blood alcohol levels far below the legal minimum. If you have been drinking, don't drive. Ride with a designated non-drinking driver, call a cab or a friend, or use public transportation.

Drinking coffee or taking a cold shower will not make you sober.

Similarly, prescription and nonprescription drugs affect your alertness, perception and reaction time. Consult with your doctor or pharmacist before driving while under the influence of any of these medications.

WARNING

● NEVER DRINK AND DRIVE.

Your perceptions are less accurate, your reflexes are slower and your judgment is impaired.

Safe driving techniques

E00600300491

Driving safety and protection against injury cannot be fully ensured. However, we recommend that you pay extra attention to the following:

Seat belts

Before starting the vehicle, make sure that you and your passengers have fastened your seat belts.

Floor mats

WARNING

• Keep floor mats clear of the pedals by correctly laying floor mats that are suitable for the vehicle.
  To prevent the floor mats from slipping out position, securely retain them using the hooks etc.
  Note that laying a floor mat over a pedal or laying one floor mat on top of another can obstruct pedal operation and lead to a serious accident.

Simple line drawing of a car interior with a no-smoking symbol (no text or labels)

Carrying children in the vehicle

● Never leave your vehicle unattended with the key in the ignition and children inside the vehicle. Children may play with the driving controls and this could lead to an accident.

● Make sure that infants and small children are properly restrained in accordance with the laws and regulations, and for maximum protection in case of an accident.
● Prevent children from playing in the car-go area. It is quite dangerous to allow them to play there while the vehicle is moving.

Running-in recommendations

Running-in recommendations

100600403679

During the running-in period for the first 1,000 km (620 miles), it is advisable to drive your new vehicle using the following precautions as a guideline to aid long life as well as future economy and performance.

● Do not race the engine at high speeds.
● Avoid rapid starting, accelerating, braking and prolonged high-speed running.
- Keep to the running-in speed limit shown below.

Please note that the legal speed limits displayed must be adhered to.

• Do not exceed loading limits.
  ● Refrain from towing a trailer.

Vehicles with manual transmission
2WD

Shift point Speed limit
	Vehicles with 15 inch tyre Vehicles	with 16 inch tyre
1^st gear	20 km/h (12 mph) 20 km/h (12 mph)
2^nd gear	40 km/h (25 mph) 45 km/h (28 mph)
3^rd gear	65 km/h (40 mph) 70 km/h (43 mph)
4^th gear	95 km/h (59 mph) 105 km/h (65 mph)
5^th gear	120 km/h (74 mph) 135 km/h (84 mph)

4WD

Shift point Speed limit
	Vehicles with easy select 4WD Vehicles with super select 4WD
	2H, 4H 4L 2H, 4H, 4HLc 4LLc
1^st gear	20 km/h (12 mph) 10 km/h (6 mph) 20 km/h (12 mph) 10 km/h (6 mph)
2^nd gear	40 km/h (25 mph) 20 km/h (12 mph) 40 km/h (25 mph) 20 km/h (12 mph)
3^rd gear	70 km/h (43 mph) 35 km/h (22 mph) 70 km/h (43 mph) 35 km/h (22 mph)
4^th gear	100 km/h (62 mph) 55 km/h (34 mph) 100 km/h (62 mph) 50 km/h (30 mph)
5^th gear	130 km/h (81 mph) 65 km/h (40 mph) 130 km/h (81 mph) 65 km/h (40 mph)

Vehicles with automatic transmission

Vehicles with 4A/T

Shift point	Speed limit
	2WD	Vehicles with easy select 4WD Vehicles with super select 4WD
		2II, 4II 4L 2II,	4II, 4IILc 4LLc
1^st gear	25 km/h (16 mph) 25	km/h (16 mph) 15 km/h	(9 mph) 25 km/h (16 mph)	15 km/h (9 mph)
2^nd gear	65 km/h (40 mph) 65	km/h (40 mph) 35 km/h	(22 mph) 65 km/h (40 mph)	35 km/h (22 mph)
3^rd gear	100 km/h (62 mph) 10	00 km/h (62 mph) 50 km/h	(30 mph) 100 km/h	(62 mph) 50 km/h (30 mph)
4^th gear	135 km/h (84 mph)	140 km/h (87 mph)	—	135 km/h (84 mph)	—

Running-in recommendations

Vehicles with 5A/T

Shift point	Speed limit
	2H, 4H, 4HLc 4LLc
1^st gear	25 km/h (16 mph) 10 km/h (6 mph)
2^nd gear	45 km/h (28 mph) 25 km/h (16 mph)
3^rd gear	70 km/h (43 mph) 35 km/h (22 mph)
4^th gear	100 km/h (62 mph) 50 km/h (30 mph)
5^th gear	135 km/h (84 mph) —

NOTE

- On 4WD vehicles with automatic transmission, when the transfer shift lever is in "4LLc", the transmission will not shift into the overdrive gear.

CAUTION

- On 4WD vehicles, the “4LLc” range gives maximum torque for low-speed driving on steep slopes, as well as sandy, muddy, and other difficult surfaces. On vehicles with A/T, do not exceed speeds of approximately 70 km/h (43 mph) in “4LLc” range.

Parking brake

100600501562

To park the vehicle, first bring it to a complete stop, fully engage the parking brake, and then move the gearshift lever to ^st l (on an uphill) or Reverse (on a downhill) position for vehicles with manual transmission or set the selector lever to "P" (PARK) position on automatic transmission vehicles.

CAUTION

● Before driving, be sure that the parking brake is fully released and brake warning lamp is off.
If a vehicle is driven without releasing the parking brake, the brake will be overheated, resulting in ineffective braking and possible brake failure.
- When you intend to apply the parking brake, firmly press the brake pedal to bring the vehicle to a complete stop before pulling the parking brake lever. Pulling the parking brake lever with the vehicle moving could make the rear wheels lock up, thereby making the vehicle unstable. It could also make the parking brake malfunction.
- If the brake warning lamp does not extinguish when the parking brake is fully released, the brake system may be abnormal. Have your vehicle checked immediately. For details, refer to "Brake warning lamp" on page 5-08.

Type 1

To apply

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

1- Firmly depress and hold the brake pedal, then pull the lever up without pushing the button at the end of hand grip.

To release

1- Firmly depress and hold the brake pedal, then pull the lever up slightly.
2- Push the button at the end of hand grip.
3- Lower the lever fully.

OKTE15E3

Type 2

To apply

Technical line drawing of a vehicle head and side panel showing internal components (no text or symbols)

1- Firmly depress and hold the brake pedal, then pull the lever out.

Starting and driving

Parking

To release

1- Firmly depress and hold the brake pedal, then pull the lever out slightly and turn it clockwise (LHD) or anticlockwise (RHD).

2- Push in the lever completely.

Parking

E00600601202

Parking on a hill

To prevent the vehicle from rolling, follow these procedures:

Parking on a downhill slope

Turn the front wheels towards the kerb and move the vehicle forward until the kerb side wheel gently touches the kerb. Set the parking brake and place the gearshift lever into the "R" (Reverse) position (with M/T) or the selector lever into the "P" (PARK) position (with A/T). If necessary, apply chocks to wheels.

Parking on an uphill slope

Turn the front wheels away from the kerb and move the vehicle back until the kerb side wheel gently touches the kerb. Set the parking brake and place the gearshift lever into the 1 ^st position (with M/T) or the selector lever into the “P” (PARK) position (with A/T). If necessary, apply chocks to wheels.

NOTE

- If your vehicle is equipped with A/T, be sure to apply the parking brake before moving the selector lever to the "P" (PARK) position. If you move the selector lever to the "P" (PARK) position before applying the parking brake, it may be difficult to disengage the selector lever from the "P" (PARK) position when next you drive the vehicle, requiring application of a strong force to the selector lever to move from the "P" (PARK) position.

Parking with the engine run- ning

Never leave the engine running while you take a short sleep/rest. Also, never leave the engine running in a closed or poorly ventilated place.

WARNING

● Leaving the engine running risks injury or death from accidentally moving the gearshift lever (on M/T vehicles) or the selector lever (on A/T vehicles) or the accumulation of toxic exhaust fumes in the passenger compartment.

Where you park

Your front bumper can be damaged if you scrape it over kerbs or parking stop blocks. Be careful when travelling up or down steep slopes where your bumper can scrape the road.

WARNING

- Do not park your vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hot exhaust, since a fire could occur.

When leaving the vehicle

Always remove the key from the ignition switch and lock all doors when leaving the vehicle unattended.

Always try to park your vehicle in a well lit area.

Steering wheel height adjustment

E00600700219

To adjust the steering wheel height, release the tilt lock lever while holding the steering wheel by hand, and raise or lower the steering wheel to the desired height.

After adjustment, securely lock the lever by pulling it upward.

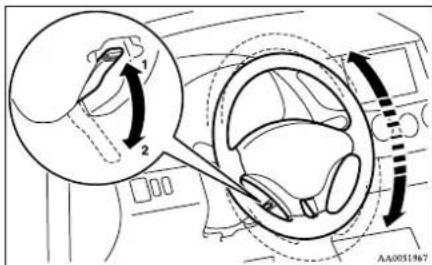

1- Locked

2- Release

WARNING

● After adjusting to the desired height, check to be sure that the lever is locked.
- Do not attempt to adjust the steering wheel while you are driving the vehicle.
- When releasing the tilt lock lever, move it to the release position (2) and hold the steering wheel by hand to prevent it falling to the lowest position.

Inside rear-view mirror

L00600800106

Adjust the rear-view mirror only after making any seat adjustments so you have a clear view to the rear of the vehicle.

WARNING

• Do not attempt to adjust the rear-view mirror while driving. This can be dangerous.
  Always adjust the mirror before driving.

Adjust the rear-view mirror to maximize the view through the rear window.

To adjust the vertical mirror position

It is possible to move the mirror up and down to adjust its position.

Diagram of a mechanical or electrical component with a curved spring-like structure and directional arrows (no text or symbols)

AA0015422

Outside rear-view mirrors

To reduce the glare

The lever (A) at the bottom of the mirror can be used to adjust the mirror to reduce the glare from the headlamps of vehicles behind you during night driving.

1- Normal
2- Anti-glare

Outside rear-view mirrors

E00600900149

To adjust the mirror position

E00601000482

WARNING

• Do not attempt to adjust the rear-view mirrors while driving. This can be dangerous.
  Always adjust the mirrors before driving.

WARNING

• Your vehicle is equipped with convex type mirrors.
  Please take into consideration, that objects you see in the mirror will look smaller and farther away compared to a normal flat mirror.
  Do not use this mirror to estimate distance of following vehicles when changing lanes.

Manual outside rear-view mirrors\*

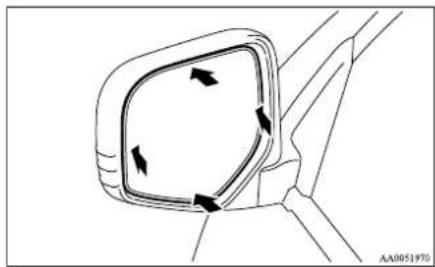

Adjust the mirror surface by hands as indicated by the arrows.

Diagram of a car side mirror with directional arrows indicating rotation (no text or symbols)

Electric remote-controlled outside rear-view mirrors\*

The electric remote-controlled outside rear-view mirrors can be operated when the ignition switch is in the "ON" or "ACC" position.

Push the switch (A) on the same side as the mirror whose adjustment is desired.

L- Left outside mirror adjustment
R- Right outside mirror adjustment

NOTE

● After adjustment, lightly push the switch on the opposite side to return it to the neutral position.

Press the switch (B) to the left, right, up or down to adjust the mirror position.

1-Up
2-Down
3- Right
4- Left

To fold the mirror

E00601100467

The outside mirror can be folded in towards the side window to prevent damage when parking in narrow areas.

Diagram of a car door handle mechanism with rotation arrow and connector (no text or symbols)

Mirror retractor switch\*

The mirror retractor switch can be operated with the ignition switch in the "ON" or "ACC" position.

Push the switch to fold the mirrors inward, and push the switch again to return them to extended position.

NOTE

• It is also possible to fold and return the mirrors by hand.
• When freezing has occurred and mirrors fail to operate as intended, please refrain from repeated pushing of the retractor switch as this action can result in burn-out of the mirror motor circuits.

Heated mirror\*

F00601200253

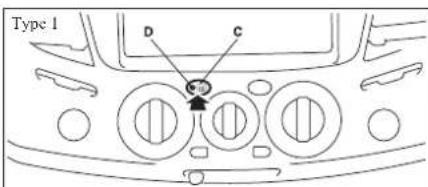

When the rear window demister switch (C) is pressed, the outside rear-view mirrors are demisted or defrosted. Current will flow through the heater element inside the mirrors, thus clearing away frost or condensation.

The indication lamp (D) will illuminate while the demister is on. The heater will be turned off automatically in about 20 minutes.

Ignition switch

Ignition switch

E00601402044

M/T A/T

AA0113218

LOCK

The engine is stopped and the steering wheel locked. The key can only be inserted and removed when the switch is in this position.

ACC

The engine is stopped, but the electrical devices such as the radio and cigarette lighter can be operated.

ON

The engine is running, and all the vehicle's electrical devices can be operated.

START

The starter motor operates. After the engine has started, release the key and it will automatically return to the "ON" position.

NOTE

• If your vehicle is equipped with the Daytime Running Lamp, when the ignition switch is in the "ON", the headlamp low beams etc. are turned on.
  Refer to "Headlamps" on page 5-32.
• Your vehicle is equipped with an electronic immobilizer.
  To start the engine, the ID code which the transponder inside the key sends must match the one registered in the immobilizer computer.
  Refer to "Electronic immobilizer" on page 3-02.

To remove the key

For vehicles with a M/T, when removing the key, push the key in at the "ACC" position and keep it depressed until it is turned to the "LOCK" position, and remove it.

For vehicles with an A/T, when removing the key, first set the selector lever to the "P" (PARK) position, and then turn the key to the "LOCK" position, and remove it.

CAUTION

• Do not remove the ignition key from the ignition switch while driving. The steering wheel will lock, causing loss of control.
• If the engine is stopped while driving, the brake servomechanism will cease to function and braking efficiency will deteriorate. Also, the power steering system will not function and it will require greater manual effort to operate the steering.
• Do not leave the key in the "ON" position for a long time when the engine is not running, doing so will cause the battery to be discharged.
• Do not turn the key to the "START" position when the engine is running, doing so could damage the starter motor.

NOTE

• For vehicles with an A/T, when the selector lever is in the "P" (PARK) position, do not operate the lock button of selector lever repeatedly for more than 30 seconds. You may not be able to remove the key from the ignition switch, because the protection circuit is activated. If this occurs, wait a few moments before removing the key.
  Refer to "Selector lever operation" on page 6-19.

Steering wheel lock

L00601500227

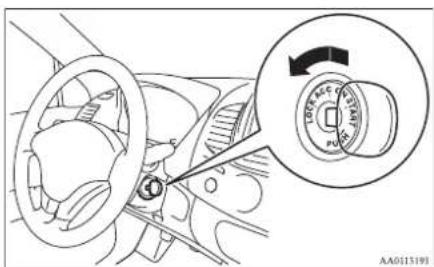

To lock

Remove the key at the "LOCK" position. Turn the steering wheel until it is locked.

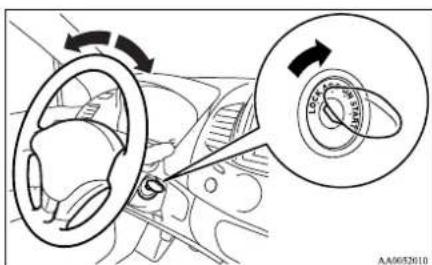

To unlock

Turn the key to the "ACC" position while moving the steering wheel slightly.

CAUTION

- Remove the key when leaving the vehicle.

NOTE

• If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the key from "LOCK" to "ACC". Firmly turn the steering wheel to the left or to the right as you turn the key.

Starting

E00601600404

Tips for starting

• Do not operate the starter motor continuously for anything longer than 10 seconds; doing so could run down the battery. If the engine does not start, turn the ignition switch back to "LOCK" position, wait a few seconds, and then try again.
  Trying repeatedly with the starter motor still turning will damage the starter mechanism.
• If the engine cannot be started because the battery is weak or dead, refer to the "Emergency starting" section for instructions on starting the engine.
  ● The engine is well warmed up if the coolant temperature gauge needle starts to move (the engine speed decreases). Extended warming-up operation will result in excessive fuel consumption.

Starting

WARNING

● Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle in or out of the area. Carbon monoxide gases are odourless and can be fatal.

CAUTION

● Never attempt to start the engine by pushing or pulling the vehicle. Especially the automatic transmission, since the structure is different from a manual transmission, it is not possible to start the engine by using this technique. Never attempt this or it could damage the automatic transmission.
- Do not run the engine at high rpm or drive the vehicle at high speed until the engine has had a chance to warm up.
- Release the ignition key as soon as the engine starts to avoid damaging the starter motor.
- Do not stop the engine immediately after high-speed or uphill driving. First allow the engine to idle to give the turbocharger a chance to cool down.

Starting the engine

E00601702223

1. Insert the ignition key and fasten the seat belt.
2. Make sure the parking brake is applied.

3. Depress and hold the brake pedal.

4. On vehicles with manual transmission, place the gearshift lever in the "N" (Neutral) position and depress the clutch pedal all the way. On vehicles with automatic transmission, make sure the selector lever in the "P" (PARK) position.

Vehicles with automatic transmission

AA0113221

NOTE

- On vehicles with automatic transmission, the engine will not start if the selector lever is in any position other than "P" (PARK) or "N" (NEUTRAL) position. For safety, start the engine with the selector lever in the "P" (PARK) position because in this position the rear wheels are locked in place.

1. Turn the ignition key to the "ON" position. The diesel preheat indication lamp will first illuminate, and then after a short

time go out, indicating that preheating is completed.

NOTE

• If the engine is cold, the diesel preheat indication lamp is on for a longer time.
• When the engine has not been started within about 5 seconds after the diesel preheat indication lamp went out, return the ignition key to the "LOCK" position. Then, turn the key to the "ON" position to preheat the engine again.

• When the engine is warm, the diesel preheat indication lamp does not come on even if the ignition key is placed in the "ON" position. Start the engine by turning the ignition key right to the "START" position.

• Operate the accelerator pedal as described below in accordance with the atmospheric temperature and/or engine condition and then start the engine.

• When the atmospheric temperature is moderate or the engine is warm, start the engine without depressing the accelerator pedal.

• When the atmospheric temperature is low and the engine is cold, start the engine while depressing the accelerator pedal.

Fuel injection amount learning process

E00616000028

To keep exhaust emissions and engine noise low, the engine very occasionally performs a learning process for the fuel injection amount.

The engine sounds slightly different from usual while the learning process is taking place. The change in the engine sound does not indicate a fault.

Diesel particulate filter (DPF)\*

E00619800232

The diesel particulate filter (DPF) is a device that captures most of the particulate matter (PM) in the exhaust emissions of the diesel engine. The DPF automatically burns away trapped PM during vehicle operation. Under certain driving conditions, however, the DPF is not able to burn away all of the trapped PM and, as a result, an excessive amount of PM accumulates inside it.

WARNING

● The DPF reaches very high temperatures. Do not park your vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hot exhaust system since a fire could occur.

CAUTION

- Do not use any type of fuel or engine oil that is not specified for your vehicle. Also, do not use any moisture-removing agent or other fuel additive. Such substances could have a detrimental effect on the DPF. Refer to “Fuel selection” on page 2-02 and “Engine oil” on page 10-04.

NOTE

● To minimize the likelihood of excessive accumulation of PM, try to avoid driving for long periods at low speeds and repeatedly driving short distances.

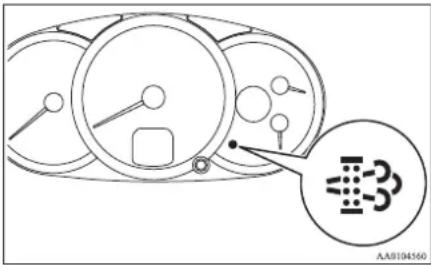

DPF warning lamp

The DPF warning lamp comes on or flashes in the event of an abnormality in the DPF system. Provided the DPF system is working normally, the DPF warning lamp comes on when the ignition switch is turned to the "ON" position and goes off a few seconds later.

If the DPF warning lamp comes on during vehicle operation

Steady illumination of the DPF warning lamp shows that the DPF has not been able to burn away all of the trapped PM and that, as a result, an excessive amount of PM has accumulated inside it. To enable the DPF to burn away the PM, try to drive the vehicle as follows:

Manual transmission

- With the needle of the water temperature gauge stabilized in roughly the middle of the scale, drive for about 20 minutes at a speed of at least 40km / h (24 mph).

If the DPF warning lamp subsequently stays on, contact your MITSUBISHI MOTORS Authorized Service Point.

6

CAUTION

- You do not have to continuously drive exactly as indicated above. Always strive to drive safely in accordance with road conditions.

If the DPF warning lamp flashes during vehicle operation

Flashing of the DPF warning lamp indicates an abnormality in the DPF system. Have the system inspected at a MITSUBISHI MOTORS Authorized Service Point.

CAUTION

● Continuing to drive with the DPF warning lamp flashing could result in engine trouble and DPF damage.

Manual transmission

E00602000199

The shift pattern is shown on the gearshift lever knob. Be sure to always fully depress the clutch pedal before attempting to shift the lever.

AA0052036

CAUTION

• Do not move the gearshift lever into reverse while the vehicle is moving forward; doing so will damage the transmission.
• Do not rest your foot on the clutch pedal while driving as this will cause premature clutch wear or damage.

CAUTION

- If the clutch is engaged suddenly while the engine revolution is high, an extremely large load will be applied instantaneously to the power train, possibly leading to the breakage of that component. Please ensure, therefore, that the clutch pedal is always applied in a slow yet firm manner.

Your vehicle has a special feature to protect the power train from damage; the engine is controlled in such a way that excessive increase in engine revolution is prevented in situations where the accelerator pedal is depressed while the gearshift lever is in the 1 ^st position and the clutch pedal has been depressed.

NOTE

• If it is hard to shift into 1^st , depress the clutch pedal again; the shift will then be easier to make.
• To shift into reverse from 5^th gear, move the gearshift lever to the "N" (Neutral) position, and then shift it into reverse.

Changing gears

F00610600136

Always take care to change the gear with the vehicle speed matched to the engine speed. Proper shifting will prolong engine life.

Manual transmission

Avoid shifting down at high speed, as this may cause excessive engine speed (the tachometer needle into the red zone) and damage the engine.

OKTE15E3

Starting and driving

Manual transmission

Possible driving speed

ED0610802637

2WD

Shift point Speed limit
	Vehicles with 15 inch tyre Vehicles	with 16 inch tyre
1^st gear	30 km/h (19 mph) 35 km/h (22 mph)
2^nd gear	60 km/h (37 mph) 65 km/h (40 mph)
3^rd gear	100 km/h (62 mph) 110 km/h (68 mph)
4^th gear	145 km/h (90 mph) 160 km/h (99 mph)

4WD

Shift point Speed limit
1^st gear	35 km/h (22 mph) 15 km/h (9 mph) 35 km/h (22 mph) 15 km/h (9 mph)
2^nd gear	65 km/h (40 mph) 35 km/h (22 mph) 65 km/h (40 mph) 30 km/h (19 mph)
3^rd gear	105 km/h (65 mph) 55 km/h (34 mph) 105 km/h (65 mph) 55 km/h (34 mph)
4^th gear	155 km/h (96 mph) 80 km/h (50 mph) 150 km/h (93 mph) 80 km/h (50 mph)

5^th gear is an overdrive ratio and its use reduces engine speed below that of the 4^th gear. Use 5^th gear whenever vehicle speed allows, for maximum fuel economy.

Automatic transmission Sports Mode 4A/T, 5A/T

E00603200710

NOTE

- During running-in period or immediately after reconnection of the battery cable, there may be a case where gear shifts are not made smoothly. This does not indicate a faulty transmission. Gear shifts will become smooth after the transmission has been shifted several times by the electronic control system.

Selector lever operation

E00603301082

The transmission has 4 forward gears (4A/T), 5 forward gears (5A/T) and 1 reverse gear. The individual gears are selected automatically, depending on the position of the gear selector lever, the speed of the vehicle and the position of the accelerator pedal.

The selector lever has 2 gates; the main gate (1) and the manual gate (2).

NOTE

- For information on manual gate operation, please refer to "Sports mode" on page 6-21.

In the main gate, the selector lever has 4 positions, and is equipped with a lock button (A) to avoid inadvertent selection of the wrong gear.

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

	The lock button must be pushed while the brake pedal is depressed to move the selector lever.
	The lock button must be pushed to move the selector lever.

The lock button need not be pushed to move the selector lever.

WARNING

• If the lock button is always pushed to operate the selector lever, the lever may be accidentally shifted into the "P" (PARK) or "R" (REVERSE) position. Be sure not to push the lock button when performing the operations indicated by ↓ in the illustration.
  ● Always depress the brake pedal when shifting the selector lever into a gear from the "P" (PARK) or "N" (NEUTRAL) position.
  When beginning to drive, do not shift the selector lever from the "P" (PARK) or "N" (NEUTRAL) position while depressing the accelerator pedal, doing so is dangerous because the vehicle will "jump" forward or backward.

When the selector lever cannot be shifted from the "P" (PARK) position

When the selector lever cannot be shifted from the "P" (PARK) position to another position while the brake pedal is pressed and held down with the ignition switch at the "ON" position, the battery may be flat or the shift-lock mechanism may be malfunctioning.

Immediately have your vehicle checked by an authorized MITSUBISHI MOTORS dealer.

If you need to move the vehicle, shift the selector lever as follows.

1. Make sure the parking brake is applied.
2. Stop the engine if it is running.
3. Depress the brake pedal with the right foot.
4. Turn the ignition switch to the "ACC" position.
5. Insert a straight blade (or minus) screwdriver in the shiftlock release hole (A). Shift the selector lever to the "N" (NEUTRAL) position while pressing the straight blade (or minus) screwdriver down.

Technical line drawing of a mechanical lever assembly with labeled component A (no text or symbols beyond label)

Selector lever position indicator

F00603500885

When the ignition switch is turned to the "ON" position, the current position of the selector lever is indicated by the indicator (A) shown on the instrument cluster {i.e. "P" (PARK), "R" (REVERSE), "N" (NEUTRAL), "D" (DRIVE)}.

Selector lever positions (Main gate)

E00603800729

"P" PARK

This position locks the transmission to prevent the vehicle from moving. The engine can be started in this position.

“R” REVERSE

This position is to back up.

CAUTION

● Never shift into the "P" (PARK) or "R" (REVERSE) position while the vehicle is in motion to avoid transmission damage.

“N” NEUTRAL

At this position the transmission is disengaged. It is the same as the neutral position on a M/T, and should only be used when the vehicle is stationary for an extended length of time during driving, such as in a traffic jam.

WARNING

• Never move the selector lever to the "N" (NEUTRAL) position while driving. A serious accident could occur since you could accidentally move the lever into the "P" (PARK) or "R" (REVERSE) position or you will lose engine braking.
• On a gradient the engine should be started in the "P" (PARK) position, not in the "N" (NEUTRAL) position.
  ● Always keep your right foot on the brake pedal when shifting into or out of "N" (NEUTRAL), to minimize the risk of loss of control.

“D” DRIVE

This position is for normal driving. The transmission automatically selects a suitable gear ratio for your speed and acceleration.

CAUTION

● Never shift into the "D" (DRIVE) position from the "R" (REVERSE) position while the vehicle is in motion to avoid transmission damage.

Sports mode

E00603901323

Whether the vehicle is stationary or in motion, sports mode is selected by gently pushing the selector lever from the "D" (DRIVE) position into the manual gate (A). To return to "D" range operation, gently push the selector lever back into the main gate (B).

In sports mode, gear shifts can be made rapidly simply by moving the selector lever backward and forward. In contrast to a manual transmission, the sports mode allows gear shifts with the accelerator pedal depressed.

SHIFT DOWN

AA0096339

+ (SHIFT UP)

Push the lever forward once to shift up one gear.

- (SHIFT DOWN)

Pull the lever backward once to shift down one gear.

CAUTION

- In sports mode, the driver must execute upward shifts in accordance with prevailing road conditions, taking care to keep the engine speed below the red zone.

CAUTION

- By rapidly moving the selector lever backward (SHIFT DOWN) twice, it is possible to skip one gear, i.e., 3^rd to 1^st , 4^th to 2^nd or 5^th to 3^rd . Since sudden engine braking and/or rapid acceleration can cause a loss of traction, downshifts must be made carefully in accordance with the vehicle's speed.

NOTE

• In sports mode, only the 4 or 5 forward gears can be selected. To reverse or park the vehicle, move the selector lever to the "R" (REVERSE) or "P" (PARK) position as required.
• To maintain good running performance, the transmission may refuse to perform an upshift when the selector lever is moved to the “+ (SHIFT UP)” position at certain vehicle speeds. Also, to prevent over-revving of the engine, the transmission may refuse to perform a downshift when the lever is moved to the “- (SHIFT DOWN)” position at certain vehicle speeds.
• In sports mode, downward shifts are made automatically when the vehicle slows down. When the vehicle stops, 1^st gear is automatically selected.

NOTE

- When driving away on a slippery road, push the selector lever forward into the “+ (SHIFT UP)” position. This causes the transmission to shift into the 2^rd gear which is better for smooth driving away on a slippery road. Push the selector lever to the “-(SHIFT DOWN)” side to shift back to the 1^st gear.

Sports mode indicator

E00612300498

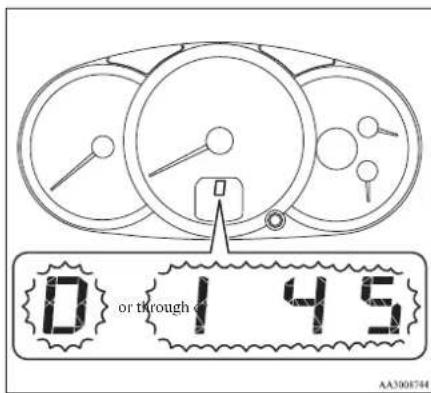

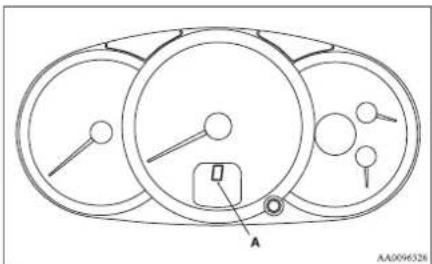

In sports mode, the currently selected position is indicated by the indicator (A) shown on the instrument panel.

Diagram of three circular components with internal symbols and a labeled point A, no readable text or labels present.

When a malfunction occurs in the automatic transmission

E00615100152

When the selector lever position indicator blinks

E00615200238

When the selector lever position indicator blinks while you are driving, there could be a malfunction in the automatic transmission system.

CAUTION

• If the selector lever position indicator blinks while you are driving, it is likely that a safety device is operating because of a malfunction in the automatic transmission. We recommend you to have your vehicle inspected as soon as possible.
• The selector lever position indicator warning function does not operate with the selector lever in the "P" (PARK), "R" (REVERSE) or "N" (NEUTRAL) position.

When the A/T (automatic transmission) fluid temperature warning lamp comes on

F00615300141

The automatic transmission fluid temperature warning lamp comes on when the automatic transmission fluid temperature becomes abnormally high. Normally the warning lamp comes on when the ignition switch is turned to the "ON" position, and then will go out after a few seconds.

CAUTION

- If the lamp comes on, reduce the engine speed and stop the vehicle in a safe area. Then set the selector lever to the "P" (PARK) position and idle the engine until the warning lamp goes off. When the warning lamp goes off, resume normal driving. If the warning lamp does not go off, we recommend you to have your vehicle inspected.

Operation of the automatic transmission

F00604200528

CAUTION

● Before selecting a gear with the engine running and the vehicle stationary, fully depress the brake pedal to prevent the vehicle from creeping.
The vehicle will begin to move as soon as the gear is engaged, especially when the engine speed is high, at fast idle or with the air conditioning operating, the brakes should only be released when you are ready to drive away.
● Depress the brake pedal with the right foot at all times.
Using the left foot could cause driver movement delay in case of an emergency.
● To prevent sudden acceleration, never race the engine when shifting from the "P" (PARK) or "N" (NEUTRAL) position.

CAUTION

● Operating the accelerator pedal while the other foot is resting on the brake pedal will affect braking efficiency and may cause premature wear of brake pads.

- Use the selector lever in the correct shift position in accordance with driving conditions. Never coast downhill backward with the driving shift position {"D" (DRIVE) or sports mode} or coast forward with the "R" (REVERSE) position.

The engine stops and the brake pedal effort or the steering wheel handling weight increasing could lead to an accident.

- Do not race the engine with brake pedal pressed when the vehicle is stationary. This can damage the automatic transmission.

Passing acceleration

E00604500329

To gain extra acceleration in "D" (DRIVE) position, push the accelerator to the floor. The automatic transmission will automatically downshift.

NOTE

- In "Sports mode", downshifts do not take place when the accelerator is depressed all the way to the floor.

Waiting

E00604600304

For short waiting periods, such as at traffic signals, the vehicle can be left in gear and held stationary with the service brake.

For longer waiting periods with the engine running, place the selector lever in the "N" (NEUTRAL) position..

CAUTION

● Never hold the vehicle stationary on a hill using the accelerator pedal (without using the brake pedal). Always apply the parking brake and/or service brakes.

● Unexpected acceleration may occur if the selector lever is in a position other than "P" (PARK) or "N" (NEUTRAL). Prior to moving off after having stopped the vehicle, make sure that the selector lever is in the "D" (DRIVE) position.

Parking

E00604700262

To park the vehicle, first bring it to a complete stop, fully engage the parking brake, and then move the selector lever to the "P" (PARK) position.

If you are going to leave the vehicle unattended, always switch off the engine and remove the ignition key.

NOTE

- On a slope, be sure to apply the parking brake before moving the selector lever to the "P" (PARK) position. If you move the selector lever to the "P" (PARK) position before applying the parking brake, it may be difficult to disengage the selector lever from the "P" (PARK) position when next you drive the vehicle, requiring application of a strong force to the selector lever to move from the "P" (PARK) position.

When the automatic transmission makes no speed change

If the transmission does not change speeds while driving, or your vehicle does not pick up enough speed when starting on an uphill slope, it may be that there is something unusual happening in the transmission, causing a safety device to activate. We recommend you to have your vehicle checked as soon as possible.

1. If your vehicle has difficulty moving up-hill, shift the selector lever into 2 ^nd gear of the “Sports mode”. This method might not work depending on the type of transmission malfunction.

2. Once the vehicle is moving on a level road, move the selector lever back to "D" (DRIVE).

NOTE

- When the selector lever position indicator in the instrument panel blinks, it means that there is an abnormal condition in the transmission. Refer to “When the selector lever position indicator blinks” on page 6-22.

Easy select 4WD\*

L00614700148

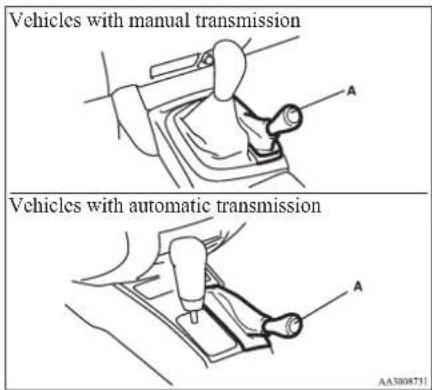

Shifting to rear-wheel drive or 4-wheel drive can be made by operating the transfer shift lever (A). Shift the transfer shift lever to an appropriate position according to the road surface conditions. In addition, the 2WD/4WD operation indication lamp indicates the transfer shift lever shifting state. Refer to "2WD/4WD operation indication lamp" on page 6-27.

Transfer shift lever position and 2WD/4WD operation indication lamp

E00614800080

Transfer shift lever position		2WD/4WD operation indication lamp	Driving conditions
2H	Rear-wheel drive		When driving on dry paved road.
4H	4-wheel drive		When driving on rough, sand or snow covered roads.

Easy select 4WD*

Transfer shift lever position		2WD/4WD operation indication lamp	Driving conditions
4L	Low range 4-wheel drive		When driving up or down steep hills, on rough or muddy roads (especially when increased torque is required).

□: Illuminate

: Remain off

NOTE

- On vehicles with automatic transmission, when the transfer shift lever is in "4L", the transmission will not shift into the overdrive gear.

CAUTION

• The “4L” range gives maximum torque for lowspeed driving on steep slopes, as well as sandy, muddy, and other difficult surfaces. On vehicles with automatic transmission, do not exceed speeds of approximately 70 km/h (43 mph) in “4L” range.
• Do not drive your vehicle in the "4H" or "4L" on dry paved roads and highways. Doing so may result in excessive tyre wear, increased fuel consumption, and possible noise generation. It may also increase the differential oil temperature, which may damage the drive system. Further, the drive train will be subjected to excessive loading, resulting in oil leakage, component seizure, or other serious problems. On dry paved roads and highways, drive the vehicle in "2H" only.

Transfer shift lever operation

E00614900111

The shift pattern is shown on the transfer shift lever knob.

The transfer shift lever should be positioned in accordance with the following operating conditions:

To shift from	To	Procedure
		Vehicles with manual transmission Vehicles	with automatic transmission
2H 4H		The transfer shift lever can be operated while the vehicle is either moving or stationary.	The transfer shift lever can be operated while the vehicle is either moving or stationary.

Easy select 4WD*

To shift from To		Procedure
		Vehicles with manual transmission Vehicles	with automatic transmission
4H 2H		When the vehicle is not in motion, shift the gearshift lever to the “N” (Neutral) position before operating the transfer shift lever.When the vehicle is moving, and only while it can be steered straight ahead, release the accelerator pedal before operating the transfer shift lever.	When the vehicle is not in motion, shift the selector lever to the “N” (NEUTRAL) position before operating the transfer shift lever.When the vehicle is moving, and only while it can be steered straight ahead, shift the selector lever to the “D” (DRIVE) position, and release the accelerator pedal before operating the transfer shift lever.
4H 4L		Stop the vehicle, depress the clutch pedal to the floor and operate the transfer shift lever.	Stop the vehicle, shift the selector lever to the “N” (NEUTRAL) position, and operate the transfer shift lever.If operation is made with the selector lever placed in any other position than “N” (NEUTRAL) position, a gear noise may be generated, with a possible failure to shift into a proper gear.
4L 4H

NOTE

• Shifting of the transfer shift lever between "2H" "4H" should only be done at speeds below 100 km/h (62 mph).
  ● During driving, never attempt to shift from "4H" to "4L".
• When shifting from "2H" to "4H" in cold weather while the vehicle is in motion, the transmission gear may make some noise. In cold weather, try to shift the gear while the vehicle is stopped.

NOTE

• There may be a case that the transfer shift lever feels heavy when it is moved from "4H" to "2H" with the steering wheel in turned position.
  This is normal and not any indication of trouble.

CAUTION

- Do not operate the transfer shift lever while the rear wheels of the vehicle are slipping on snow or ice.

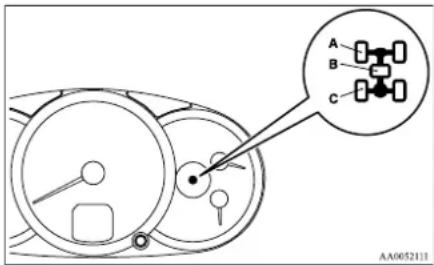

2WD/4WD operation indication lamp

F00615000122

Easy select 4WD\*

When the ignition switch is in the “ON” position, the 2WD/4WD operation indication lamp shows the shifting condition. The 2WD/4WD operation indication lamp illuminates at each transfer shift lever position as follows:

“2H” “4H”

Transfer shift lever position	2WD/4WD operation indication lamp
2H
	↓	↑
Drive mode switching in progress
	↓	↑

Transfer shift lever position	2WD/4WD operation indication lamp
4H

: Illuminate

: Remain off

NOTE

• When the transfer shift lever is shifted between 2H 4H, the 2WD/4WD operation indication lamp does not switch to illuminate or remain off while the selection is in process. Take the following precautions when the indication lamp remains on or off.
• Keep the steering wheel in the straight ahead position while making range selections. If you attempt to drive forward with the steering wheel turned, gear rattling may occur and the desired range may not actually be selected.
• When the transfer shift lever is shifted between “211” ↔ “411” while the vehicle is stopped, the 2WD/4WD operation indication lamp does not switch to illuminate or remain off while the selection is in process. Drive slowly and normally after confirming that the lamp is switched.

NOTE

• Do not move the selector lever while the 2WD/4WD operation indication lamp is switched.
• If the 2WD/4WD operation indication lamp does not switch after a “2H” “4H” selection has been made with the vehicle moving, hold the steering wheel in the straight ahead position and slowly depress the accelerator pedal several times.

“4H” “4L”

Transfer shift lever position	2WD/4WD operation indication lamp
4H
	[ami]
Drive mode switching in progress
	— —
Transfer shift lever position	2WD/4WD opcr- tion indication lamp
4L

□: Illuminate
: Remain off

NOTE

- The 2WD/4WD operation indication lamp will go out momentarily during shifting process from "4H" to "4L" or vice versa, as the transfer shift lever passes through the neutral position. Be sure to operate the transfer shift lever until the 2WD/4WD operation indication lamp illuminates again.

NOTE

- If, after a "4H" "4L" selection has been made, the 2WD/4WD operation indication lamp remains off and the desired range is not actually selected, return the transfer shift lever to its previous position. Place the steering wheel in the straight ahead position, drive the vehicle forward, and release the accelerator pedal. Next, hold down the clutch pedal (with manual transmission) or place the selector lever in the "N" (NEUTRAL) position (with automatic transmission) and make the range selection again.

Super select 4WD\*

E00605700214

Shifting to rear-wheel drive or 4-wheel drive can be made by operating the transfer shift lever (A). Shift the transfer shift lever to an appropriate position according to the road surface conditions. In addition, the 2WD/4WD operation indication lamp indicates the transfer shift lever shifting state. Refer to "2WD/4WD operation indication lamp" on page 6-32.

Vehicles with manual transmission

Mechanical diagram showing a lever mechanism with labeled component A (no text or symbols beyond label)

Vehicles with automatic transmission

Line drawing of a hand using a tool to press or install a component, labeled 'A' (no text or symbols on the diagram itself)

Super select 4WD*

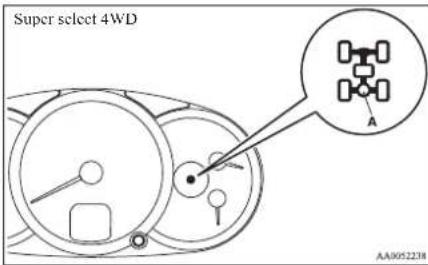

Transfer shift lever position and 2WD/4WD operation indication lamp
E00605800228

Transfer shift lev-er position		2WD/4W D opera-tion indi-cation lamp	Driving conditions
2H	Rear-wheel drive		When driving on dry paved road.
4H	Full-time 4-wheel drive		The basic position for super select 4WD.When driving on dry paved or slippery roads.
4HLc	Centre dif-ferential lock en-gaged 4-wheel drive		When driving on rough, sand or snow cov-cred roads.

Transfer shift lev-er position		2WD/4W D opera-tion indi-cation lamp	Driving conditions
4LLc	Low range centre dif-ferential lock en-gaged 4-wheel drive		When driving up or down steep hills, on rough or muddy roads (es-ppecially when in-creased torque is required).

: Illuminate

: Remain off

NOTE

- On vehicles with automatic transmission, when the transfer shift lever is in "4LLc", the transmission will not shift into the over-drive gear.

CAUTION

- The "4LLc" range gives maximum torque for low-speed driving on steep slopes, as well as sandy, muddy, and other difficult surfaces. On vehicles with automatic transmission, do not exceed speeds of approximately 70 km/h (43 mph) in "4LLc" range.

- Do not drive your vehicle in the "4HLc" or "4LLc" on dry paved roads and highways. Doing so may result in excessive tyre wear, increased fuel consumption, and possible noise generation. It may also increase the differential oil temperature, which may damage the drive system. Further, the drive train will be subjected to excessive loading, resulting in oil leakage, component seizure, or other serious problems. On dry paved roads and highways, drive the vehicle in "2H" or "4H" only.

Transfer shift lever operation

E00605900173

The shift pattern is shown on the transfer shift lever knob.

The transfer shift lever should be positioned in accordance with the following operating conditions:

☐: Not push down the transfer shift lever
: Push down the transfer shift lever

To shift from To		Procedure
		Vehicles with manual transmission Vehicles	with automatic transmission
2H 4H		The transfer shift lever can be operated while the vehicle is either moving or stationary.When the vehicle is not in motion, shift the gearshift lever to the “N” (Neutral) position before operating the transfer shift lever.When the vehicle is moving, and only while it can be steered straight ahead, and release the accelerator pedal before operating the transfer shift lever.	The transfer shift lever can be operated while the vehicle is either moving or stationary.When the vehicle is not in motion, shift the selector lever to the “N” (NEUTRAL) position before operating the transfer shift lever.When the vehicle is moving, and only while it can be steered straight ahead, shift the selector lever to the “D” (DRIVE) position, and release the accelerator pedal before operating the transfer shift lever.
4H	2H or 4HLc
4HLc 4H
4HLc 4LLc		Stop the vehicle, depress the clutch pedal to the floor and operate the transfer shift lever while keeping the transfer shift lever pushed down.Keep depressing the clutch pedal while the 2WD/4WD operation indication lamp continues to blink.	Stop the vehicle, shift the selector lever to the “N” (NEUTRAL) position, and operate the transfer shift lever while keeping the transfer shift lever pushed down.If operation is made with the selector lever placed in any other position than “N” (NEUTRAL) posi-

Super select 4WD*

To shift from To		Procedure
		Vehicles with manual transmission Vehicles	with automatic transmission
4LLc 4HLc			tion, a gear noise may be generated, with a possible failure to shift into a proper gear.

NOTE

• Shifting of the transfer shift lever between “2H” ↔ “4H” should only be done at speeds below 100 km/h (62 mph).
• During driving, never attempt to shift from "4HLc" to "4LLc".
• When shifting from “2H” to “4H” in cold weather while the vehicle is in motion, the transmission gear may make some noise. In cold weather, try to shift the gear while the vehicle is stopped.
• When the transfer shift lever is shifted from "4H" to "4HLc" while the vehicle is stopped, the 2WD/4WD operation indication lamp blinks while the selection is in process.
  Drive slowly and normally after confirming that the lamp is illuminated. (Refer to "2WD/4WD operation indication lamp" on page 6-32.)
• Do not move the selector lever while the 2WD/4WD operation indication lamp is blinking.
• The 2WD/4WD operation indication lamp will go out momentarily during shifting process from "4HILc" to "4LLc" or vice versa, as the transfer shift lever passes through the neutral position.
  Be sure to operate the transfer shift lever until the 2WD/4WD operation indication lamp illuminates again.

NOTE

• There may be a case that the transfer shift lever feels heavy when it is moved from "211" to "411" with the steering wheel in turned position.
  This is normal and not any indication of trouble.

CAUTION

- Do not operate the transfer shift lever while the rear wheels of the vehicle are slipping on snow or ice.

2WD/4WD operation indication lamp

E00625900036

A- Front wheel lamp
B- Centre differential lock lamp
C- Rear wheel lamp

When the ignition switch is in the “ON” position, the 2WD/4WD operation indication lamp shows the shifting condition. The 2WD/4WD operation indication lamp comes on at each transfer shift lever position as follows:

“2H” “4H”

Transfer shift lever position	2WD/4WD operation indication lamp
2H
	[7062]
Drive mode switching in progress
	[3762]
4H

“4H” “4HLc”

Transfer shift lever position	2WD/4WD operation indication lamp
4H
	[08W6]
Drive mode switching in progress
	[07T0]
4HLc

“4HLc” “4LLc”

Transfer shift lever position	2WD/4WD operation indication lamp
4HLc	brack
Drive mode switching in progress	borr
4LLc

[NO TEXT]
Blink
:
Illuminate
-
Remain off
[Figure]
Blink
-
: Illuminate
m = 311
: Remain off
[NO TEXT]
Blink
[NO TEXT]
: Illuminate
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is incorrect because underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line violates the rule and constitutes an error. Therefore, the OCR result is inconsistent with the Ground Truth.
: Remain off

Rear differential lock*

NOTE

● The 2WD/4WD operation indication lamp blinks while the selection is in process. Take the following precautions when the indication lamp is blinking or remains off.
- Keep the steering wheel in the straight ahead position while making range selections. If you attempt to drive forward with the steering wheel turned, gear rattling may occur and the desired range may not actually be selected.
- If you move the transfer shift lever from "411" to "411Lc" while the vehicle is stationary, keep your speed initially very low when you subsequently make a standing start. Before driving at normal speeds, confirm that the centre differential lock lamp has changed from blinking to steady illumination.
- If you move the transfer shift lever from "4HLC" to "4H" and the centre differential lock lamp does not stop blinking, place the steering wheel in the straight ahead position and slowly depress the accelerator pedal several times.

NOTE

• If you move the transfer shift lever from "411" to "211" and the front wheel lamp does not stop blinking, confirm safety around the vehicle then accelerate, decelerate, and reverse until the front wheel lamp goes off. When the front wheel lamp goes off, you can then proceed to drive the vehicle. If you accelerate, decelerate, and reverse but the front wheel lamp still does not stop blinking, return the transfer shift lever to "411" then have your vehicle inspected.
• When you move the transfer shift lever from "411" to "411Lc", there may be a slight delay before the centre differential lock lamp illuminates.

Rear differential lock\*

100606200115

If one wheel starts to spin freely and the vehicle becomes stuck and cannot be freed even using 4-wheel drive, the rear differential lock switch (A) can be used to activate the rear differential lock for extra traction.

Line drawing of a car interior showing steering wheel, dashboard, and control panel (no text or symbols)

Operating the rear differential lock

1. Move the transfer shift lever to "4L" or "4H" position (easy select 4WD),
   "4LLc" or "4HLc" position (super select 4WD).

2. To activate the rear differential lock, press the rear differential lock switch (1).

3. To deactivate the rear differential lock, press the rear differential lock switch (2).

CAUTION

● Operate the rear differential lock switch after the wheels are stopped. Operating the switch with the wheels turning may cause the vehicle to dart in unexpected directions.

NOTE

● The rear differential lock does not operate when the transfer shift lever is in "2H" position (easy select 4WD), "2H" or "4H" position (super select 4WD).

NOTE

- When the rear differential is locked with the transfer shift lever in "4L" or "4H" position (easy select 4WD), "4LLc" or "4HLc" position (super select 4WD) changing the shif lever to "2H" position (easy select 4WD), "2H" or "4H" position (super select 4WD) makes the rear differential unlock automatically.

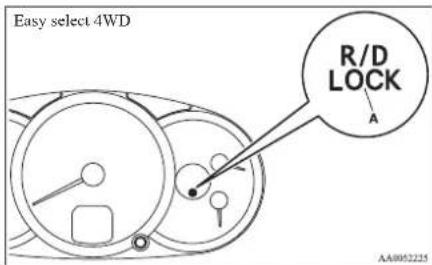

The rear differential lock indication lamp

ED060630035D

When the ignition switch is turned to the "ON" position, the rear differential lock indication lamp (A) in the meter cluster illuminates for a few seconds then indicates the rear differential lock's operating status (activated or deactivated).

NOTE

- The 2WD/4WD operation indication lamp also illuminates for a few seconds when the ignition switch is turned to the "ON" position. Refer to "2WD/4WD operation indication lamp" on pages 6-27, 6-32. The status of the rear differential lock (resulting from depression of the rear differential lock switch) is shown by blinking or steady illumination of the rear differential lock indication lamp.

The operation state of rear differential lock	Rear differential lock indication lamp
Easy select 4WD		Super select 4WD

Rear differential lock*

The operation state of rear differential lock	Rear differential lock indication lamp
Rear differential lock deactivated
	[1980]	[1980]
Switching in progress
	[1750]	[1750]
Rear differential lock activated

NOTE

• The indication lamp blinks while the rear differential lock is being switched between its activated and deactivated conditions. When the switching operation is complete, the indication lamp is either illuminated steadily or not illuminated.
• On vehicles with the active stability & traction control (ASTC) and anti-lock brake system (ABS), the ASTC and ABS functions are suspended while the rear differential lock is activated. ASTC indication lamp, ASTC OFF indication lamp and ABS warning lamp are illuminated while these functions are suspended. It does not indicate a problem. When the rear differential lock is disengaged, these lamps go out and function again. Refer to “ABS warning lamp” on page 6-46, “ASTC indication lamp, ASTC OFF indication lamp” on page 6-49.
• On vehicles with the anti-lock brake system (ABS), the ABS function is suspended while the rear differential lock is activated. The ABS warning lamp is illuminated while ABS functionality is suspended. Refer to “ABS warning lamp” on page 6-46.
• If the indication lamp continues blinking after the switch has been pressed to deactivate the rear differential lock, hold the steering wheel in the straight ahead position then slowly depress and release the accelerator pedal several times.
• If the indication lamp continues blinking after the switch has been pressed to activate

NOTE

the rear differential lock, bear in mind the following instructions:

• If the vehicle speed is 12 km/h (7 mph) or higher, decelerate to a speed of 6 km/h (4 mph) or lower. The indication lamp will illuminate steadily and the rear differential lock will be activated.
• If the vehicle speed is 12 km/h (7 mph) or lower, turn the steering wheel from side to side until the indication lamp illuminates steadily. If the vehicle is stuck in soft ground, make sure the area around the vehicle is clear then repeatedly attempt to drive forward and backward. The indication lamp will illuminate steadily and the rear differential lock will be activated.

Examples of effective use of the rear differential lock

E0D606400058

CAUTION

- Use the rear differential lock only as an emergency measure when the vehicle is stuck and cannot be freed with the transfer shift lever in "4L" or "4H" position (easy select 4WD) or in "4LLc" or "4HILc" position (super select 4WD). Deactivate the rear differential lock immediately after using it.

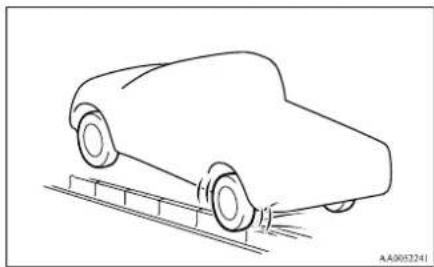

When one of the wheels has fallen in a ditch

Line drawing of a car on an inclined ramp, no text or symbols present

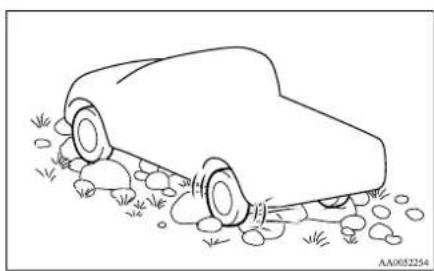

When driving on rocky roads

When the vehicle is unable to move because one of the wheels is suspended in the air.

Line drawing of a car with wheels and grass at the base (no text or symbols)

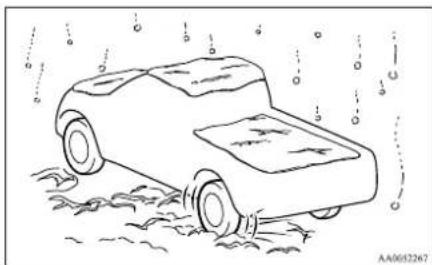

When getting out of snow

When the vehicle is unable to get going because one of the wheels is on the snow and the other on a paved road.

Line drawing of a pickup truck with wheels and water spray (no text or symbols)

Examples of incorrect use of the rear differential lock

E00606500059

WARNING

- If the "4L" or "4H" position (easy select 4WD), "4LLc" or "4HLc" position (super select 4WD) is selected along with the rear differential lock, the following phenomena appear and it is very dangerous. Please be sure to release the rear differential lock on normal roads.

WARNING

- If the rear differential lock is used by mistake when driving on a paved road: With the rear differential lock on, the power to drive the vehicle straight ahead becomes very strong, which may make it difficult to turn the steering wheel.

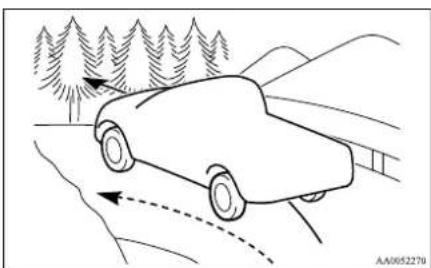

Line drawing of a car driving on a mountain road with trees and hills in the background (no text or symbols)

WARNING

- If the rear differential lock is used by mistake when turning a curve or making a right or left turn at a crossing or the like: The vehicle is unable to make a turn and may go straight ahead.

4-wheel drive operation

Simple line drawing of a car on a road with directional arrows indicating motion (no text or symbols)

Line drawing of a car driving on a mountain road with trees and hills in the background (no text or symbols)

WARNING

• If the rear differential lock is used by mistake except when making an emergency escape on snow or frozen road: It becomes difficult to make a steady turn.
• In the case where the condition of the road is different for the right tyre to drive from the left tyre (such as one tyre on paved road and the other on ice), direction of the vehicle may change abruptly when engine braking or accelerating. Do not use the rear differential lock except when making an emergency escape on a snow or frozen road, but drive with 4WD.

4-wheel drive operation

E00606601028

By selecting 4-wheel drive, both axles of the vehicle are rigidly connected with each other. This improves the traction characteristics. When turning sharp corners or moving forward and backward repeatedly, however, the drive line is stressed, which is felt as a braking effect. A 4-wheel drive vehicle can accelerate more quickly and smoothly. However, note that the braking distance is not shorter than that of a rear-wheel drive vehicle. When using 4-wheel drive on rough roads (snow, mud, sand, etc.), it is important to operate the vehicle correctly.

NOTE

● The driving posture should be more upright and closer to the wheel than usual; adjust the seat to a good position for easy steering and pedal operation. Be sure to wear the seat belt.
● After driving on rough roads, check each part of the vehicle and wash it thoroughly with water. Refer to the "Vehicle care" section and "Inspection and maintenance following rough road operation" on page 6-41.

Driving on dry paved road and highway

Select "2H" position (easy select 4WD), "2H" or "4H" position (super select 4WD) to drive on the dry paved road. Especially on dry highway, never select the "4H" or "4L" position (easy select 4WD), "4HLc" or "4LLc" position (super select 4WD).

CAUTION

- Selecting "4H" or "4L" position (easy select 4WD), "41Lc" or "4LLc" position (super select 4WD) to drive on dry paved road will increase the fuel consumption with possible noise generation and early tyre wear. It may also increase the differential oil temperature, resulting in possible damage to the driving system. Further, the drive train will be subjected to excessive loading, possibly leading to oil leakage, component seizure, or other serious faults.

Driving on snowy or icy roads

Set the transfer shift lever to "4H" or "4L" position (easy select 4WD), "4H" or "4HLc" position (super select 4WD) in accordance with the road conditions, and then gradually depress the accelerator pedal for a smooth start.

NOTE

- The use of snow tyres and/or tyre chains is recommended. - Maintain a safe distance between vehicles, avoid sudden braking, and use engine braking (downshifting).

CAUTION

● Avoid sudden braking, sudden acceleration, and sharp turning; such operations could cause skidding and spinouts.

Driving on sandy or muddy roads

Set the transfer shift lever to "4H" or "4L" position (easy select 4WD), "4HLc" or "4LLc" position (super select 4WD) and then gradually depress the accelerator pedal for a smooth start. Keep the pressure on the accelerator pedal as constant as possible, and drive at low speed.

CAUTION

- Do not force the vehicle or drive recklessly on sandy surfaces. In comparison with normal road surfaces, the engine and other drive-system components are put under excessive strain when driving on such a surface, and this could lead to accidents. - If any of following conditions occur while the vehicle is being driven, immediately park your vehicle in a safe place and follow these procedures: - The needle in the temperature gauge approaches the overheating zone. Refer to “Engine overheating” on page 8-04.

CAUTION

- Automatic transmission fluid temperature warning lamp comes on. Refer to "When the A/T (automatic transmission) fluid temperature warning lamp comes on" on page 6-23.

WARNING

- When attempting to rock your vehicle out of a stuck position, be sure that the area around the vehicle is clear of people and physical objects. The rocking motion may cause the vehicle to suddenly launch forward or backward, causing injury or damage to nearby people or objects.

NOTE

- Avoid sudden braking, acceleration, and turning; such operations could result in the vehicle becoming stuck. - If the vehicle becomes stuck in sandy or muddy roads, it can often be moved a rocking motion. Move the selector lever rhythmically between the "D" (DRIVE) and "R" (REVERSE) position (with M/T, between 1^st and Reverse), while applying slight pressure to the accelerator pedal.

4-wheel drive operation

NOTE

- It is recommended to start the vehicle with parking brake partially, but not completely applied by slightly pulling the parking brake lever.

After the vehicle has become free, do not forget to release the parking brake.

- If it is necessary to drive in extremely muddy conditions, the use of tyre chains is recommended. Because the extent of muddy conditions is difficult to judge and the vehicle could become bogged down very deeply, operation should be at a low speed. If possible, get out of the vehicle and check the conditions ahead before proceeding.

● Driving over roads in coastal areas or roads on which anti-skid preparations have been spread can cause rust on the vehicle; was the vehicle thoroughly as soon as possible after such use.

Climbing sharp grades

Set the transfer shift lever to "4L" position (easy select 4WD), "4LLc" position (super select 4WD) to maximize the engine torque.

WARNING

- Go straight up. Do not try to traverse across a steep slope.

WARNING

- If you begin to lose traction, case off the accelerator pedal and gently turn the steering wheel alternatively left and right to regain adequate traction again.

NOTE

• Choose as smooth a slope as possible with few stones or other obstacles.
  ● Before attempting to drive up the slope, walk up it to confirm that the vehicle can handle the grade.

Descending sharp grades

Set the transfer shift lever to "4L" position (easy select 4WD), "4LLc" position (super select 4WD), use the engine brake (down-shifting) and descend slowly.

WARNING

● Avoid snaking down a sharp grade. Descend the grade as straight as possible.

NOTE

- When descending a sharp grade, if the brakes are applied suddenly because of an obstacle encountered, control of the vehicle could be lost. Before descending the slope, walk down it and confirm the path.

NOTE

● Before descending a grade, it is necessary to choose the appropriate gear. Avoid changing gears or depressing the clutch while descending the grade.
● MITSUBISHI MOTORS is not responsible to the operator for any damage or injury caused or liability incurred by improper and negligent operation of a vehicle. All techniques of vehicle operation described herein depend on the skill and experience of the operator and other participating parties and any deviation from the recommended operation instructions above is at their own risk.

Turning sharp corners

When turning a sharp corner in "4H" or "4L" position (easy select 4WD), "4IILc" or "4LLc" position (super select 4WD) at low speed, a slight difference in steering may be experienced similar to as if the brakes were applied. This is called tight corner braking and results from each of the 4 tyres being at a different distance from the corner.

The phenomenon is peculiar to 4-wheel drive vehicles. If this occurs, either straighten the steering wheel, or change to rear-wheel drive.

Crossing a stream

4-wheel drive vehicles are not necessarily waterproof. If the electrical circuits become wet, further operation of the vehicle will be impossible; therefore, avoid crossing streams unless absolutely necessary. If crossing a stream is unavoidable, use the following procedure:

1. Check depths of a stream and geographical features before attempting to cross a stream and ford the stream where the water is as shallow as practicable.
2. Set the transfer shift lever to "4L" position (easy select 4WD), "4LLc" position (super select 4WD).
3. Drive slowly at a speed of approximately 5 km/h (3 mph) to avoid splashing too much water.

CAUTION

● Never cross a stream where the water is deep.

Do not change gears while crossing the stream.

Frequent crossing of streams can adversely affect the life span of the vehicle; we recommend you to take the necessary measures to prepare, inspect, and repair the vehicle.

After crossing a stream, apply the brakes to be sure they are functioning properly. If the brakes are wet and not functioning properly, dry them out by driving slowly while lightly depressing the brake pedal.

Inspect each part of the vehicle carefully.

Inspection and maintenance following rough road operation

E00606700048

After operating the vehicle in rough road conditions, be sure to perform the following inspection and maintenance procedures:

• Check that the vehicle has not been damaged by rocks, gravel, etc.
• Carefully wash the vehicle with water. After washing, drive the vehicle slowly while lightly depressing the brake pedal in order to dry out the brakes. If the brakes still do not function properly, we recommend you to have the brakes checked as soon as possible.

• Remove the insects, dried grass, etc. clogging the radiator core.
  ● After crossing a stream, be sure to have the following items inspected at a MITSUBISHI MOTORS Authorized Service Point and take the necessary measures.

• Check the brake system and, if necessary, have it serviced.

• Check the engine, transmission, transfer, and differential oil or grease level and turbidity. If the oil or grease is milky, it indicates water contamination. Replace it with new oil or grease.
• Grease the propeller shaft.
• Check the inside of the vehicle. If ingress of water is found, dry the carpet etc.
• Inspect the headlamps. If the head-lamp bulb is flooded with water, we recommend you to have it drained.

Cautions on handling of 4-wheel drive vehicles

E00606800368

Tyres and wheels

Since the driving torque can be applied to the 4 wheels, the performance of the vehicle when operating in 4-wheel drive is greatly affected by the condition of the tyres.

Pay close attention to the tyres.

- Install specified tyres on all wheels. Refer to “Tyres and wheels” on page 11-19.

Cautions on handling of 4-wheel drive vehicles

• Be sure to fit all 4 tyres and wheels of In the following cases, transport the vehicle the same size and type. using a tow truck.
  When replacement of any of the tyres or wheels is necessary, replace all of them.
  ● All tyres should be rotated whenever the wear difference between the front and rear tyres is recognizable.
  In the following cases, transport the vehicle using a tow truck.
  ● The engine runs but the vehicle does not move or abnormal noise is produced.
• Inspection of the vehicle's underside reveals that oil or some other fluid is leaking.

Good vehicle performance cannot be expected if there is a difference in wear between tyres. Refer to "Tyre rotation" on page 10-14.

- Check the tyre inflation pressure regularly.

CAUTION

● Always use tyres of the same size, same type, and same brand, and which have no wear differences. Using tyres of different size, type, brands or degree of wear, will increase the differential oil temperature, resulting in possible damage to the driving system. Further, the drive train will be subjected to excessive loading, possibly leading to oil leakage, component seizure, or other serious faults.

Towing

If towing is necessary, we recommend you to have it done by your MITSUBISHI MOTORS Authorized Service Point or a commercial tow truck service.

Only when you cannot receive a towing service from a MITSUBISHI MOTORS Authorized Service Point or commercial tow truck service, tow your vehicle carefully in accordance with the instructions given in "Towing" on page 8-22.

A

B

c

D

AA2001113

CAUTION

• Be sure to shift the transfer shift lever to "2H" position and transport the vehicle with the driving wheels on a carriage (Type A, C or D) as illustrated.
  Never try to tow with the transfer shift lever in "4H" or "4L" position (easy select 4WD), "4H", "4HLc" or "4LLc" position (super select 4WD) and with the front or rear wheels on the ground (Type A or B) as illustrated. This could result in damage to the drivetrain, or unstable towing.
  If you cannot shift the transfer shift lever to "2H" position or the transmission is malfunctioning or damaged, transport the vehicle with all the wheels on a carriage (Type C or D) as illustrated.

Jacking up a 4-wheel drive vehicle

WARNING

• Do not crank the engine while jacking up the vehicle.
  The tyre on the ground may turn and the vehicle may roll off the jack.

Clutch operation

Quick or slight clutch engagement made while the engine is running at high speed will cause damage to the clutch and transmission because the tractive force is very great.

Operate the pedal slowly and positively.

Limited-slip differential\*

E00606900037

A limited-slip differential is applied for the rear wheel differential only. The features of this limited-slip differential are described below:

Just as with a conventional differential, the wheel on one side is allowed to turn at a different speed from the wheel on the other side when the vehicle is cornering. The difference between the limited-slip differential and a conventional differential is that if the wheel on one side of the vehicle loses traction, a greater amount of torque is applied to the wheel on the other side to improve traction.

NOTE

● Even if there is a difference in the amount of traction the wheels can get, if both of them are spinning, the limited-slip differential will not be effective.

CAUTION

● Never start the engine while one of the rear wheels is jacked up and the other in contact with the ground; doing so may cause the vehicle to jump forward.
- When attempting to extract the vehicle from snow, mud, etc., and the engine is run continuously at high speed, the limited-slip differential will be adversely affected.

Braking

E00607001928

All the parts of the brake system are critical to safety. We recommend you to have the vehicle checked at regular intervals according to the service booklet.

CAUTION

- Avoid driving habits that cause heavy braking and never “ride” the brakes by resting your foot on the brake pedal while driving. It causes brake overheating and fade.

Brake assist system*

Brake system

The service brake is divided into two brake circuits. And your vehicle is equipped with power brakes. If one brake circuit fails, the other is available to stop the vehicle. If you should lose the power assist for some reason, the brakes will still work. In these situations, even if the brake pedal moves down to the very end of its possible stroke or resists being depressed, keep depressing the brake pedal down harder and further than usual; stop driving as soon as possible and have the brake system repaired.

WARNING

• Do not turn off the engine while your vehicle is in motion. If you turn off the engine while driving, the power assistance for the braking system will stop working and your brakes will not work effectively.
• If the power assist is lost or if either brake hydraulic system stops working properly, have your vehicle checked immediately.

Warning lamp

The brake warning lamp illuminates to indicate a fault in the braking system. Refer to "Brake warning lamp" on page 5-08.

When brakes are wet

Check the brake system while driving at a low speed immediately after starting, especially when the brakes are wet, to confirm they work normally.

A film of water can be formed on the brake discs or brake drums and prevent normal braking after driving in heavy rain or through large puddles, or after the vehicle is washed. If this occurs, dry the brakes out by driving slowly while lightly depressing the brake pedal.

When driving downhill

It is important to take advantage of the engine braking by shifting to a lower shift position while driving on steep downhill roads in order to prevent the brakes from overheating.

WARNING

• Do not leave any objects near the brake pedal or let a floor mat slide under it; doing so could prevent the full pedal stroke that would be necessary in an emergency. Make sure that the pedal can be operated freely at all times. Make sure the floor mat is securely held in place.

Brake pads and linings

• Avoid hard braking situations. New brakes need to be broken-in by moderate use for the first 200 km (124 miles).
  ● The disc brakes are provided with a warning device which emits a shrieking metallic sound while braking if the brake pads have reached their wear limit.
  If you hear this sound, have the brake pads replaced.

WARNING

● Driving with worn brake pads will make it harder to stop, and can cause an accident.

Brake assist system\*

E00627000392

The brake assist system is a device assisting drivers who cannot depress the brake pedal firmly when it is necessary to do so (such as in emergency stop situations) and provides greater braking force.

If the brake pedal is depressed suddenly, the brakes will be applied with more force than usual.

CAUTION

● The brake assist system is not a device designed to exercise braking force greater than its capacity. Make sure to always keep a sufficient distance between vehicles in front of you without relying too much on the brake assist system.

NOTE

• Once the brake assist system is operational, it maintains great braking force even if the brake pedal is lightly released. To stop its operation, completely remove your foot from the brake pedal.
• When the brake assist system is in use while driving, you may feel the brake pedal attempt to resist, the pedal moves in small motions in conjunction with the operation noise, or the vehicle body and the steering wheel vibrate. This occurs when the brake assist system is operating normally and does not indicate faulty operation. Continue to firmly depress the brake pedal.
• When the active stability & traction control (ASTC) indication lamp is illuminated, the brake assist system may not function.

Anti-lock brake system (ABS)\*

E00607100775

Environmental conditions can have an effect on braking. During sudden braking when there is snow, ice, oil, water etc. on the road surface, a skid may occur. In this situation, steering control and braking effectiveness is reduced and the stopping distance is increased. The vehicle may also go into an uncontrolled spin.

The ABS helps prevent the wheels from locking during braking, thus maintaining directional stability, ensuring controllability and providing optimum braking force.

Driving hints

• With ABS fitted, steering during sudden braking (when the ABS functions) differs slightly from when the brakes are not being applied. Steer the vehicle carefully in these conditions.
  ● Always maintain the same distance from the vehicle in front of you as you would for a vehicle not equipped with ABS.

Compared with vehicles not fitted with ABS, your vehicle may require a longer stopping distance in the following cases:

- Driving on gravel or snow-covered roads.

• Driving with tyre chains installed.
• Driving on roads where the road surface is pitted or has other differences in surface height.

• Driving on bumpy roads or other poor driving surfaces.

• Operation of ABS is not restricted to situations where brakes are applied suddenly. This system may also operate to prevent wheel lock when you are driving over manholes, steel road-work plates, or the vehicle is driven over steps or level differences in the road, road markings, or other surfaces which are difficult for the wheels to grip.

• When the ABS is activated, you may feel the brake pedal pulsation and hear a characteristic noise. Also at this time, you may feel as if the pedal attempts to resist being depressed.

In this situation, to let the ABS work for you, just hold the brake pedal down more firmly. Do not pump the brake. This pumping will result in reduced braking performance.

Anti-lock brake system (ABS)*

CAUTION

• Even the ABS cannot prevent the natural laws of physics from acting on the vehicle. It cannot for instance avoid accidents that may result from excessive speed on bends or following another vehicle too closely or aquaplaning. It should remain the driver's task to observe safety precautions to judge speeds and brake applications correctly in such conditions.
• Be sure to use tyres of the same type and size on 4 wheels. If tyre types or sizes are mixed, ABS may not function normally.
  ● Never install a limited-slip differential, which is not a MITSUBISHI MOTORS genuine part, as the ABS may not function normally.
  We recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

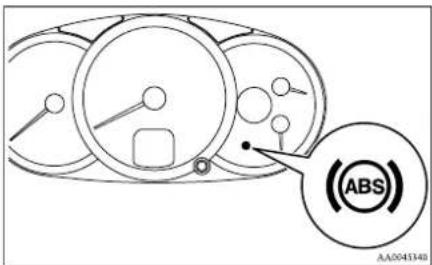

ABS warning lamp

E00607201164

The ABS warning lamp should illuminate when the ignition switch is turned "ON", and should go off in a few seconds.

CAUTION

- If the warning lamp stays on or does not illuminate when you start the vehicle, it indicates that the ABS is not functioning and that only the standard brake system is in operation. (In this condition the standard hydraulic brake system will still function.) We recommend you to have your vehicle inspected as soon as possible.

NOTE

• On vehicles with the rear differential lock ABS and the active stability & traction control (ASTC) functions are suspended while the rear differential lock is activated.
  ASTC indication lamp, Active Stability Control function OFF indication lamp, ABS warning lamp and brake warning lamp are illuminated while these functions are suspended.
  It does not indicate a problem. When the rear differential lock is disengaged, these lamps go out and function again.
  Refer to "ASTC indication lamp, ASTC OFF indication lamp" on page 6-49.
  ● On vehicles with rear differential lock, ABS functionality is suspended while the rear differential lock is operating.
  The ABS warning lamp is illuminated while ABS functionality is suspended. It does not indicate a problem. When the rear differential lock is disengaged, the ABS warning lamp goes off and the ABS functions again. Refer to "Rear differential lock" on page 6-34.

If the warning lamp illuminates while driving

E00607302436

If only the ABS warning lamp illuminates

● Avoid hard braking and high-speed driving. Stop the vehicle in a safe place. Restart the engine and check to see whether the lamp goes out after a few minutes driving; if it then remains off during driving, there is no problem.
However, if the lamp does not go out, or if it lights up again when the vehicle is driven, we recommend you to have the vehicle checked as soon as possible.
● The ABS warning lamp can illuminate if the battery voltage is insufficient when the engine is started. In this case, it does not indicate an ABS fault.
Charge the battery by allowing the engine to idle for a while.
If the battery has been charged but the ABS warning lamp continues to illuminate or illuminates intermittently, have the vehicle inspected.

If the ABS warning lamp and brake warning lamp illuminate at the same time

The ABS and brake force distribution function will not work, so hard braking could make the vehicle unstable.

Avoid hard braking and high-speed driving. Stop the vehicle in a safe place and contact a MITSUBISHI MOTORS Authorized Service Point.

NOTE

• Immediately after the vehicle starts moving after engine start up, a whining sound of a motor will be heard from the engine compartment. If the brake pedal is depressed at that moment, you can feel the brake pedal pulsating.
  This pulsation is due to the self-diagnosis operation of the ABS and does not indicate a malfunction.
  ● After driving on snowy roads, remove any snow and ice which may have become adhered to the wheel areas.
  When doing this, be careful not to damage the wheel speed sensors (A) and cables loca-

NOTE

ted at each wheel on vehicles equipped with an ABS.

Front

Close-up of a car wheel assembly with a coiled cable and labeled component A (no text or symbols beyond labels)

Rear

Mechanical component diagram showing a wheel assembly with concentric rings and labeled point A (no text or symbols beyond label)

● The ABS becomes operative after the vehicle has accelerated to a speed in excess of approximately 10 km/h (6 mph). It stops operating when the vehicle decelerates to a speed below approximately 7 km/h (4 mph).

Power steering system

Power steering system

E00607400387

The power steering system operates while the engine is running. It helps reduce the effort needed to turn the steering wheel. The power steering system has mechanical steering capability in case the power assist is lost. If the power assist is lost for some reason, you will still be able to steer your vehicle, but you will notice it takes much more effort to steer. If this happens, have your vehicle inspected at an authorized MITSUBISHI MOTORS service point.

WARNING

- Do not stop the engine while the vehicle is moving. Stopping the engine would make the steering wheel extremely hard to turn, possibly resulting in an accident.

CAUTION

- Do not leave the steering wheel turned all the way in one direction. This can cause damage to the power steering system.

Active Stability & Traction Control (ASTC)\*

E00616700344

The active stability & traction control (ASTC) takes overall control of the anti-lock brake system, traction control function and Active Stability Control function to help maintain the vehicle's control and traction. Please read this section in conjunction with the page on the anti-lock brake system, traction control function and Active Stability Control function.

Anti-lock brake system (ABS) → p. 6-45 Active Traction Control function → p. 6-49 Active Stability Control function → p. 6-49

CAUTION

• Do not over-rely on the ASTC. This system, like any other system, has limits and cannot help you to maintain traction and control of the vehicle in all circumstances. Reckless driving may lead to accidents. Always drive carefully, taking into account the traffic, road and environmental conditions.
• Be sure to use the same specified type and size of tyre on all 4 wheels. Otherwise, the ASTC may not work correctly.

NOTE

● After your vehicle is driven a short distance after starting the engine, a click is heard from the engine compartment; however, this is only the sound of ASTC being checked.
- Some vibration will be felt in the vehicle body and a whining sound of a motor will be heard from the engine compartment when the ASTC functions. This is a normal result of the ASTC operation, and does not indicate a malfunction.
● The ASTC does not operate while the ABS warning lamp is illuminated.
- On vehicles with the rear differential lock, the ASTC and ABS functions are suspended while the rear differential lock is activated. ASTC indication lamp, ASTC OFF indication lamp and ABS warning lamp are illuminated while these functions are suspended. It does not indicate a problem. When the rear differential lock is disengaged, these lamps go out and function again.
Refer to "ABS warning lamp" on page 6-46, "ASTC indication lamp, ASTC OFF indication lamp" on page 6-49.

Driving hints

E00616800039

When extricating the vehicle from mud, sand or fresh snow, you may find that operation of the ASTC prevents the engine speed from increasing in response to depression of the accelerator pedal. If this happens and the vehicle remains stuck as a result, deactivate the ASC function by pressing the "ASC OFF" switch. The vehicle will then be easier to extricate. (Brake control of the ATC function is still working to prevent wheel spins when the ASC function is deactivated by pressing the "ASC OFF" switch.)

Active Stability Control function

F00616900115

The Active Stability Control function is designed to improve the vehicle's stability by restraining its tendency to slip sideways (for example, when rounding a curve in slippery conditions, or when the driver takes rapid steering action to avoid an obstacle). It works by controlling the engine output and brake on each wheel.

NOTE

● On vehicles with rear differential locks, the Active Stability Control function does not operate when the rear differential lock is activated.

"ASC OFF" switch

The Active Stability Control function is automatically activated when the ignition switch is turned to the "ON" position. You can deactivate the system by pressing the "ASC OFF" switch when the vehicle speed is below 40 km/h (25 mph). To reactivate the Active Stability Control function, press the ASC OFF switch again. It is strongly recommended that the Active Stability Control function normally be kept activated.

OKTE15E3

NOTE

- If the vehicle speed increases to about 120 km/h (74 mph) with the Active Stability Control function deactivated, the Active Stability Control function automatically starts operating. To subsequently stop the Active Stability Control function, stop the vehicle and press the ASC OFF switch again.

Active Traction Control function

E00617000025

On slippery surfaces, active traction control function prevents the drive wheels from excessive spinning, thus helping the vehicle to start moving from a stop. It also provides sufficient driving force and steering performance as the vehicle turns at accelerated speeds.

CAUTION

- When driving a vehicle on a snowy or icy road, be sure to install snow tyres and drive the vehicle at moderate speeds.

ASTC indication lamp, ASTC OFF indication lamp

F00617100114

The Active Stability Control function and active traction control function share the same indication lamp.

Starting and driving

Cruise control\*

The indication lamps should illuminate when the ignition switch is turned to the "ON" position and should go off after a few seconds. If the indication lamps stay on or do not illuminate when the ignition switch is turned to the "ON" position, we recommend you to have your vehicle inspected as soon as possible.

indication lamp blinks when the Active Stability Control function or active traction control function is operating.
indication lamp is illuminated when the Active Stability Control function is OFF.

CAUTION

- When Indication lamp blinks, Active Stability Control function or active traction control function is operating, which means that the road is slippery or that your vehicle's wheels are slipping excessively. If this happens, drive slower with less accelerator input.

CAUTION

- If an abnormal condition occurs in the system while driving, the Indication lamp will illuminate.

In these cases, follow these procedures:

• If the temperature in the braking system continues to increase due to continuous brake control on a slippery road surface, the Indication lamp will illuminate, and operation of the Active Stability Control function and active traction control function will be suspended to protect the brake system. (Normal operation of the vehicle will not be affected.) Park your vehicle in a safe place. When the temperature in the braking system has come down, the Indication lamp will go off and the Active Stability Control function and active traction control function will start operating again.
• If the indication lamp does not go out even though the above procedure is followed, there could be a problem in the system.

Stop the engine and start the engine again and check whether the indication lamp goes out. If the indication lamp goes out, there is no abnormal condition.

If the Indication lamp illuminates even after your vehicle is driven a short distance after restarting the engine, we recommend you to have your vehicle checked as soon as possible.

Two line drawings of pickup trucks with cars, no text or symbols present

CAUTION

- If the vehicle is towed with the ignition switch in the "ON" position and only the front wheels or only the rear wheels raised off the ground, the ASTC may operate, resulting in an accident. When towing the vehicle with the front wheels raised, keep the ignition switch in the "LOCK" or "ACC" position. When towing the vehicle with the rear wheels raised, keep the ignition switch in the "ACC" position. Refer to "Towing" on page 8-22.

Cruise control\*

E00609100779

Cruise control is an automatic speed control system that keeps a set speed. It can be activated at about 40 km/h (25 mph) or more.

CAUTION

• When you do not wish to drive at a set speed, turn off the cruise control for safety.
• Do not use cruise control when driving conditions will not allow you to stay at the same speed, such as in heavy traffic or on roads that are winding, icy, snow-covered, wet, slippery, on a steep downhill slope.
• On vehicles with manual transmission, do not move the gearshift lever to the "N" (Neutral) position while driving at a set speed without depressing the clutch pedal. The engine will run too fast and might be damaged.

NOTE

● Cruise control may not be able to keep your speed on uphills or downhills.
- Your speed may decrease on a steep uphill. You may use the accelerator pedal if you want to stay at your set speed.
- Your speed may increase to more than the set speed on a steep downhill. You must use the brake to control your speed. As a result, the set speed driving is deactivated.

Cruise control switches

E00624100103

A- "ON OFF" switch

Used to turn on and off the cruise control.

B- "COAST SET" switch

Used to reduce the set speed and to set the desired speed.

C- "ACC RES" switch

Used to increase the set speed and to return to the original set speed.

D- "CANCEL" switch

Used to deactivate the set speed driving.

NOTE

• When operating the cruise control switches, press the cruise control switches correctly. The set speed driving may be deactivated automatically if two or more switches of the cruise control are pressed at the same time.

To activate

F006093D0771

1. With the ignition switch in the "ON" position, press the "ON OFF" switch (A) to turn on the cruise control. The "CRUISE" indication lamp in the meter cluster will come on.

Cruise control*

NOTE

• If the cruise control is on when the ignition switch is turned to the "LOCK" or "ACC" position, cruise control will be on automatically the next time you start the engine. The "CRUISE" indication lamp will also be on.
• If the battery voltage is insufficient, the memory data for the cruise control may be erased.

As a result, the "CRUISE" indication lamp may not come on when you restart the engine.

If this happens, press the "ON OFF" switch once again to turn on the cruise control.

1. Accelerate or decelerate to your desired speed, then press and release the "COAST SET" switch (B) when the "CRUISE" indication lamp is illuminated. The vehicle will then maintain the desired speed.

Starting and driving

NOTE

- When you release the "COAST SET" switch, the vehicle speed will be set.

To increase the set speed

1-00609400570

There are 2 ways to increase the set speed.

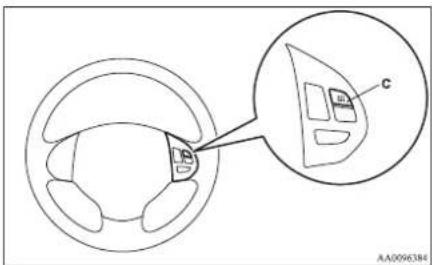

"ACC RES" switch

Press and hold the "ACC RES" switch (C) while driving at the set speed, and your speed will then gradually increase.

When you reach your desired speed, release the switch. Your new cruising speed is now set.

To increase your speed in small amounts, press the "ACC RES" switch for less than about 1 second and release it. Each time you press the "ACC RES" switch, your vehicle will go about 1.6 km/h (1 mph) faster.

OKTE15E3

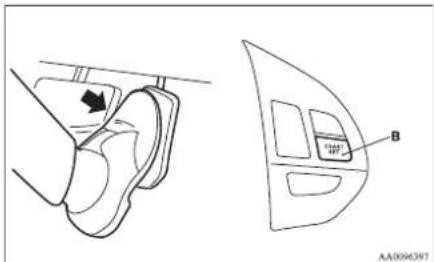

Accelerator pedal

While driving at the set speed, use the accelerator pedal to reach your desired speed and then press the "COAST SET" switch (B) and release the switch momentarily to set a new desired cruising speed.

Technical line drawing of a car interior panel with a hand valve and labeled component B (no text or symbols beyond labels)

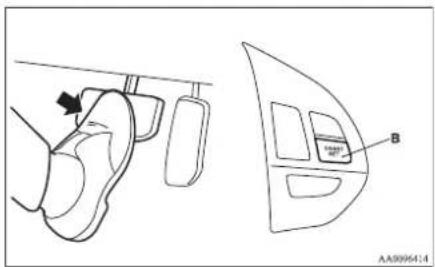

To decrease the set speed

ED0609500500

There are 2 ways to decrease the set speed.

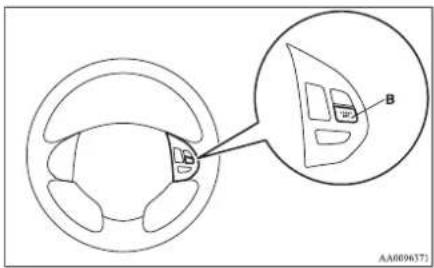

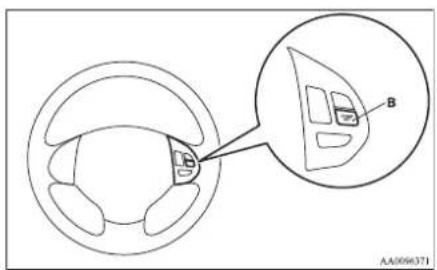

"COAST SET" switch

Press and hold the "COAST SET" switch (B) while driving at the set speed, and your speed will slow down gradually.

When you reach your desired speed, release the switch. Your new cruising speed is now set.

To slow down your speed in small amounts, press the "COAST SET" switch for less than about 1 second and release it. Each time you press the "COAST SET" switch, your vehicle will slow down by about 1.6km / h (1 mph).

Brake pedal

While driving at the set speed, use the brake pedal, which disengages the cruise control, then press the "COAST SET" switch (B) and release the switch momentarily to set a new desired cruising speed.

To temporarily increase or decrease the speed

E00619500154

To temporarily increase the speed

Depress the accelerator pedal as you would normally. When you release the pedal, you will return to your set speed.

Medical illustration of a surgical procedure on a patient's ear (no text or labels)

To temporarily decrease the speed

Depress the brake pedal to decrease the speed. To return to the previously set speed, press the "ACC RES" switch (C).

Cruise control\*

Refer to "To resume the set speed" on page 6-54.

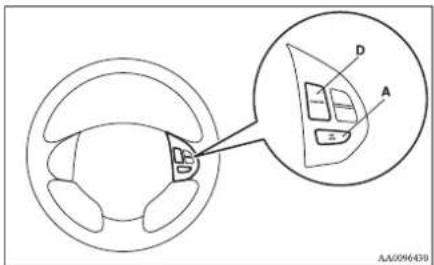

To deactivate

100609701088

The set speed driving can be deactivated as follows:

• Press the "ON OFF" switch (A). (Cruise control will be turned off.)
• Press the "CANCEL" switch (D).
  ● Depress the brake pedal.

Starting and driving

The set speed driving is deactivated automatically in any of the following ways.

• When you depress the clutch pedal (on vehicles with M/T).
• When your speed slows to about 15 km/h (9 mph) or more below the set speed because of a hill, etc.
• When your speed slows to about 40 km/h (25 mph) or less.
• When the active stability & traction control (ASTC) starts operating. (if so equipped)
  Refer to "Active Stability & Traction Control (ASTC)" on page 6-48.

WARNING

• On vehicles with A/T, although, the set speed driving will be deactivated when shifting to the "N" (NEUTRAL) position, never move the selector lever to the "N" (NEUTRAL) position while driving.
  You would have no engine braking and could cause a serious accident.

Also, the set speed driving may be deactivated as follows:

- When the engine speed rises and approaches the tachometer's red zone (the red-coloured part of the tachometer dial).

CAUTION

- When the set speed driving is deactivated automatically in any situation other than those listed above, there may be a system malfunction. Press the "ON-OFF" switch to turn off the cruise control and have it inspected by a MITSUBISHI MOTORS Authorized Service Point.

To resume the set speed

E00609800561

If the set speed driving is deactivated by the condition described in "To deactivate" on page 6-54, you can resume the previously set speed by pressing the "ACC RES" switch (C) while driving at a speed of about 40 km/h (25 mph) or higher.

Under either of the following conditions, however, using the switch does not allow you

to resume the previously set speed. In these situations, repeat the speed setting procedure:

● The "ON OFF" switch is pressed.
● The ignition switch is turned OFF.
● “CRUISE” indication lamp is turned OFF.

Cargo loads

F(006099)1123

Cargo loads precautions

CAUTION

- When loading luggage, be careful to the following.

• Stow cargo and luggage in the cargo area whenever possible.
• Distribute cargo or luggage evenly not to be unbalanced in weight.
• Do not place cargo or luggage on the instrument panel.

Also, do not stack up cargo or luggage on the front passenger's seat or the rear seat. Having the driver's vision blocked, and your cargo being thrown inside the cabin if you suddenly have to brake can cause a serious accident or injury.

Trailer towing

L00610001674

In order to tow a trailer with your vehicle, when having a trailer towing device mounted that meets all relevant regulations in your area, consult a MITSUBISHI MOTORS Authorized Service Point.

The regulations concerning the towing of a trailer may differ from country to country.

You are advised to obey the regulations in each area.

CAUTION

● Danger of Accident! A towing bar should be fitted according to MITSUBISHI MOTORS guidelines.

NOTE

- If you are going to tow a trailer, pay careful attention to the following points.

Maximum towable weight with brake and maximum trailer-nose weight

Never exceed the maximum towable weight with brake and the maximum trailer-nose weight as listed in the specifications. (Refer to "Vehicle weight" on page 11-11.)

If you tow a trailer at an altitude of more than 1,000 m above sea-level, reduce your weight by 10 % of the gross combination weight for every increase of 1,000 m above sea-level, as the engine output is lowered owing to decrease in atmospheric pressure.

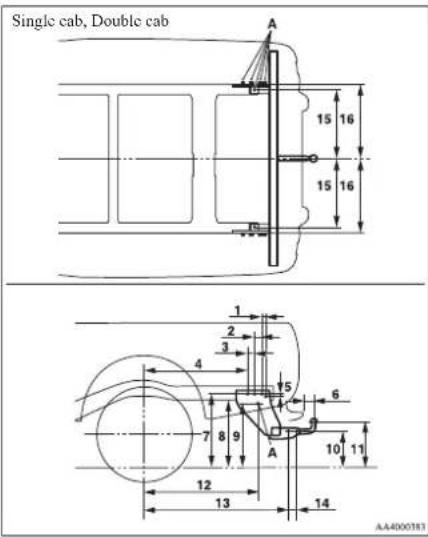

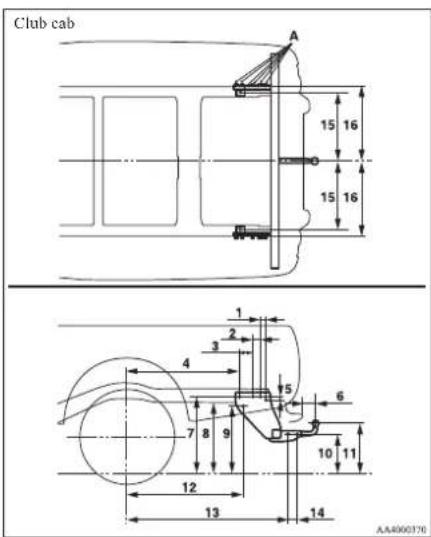

Towing bar mounting specifications

See the following table for fixing points (A) for the towing bar.

Trailer towing

Trailer towing

	Club cab	Single cab, Double cab (Vehicles without long bed)	Double cab (Vehicles with long bed)
1 30 mm	30 mm 30 mm
2 55 mm	55 mm 55 mm
3 115 mm	60 mm 60 mm
4 872 mm	812 mm 812 mm
5 20 mm	20 mm 20 mm
6 85 mm	85 mm 85 mm
7 687 - 698 mm	681 - 695 mm, 579 - 581 mm* 682	- 690 mm, 576 mm*
8 642 - 653 mm	639 - 654 mm, 537 - 539 mm* 640	- 649 mm, 534 mm*
9 612 - 623 mm	609 - 624 mm, 507 - 509 mm* 610	- 619 mm, 504 mm*
10 406 - 418 mm	400 - 415 mm, 292 - 294 mm* 405	- 414 mm, 302 mm*
11 486 - 498 mm	480 - 496 mm, 486 - 488 mm* 476	- 502 mm, 486 mm*
12 897 mm	897 mm 897 mm
13 1,251 mm	1,136 mm 1,316 mm
14 70 mm	70 mm 70 mm
15 502.5 mm	502.5 mm 502.5 mm
16 540.5 mm	540.5 mm 540.5 mm

Item 7, 8, 9, 10, 11: at kerb weight *: 2WD vehicles with 15 inch tyres

NOTE

● The values under item 7, 8, 9, 10, 11 are applicable to unladen vehicles. These values can also be varied depending on the tyre size, optional equipment and suspension conditions.

Operating hints

- Do not let the clutch slip (vehicles with a M/a only) and do not increase the engine speed more than necessary when starting.

Trailer towing

• Be sure that the driving speed does not exceed the maximum speed for trailer operation.
  ● To prevent shocks from the overrun brake, depress the brake pedal lightly at first and then more strongly.
  ● To make full use of engine braking, change to a lower gear before descending a slope.
  ● The body, brakes, clutch, and chassis will be under additional strain when towing a trailer.
  ● The heavier weight and higher rolling and air resistance will increase fuel consumption.

Additional precautions for vehicles equipped with an automatic transmission

The 2^nd gear (in “Sports mode”) is recommended on slopes or at low speed. Use the 1^st gear (in “Sports mode”) in mountainous areas in order to make better use of engine braking and to assist the brake system. However, be sure that the speed does not exceed the maximum speed limit for the selected gear.

For pleasant driving

Ventilators....7-02

Heater/Manual air conditioning* 7-04

Automatic air conditioning* 7-09

Important operation tips for the air conditioning.... 7-14

Air purifier* 7-14

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *....7-15

To play tracks from USB device (audio system type 1) *....7-30

To play tracks from a Bluetooth® device (audio system type 1) *..... 7-40

To use the external audio input function (audio system type 1) *..... 7-43

Steering wheel remote control switch (audio system type 1) *...... 7-44

Error codes (audio system type 1)....7-47

Audio system anti-theft feature (audio system type 1)....7-49

Handling of compact discs (audio system type 1)....7-49

LW/MW/FM radio/CD player (audio system type 2)*....7-51

Handling of Discs (audio system type 2)....7-55

Audio Files (MP3/WMA/AAC) (audio system type 2)....7-56

Important Points on Safety for the Customer (audio system type 2)....7-60

Operation Keys (audio system type 2)....7-60

Listen to Radio (audio system type 2)....7-63

Listen to DAB (audio system type 2) *....7-64

Listen to Traffic Messages (audio system type 2)....7-66

Listen to CDs (audio system type 2)....7-66

Listen to MP3s (audio system type 2)....7-67

Listen to an iPod (audio system type 2)....7-68

Listen to Audio Files on a USB Device (audio system type 2)....7-70

Listen to Bluetooth Audio (audio system type 2) *....7-72

Use AUX (audio system type 2) *....7-74

Display Indicator (audio system type 2)....7-75

Audio Quality and Volume Balance Adjustment (audio system type 2)....7-75

System Settings (audio system type 2)....7-76

Troubleshooting (audio system type 2)....7-80

Antenna 7-83

Link System* 7-84

Bluetooth® 2.0 interface....7-84

USB input terminal* 7-103

Sun visors....7-106

Vanity mirror*....7-107

Ashtray....7-107

Cigarette lighter....7-108

Accessory socket ^* 7-109

Digital clock ^* 7-109

Interior lamps....7-110

Storage spaces....7-112

Cup holder ^* 7-115

Bottle holder....7-115

Convenient hook....7-116

Coat hook* 7-116

First-aid kit and warning triangle securing bands*....7-117

Ventilators

Ventilators

E00700100344

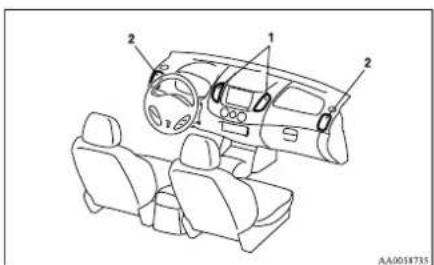

1- Centre ventilators
2- Side ventilators

Air flow and direction adjustments

E00700200749

Centre ventilators

Adjust the direction of the air flow by moving the knob (A).

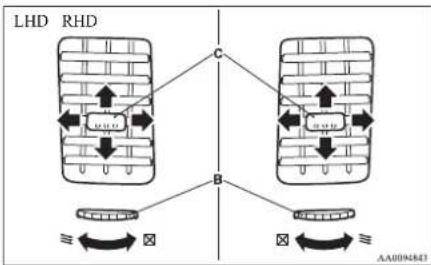

Side ventilators

The ventilator can be opened and closed with the dial (B).

(三)

- Open

( )

- Close

Adjust the direction of the air flow by moving the knob (C).

NOTE

● On air conditioned vehicles, the cool air from the ventilators may appear as a mist. This is due to moist air being suddenly cooled by the air conditioning. This will clear after a few moments.

Changing the mode selection

E00700301008

To change the position and amount of air flowing from the ventilators, turn the mode selection dial. (Refer to "Mode selection dial" on pages 7-05, 7-11.)

These symbols are used in the next several illustrations to demonstrate the quantity of air coming from the ventilators.

→: Small amount of air from the ventilators

→: Medium amount of air from the ventilators
→: Large amount of air from the ventilators

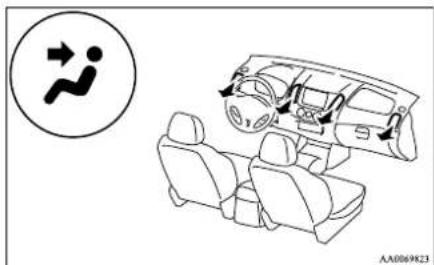

Face position

Air flows only to the upper part of the passenger compartment.

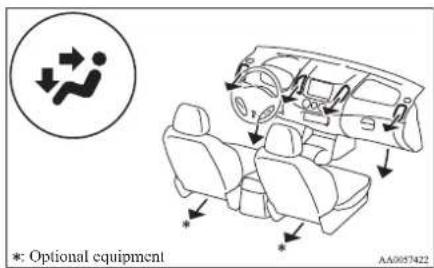

Foot/Face position

Air flows to the upper part of the passenger compartment, and flows to the leg area.

NOTE

- With the mode selection dial between the “and” positions, air flows mainly to the upper part of the passenger compartment. With the mode selection dial between the “and” positions, air flows mainly to the leg area.

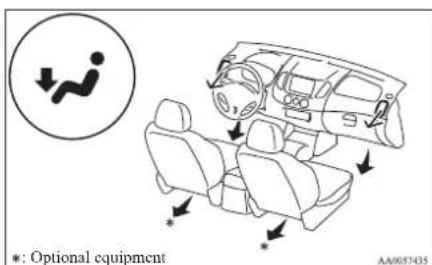

Foot position

Air flows mainly to the leg area.

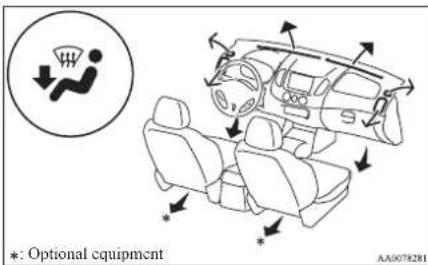

Foot/Demister position

Air flows to the leg area, the windscreen and the door windows.

NOTE

- With the mode selection dial between the “” and “” positions, air flows mainly to the leg area. With the mode selection dial between the “” and “” positions, air flows mainly to the windscreen and door windows.

Heater/Manual air conditioning*

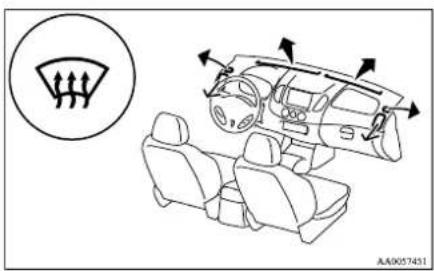

Demister position

Air flows mainly to the windscreen and the door windows.

Heater/Manual air conditioning\*

E00700500410

The heater/air conditioning can only be used while the engine is running.

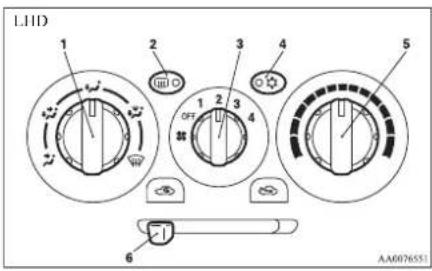

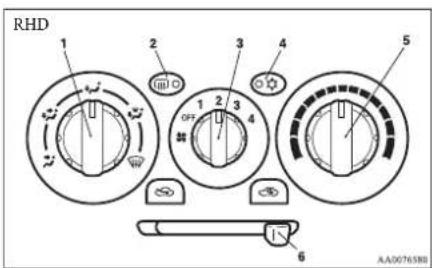

Control panel

E00700600512

1- Mode selection dial
2- Rear window demister switch → p. 5-43
3- Blower speed selection dial
4- Air conditioning switch*
5- Temperature control dial
6- Air selection lever

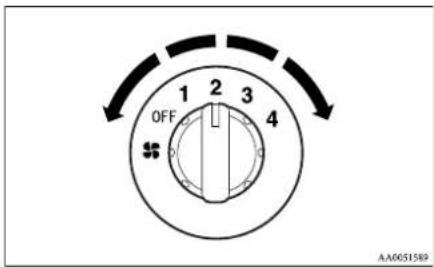

Blower speed selection dial

E00700700119

Select the blower speed by turning the blower speed selection dial clockwise or anticlockwise.

The blower speed will gradually increase as the dial is turned to the right.

When the blower speed selection dial is set to the "OFF" position, all fan-driven airflow will stop.

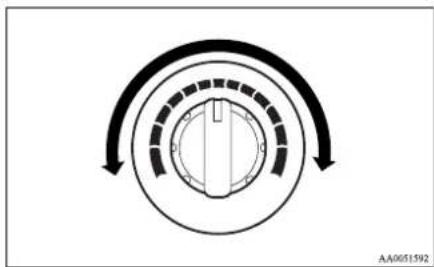

Temperature control dial

E00700900209

Turn the temperature control dial clockwise to make the air warmer. Turn it anticlockwise to make the air cooler.

Diagram of a circular mechanical component with concentric rings and directional arrows, no text or symbols present.

NOTE

● While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.

Mode selection dial

E00701100266

To change the position and amount of air flowing from the ventilators, turn the mode selection dial. (Refer to “Changing the mode selection” on page 7-02.)

Circular diagram with directional arrows and a central circular component, no text or symbols present.

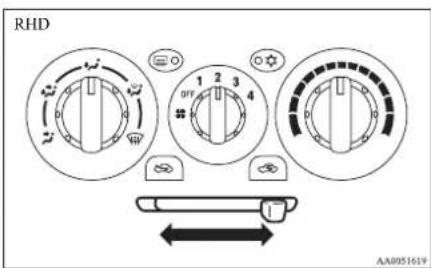

Air selection lever

ED070130046D

To change the air selection, use the air selection lever.

● “Outside air
Outside air is introduced into the passenger compartment.
● “Recirculated air

Air is recirculated inside the passenger compartment.

Heater/Manual air conditioning*

CAUTION

- Normally, use the “(outside) position to keep the windscreen and side windows clear and quickly remove fog or frost from the windscreen.

If high cooling performance is desired, or if the outside air is dusty or otherwise contaminated, use the “(recirculation) position.

Set the air selection lever to the “” (outside) position periodically to increase ventilation so that the windows do not become fogged up.

- Use of the “recirculation) position for extended time may cause the windows to fog up.

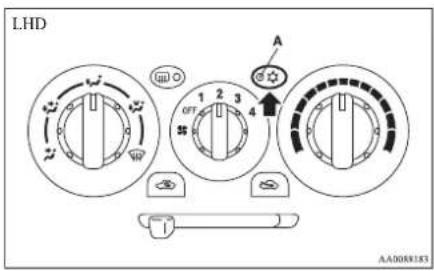

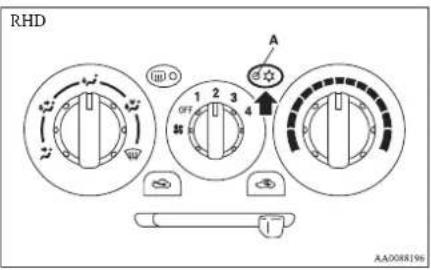

Air conditioning switch\*

100701500781

Push the switch, and the air conditioning compressor will turn on. The air conditioning indication lamp (A) will come on.

Push the switch again and the air conditioning compressor will stop and the indication lamp goes off.

CAUTION

- When using the air conditioning, the idling speed may slightly increase as the air conditioning compressor is switched on/off automatically. While the vehicle with an / T is stationary, fully depress the brake pedal to prevent the vehicle from creeping.

Operating the air conditioning system

E00701800247

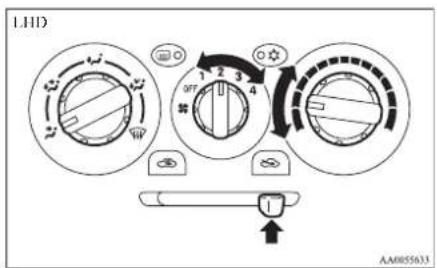

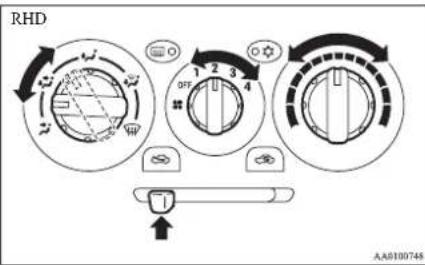

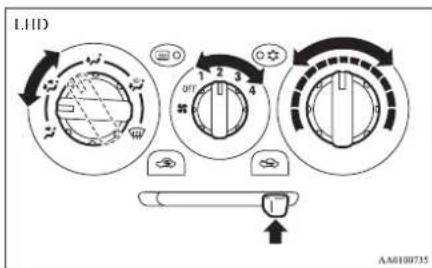

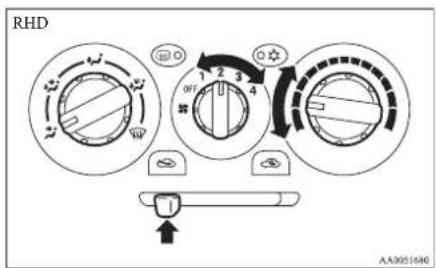

Heating

Set the mode selection dial to the “” position and set the air selection lever to the “” (outside) position.

Turn the temperature control dial clockwise or anticlockwise to the desired temperature. Select the desired blower speed.

NOTE

- For maximum heat, set the blower speed at the 3^rd position.

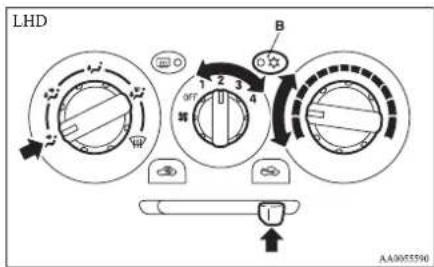

Cooling (vehicles with air conditioning)

E00701900424

1. Set the mode selection dial to the position.
2. Set the air selection lever to the (outside) position.
3. Push the air conditioning switch (B).

4. Change the temperature by turning the control dial clockwise or anticlockwise.

5. Select the desired blower speed.

CAUTION

- If the outside air is dusty or otherwise contaminated, or if high cooling performance is desired, set air selection lever to the (recirculation) position and the temperature control dial all the way to the left.

Set to the ⚙(outside) position periodically to increase ventilation so that the windows do not become fogged up.

Combination of unheated air and heated air

ED0702000451

Select the mode selection dial to the position shown in the illustration and set the air selection lever to the “(outside) position. The air flow will be directed to the leg area and the upper part of the passenger compartment. Select the desired blower speed.

OKTE15E3

Warm air flows to the leg area and unheated or slightly warm air (depending upon temperature setting) flows to the upper part of the passenger compartment.

Demisting of the windscreen and door windows

E00702100579

CAUTION

● For safety, make sure you have a clear view through all the windows.

To remove frost or mist from the windscreen and door windows, use the mode selection dial ("or")

For pleasant driving

Heater/Manual air conditioning*

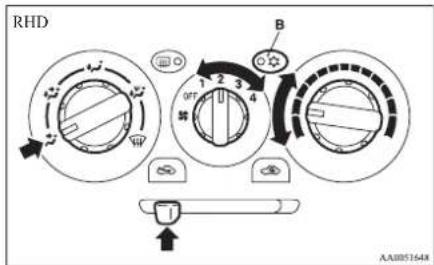

For ordinary demisting

Use this setting to keep the windscreen and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).

1. Set the air selection lever to the “(outside) position.
2. Set the mode selection dial to the “” position.
3. Select your desired blower speed by turning the blower speed selection dial.
4. Select your desired temperature by turning the temperature control dial.
5. Push the air conditioning switch (B). (vehicles with air conditioning)

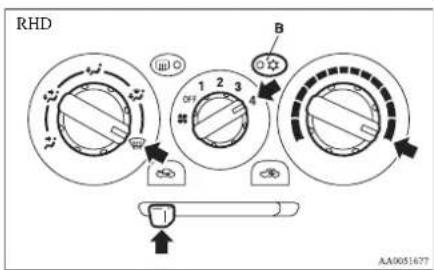

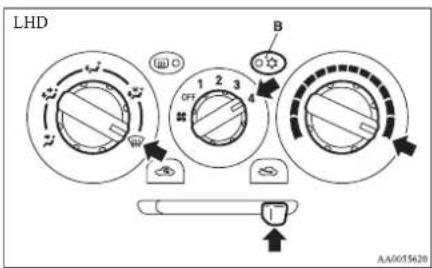

For quick demisting

1. Set the air selection lever to the “(outside) position.
2. Set the mode selection dial to the "row" position.
3. Set the blower to the maximum speed.
4. Set the temperature to the maximum temperature position.
5. Push the air conditioning switch (B). (vehicles with air conditioning)

NOTE

● To demist effectively, direct the air flow from the side ventilators towards the door windows.
- Do not set the temperature control dial to the max. cool position. Cool air will blow against the window glasses and form mist on them.

Introduction of outside air

E00702200235

To introduce air into the vehicle during hot weather, set the air selection lever to the “outside” position and set the temperature control dial to the positions shown in the illustration. Be sure to set the temperature control dial all the way to the left. Select the desired blower speed.

NOTE

● Turn the mode selection dial clockwise and air will flow to the leg area and the wind-screen.

Automatic air conditioning\*

E00702400110

The air conditioning can only be used while the engine is running.

Control panel

F00702502551

Type 1

Type 2

AA001:836

1- Mode selection dial
2- Blower speed selection dial
3- Temperature control dial
4- Rear window demister switch → p. 5-43
5- Air conditioning switch
6- Air selection switch

NOTE

● There is an interior air temperature sensor (A) in the illustrated position.

Automatic air conditioning*

NOTE

Never place anything on top of the sensor since doing so will prevent it from functioning properly.

When the blower speed selection dial is set to the "OFF" position, all fan-driven airflow will stop.

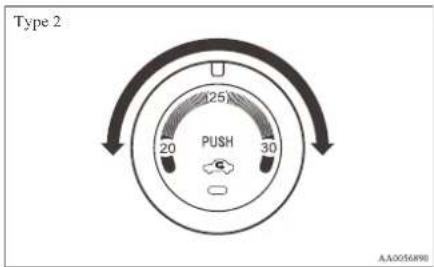

Temperature control dial

E00703000575

Turn the temperature control dial clockwise to make the air warmer. Turn it anticlockwise to make the air cooler.

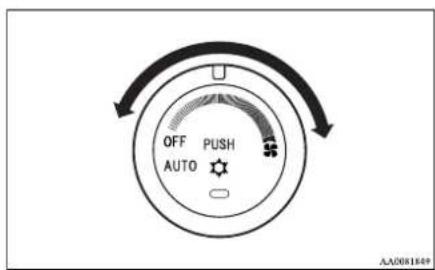

Blower speed selection dial

ED0702800273

Select the blower speed by turning the blower speed selection dial clockwise or anticlockwise.

The blower speed will gradually increase as the dial is turned to the right.

NOTE

● While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.

Mode selection dial

F00703200274

To change the position and amount of air flowing from the ventilators, turn the mode selection dial. (Refer to “Changing the mode selection” on page 7-02.)

Air selection switch

F00703400638

To change the air selection, simply press the air selection switch.

- Outside air {Indication lamp (A) is OFF} Outside air is introduced into the passenger compartment. - Recirculated air {Indication lamp (A) is ON} Air is recirculated inside the passenger compartment.

CAUTION

- Normally, use the outside position to keep the windscreen and side windows clear and quickly remove fog or frost from the windscreen. If high cooling performance is desired, or if the outside air is dusty or otherwise contaminated use the recirculation position. Switch to the outside position periodically to increase ventilation so that the windows do not become fogged up.

CAUTION

● Use of the recirculation position for extended time may cause the windows to fog up.

Air conditioning switch

F00703501128

Push the switch, and the air conditioning compressor will turn on. The air conditioning indication lamp (A) will come on.

Push the switch again, and the air conditioning compressor will stop and the indication lamp goes off.

Automatic air conditioning*

CAUTION

- When using the air conditioning, the idling speed may slightly increase as the air conditioning compressor is switched on/off automatically. While the vehicle with an A/T is stationary, fully depress the brake pedal to prevent the vehicle from creeping.

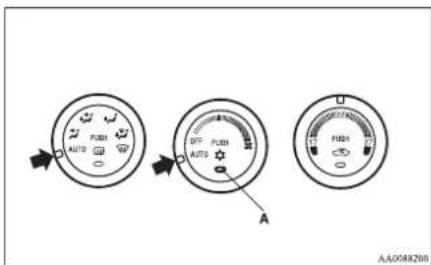

Operating the system in automatic mode

100704100919

In normal conditions, use the system in the AUTO mode and follow these procedures:

1. Set the blower speed selection dial to the "AUTO" position.

2. Select the temperature control dial to the desired temperature. The temperature can be set within a range of 17 to 27 (Type 1) or 20 to 30 (Type 2). The temperature will gradually increase as the dial is turned to the right.

3. Set the mode selection dial to the "AU-TO" position.

4. Push the air conditioning switch to operate the air conditioning. When the air conditioning operates, the indication lamp (A) in the dial will come on.

The outlet port (except “” and blower speed, and ON/OFF of air conditioning will be controlled automatically.

NOTE

● Set the temperature at about 22 (Type 1) or 25 (Type 2) under normal conditions.

NOTE

- When the temperature is set to the highest or the lowest setting under the AUTO operation, the air selection, mode selection, blower speed and the air conditioning will be automatically changed as follows.

Also, if manually operated after an automatic changeover, manual operation will be selected.

- Quick Heating (When the temperature is set to the highest setting) Outside air will be introduced, the air flow will select foot position, and the air conditioning will stop.

- Quick Cooling (When the temperature is set to the lowest setting) Inside air will be recirculated, the air flow will select face position, and the air conditioning will operate.

Operating the system in manual mode

E00704200040

Blower speed and ventilator mode may be controlled manually by setting the blower speed selection dial and the mode selection dial to the desired positions. To return to automatic operation, set the dials to the "AUTO" position.

Demisting of the windscreen and door windows

E00704300689

CAUTION

● For safety, make sure you have a clear view through all the windows.

To remove frost or mist from the windscreen and door windows, use the mode selection dial ("or")

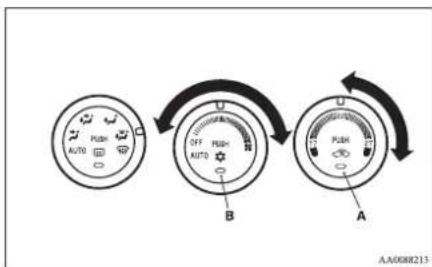

For ordinary demisting

Use this setting to keep the windscreen and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).

1. Set the air selection switch (A) to the outside position.
2. Set the mode selection dial to the “☐” position.
3. Select your desired blower speed by turning the blower speed selection dial.
4. Select your desired temperature by turning the temperature control dial.
5. Push the air conditioning switch (B).

For quick demisting

1. Set the mode selection dial to the "position."
2. Set the blower to the maximum speed.
3. Set the temperature to the highest position.

NOTE

● While the mode selection dial is set to the "Wiposition, the air conditioning will operate automatically and the outside air position will also be selected automatically.
● To demist effectively, direct the air flow from the side ventilators towards the door windows.
- Do not set the temperature control dial to the max. cool position. Cool air will blow against the window glasses and form mist on them.

Important operation tips for the air conditioning

E00708300951

● Park the vehicle in the shade.
Parking in the hot sun will make the vehicle inside extremely hot, and it will require more time to cool the interior.
If it is necessary to park in the sun, open the windows for the first few minutes of air conditioning operation to expel the hot air.
- Close the windows when the air conditioning is in use. The entry of outside air through open windows will reduce the cooling efficiency.
● Too much cooling is not good for the health. The inside air temperature should only be 5 to 6 °C below the outside air temperature.
- When operating the system, make sure the air intake, which is located in front of the windscreen, is free of obstructions such as leaves and snow. Leaves collected in the air-intake plenum may reduce air flow and plug the plenum water drains.

Air conditioning system refrigerant and lubricant recommendations

If the air conditioning seems less effective than usual, the cause might be a refrigerant leak. We recommend you to have the system inspected.

The air conditioning system in your vehicle must be charged with the refrigerant HFC-134a and the lubricant ZXL-100PG.

Use of any other refrigerant or lubricant will cause severe damage which will result in the need to replace your vehicle's entire air conditioning system. The release of refrigerant into the atmosphere should be prevented.

It is recommended that the refrigerant be recovered and recycled for further use.

During a long period of disuse

The air conditioning should be operated for at least five minutes each week, even in cold weather. This is to prevent poor lubrication of the compressor internal parts and to maintain the air conditioning in the best operating condition.

Air purifier\*

E00708400675

An air filter has been incorporated into this air conditioning so that dirt and dust are cleaned from the air.

Replace the air filter periodically as its ability to clean the air will be reduced as it collects pollen and dirt. For the maintenance interval, refer to the “SERVICE BOOKLET”.

NOTE

- Operation in certain conditions such as driving on a dusty road and frequent use of the air conditioning can lead to reduction of service life of the filter. When you feel that the air flow is lower than normal or when the windscreen or windows start to fog up easily, replace the air filter. We recommend you to have it checked.

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

LW/MW/FM electronic tuning radio with CD player (audio system type 1) \*

L00708503446

The audio system can be used when the ignition switch is in the "ON" or "ACC" position.

A- Display window
B- Audio system

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

NOTE

• To listen to the audio system while the engine is stopped, turn the ignition key to the "ACC" position.
• If a cellular phone is used inside the vehicle, it may create noise from the audio equipment. This does not mean that anything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far away as possible from the audio equipment.
• If foreign objects or water get into the audio equipment, or if smoke or a strange odour comes from it, immediately turn off the audio system. We recommend you to have it checked. Never try to repair it by yourself. Avoid continuous usage without inspection by a qualified person.
• The audio system's control knob can be removed to deter thieves. For details, refer to "Audio system anti-theft feature (audio system type 1)" on page 7-49.
  ● The audio amplifier (if so equipped) is located under the front right seat.
  Do not subject the amplifier to a strong impact.
  It could damage the amplifier or malfunctioning could result.

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

Volume and tone control panel

F00708601140

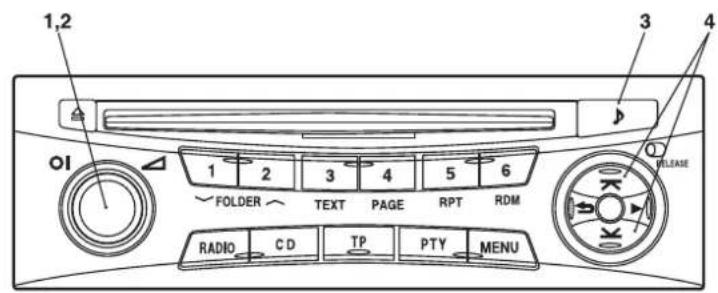

AA1008186

1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- (Mode change) button
4- Audio adjust button
5- Display

To adjust the volume

E00708700665

VOL (Volume control)

Turn the VOL knob (2) clockwise to increase the volume;

anticlockwise to decrease the volume. The status will be displayed in the display (5).

To adjust the tone

L00708801269

Press the ▶ button (3) to select BASS → TREBLE → FADER BALANCE SCV → Audio adjust mode off. The status will be displayed in the display (5).

OKTE15E3

For pleasant driving

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

BASS (Bass tone control)

Press the audio adjust button (4) either to select the desired bass level.

TREBLE (Treble tone control)

Press the audio adjust button (4) either to select the desired treble level.

FADER (Front/Rear balance control)

Press the audio adjust button (4) either to balance the volume of sound from the front and the rear speakers.

Radio control panel and display

BALANCE (Left/Right balance control)

Press the audio adjust button (4) either to balance the volume of sound from the left and the right speakers.

SCV (Speed Compensated Volume) function

The Speed Compensated Volume function is a feature that automatically adjusts the VOL, BASS, MID, and TREBLE settings in accordance with the vehicle speed.

The effects of the SCV function can be selected either of three levels (LOW, MID and HIGH). Select the degree of your choice by pressing the audio adjust button (4) either or y If you want to stop the SCV function, select the OFF.

NOTE

● Audio adjust mode will be cancelled when another mode is selected or no adjustment is performed for more than 10 seconds.

E00708902296

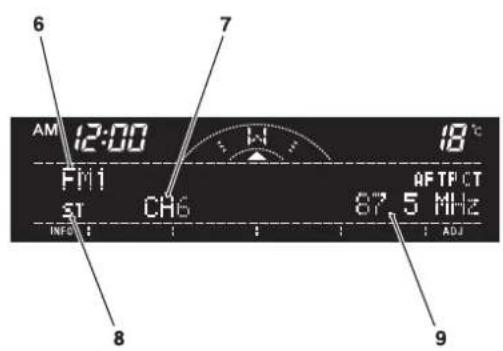

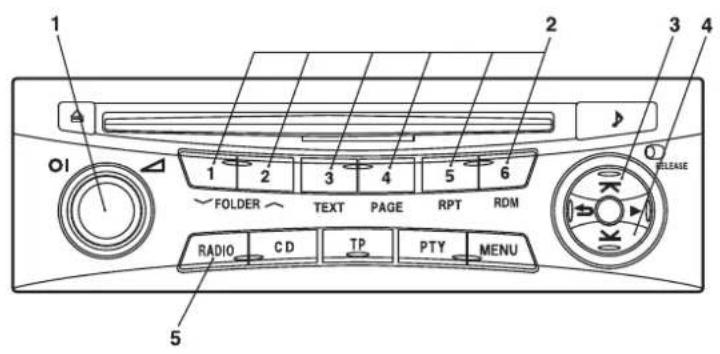

AA1008199

1- PWR (On-Off) switch
2- Memory select buttons
3- TUNE/SEEK (Up-step/Up-seek) button
4- TUNE/SEEK (Down-step/Down-seek) button

5- RADIO (FM/MW/LW selection) button
6-FM/MW/LW indicator
7- Preset memory number display
8- ST (Stereo) indicator*
9- Frequency display window

To listen to the radio

E00709D0896

1. Press the PWR switch (1) to turn the audio system ON and OFF. The system turns on in the last mode used.
2. Press the RADIO buttons (5) to select the desired band.
3. Press the TUNE/SEEK button (3 or 4) to tune to a station, or press one of the memory select buttons (2) to recall a station memorised for that button.

To tune the radio

E00709100451

Automatic tuning

After keeping the TUNE/SEEK button (3 or 4) depressed, release the button, and the selected station reception will start.

Manual tuning

The frequency changes every time the TUNE/SEEK button (3 or 4) is pressed. Press the button to select the desired station.

To enter frequencies into the memory

E00716101173

Manual setting

You can assign to the memory select buttons (2) a maximum of 18 stations in the FM band (6 FM1, 6 FM2 and 6 FM3 stations) and 6 stations each in the MW and LW band. (Stations already assigned to the memory select buttons are replaced by any newly assigned stations.)

Follow the steps described below.

OKTE15E3

1. Press either the TUNE/SEEK button (3 or 4) to tune the frequency to be entered in the memory.

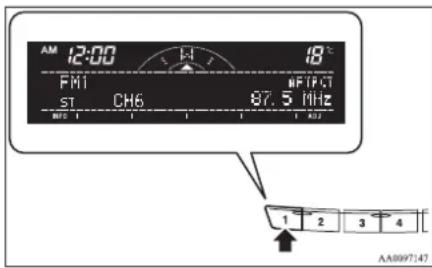

2. Press one of the memory select buttons (2) for 2 seconds or longer. The number of the button corresponding to the entry in the memory and the frequency are displayed.
3. The preset memory setting is retrieved by pressing the button and then releasing it within 2 seconds.

Automatic setting

With the method, all manually set stations in the band currently selected for reception are replaced with stations in the same band that are automatically selected in order of signal strength. The radio automatically selects 6 stations in the FM band (FM3 station only) and 6 stations each in the MW and LW band.

Follow the steps described below.

For pleasant driving

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

1. With the radio mode selected, hold down the RADIO button (5) for 2 seconds or longer. The 6 stations with the best signal strength will automatically be assigned to the memory select buttons (2), with the lowest-frequency station being assigned to the lowest-number button.

2. When you subsequently press a memory select button to select a channel number, the radio will begin receiving the station assigned to that number.

NOTE

- If you press the RADIO button (5) for 2 seconds or longer while tuning in the FM1 or FM2 band, the radio will automatically switch to the FM3 band, where the automatic seeking/storing will be activated.

Radio data system (RDS)

ED0709200452

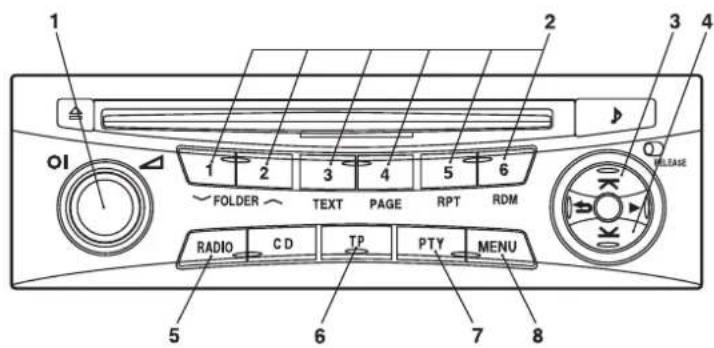

1- PWR (On-Off) switch
2- Memory select buttons
3- TUNE/SEEK (Down-step/Down-seek) button
4- TUNE/SEEK (Up-step/Up-seek) button

5- RADIO (FM/MW/LW selection) button
6- TP (Traffic program) button
7- PTY (Program type) button
8- MENU button

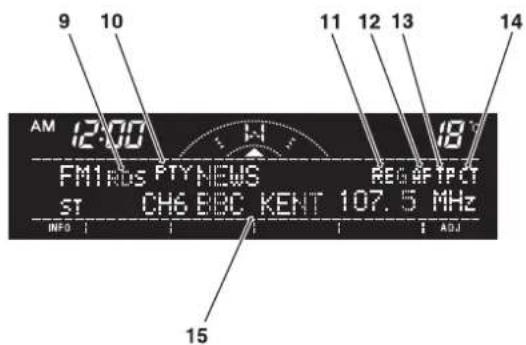

9- RDS (Radio data system) indicator

10- PTY (Program type) indicator
11- REG (Regional program) indicator
12- AF (Alternative Frequencies) indicator
13- TP (Traffic program identification) indicator
14- CT (Clock time) indicator

15- Display

RDS uses PI (program identification) signal and AF (alternative frequency) list transmitted in addition to the normal FM broadcasting programs, and picks up the FM stations that are transmitting the same program from the AF list and automatically tunes to the station with the strongest signal intensity.

Therefore, you can continue listening to one program in, for example, a long distance driving without retuning to the other station transmitting the same program when you are leaving the service area of the currently receiving station.

The RDS radio also features the limited reception of the program types, the break-in reception of the traffic announcement to the EON (enhanced other network) and emergency broadcast, and the limited/unlimited reception of the regional programs.

AF (Alternative Frequencies) function

E00720900061

The AF function finds a station broadcasting the same program and selects the station with the strongest signal of AF lists.

The AF function is turned on (with the AF indicator (12) shown on the display) at all times unless you manually switch it off.

The AF function can be turned ON and OFF. Refer to "Function setup mode" on page 7-24.

CT (Clock Time) function

E00721000131

The clock can be set automatically by using the signal from the local RDS stations. Refer to “Adjusting the time” on page 5-12.

REG function limits to receive the stations broadcasting regional programs.

Regional programming and regional networks are organized differently depending on the country or area (they may be changed according to the hour, state, or broadcast area), so if you don't want to receive the regional programs automatically, you can set up REG ON not to receive regional programs.

The REG function can be turned ON and OFF.

Refer to "Function setup mode" on page 7-24.

PI (Program Identification) search function

E00721200221

When travelling long distance and the recalled preset station is weak, the radio searches another frequency broadcasting the same programming with the same PI code in AF list.

If there are no frequencies broadcasting the same programming, the radio searches a frequency broadcasting the regional programming. The radio succeeds in searching the regional programming, then the display shows the REG indicator (11).

If the radio does not succeed in searching the regional programming, the radio returns to the recalled preset station.

The PI function can be turned ON and OFF. Refer to “Function setup mode” on page 7-24.

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

NOTE

● While searching, the audio system is muted. The display shows “WAIT” or “SEARCH”.

PTY (Program type)

ED0721300349

RDS broadcasts are classified according to program type (PTY) as follows. Use the TUNE/SEEK button (3 or 4) to select your desired PTY.

1. NEWS
2. AFFAIRS (Current affairs)
3. INFO (Information)
4. SPORT
5. EDUCATE (Education)
6. DRAMA
7. CULTURE
8. SCIENCE
9. VARIED
10. POP M (Pop music)
11. ROCK M (Rock music)
12. EASY M (Easy music)
13. LIGHT M (Light classics)
14. CLASSICS
15. OTHER M (Other music)
16. WEATHER (Weather information)
17. FINANCE
18. CHILDREN
19. SOCIAL
20. RELIGION
21. PHONE IN

7-22

For pleasant driving

1. TRAVEL
2. LEISURE
3. JAZZ
4. COUNTRY
5. NATION M (National music)
6. OLDIES
7. FOLK M (Folk music)
8. DOCUMENT

To search for a broadcast of desired program type:

1. Press the PTY button (7).
2. Press the TUNE/SEEK button (3 or 4) for less than 1 second repeatedly to select your desired PTY.

3. Two seconds after a desired PTY has been selected, the radio will begin to search for a broadcast of your selected PTY. During search, the selected PTY on the display blinks.

4. When the radio picks up a station with your desired PTY, the display will show the name of the station.

↓

AA0097150

NOTE

• If the TUNE/SEEK button (3 or 4) is pressed for more than 1 second, the radio will try to find out another broadcast of the same program type as currently selected.
• If no station is found with your desired PTY, the display will show “EMPTY” for about 5 seconds and the radio will return to the previous station.

How to enter PTYs in the memory

E00721400135

As many as 6 PTYs can be entered in the memory.

Follow the steps described below.

1. Press either the TUNE/SEEK button (3 or 4) to tune the PTY to be entered in the memory.
2. Press one of the memory select buttons (2) for 2 seconds or longer. The number of the button corresponding to the entry into the memory and the PTY are displayed.
3. The preset memory setting is retrieved by pressing the button and then releasing it within about 2 seconds.

Traffic information

E00721600254

The radio will automatically tune in to traffic information broadcasts while receiving FM broadcasts or playing compact discs etc. To select this function, follow the instructions below.

1. Press the TP button (6). The display will show "TP" (13). If the RDS data can be read, the display will show "RDS" (9). If not, the display will show "NO RDS" for about 5 seconds.

2. If the radio detects traffic information on either the station currently selected or another station, the display will show "TRAF INF" for 5 seconds followed by a 2-second indication of the frequency. Then, it will show the name of the station broadcasting the traffic information to which you will listen. The volume level is set separately for listening to normal audio programs and for listening to traffic information. The volume level will therefore change automatically to that set when traffic information was last received. When the traffic information broadcast is over, the radio will return to the previously received program and to the corresponding volume level.

3. Press the TP button (6) to return to the previous condition.

NOTE

● While “TP” is illuminated, the radio stops only at TP stations even if the TUNE/SEEK button (3 or 4) is pressed.

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

TP (Traffic information Program) search function

E00721800168

The traffic information program standby function is turned on (with the TP indicator (13) shown on the display) and after about 45 seconds since the RDS indicator (9) turns off due to weak signal or the tuning station is changed over from a TP station to a station which does not broadcast traffic information, and seeks out a TP station in all frequencies automatically.

The TP search function can be turned ON and OFF.

Refer to "Function setup mode" on page 7-24.

Emergency broadcasts

E00721700213

If an emergency broadcast is caught while receiving a FM broadcast or playing back a compact disc with the ignition switch in "ACC" or "ON" position, the display will show "ALARM" and the emergency broadcast will interrupt the current program. The volume level is set separately for listening to normal audio programs and for listening to emergency broadcasts. The volume level will therefore change automatically to that set when an emergency broadcast or traffic information broadcast was last received. When the emergency broadcast is over, the radio will return to the previously received program and to the corresponding volume level.

Function setup mode

E00722501475

It is possible to change the following functions:

• Gracenote Database*
  AF
  CT
• REG*
• TP-S
• PI-S*

• PHONE*

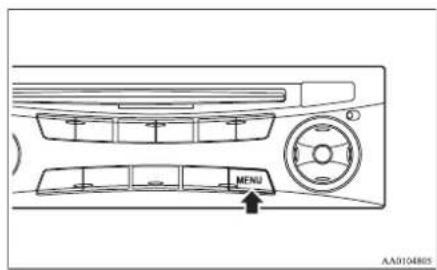

• Press the "MENU" button to select the function setup mode.

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

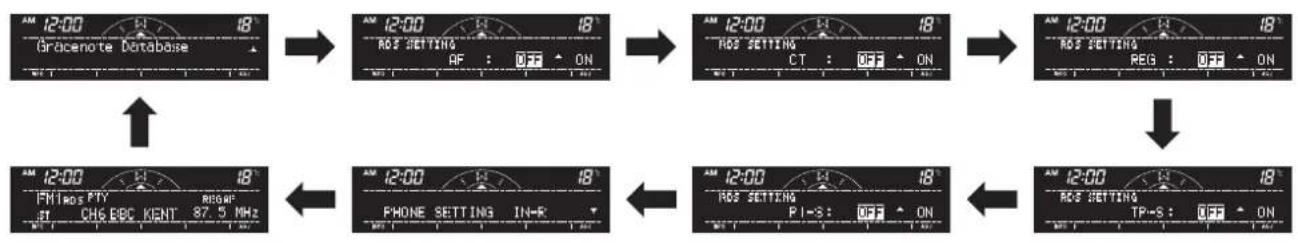

AA1008216

1. Press the "MENU" button repeatedly to select the mode you wish to change. The order is: Gracenote Database* → AF → CT → REG* → TP-S → PI-S* → PHONE* → Function setup mode OFF.

NOTE

- Although “Gracenote Database” appear on the display, these functions is inoperative.

1. Select the desired setting for each mode to be turned ON and OFF as shown below.

The setting will be shown on the display.

NOTE

● After selecting a mode, you can leave the function setup mode by taking either of the following steps:

OKTE15E3

NOTE

• Press the "MENU" button for at least seconds.
• Make no entry for 10 seconds.

For pleasant driving

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

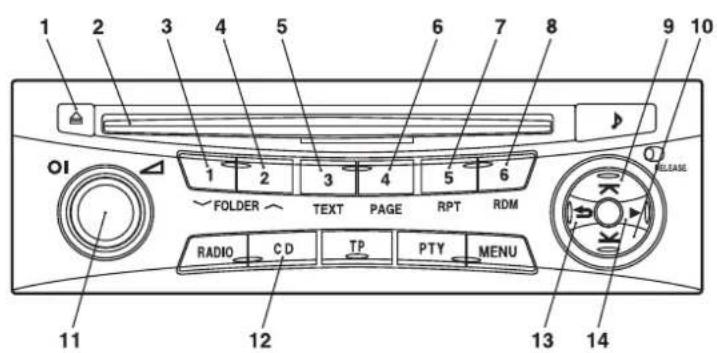

CD control panel and display

E00709501205

AA1008229

1- CD eject button
2- Disc-loading slot
3- FOLDER (Folder down) button
4- FOLDER (Folder up) button
5- TEXT (Title display) button
6- PAGE (Title scroll) button

7- RPT (Repeat) button
8- RDM (Random) button
9- Fast-forward/Track up) button
10- Fast-reverse/Track down) button
11-PWR (On-Off) switch
12- CD (CD mode changeover) button

13- (Return) button
14- (Select) button
15-RPT/RDM indicator
16- Track number indicator
17- Track play time indicator
18- CD indicator

To listen to a CD

E(07096)2290

1. Insert a disc with the label facing up, and the CD player will begin playing even if another mode is being used. The CD indicator (18), the track number (16), the playing time (17) will appear on the display.
2. When the CD mode is selected by pressing the CD (12) button several times with the disc in the player, the CD player will start playback.
3. To stop the CD, turn off the power by pressing the PWR switch (11) or change over to the another mode by pressing the RADIO button or CD button, or eject the disc by pressing the eject button (1).

NOTE

● To adjust the volume and tone, refer to "To adjust the volume" on page 7-17 and "To adjust the tone" on page 7-17.
● An 8 cm compact disc cannot be played or this CD player.
- For information concerning the handling of compact discs, refer to "Handling of compact discs (audio system type 1)" on page 7-49.

To fast-forward/fast-reverse the disc

Fast-forward

You can fast-forward the disc by pressing the button (9). While the button is kept pressed, the disc will be fast-forwarded.

Fast-reverse

You can fast-reverse the disc by pressing the ¥ button (10). While the button is kept pressed, the disc will be fast-reversed.

NOTE

- When you have fast-forwarded/fast-reversed the disc, the playing-time may be shown with deviation.

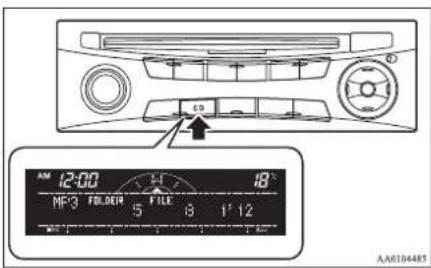

To listen to an MP3 CD

This CD player allows you to play MP3 (MPEG Audio Layer-3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet, and Romeo formats. Each disc may have a maximum of 16 trees, 100 folders, and 255 files per disc. During MP3 playback, the unit can display ID3 tag information. For information concerning ID3 tag, refer to "CD text and MP3 title display" on page 7-30.

1. Insert a disc containing MP3 files into the slot.
2. The display shows the folder number and the file number, then playback will begin.

LW/MW/FM electronic tuning radio with CD player (audio system type 1) *

NOTE

● While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of the CD-DA, reading of the MP3 files, and the external audio input mode (AUX) by pressing the CD button for 2 seconds or longer.
● With a disc that contains both CD-DA and MP3 files, the CD-DA files are automatically played first.
● The playback sound quality differs depending on the encoding software and the bit rate. For details, refer to the user manual of your encoding software.
● Depending on file/folder configurations on a disc, it may take some time before playback starts.
● MP3 encoding software and writing software are not supplied with this unit.
- You may encounter trouble in playing an MP3 or displaying the information of MP3 files recorded with certain writing software or CD recorders (CD-R/RW drivers).
- If you record too many folders or files other than MP3 onto a disc, it may take some time before playback starts.
● This unit does not record MP3 files.
- For information concerning CD-Rs/RWs, refer to "Notes on CD-Rs/RWs" on page 7-51.

CAUTION

- Attempting to play a file not in the MP3 format which has a ".mp3" file name may produce noise from the speakers and speaker damage, and can damage your hearing.

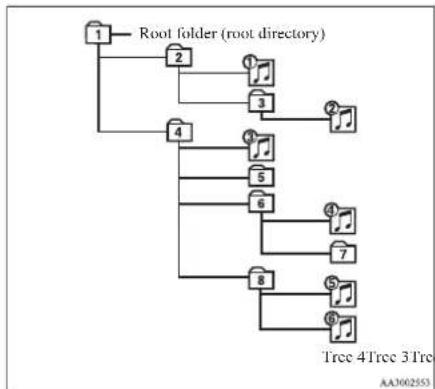

Folder selection order/MP3 file playback order (Example)

Folder selection

In the order

File selection

In the order

To select a desired folder (MP3 CDs only)

Folder up

Press the FOLDER button (4) until the desired folder number appears on the display.

Folder down

Press the FOLDER button (3) until the desired folder number appears on the display.

To select a desired track

Track up

Press the 7 button (9) repeatedly until the desired track number appears on the display.

Track down

Press the Vbutton (10) repeatedly until the desired track number appears on the display.

NOTE

- Pressing the Mutton (10) once during the song will cause the CD player to restart playback from the beginning of the song.

To find a file (MP3 CDs only)

Press the following buttons to select desired file.

The selected folder or file is shown in the display.

button (14)

: To start this mode or cancel the selection.

A button (9) or V : To show the folder or file. button (10)

▶ button (15)

: To select the folder or file.

NOTE

- If no operation is performed for 10 seconds or more or another button is operated after the Button or button has been pressed, searching of the desired file is cancelled.

- If no operation is performed for 5 seconds or more after the file is displayed, playback starts.

To repeat a track

Press the RPT button (7) briefly while the track is playing. "RPT" will appear on the display.

To exit the repeat mode, press the RPT button.

To repeat a folder (MP3 CDs only)

Press the RPT button (7) for 1 second or longer (until you hear a beep). "F-RPT" will appear on the display. You can listen to all the files in the currently selected folder repeatedly.

NOTE

- With a disc that contains both CD-DA and MP3 files, the repeat mode causes only files of the same format (CD-DA only or MP3 files only) to be repeated.

To play tracks in random order

Random playback for a disc (music CDs only)

Press the RDM button (8) briefly. "RDM" will appear on the display. Tracks on the currently selected disc will be played in a random sequence.

To exit the random mode, press the RDM button again.

Random playback for a folder (MP3 CDs only)

Press the RDM button (8) briefly. "F-RDM" will appear on the display. Files on the currently selected folder will be played in a random sequence.

To exit the random mode, press the RDM button again.

Random playback for all folders on a disc (MP3 CDs only)

Press the RDM button (8) for 1 second or longer (until you hear a beep). "RDM" will appear on the display. Files from all the folders on the currently selected disc will be played in a random sequence.

To exit the random mode, briefly press the RDM button again.

NOTE

- With a disc that contains both CD-DA and MP3 files, the random mode causes only files of the same format (CD-DA only or MP3 files only) to be played in a random sequence.

To eject a disc

When the CD eject button (1) is pressed, the disc automatically stops and is ejected.

NOTE

- If you do not remove the disc before 15 seconds have elapsed, the CD player will automatically reload the disc and stop.

To play tracks from USB device (audio system type 1) *

CD text and MP3 title display

E00725000676

This CD player can display CD text and MP3 titles including ID3 tag information.

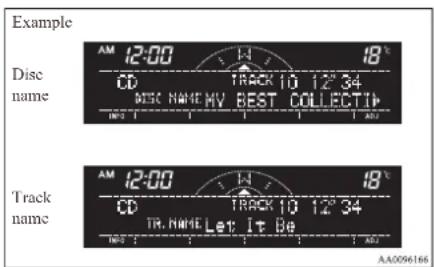

CD text

The CD player can display disc and track titles for discs encoded with disc and track title information. Press the TEXT button (5) repeatedly to make selections in the following sequence: disc name → track name → normal display mode.

NOTE

● The display can show up to 16 characters. If a disc name or track name has more than 16 characters, press the PAGE button (6) to view the next 16 characters.
- When there is no title information to be displayed, the display shows "NO TITLE".

NOTE

- Characters that the CD player cannot display are shown as “”.

MP3 title

The CD player can display folder and file titles for discs encoded with folder and file information. Press the TEXT button (5) for less than 1 second repeatedly to make selections in the following sequence: folder name → file name → normal display mode.

ID3 tag information

The CD player can display ID3 tag information for files that have been recorded with ID3 tag information.

1. Press the TEXT button (5) for 2 seconds or longer to switch to the ID3 tag information.

2. Then press the TEXT button for less than 1 second repeatedly to make selections in the following sequence: album name → title name artist name → normal display mode.

NOTE

● To return from ID3 tag information to the folder name, press the TEXT button (5) again for 2 seconds or longer.
- When there is no title information to be displayed, the display shows "NO TITLE".
● The display can show up to 16 characters. If a folder name, track name, or item of ID tag information has more than 16 characters, press the PAGE button (6) to view the next 16 characters.
- Folder names and track names can each be displayed up to a length of 32 characters. Items of ID3 tag information can each be displayed up to a length of 30 characters.
- Characters that the CD player cannot display are shown as “”.

To play tracks from USB device (audio system type 1)

*

E00756101276

You can connect your iPod or USB memory device to the USB input terminal and play music files stored in the iPod or USB memory device.

To play tracks from USB device (audio system type 1) *

See the following section for the types of connectable devices and supported files. Refer to "Types of connectable devices and supported file specifications" on page 7-105. See the following sections for the connecting methods, "How to connect an iPod" on page 7-104 and "How to connect a USB memory device" on page 7-103.

iPod control panel and display

If your vehicle is equipped with a Bluetooth ^® 2.0 interface, you can play music files in your iPod or USB memory device via voice operation.

Refer to "To play iPod tracks via voice operation" on page 7-33 and "To play USB memory device tracks via voice operation" on page 7-40.

NOTE

● The protected file by copyright might not be able to start playback.
- It is recommended to adjust the equalizer of the connected device is flat.

E00756200238

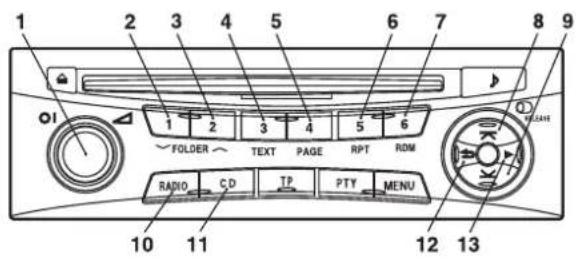

AA1008391

1- PWR (On-Off) button
2- FOLDER (Folder down) button
3- FOLDER (Folder up) button
4- TEXT button
5- PAGE (Title scroll) button

6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-forward/Track up) button
9- (Fast-reverse/Track down) button
10-RADIO button

11- CD (Mode change) button
12- (return) button
13- (Select) button
14- iPod indicator
15- TRACK indicator
16- RPT/SHUFFLE/A-SHUFFLE indicator

For pleasant driving

7-31

OKTE15E3

To play tracks from USB device (audio system type 1) *

To play from an iPod

F00756300372

1. Press the PWR button (1) to turn on the audio system. The system turns on in the last mode used.
2. Connect your iPod to the USB input terminal. Refer to "How to connect an iPod" on page 7-104.
3. Press the CD button (11) several times to switch to the iPod mode. The mode changes every time the CD button is pressed.

CD mode → iPod mode → Bluetooth mode*

NOTE

• If your vehicle is equipped with Auxiliary Audio connector (RCA), pressing and holding the CD button for 2 seconds or more switches the system to the AUX mode.
• Once the device is selected, playback starts and "iPod" appears on the display.

NOTE

● Depending on the condition of your iPod, it may take a longer time before the playback starts.

1. To stop the playback, change over to a different mode.

NOTE

• Buttons on the iPod are disabled while the iPod is connected to the audio system.
  ● To adjust the volume and tone, refer to "To adjust the volume" and "To adjust the tone".

To fast-forward/reverse the track

E00756400113

Fast-forward

To fast-forward the current track, press the button (8). While the button is pressed, the track will be fast-forwarded.

Fast-reverse

To fast-reverse the current track, press the Y button (9). While the button is pressed, the track will be fast-reversed.

To select a desired track

F00756500097

Track up

Press the 7 button (8) repeatedly until the desired track number appears on the display.

Track down

Press the Ybutton (9) repeatedly until the desired track number appears on the display.

NOTE

- Pressing the button (9) once during the song will cause the audio system to restart playback from the beginning of the song.

To find a track from the iPod menu

E00756600186

You can select desired tracks from the "Playlists", "Artists", "Albums", "Songs" or "Genre" (vehicles with Bluetooth ^® 2.0 interface) menus on your iPod.

Press the following buttons to select desired tracks.

The selected menu or category or track is shown in the display.

button

(12)

:To start this mode or cancel the selection.

button (8)

or √ button

:To show the menu or category or track.

(9)

▶ button (13)

:To select the menu or category or track.

NOTE

• If no operation is performed for 10 seconds or more or another button is operated after the Button or Button has been pressed, searching of the desired tracks is cancelled.
• If no operation is performed for 5 seconds or more after the track is displayed, playback starts.

To play the same track repeatedly

E00756700099

Press the RPT button (6) during playback to show "RPT" in the display.

To exit this mode, press the button again.

To play tracks in random order

U07569VX61

Press the RDM button (7) to show "SHUFFLE" in the display. The iPod randomly selects tracks from the current category and plays the selected tracks.

To exit this mode, press the button again.

To play tracks in each album in random order

E00757000099

Press and hold the RDM button (7) until you hear a beep to show “A-SHUFFLE” in the display.

The iPod randomly selects tracks in the album from the current category and play the selected tracks.

To exit this mode, press the button again.

To switch the display

E00757100090

The display changes as follows every time the TEXT button (4) is pressed during play-back.

Album title → Track name → Artist name → Genre (vehicles with Bluetooth® 2.0 interface) → Normal display

NOTE

• Up to 16 characters are shown in the display at once. If the title is cut off in the middle, press the PAGE button (5). The next characters are displayed every time this button is pressed.
• If no title is stored, “NO TITLE” is shown in the display.
• Characters that cannot be displayed are substituted by “”.

To play iPod tracks via voice operation (vehicles with Bluetooth® 2.0 interface)

F(017572)0046

Desired tracks can be selected and played from your iPod by “Artist”, “Album”, “Playlist” and “Genre” using voice commands. For information concerning the voice recognition function or speaker enrollment function, refer to “Bluetooth® 2.0 interface” on page 7-84.

The following explains how to prepare for voice operation and play the tracks.

To play tracks from USB device (audio system type 1) *

Preparation for voice operation

E00757300135

To use the voice operation, press the SPEECH button (1) first.

Diagram of a car wheel with a small component inside, no text or symbols present

AA0104791

To search by artist name

E00757400019

1. Say "Play" on the main menu.

NOTE

- The Bluetooth ^ 2.0 interface starts recognizing the connected device. If the connected device cannot be recognized or a connection error occurs, the Bluetooth ^ 2.0 interface starts an appropriate voice guide. Follow the voice guide.

1. After the voice guide says “Would you like to play by Artist, Album, Playlist or Genre?,” say “Artist”.

NOTE

- If you say “Artist ,” you can skip step 3.

1. After the voice guide says "What Artist would you like to play?," say the artist name.
2. If there is only one match, the system proceeds to step 6.
3. If there are two or more matches, the voice guide will say "More than one match was found, would you like to play ?" If you say "Yes," the system proceeds to step 6. If you say "No," the next matching artist is uttered by the system.

NOTE

- If you say “No” to three or all artist names uttered by the system, the voice guide will say “Artist not found, please try again” and the system returns to step 2. - Search time is dependant on the number of songs on your connected device. Devices containing a large number of songs may take longer to return search results.

1. After the voice guide says "Playing ," the system creates a playlist index for the artist.

NOTE

- If the confirmation function is active, the voice guide confirms if the artist name is correct. If the artist name is correct, say "Yes". If not, say "No". After the voice guide says "Artist not found, please try again," the system returns to step 2.

1. The system exits the voice recognition mode and starts playback.

To search by album title

E00757500010

1. Say "Play" on the main menu.

NOTE

- The Bluetooth ^ 2.0 interface starts recognizing the connected device. If the connected device cannot be recognized or a connection error occurs, the Bluetooth ^ 2.0 interface starts an appropriate voice guide. Follow the voice guide.

1. After the voice guide says "Would you like to play by Artist, Album, Playlist or Genre?," say "Album".

NOTE

- If you say "Album
