USER MANUAL 6102I NOKIA

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION declare under our sole responsibility that the RM-161 and RM-162 products are conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/.

€0434

The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste.

PART NO. 9248317, Issue NO. 1
Copyright © 2006 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia tune is a sound mark of Nokia Corporation.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2006. Tegic Communications, Inc. All rights reserved.

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

Java is a trademark of Sun Microsystems, Inc.

The information contained in this user guide was written for the Nokia 6102i and Nokia6103 products. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes to any of the products described in this document without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOwsoEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTYES OF ANY KIND, Either EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

EXPORT CONTROLS

This device may contain commodities, technology, or software subject to export laws and regulations from the U.S. and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

For your safety. 6

General information. 9

Overview of functions. 9

Access codes. 9

Configuration settings service 10

Download content and applications.. 11

Nokia support on the Web 11

1. Get started 12

Open the fold 12

Install the SIM card and battery .... 12

Charge the battery. 13

Switch the phone on and off. 14

Normal operating position 14

Wrist strap 14

2. Your phone 15

Keys and parts. 15

Standby mode 16

Keypad lock (keyguard) 18

3.Call functions. 19

Make a call 19

Answer or decline a call. 19

Options during a call. 20

4. Write text 21

Settings 21

Predictive text input 21

Traditional text input. 22

5. Navigate the menus 23

6. Messages 24

Text messages (SMS) 24

Multimedia messages 26

Memory full 28

Folders 28

Nokia Xpress audio messaging. 29

Voice messages 30

Info messages 30

Service commands. 30

Delete messages 30

Message settings. 30

Message counter. 31

7. Contacts 32

Search for a contact 32

Save names and phone numbers.... 32

Save numbers, items, or an image.. 32

Copy contacts 33

Edit contact details 33

Delete contacts or contact details.. 33

Business cards. 33

Settings 34

Groups 34

Voice dialing 34

1-touch dials 35

Info, service, and my numbers 35

8.Call log. 36

Recent calls lists. 36

Counters and timers. 36

9. Settings 37

Profiles 37

Themes 37

Tones 37

My shortcuts 38

Main display 38

Mini display 39

Time and date 39

Call 39

Phone 40

Connectivity 41

Enhancements 44

Configuration 44

Security. 45

Restore factory settings. 46

10 Gallery. 47
11.Media 48

Camera 48

Radio 48
Recorder. 50

1. Organizer 51

Alarm clock. 51
Calendar. 51
To-do list. 52
Notes. 52
Synchronization 53
Calculator 54
Stopwatch 55
Countdown timer 56

13 Applications. 57

Games 57
Collection. 57
14.Web. 59

Set up browsing. 59
Connect to a service. 59
Browse pages.. 60

Appearance settings 60
Cookies 61
Scripts over secure connection 61
Bookmarks 61
Download files. 62
Service inbox 62
Cache memory 63
Browser security 63

15.SIM services 66
16.PC connectivity. 67

PC Suite 67
Packet data, HSCSD, and CSD. 67
Data communication applications.. 67

17.Battery information 68

Charging and discharging 68
Nokia battery authentication guidelines. 69

Care and maintenance 71
Additional safety information.. 72
Index. 77

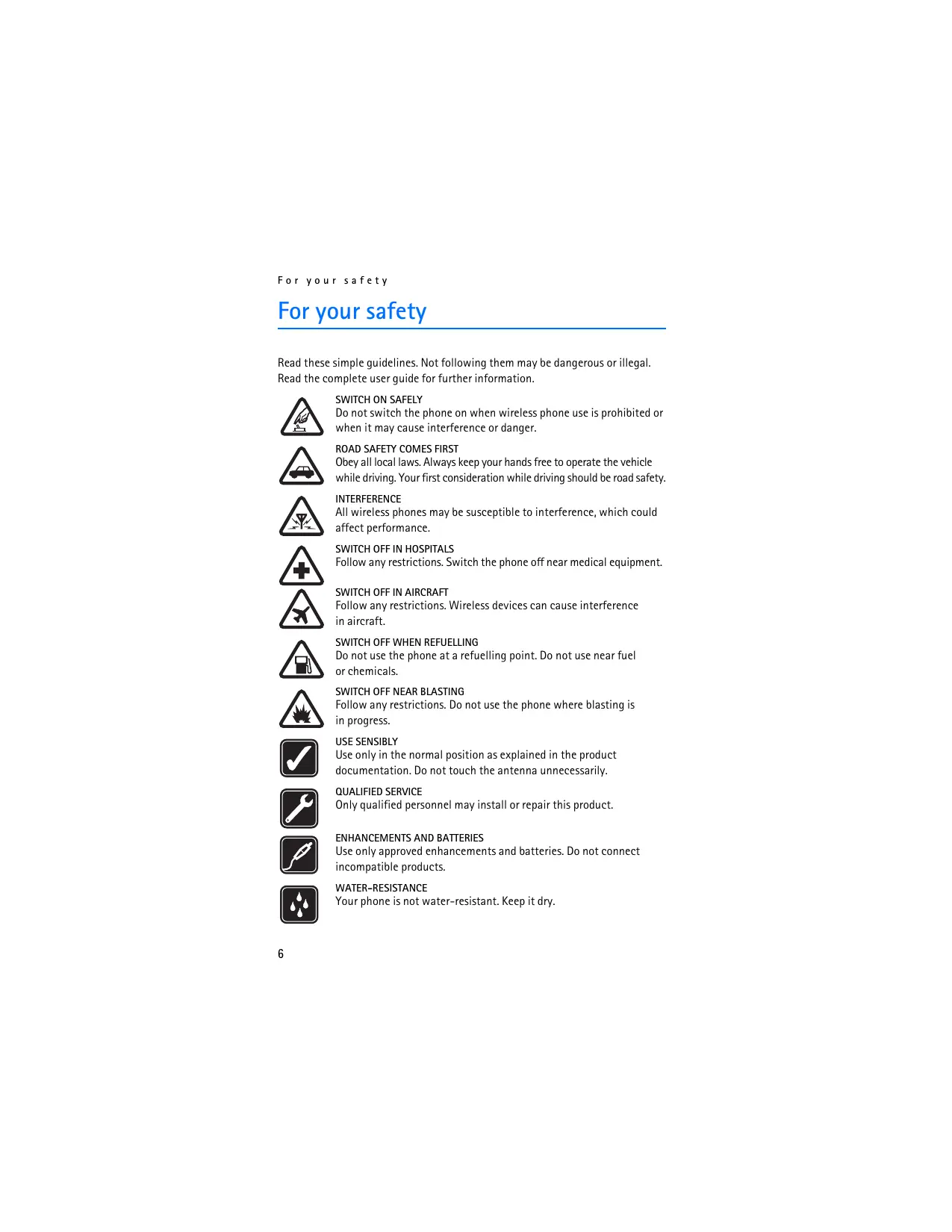

Read these simple guidelines. Not following them may be dangerous or illegal.

Read the complete user guide for further information.

SWITCH ON SAFELY

Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless phones may be susceptible to interference, which could affect performance.

SWITCH OFF IN HOSPITALS

Follow any restrictions. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT

Follow any restrictions. Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELLING

Do not use the phone at a refuelling point. Do not use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Follow any restrictions. Do not use the phone where blasting is in progress.

USE SENSIBLY

Use only in the normal position as explained in the product documentation. Do not touch the antenna unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

ENHANCEMENTS AND BATTERIES

Use only approved enhancements and batteries. Do not connect incompatible products.

WATER-RESISTANCE

Your phone is not water-resistant. Keep it dry.

BACK-UP COPIES

Remember to make back-up copies or keep a written record of all important information stored in your phone.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products.

EMERGENCY CALLS

Ensure the phone is switched on and in service. Press the end key as many times as needed to clear the display and return to the start screen. Enter the emergency number, then press the call key. Give your location. Do not end the call until given permission to do so.

About your device

The wireless device described in this guide is approved for use on the GSM 850, 1800, and 1900 (type RM-162 devices) or GSM 900, 1800, and 1900 (type RM-161 devices) networks. Contact your service provider for more information about networks.

When using the features in this device, obey all laws and respect the privacy and legitimate rights of others.

Warning: To use any features in this device, other than the alarm clock, the device must be switched on. Do not switch the device on when wireless device use may cause interference or danger.

Network services

To use the phone you must have service from a wireless service provider. Many of the features in this device depend on features in the wireless network to function. These network services may not be available on all networks or you may have to make specific arrangements with your service provider before you can utilize network services. Your service provider may need to give you additional instructions for their use and explain what charges will apply. Some networks may have limitations that affect how you can use network services. For instance, some networks may not support all language-dependent characters and services.

Your service provider may have requested that certain features be disabled or not activated in your device. If so, they will not appear on your device menu. Your device may also have been specially configured for your network provider. This configuration may include changes in menu names, menu order and icons. Contact your service provider for more information.

For your safety

This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols. Some features of this device, such as text messages, multimedia messages, audio messages, mobile Internet services, content and application download, and synchronization with a remote Internet server, require network support for these technologies.

Shared memory

The phone has two memories. The following features may share the first memory: contacts, text messages, multimedia messages (without attachments), groups, voice commands, calendar, and to-do notes. The second shared memory is used by files stored in Gallery, attachments of multimedia messages, and Java^TM applications. Use of one or more of these features may reduce the memory available for the remaining features sharing memory. For example, saving many Java applications may use all of the available memory. Your device may display a message that the memory is full when you try to use a shared memory feature. In this case, delete some of the information or entries stored in the shared memory features before continuing. Some of the features, such as text messages, may have a certain amount of memory specially allotted to them in addition to the memory shared with other features.

Enhancements

A few practical rules about accessories and enhancements are as follows:

• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and are operating properly.
• Installation of any complex car enhancements must be made by qualified personnel only.

General information

Overview of functions

Your phone provides many functions that are practical for daily use, such as a calendar, a clock, an alarm clock, a radio, and a built-in camera. Your phone also supports the following functions:

• Enhanced data rates for GSM evolution (EDGE). See "Packet data (EGPRS)," p. 43.
• Extensible hypertext markup language (XHTML). See "Web," p. 59.
  Audio messaging. See "Nokia Xpress audio messaging," p. 29.
• Bluetooth technology. See "Bluetooth wireless technology," p. 41.
• Java 2 Platform, Micro Edition (J2ME™). See "Applications," p. 57.

Access codes

Security code

The security code (5 to 10 digits) helps to protect your phone against unauthorized use. The preset code is 12345. To change the code and to set the phone to request the code, see "Security," p. 45.

PIN codes

The personal identification number (PIN) code and the universal personal identification number (UPIN) code (4 to 8 digits) help to protect your SIM card against unauthorized use. See "Security," p. 45.

The PIN2 code (4 to 8 digits) may be supplied with the SIM card and is required for some functions.

The module PIN is required to access the information in the security module. See "Security module," p. 63.

The signing PIN is required for the digital signature. See "Digital signature," p. 65.

PUK codes

The personal unblocking key (PUK) code and the universal personal unblocking key (UPUK) code (8 digits) is required to change a blocked PIN code and UPIN code, respectively. The PUK2 code (8 digits) is required to change a blocked PIN2 code. If the codes are not supplied with the SIM card, contact your local service provider for the codes.

Restricting password

The restricting password (4 digits) is required when using Call restrictions. See "Security," p. 45.

■ Configuration settings service

To use some of the network services, such as mobile Internet services, MMS, Nokia Xpress audio messaging, or remote Internet server synchronization, your phone needs the correct configuration settings. You may be able to receive the settings directly as a configuration message. After receiving the settings, you need to save them on your phone. The service provider may provide a PIN that is needed to save the settings. For more information on availability, contact your service provider, nearest authorized Nokia dealer, or visit the support area on the Nokia Web site,

www.nokia.com/support.

When you receive a configuration message, Configuration sett. received is displayed.

To save the settings, select Show > Save. If the phone requests Enter settings' PIN; enter the PIN code for the settings, and select OK. To receive the PIN code, contact the service provider that supplies the settings. If no settings are saved, these settings are saved and set as default configuration settings. Otherwise, the phone asks Activate saved configuration settings?.

To discard the received settings, select Exit or Show > Discard.

To edit the settings, see "Configuration," p. 44.

Download content and applications

You may be able to download new content (for example, themes) to the phone (network service). Select the download function (for example, in Gallery). To access the download function, see the respective menu descriptions. For the availability of different services, pricing, and tariffs, contact your service provider.

Important: Use only services that you trust and that offer adequate security and protection against harmful software.

Nokia support on the Web

Check www.nokia.com/support or your local Nokia Web site for the latest version of this guide, additional information, downloads, and services related to your Nokia product.

1. Get started

Open the fold

When you open the fold of the phone, it opens up to approximately 155 degrees. Do not try to force the fold open more.

Install the SIM card and battery

Always switch the device off and disconnect the charger before removing the battery.

Keep all SIM cards out of the reach of small children. For availability and information on using SIM card services, contact your SIM card vendor. This may be the service provider, network operator, or other vendor.

This device is intended for use with BL-4C battery.

The SIM card and its contacts are easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card.

To remove the back cover of the phone press the release button (1), and slide the back cover to remove it from the phone (2).

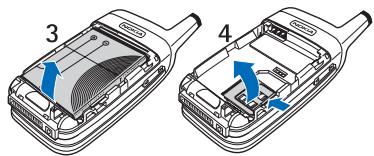

Remove the battery as shown(3). Release the SIM card holder (4).

Insert the SIM card (5). Make sure that the SIM card is properly inserted, and that the gold-colored contact area on the card is facing downwards. Close the SIM card holder (6), and press it until it snaps into position.

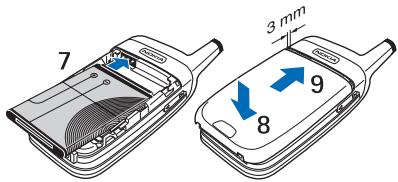

Replace the battery (7).

Observe the battery contacts. Always use original Nokia batteries. See "Nokia battery authentication guidelines," p. 69.

Slide the back cover into its place (8, 9).

Charge the battery

Warning: Use only batteries, chargers, and enhancements approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous.

Check the model number of any charger before use with this device. This device is intended for use when supplied with power from an AC-3, AC-4, and DC-4 charger, and from AC-1, ACP-7, ACP-12, and LCH-12 charger when used with the charger adapter CA-44.

For availability of approved enhancements, please check with your dealer.

1. Connect the charger to a wall socket.
2. Connect the lead from the charger to the socket on the bottom of your phone.

If the battery is completely discharged, it may take a few minutes before the charging indicator appears on the display or before any calls can be made.

The charging time depends on the charger and the battery used. For example, charging a BL-4C battery with the AC-3 charger takes approximately 2 hours and 12 minutes while the phone is in the standby mode.

Switch the phone on and off

Warning: Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

Press and hold the power key. See "Keys and parts," p. 15.

If the phone asks for a PIN or a UPIN code, enter the code (displayed as *****), and select OK.

Plug and play service

When you switch on your phone for the first time, and the phone is in the standby mode, you are asked to get the configuration settings from your service provider (network service). Confirm or decline the query.

See Connect to service provider support, p. 45, and "Configuration settings service," p. 10.

Normal operating position

Use the phone only in its normal operating position.

Your device has an external antenna.

Note: As with any other radio transmitting device, do not touch the antenna unnecessarily when the device is switched on. Contact with the antenna affects call quality and may cause the device to operate at a higher power level

than otherwise needed. Avoiding contact with the antenna area when operating the device optimizes the antenna performance and the battery life.

Wrist strap

Remove the back cover and the battery. Insert the strap as shown in the picture. Replace the battery and the back cover.

2. Your phone

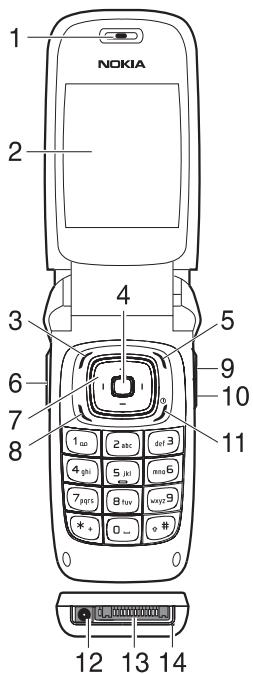

Keys and parts

• Earpiece (1)
• Main display (2)
• Left selection key (3)
• Middle selection key (4)
  Right selection key (5)
  Volume key (6)
  4-way scroll key (7)
  Call key (8)
• Camera release key (9)
• Infrared (IR) port (10)
  End and power key (11)
• Charger connector (12)
• Pop-PortTM connector (13)
• Microphone (14)
• Loudspeaker (15)
• Camera lens (16)
• Mini display (17)

The keypad on your phone may differ slightly from the illustration.

Warning: The side keys (6), and (9), and the antenna cap of this device may contain nickel. These parts are not designed for prolonged contact with the skin. Continuous exposure to nickel on the skin may lead to a nickel allergy.

Standby mode

When the phone is ready for use, and you have not entered any characters, the phone is in the standby mode.

Mini display

When the fold is closed, the mini display may show the following:

• The signal strength of the cellular network at your current location and the battery charge level
• The name of the network. If the phone is not in service, it is indicated by a text note.
• The time, the active profile, and the alarm clock or calendar note alerts When you have an incoming call, the caller's name or number is shown if it is identified.

Main display

In the standby mode, the main display may show the following:

Name of the network or the operator logo (1)
- Signal strength of the cellular network at your current location (2)
Battery charge level (3)
- Function of the left selection key is Go to (4)
- Function of the middle selection key is Menu (5)
- Function of the right selection key is Names 4 5 6 (6) or another shortcut to a function that you selected. See "My shortcuts," p. 38. Operator variants may have an operator-specific name to access an operator-specific Web site.

Personal shortcut list

The left selection key is Go to.

To view the functions in the personal shortcut list, select Go to. To activate a function select it.

To view a list with available functions, select Go to > Options > Select options. To add a function to the shortcut list, select Mark. To remove a function from the list, select Unmark.

To rearrange the functions on your personal shortcut list, select Go to > Options > Organize. Select the desired function, Move, and the place where you want to move the function.

Shortcuts in the standby mode

• To access the list of dialed numbers, press the call key once. Scroll to the number or name that you want; to call the number, press the call key.
• To open the web browser, press and hold O.
• To call your voice mailbox, press and hold 1.
• Use the scroll key as a shortcut. See "My shortcuts," p. 38.

Power saving

A digital clock view overwrites the display when no function of the phone has been used for a certain period of time. To activate the power saver, see Powersaver in "Main display," p. 38, and "Mini display," p. 39. To deactivate the power saver, open the fold, or press any key.

Indicators

You received one or several text or picture messages. See "Read and reply to a SMS message," p. 25.

You received one or several multimedia messages. See "Read and reply to a multimedia message," p. 27.

The phone logged a missed call. See "Call log," p. 36.

The keypad is locked. See "Keypad lock (keyguard)," p. 18.

Your phone

The phone does not ring for an incoming call or text message when Incoming call alert and Message alert tone are set to Off. See "Tones," p. 37.
The alarm clock is set to On . See "Alarm clock," p. 51.
When the packet data connection mode Always online is selected and the packet data service is available, the indicator is shown. See "Packet data (EGPRS)," p. 43.
A packet data connection is established. See "Packet data (EGPRS)," p. 43 and "Browse pages," p. 60.
The packet data connection is suspended (on hold), for example, if there is an incoming or outgoing call during a packet data dial-up connection.
When the infrared connection is activated, the indicator is shown continuously.
Bluetooth connection indicator. See "Bluetooth wireless technology," p. 41.

Keypad lock (keyguard)

To prevent the keys from being accidentally pressed, select Menu, and press * within 3.5 seconds to lock the keypad.

To unlock the keypad, select Unlock, and press *. If the Security keyguard is set On, enter the security code if requested.

To answer a call when the keyguard is on, press the call key. When you end or decline the call, the keypad automatically locks.

For Automatic keyguard and Security keyguard, see "Phone," p. 40.

When the keyguard is on, calls still may be possible to the official emergency number programmed into your device.

3. Call functions

Make a call

1. Enter the phone number, including the area code.

For international calls, press * twice for the international prefix (the + character replaces the international access code) and then enter the country code, the area code without the leading 0, if necessary, and the phone number.

1. To call the number, press the call key.
2. To end the call or to cancel the call attempt, press the end key, or close the phone.

To make a call using names, search for a name or phone number in Contacts, see "Search for a contact," p. 32. Press the call key to call the number.

To access the list of up to 20 numbers you last called or attempted to call, press the call key once in the standby mode. To call the number, select a number or name, and press the call key.

1-touch dialing

Assign a phone number to one of the 1-touch-dialing keys, 2 to 9. See "1-touch dials," p. 35. Call the number in either of the following ways:

• Press a 1-touch-dialing key, then the call key.
• If 1-touch dialing is set to On, press and hold a 1-touch-dialing key until the call begins. See 1-touch dialing in "Call," p. 39.

Answer or decline a call

To answer an incoming call, press the call key, or open the phone. To end the call, press the end key, or close the phone.

To decline an incoming call when the phone is open, press the end key, or close the phone. To decline an incoming call when the phone is closed, open the phone, and press the end key within 1.5 seconds.

To mute the ringing tone, press one of the volume keys, or select Silence.

Tip: If the Forward if busy function is activated to forward the calls (for example, to your voice mailbox) declining an incoming call also forwards the call. See "Call," p. 39.

If a compatible headset supplied with the headset key is connected to the phone, to answer and end a call, press the headset key.

Call waiting

To answer the waiting call during an active call, press the call key. The first call is put on hold. To end the active call, press the end key.

To activate the Call waiting function, see "Call," p. 39.

Options during a call

Many of the options that you can use during a call are network services. For availability, contact your network operator or service provider.

During a call, select Options and from the following options:

Call options are Mute or Unmute, Contacts, Menu, Record, Lock keypad, Auto volume on, Loudspeaker or Handset.

Network services options are Answer and Decline, Hold or Unhold, New call, Add to conference, End call, End all calls, and the following:

Touch tones - to send tone strings

Swap - to switch between the active call and the call on hold

Transfer calls — to connect a call on hold to an active call and disconnect yourself

Conference - to make a conference call that allows up to five persons to take part in a conference call

Private call -to discuss privately in a conference call

Warning: Do not hold the device near your ear when the loudspeaker is in use, because the volume may be extremely loud.

4. Write text

You can enter text (for example, when writing messages) using traditional or predictive text input. When using traditional text input, press a number key, 1 to 9, repeatedly until the desired character appears. In predictive text input you can enter a letter with a single keypress.

When you are writing text, predictive text input is indicated by 和 and traditional text input by 和 at the top left of the display. ABC, abc, or ABC appear next to the text input indicator, indicating the character case.

To change the character case and the text input mode, press #. 123 indicates number mode. To change from the letter to number mode, press and hold #, and select Number mode.

Settings

To set the writing language, select Options > Writing language.
Predictive text input is only available for the languages listed.

Select Options > Dictionary on to set the predictive text input or Dictionary off to set traditional text input.

Predictive text input

Predictive text input is based on a built-in dictionary to which you can also add new words.

1. Start writing a word using the 2 to 9 keys. Press each key only once for a single letter. The word changes after each keystress.
2. When you have finished writing the word and it is correct, to confirm it, press 0 to add a space, or press the scroll key. Scroll to move the cursor. If the word is not correct, press * repeatedly, or select Options > Matches. When the word that you want appears, confirm it.

If ? is displayed after the word, the word you intended to write is not in the dictionary. To add the word to the dictionary, select Spell. Enter the word (traditional text input is used), and select Save.

1. Start writing the next word.

Write text

Write compound words

Enter the first part of the word, and press the scroll key right to confirm it. Write the next part of the word, and confirm the word.

Traditional text input

Press a number key, 1 to 9, repeatedly until the desired character appears. Not all characters available under a number key are printed on the key. The characters available depend on the writing language. See "Settings," p. 21. If the next letter you want is located on the same key as the present one, wait until the cursor appears, or press the scroll key and enter the letter. The most common punctuation marks and special characters are available under the 1 key.

5. Navigate the menus

The phone offers you an extensive range of functions, which are grouped into menus.

1. To access the menu, select Menu. To change the menu view, select Options > Main menu view > List or Grid.
2. Scroll through the menu, and select a submenu (for example, Settings).
3. If the menu contains submenus, select the one that you want (for example, Call).
4. If the selected menu contains further submenus, select the one that you want (for example, Anykey answer).
5. Select the setting of your choice.
6. To return to the previous menu level, select Back. To exit the menu, select Exit.

6. Messages

The message services can only be used if they are supported by your network or your service provider.

Note: When sending messages, your phone may display the words Message sent. This is an indication that the message has been sent by your device to the message center number programmed into your device. This is not an indication that the message has been received at the intended destination. For more details about messaging services, check with your service provider.

Important: Exercise caution when opening messages. Messages may contain malicious software or otherwise be harmful to your device or PC. Only devices that have compatible features can receive and display messages. The appearance of a message may vary depending on the receiving device.

Text messages (SMS)

Using the short message service (SMS) you can send and receive multipart messages made of several ordinary text messages (network service) that can contain pictures.

Before you can send any text, picture, or e-mail message, you must save your message center number. See "Message settings," p. 30.

To check SMS e-mail service availability and to subscribe to the service, contact your service provider.

Your device supports the sending of text messages beyond the character limit for a single message. Longer messages will be sent as a series of two or more messages. Your service provider may charge accordingly. Characters that use accents or other marks, and characters from some language options like Chinese, take up more space limiting the number of characters that can be sent in a single message.

At the top of the display, you can see the message length indicator that tracks the number of characters available. For example, 10/2 means that you can still add 10 characters for the text to be sent as two messages.

Write and send a SMS message

1. Select Menu > Messages > Create message > Text message.
2. Enter a message. See "Write text," p. 21. To insert text templates or a picture into the message, see "Templates," p. 26. Each picture message comprises several text messages. Sending one picture or multipart message may cost more than sending one text message.
3. To send the message, select Send > Recently used, To phone number, To many, or To e-mail address. To send a message using a predefined message profile, select Via sending profile. For the message profile, see "Text and SMS," p. 30. Select or enter a phone number or e-mail address, or select a profile.

Read and reply to a SMS message

is shown when you receive an SMS message or an SMS e-mail. The blinking indicates that the message memory is full. Before you can receive new messages, delete some of your old messages in the Inbox folder.

1. To view a new message, select Show. To view it later, select Exit. To read the message later, select Menu > Messages > Inbox. If more than one message is received, select the message that you want to read. ☑ indicates an unread message.
2. While reading a message, select Options, and delete or forward the message; edit the message as a text message or an SMS e-mail, rename the message you are reading, or move it to another folder; or view or extract message details. You can also copy text from the beginning of the message to your phone calendar as a reminder note. To save the picture in the Templates folder when reading a picture message, select Save picture.
3. To reply as a message, select Reply > Text message, Multimedia msg., Flash message, or Audio message. Enter the reply message. When replying to an e-mail, first confirm or edit the e-mail address and subject.
4. To send the message to the displayed number, select Send > OK.

Templates

Your phone has text templates and picture templates that you can use in text, picture, or SMS e-mail messages.

To access the template list, select Menu > Messages > Saved items > Text messages > Templates.

Multimedia messages

A multimedia message can contain text, sound, a picture, a calendar note, a business card, or a video clip. If the message is too large, the phone may not be able to receive it. Some networks allow text messages that include an Internet address where you can view the multimedia message.

You cannot receive multimedia messages during a call, a game, another Java application, or an active browsing session over GSM data. Because delivery of multimedia messages can fail for various reasons, do not rely solely upon them for essential communications.

Write and send a multimedia message

To set the settings for multimedia messaging, see "Multimedia," p. 31. To check availability and to subscribe to the multimedia messaging service, contact your service provider.

1. Select Menu > Messages > Create message > Multimedia msg..
2. Enter a message. See "Write text," p. 21.

To insert a file, select Options > Insert and from the following options: Image, Sound clip or Video clip — to insert a file from Gallery

New image opens the Camera - to take a new image to be added to the message

New sound clip opens the Recorder - to make a new record to be added to the message

Business card or Calendar note - to insert a business card or a calendar note in the message

Slide - to insert a slide to the message. Your phone supports multimedia messages that contain several pages (slides). Each slide can contain text, one image, a calendar note, a business card, and one sound clip.

To open a desired slide if the message contains several slides, select Options > Previous slide, Next slide, or Slide list. To set the interval between the slides, select Options > Slide timing. To move the text component to the top or bottom of the message, select Options > Place text first or Place text last.

The following options may also be available: Delete to delete an image, slide, or sound clip from the message, Clear text, Preview, or Save message. In More options, other options may be available.

1. To send the message, select Send > Recently used, To phone number, To e-mail address, or To many.
2. Select the contact from the list, or enter the recipient's phone number or e-mail address, or search for it in Contacts. Select OK. The message is moved to the Outbox folder for sending.

While the multimedia message is being sent, the animated indicator is displayed and you can use other functions on the phone. If the sending fails, the phone tries to rerend it a few times. If this fails, the message remains in the Outbox folder, and you can try to rerend it later.

If you select Save sent messages > Yes, the sent message is saved in the Sent items folder. See "Multimedia," p. 31. When the message is sent, it is not an indication that the message has been received at the intended destination.

Copyright protections may prevent some images, ringing tones, and other content from being copied, modified, transferred or forwarded.

Read and reply to a multimedia message

Important: Exercise caution when opening messages. Multimedia message objects may contain malicious software or otherwise be harmful to your device or PC.

When your phone receives a multimedia message, the animated 念 is displayed. When the message has been received, 念 and the text Multimedia message received are shown.

1. To read the message, select Play. To view it later, select Exit.

To read the message later, select Menu > Messages > Inbox. In the list of messages, indicates an unread message. Select the message that you want to view.

Messages

1. To view the whole message if the received message contains a presentation, a sound clip, or view a video clip, select Play.
2. To zoom in on an image, select Zoom. To view a business card or calendar note or to open a theme object, select Open.
3. To reply to the message, select Options > Reply > Text message, Multimedia msg., Flash message, or Audio message. Enter the reply message, and select Send. You can send the reply message only to the person who sent you the original message.

Select Options to access available options.

Memory full

When you have received a new text message and the message memory is full, blinks and Text msgs. memory full. Delete msgs. is shown. Select No, and delete some messages from a folder. To discard the waiting message, select Exit > Yes.

When you have a new multimedia message waiting and the memory for the messages is full, blinks and Multimedia memory full. View waiting msg. is shown. To view the waiting message, select Show. Before you can save the waiting message, delete old messages to free memory space. To save the message, select Save.

To discard the waiting message, select Exit > Yes. If you select No, you can view the message.

Folders

The phone saves received text and multimedia messages in the Inbox folder. Multimedia messages that have not yet been sent are moved to the Outbox folder.

To save sent messages in the Sent items folder, select Menu > Messages > Message settings > Text messages > Save sent messages > Yes, and Menu > Messages > Message settings > Multimedia msg. > Save sent messages > Yes.

To save the text message that you are writing and wish to send later in the Saved items folder, select Options > Save message > Saved text msgs.. For multimedia messages, select the option Save message. indicates unsent messages.

To organize your text messages, move some of them to My folders or add new folders for your messages. Select Messages > Saved items > Text messages > My folders.

To add a folder, select Options > Add folder. If you have not saved any folders, select Add.

To delete or rename a folder, scroll to the desired folder, and select Options > Delete folder or Rename folder.

Nokia Xpress audio messaging

With this menu, use the multimedia message service to create and send a voice message in a convenient way. Multimedia messaging service must be activated before this service can be used.

Create and send an audio message

1. Select Menu > Messages > Create message > Audio message. The recorder opens. To use the recorder, see "Recorder," p. 50.
2. When the message is ready to send, select Options > Play to check the message before sending, Replace sound clip to repeat the recording, Save message to save the message in Saved items folder, Save sound clip to save the recording in Gallery, Edit subject to insert a subject to the message, Message details to view the message details, or Loudspeaker or Handset.
3. To send the message, select Send > Recently used, To phone number, To e-mail address, or To many. Depending on your service provider, more options may be available.
4. Select the contact from the list, enter the recipient's phone number or e-mail address, or search for it in Contacts. Select OK, and the message is moved to the Outbox folder for sending.

Receive an audio message

When your phone receives an audio message, 1 audio message received is shown. Select Play to open the message or Show > Play if there are more than one message received. Select Options to see the options available. To listen to the message later, select Exit.

To save the message, select Options > Save sound clip and the folder in which you want to save the message.

Voice messages

The voice mailbox is a network service, and you may need to subscribe to it. For details, contact your service provider.

To call your voice mailbox, select Menu > Messages > Voice messages > Listen to voice messages. To enter, search for, or edit your voice mailbox number, select Voice mailbox number.

If supported by the network, 0 indicates that there are new voice messages. Select Listen to call your voice mailbox number.

Info messages

Select Menu > Messages > Info messages. With the Info messages network service, you can receive messages on various topics from your service provider. To check availability, topics, and the relevant topic numbers, contact your service provider.

Service commands

Select Menu > Messages > Service commands. Write and send service requests (also known as USSD commands) to your service provider, such as activation commands for network services.

Delete messages

To delete all messages from a folder, select Menu > Messages > Delete messages and the folder from which you want to delete the messages. Select Yes. To delete unread messages, select Yes again.

Message settings

Text and SMS

The message settings affect the sending, receiving, and viewing of messages.

Select Menu > Messages > Message settings > Text messages and from the following options:

Sending profile - If more than one message profile set is supported by your SIM card, select the set you want to change by using the available options.

Save sent messages > Yes - Set the phone to save the sent text messages in the Sent items folder.

Automatic resending >On - The phone automatically attempts to resend a text message, if sending has failed.

Multimedia

The message settings affect the sending, receiving, and viewing of multimedia messages.

Select Menu > Messages > Message settings > Multimedia msgs. and from the following options:

Save sent messages > Yes – to set the phone to save sent multimedia messages in the Sent items folder

Delivery reports — to ask the network to send delivery reports about your messages (network service)

Scale image down - to define the image size when you insert an image to a multimedia message

Default slide timing - to define the default time between slides in multimedia messages

Allow multimedia reception > Yes or No – to receive or to block the multimedia message. If you select In home network, you cannot receive multimedia messages when outside your home network.

Incoming multimedia messages > Retrieve, Retrieve manually, or Reject — to allow the reception of multimedia messages automatically, manually after being prompted, or to decline the reception

Configuration settings > Configuration - Only the configurations that support multimedia messaging are shown. Select a service provider, Default, or Personal config. for multimedia messaging. Select Account and a multimedia messaging service account contained in the active configuration settings.

Allow advertisements - to receive or decline advertisements. This setting is not shown if Allow multimedia reception is set to No.

Message counter

Select Menu > Messages > Message counter for approximate information on your recent communications.

7. Contacts

You can save names and phone numbers (Contacts) in the phone memory and in the SIM card memory. See "Settings," p. 34.

The phone memory may save contacts with numbers and text items.

You can also save an image for a certain number of names.

Names and numbers saved in the SIM card memory, are indicated by .

Search for a contact

Select Menu > Contacts > Names > Options > Find. Scroll through the list of contacts or enter the first letter of the name for which you are searching.

Save names and phone numbers

Names and numbers are saved in the used memory. Select Menu > Contacts > Names > Options > Add new contact. Enter the name and the phone number.

Save numbers, items, or an image

In the phone memory for contacts, you can save different types of phone numbers and short text items per name.

The first number you save is automatically set as the primary number. It is indicated with a frame around the number type indicator (for example, ). When you select a name (for example, to make a call), the primary number is used unless you select another number.

1. Make sure that the memory in use is either Phone or Phone and SIM. See "Settings," p. 34.
2. Scroll to the name to which you want to add a new number or text item, and select Details > Options > Add detail.

3. To add a number, select Number and one of the number types. To add another detail, select a text type or an image from Gallery. To change the number type, scroll to the desired number, and select Options > Change type. To set the selected number as the primary number, select Set as default.

4. Enter the number or text item; to save it, select OK.

5. To return to the standby mode, select Back > Exit.

Copy contacts

You can copy names and phone numbers from the phone contact memory to the SIM card memory, or vice versa. The SIM card memory can save names with one phone number attached to them.

Search for the contact you want to copy, and select Options > Copy.

Edit contact details

1. Search for the contact you want to edit; select Details; and scroll to the desired name, number, text item, or image.
2. To edit a name, number, or text item, or to change an image, select Options > Edit name, Edit number, Edit detail, or Change image.

Delete contacts or contact details

To delete all the contacts and the details attached to them from the phone or SIM card memory, select Menu > Contacts > Delete all contacts > From phone mem. or From SIM card. Confirm with the security code.

To delete a contact, search for the desired contact, and select Options > Delete contact.

To delete a number, text item, or an image attached to the contact, search for the contact, and select Details. Scroll to the desired detail, and select Options > Delete > Delete number, Delete detail, or Delete image.

Deleting an image from contacts does not delete it from Gallery.

Business cards

You can send and receive a person's contact information from a compatible device that supports the vCard standard as a business card.

To send a business card, search for the contact whose information you want to send, and select Details > Options > Send bus. card > Via multimedia, Via text message, Via infrared or Via Bluetooth.

When you have received a business card, select Show > Save to save the business card in the phone memory. To discard the business card, select Exit > Yes.

Settings

Select Menu > Contacts > Settings and from the following options:

Memory in use - to select SIM card or phone memory for your contacts

Contacts view - to select how the names and numbers in contacts are displayed

Memory status - to view the free and used memory capacity

Groups

Select Menu > Contacts > Groups to arrange the names and phone numbers saved in the memory into caller groups with different ringing tones and group images.

Voice dialing

You can make a phone call by saying a voice tag that has been added to a phone number. Any spoken words, such as a name, can be a voice tag. The number of voice tags you can create is limited.

Before using voice tags, note that:

• Voice tags are not language-dependent. They are dependent on the speaker's voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags and use them in a quiet environment.
• Very short names are not accepted. Use long names and avoid similar names for different numbers.

Note: Using voice tags may be difficult in a noisy environment or during an emergency, so you should not rely solely upon voice dialing in all circumstances.

Add and manage voice tags

Save or copy the contacts to the phone memory for which you want to add a voice tag. You can also add voice tags to the names in the SIM card, but if you replace your SIM card with a new one, you must first delete the old voice tags before you can add new ones.

1. Search for the contact to which you want to add a voice tag.

2. Select Details, scroll to the desired phone number, and select Options > Add voice tag.

3. Select Start, and say clearly the words you want to record as a voice tag. After recording, the phone plays the recorded tag.

⑤ appears behind the phone number with a voice tag in Contacts.

To check the voice tags, select Menu > Contacts > Voice tags. Scroll to the contact with the voice tag that you want, and select an option to listen to, delete, or change the recorded voice tag.

Make a call with a voice tag

If the phone has an application running that is sending or receiving data using a GPRS connection, you must end the application before voice dialing.

1. In the standby mode, press and hold the volume down key. A short tone is heard, and Speak now is displayed.
2. Say the voice tag clearly. The phone plays the recognized voice tag, and dials the phone number of the voice tag after 1.5 seconds.

If you are using a compatible headset with the headset key, press and hold the headset key to start the voice dialing.

1-touch dials

To assign a number to a 1-touch-dialing key, select Menu > Contacts > 1-touch dialing, and scroll to the 1-touch dialing number that you want. Select Assign, or if a number has already been assigned to the key, select Options > Change. Select Find, the name, and the number you want to assign. If the 1-touch dialing function is off, the phone asks whether you want to activate it. See also 1-touch dialing in "Call," p. 39.

To make a call using the 1-touch dialing keys, see "1-touch dialing," p. 19.

Info, service, and my numbers

Select Menu > Contacts and from the following functions:

Info numbers - to call the information numbers of your service provider if the numbers are included on your SIM card (network service)

Service numbers - to call the service numbers of your service provider if the numbers are included on your SIM card (network service)

My numbers - to view the phone numbers assigned to your SIM card, if the numbers are included on your SIM card

8. Call log

The phone logs the phone numbers of identified missed, received, and dialed calls; the message recipients; and the approximate length of your calls.

The phone logs if it is switched on and within the network's service area, and the network supports these functions.

Recent calls lists

When you select Options in the Missed calls, Received calls, Dialed numbers, or Message Recipients menu, you can view the time of the call; edit, view, or call the logged phone number; add it to the memory; or delete it from the list. You can also send a text message. To delete the recent calls lists, select Delete recent calls.

Counters and timers

Note: The actual invoice for calls and services from your service provider may vary, depending upon network features, rounding-off for billing, taxes and so forth.

Some timers, including the life timer, may be reset during service or software upgrades.

Select Menu > Call log > Call timers, Packet data counter, or Packet data conn. timer for approximate information on your recent communications.

9. Settings

Profiles

Your phone has various setting groups, called profiles, for which you can customize the phone tones for different events and environments.

Select Menu > Settings > Profiles. Scroll to a profile, and select it.

To activate the selected profile, select Activate.

To set the profile to be active until a certain time up to 24 hours, select Timed, and set the time the profile setting is to end. When the time set for the profile expires, the previous profile that was not timed becomes active.

To personalize the profile, select Customize. Select the setting you want to change, and make the changes.

Themes

A theme contains many elements for personalizing your phone, such as wallpapers, screen savers, color schemes, and ringing tones.

Select Menu > Settings > Themes and from the following options:

Select theme - to set a theme in your phone. A list of folders in Gallery opens. Open the Themes folder, and select a theme.

Theme downloads - to open a list of links to download more themes. See "Download files," p. 62.

Tones

You can change the settings of the selected active profile.

Select Menu > Settings > Tones. Select and change the available tone options. You can find the same settings in the Profiles menu. See "Profiles," p. 37.

If you select the highest ringing tone level, the ringing tone reaches its highest level after a few seconds.

To set the phone to ring only for calls from phone numbers that belong to a selected caller group, select Alert for. Scroll to the caller group you want or All calls, and select Mark.

My shortcuts

With personal shortcuts, you get quick access to often used functions of the phone. To manage the shortcuts, select Menu > Settings > My shortcuts and from the following options:

Right selection key — to select a function from the list for the right selection key. See also "Standby mode," p. 16. This menu may not be shown, depending on your service provider.

Navigation key - to select shortcut functions for the navigation key. Scroll to the desired navigation key, select Change and a function from the list. To remove a shortcut function from the key, select (empty). To reassign a function for the key, select Assign. This menu may not be shown, depending on your service provider.

Voice commands — to activate phone functions by saying a voice tag. Select a folder, scroll to a function to which you want to add a voice tag, and select Add. ② indicates a voice tag. To add a voice command, see "Add and manage voice tags," p. 34. To activate a voice command, see "Make a call with a voice tag," p. 35.

Main display

Select Menu > Settings > Main display and from the following options:

• Wallpaper — to add the background image to the main display in the standby mode. To select, activate, or deactivate the wallpaper, select Select wallpaper > On or Off. Select Select slide set and a folder in the Gallery to use the images in the folder as a slide set. To download more images for wallpaper, select Graphic downloads.

Screen saver > On - to activate the screen saver for the main display. To set the time after which the screen saver is activated, select Time-out. To select a graphic for the screen saver, select Image and an image or a graphic from the Gallery. Select Select slide set and a folder in the Gallery to use the images in the folder as a slide set. To download more images for the screen saver, select Graphic downloads.

Power saver >On - to save battery power. A digital clock is displayed when no function of the phone is used for a certain time.

Color schemes - to change the color in some display components, for example, menu background color and signal and battery bar colors.

Idle state font color — to select the color for the texts on the display in the standby mode.

Operator logo — to set your phone to display or hide the operator logo. The menu is dimmed, if you have not saved the operator logo. For more information on availability of an operator logo, contact your network operator or service provider.

Mini display

Select Menu > Settings > Mini display settings. You can change the available settings.

Time and date

Select Menu > Settings > Time and date and from the following options:

Clock - to set the phone to show the clock in the standby mode, adjust the clock, and select the time zone and the time format

Date - to set the phone to show the date in the standby mode, set the date, and select the date format and date separator

Auto-update of date & time (network service) - to set the phone to automatically update the time and date according to the current time zone

Call

Select Menu > Settings > Call and from the following options:

Automatic volume control — to set the phone to automatically adjust the speaker volume according to the background noise.

Call forwarding (network service) — to forward your incoming calls. You may not be able to forward your call, if some call restricting functions are active. See Call restrictions in "Security," p. 45.

Anykey answer >On to answer an incoming call. Briefly press any key, except the end key and the left and right selection keys.

Answer when fold is opened > On - to answer an incoming call. Open the phone.

Automatic redial > On - to set your phone to make a maximum of 10 attempts to connect the call after an unsuccessful call attempt.

Settings

1-touch dialing > On — to activate 1-touch dialing. To set up 1-touch dialing, see "1-touch dials," p. 35. To dial, press and hold the corresponding number key.

Call waiting > Activate — to set the network to notify you of an incoming call while you have a call in progress (network service). See "Call waiting," p. 20.

Summary after call >0 on - to briefly display the approximate duration and cost (network service) of the call after each call

Send my caller ID (network service) > Yes, No, or Set by network

Line for outgoing calls (network service) — to select the phone line 1 or 2 to make calls, if supported by your SIM card

Phone

Select Menu > Settings > Phone and from the following options:

Phone language - to set the display and writing language

Memory status - to view the free memory and the used memory in Gallery, Messages, and Applications

Automatic keyguard — to set the keypad of your phone to lock automatically after a preset time delay when the phone is in the standby mode and no function of the phone has been used. Select On, and you can set the time from 5 seconds to 60 minutes.

Security keyguard — to set the phone to ask for the security code when you unlock the keyguard. Enter the security code, and select On.

When the keyguard is on, calls still may be possible to the official emergency number programmed into your device.

Cell info display > On - to receive information from the network operator depending on the network cell used (network service)

Welcome note — to enter a welcome note to be shown briefly when the phone is switched on

Operator selection > Automatic — to set the phone automatically to select one of the cellular networks available in your area. With Manual, you can select a network that has a roaming agreement with your home network operator.

Confirm SIM service actions - See "SIM services," p. 66.

Help text activation — to select whether the phone shows help texts Start-up tone — to select whether the phone plays a start-up tone when the phone is switched on

Connectivity

To connect your phone to compatible devices, use an infrared or Bluetooth wireless connection. You can also define the settings for packet data dial-up connections.

Bluetooth wireless technology

This device is compliant with Bluetooth Specification 1.2 supporting the following profiles: SIM access profile, object push profile, file transfer profile, dial-up networking profile, headset profile, hands-free profile, generic access profile, serial port profile, and generic object exchange profile. To ensure interoperability between other devices supporting Bluetooth technology, use Nokia approved enhancements for this model. Check with the manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check with your local authorities or service provider.

Features that use Bluetooth technology or allow such features to run in the background while using other features, increase the demand on battery power and reduces battery life.

Bluetooth technology allows you to connect the phone to a compatible Bluetooth device within 10 meters. Since devices using Bluetooth technology communicate using radio waves, your phone and other devices do not need to be in line-of-sight, although the connection can be subject to interference from obstructions such as walls or from other electronic devices.

Set up a Bluetooth connection

Select Menu > Settings > Connectivity > Bluetooth and from the following options:

Bluetooth > On or Off - to activate or deactivate the Bluetooth function. indicates an active Bluetooth connection.

Search for audio enhancements - to search for compatible Bluetooth audio devices. Select the device that you want to connect to the phone.

Settings

Paired devices - to search for any Bluetooth device in range. Select New to list any Bluetooth device in range. Scroll to a device, and select Pair. Enter the Bluetooth passcode of the device to associate (pair) the device to your phone. You only must give this passcode when you connect to the device for the first time. Your phone connects to the device, and you can start data transfer.

Bluetooth wireless connection

Select Menu > Settings > Connectivity > Bluetooth. To check which Bluetooth connections are currently active, select Active device. To view a list of Bluetooth devices that are currently paired with the phone, select Paired devices.

Select Options to access available options, depending on the status of the device and the Bluetooth connection.

Bluetooth settings

To define how your phone is shown to other Bluetooth devices, select Menu > Settings > Connectivity > Bluetooth > Bluetooth settings > My phone's visibility or My phone's name.

If you are concerned about security, turn off Bluetooth or set My phone's visibility to Hidden. Always accept only Bluetooth communication from others with whom you agree.

Infrared

You can set up the phone to send and receive data through its infrared (IR) port. To use an IR connection, the device with which you want to establish a connection must be IrDA compliant. You can send or receive data to or from a compatible phone or data device (for example, a computer) through the IR port of your phone.

Do not point the IR (infrared) beam at anyone's eyes or allow it to interfere with other IR devices. Infrared devices are Class 1 laser products.

When sending or receiving data, ensure that the IR ports of the sending and receiving devices are pointing at each other and that there are no obstructions between the devices.

To activate the IR port of your phone to receive data using IR, select Menu > Settings > Connectivity > Infrared.

To deactivate the IR connection, select Menu > Settings > Connectivity > Infrared. When the phone displays Deactivate infrared?, select Yes.

If data transfer is not started within 2 minutes after the activation of the IR port, the connection is cancelled and must be started again.

IR connection indicator

When p^m is shown continuously, the IR connection is activated, and your phone is ready to send or receive data through its IR port.

When p^ blinks, your phone is trying to connect to the other device, or a connection has been lost.

Packet data (EGPRS)

Enhanced general packet radio service (EGPRS), packet data, is a network service which allows mobile phones to send and receive data over an Internet protocol (IP)-based network. It enables wireless access to data networks such as the Internet.

The applications that may use packet data are MMS, browsing sessions, remote SyncML, Java application downloading, and the PC dial-up.

To define how to use the service, select Menu > Settings > Connectivity > Packet data > Packet data connection.

Select When needed to set the packet data connection to be established when an application needs it. The connection will be closed when the application is terminated.

Select Always online to set the phone to automatically connect to a packet data network when it is switched on.

6 indicates a packet data connection.

Packet data settings

To connect the phone, use an IR, a Bluetooth technology, or a data cable (CA-42) connection to a compatible PC. Use the phone as a modem to enable packet data connectivity from the PC.

To define the settings for connections from the PC, select Menu > Settings > Connectivity > Packet data > Packet data settings > Active access point, activate the access point you want to use, and select Edit active access point. Select Alias for access point, and enter a nick name for the currently selected access point. Select Packet data access point, and enter the access point name (APN) to establish a connection to an EGPRS network.

Settings

To set the dial-up service settings (APN) on your PC, use the Nokia Modem Options software. See "PC Suite," p. 67. If you have set the settings both on the PC and on your phone, the PC settings are used.

Enhancements

This menu is shown only if the phone is or has been connected to a compatible mobile enhancement.

Select Menu > Settings > Enhancements. You can select an enhancement menu if the corresponding enhancement is or has been connected to the phone. Depending on the enhancement, select from the following options:

Default profile — to select the profile that you want to be automatically activated when you connect to the selected enhancement

Automatic answer — to set the phone to answer an incoming call automatically after 5 seconds. If Incoming call alert is set to Beep once or Off, automatic answer is off.

Lights — to set the lights permanently On. Select Automatic to set the lights on for 15 seconds after a key press

TTY/TDD > Use TTY > Yes – to use the TTY settings instead of headset or loopset settings

Configuration

You can configure your phone with settings that are required for certain services to function correctly. The services are browser, multimedia messaging, and remote Internet server synchronization. Get the settings from your SIM card, from a service provider as a configuration message, or enter your personal settings manually. You can store configuration settings for up to 20 service providers in the phone and manage them within this menu.

To save the configuration settings received by a configuration message from a service provider, see "Configuration settings service," p. 10.

Select Menu > Settings > Configuration and from the following options:

Default configuration settings — to view the service providers saved in the phone. Scroll to a service provider, and select Details to view the applications that the configuration settings of this service provider support. To set the configuration settings of the service provider as default settings, select Options > Set as default. To delete configuration settings, select Delete.

Activate default in all applications — to activate the default configuration settings for supported applications

Preferred access point - to view the saved access points. Scroll to an access point, and select Options > Details to view the name of the service provider, data bearer, and packet data access point or GSM dial-up number.

Connect to service provider support — to download the configuration settings from your service provider

Personal configuration settings - to add new personal accounts for various services manually and to activate or delete them. To add a new personal account if you have not added any, select Add new; otherwise, select Options > Add new. Select the service type, and select and enter each of the required parameters. The parameters differ according to the selected service type. To delete or activate a personal account, scroll to it, and select Options > Delete or Activate.

Security

When security features that restrict calls are in use (such as call restricting, closed user group and fixed dialing) calls still may be possible to the official emergency number programmed into your device.

Select Menu > Settings > Security and from the following options:

PIN code request — to set the phone to ask for your PIN or UPIN code every time the phone is switched on. Some SIM cards do not allow the code request to be turned off.

Call restrictions (network service) - to restrict calls to and from your phone. A restricting password is required.

Fixed dialing - to restrict your outgoing calls to selected phone numbers if this function is supported by your SIM card

Closed user group (network service) - to specify a group of people whom you can call and who can call you

Settings

Security level > Phone — the phone asks for the security code whenever a new SIM card is inserted into the phone. Select Memory, and the phone asks for the security code when SIM card memory is selected and you want to change the memory in use.

Access codes - to change the security code, PIN code, UPIN code, PIN2 code, and restricting password

Code in use — to select whether the PIN code or UPIN code should be active
Pin2 code request — to select whether PIN2 code is required when using a specific phone feature that is covered by the PIN2 code (depends on SIM card)

Restore factory settings

To reset some of the menu settings to their original values, select Menu > Settings > Restore settings. Enter the security code. The names and phone numbers saved in Contacts are not deleted.

10. Gallery

In this menu you can manage graphics, images, recordings, video clips, themes, and tones. These files are arranged in folders.

Your phone supports an activation key system to protect acquired content. Always check the delivery terms of any content and activation key before acquiring them, as they may be subject to a fee.

Copyright protections may prevent some images, music (including ringing tones), and other content from being copied, modified, transferred or forwarded.

The files stored in Gallery use a memory that may have a capacity of approximately 3 MB.

To see the list of folders, select Menu > Gallery.

To see the available options of a folder, select a folder > Options.

To view the list of files in a folder, select a folder > Open.

To see the available options of a file, select a file > Options.

Copyright protections may prevent some images, ringing tones, and other content from being copied, modified, transferred or forwarded.

Camera

You can take photos or record video clips with the built-in camera. The camera produces pictures in JPEG format and video clips in 3GP format.

When taking and using images or video clips, obey all laws and respect local customs as well as privacy and legitimate rights of others.

Your device supports an image capture resolution of 640 × 480 pixel. The image resolution in these materials may appear different.

Take a photo

Select Menu > Media > Camera. To take a photo, select Capture or press the camera release key. The phone saves the photo in Gallery > Images. To take another photo, select Back; to send the photo as a multimedia message, select Send. To view the options, select Options.

To take a self-portrait, close the fold and use the mini display as a view finder. Press the camera release key.

Record a video clip

Select Menu > Media > Camera. To select the video mode, scroll left or right, or select Options > Video; select Record, or press the camera release key. To pause the recording, select Pause; to resume the recording, select Continue. To stop the recording, select Stop. The phone saves the recording in Gallery > Video clips. To view the options, select Options.

Radio

The FM radio depends on an antenna other than the wireless devices antenna. A compatible headset or enhancement needs to be attached to the device for the FM radio to function properly.

Warning: Listen to music at a moderate level. Continuous exposure to high volume may damage your hearing. Do not hold the device near your ear when the loudspeaker is in use, because the volume may be extremely loud.

Select Menu > Media > Radio. To use the graphical keys , , , or on the display, scroll left or right to the desired key, and select it. To change the volume, press the volume keys.

Save radio channels

1. To start the channel search, select and hold or . To change the radio frequency in 0.05 MHz steps, briefly press or
2. To save the channel to a memory location, 1 to 9, press and hold the corresponding number key. To save the channel in the memory location from 10 to 20, press briefly 1 or 2, and press and hold the desired number key, 0 to 9.
3. Enter the name of the channel, and select OK.

Listen to the radio

Select Menu > Media > Radio. To scroll to the desired channel, select or , or press the headset key. To select a radio channel location, briefly press the corresponding number keys.

Select Options and from the following options:

Turn off - to turn off the radio

Save channel - to save a new channel and enter the channel name

Channels — to select the list of saved channels. To delete or rename a channel, scroll to the desired channel, and select Options > Delete channel or Rename.

Mono output or Stereo output - to listen to the radio in monophonic sound or in stereo

Loudspeaker or Headset - to listen to the radio using the loudspeaker or headset. Keep the headset connected to the phone. The lead of the headset functions as the radio antenna.

Set frequency - to enter the frequency of the desired radio channel

You can normally make a call or answer an incoming call while listening to the radio. During the call, the volume of the radio is muted.

When an application using a packet data or HSCSD connection is sending or receiving data, it may interfere with the radio.

■ Recorder

You can record pieces of speech, sound, or an active call for 5 minutes. The recorder cannot be used when a data call or packet data connection is active.

Record sound

1. Select Menu > Media > Recorder.
   To use the graphical keys, , , or on the display, scroll left or right to the desired key, and select it.
2. To start the recording, select . To start the recording during a call, select Options > Record. While recording a call, all parties to the call hear a faint beeping sound about every 2 seconds. When recording a call, hold the phone in the normal position near your ear.
3. To end the recording, select . The recording is saved in Gallery > Recordings.
4. To listen to the latest recording, select Options > Play last recorded.
5. To send the last recording using a multimedia message, Bluetooth technology, or IR, select Options > Send last recorded.

List of recordings

Select Menu > Media > Recorder > Options > Recordings list. The list of folders in the Gallery is shown. Open Recordings to see the list with recordings. Select Options to select options for files in the Gallery. See "Gallery," p. 47.

Alarm clock

You can set the phone to alarm at a desired time. Select Menu > Organizer > Alarm clock.

To set the alarm, select Alarm time, and enter the alarm time. To change the alarm time when the alarm time is set, select On. To set the phone to alert you on selected days of the week, select Repeat alarm.

To select the alarm tone or set a radio channel as the alarm tone, select Alarm tone. If you select the radio as an alarm tone, connect the headset to the phone. The phone uses the last channel you listened to as the alarm, and the alarm plays through the loudspeaker. If you remove the headset or switch off the phone, the default alarm tone replaces the radio.

To set a snooze time-out, select Snooze time-out.

Stop the alarm

The phone sounds an alert tone, and flashes Alarm! and the current time on the display, even if the phone is switched off. To stop the alarm, select Stop or open the phone. If you let the phone continue to sound the alarm for a minute or select Snooze, the alarm stops for the selected snooze time-out, then resumes.

If the alarm time is reached while the device is switched off, the device switches itself on and starts sounding the alarm tone. If you select Stop, the device asks whether you want to activate the device for calls. Select No to switch off the device or Yes to make and receive calls. Do not select Yes when wireless phone use may cause interference or danger.

Calendar

Select Menu > Organizer > Calendar.

The current day is indicated by a frame. If there are any notes set for the day, the day is in bold type. To view the day notes, select View. To view a week, select Options > Week view. To delete all notes in the calendar, select the month or week view and Options > Delete all notes.

Other options for the day view may be Make a note, Delete, Edit, Move, or Repeat a note; Copy a note to another day; Send note as a text message or multimedia message, with IR or Bluetooth technology to the calendar of another compatible phone. Select Settings to set the date and time. Select Auto-delete notes to set the phone to delete old notes automatically after a specified time.

Make a calendar note

Select Menu > Organizer > Calendar. Scroll to the date you want, and select Options > Make a note and one of the following note types: Meeting, Call, Birthday, Memo, or Reminder.

A note alarm

The phone beeps and displays the note. With a call note on the display, to call the displayed number, press the call key. To stop the alarm and to view the note, select View. To stop the alarm for approximately 10 minutes, select Snooze. To stop the alarm without viewing the note, select Exit.

To-do list

To save notes for tasks that you must do, select Menu > Organizer > To-do list.

To create a note if no note is added, select Add note; otherwise, select Options > Add. Write the note, and select the priority, the deadline, and the alarm type for the note. Then select Save. To view a note, scroll to it, and select View. You can also select an option to delete the selected note and all the notes that you have marked as done. You can sort the notes by priority or by deadline, send a note to another phone as a text message or multimedia message, using Bluetooth or IR, save a note as a calendar note, or access the calendar. While viewing a note, you can also select an option to edit the deadline or priority for the note or mark the note as done.

Notes

To use this application for writing and sending notes, select Menu > Organizer > Notes. To create a note if no note is added, select Add note; otherwise, select Options > Make a note. Write a note, and select Save.

Other options for notes include deleting and editing a note. While editing a note, you can also exit the text editor without saving the changes. You can send the note to compatible devices using a text message, a multimedia message, Bluetooth technology, or IR. If the note is too long to send as a text message, the phone asks you to delete the appropriate number of characters from your note.

Synchronization

Synchronization allows you to save your calendar and Contacts data on a remote Internet server (network service) or on a compatible PC. If you want to save data on the remote Internet server, to synchronize your phone, start the synchronization from your phone. To synchronize the data in the phone contacts, calendar, and notes to correspond with the data of your compatible PC, start the synchronization from the PC. The contact data in your SIM card is not synchronized.

Answering an incoming call during synchronization ends the synchronization, and you must restart it.

Synchronize from your phone

Before synchronizing from your phone, you must do the following:

• Subscribe to a synchronization service. For details, contact your service provider.
• Retrieve the synchronization settings from your service provider. See "Synchronization settings," p. 54.

To start the synchronization from your phone, do the following:

1. Select the configuration settings you need for the synchronization. See "Synchronization settings," p. 54.
2. Select Menu > Organizer > Sync > Server sync > Data to be synchronized.
3. Mark the data to be synchronized.
4. Select Menu > Organizer > Sync > Server sync > Synchronize.

The marked data of the active set is synchronized after confirmation. Synchronizing for the first time or after an interrupted synchronization may take up to 30 minutes to complete, if the contacts or calendar are full.

Synchronization settings

You may receive the configuration settings required for synchronization as a configuration message from the network operator or service provider. To manage the configuration settings, see "Configuration," p. 44.

1. Select Menu > Organizer > Sync > Server sync > Sync settings and from the following options:

Configuration - Only the configurations that support the synchronization are shown. Select a service provider, Default, or Personal config. for synchronization.

Account- Select a synchronization service account contained in the active configuration settings.

1. Select PC sync settings to enter the settings for server alerted synchronization. Set the User name and Password.

The user name and password must be the same in the phone and in the PC.

Synchronize from a compatible PC

To synchronize Contacts, Calendar, and Notes from a compatible PC, use an IR, a Bluetooth technology, or data cable connection. You also need Nokia PC Suite software of your phone installed on the PC. Start the synchronization from the PC using Nokia PC Suite.

Calculator

The calculator in your phone adds, subtracts, multiplies, divides, calculates the square and the square root, and converts currency values.

Note: This calculator has limited accuracy and is designed for simple calculations.

Select Menu > Organizer > Calculator. When 0 is displayed on the screen, enter the first number in the calculation. Press # for a decimal point. Select Options > Add, Subtract, Multiply, Divide, Square, Square root, or Change sign. Enter the second number. For a total, select Equals. Repeat this sequence as many times as it is necessary. To start a new calculation, first select and hold Clear.

To perform a currency conversion, select Menu > Organizer > Calculator. To save the exchange rate, select Options > Exchange rate. Select either of the displayed options. Enter the exchange rate, press # for a decimal point, and select OK. The exchange rate remains in the memory until you replace it with another one. To perform the currency conversion, enter the amount to be converted, and select Options > To home or To foreign.

Note: When you change base currency, you must enter the new rates because all previously set exchange rates are set to zero.

Stopwatch

To measure time, take intermediate times, or take lap times, use the stopwatch. During timing, the other functions of the phone can be used. To set the stopwatch timing in the background, press the end key.

Using the stopwatch or allowing it to run in the background when using other features increases the demand on battery power and reduces the battery life.

Select Menu > Organizer > Stopwatch and from the following options:

Split timing — to take intermediate times. To start the time observation, select Start. Select Split every time that you want to take an intermediate time. To stop the time observation, select Stop. To save the measured time, select Save. To start the time observation again, select Options > Start. The new time is added to the previous time. To reset the time without saving it, select Reset. To set the stopwatch timing in the background, press the end key.

Lap timing — to take lap times. To set the stopwatch timing in the background, press the end key.

Continue - to view the timing that you have set in the background.

Show last time — to view the most recently measured time if the stopwatch is not reset.

View times or Delete times - to view or delete the saved times.

- Countdown timer

Select Menu > Organizer > Timer. Enter the alarm time in hours, minutes, and seconds, and select OK. If you wish, write your own note text that is displayed when the time expires. To start the countdown timer, select Start. To change the countdown time, select Change time. To stop the timer, select Stop timer.

If the alarm time is reached when the phone is in the standby mode, the phone sounds a tone and flashes the note text if it is set or Countdown completed. To stop the alarm, press any key. If no key is pressed, the alarm automatically stops within 30 seconds. To stop the alarm and to delete the note text, select Exit. To restart the countdown timer, select Restart.

13. Applications

Games

Your phone software includes some games.

Launch a game

Select Menu > Applications > Games. Scroll to the desired game, and select Open.

For options related to a game, see "Other application options," p. 57.

Game downloads

Select Menu > Applications > Options > Downloads > Game downloads. The list of available bookmarks is shown. Select More bookmarks to access the list of bookmarks in the Web menu. See "Bookmarks," p. 61.

Important: Only install and use applications and other software from sources that offer adequate security and protection against harmful software.

Game settings

To set sounds, lights, and shakes for the game, select Menu > Applications > Options > App. settings.

Collection

Your phone software includes some Java applications specially designed for this Nokia phone.

Launch an application

Select Menu > Applications > Collection. Scroll to an application, and select Open.

Other application options

Delete - to delete the application or application set from the phone

Move - to move an application or game to an other folder

Details - to view additional information about the application

Applications

Update version - to check if a new version of the application is available for download from Web (network service)

App. access - to restrict the application from accessing the network. Different categories are shown. Select in each category, if available, one of the following permissions: Ask every time to set the phone to always ask for network access, Ask first time only to set the phone to ask for network access only on the first attempt, Always allowed to allow the network access, or Not allowed to not allow the network access.

Web page — to provide further information or additional data for the application from an Internet page. This feature must be supported by the network. It is only shown if an Internet address has been provided with the application.

Download an application

Your phone supports J2ME™ Java applications. Make sure that the application is compatible with your phone before downloading it.

Important: Only install and use applications and other software from sources that offer adequate security and protection against harmful software.

You can download new Java applications in different ways.

Select Menu > Applications > Options > Downloads > App. downloads. The list of available bookmarks is shown. Select More bookmarks to access the list of bookmarks in the Web menu. Select the appropriate bookmark to connect to the desired page. For the availability of different services, pricing, and tariffs, contact your service provider.

Select Menu > Web > Downloads. Download an appropriate application or game. See "Download files," p. 62.

Use the game download function. See "Game downloads," p. 57.

Use the Nokia Application Installer in PC Suite to download the applications to your phone.

Your device may have some bookmarks loaded for sites not affiliated with Nokia. Nokia does not warrant or endorse these sites. If you choose to access them, you should take the same precautions, for security or content, as you would with any Internet site.

You can access various mobile Internet services with your phone browser.

Important: Use only services that you trust and that offer adequate security and protection against harmful software.

Check the availability of these services, pricing, tariffs, and instructions with your service provider.

With the phone browser you can view the services that use wireless markup language (WML) or extensible hypertext markup language (XHTML) on their pages. Appearance may vary due to screen size. You may not be able to view all details of the Internet pages.

Set up browsing

You may receive the configuration settings required for browsing as a configuration message from the service provider that offers the service that you want to use. See "Configuration settings service," p. 10. You can also enter all the configuration settings manually. See "Configuration," p. 44.

Connect to a service

Verify that the correct configuration settings of the service that you want to use are activated.

1. To select the settings for connecting to the service, select Menu > Web > Settings > Configuration settings.
2. Select Configuration. Only the configurations that support browsing service are shown. Select a service provider, Default, or Personal config. for browsing. See "Set up browsing," p. 59.

Select Account and a browsing service account contained in the active configuration settings.

Select Display terminal window > Yes to perform manual user authentication for intranet connections.

Make a connection to the service in one of the following ways:

• Select Menu > Web > Home; or in the standby mode, press and hold O.
• To select a bookmark of the service, select Menu > Web > Bookmarks.

Web

• To select the last URL, select Menu > Web > Last web address.
• To enter the address of the service, select Menu > Web > Go to address, enter the address of the service, and select OK.

Browse pages

After you make a connection to the service, you can start browsing its pages. The function of the phone keys may vary in different services. Follow the text guides on the phone display. For more information, contact your service provider.

If packet data is selected as the data bearer, is shown on the top left of the display during browsing. If you receive a call or a text message, or make a call during a packet data connection, is shown on the top right of the display to indicate that the packet data connection is suspended (on hold). After a call the phone tries to reconnect the packet data connection.

Browse with phone keys

Use the navigation keys to browse through the page.

To select a highlighted item, press the call key, or select Select.

To enter letters and numbers, press the keys, 0 to 9. To enter special characters, press *.

Direct calling

The browser supports functions that you can access while browsing. You can make a phone call, send touch tones while a voice call is in progress, and save a name and a phone number from a page.

Appearance settings

While browsing, select Options > Other options > Appear. settings; or in the standby mode, select Menu > Web > Settings > Appearance settings and from the following options:

Text wrapping >On - to set the text to continue on the next line on the display. If you select Off, the text is abbreviated.

Font size > Extra small, Small, or Medium - to set the font size

Show images > No — to hide pictures on the page. This can speed up the browsing of pages that contain a lot of pictures.

Alerts > Alert for unsecure connection > Yes – to set the phone to alert when an encrypted connection changes to unencrypted during browsing
Alerts > Alert for unsecure items > Yes – to set the phone to alert when an encrypted page contains an unsecure item. These alerts do not guarantee a secure connection. For more information, see "Browser security," p. 63.

Character encoding > Content encoding — to select the encoding for the browser page content

Character encoding > Unicode (UTF-8) web addresses > On - to set the phone to send a URL as a UTF-8 encoding. You may need this setting when you access a Web page created in foreign language.

Screen size > Full or Small - to set the screen size

Cookies

A cookie is data that a site saves in the cache memory of your phone. Cookies are saved until you clear the cache memory. See "Cache memory," p. 63.

While browsing, select Options > Other options > Security > Cookie settings; or in the standby mode, select Menu > Web > Settings > Security settings > Cookies. To allow or prevent the phone from receiving cookies, select Allow or Reject.

■ Scripts over secure connection

You can select whether to allow the running of scripts from a secure page. The phone supports WML scripts.

1. While browsing, select Options > Other options > Security settings > Script settings; or in the standby mode, select Menu > Web > Settings > Security settings > Scripts over secure connection.

2. To allow the scripts, select Allow.

■ Bookmarks

You can save page addresses as bookmarks in the phone memory.

1. While browsing, select Options > Bookmarks; or in the standby mode, select Menu > Web > Bookmarks.

2. Scroll to a bookmark, and select it; or press the call key to make a connection to the page associated with the bookmark.

Web

1. Select Options to view, edit, delete, or send the bookmark; create a new bookmark; or save the bookmark to a folder.

Your device may have some bookmarks loaded for sites not affiliated with Nokia. Nokia does not warrant or endorse these sites. If you choose to access them, you should take the same precautions, for security or content, as you would with any Internet site.

Receive a bookmark

When you have received a bookmark that is sent as a bookmark, 1 bookmark received is displayed. To save the bookmark, select Show . To discard the bookmark directly after you have received the bookmark, select Exit.

Download files

To download more tones, images, games, or applications to your phone (network service), select Menu > Web > Downloads > and from the available download options.

Important: Only install and use applications and other software from sources that offer adequate security and protection against harmful software.

To save all downloaded files automatically in the appropriate folder in Gallery or in Applications, select Menu > Web > Settings > Downloading settings > Automatic saving > On.

Service inbox

The phone is able to receive service messages (pushed messages) sent by your service provider (network service). Service messages are notifications (for example, news headlines) and they may contain a text message or an address of a service.

To access the Service inbox in the standby mode, when you have received a service message, select Show. If you select Exit, the message is moved to the Service inbox. To access the Service inbox later, select Menu > Web > Service inbox.

To access the Service inbox while browsing, select Options > Other options > Service inbox. Scroll to the message you want, and to activate the browser and download the marked content, select Retrieve. To display detailed information on the service notification or to delete the message, select Options > Details or Delete.

Service inbox settings

Select Menu > Web > Settings > Service inbox settings.

To set whether you want to receive service message, select Service messages > On or Off.

To set the phone to receive service messages only from content authors approved by the service provider, select Message filter > On. To view the list of the approved content authors, select Trusted channels.

To set the phone to automatically activate the browser from the standby mode when the phone has received a service message, select Automatic connection > On. If you select Off, the phone activates the browser only after you select Retrieve when the phone has received a service message.

Cache memory

A cache is a memory location that is used to store data temporarily. If you have tried to access or have accessed confidential information requiring passwords, empty the cache after each use. The information or services you have accessed is stored in the cache.

To empty the cache, while browsing, select Options > Other options > Clear the cache; in the standby mode, select Menu > Web > Clear the cache.

Browser security

Security features may be required for some services, such as online banking or shopping. For such connections you need security certificates and possibly a security module, which may be available on your SIM card. For more information, contact your service provider.

Security module

The security module improves security services for applications requiring a browser connection, and allows you to use a digital signature. The security module may contain certificates as well as private and public keys. The certificates are saved in the security module by the service provider.

Select Menu > Web > Settings > Security settings > Security module settings and from the following options:

Security module details - to show the security module title, status, manufacturer, and serial number

Web

Module PIN request — to set the phone to ask for the module PIN when using services provided by the security module. Enter the code, and select On. To disable the module PIN request, select Off.

Change module PIN - to change the module PIN, if allowed by the security module. Enter the current module PIN code, then enter the new code twice.

Change signing PIN - to change the signing PIN code for the digital signature. Select the signing PIN you want to change. Enter the current PIN code, then the new code twice.

See also "Access codes," p. 9.

Certificates

Important: Note that even if the use of certificates makes the risks involved in remote connections and software installation considerably smaller, they must be used correctly in order to benefit from increased security. The existence of a certificate does not offer any protection by itself; the certificate manager must contain correct, authentic, or trusted certificates for increased security to be available. Certificates have a restricted lifetime. If Expired certificate or Certificate not valid yet is shown even if the certificate should be valid, check that the current date and time in your device are correct.

Before changing any certificate settings, you must make sure that you really trust the owner of the certificate and that the certificate really belongs to the listed owner.

There are three kinds of certificates: server certificates, authority certificates, and user certificates. You may receive these certificates from your service provider. Authority certificates and user certificates may also be saved in the security module by the service provider.

To view the list of the authority or user certificates downloaded into your phone, select Menu > Web > Settings > Security settings > Authority certificates or User certificates.

The security indicator X is displayed during a connection, if the data transmission between the phone and the content server is encrypted.

The security icon does not indicate that the data transmission between the gateway and the content server (or place where the requested resource is stored) is secure. The service provider secures the data transmission between the gateway and the content server.

Digital signature

You can make digital signatures with your phone if your SIM card has a security module. Using the digital signature can be the same as signing your name to a paper bill, contract, or other document.

To make a digital signature, select a link on a page (for example, the title of the book you want to buy and its price). The text to sign, which may include the amount and date, is shown.

Check that the header text is Read and that the digital signature icon is shown.

If the digital signature icon does not appear, there is a security breach, you should not enter any personal data such as your signing PIN.

To sign the text, read all of the text first, and select Sign.

The text may not fit within a single screen. Therefore, make sure to scroll through and read all of the text before signing.

Select the user certificate you want to use. Enter the signing PIN (see "Access codes," p. 9), and select OK. The digital signature icon disappears, and the service may display a confirmation of your purchase.

15. SIM services

Your SIM card may provide additional services that you can access. This menu is shown only if it is supported by your SIM card. The name and contents of the menu depend on the SIM card.

For availability and information on using SIM card services, contact your SIM card vendor. This may be the service provider, network operator, or other vendor.

To set the phone to show you the confirmation messages sent between your phone and the network when you are using the SIM services, select Menu > Settings > Phone > Confirm SIM service actions > Yes.

Accessing these services may involve sending messages or making a phone call for which you may be charged.

16. PC connectivity

You can send and receive email, and access the Internet when your phone is connected to a compatible PC through an IR or a data cable (CA-42) connection. You can use your phone with a variety of PC connectivity and data communications applications.

PC Suite

With PC Suite you can synchronize Contacts, calendar and to-do notes, and notes between your phone, and the compatible PC, or a remote Internet server (network service).

You may find more information about PC suite, for example, downloadable files in the support area on the Nokia Web site at www.nokia.com/support.

■ Packet data, HSCSD, and CSD

With your phone you can use the packet data, high-speed circuit switched data (HSCSD), and circuit switched data (CSD, GSM data).

For availability and subscription to data services, contact your network operator or service provider.

The use of HSCSD services consumes the phone battery faster than normal voice or data calls. You may need to connect the phone to a charger for the duration of data transfer.

Data communication applications

For information on using a data communication application, refer to the documentation provided with it. Making or answering phone calls during a computer connection is not recommended, as it might disrupt the operation. For better performance during data calls, place the phone on a stationary surface with the keypad facing down. Do not move the phone by holding it in your hand during a data call.

Charging and discharging

Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby times are noticeably shorter than normal, replace the battery. Use only Nokia approved batteries, and recharge your battery only with Nokia approved chargers designated for this device.

If a replacement battery is being used for the first time or if the battery has not been used for a prolonged period, it may be necessary to connect the charger and then disconnect and reconnect it to start the charging.

Unplug the charger from the electrical plug and the device when not in use. Do not leave fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

If the battery is completely discharged, it may take a few minutes before the charging indicator appears on the display or before any calls can be made.

Use the battery only for its intended purpose. Never use any charger or battery that is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object such as a coin, clip, or pen causes direct connection of the positive (+) and negative (-) terminals of the battery. (These look like metal strips on the battery.) This might happen, for example, when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15^ and 25^ (59°F and 77°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.

Nokia battery authentication guidelines

Always use original Nokia batteries for your safety. To check that you are getting an original Nokia battery, purchase it from an authorized Nokia dealer, look for the Nokia Original Enhancements logo on the packaging and inspect the hologram label using the following steps:

Successful completion of the four steps is not a total assurance of the authenticity of the battery. If you have any reason to believe that your battery is not an authentic original Nokia battery, you should refrain from using it and take it to the nearest authorized Nokia service point or dealer for assistance. Your authorized Nokia service point or dealer will inspect the battery for authenticity. If authenticity cannot be verified, return the battery to the place of purchase.

Authentication hologram

1. When looking at the hologram label, you should see the Nokia connecting hands symbol from one angle and the Nokia Original Enhancements logo when looking from another angle.

1. When you angle the hologram left, right, down, and up, you should see 1, 2, 3, and 4 dots on each side respectively.

1. Scratch the side of the label to reveal a 20-digit code, for example, 12345678919876543210. Turn the battery so that the numbers are facing upwards. The 20-digit code reads starting from the number at the top row followed by the bottom row.

1. Confirm that the 20-digit code is valid by following the instructions at www.nokia.com/batterycheck.

What if your battery is not authentic?

If you cannot confirm that your Nokia battery with the hologram on the label is an authentic Nokia battery, please do not use the battery. Take it to the nearest authorized Nokia service point or dealer for assistance. The use of a battery that is not approved by the manufacturer may be dangerous and may result in poor performance and damage to your device and its enhancements. It may also invalidate any approval or warranty applying to the device.

To find out more about original Nokia batteries, visit www.nokia.com/battery.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you protect your warranty coverage.

• Keep the device dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, remove the battery and allow the device to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity sensor, and light sensor lenses).
• Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the device and may violate regulations governing radio devices.
  Use chargers indoors.
• Always create a backup of data you want to keep (such as contacts and calendar notes) before sending your device to a service facility.

All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service facility for service.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Operating environment

Remember to follow any special regulations in force in any area and always switch off your device when its use is prohibited or when it may cause interference or danger. Use the device only in its normal operating positions. This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 2.2 centimeters (7/8 inch) away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the device the above-stated distance from your body.

In order to transmit data files or messages, this device requires a good quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed.

Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased.

Medical devices

Operation of any radio transmitting equipment, including wireless phones, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine if they are adequately shielded from external RF energy or if you have any questions. Switch off your device in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15.3 centimeters (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers should:

• always keep the device more than 15.3 centimeter (6 inches) from their pacemaker when the device is switched on;
  not carry the device in a breast pocket; and
• hold the device to the ear opposite the pacemaker to minimize the potential for interference.

If you have any reason to suspect that interference is taking place, switch off your device immediately.

Hearing aids

Some digital wireless devices may interfere with some hearing aids. If interference occurs, consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems, air bag systems. For more information, check with the manufacturer or its representative of your vehicle or any equipment that has been added.

Only qualified personnel should service the device, or install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the device. Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags inflate with great force. Do not place objects, including installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

Using your device while flying in aircraft is prohibited. Switch off your device before boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device at refuelling points such as near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, chemical plants or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust, or metal powders.

Emergency calls

Important: Wireless phones, including this device, operate using radio signals, wireless networks, landline networks, and user-programmed functions. Because of this, connections in all conditions cannot be guaranteed. You should never rely solely on any wireless device for essential communications like medical emergencies.

To make an emergency call:

1. If the device is not on, switch it on. Check for adequate signal strength.
   Some networks may require that a valid SIM card is properly inserted in the device.
2. Press the end key as many times as needed to clear the display and ready the device for calls.
3. Enter the official emergency number for your present location.

Emergency numbers vary by location.

1. Press the call key.

If certain features are in use, you may first need to turn those features off before you can make an emergency call. If the device is in offline or flight mode you must change the profile to activate the phone function before you can make an emergency call. Consult this guide or your service provider for more information.

When making an emergency call, give all the necessary information as accurately as possible. Your wireless device may be the only means of communication at the scene of an accident. Do not end the call until given permission to do so.

Certification information (SAR)

THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The actual SAR level of an operating device can be below the maximum value because the device is designed to use only the power required to reach the network. That amount changes depending on a number of factors such as how close you are to a network base station. The highest SAR value under the ICNIRP guidelines for use at the ear for device type RM-161 is 0.75W / kg , and for device type RM-162 is 0.74W / kg .

Use of device accessories and enhancements may result in different SAR values. SAR values may vary depending on national reporting and testing requirements and the network band. Additional SAR information may be provided under product information at www.nokia.com.

Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA) and Industry Canada. These requirements set a SAR limit of 1.6W / kg averaged over 1 gram of tissue. The highest SAR value reported under this standard during product certification for use at the ear and when properly worn on the body are:

Device type	IC	FCC ID	SAR at the ear	SAR on the body
RM-161	661U-RM161	PPIRM-161	0.53 W/kg	0.52 W/kg
RM-162	661U-RM162	PPIRM-162	0.64 W/kg	0.50 W/kg
		PPIRM-162X	0.89 W/kg	0.89 W/kg

Information about these device models can be found at http://www.fcc.gov/oet/fccid by searching the equipment authorization system using FCC ID: PPIRM-161, PPIRM-162, and FCC ID: PPIRM-162X.

Your device IC and FCC ID are listed on the label located under the battery.

Technical Information

Feature	Specification
Weight	97 g (3.42 oz)
Size	Volume: 77 cm³ (4.7 in³) Length: 85 mm (3.35 in) Width: 45 mm (1.77 in) Thickness: 24 mm (0.94 in)
Frequency range	RM-161 GSM 900 880-915 MHz (TX) 925-960 MHz (RX) GSM 1800 1710-1785 MHz (TX) 1805-1865 MHz (RX) GSM 1900 1850-1910 MHz (TX) 1930-1990 MHz (RX)	RM-162 GSM 850 824-849 MHz (TX) 869-894 MHz (RX) GSM 1800 1710-1785 MHz (TX) 1805-1865 MHz (RX) GSM 1900 1850-1910 MHz (TX) 1930-1990 MHz (RX)
Transmitter output power	Up to 2 W
Battery voltage	3.7 V dc BL-4C, 820 mAh
Operating times	Standby time: up to 350 hours Talk time: up to 4 hours
Operating temperature	15°C to + 25°C (59°F to + 77°F)

NUMERICS

1-touch dialing .19,34,35

A

access codes 9

accessories. See enhancements.

alarm clock 51

antenna 14

applications 57

download 11,58

audio messaging 29

B

battery

authentication 69

charge status 16

charging 13,68

discharging 68

installation 12

Bluetooth 41

settings 42

setup connection 41

bookmarks 61

browser

appearance settings 60

bookmarks 61

browsing pages 60

cache memory 63

cookies 61

digital signature 65

script settings 61

security module 63, 64

set up 59

business cards 33

C

cache memory 63

calculator 54

calendar 51

call

functions 19

key 15

log 36

settings 39

waiting 20

calls

1-touch dialing 19

answer 19

call waiting 20

decline 19

international 19

make a voice dialing call 35

options during call 20

recent calls list 36

camera 48

camera lens 15

care 71

character case 21

charge the battery 13

circuit switched data 67

clock settings 39

codes

access 9

PIN 9

PUK. 10

restricting password 10

security 9

configuration 44

setting service 10

Index

contact information 11

contacts

1-touch dialing 35

business cards 33

copy 33

delete 33

edit details 33

groups 34

my numbers 35

save 32

search 32

service numbers 35

settings 34

voice dialing 34

cookies 61

countdown timer .56

counters 36

CSD 67

customer service 11

D

data

communication 67

synchronization 53

date settings 39

delete

messages 30

digital signature 65

display settings 38

downloads

applications 11,58,62

content 11

files .62

E

EGPRS 43

emergency calls 74

end call 19

end key 15

enhancements 8

settings 44

explosive environments 74

F

factory settings 46

FM radio 48

folders

inbox 28

my folders 26

outbox 28

saved items 26, 28

sent items 28

functions

call 19

overview 9

G

gallery 47

games 57

H

handsfree. See loudspeaker.

hearing aids 73

high-speed circuit switched data ..67

HSCSD. See high-speed circuit

switched data.

1

indicators 17

info messages 30

infrared 42

infrared port 15

installation

battery 12

SIM card 12

Internet 59

IR. See infrared. 15

J

Java applications. See applications.

K

keyguard 18

keypad 15

keypad lock 18

keys

call key 15

camera 15

end key 15

keyguard 18

keypad 15

keypad lock 18

navigation keys 15

power on/off 15

scroll key 15

selection keys 15, 16

volume keys 15

L

language 21

lights 44

list of recordings 50

log 36

loudspeaker 15,20

M

main display 15, 16

maintenance 71

media 48

medical devices 72

memory

full 28

memory in use 34

menu

scrolling 23

message center number 24

message settings

multimedia messages 31

text and SMS 30

messages

audio messaging 29

delete 30

info messages 30

length indicator 24

message settings 30
service commands 30
voice messages 30
write SMS 25
write text message 25
messaging 24
microphone 15
mini display 15, 16
settings 39
MMS. See multimedia messages.
modem settings 43
multimedia messages 26
my numbers 35

N

names. See contacts.

navigation 23

navigation key

assign functions to 38

network

GSM 7

name on display 16

services 7

Nokia support 11

note alarm 52

notes 52

calendar 52

0

operation position 14
organizer
alarm clock 51
calculator 54
calendar 51
calendar note 52
countdown timer 56
note alarm 52
notes 52
stopwatch 55
to-do list 52

P

pacemakers .72

packet data 43,67

parts 15

PC connectivity 67

PC Suite 67

personal shortcuts 38

phone

care 71

configuration 44

keys 15

maintenance 71

open 12

parts 15

personalize 37

settings 40

phone lock. See keypad lock.

phonebook 32

photo 48

PIN codes 9,14

plug and play service 14

Pop-Port 15

power

key. 15

saving 17

profiles 37

PUK codes 10

pushed messages 62

R

radio 48

recent calls list 36

recorder 50

repair service 11

restricting password 10

ringing tones 37,47,62

S

safety

additional information 72

emergency calls .74

explosive environments 74

guidelines 6

hearing aids 73

medical devices 72

operating environment 72

pacemakers 72

vehicles 73

screen saver 17

scripts

secure connection 61

settings 61

scroll key 15

security

codes 9

module 63, 64

settings 45

selection keys 15, 16

service 11

commands 30

inbox 62

messages 62

numbers 35

services 59

settings

Bluetooth 42

call settings 39

clock 39

configuration 14, 44

connectivity 41

date 39

display 38

EGPRS 43

enhancements 44

infrared 42

main display 38

messages 30

mini display 39

modem settings 43

packet data 43

personal shortcuts 38

phone settings 40

profiles 37

restore factory settings 46

service inbox 63

shortcuts 38

themes 37

time 39

tones 37

shared memory 8

shortcuts 38

instandbymode 17

navigation key 17

personal list 17

signal strength 16

SIM card installation 12

SIM services 66

SMS 24

templates 26

standby mode 16

status indicators 16

stopwatch 55

trap 14

support 11

switch on and off 14

synchronization 53

T

take a photo 48

templates 26

text 21

text message 24

templates 26

themes 37

time settings 39

timers 36

to-do list 52

tones 37

U

unlock keypad 18

UPIN 9,10,14,46

V

vehicles 73

vibrating alert 37

video clip 48

voice

commands 34

dialing 34

messages 30

tags 34

volume keys 15

W

wallpaper 37

Web

bookmarks 61

connect 59

wireless markup language 59

WML 59

wrist strap 14

write text 21

writing language 21

X

XHTML 59

Notes

Servizio Plug and play

servizio plug and play 96

servicios 145

servicios SIM 153

Indice

sincronizacion 139

SMS 107

plantillas 109

soporte Nokia 93

T

tarjeta SIM

instalación 94
