LED solar lights

- Introduction

CONGRATULATIONS ON THE PURCHASE OF YOUR NEW LIGHT

You have selected a high quality product. The assembly instructions are part of this product. They contain important information on safety, handling and disposal. Familiarise yourself with all the functions of the appliance before operating it for the first time. To do so, read the following assembly and safety instructions. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

Intended use

The solar light is not suitable as residential room lighting.

The solar light is intended as an outdoor accent light. Any other use or modification of the product constitute improper use and pose a risk of short circuits, fire, electric shocks and damage to the product. The manufacturer is not liable for damage caused by improper use. The product is not intended for commercial use.

- Parts description

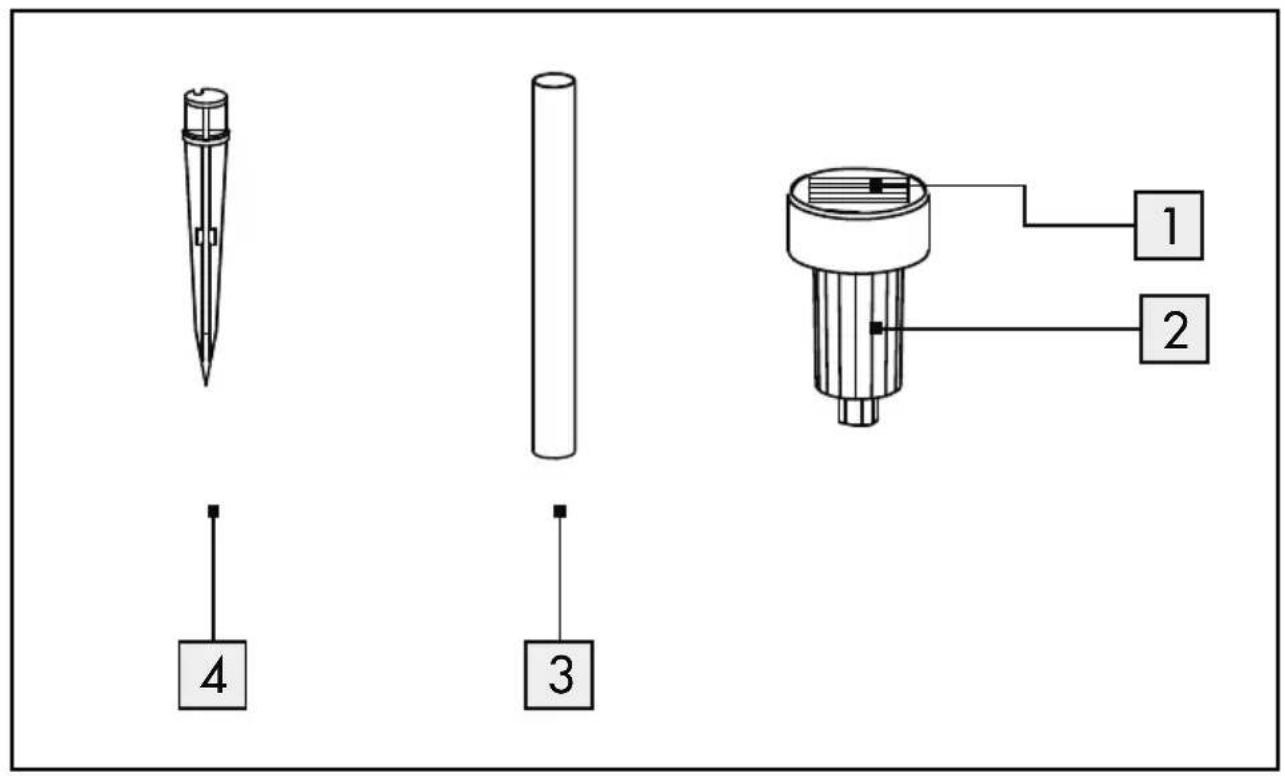

1 Solar cell housing
2 Lamp shade
3 Rod
4 Ground stake
5 ON/OFF switch
6 Fixing screws
7 Battery cover
8 Rechargeable battery

- Scope of delivery

Immediately after unpacking check the parts are complete and the product is in good condition.

5 x Lamp head with solar cell, LED and rechargeable battery
5 x Lamp shade
5 x Rod
5 x Ground stake
1 x Assembly instructions

- Technical Data

Item number: 54313

Battery: 1x Ni-Mh rechargeable

battery/AAA/1.2V/

150 mAh

Light bulb: 1x LED (not replaceable)

Rated power: 0.06 W per LED

Protection type: IPX4 (splash-proof)

Dimensions:

Solar light

(without ground stake): max. 23 x 5.5 cm (h x ∅)

Ground stake: 12.5 cm (h)

Distributor:

Edi Light GmbH, Heiligkreuz 22, A-6136 Pill

- Safety instructions

WARNING! ACCIDENT HAZARD AND RISK OF FATAL INJURY FOR INFANTS AND

CHILDREN!

■ Rechargeable batteries are not intended for the hands of children. Do not leave the batteries lying around. They may otherwise be swallowed by children or pets. If accidentally swallowed seek immediate medical attention.

Children or persons lacking knowledge or experience in handling the device or have limited physical, sensory or mental abilities, must not use the device without supervision or

instruction by a person responsible for their safety. Children must be supervised at all times to prevent them from playing with the device.

■ Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.
This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.
- Do not use the article if you detect any kind of damage.
DANGER - EXPLOSION HAZARD! Do not use the solar light in explosive environments containing flammable vapours, gasses or dusts.

●Product-specific safety instructions

• Do not expose the solar light to strong vibration or high mechanical loads.
  ■ Make sure the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel will diminish.
• Cold temperatures negatively impact the battery operating time. Clean and store the solar light in a dry, warm location during extended periods of non-use, e.g. in winter.
  In the event of damage, repairs or other problems with the solar light, please contact an electrician. The LEDs cannot be replaced!

DANGER - EXPLOSION HAZARD! Use only rechargeable batteries of the recommended type.

Other rechargeable or single-use batteries could explode during charging.

DANGER - RISK OF IN- JURY! Be sure to also remove the base and ground stake when remov-

ing the solar light to prevent hazards (e.g. tripping).

DANGER - FIRE HAZARD! Never switch the solar light on inside the packaging.

● Safety instructions for rechargeable batteries

Outdated or used rechargeable batteries may leak chemicals which damage the product. Therefore remove the rechargeable batteries when not using the solar light for extended periods.

DANGER - FIRE HAZARD!

Do not allow rechargeable batteries to short-circuit. Otherwise the rechargeable batteries may overheat, become a fire hazard or explode.

DANGER - EXPLOSION

HAZARD! Never throw rechargeable batteries into fire or water.

WARNING - WEAR

SAFETY GLOVES! If they come into contact with skin, leaked or

damaged rechargeable batteries could cause chemical burns; you should therefore wear suitable protective gloves at all times if such an event occurs.

Functionality

The solar module built into this product converts sunlight into electricity and stores it in the rechargeable NiMH battery. Switches on the light as it begins to get dark.

The in-built light-emitting diodes are a very long-life and energy-saving light source.

The light duration depends on the amount of sunlight, the angle of light on the solar panel and the temperature (the battery capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal.

The battery does not achieve maximum capacity until after several charge and discharge cycles.

- Start-up

- Assembling the light

Remove the individual parts from the packaging and assemble the solar light as shown in figures A, D, E.

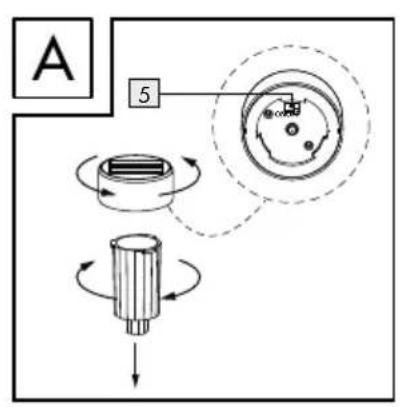

□ Unscrew the solar housing 1 counter-clockwise from the lamp shade 2 (see Fig. A).
☐ Set the On/Off switch 5 to the ON position to switch the lamp on.
☐ Insert the solar housing 1 into the lamp shade 2 and tighten, turning clockwise.
□ Attach the lamp to the rod 3.

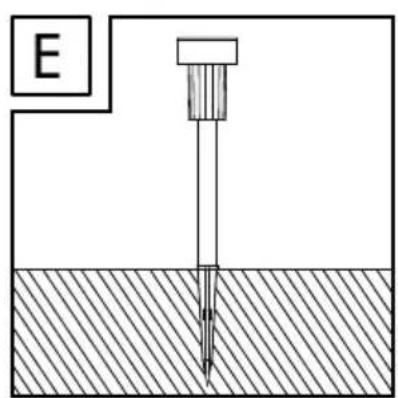

☐ Remove the ground stake 4 from the rod 3 and insert the ground stake 4 into the rod 3 with the tip pointing down (see Fig. D).

• Installing the light

The solar light can be installed without a power source. Only use the solar light with the included ground stake 4. Push the assembled solar light far enough into the ground (lawn, flower bed) so it is stable.

Since the light relies on sunlight, consider and observe the following points prior to installation:

☐ Select a location where the solar module 1 is exposed to direct sunlight during the day.
☐ Position the solar light so the solar module is not covered or in the shade (trees, roof ridge, etc.).
☐ Be sure the solar module 1 is not impacted by another light source, e.g. yard or street lighting, as this will prevent the light from switching on at twilight. Remember many light sources will only switch on due to the time or movement during the night.

Prior to initial use

The solar light features a twilight sensor and an On/Off switch. When fully charged the light on time is approx. 6 to 8 hours.

□ Unscrew the solar cell housing 1 counter-clockwise from the lamp shade 2 (see fig. A). Set the switch 5 to ON.
☐ Reattach the solar cell housing 1 to the lamp shade 2. Then assemble the remaining parts of the lamp (see Fig. D).

Lightfunctions

□Switch 5 set to ON - the solar light will automatically switch on at twilight. At dawn the light will automatically switch off.
□Switch 5 set to OFF - the solar light is permanently switched off.

● Replacing the battery

The rechargeable battery is designed for prolonged operation. However, after a long time of use if may need to be replaced. Rechargeable batteries are subject to natural wear and the output may decrease. For optimal performance the batteries should be replaced every 12 months.

Replace the battery as shown in figures B, C, D.

☐ Unscrew the solar cell housing 1 counter-clockwise from the lamp shade 2 (see fig. A). Switch the lamp off using the On/Off switch 5 by setting the switch to the „OFF“ position.

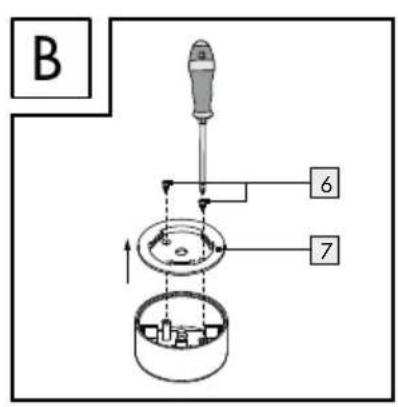

Remove the fixing screws 6 using a small cross-tip screwdriver. Then open the battery cover 7 on the solar cell housing 1 using a flat-head screwdriver (see Fig B).
☐ Replace the old rechargeable battery 8 with a new one. Be sure to insert the batteries in the correct direction. It is indicated in the battery compartment. Use only rechargeable batteries of the recommended type (see „Technical Data“).
☐ Set the ON/OFF switch 5 to the „ON” position.
☐ Reattach the solar cell housing 1 to the lamp shade 2. Then assemble the remaining parts of the lamp (see Fig. D).

- Troubleshooting

NOTE

The device contains delicate electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. These could be e.g. mobiles, two-way radios, CB radios, wireless remote controls/other remote controls and microwaves. If you notice that the device is malfunctioning, remove any sources of interference from the area of the device.

NOTE

Electrostatic discharges can lead to malfunctions. In the event of such malfunctions briefly remove and reinsert the rechargeable batteries.

NOTE

The power of the rechargeable battery varies according to the weather and will be higher in summer than in winter.

Fault Cause Solution
LEDs won't light up	Surroundings are too bright or light from other light sources is hitting the solar light	Change the location (away from e.g. yard or street lighting)
Weak LED light	Battery not fully charged or defective	Charge the rechargeable battery with a charger or replace with a new rechargeable battery (see "Replacing the battery")
LEDs defective		The LEDs cannot be replaced. Dispose of the product properly (see "Disposal")

● Maintenance/Cleaning

The LEDs cannot be replaced. The solar light is maintenance-free.

■ Never use caustic cleaners.
☐ Regularly clean the solar light with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.
☐ Replace the rechargeable batteries if the light on time decreases noticeably after some time despite good sun exposure (see chapter „Replacing the battery“). Only use rechargeable batteries of the right size and of the recommended type (see section „Technical data“).

- Batteryleaks

If a battery leaked, try to remove the fluid from the battery compartment using a soft cloth.

DANGER - RISK OF CHEM-

ICAL BURNS! Leaking batteries can cause in chemical burns. Be

careful not to allow the battery fluid to come into contact with your skin or your eyes. If this does happen, immediately try to remove the battery fluid under cold running water. Seek medical attention to be safe.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities. Contact your local community or municipal administration for more details on how to dispose your worn-out product.

NOTE

To help protect the environment, please dispose of the product properly, and not in household waste, when it has reached the end of its useful life. Please contact your local authority for information on collection points and their opening hours.

In accordance with directive 2006/66/EC, defective or used rechargeable batteries must be recycled. Return rechargeable batteries and / or the appliance using the recycling facilities provided.

NOTE

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your municipal collection site.

consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

- Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and

documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.
