IAN 280436 - Lighting Livarno Lux - Free user manual and instructions

Product type	LED lamp
Dimensions (L x W x H)	30 x 30 x 5 cm
Weight	0.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	12 W
Luminous flux	800 lm
Color temperature	3000 K (warm white)
Lifetime	25 000 hours
Beam angle	120°
Protection rating	IP20
Material	Aluminum and plastic
Main functions	On/off by switch
Maintenance and cleaning	Clean with a dry, soft cloth
Safety	Do not immerse in water, disconnect before maintenance
Spare parts and repairability	Not user-repairable, contact customer service
General information	Manual downloadable at notice-facile.com

Frequently Asked Questions - IAN 280436 Livarno Lux

How to install the Livarno Lux IAN 280436 lamp?

Attach the bracket to the ceiling or wall, connect the power cable, and turn on the switch. Ensure the power is off during installation.

Can I use this lamp with a dimmer?

No, this lamp is not dimmable. Use it only with a standard switch.

What is the color temperature of the lamp?

The color temperature is 3000 K, producing a warm white light.

How to clean the lamp?

Disconnect the lamp and wipe it with a dry, soft cloth. Do not use abrasive cleaners or solvents.

Is the lamp suitable for outdoor use?

No, the IP20 protection rating indicates it is designed for indoor use only.

What to do if the lamp does not turn on?

Check that the lamp is properly connected and that the switch is on. If the problem persists, contact customer service.

Can the bulb be replaced?

No, the lamp uses non-replaceable integrated LEDs. In case of failure, replace the entire fixture.

What is the lifetime of the lamp?

The lifetime is estimated at 25 000 hours, which is about 10 years of daily use of 6 hours.

Where can I download the manual?

The manual is available for free on notice-facile.com in PDF format.

Is the lamp delivered with a power cable?

Yes, a power cable is included in the packaging for direct connection.

USER MANUAL IAN 280436 Livarno Lux

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Vertical grayscale gradient bar with a small crosshair symbol at the bottom (no text or labels)

Edi Light GmbH

Heiligkreuz 22

AT-6136 Pill

AUSTRIA

Operation and Safety Notes

NL BE

LED-PENDELLAMP

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and Safety Notes Page 13

Close-up of hands using a tool to adjust or install a metallic component (no visible text or symbols)

Close-up of hands holding a small object with granular material (no visible text or symbols)

Close-up of hands using tweezers to draw a small electronic component (no visible text or symbols)

B

Close-up of a black and white object with a coiled wire, possibly a tool or device (no visible text or symbols)

Hand holding a small object with wires, possibly a tool or device (no visible text or symbols)

Close-up of a black handheld device with a white cable and two small metallic components on a plain surface (no text or symbols visible)

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

C

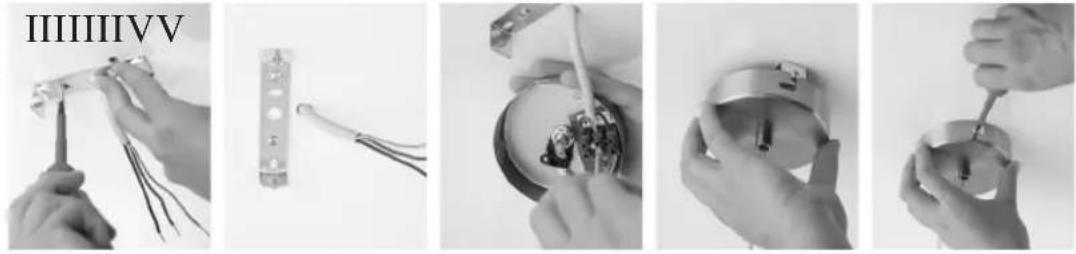

Five-panel sequence showing hands assembling wires and components, including a mechanical component being inserted (no text or symbols visible)

D

Four-panel sequence showing hands using a mechanical tool to adjust a gear and cable (no text or symbols visible)

E

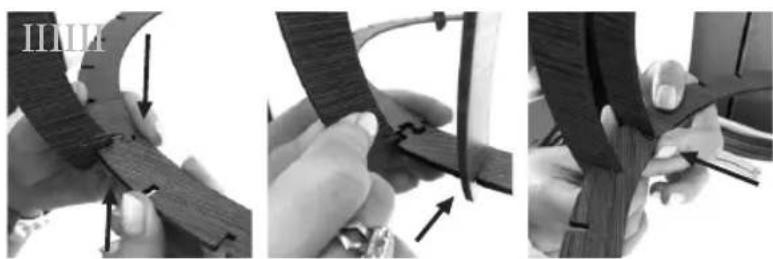

Three-step black-and-white photo showing hands adjusting a flexible fabric or cable, with arrows indicating the process (no text or symbols visible)

F

G

Four grayscale images of a 3D-printed flask with internal wire structures, labeled III, IIIIV, and IV (no text or symbols on the objects themselves)

H

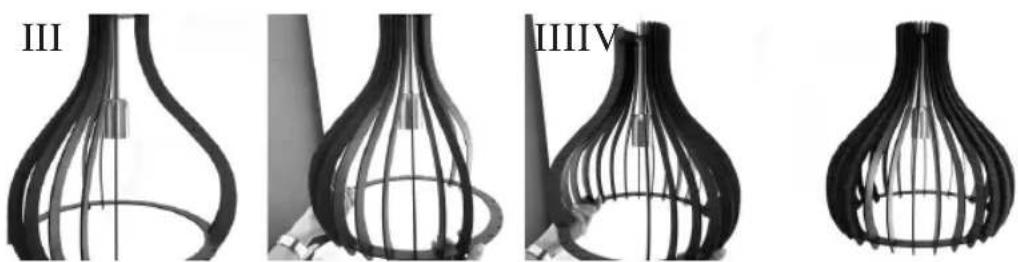

Two-panel image: left shows a wireframe birdcage with a hand holding a light bulb; right shows a hand adjusting an electronic control panel (no visible text or symbols)

EDI Light Service Center

Heiligkreuz 22

AT-6136 Pill / AUSTRIA

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

CH-6032 Emmen

SCHWEIZ

E-Mail: [e-mail]

Telefon: [phone]

IAN 280436

EDI Light Service Center

c / o RTS Service Solutions

Halle 17-1

Intended Use Page 14

Scope of delivery Page 14

Parts Description......Page 14

Technical Data Page 15

Safety Page 15

Safety Notices....Page 15

Preparation Page 16

Required tools and materials......Page 16

Prior to installation Page 16

Initial use Page 16

Installing the light Page 16

Inserting / replacing the light bulb....Page 16

Switching the light on/off Page 16

Maintenance and Cleaning Page 16

Disposal Page 17

Declaration of Conformity Page 17

Warranty / Service centre Page 17

Warranty Page 17

Service address......Page 18

Warranty card......Page 18

13 GB/IE

Introduction

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
[3772]	Safety Notices Instructions		Accident hazard and risk of fatal injury for infants and children!
	This light is only suitable for indoor use in dry, enclosed spaces.		Warning! Risk of electric shock!
	Volt (AC) Caution - hot surfaces!
	Hertz (frequency) Not dimmable.
	Watt (effective power)		Product meets the applicable Euro- pean product-specific directives
	Earth conductor		Dispose of the packaging and the product in an environmentally friendly manner!

LED pendant lamp

flammability. This product is only intended for private household use.

●Introduction

Congratulations on the purchase of your new product. In doing so you have chosen a top-quality product. Please be sure

to carefully read all the instructions for installation and use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

IntendedUse

This light is only suitable for indoor use in dry, enclosed spaces. The light can be mounted to any surface of normal

- Scope of delivery

Always verify the parts are complete and undamaged immediately after unpacking.

1 LED pendant light (with 26 slats)

1 LED light bulb

2 Wall plugs

2 Screws

1 Set of assembly instructions and instructions for use

PartsDescription

1 Wall plug
2 Mounting bracket
3 Screws (mounting bracket)
4 Locating screw (connection housing)
5 Connection housing
6 Socket
7 Slat (26x)

Production / Safety

Light bulb

Terminal block

●TechnicalData

Item number: 54579 / 54581 / 54582 Light:

Operating voltage: 220–240V\~50/60Hz Bulb: LED E27 6.5 W Rated power max.: 40W Protection class: I Dimensions: Length: max. approx. 120 cm, pendant ∅: approx. 30.5 cm

Distributor:

Edi Light GmbH, Heiligkreuz 22, A-6136 Pill, www.edi-light.com

●Safety

Safety Notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

WARNING! RISK OF ACCIDENT AND DANGER TO LIFE FOR INFANTS AND CHIL-

DREN! This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

■ Ensure the electrical connection is carried out by a qualified electrician or a person trained in electrical installations.
We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the light if any damages have been detected.
■ Remove the fuse or switch off the circuit breaker (0 setting) in the fuse box prior to installation.
- Never allow the light to come into contact with water or other liquids.
Before using this product, verify the available mains voltage matches the voltage required to operate the light (220-240V\~50/60Hz).
- Be sure not to damage any wires during installation.

Prevent fire and injury hazards

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Verify

the light has been switched off and has cooled down before touching it to avoid burns.

This light is not suitable for dimmers or electronic switches.

Do not attach the light to a damp or conductive surface.
Do not leave the light or packaging material lying unattended. Plastic film / bags, plastic parts, etc. are dangerous for children to play with.
Do not look directly into the light source (light bulb, LED, etc.).
- Do not use optical instruments to look at the light source.

15 GB/IE

Preparation/Prior to installation/Initial use/Maintenance and Cleaning

● Preparation

- Required tools and materials

The tools and materials specified are not included. This information and values specified are non-binding and are only provided as a reference. The composition of the material is based on specific conditions on site.

• Pencil / marking tool
• Voltage tester
• Screwdriver
• Power drill
• Drill bit (ø approx. 0.6 cm)
• Side cutters
• Ladder

- Prior to installation

Important: The electrical connection must be carried out by an electrically skilled person. This person must be familiar with the properties of the light and the connection requirements.

• Familiarise yourself with all the instructions and diagrams in this manual as well as with the light itself prior to installation.
  Prepare the installation with care and allow sufficient time. Organise all parts and any other required tools or materials before starting so they are easy to reach.
  ■ Always be attentive! Always pay attention to what you are doing and always proceed with caution. Never install the light if you are having difficulty concentrating or do not feel well.
  Prior to installation, ensure the circuit to which the light will be connected is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).
  ■ Use the voltage tester to verify it is de-energised.
• Be careful not to damage any electrical cables or gas or water lines when drilling into the wall.
• Please refer to the instructions for use for your power drill.

- Initial use

- Installing the light

☐ Remove the fuse or switch off the circuit breaker (position 0) in the fuse box prior to installation (Fig. A/I).
☐ Install the light as shown in Figures A / II - H / I.
☐ Reinstall the fuse or switch on the circuit breaker in the fuse box (position I) (Fig. H / II).

Your light is now ready to use.

- Inserting / replacing the light bulb

WARNING! DANGER OF

ELECTRIC SHOCK! When inserting / replacing the light bulb, first disconnect

the light from the mains. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0) (Fig. A / I).

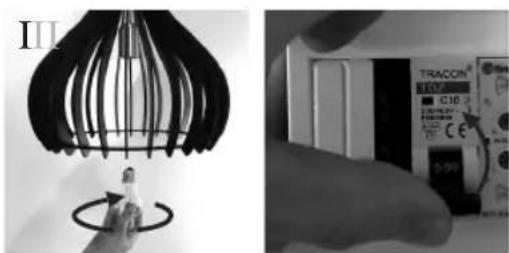

☐ Replace the light bulb as shown in Figure H / I.
☐ Please refer to chapter „Technical Data“ for the light bulb required for the respective model.
☐ Reinstall the fuse or switch on the circuit breaker in the fuse box (position I) (Fig. H / II).

- Switching the light on / off

☐ Use the wall switch to switch the light on or off.

● Maintenance and Cleaning

WARNING! DANGER OF

ELECTRIC SHOCK! Disconnect the

light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0) (Fig. A / I).

A NGERIOG!

ELECTRIC SHOCK! To ensure electrical safety, never clean the light with aggressive detergents or immerse it in water.

Maintenance .../Disposal/Declaration of Conformity/Warranty/Service centre

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the light.
  ☐ Use a duster or brush when cleaning if necessary.
  ☐ Reinstall the fuse or switch on the circuit breaker in the fuse box (position I) (Fig. H / II).

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and

documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / Service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

Warranty / Service centre

●Serviceaddress

Great Britain

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton NN3 6UR

T: [phone]

E: [e-mail]

IAN 280436

Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.

Warrantycard

Return address:

Name / First name:

Country/Postal code/City/Street address:

Phone:

Item number / Description:

Purchase date / Point of purchase:

Description of the defect:

Date / Signature:

Non-warranty cases:

Please return the unrepaired item, carriage paid.

Please provide pricing. Repair the product against charge.
