IAN 283329 - Lighting Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	IAN 283329
Product type	LED table lamp
Reference numbers	14120806L, 14121009L, 14120905L
Power supply	230-240 V~, 50 Hz
Rated power	4 W
Protection class	II
Bulb base	E27
Compatible bulb	LED, max. 4 W
Use	Indoor, dry and enclosed rooms
Switch	On cable
Orientation	Adjustable arm (model 14120905L)
Cleaning	Dry lint-free cloth
Disposal	Recycling according to local regulations
Warranty	36 months
After-sales service	Briloner, tel. [phone], email [e-mail]

Frequently Asked Questions - IAN 283329 Livarno Lux

How to change the bulb?

Disconnect the lamp from the socket. Allow it to cool completely. Use a clean cloth to unscrew the old bulb counterclockwise. Screw in the new LED bulb E27 max. 4 W clockwise. Reconnect.

Can I use a dimmer with this lamp?

No, this lamp is not suitable for dimmers or electronic switches.

What is the maximum bulb wattage?

Use only LED bulbs with a maximum power of 4 W with E27 base.

How to clean the lamp?

Always unplug the lamp. Clean with a dry lint-free cloth. Never use water or solvents.

What to do if the lamp does not light up?

Check that the plug is properly inserted and the bulb is screwed in correctly. If the problem persists, contact Briloner after-sales service.

Does the lamp get hot?

Yes, the bulb can become very hot. Do not touch during operation and let it cool down before handling.

Can I use the lamp outdoors?

No, this lamp is designed only for indoor use in dry and enclosed rooms.

How to adjust the lamp?

The lamp arm (model 14120905L) is adjustable. To change the position, loosen the fixing screw, adjust, then retighten.

What is the warranty period?

The warranty is 36 months from the date of purchase. Keep the receipt.

How to contact after-sales service?

Contact Briloner by phone at +49 (0) 29 61 / 97 12-800 or by email at [e-mail]. Reference IAN 283329.

USER MANUAL IAN 283329 Livarno Lux

Assembly, operating and safety instructions

NL BE

LED-TAFELLAMP

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

14120905L

Included items Page 12

Parts Description......Page 12

Technical Data Page 13

Safety Page 13

Safety advice......Page 13

Initial use Page 14

Assembling the light....Page 14

Switching the light on/off......Page 14

Adjusting the lamp Page 14

Changing the bulb....Page 14

Care and cleaning......Page 14

Disposal Page 15

Warranty and Service......Page 15

Warranty Page 15

Service address......Page 15

Declaration of Conformity....Page 15

Manufacturer....Page 15

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
	Volt (AC) Warning! Risk of electric shock
	Hertz (mains frequency) For your safety
	Watt (effective power)		This light is not suitable for dimmer or electronic switches.
	Safety class II Warning - Hot surfaces!
	This light is only suitable for indoor use in dry and enclosed spaces.		Dispose of the packaging and device in an environmentally-friendly manner!

LED desk lamp

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Please read carefully and

completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

Properuse

This light is suitable only for interior use, in dry and enclosed spaces. This lamp is intended for use only in a domestic

environment.

Includeditems

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

Model no.: 14120806L/14121009L

1 LED desk lamp
3 Tubes (each 2-piece)
1 Lamp shade
1 Bulb
1 Set of assembly instructions and instructions for use

Model no.: 14120905L

1 LED desk lamp
1 Lamp shade with light bulb holder
1 Tube with base
1 Bulb
1 Set of assembly instructions and instructions for use

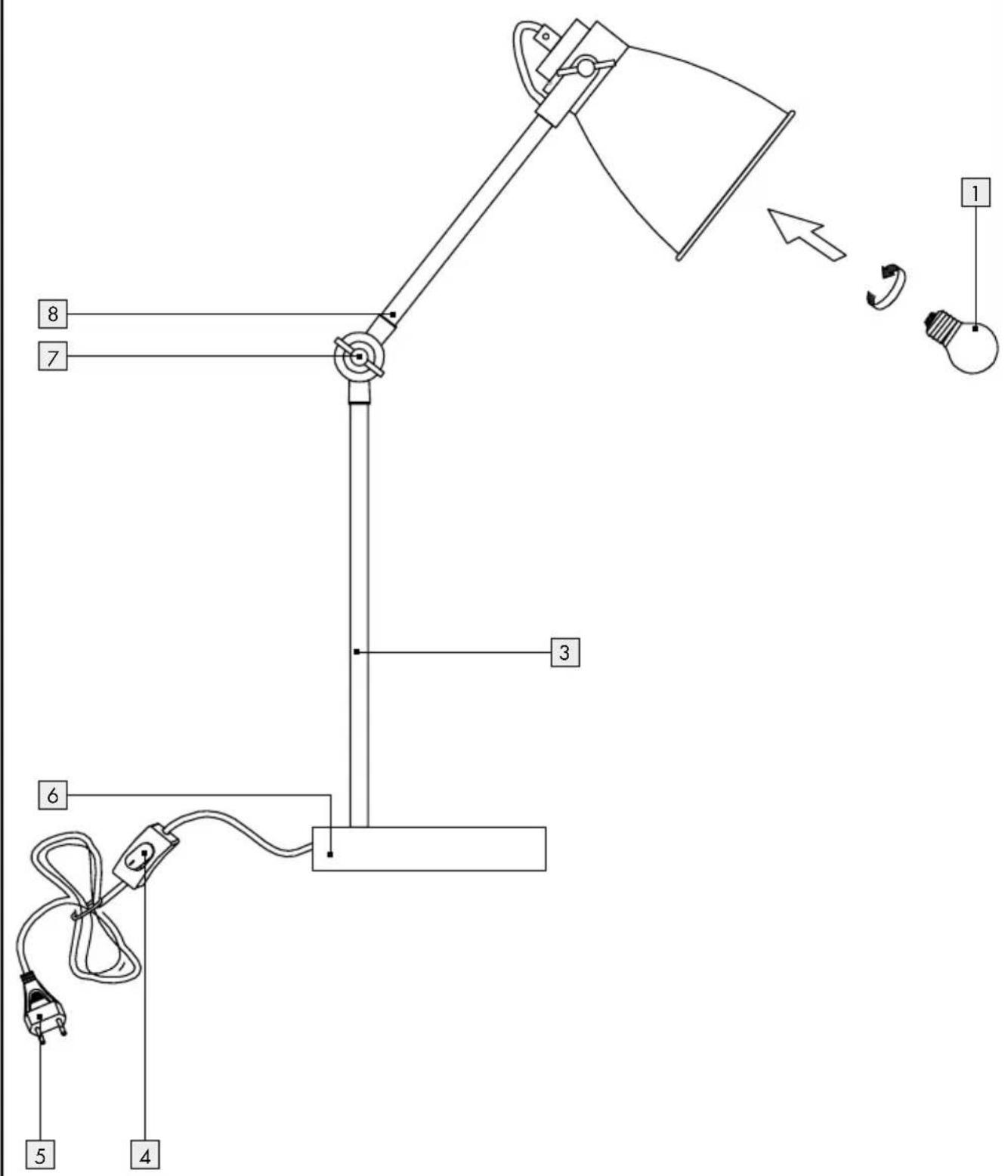

PartsDescription

1 Light bulb
2 Screw thread (14120806L/14121009L)
3 Tube
4 In-line switch
5 Mains plug

6 Base (14120905L)
7 Locating screw (14120905L)
8 Lamp arm (14120905L)

●TechnicalData

Model no.: 14120806L/14121009L/14120905L

Operating voltage: 230-240 V\~50 Hz

Rated power: 4 W

Protection class: II/

●Safety

Safetyadvice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice!

To avoid danger to life from electric shock

■ Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way.
WARNING! A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician.
In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service representative of the manufacturer or a similar specialist!
Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (see "Technical Data").

■ Never let the lamp come into contact with water or other liquids.
■ Always unplug the light from the mains prior to assembly, disassembly, cleaning or if the light will not be used for extended periods.
■ Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.

To avoid danger of fire and injury

CAUTION! RISK OF INJURY! Check bulbs for damage immediately after unpacking. Do not fit defective bulbs into the light. If they are, contact the service point for a replacement.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp.

• Do not cover the light or the mains plug with objects. Excessive heat can result in a fire.
  ■ Never leave the lamp operating unattended.
  Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.

ATTENTION!

• Do not look into the LED from a close distance during operation.
  Do not look at the LED with an optical instrument (e.g. magnifier).
  This light is not suitable for dimmer or electronic switches.

Working safely

• Install the light so that it is protected from moisture and dirt.
  Prepare carefully before assembly and allow yourself enough time. Lay out all the individual components and additional tools or materials required so that you can see and reach them.

Safety / Initial use / Care and cleaning

• Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.
  In order to disconnect the lamp completely from the power supply, the mains plug 5 must be removed from the socket.

Initialuse

- Assembling the light

Model no.: 14120806L/14121009L

☐ Connect the sections of the tube 3 and screw in place.
Note: Be sure to screw in the tubes as far as possible so that the light is stable.
☐ Repeat this process with all sections of the tube 3.
☐ Assemble the lamp head by screwing the tubes 3 one after the other onto the screw thread 2.
Note: Be sure to screw in the tubes as far as possible so that the light is stable.
☐ Use a clean, lint-free cloth to insert the bulb 1.
□ Screw the bulb 1 clockwise into the lamp socket.
☐ Plug the mains plug 5 into a properly installed socket.
□ Verify it is seated correctly.

Model no.: 14120905L

☐ Use a clean, lint-free cloth to insert the bulb 1.
☐ Screw the bulb 1 clockwise into the lamp socket.
☐ Plug the mains plug 5 into a properly installed socket.
□ Verify it is seated correctly.

Your light is now ready to use.

- Switching the light on / off

☐ Use the in-line switch ☐ to turn the LED light on and off.

- Adjusting the lamp

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the lamp to cool down completely.

Model 14120905L: Bring the lamp arm into the desired position 8. If the lamp arm 8 changes position, retighten the locating screw 7.

All models: The lamp head for all models can be moved up or down.

- Changing the bulb

WARNING! DANGER OF ELECTRIC

SHOCK! First unplug the mains plug 5 from the socket.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! Allow the light to cool down completely. Only replace the lamp after it has completely cooled off.

☐ Use a clean, lint-free cloth when replacing the bulb 1.
□ Twist the defective bulb 1 anti-clockwise out of the bulb socket.
☐ Only use LED bulbs with a maximum output of 4 W and E27 base.
☐ Insert the new bulb 1 into the bulb socket and turn it clockwise to tighten it. Ensure that it is positioned correctly.
☐ Plug the mains plug 5 into the socket again.

Care and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

First pull the mains plug 5 out of the mains socket.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! First allow the lamp to cool completely.

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water.

• Do not use any solvents, petrol or similar. This would cause damage to the light.
  □ Always use a dry, fluff-free cloth for cleaning.
  ☐ Plug the mains plug 5 into the socket again.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

●Serviceaddress

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

- Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

● Warranty and Service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14120806L/14121009L/14120905L. Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the

Manufacturer
