IAN 288507 - Lighting Livarno Lux - Free user manual and instructions

Product type	LED floor lamp
Brand	Livarno Lux
Model	IAN 288507
Item reference number	54668 / 54669
Use	Indoor, dry and enclosed rooms
Supply voltage	220-240 V ~ 50/60 Hz
Bulb type	LED (E27 base)
Power of supplied bulb	6.5 W
Maximum permissible power	60 W
Protection class	II
Maximum height	approx. 140 cm
Diameter	approx. 46 cm
Delivery contents	Lampshade, 3 lamp feet, LED bulb, socket with power cable, mounting material (3 cap nuts, 3 washers, 1 tightening key), instruction manual and warranty card
Switch	Foot switch (on/off)
Dimmer	No (intensity not adjustable)
Cleaning	With a dry, lint-free cloth
Warranty	3 years
After-sales service (France)	EGLO FRANCE LUMINAIRE SARL, ZA Jeune Bois, 2 Rue de la Martinique, FR-68274 Wittenheim, Tel. [phone], [e-mail]
After-sales service (Belgium)	EGLO BELGIUM B.V.B.A., Antwerpsesteenweg 247, BE-2950 Kapellen, Tel. [phone], [e-mail]
Distributor	EDI Light GmbH, Heiligkreuz 22, A-6136 Pill, www.edi-light.com

Frequently Asked Questions - IAN 288507 Livarno Lux

How to assemble the lamp?

Follow the illustrations provided in the manual. Start by unpacking all components and assemble the feet, lampshade, and socket using the supplied mounting material (cap nuts, washers, and tightening key).

Which bulb should I use to replace the supplied LED bulb?

Use exclusively an E27 LED bulb with a maximum power of 60 W (the supplied bulb has a nominal power of 6.5 W). Follow the specifications listed in the 'Technical specifications' section.

Can I use a dimmer with this lamp?

No, the light intensity of this lamp is not adjustable. The supplied LED bulb is not dimmable.

How to clean the lamp?

Always unplug the power plug before cleaning. Let the lamp cool down. Use a dry, lint-free cloth. Never use aggressive detergents, solvents, or similar products.

What to do if the bulb does not light up?

Check that the lamp is properly plugged in and the switch is in the on position. If it still does not work, replace the bulb with a new one of the same type. Make sure the mains voltage matches (220-240 V~).

Can the lamp be used outdoors?

No, this lamp is designed exclusively for indoor use in dry, enclosed rooms. Do not expose it to moisture or weather.

How to change the bulb safely?

Unplug the power plug. Let the lamp cool down completely (at least 15 minutes). Unscrew the defective bulb counterclockwise and carefully screw in the new bulb. Then plug it back in.

What does the 3-year warranty cover?

The warranty covers defects in materials or workmanship for 3 years from the date of purchase. Excluded are damages resulting from misuse, normal wear (e.g., bulbs) and consumable parts.

Can I cover the lamp with a cloth or object?

No, never cover the lamp. Excessive heat buildup may cause a fire. Keep the lamp away from any objects that could cover it.

How to contact after-sales service?

For France: EGLO FRANCE LUMINAIRE SARL, phone [phone], email [e-mail]. For Belgium: EGLO BELGIUM B.V.B.A., phone [phone], email [e-mail]. Have your receipt and article reference number (IAN 288507) ready.

USER MANUAL IAN 288507 Livarno Lux

Modern minimalist table lamp with a white circular shade and wooden legs (no text or symbols visible)

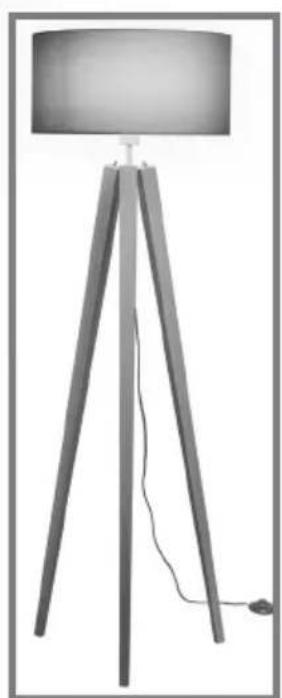

Modern wooden tripod lamp with a circular top and cable, shown against a plain background (no text or symbols)

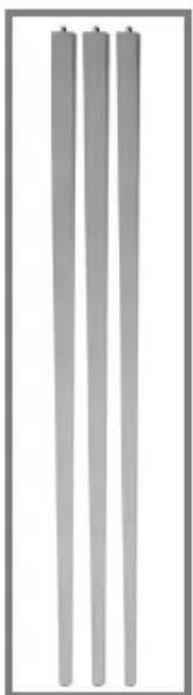

Three vertical gray bars with small protrusions at the top, arranged horizontally (no text or symbols)

LED-STEHLEUCHTE / LED FLOOR LAMP / LAMPADAIRE À LED

DE AT CH

LED-STEHLEUCHTE

Operation and Safety Notes

NL BE

STAANDELED-LAMP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and Safety Notes Page 11

EDI Light Service Center

c / o RTS Service Solutions

Halle 17-1

EDI Light Service Center

Heiligkreuz 22

AT-6136 Pill

AUSTRIA

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

CH-6032 Emmen

SCHWEIZ

E-Mail: [e-mail]

Telefon: [phone]

IAN 288507

Intended use......Page 12

Scope of delivery....Page 12

Parts Description......Page 12

Technical Data Page 13

Safety Page 13

Safety Notices....Page 13

Start-up Page 14

Mounting the light....Page 14

Operation Page 14

Using the light....Page 14

Installing / replacing the illuminant......Page 14

Maintenance and Cleaning......Page 14

Disposal Page 14

Declaration of Conformity Page 15

Warranty / Service centre Page 15

Warranty Page 15

Service address......Page 15

Warranty card....Page 16

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
	Safety instructionsInstructions for use		Accident hazard and risk of fatal injury for infants and children!
	This light is only suitable for indoor use in dry and enclosed spaces.		Warning! Risk of electric shock!
	Volt (AC) Warning - Hot surfaces!
	Hertz (mains frequency) Not dimmable.
	Watt (effective power)		Dispose of the packaging and the product in an environmentally friendly manner!
	Safety class II

LED Floor Lamp

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to

carefully read all the instructions for use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or the service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.

- Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 Lamp shade
3 Lamp feet
1 LED lamps
1 Socket incl. mains cable
1 Mounting material (3 cap nuts, 3 washers, 1 spanner)
1 Instructions for use incl. warranty card

PartsDescription

Socket ring

Lamp shade

Socket

Mains cable with ON / OFF foot switch

Lamp base

Cap nut with washer

Spanner

Illuminant

●TechnicalData

Item number: 54668/54669

Operating voltage: 220-240V\~50/60Hz

Illuminant: LED, E27, 6.5 W

Rated power max.: 60 W

Protection class: II/

Dimensions: Height max. approx. 140 cm, ∅ approx. 46 cm

Distributor:

EDI Light GmbH, Heiligkreuz 22, A-6136 Pill, www.edi-light.com

●Safety

Safety Notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

WARNING! RISK OF ACCIDENT AND DANGER TO LIFE FOR INFANTS AND CHIL-

DREN! This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user

maintenance must not be performed by children without supervision.

Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the light if any defects have been identified.
■ Always check the lamp and the mains cable with the plug for any damage before connecting it to the mains.
- Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply!
To prevent hazards, if the external flexible lead on this lamp is damaged it must be replaced by the manufacturer, its service representative or an equally qualified professional!
Before use, verify the available mains voltage matches the voltage required for operating the light (220-240V\~, 50/60Hz).

Preventing fire and injury hazards

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Ensure the light has been switched off and

has cooled down before touching it to avoid burns. Lamps become very hot.

- Check each bulb for damage immediately after unpacking.

• Replace defective bulbs with new ones immediately. Before replacing the bulb always remove the mains plug from the socket.
• Allow the lamp to cool for at least 15 minutes before replacing a defective bulb.
  Do not cover the lamp with objects. Fire can result from excessive heat development.
  ■ Position the lamp so it is protected from moisture and dirt.
  ■ Never leave the light unattended whilst in operation. Excessive heat can result in a fire.
  ■ The LED light is not dimmable.

Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).

- Start-up

- Mounting the light

☐ Remove the packaging materials.
☐ Assemble the light per the illustration.

Your light is now ready to use.

Operation

Using the light

□ Completely unwrap the power cord 4.
☐ Insert the mains plug into the socket.
☐ Switch the light on and off using the ON / OFF foot switch.

• Installing / replacing the illuminant

WARNING! RISK OF ELECTRIC SHOCK! Unplug from the mains.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

☐ Only replace the illuminant when completely cooled down.
☐ Use a clean, lint-free cloth when replacing the bulb.
☐ If necessary, unscrew the illuminant from the socket counter-clockwise 3. Only use the illuminants specified in chapter "Technical Data".
☐ Carefully screw the new illuminant clockwise into the socket 3.
□ Verify it is seated correctly.
☐ Plug the mains plug into the socket again.

● Maintenance and Cleaning

WARNING! RISK OF ELECTRIC SHOCK! Remove the mains plug from the socket before you clean the lamp.

WARNING! RISK OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with harsh deter-

gents and never immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the lamp.
  ☐ Only use a dry, lint-free cloth for cleaning.

●Disposal

The packaging is made of entirely recyclable materials, which you may dispose of at local recycling facilities. Contact your local community or municipal administration for more details on how to dispose of your worn-out product.

The symbol of the wheelie bin with a line through it means that the product has to be disposed of in a separate refuse

collection within the European Union. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them to be recycled at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

● Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / Service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified. The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be

ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

Serviceaddress

Great Britain / Ireland

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton NN3 6UR

T: [phone]

E: [e-mail]

IAN 288507

Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone:

Item number/Description:

Purchase date/Point of purchase:

Description of the defect:

Date/Signature:

Non-warranty cases:

☐ Please return the unrepaired item, carriage paid. ☐ Please provide pricing. Repair the product against charge.

(Edf. Best Point) 2° - 16A

San Fernando de Henares

ES-28830 MADRID, ESPAÑA

T: [phone]

E: [e-mail]

IAN 288507
